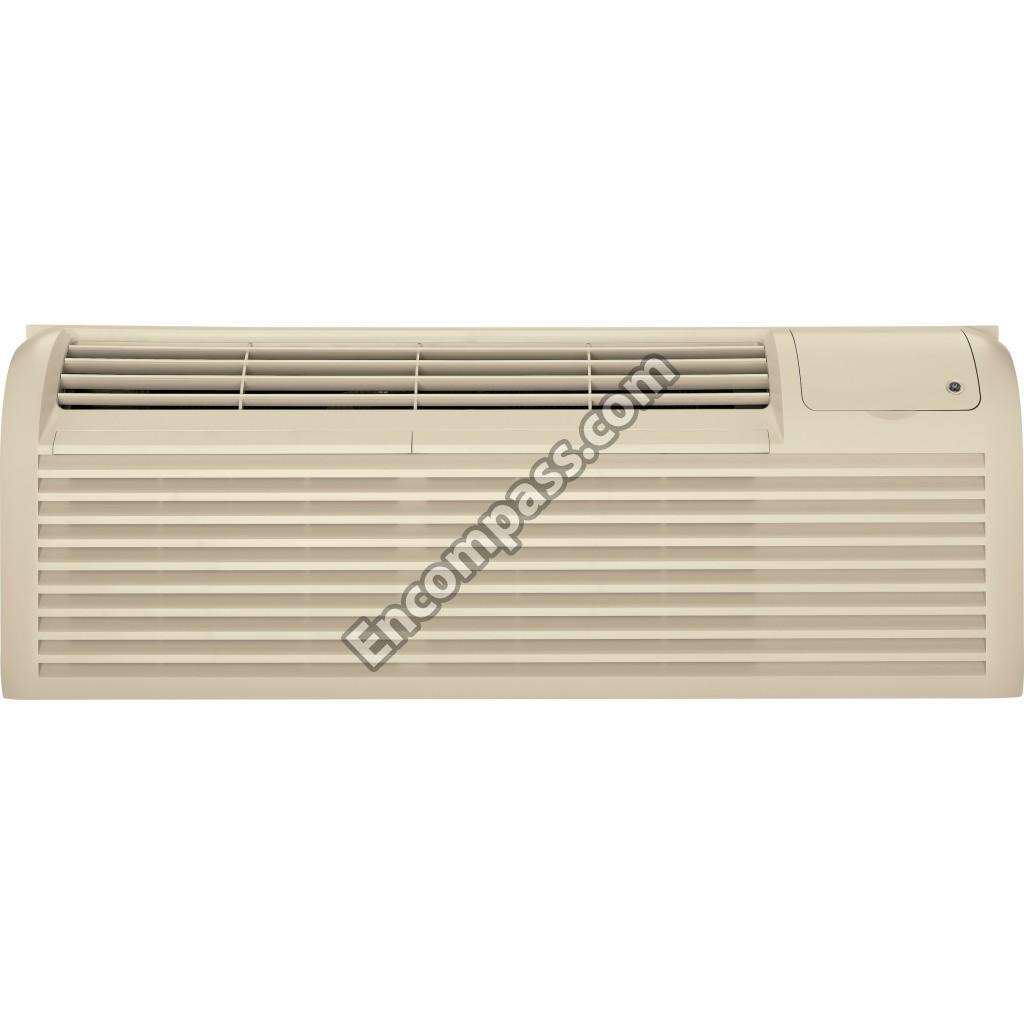

Model Image
Manufacturer

GE

Model Number

AZ61H15EADM3

Description

Room Air Conditioner Built In

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP65X10014 WP65X10014 BACK PLATE L
WP76X10006 WP76X10006 BEARING ASSEMBLY
WP03X10015 WP03X10015 BEARING HOLDER
WP65X10013 WP65X10013 BRACE
WP76X10041 WP76X10041 BULKHEAD K
WP03X10013 WP03X10013 CAB. ANGLE LH
WP03X10012 WP03X10012 CAB. ANGLE RH
WP03X10031 WP03X10031 CAPACITOR CLAMP
WP56X10024 WP56X10024 CAPILLARY TUBE
WP56X10023 WP56X10023 CAPILLARY TUBE
WP56X10022 WP56X10022 CAPILLARY TUBE
WP56X10021 WP56X10021 CAPILLARY TUBE
WP56X10020 WP56X10020 CAPILLARY TUBE
WP58X10002 WP58X10002 CHECK VALVE
WP73X10013 WP73X10013 CLOSS FAN
WP28X10020 WP28X10020 COIL
WP27X10071 WP27X10071 COMP. WIRING
WP98X10038 WP98X10038 COMPRESSOR
WJ01X10046 WJ01X10046 COMPRESSOR CUSHION N
WP88X10090 WP88X10090 CONDENSER ASSEMBLY
WJ79X10134 WJ79X10134 CONDENSER PLATE
WP76X10033 WP76X10033 CONDENSER SHROUD
WP03X10026 WP03X10026 CONNECTOR
WP07X10013 WP07X10013 CONTROL BASE ASSEMBLY
WP71X10033 WP71X10033 CONTROL COVER
WP07X10008 WP07X10008 CONTROL SHEET
WP01X10038 WP01X10038 COVER
WP01X10037 WP01X10037 COVER
WP01X10039 WP01X10039 COVER RUBBER B
WP66X10007 WP66X10007 DAMPER ASSEMBLY
WP70X10031 WP70X10031 DAMPER LEVER
WP01X10058 WP01X10058 DAMPER LEVER COVER
WJ70X10026 WJ70X10026 DAMPER RUBBER
WP94X20645 WP94X20645 DC FAN MOTOR
WP94X10306 WP94X10306 DC IN FAN MOTOR
WP66X10008 WP66X10008 DC IN MOTOR ANGLE
WP89X10023 WP89X10023 DRAIN TRAY
WJ58X10043 WJ58X10043 DRAINING VALVE
WJ05X10018 WJ05X10018 DRIBBLER L
WJ05X10019 WJ05X10019 DRIBBLER R
WJ05X10017 WJ05X10017 DRIBBLER S
WP29X10012 WP29X10012 DRIVE PWB
WP87X21181 WP87X21181 EVAPORATOR ASM
WP73X10002 WP73X10002 FAN
WP03X10019 WP03X10019 FAN HOUSING COVER L
WP03X10020 WP03X10020 FAN HOUSING COVER R
WP71X10030 WP71X10030 FRONT PANEL
WP23X10003 WP23X10003 FUSE
WP23X10031 WP23X10031 FUSE
WP23X10027 WP23X10027 FUSE
WP23X10026 WP23X10026 FUSE
WJ01X10003 WJ01X10003 GASKET WAS HER
WJ07X10246 WJ07X10246 GE BADGE
WP70X20721 WP70X20721 HEATER ASSEMBLY
WP03X10016 WP03X10016 HOLDER
WP03X10017 WP03X10017 HOLDER ANG L TOP
WP56X10012 WP56X10012 LEAD TUBE
WP56X10011 WP56X10011 LEAD TUBE
WJ27X10001 WJ27X10001 LEAD WIRE
WJ37X10001 WJ37X10001 LEAD WIRE
WP71X10031 WP71X10031 LOUVER
WP71X10032 WP71X10032 LOUVER ASM
WP71X10012 WP71X10012 LOUVER ASSEMBLY
WP01X10001 WP01X10001 MAGNET
WP01X10002 WP01X10002 MAGNET SEA L
WP26X21169 WP26X21169 MAIN BOARD ASSEMBLY
WJ05X10016 WJ05X10016 O RING L
WJ05X10015 WJ05X10015 O RING S
WP66X10009 WP66X10009 OUT DOOR MOTOR ANGLE
WP23X10035 WP23X10035 OVERLOAD PROTECTOR
WP76X10009 WP76X10009 P FAN HOUSING
WP76X10032 WP76X10032 P. FAN HOUSING
WP71X10029 WP71X10029 PANEL
31-61687 31-61687 PM MINI MANUAL
WJ73X10047 WJ73X10047 PROPELLER FAN
WJ02X10001 WJ02X10001 PROTECTO R SPRING
WP27X10067 WP27X10067 PROTECTOR
WP01X10059 WP01X10059 PROTECTOR COVER
WP03X10030 WP03X10030 PROTECTOR HOLDER
WP79X10005 WP79X10005 PUMP COVER B
WJ40X10008 WJ40X10008 PUMP INSULATOR
WP94X10221 WP94X10221 PUMP MOTOR
WP02X10003 WP02X10003 PUSH NUT
WP58X10006 WP58X10006 REVERSE VALVE
WP03X10002 WP03X10002 RUBBER CLAMP
WP01X10005 WP01X10005 RUBBER WASHER
WP20X10023 WP20X10023 RUNNING CAPACITOR
WP03X10023 WP03X10023 SPACER
WP03X10022 WP03X10022 SPACER
WP01X10015 WP01X10015 SPECIAL NUT
WJ01X10283 WJ01X10283 SPECIAL NUT
WJ01X10392 WJ01X10392 SPECIAL SCREW
WP01X10024 WP01X10024 SPECIAL SCREW
WP01X10021 WP01X10021 SPECIAL SCREW
WP02X10001 WP02X10001 SPRING
WJ01X10031 WJ01X10031 STUD BOLT
WP01X10036 WP01X10036 SUPPORTER
WP01X10026 WP01X10026 TAP TIGHT SCREW
WP29X10014 WP29X10014 TERMINAL BOARD
WP03X10021 WP03X10021 TERMINAL BOX COVER
WJ79X10013 WJ79X10013 TERMINAL COVER
WJ43X10003 WJ43X10003 TERMINAL GASKET
WP27X10065 WP27X10065 THERMISTOR
WJ03X10011 WJ03X10011 THERMISTOR HOLDER
WP01X10007 WP01X10007 THERMO CUSHION
WP27X10069 WP27X10069 TRANSFORMER
WP26X10093X WP26X10093X TRIAC PWB ASSEMBLY
WP27X10066 WP27X10066 TSTAT
WP56X10013 WP56X10013 TUBE
49-7612-2 49-7612-2 USE & CARE
WP28X10021 WP28X10021 VARISTOR
WP03X10029 WP03X10029 WIRE HOLDER
WP56X10004 WP56X10004 WIRE NETTING 61
WP85X10008 WP85X10008 ZONELINE AIR FILTER
