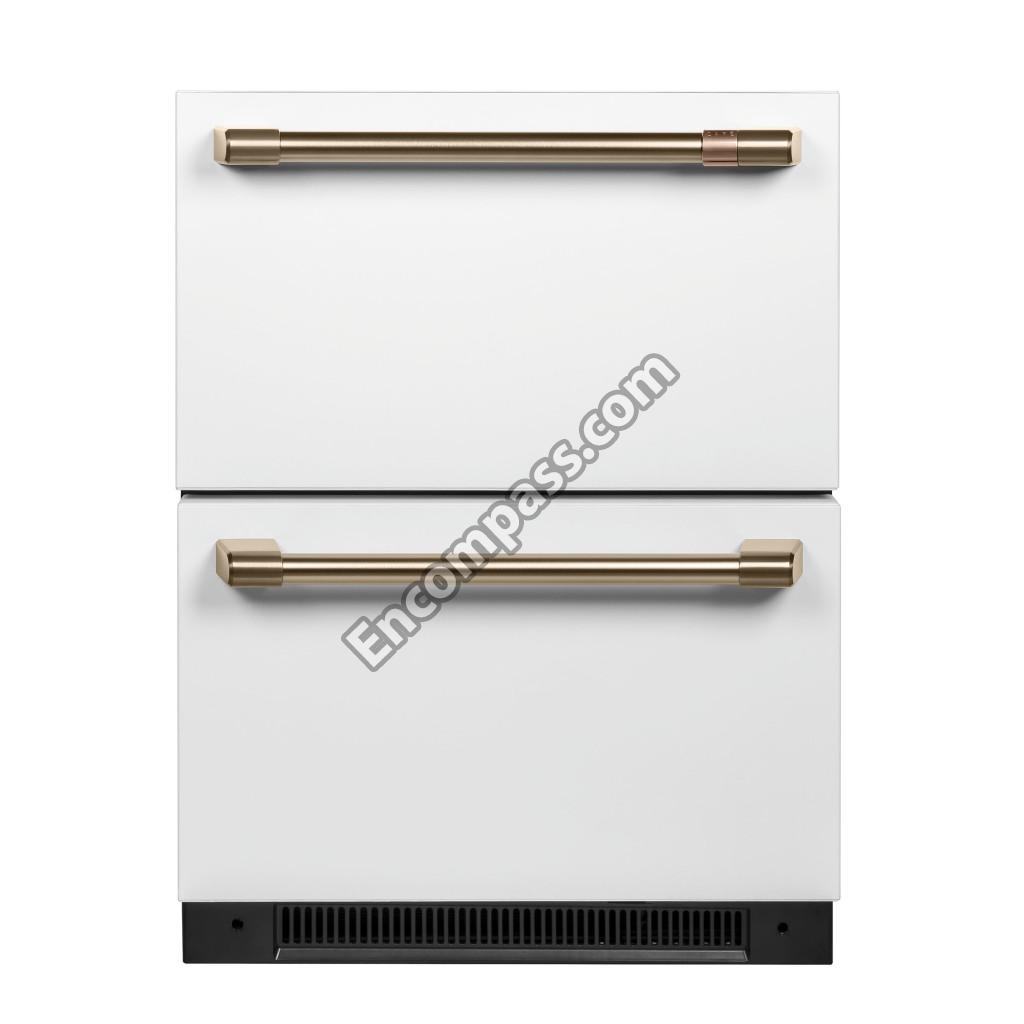

Model Image
Manufacturer

GE

Model Number

CDE06RP4NCW2

Description

Undercounter Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WR01X28280 WR01X28280 0070204262B
WR97X31237 WR97X31237 2MM X 2MM LOKRING AL
WR97X10030 WR97X10030 5MM X 5MM LOKRING
WR97X10032 WR97X10032 6MM X 2MM LOKRING
WR97X10034 WR97X10034 6MM X 5MM LOKRING
WR97X10031 WR97X10031 6MM X 6MM LOKRING
WR97X10036 WR97X10036 8MM X 6MM LOKRING
WR49X32008 WR49X32008 ANTI-TIP BRACKET AND SCREW KIT
WR12X32172 WR12X32172 BLACK REFRIGERATOR H AND LE
WJ65X10130 WJ65X10130 BRACKET - FIXING
WD09X25858 WD09X25858 BRUSHED BLACK DISHWASHER H AND LE
WR12X31631 WR12X31631 BRUSHED BRONZE FRESH FOOD H AND LE
WD09X25420 WD09X25420 BRUSHED BRONZE HANDLE W/CAFE B AND
WD09X25819 WD09X25819 BRUSHED COPPER DISHWASHER H AND LE
WR12X32179 WR12X32179 BRUSHED COPPER H AND LE
WD09X24952 WD09X24952 BRUSHED STAINLESS STEEL DISHWASHER HNDLE
WR12X31051 WR12X31051 BRUSHED STAINLESS STEEL H AND LE
WR01X28259 WR01X28259 CABLE CLAMP
WR55X28274 WR55X28274 CABLE-POWER
WR2X4039 WR2X4039 CLAMP
WR87X32025 WR87X32025 COMPRESSOR
WR87X33865 WR87X33865 COMPRESSOR ELECTRICALS
WR87X30062 WR87X30062 CONDENSER
WR60X30052 WR60X30052 CONDENSER FAN
WR14X30059 WR14X30059 CONDENSER FAN BRACKET
WR87X30055 WR87X30055 CONDENSER JUMPER
WR71X28269 WR71X28269 CRISPER PAN
WR55X32027 WR55X32027 DISPLAY BOARD
WR13X33806 WR13X33806 DISPLAY BOARD COVER
WR13X28266 WR13X28266 DISPLAY CONTROL COVER
WR14X28256 WR14X28256 DIVIDER BOARD
WR14X30060 WR14X30060 DRAIN TRAY
WR87X30875 WR87X30875 DRIER FILTER
WR87X30054 WR87X30054 EVAPORATOR
WR01X30053 WR01X30053 EVAPORATOR SUPPORT
WR55X30056 WR55X30056 HARNESS
WR55X28260 WR55X28260 LED LIGHT
WR01X28258 WR01X28258 LED LIGHT CLIP
WR01X28279 WR01X28279 LEVELING LEG
WR71X28271 WR71X28271 LOWER CRISPER COVER
WR78X31728 WR78X31728 LOWER DOOR MATTE WHITE
WR71X28282 WR71X28282 LOWER DRAWER
WR78X41745 WR78X41745 LOWER DRAWER - MATTE WHITE
WR01X28254 WR01X28254 LOWER PARTITION LOCALIZER
WR55X32026 WR55X32026 MAIN CONTROL BOARD
WR01X28278 WR01X28278 PARTITION STEEL WIRE
31-1000153 31-1000153 PM MINI MANUAL AND WIRING
49-1000129 49-1000129 PM OWNERS AND INSTALL
WR55X33805 WR55X33805 POWER CORD
WR87X30876 WR87X30876 R600 PROCESS VALVE W/ RED CAP
WR98X50 WR98X50 R600A CHARGE CAN 50 GRAMS
WR14X28270 WR14X28270 REAR ACESS COVER
WR01X30110 WR01X30110 REED SWITCH AND MAGNET
WR13X28262 WR13X28262 REFRIGERATOR BULB COVER
WR14X28251 WR14X28251 REFRIGERATOR CONTROL BOX
WR01X11007 WR01X11007 REFRIGERATOR DOOR HANDLE FASTENER
WR72X28250 WR72X28250 REFRIGERATOR SLIDE FRAME - 2 RAILS
WR01X33808 WR01X33808 SCREW
WR01X28275 WR01X28275 SENSOR CLAMP
WR01X28268 WR01X28268 SEPARATED STEEL-THREAD
WR01X28265 WR01X28265 STEEL ROLLER WIRE
WR87X30051 WR87X30051 SUCTION TUBE
WR55X28281 WR55X28281 THERMISTOR
WR74X28252 WR74X28252 TOE KICK
WR01X28277 WR01X28277 TOE KICK BRACKET
WR01X28248 WR01X28248 TOP SCREW HOLE COVER
WR14X28276 WR14X28276 UNDERCOUNTER - DOOR GASKET BLACK
WR71X28246 WR71X28246 UPPER CRISPER COVER
WR78X34087 WR78X34087 UPPER DOOR MATTE WHITE
WR78X31727 WR78X31727 UPPER DOOR MATTE WHITE
WR71X28249 WR71X28249 UPPER DRAWER
WR13X28264 WR13X28264 UPPER PARITION SLIDE COVER
WR01X28257 WR01X28257 UPPER PARTITION FIXTURE
WR01X28273 WR01X28273 UPPER PARTITION SLIDE GROOVE
WR01X28267 WR01X28267 UPPER PARTITION SLIDE SEAT
WR01X28255 WR01X28255 UPPER PARTITION SPRING
