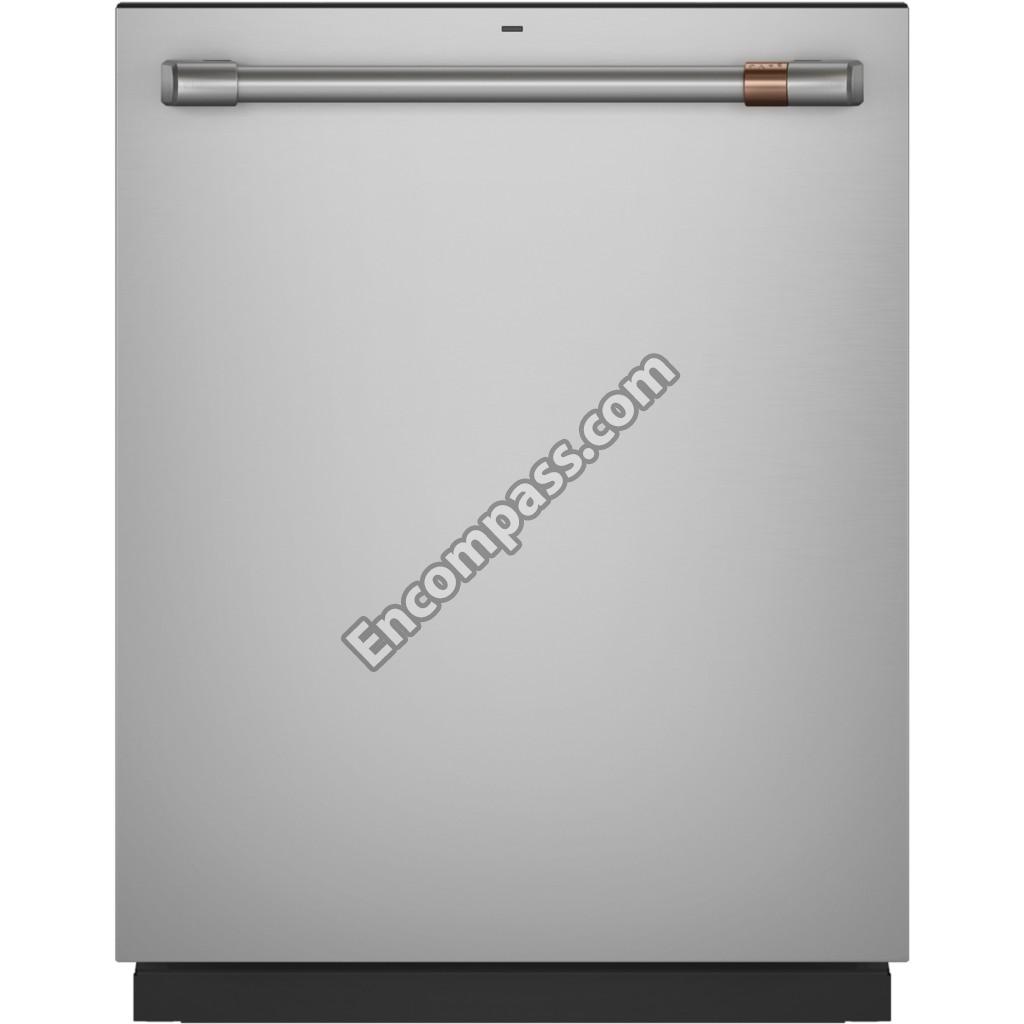

Model Number

CDT800P2N4S1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part WZ5X158D
GE
WZ5X158D
"SCREW 8-32 D HXW 3/8 S, 13.4"
Checking…
View Product
Part WD21X27402
GE
WD21X27402
AC HARNESS ASM
Checking…
View Product
Part WD14X23739
GE
WD14X23739
ARM HINGE ASM LH
Checking…
View Product
Part WD14X23738
GE
WD14X23738
ARM HINGE ASM RH
Checking…
View Product
Part WD22X33499
GE
WD22X33499
ARM SPRAY LOWER ASM
Checking…
View Product
Part WD01X34879
GE
WD01X34879
ATTACH STRIP
Checking…
View Product
Part WD01X22836
GE
WD01X22836
ATTACH STRIP RH
Checking…
View Product
Part WD13X22837
GE
WD13X22837
ATTACHMENT STRIP TOP
Checking…
View Product
Part WD12X10408
GE
WD12X10408
BALL FILTER - ORANGE
Checking…
View Product
Part WD09X25858
GE
WD09X25858
BLACK DISHWASHER HANDLE
Checking…
View Product
Part WD01X10585
GE
WD01X10585
BLOCK FOAM DOOR
Checking…
View Product
Part WD22X25861
GE
WD22X25861
BOTTLE BLASTER ASM
Checking…
View Product
Part WD12X25301
GE
WD12X25301
BOTTLE WASHER CLIP
Checking…
View Product
Part WD01X23777
GE
WD01X23777
BRACKET CABLE LH
Checking…
View Product
Part WD01X23776
GE
WD01X23776
BRACKET CABLE RH
Checking…
View Product
Part WD01X21740
GE
WD01X21740
BRACKET COUNTERTOP
Checking…
View Product
Part WD09X25420
GE
WD09X25420
BRONZE DISHWASHER HANDLE
Checking…
View Product
Part WD09X32081
GE
WD09X32081
BRUSHED BRASS DOOR HANDLE W/ CAF BAND
Checking…
View Product
Part WD49X30778
GE
WD49X30778
CABLE ASM PULLEY
Checking…
View Product
Part WD01X25563
GE
WD01X25563
CAMERA LENS AND ADHESIVE ASM
Checking…
View Product
Part WD01X27538
GE
WD01X27538
CLAMP
Checking…
View Product
Part WD01X24246
GE
WD01X24246
CLAMP
Checking…
View Product
Part WD01X22786
GE
WD01X22786
CLAMP HOSE
Checking…
View Product
Part WD12X10430
GE
WD12X10430
CLIP BRACKET
Checking…
View Product
Part WD12X20171
GE
WD12X20171
CLIP LOWER RACK
Checking…
View Product
Part WD28X25804
GE
WD28X25804
COMPLETE UPPER RACK ASM
Checking…
View Product
Part WD12X34182
GE
WD12X34182
CONDUIT MID BLASTER ASM
Checking…
View Product
Part WD21X31379
GE
WD21X31379
CONFIGURED CAFE UI CONTROL WITH COVER
Checking…
View Product
Part WD21X30998
GE
WD21X30998
CONFIGURED MACHINE CONTROL BOARD
Checking…
View Product
Part WD21X25696
GE
WD21X25696
CONTROL BOARD FUSE 4.1 AMP
Checking…
View Product
Part WD30X24239
GE
WD30X24239
CONTROL BOX BOTTOM
Checking…
View Product
Part WD27X32298
GE
WD27X32298
CONTROL BOX TOP
Checking…
View Product
Part WD09X25819
GE
WD09X25819
COPPER DISHWASHER HANDLE
Checking…
View Product
Part WD24X20263
GE
WD24X20263
COVER BOTTLE BLASTER
Checking…
View Product
Part WD12X10412
GE
WD12X10412
COVER JUNCTION BOX
Checking…
View Product
Part WD24X20586
GE
WD24X20586
COVER VENT
Checking…
View Product
Part WD35X10383
GE
WD35X10383
CT SCREW ASM
Checking…
View Product
Part WD21X26860
GE
WD21X26860
DC HARNESS ASM
Checking…
View Product
Part WD12X32798
GE
WD12X32798
DETERGENT MODULE
Checking…
View Product
Part WD19X25466
GE
WD19X25466
DIVERTER ASM
Checking…
View Product
Part WD12X35640
GE
WD12X35640
DOCKING PORT SS
Checking…
View Product
Part WD21X25474
GE
WD21X25474
DOOR HARNESS ASM
Checking…
View Product
Part WD31X29644
GE
WD31X29644
DOOR INNER SS
Checking…
View Product
Part WD21X10490
GE
WD21X10490
DOOR LATCH TUB SIDE STANDARD
Checking…
View Product
Part WD01X26419
GE
WD01X26419
DOOR TRIM LH
Checking…
View Product
Part WD01X26418
GE
WD01X26418
DOOR TRIM RH
Checking…
View Product
Part WD08X10092
GE
WD08X10092
DOOR VENT SEAL
Checking…
View Product
Part WD19X25461
GE
WD19X25461
DRAIN PUMP ASM
Checking…
View Product
Part WD24X10062
GE
WD24X10062
DRAIN TUBE ASM
Checking…
View Product
Part WD24X33918
GE
WD24X33918
ELBOW HOSE AND CLAMPS KIT
Checking…
View Product
Part WD12X10426
GE
WD12X10426
END CAP
Checking…
View Product
Part WD30X29858
GE
WD30X29858
END CAP AND RACK SLIDE LH
Checking…
View Product
Part WD30X29859
GE
WD30X29859
END CAP AND RACK SLIDE RH
Checking…
View Product
Part WD24X25325
GE
WD24X25325
FAN VENT ASM
Checking…
View Product
Part WR01X11007
GE
WR01X11007
FASTENER DOOR HANDLE
Checking…
View Product
Part WD28X20194
GE
WD28X20194
FDT ASM UPPER COATED
Checking…
View Product
Part WD28X20193
GE
WD28X20193
FDT ASM UPPER COATED
Checking…
View Product
Part WD28X20311
GE
WD28X20311
FDT CLIP FLAT RACK
Checking…
View Product
Part WD28X20310
GE
WD28X20310
FDT CLIP FLAT RACK
Checking…
View Product
Part WD28X20165
GE
WD28X20165
FDT COATED LOWER RACK
Checking…
View Product
Part WD28X20164
GE
WD28X20164
FDT COATED LOWER RACK
Checking…
View Product
Part WD12X25080
GE
WD12X25080
FILL FUNNEL CAP
Checking…
View Product
Part WD24X27660
GE
WD24X27660
FILL FUNNEL HOSE
Checking…
View Product
Part WD09X32080
GE
WD09X32080
FLAT BLACK DOOR HANDLE W/ CAF BAND
Checking…
View Product
Part WD08X27458
GE
WD08X27458
FLOATING SEAL ASM
Checking…
View Product
Part WD01X20593
GE
WD01X20593
FRICTION WASHER
Checking…
View Product
Part WD49X25081
GE
WD49X25081
FUNNEL AND GASKET ASM
Checking…
View Product
Part WD08X22095
GE
WD08X22095
GASKET TUB SS
Checking…
View Product
Part WD01X25862
GE
WD01X25862
HANDLE BRACKET
Checking…
View Product
Part WD05X35098
GE
WD05X35098
HEATING ELEMENT
Checking…
View Product
Part WD24X29378
GE
WD24X29378
HIGH LOOP DRAIN HOSE
Checking…
View Product
Part WD24X20262
GE
WD24X20262
HOSE BOTTLE BLASTER
Checking…
View Product
Part WD22X20688
GE
WD22X20688
HUB
Checking…
View Product
Part WD22X20689
GE
WD22X20689
IMPELLER
Checking…
View Product
Part WD28X20166
GE
WD28X20166
INDEXER
Checking…
View Product
Part 165D9739P056
GE
165D9739P056
INSERT MINI MANUAL
Checking…
View Product
Part WD30X28658
GE
WD30X28658
INSULATION TUB
Checking…
View Product
Part WD21X26318
GE
WD21X26318
JUMPER HARNESS
Checking…
View Product
Part WD12X25060
GE
WD12X25060
JUNCTION BOX BRACKET
Checking…
View Product
Part WD28X20153
GE
WD28X20153
LID BASKET MIDDLE
Checking…
View Product
Part WD28X20156
GE
WD28X20156
LID BASKET SIDE
Checking…
View Product
Part WD02X25303
GE
WD02X25303
LOCK NUT 5/16-18 HX 1/2 S
Checking…
View Product
Part WD12X35639
GE
WD12X35639
MAIN CONDUIT
Checking…
View Product
Part WD22X33498
GE
WD22X33498
MID SPRAY ARM ASM
Checking…
View Product
Part WD01X10070
GE
WD01X10070
NUT TOWER HEATER
Checking…
View Product
Part WD22X25465
GE
WD22X25465
PLASTIC COURSE FILTER
Checking…
View Product
Part WD12X10462
GE
WD12X10462
PLATE DETERGENT
Checking…
View Product
Part 31-4000216
GE
31-4000216
PM INSTALL INSTRUCTIONS
Checking…
View Product
Part 31-4000234
GE
31-4000234
PM MINI MANUAL AND WIRING
Checking…
View Product
Part 49-4000252
GE
49-4000252
PM OWNERS MANUAL
Checking…
View Product
Part 49-4000041
GE
49-4000041
PM QUICK OWNERS MANUAL
Checking…
View Product
Part WD21X25468
GE
WD21X25468
PRESSURE SENSOR ASM
Checking…
View Product
Part WD16X21836
GE
WD16X21836
PULLEY HINGE
Checking…
View Product
Part WD02X28798
GE
WD02X28798
PUMP ISOLATOR HANGER
Checking…
View Product
Part WD12X22801
GE
WD12X22801
RACK BRACKET - 3 WHEELS
Checking…
View Product
Part WD28X30221
GE
WD28X30221
RACK LOWER ASM COATED
Checking…
View Product
Part WD28X34743
GE
WD28X34743
RACK LOWER ASM COATED
Checking…
View Product
Part WD12X27578
GE
WD12X27578
RACK ROLLER
Checking…
View Product
Part WD12X26146
GE
WD12X26146
ROLLER
Checking…
View Product
Part WD01X35298
GE
WD01X35298
ROLLER CARRIER
Checking…
View Product
Part WD02X10220
GE
WD02X10220
SCR 10-32 GX HXW 3/8
Checking…
View Product
Part WD01X22514
GE
WD01X22514
SCR 10-32 GX IHXW 9/16 S
Checking…
View Product
Part WD01X21837
GE
WD01X21837
SCR 10-32 TT CB 1/4 ZN
Checking…
View Product
Part WB02T10324
GE
WB02T10324
SCR 6-20 GXB IHXW 3/8 NI
Checking…
View Product
Part WR01X10380
GE
WR01X10380
SCR 8-18 AB TSQ 5/8 SS
Checking…
View Product
Part WD02X10067
GE
WD02X10067
SCREW 8-16 HXW 1/2 SS
Checking…
View Product
Part WD02X10160
GE
WD02X10160
SCREW 8-18 B HXW 480 S
Checking…
View Product
Part WD02X31882
GE
WD02X31882
SCREW LEVELING
Checking…
View Product
Part WD02X22628
GE
WD02X22628
SCREW T15 8-16 PLASTITE
Checking…
View Product
Part WD21X22830
GE
WD21X22830
SENSOR TURBIDITY ASM
Checking…
View Product
Part WD28X22867
GE
WD28X22867
SILVERWARE BASKET ASM
Checking…
View Product
Part WD01X23558
GE
WD01X23558
SPACER TUB FRONT
Checking…
View Product
Part WD01X10104
GE
WD01X10104
SPRING CLAMP
Checking…
View Product
Part WD03X20316
GE
WD03X20316
SPRING DOOR
Checking…
View Product
Part WD09X24952
GE
WD09X24952
STAINLESS DISHWASHER HANDLE
Checking…
View Product
Part WD34X25309
GE
WD34X25309
STAINLESS STEEL CAF OUTER DOOR ASM
Checking…
View Product
Part WD13X10071
GE
WD13X10071
STRIKER DOOR LATCH
Checking…
View Product
Part WD01X28338
GE
WD01X28338
SUMP DOOR LATCH
Checking…
View Product
Part WD19X28199
GE
WD19X28199
SUMP OVERMOLD AND GASKET
Checking…
View Product
Part WD27X34579
GE
WD27X34579
TOE KICK PAINTED ASM
Checking…
View Product
Part WD12X23557
GE
WD12X23557
TRANSITION PIECE ASM
Checking…
View Product
Part WD01X31618
GE
WD01X31618
TRIM TUB
Checking…
View Product
Part WD22X25463
GE
WD22X25463
USER CLEANABLE FINE FILTER
Checking…
View Product
Part WD12X20218
GE
WD12X20218
VENT CONDUIT ASM
Checking…
View Product
Part WD19X25700
GE
WD19X25700
WASH PUMP MAIN ASM
Checking…
View Product
Part WD15X26078
GE
WD15X26078
WATER VALVE ASM
Checking…
View Product
    Main Menu x
