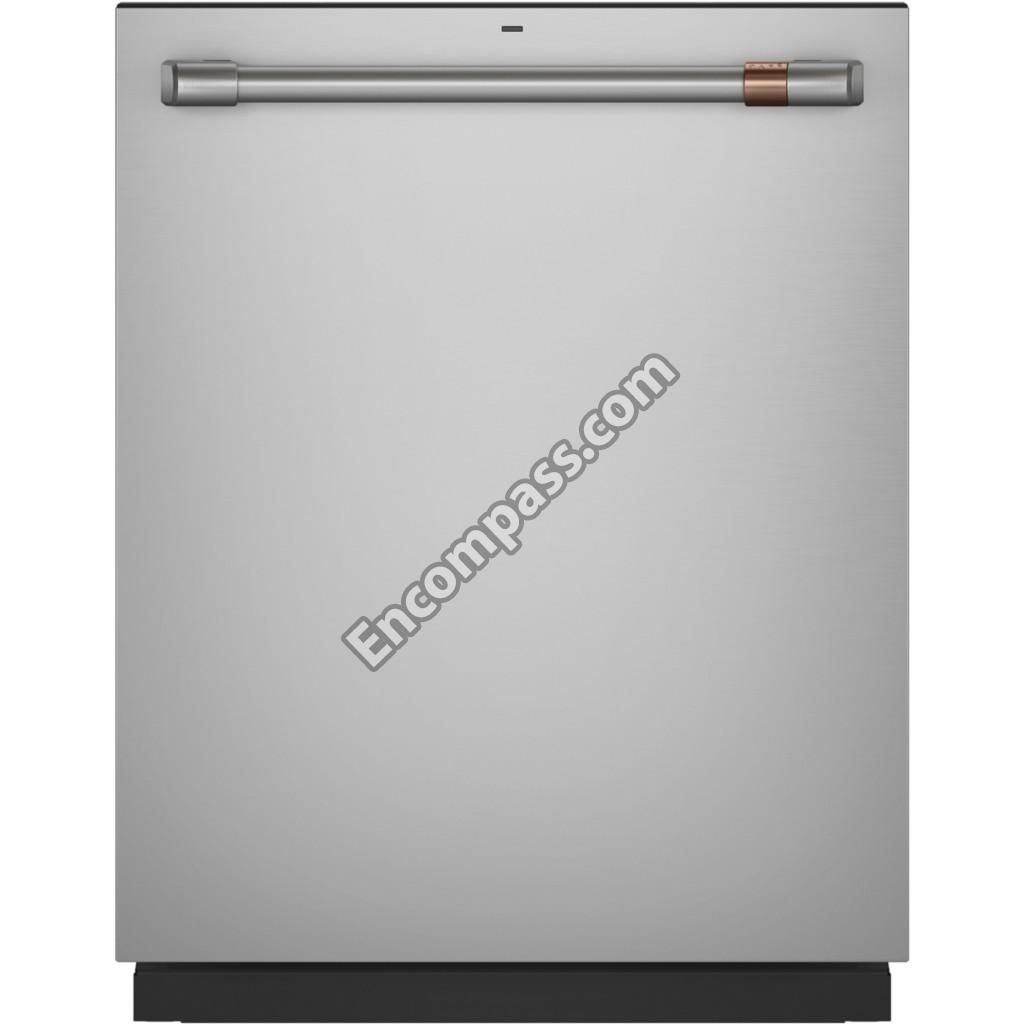

Model Number

CDT805P2N0S1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part WD02X10220
GE
WD02X10220
3/8-INCH HEX HEAD SCREW 10-32
Checking…
View Product
Part WD18X22865
GE
WD18X22865
ADAPTER CONDUIT
Checking…
View Product
Part WD12X10419
GE
WD12X10419
ADAPTOR FILTER
Checking…
View Product
Part WD14X23739
GE
WD14X23739
ARM HINGE ASSEMBLY LH
Checking…
View Product
Part WD14X23738
GE
WD14X23738
ARM HINGE ASSEMBLY RH
Checking…
View Product
Part WD01X23983
GE
WD01X23983
BAG INSULATION ASSEMBLY
Checking…
View Product
Part WD01X10585
GE
WD01X10585
BLOCK FOAM DOOR
Checking…
View Product
Part WD22X25861
GE
WD22X25861
BOTTLE BLASTER ASSEMBLY
Checking…
View Product
Part WD22X25300
GE
WD22X25300
BOTTLE BLASTER ASSEMBLY
Checking…
View Product
Part WD12X25301
GE
WD12X25301
BOTTLE WASHER CLIP
Checking…
View Product
Part WD30X22340
GE
WD30X22340
BRACE TUB MOUNT
Checking…
View Product
Part WD12X20109
GE
WD12X20109
BRACKET ASSEMBLY UPPER RACK
Checking…
View Product
Part WD12X20108
GE
WD12X20108
BRACKET ASSEMBLY UPPER RACK
Checking…
View Product
Part WD12X20113
GE
WD12X20113
BRACKET FIXED
Checking…
View Product
Part WD12X20112
GE
WD12X20112
BRACKET FIXED
Checking…
View Product
Part WD09X25858
GE
WD09X25858
BRUSHED BLACK DISHWASHER H AND LE
Checking…
View Product
Part WD09X32081
GE
WD09X32081
BRUSHED BRASS DOOR HANDLE W/ CAF BAND
Checking…
View Product
Part WD09X25420
GE
WD09X25420
BRUSHED BRONZE HANDLE W/CAFE B AND
Checking…
View Product
Part WD09X25819
GE
WD09X25819
BRUSHED COPPER DISHWASHER H AND LE
Checking…
View Product
Part WD09X24952
GE
WD09X24952
BRUSHED STAINLESS STEEL DISHWASHER HNDLE
Checking…
View Product
Part WD49X30778
GE
WD49X30778
CABLE ASM PULLEY
Checking…
View Product
Part WD09X25338
GE
WD09X25338
CAFI RACK H AND LE
Checking…
View Product
Part WD01X35298
GE
WD01X35298
CARRIER ROLLER
Checking…
View Product
Part WD35X10382
GE
WD35X10382
CLAMP
Checking…
View Product
Part WD01X24246
GE
WD01X24246
CLAMP
Checking…
View Product
Part WD12X20171
GE
WD12X20171
CLIP LOWER RACK
Checking…
View Product
Part WD12X21681
GE
WD12X21681
CONDUIT MAIN
Checking…
View Product
Part WD12X34182
GE
WD12X34182
CONDUIT MID BLASTER ASSEMBLY
Checking…
View Product
Part WD21X25386
GE
WD21X25386
CONFIGURED CAFE UI CONTROL WITH COVER
Checking…
View Product
Part WD21X25393
GE
WD21X25393
CONFIGURED MACHINE CONTROL BOARD
Checking…
View Product
Part WD21X25696
GE
WD21X25696
CONTROL BOARD FUSE 3.1A
Checking…
View Product
Part WD30X24239
GE
WD30X24239
CONTROL BOX BOTTOM
Checking…
View Product
Part WD24X20263
GE
WD24X20263
COVER BOTTLE BLASTER
Checking…
View Product
Part WD12X10412
GE
WD12X10412
COVER JUNCTION BOX
Checking…
View Product
Part WD12X32798
GE
WD12X32798
DETERGENT MODULE
Checking…
View Product
Part WD01X34879
GE
WD01X34879
DISHWASHER ATTACH STRIP - LH
Checking…
View Product
Part WD01X22836
GE
WD01X22836
DISHWASHER ATTACH STRIP - RH
Checking…
View Product
Part WD01X23777
GE
WD01X23777
DISHWASHER BRACKET CABLE - LEFT
Checking…
View Product
Part WD01X23776
GE
WD01X23776
DISHWASHER BRACKET CABLE - RIGHT
Checking…
View Product
Part WD01X23982
GE
WD01X23982
DISHWASHER CONDUIT CLIP
Checking…
View Product
Part WD27X32298
GE
WD27X32298
DISHWASHER CONTROL BOX TOP
Checking…
View Product
Part WD01X21740
GE
WD01X21740
DISHWASHER COUNTERTOP BRACKET
Checking…
View Product
Part WD35X10383
GE
WD35X10383
DISHWASHER COUNTERTOP SCREW AND BUTTONPLUG
Checking…
View Product
Part WD12X32799
GE
WD12X32799
DISHWASHER DETERGENT DISPENSER W/ SENSOR
Checking…
View Product
Part WD01X26419
GE
WD01X26419
DISHWASHER DOOR TRIM - LEFT
Checking…
View Product
Part WD24X10062
GE
WD24X10062
DISHWASHER DRAIN HOSE
Checking…
View Product
Part WD02X22342
GE
WD02X22342
DISHWASHER END CAP - REAR THIRD RACK
Checking…
View Product
Part WD21X22822
GE
WD21X22822
DISHWASHER FLOOD FLOAT
Checking…
View Product
Part WD21X22838
GE
WD21X22838
DISHWASHER FLOOD STEM
Checking…
View Product
Part WD21X23498
GE
WD21X23498
DISHWASHER FLOOD SWITCH
Checking…
View Product
Part WD01X23496
GE
WD01X23496
DISHWASHER FLOOD SWITCH HOUSING
Checking…
View Product
Part WD01X22786
GE
WD01X22786
DISHWASHER HOSE CLAMP
Checking…
View Product
Part WD30X20110
GE
WD30X20110
DISHWASHER INNER RAIL UPPER RACK ASSMBLY
Checking…
View Product
Part WD21X23559
GE
WD21X23559
DISHWASHER JUMPER HARNESS
Checking…
View Product
Part WD21X10490
GE
WD21X10490
DISHWASHER LATCH AND SWITCH ASSEMBLY
Checking…
View Product
Part WD01X10632
GE
WD01X10632
DISHWASHER LATCH CAM
Checking…
View Product
Part WD18X22842
GE
WD18X22842
DISHWASHER LEAK PAN
Checking…
View Product
Part WD28X34743
GE
WD28X34743
DISHWASHER LOWER RACK
Checking…
View Product
Part WD01X22825
GE
WD01X22825
DISHWASHER O RING
Checking…
View Product
Part WD01X10101
GE
WD01X10101
DISHWASHER PUMP GROMMET
Checking…
View Product
Part WD27X22351
GE
WD27X22351
DISHWASHER RAIL AND END CAP
Checking…
View Product
Part WD30X22347
GE
WD30X22347
DISHWASHER ROLLER AND BRACKET
Checking…
View Product
Part WD21X22830
GE
WD21X22830
DISHWASHER SENSOR
Checking…
View Product
Part WD18X22782
GE
WD18X22782
DISHWASHER SUMP MANIFOLD
Checking…
View Product
Part WD28X22348
GE
WD28X22348
DISHWASHER THIRD RACK TRAY
Checking…
View Product
Part WD27X21334
GE
WD27X21334
DISHWASHER TOE KICK INSULATION
Checking…
View Product
Part WD13X22837
GE
WD13X22837
DISHWASHER TOP STRIP ATTACHMENT
Checking…
View Product
Part WD01X23558
GE
WD01X23558
DISHWASHER TUB FRONT SPACER
Checking…
View Product
Part WD24X20586
GE
WD24X20586
DISHWASHER VENT COVER
Checking…
View Product
Part WD08X10092
GE
WD08X10092
DISHWASHER VENT DOOR SEAL
Checking…
View Product
Part WD18X23220
GE
WD18X23220
DIVERTER PASSIVE ASSEMBLY
Checking…
View Product
Part WD12X35640
GE
WD12X35640
DOCKING PORT SS
Checking…
View Product
Part WD21X25324
GE
WD21X25324
DOOR HARNESS ASSEMBLY
Checking…
View Product
Part WD31X29644
GE
WD31X29644
DOOR INNER SS
Checking…
View Product
Part WD01X26418
GE
WD01X26418
DOOR TRIM RH
Checking…
View Product
Part WD01X25218
GE
WD01X25218
DRAIN PUMP HANGER
Checking…
View Product
Part WD19X24829
GE
WD19X24829
DRAIN PUMP KIT
Checking…
View Product
Part WD24X25325
GE
WD24X25325
FAN VENT ASSEMBLY
Checking…
View Product
Part WD28X20194
GE
WD28X20194
FDT ASSEMBLY UPPER COATED
Checking…
View Product
Part WD28X20193
GE
WD28X20193
FDT ASSEMBLY UPPER COATED
Checking…
View Product
Part WD28X20311
GE
WD28X20311
FDT CLIP FLAT RACK
Checking…
View Product
Part WD28X20310
GE
WD28X20310
FDT CLIP FLAT RACK
Checking…
View Product
Part WD28X20165
GE
WD28X20165
FDT COATED LOWER RACK
Checking…
View Product
Part WD28X20164
GE
WD28X20164
FDT COATED LOWER RACK
Checking…
View Product
Part WD12X25080
GE
WD12X25080
FILL FUNNEL CAP
Checking…
View Product
Part WD22X10093
GE
WD22X10093
FILTER COARSE SS
Checking…
View Product
Part WD09X32080
GE
WD09X32080
FLAT BLACK DOOR HANDLE W/ CAF BAND
Checking…
View Product
Part WD16X23497
GE
WD16X23497
FLOOD SWITCH LEVER
Checking…
View Product
Part WD30X24457
GE
WD30X24457
FRAME WIRE COATED ASSEMBLY
Checking…
View Product
Part WD01X20593
GE
WD01X20593
FRICTION WASHER
Checking…
View Product
Part WD49X25081
GE
WD49X25081
FUNNEL AND GASKET ASM
Checking…
View Product
Part WD08X22758
GE
WD08X22758
GASKET SUMP MANIFOLD
Checking…
View Product
Part WD08X23567
GE
WD08X23567
GASKET TUB MOUNT
Checking…
View Product
Part WD08X22095
GE
WD08X22095
GASKET TUB SS
Checking…
View Product
Part WD08X23477
GE
WD08X23477
GASKET TUB SS
Checking…
View Product
Part WD01X24918
GE
WD01X24918
HANDLE BRACKET
Checking…
View Product
Part WD21X27402
GE
WD21X27402
HARNESS ASSEMBLY AC
Checking…
View Product
Part WD21X25323
GE
WD21X25323
HARNESS ASSEMBLY DC
Checking…
View Product
Part WD05X30818
GE
WD05X30818
HEATING ELEMENT
Checking…
View Product
Part WD24X29378
GE
WD24X29378
HIGH LOOP DRAIN HOSE
Checking…
View Product
Part WD24X20262
GE
WD24X20262
HOSE BOTTLE BLASTER
Checking…
View Product
Part WD24X10064
GE
WD24X10064
HOSE FILL
Checking…
View Product
Part WD22X20688
GE
WD22X20688
HUB
Checking…
View Product
Part WD12X22852
GE
WD12X22852
HUB SPRAY ARM
Checking…
View Product
Part WD22X20689
GE
WD22X20689
IMPELLER
Checking…
View Product
Part WD28X20166
GE
WD28X20166
INDEXER
Checking…
View Product
Part WD30X25140
GE
WD30X25140
INNER DOOR INSULATION
Checking…
View Product
Part WD30X35300
GE
WD30X35300
INSULATION TUB
Checking…
View Product
Part WD12X25060
GE
WD12X25060
JUNCTION BOX BRACKET
Checking…
View Product
Part WD01X10575
GE
WD01X10575
LATCH CAM
Checking…
View Product
Part WD01X25563
GE
WD01X25563
LENS AND ADHESIVE ASSEMBLY
Checking…
View Product
Part WD02X31882
GE
WD02X31882
LEVELING SCREW
Checking…
View Product
Part WD28X20153
GE
WD28X20153
LID BASKET MIDDLE
Checking…
View Product
Part WD28X20156
GE
WD28X20156
LID BASKET SIDE
Checking…
View Product
Part WD02X25303
GE
WD02X25303
LOCK NUT 5/16-18 HX 1/2 S
Checking…
View Product
Part WD22X25281
GE
WD22X25281
LOWER ARM SPRAY ASSEMBLY
Checking…
View Product
Part WD22X25299
GE
WD22X25299
MID SPRAY ARM ASSEMBLY
Checking…
View Product
Part WD01X10070
GE
WD01X10070
NUT TOWER HEATER
Checking…
View Product
Part WD12X10462
GE
WD12X10462
PLATE DETERGENT
Checking…
View Product
Part WD12X21677
GE
WD12X21677
PLATE FLOOR MANUAL
Checking…
View Product
Part 31-31560
GE
31-31560
PM INSTALL INSTRUCTIONS
Checking…
View Product
Part 31-4000183
GE
31-4000183
PM MINI MANUAL AND WIRING
Checking…
View Product
Part 49-4000042
GE
49-4000042
PM OWNERS MANUAL
Checking…
View Product
Part WD16X21836
GE
WD16X21836
PULLEY HINGE
Checking…
View Product
Part WD26X23258
GE
WD26X23258
PUMP WASH KIT
Checking…
View Product
Part WD28X30221
GE
WD28X30221
RACK LOWER ASM COATED
Checking…
View Product
Part WD28X30227
GE
WD28X30227
RACK UPPER ASM COATED
Checking…
View Product
Part WD28X35784
GE
WD28X35784
RACK UPPER ASM COATED
Checking…
View Product
Part WD27X22350
GE
WD27X22350
RAIL AND END CAP ASSEMBLY
Checking…
View Product
Part WR01X11007
GE
WR01X11007
REFRIGERATOR DOOR HANDLE FASTENER
Checking…
View Product
Part WD12X26146
GE
WD12X26146
ROLLER LOWER RACK
Checking…
View Product
Part WD30X23280
GE
WD30X23280
ROLLER TUB
Checking…
View Product
Part WB01T10103
GE
WB01T10103
SCR 10-16 AB HXW .532
Checking…
View Product
Part WD02X22781
GE
WD02X22781
SCR 10-18 X 5/8
Checking…
View Product
Part WD01X22514
GE
WD01X22514
SCR 10-32 GX IHXW 9/16 S
Checking…
View Product
Part WR01X10380
GE
WR01X10380
SCR 8-18 AB TSQ 5/8 SS
Checking…
View Product
Part WD02X10160
GE
WD02X10160
SCR 8-18 B HXW .480 S
Checking…
View Product
Part WD02X10169
GE
WD02X10169
SCR B-16 HXW 1/2 SS
Checking…
View Product
Part WD02X22736
GE
WD02X22736
SCR10 - 16 AB HXW 3/4 SS
Checking…
View Product
Part WD01X21837
GE
WD01X21837
SCREW 10-32
Checking…
View Product
Part WD02X10067
GE
WD02X10067
SCREW 8-16 HXW 1/2 SS
Checking…
View Product
Part WD02X22628
GE
WD02X22628
SCREW T15 8-16 PLASTITE
Checking…
View Product
Part WZ5X158D
GE
WZ5X158D
SCREW-PKG 12
Checking…
View Product
Part WD28X20312
GE
WD28X20312
SHELF ASSEMBLY STEM SAFE
Checking…
View Product
Part WD28X22867
GE
WD28X22867
SILVERWARE BASKET ASSEMBLY
Checking…
View Product
Part WD02X20685
GE
WD02X20685
SLEEVE TUB MOUNT
Checking…
View Product
Part WD01X10104
GE
WD01X10104
SPRING CLAMP
Checking…
View Product
Part WD03X20446
GE
WD03X20446
SPRING DOOR
Checking…
View Product
Part WD34X25309
GE
WD34X25309
STAINLESS STEEL CAFE SERVICE OUTER DOOR
Checking…
View Product
Part WD13X10071
GE
WD13X10071
STRIKER LATCH
Checking…
View Product
Part WD01X20120
GE
WD01X20120
SUPPORT HEATER SS
Checking…
View Product
Part WD27X34579
GE
WD27X34579
TOE KICK ASSEMBLY BB
Checking…
View Product
Part WD12X23557
GE
WD12X23557
TRANSITION PIECE ASSEMBLY
Checking…
View Product
Part WD01X31858
GE
WD01X31858
TRIM TUB
Checking…
View Product
Part WD49X24057
GE
WD49X24057
ULTRA FINE FILTER KIT
Checking…
View Product
Part WD22X25463
GE
WD22X25463
USER CLEANABLE FINE FILTER
Checking…
View Product
Part WD15X26140
GE
WD15X26140
VALVE WATER ASSEMBLY
Checking…
View Product
Part WD12X20218
GE
WD12X20218
VENT CONDUIT ASSEMBLY
Checking…
View Product
Part WD24X10057
GE
WD24X10057
VENT FILTER
Checking…
View Product
Part WD3X767
GE
WD3X767
WASHER
Checking…
View Product
    Main Menu x
