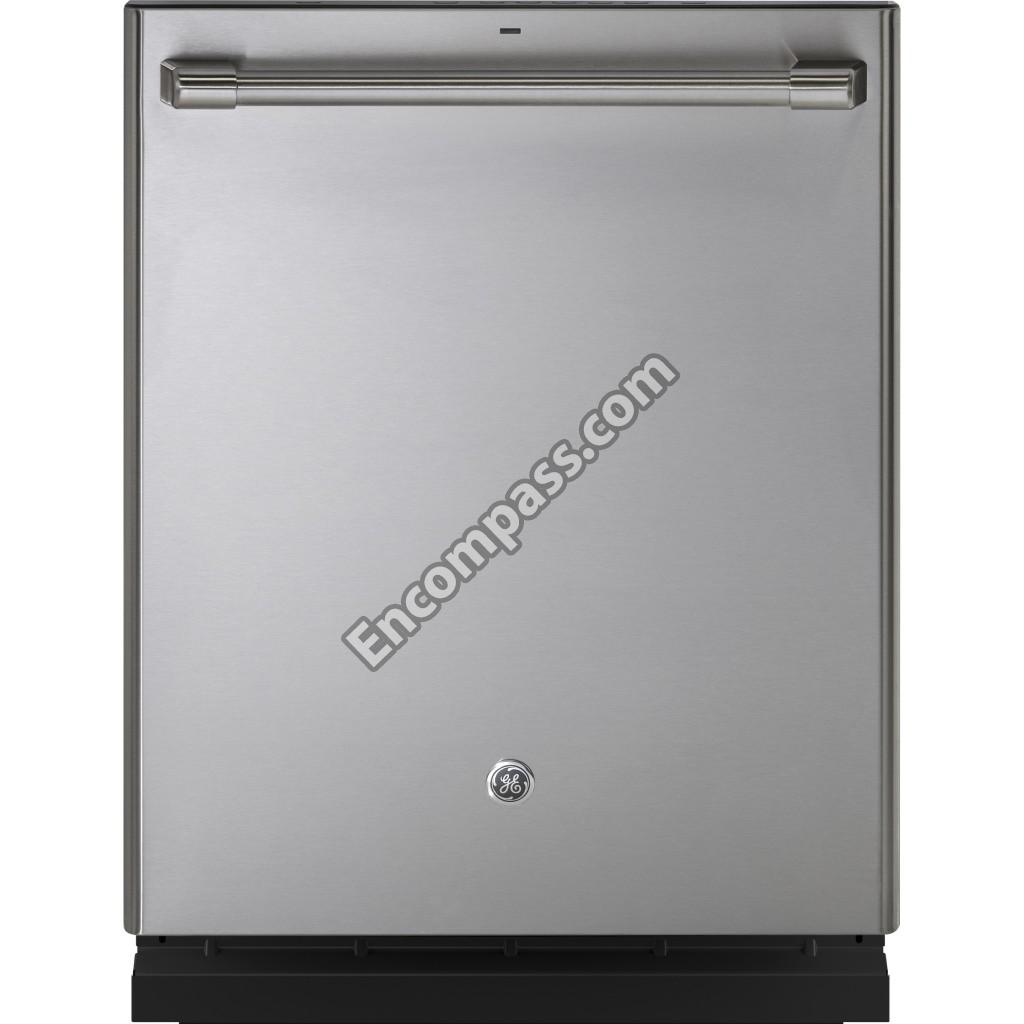

Model Image
Manufacturer

HOT

Model Number

CDT866P2M4S1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part WD02X10220
GE
WD02X10220
3/8-INCH HEX HEAD SCREW 10-32
Checking…
View Product
Part WD18X22865
GE
WD18X22865
ADAPTER CONDUIT
Checking…
View Product
Part WD12X10419
GE
WD12X10419
ADAPTOR FILTER
Checking…
View Product
Part WD14X22896
GE
WD14X22896
ARM HINGE ASSEMBLY LH
Checking…
View Product
Part WD14X22895
GE
WD14X22895
ARM HINGE ASSEMBLY RH
Checking…
View Product
Part WD22X22879
GE
WD22X22879
ARM SPRAY LOWER ASSEMBLY
Checking…
View Product
Part WD22X22853
GE
WD22X22853
ARM SPRAY MID ASSEMBLY
Checking…
View Product
Part WD30X21155
GE
WD30X21155
BAG INSULATION ASSEMBLY
Checking…
View Product
Part WD28X22867
GE
WD28X22867
BASKET ASSEMBLY SIDE
Checking…
View Product
Part WD01X22866
GE
WD01X22866
BELLOW SILVERWARE
Checking…
View Product
Part WD22X25300
GE
WD22X25300
BLASTER BOTTLE ASSEMBLY
Checking…
View Product
Part WD22X22863
GE
WD22X22863
BLASTER SILVERWARE ASSEMBLY
Checking…
View Product
Part WD01X10585
GE
WD01X10585
BLOCK FOAM DOOR
Checking…
View Product
Part WD22X25478
GE
WD22X25478
BOTTLE BLASTER ASM
Checking…
View Product
Part WD12X25301
GE
WD12X25301
BOTTLE WASHER CLIP
Checking…
View Product
Part WD30X22340
GE
WD30X22340
BRACE TUB MOUNT
Checking…
View Product
Part WD12X20109
GE
WD12X20109
BRACKET ASSEMBLY UPPER RACK
Checking…
View Product
Part WD12X20108
GE
WD12X20108
BRACKET ASSEMBLY UPPER RACK
Checking…
View Product
Part WD12X20113
GE
WD12X20113
BRACKET FIXED
Checking…
View Product
Part WD12X20112
GE
WD12X20112
BRACKET FIXED
Checking…
View Product
Part WD01X20135
GE
WD01X20135
BRACKET H AND LE
Checking…
View Product
Part WD12X25060
GE
WD12X25060
BRACKET JUNCTION BOX
Checking…
View Product
Part WD09X22923
GE
WD09X22923
BUTTON AND GRAPHICS ASSEMBLY
Checking…
View Product
Part WD01X22892
GE
WD01X22892
CABLE PULLEY ASSEMBLY
Checking…
View Product
Part WD27X23298
GE
WD27X23298
CAFE OUTER DOOR SRVC ASSEMBLY SS
Checking…
View Product
Part WD49X25081
GE
WD49X25081
CAP FILL FUNNEL
Checking…
View Product
Part WD01X35298
GE
WD01X35298
CARRIER ROLLER
Checking…
View Product
Part WD35X10382
GE
WD35X10382
CLAMP
Checking…
View Product
Part WD01X24246
GE
WD01X24246
CLAMP
Checking…
View Product
Part WD01X10104
GE
WD01X10104
CLAMP
Checking…
View Product
Part WD01X21975
GE
WD01X21975
CLIP CONTROL BOARD
Checking…
View Product
Part WD01X22855
GE
WD01X22855
CLIP HOSE SIDE BLASTER
Checking…
View Product
Part WD12X20171
GE
WD12X20171
CLIP LOWER RACK
Checking…
View Product
Part WD12X21681
GE
WD12X21681
CONDUIT MAIN
Checking…
View Product
Part WD12X34182
GE
WD12X34182
CONDUIT MID BLASTER ASSEMBLY
Checking…
View Product
Part WD12X22862
GE
WD12X22862
CONDUIT SILVERWARE
Checking…
View Product
Part WD21X26942
GE
WD21X26942
CONFIGURED MACHINE CONTROL
Checking…
View Product
Part WD21X31911
GE
WD21X31911
CONFIGURED MACHINE CONTROL
Checking…
View Product
Part WD21X31906
GE
WD21X31906
CONFIGURED UI BOARD
Checking…
View Product
Part WD21X32098
GE
WD21X32098
CONFIGURED UI CONTROL
Checking…
View Product
Part WD12X20250
GE
WD12X20250
CONSOLE TOP CONTROL
Checking…
View Product
Part WD30X21714
GE
WD30X21714
CONTROL BOX BOTTOM
Checking…
View Product
Part WD24X20263
GE
WD24X20263
COVER BOTTLE BLASTER
Checking…
View Product
Part WD34X24946
GE
WD34X24946
COVER CONSOLE ASSEMBLY IML
Checking…
View Product
Part WD12X10412
GE
WD12X10412
COVER JUNCTION BOX
Checking…
View Product
Part WD12X32799
GE
WD12X32799
DETERGENT MODULE
Checking…
View Product
Part WD01X34879
GE
WD01X34879
DISHWASHER ATTACH STRIP - LH
Checking…
View Product
Part WD01X22836
GE
WD01X22836
DISHWASHER ATTACH STRIP - RH
Checking…
View Product
Part WD01X23777
GE
WD01X23777
DISHWASHER BRACKET CABLE - LEFT
Checking…
View Product
Part WD01X23776
GE
WD01X23776
DISHWASHER BRACKET CABLE - RIGHT
Checking…
View Product
Part WD27X32298
GE
WD27X32298
DISHWASHER CONTROL BOX TOP
Checking…
View Product
Part WD01X21740
GE
WD01X21740
DISHWASHER COUNTERTOP BRACKET
Checking…
View Product
Part WD35X10383
GE
WD35X10383
DISHWASHER COUNTERTOP SCREW AND BUTTONPLUG
Checking…
View Product
Part WD18X23221
GE
WD18X23221
DISHWASHER DIVERTER ASSEMBLY
Checking…
View Product
Part WD01X26419
GE
WD01X26419
DISHWASHER DOOR TRIM - LEFT
Checking…
View Product
Part WD24X10062
GE
WD24X10062
DISHWASHER DRAIN HOSE
Checking…
View Product
Part WD02X22342
GE
WD02X22342
DISHWASHER END CAP - REAR THIRD RACK
Checking…
View Product
Part WD21X22822
GE
WD21X22822
DISHWASHER FLOOD FLOAT
Checking…
View Product
Part WD21X22838
GE
WD21X22838
DISHWASHER FLOOD STEM
Checking…
View Product
Part WD21X23498
GE
WD21X23498
DISHWASHER FLOOD SWITCH
Checking…
View Product
Part WD01X23496
GE
WD01X23496
DISHWASHER FLOOD SWITCH HOUSING
Checking…
View Product
Part WD01X22786
GE
WD01X22786
DISHWASHER HOSE CLAMP
Checking…
View Product
Part WD30X20110
GE
WD30X20110
DISHWASHER INNER RAIL UPPER RACK ASSMBLY
Checking…
View Product
Part WD21X23559
GE
WD21X23559
DISHWASHER JUMPER HARNESS
Checking…
View Product
Part WD21X10490
GE
WD21X10490
DISHWASHER LATCH AND SWITCH ASSEMBLY
Checking…
View Product
Part WD01X10632
GE
WD01X10632
DISHWASHER LATCH CAM
Checking…
View Product
Part WD18X22842
GE
WD18X22842
DISHWASHER LEAK PAN
Checking…
View Product
Part WD28X34743
GE
WD28X34743
DISHWASHER LOWER RACK
Checking…
View Product
Part WD01X22825
GE
WD01X22825
DISHWASHER O RING
Checking…
View Product
Part WD01X10101
GE
WD01X10101
DISHWASHER PUMP GROMMET
Checking…
View Product
Part WD27X22351
GE
WD27X22351
DISHWASHER RAIL AND END CAP
Checking…
View Product
Part WD30X22347
GE
WD30X22347
DISHWASHER ROLLER AND BRACKET
Checking…
View Product
Part WD21X22830
GE
WD21X22830
DISHWASHER SENSOR
Checking…
View Product
Part WD18X22782
GE
WD18X22782
DISHWASHER SUMP MANIFOLD
Checking…
View Product
Part WD28X22348
GE
WD28X22348
DISHWASHER THIRD RACK TRAY
Checking…
View Product
Part WD27X21334
GE
WD27X21334
DISHWASHER TOE KICK INSULATION
Checking…
View Product
Part WD13X22837
GE
WD13X22837
DISHWASHER TOP STRIP ATTACHMENT
Checking…
View Product
Part WD01X23558
GE
WD01X23558
DISHWASHER TUB FRONT SPACER
Checking…
View Product
Part WD24X20586
GE
WD24X20586
DISHWASHER VENT COVER
Checking…
View Product
Part WD08X10092
GE
WD08X10092
DISHWASHER VENT DOOR SEAL
Checking…
View Product
Part WD12X35640
GE
WD12X35640
DOCKING PORT SS
Checking…
View Product
Part WD31X29644
GE
WD31X29644
DOOR INNER SS
Checking…
View Product
Part WD01X26418
GE
WD01X26418
DOOR TRIM RH
Checking…
View Product
Part WD28X20193
GE
WD28X20193
FDT ASSEMBLY UPPER COATED
Checking…
View Product
Part WD28X20194
GE
WD28X20194
FDT ASSEMBLY UPPER COATED
Checking…
View Product
Part WD28X20311
GE
WD28X20311
FDT CLIP FLAT RACK
Checking…
View Product
Part WD28X20310
GE
WD28X20310
FDT CLIP FLAT RACK
Checking…
View Product
Part WD28X20164
GE
WD28X20164
FDT COATED LOWER RACK
Checking…
View Product
Part WD28X20165
GE
WD28X20165
FDT COATED LOWER RACK
Checking…
View Product
Part WD12X25419
GE
WD12X25419
FILL ELBOW
Checking…
View Product
Part WD22X10093
GE
WD22X10093
FILTER COARSE SS
Checking…
View Product
Part WD16X23497
GE
WD16X23497
FLOOD SWITCH LEVER
Checking…
View Product
Part WD30X24457
GE
WD30X24457
FRAME WIRE COATED ASSEMBLY
Checking…
View Product
Part WD01X20593
GE
WD01X20593
FRICTION WASHER
Checking…
View Product
Part WD08X22758
GE
WD08X22758
GASKET SUMP MANIFOLD
Checking…
View Product
Part WD08X23567
GE
WD08X23567
GASKET TUB MOUNT
Checking…
View Product
Part WD08X22095
GE
WD08X22095
GASKET TUB SS
Checking…
View Product
Part WD08X23477
GE
WD08X23477
GASKET TUB SS
Checking…
View Product
Part WR04X29375
GE
WR04X29375
GEA BADGE FLAT CHROME
Checking…
View Product
Part WD01X22890
GE
WD01X22890
GROMMET ISOLATOR
Checking…
View Product
Part WD01X22891
GE
WD01X22891
GROMMET PUMP HANGER
Checking…
View Product
Part WD09X22919
GE
WD09X22919
HANDLE ASSEMBLY SS
Checking…
View Product
Part WD09X24947
GE
WD09X24947
HANDLE COVER RACK
Checking…
View Product
Part WD01X20595
GE
WD01X20595
HANGER AND GROMMET ASSEMBLY
Checking…
View Product
Part WD21X24018
GE
WD21X24018
HARNESS ASSEMBLY AC
Checking…
View Product
Part WD21X24882
GE
WD21X24882
HARNESS ASSEMBLY DC
Checking…
View Product
Part WD21X20149
GE
WD21X20149
HARNESS ASSEMBLY DOOR
Checking…
View Product
Part WD24X29378
GE
WD24X29378
HIGH LOOP DRAIN HOSE
Checking…
View Product
Part WD24X20262
GE
WD24X20262
HOSE BOTTLE BLASTER
Checking…
View Product
Part WD24X10064
GE
WD24X10064
HOSE FILL
Checking…
View Product
Part WD21X20339
GE
WD21X20339
HOSE FILL
Checking…
View Product
Part WD12X10470
GE
WD12X10470
HOUSING BOTTOM
Checking…
View Product
Part WD22X20688
GE
WD22X20688
HUB
Checking…
View Product
Part WD12X22852
GE
WD12X22852
HUB SPRAY ARM
Checking…
View Product
Part WD22X20689
GE
WD22X20689
IMPELLER
Checking…
View Product
Part WD28X20166
GE
WD28X20166
INDEXER
Checking…
View Product
Part 165D9739P033
GE
165D9739P033
INSERT MINI MANUAL
Checking…
View Product
Part WD30X35300
GE
WD30X35300
INSULATION TUB
Checking…
View Product
Part WD21X22398
GE
WD21X22398
INVERTER PCBA
Checking…
View Product
Part WD24X22856
GE
WD24X22856
ISOLATOR DRAIN HOSE
Checking…
View Product
Part WD01X10575
GE
WD01X10575
LATCH CAM
Checking…
View Product
Part WD09X20248
GE
WD09X20248
LENS AND ADHESIVE ASSEMBLY
Checking…
View Product
Part WD02X31882
GE
WD02X31882
LEVELING SCREW
Checking…
View Product
Part WD01X22899
GE
WD01X22899
OFFSET LEG SHIM LH
Checking…
View Product
Part WD01X22898
GE
WD01X22898
OFFSET LEG SHIM RH
Checking…
View Product
Part WD12X10462
GE
WD12X10462
PLATE DETERGENT
Checking…
View Product
Part WD12X21677
GE
WD12X21677
PLATE FLOOR MANUAL
Checking…
View Product
Part 31-31560
GE
31-31560
PM INSTALL INSTRUCTIONS
Checking…
View Product
Part 31-30794
GE
31-30794
PM MINI-MANUAL
Checking…
View Product
Part 49-55102
GE
49-55102
PM OWNERS MANUAL
Checking…
View Product
Part WD16X20592
GE
WD16X20592
PULLEY HINGE
Checking…
View Product
Part WD01X21837
GE
WD01X21837
PULLEY SCREW
Checking…
View Product
Part WD28X30221
GE
WD28X30221
RACK LOWER ASM COATED
Checking…
View Product
Part WD28X30227
GE
WD28X30227
RACK UPPER ASM COATED
Checking…
View Product
Part WD28X35784
GE
WD28X35784
RACK UPPER ASM COATED
Checking…
View Product
Part WD27X22350
GE
WD27X22350
RAIL AND END CAP ASSEMBLY
Checking…
View Product
Part WD12X26146
GE
WD12X26146
ROLLER LOWER RACK
Checking…
View Product
Part WD30X23280
GE
WD30X23280
ROLLER TUB
Checking…
View Product
Part WD01X23438
GE
WD01X23438
SCR 1/4-20 TT IHXW .625
Checking…
View Product
Part WB01T10103
GE
WB01T10103
SCR 10-16 AB HXW .532
Checking…
View Product
Part WD02X20140
GE
WD02X20140
SCR 10-16 PL PNT 2.25 S
Checking…
View Product
Part WD02X22781
GE
WD02X22781
SCR 10-18 X 5/8
Checking…
View Product
Part WD01X22514
GE
WD01X22514
SCR 10-32 GX IHXW 9/16 S
Checking…
View Product
Part WB02T10324
GE
WB02T10324
SCR 6-20 GXB IHXW 3/8 NI.
Checking…
View Product
Part WR01X10380
GE
WR01X10380
SCR 8-18 AB TSQ 5/8 SS
Checking…
View Product
Part WD02X10160
GE
WD02X10160
SCR 8-18 B HXW .480 S
Checking…
View Product
Part WD02X10169
GE
WD02X10169
SCR B-16 HXW 1/2 SS
Checking…
View Product
Part WD02X22736
GE
WD02X22736
SCR10 - 16 AB HXW 3/4 SS
Checking…
View Product
Part WD02X10067
GE
WD02X10067
SCREW 8-16 HXW 1/2 SS
Checking…
View Product
Part WD02X22628
GE
WD02X22628
SCREW T15 8-16 PLASTITE
Checking…
View Product
Part WZ5X158D
GE
WZ5X158D
SCREW-PKG 12
Checking…
View Product
Part WD21X20552
GE
WD21X20552
SENSOR LEAK PAN
Checking…
View Product
Part WD28X20312
GE
WD28X20312
SHELF ASSEMBLY STEM SAFE
Checking…
View Product
Part WD01X21974
GE
WD01X21974
SHIELD DIELECTRIC
Checking…
View Product
Part WD01X20212
GE
WD01X20212
SHIELD PUMP MAIN
Checking…
View Product
Part WD22X21034
GE
WD22X21034
SIDE BLASTER ASSEMBLY
Checking…
View Product
Part WD12X20246
GE
WD12X20246
SILICONE LIGHT PIPE
Checking…
View Product
Part WD02X20685
GE
WD02X20685
SLEEVE TUB MOUNT
Checking…
View Product
Part WD03X20446
GE
WD03X20446
SPRING DOOR
Checking…
View Product
Part WD13X10071
GE
WD13X10071
STRIKER LATCH
Checking…
View Product
Part WD27X34579
GE
WD27X34579
TOE KICK ASSEMBLY BB
Checking…
View Product
Part WD12X23557
GE
WD12X23557
TRANSITION PIECE ASSEMBLY
Checking…
View Product
Part WD08X22894
GE
WD08X22894
TUB TRIM KIT
Checking…
View Product
Part WD49X24057
GE
WD49X24057
ULTRA FINE FILTER KIT
Checking…
View Product
Part WD22X25463
GE
WD22X25463
USER CLEANABLE FINE FILTER
Checking…
View Product
Part WD15X22948
GE
WD15X22948
VALVE WATER ASSEMBLY
Checking…
View Product
Part WD26X25104
GE
WD26X25104
VARIABLE DRAIN PUMP ASSEMBLY
Checking…
View Product
Part WD26X25103
GE
WD26X25103
VARIABLE WASH PUMP ASSEMBLY
Checking…
View Product
Part WD12X20218
GE
WD12X20218
VENT CONDUIT ASSEMBLY
Checking…
View Product
Part WD24X20331
GE
WD24X20331
VENT FAN ASSEMBLY
Checking…
View Product
Part WD24X10057
GE
WD24X10057
VENT FILTER
Checking…
View Product
Part WD3X767
GE
WD3X767
WASHER
Checking…
View Product
Part WD02X23297
GE
WD02X23297
WASHER AND SCREW ASSEMBLY
Checking…
View Product
Part WD21X24463
GE
WD21X24463
WIFI MODULE SERVICE KIT
Checking…
View Product
    Main Menu x
