Model Image
Manufacturer

GE

Model Number

CEB1590SS1SS

Description

Microwave Or Advantium

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB56X23867 WB56X23867 "PANEL ASM, CONTROL"
WB06X10257 WB06X10257 AIR DUCT
WB56X10184 WB56X10184 BACK COVER
WB06X10910 WB06X10910 BASE PLATE CAP
WB6X475 WB6X475 BLADE MTR CL

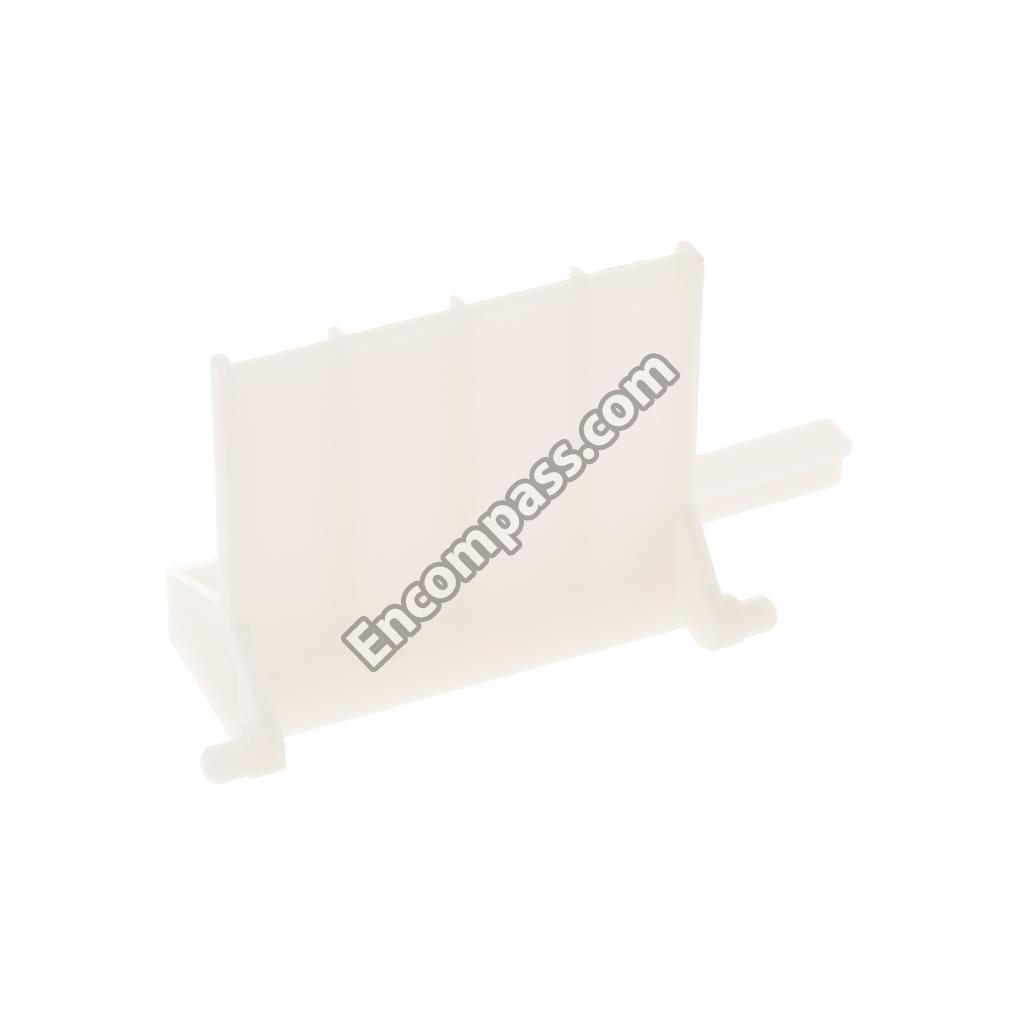

WB06X10260 WB06X10260 BRACKET - DAMPER
WB02X10723 WB02X10723 BRACKET - HTR CENTER
WB02X10542 WB02X10542 BRACKET - MTR.CIRCU.
WB21X10150 WB21X10150 BRACKET ASM W/ TCO
WB06X10214 WB06X10214 BRACKET CAPACITOR
WB02X10722 WB02X10722 BRACKET- HEATER LEFT
WB02X10724 WB02X10724 BRACKET- HEATER LOWER
WB03X10343 WB03X10343 BUTTON
WB09X10002 WB09X10002 BUTTON SPRING
WB27X10037 WB27X10037 CABLE ASM

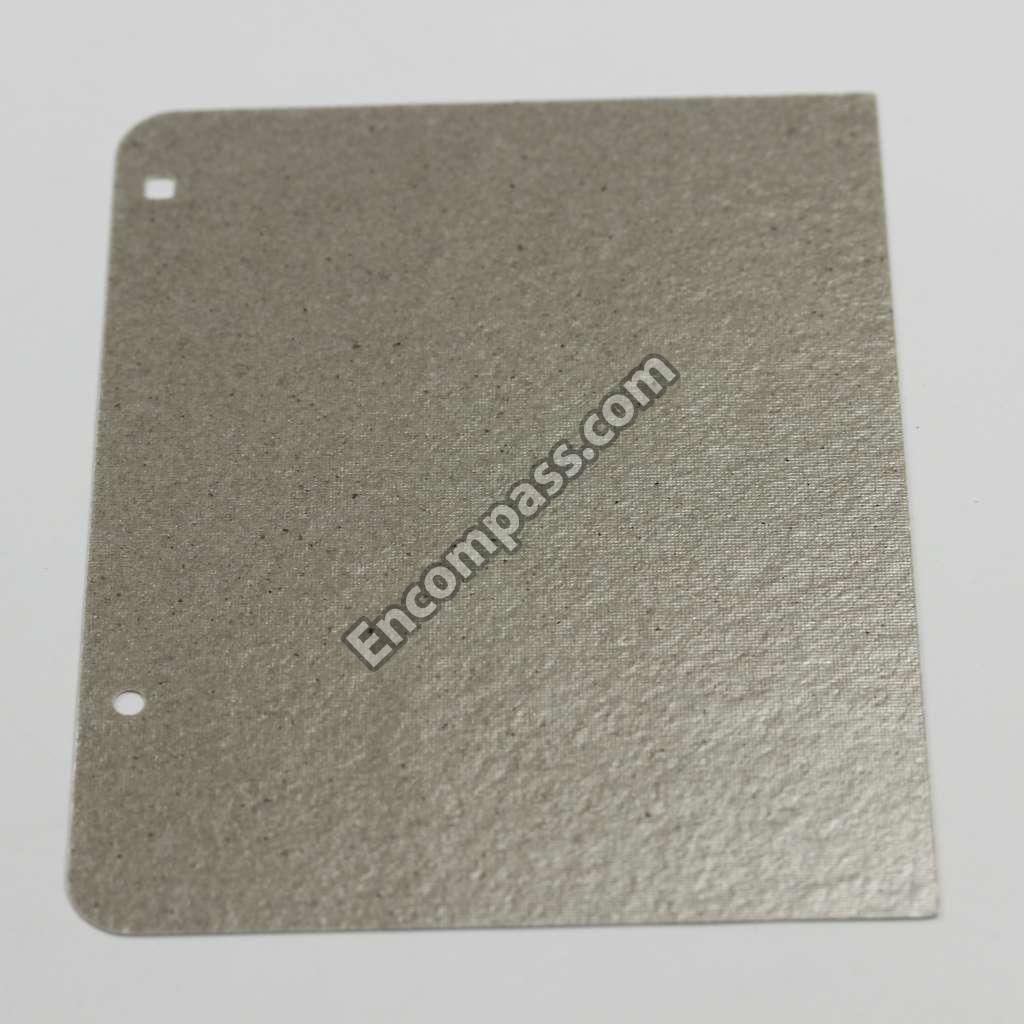

WB02X10718 WB02X10718 CAP - CHOKE COVER
WB02X10611 WB02X10611 CAP,MWO
WB27X11033 WB27X11033 CAPACITOR H.V

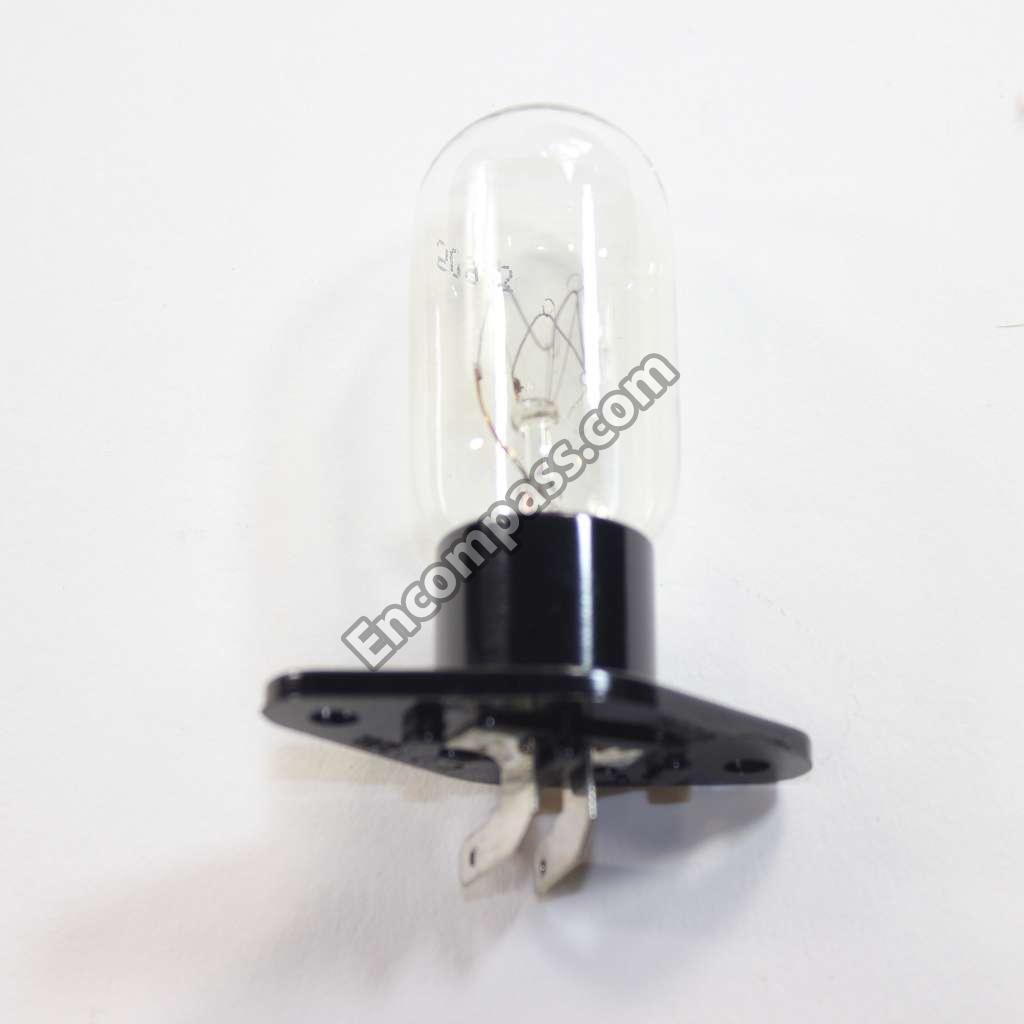

WB36X10131 WB36X10131 CAVITY LAMP
WB06X10262 WB06X10262 CHAMBER
WB06X10263 WB06X10263 CHAMBER WALL
WB55X10385 WB55X10385 CHOKE COVER
WB01X10296 WB01X10296 CMO HARDWARE ASM BAG
WB56X23865 WB56X23865 CONTROLLER ASM TACT DIAL
WB06X10258 WB06X10258 COVER - LAMP
WB56X21527 WB56X21527 DOOR ASM SS
WB56X10981 WB56X10981 DOOR ASSEMBLY SUB
WB55X10384 WB55X10384 DOOR FRAME ASM
WB26X32609 WB26X32609 FAN - STIRRER
WB06X0475 WB06X0475 FAN BLADE
WB38X10005 WB38X10005 FAN PROPELLER
WB56X10979 WB56X10979 FLAT CASE
WB27X10928 WB27X10928 FUSE TIME DELAY
WB49X10129 WB49X10129 GLASS TRAY

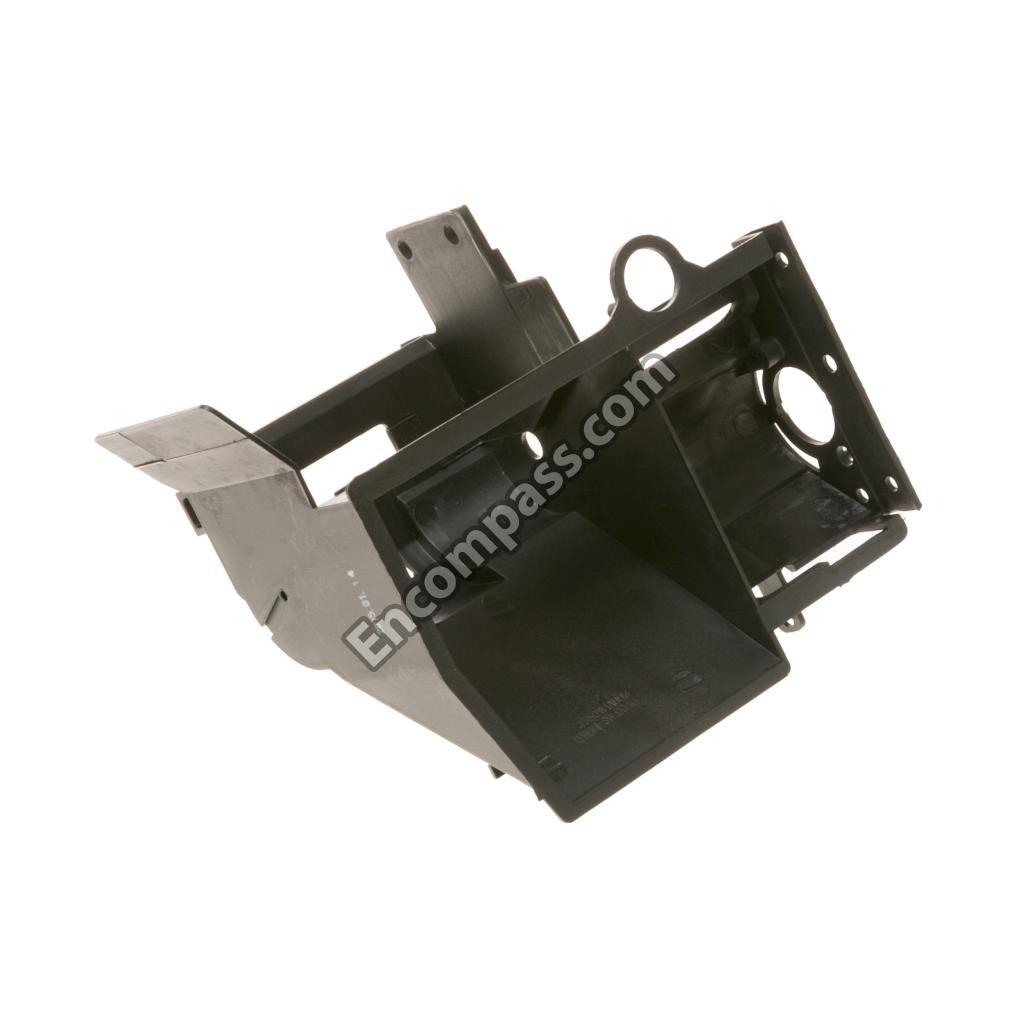

WB06X10261 WB06X10261 GUIDE - SUCTION
WB02X11324 WB02X11324 GUIDE,AIR

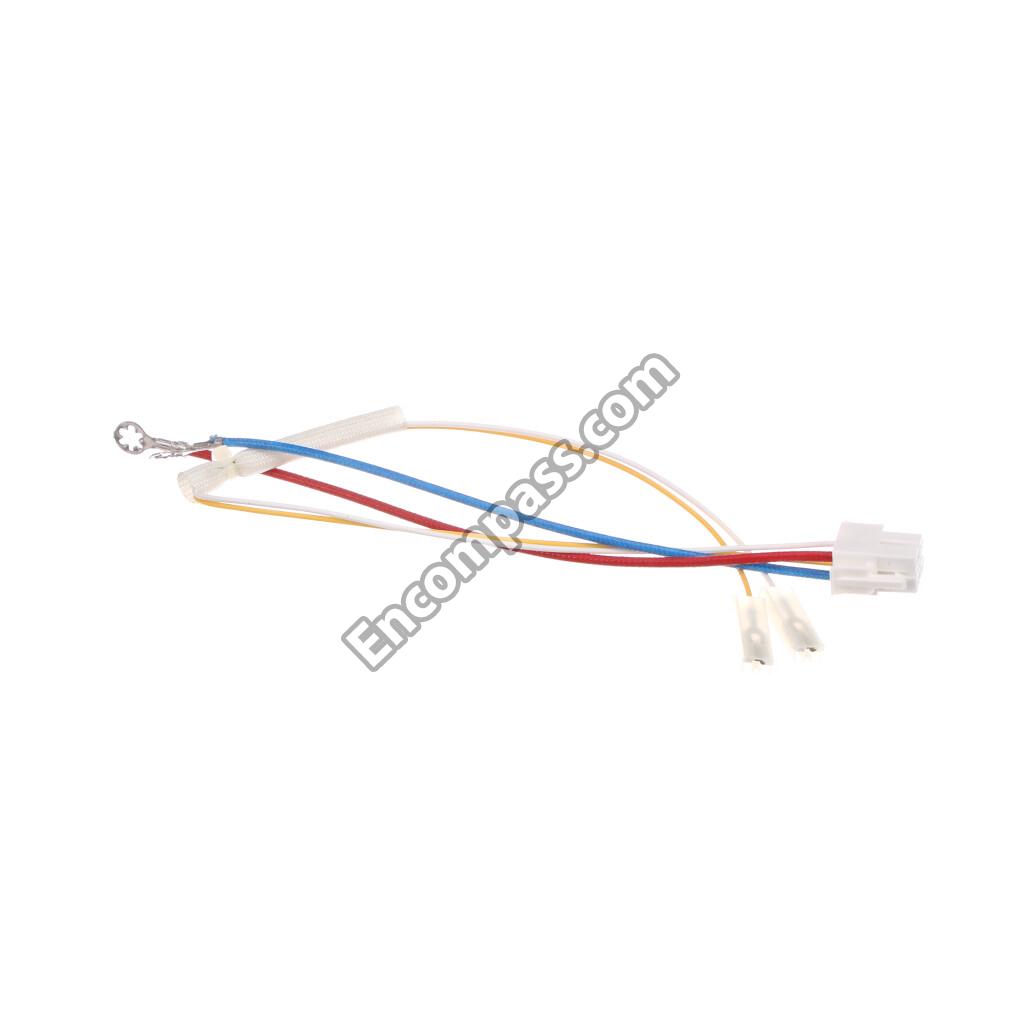

WB18X10455 WB18X10455 HARNESS
WB18X10250 WB18X10250 HARNESS

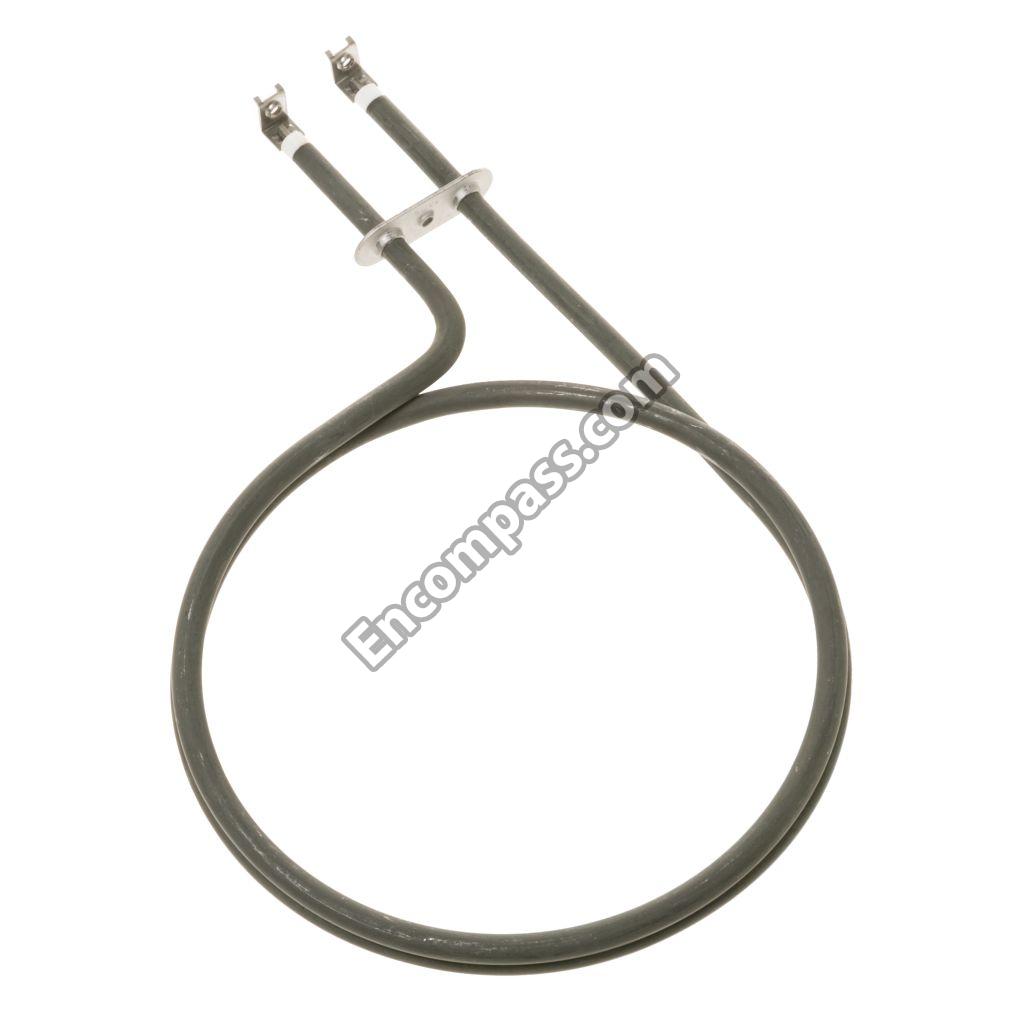

WB06X10265 WB06X10265 HEATER - SHEATH

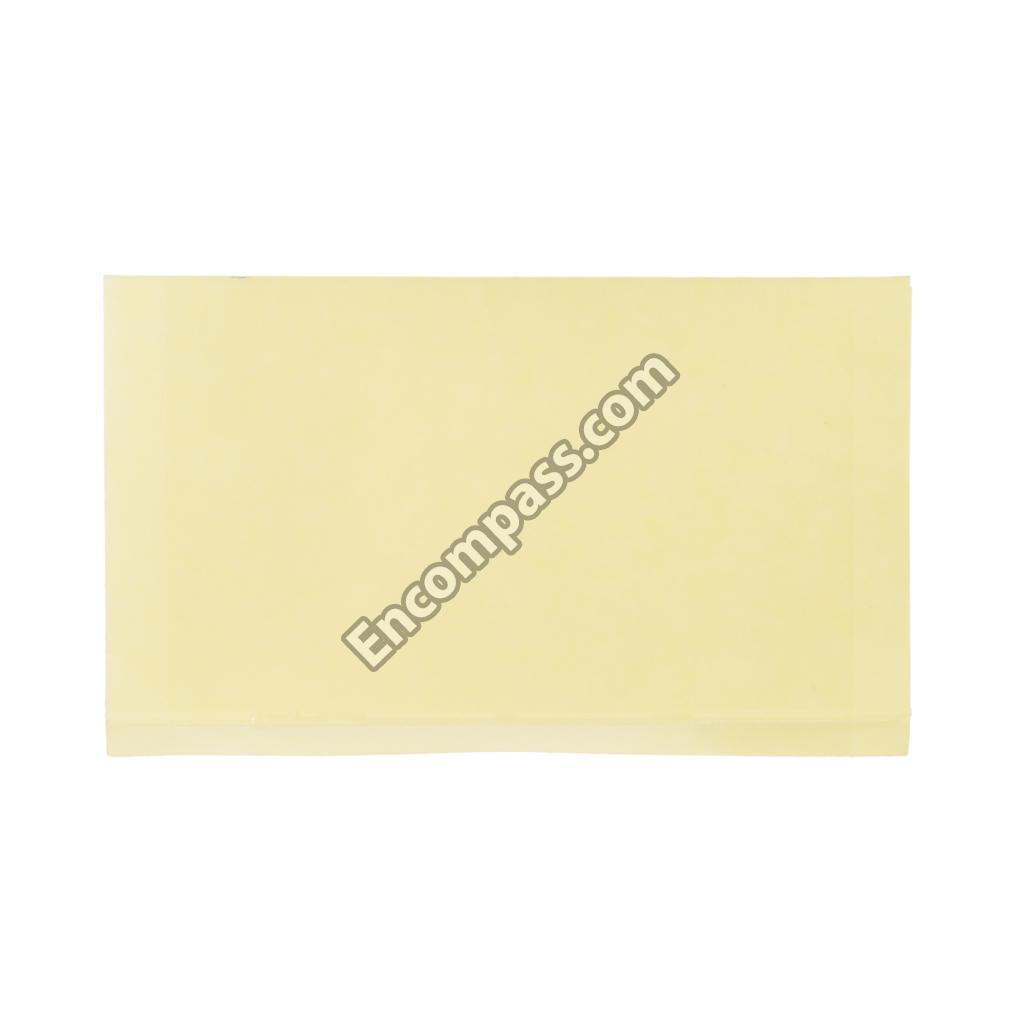

WB06X10735 WB06X10735 INSULATOR
WB03X21605 WB03X21605 KNOB CONTROL
WB06X10030 WB06X10030 LATCH

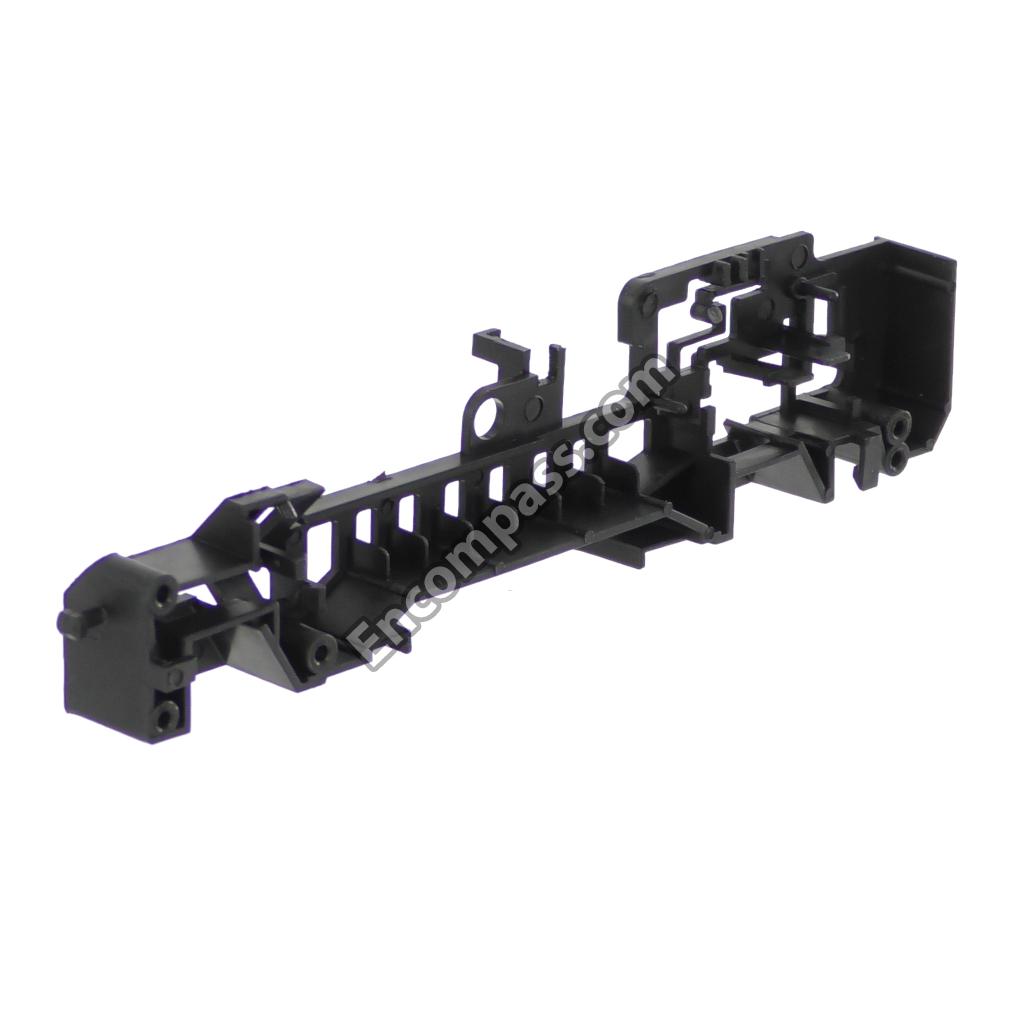

WB02X21787 WB02X21787 LATCH BOARD
WB02X21791 WB02X21791 LEVER
WB26X32629 WB26X32629 MAGNETRON

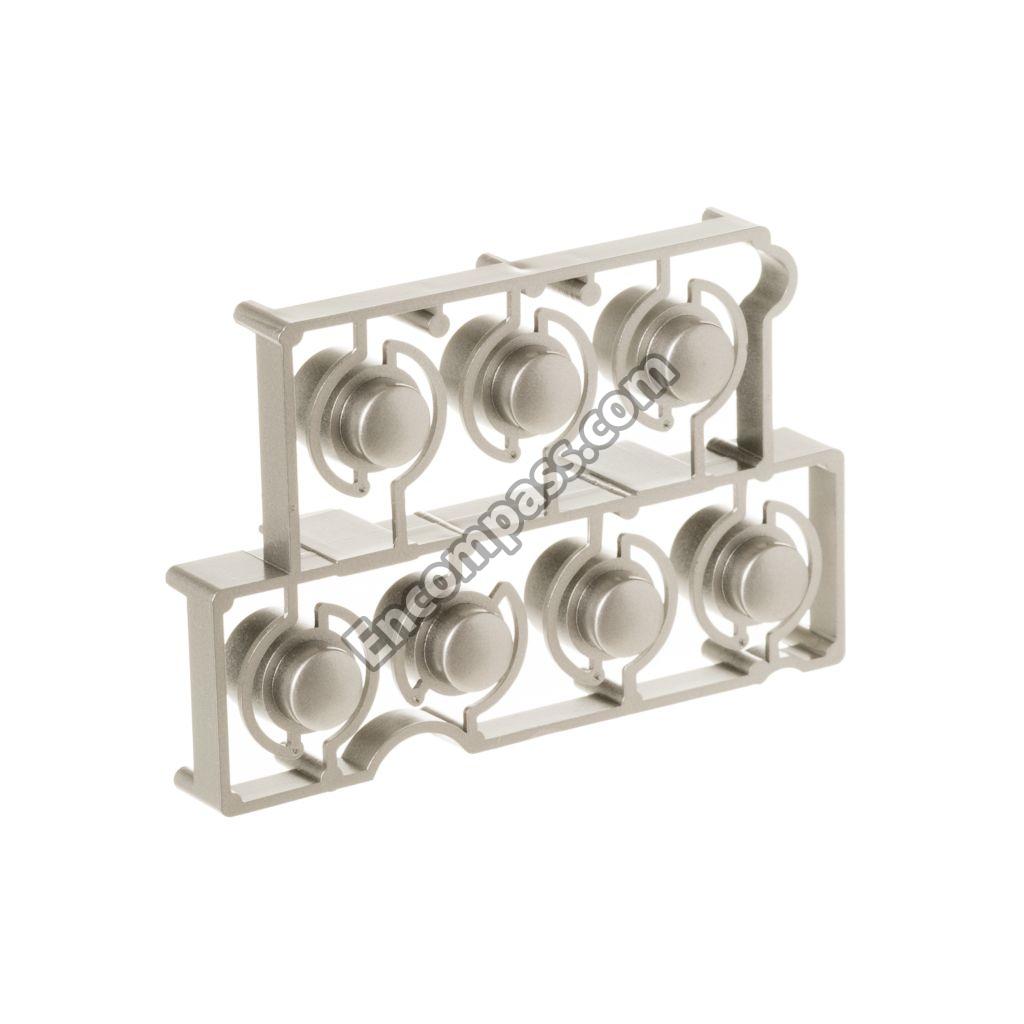

WB03X10344 WB03X10344 MICROWAVE BUTTON - LOWER SET - SS LOOK
WB03X10342 WB03X10342 MICROWAVE DOOR BUTTON - SS LOOK
31-41074 31-41074 MINI MANUAL

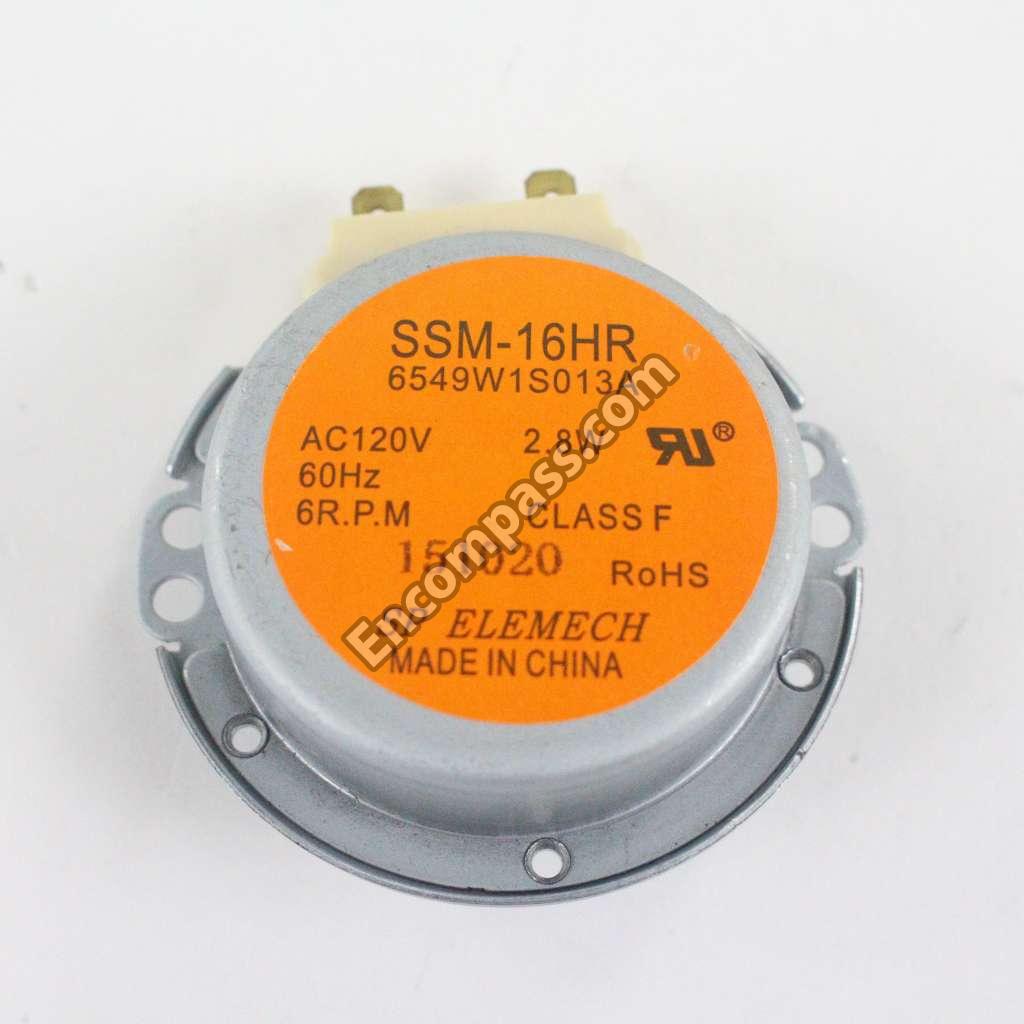

WB26X10082 WB26X10082 MOTOR - TURN TABLE
WB26X10248 WB26X10248 MOTOR AC SYNCHRONOUS
WB26X10085 WB26X10085 MOTOR FAN
WB26X10211 WB26X10211 MOTOR,AC FAN
WB27X11172 WB27X11172 NOISE FILTER
WB01X1520 WB01X1520 NUT COMMON
WB1X1520 WB1X1520 NUT HEXAGON
WB27X11173 WB27X11173 PCB ASM SUB
49-40730 49-40730 PM QUICK REF CMO CONV
WB18X10507 WB18X10507 POWER CORD ASSEMBLY

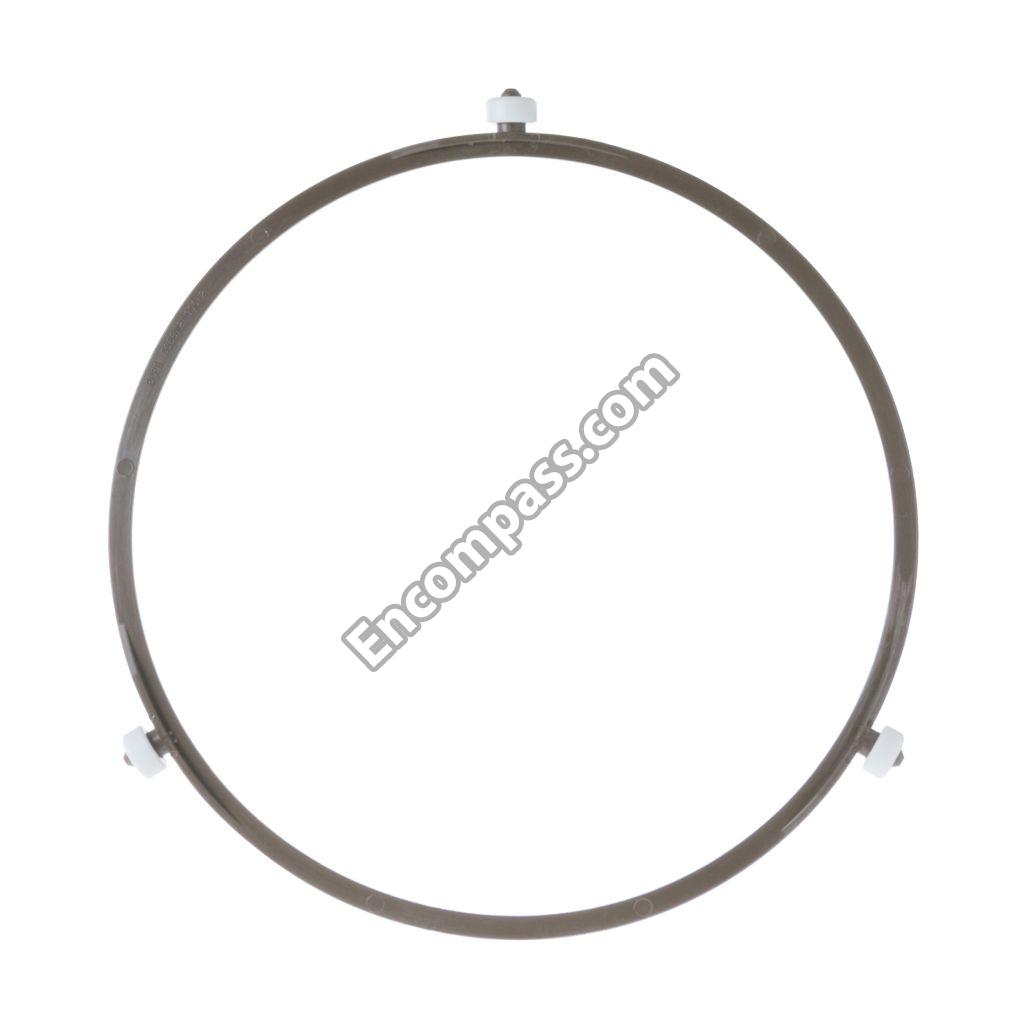

WB1X1518 WB1X1518 RING SHAFT
WB02X10727 WB02X10727 SCREW
WB1X1514 WB1X1514 SCREW
WB01X1504 WB01X1504 SCREW - HEATER SHEATH
WB02X10730 WB02X10730 SCREW - PAN HEAD TAPPING
WB02X10726 WB02X10726 SCREW -LEAD WIRE ASM
WB01X1509 WB01X1509 SCREW -SWITCH MICRO
WB01X10121 WB01X10121 SCREW CUSTOMIZED
WB1X1509 WB1X1509 SCREW PAN HD
WB01X1514 WB01X1514 SCREW TAPPING
WB02X10760 WB02X10760 SCREW TAPPING
WB01X10130 WB01X10130 SCREW TAPPING
WB01X23440 WB01X23440 SCREW TAPPING
WB02X10728 WB02X10728 SCREW TAPPING
WB02X10745 WB02X10745 SCREW TAPTITE
WB1X1504 WB1X1504 SCREW TRUSS
WB24X10044 WB24X10044 SENSOR ASM
WB06X10564 WB06X10564 SHAFT- TURN TABLE

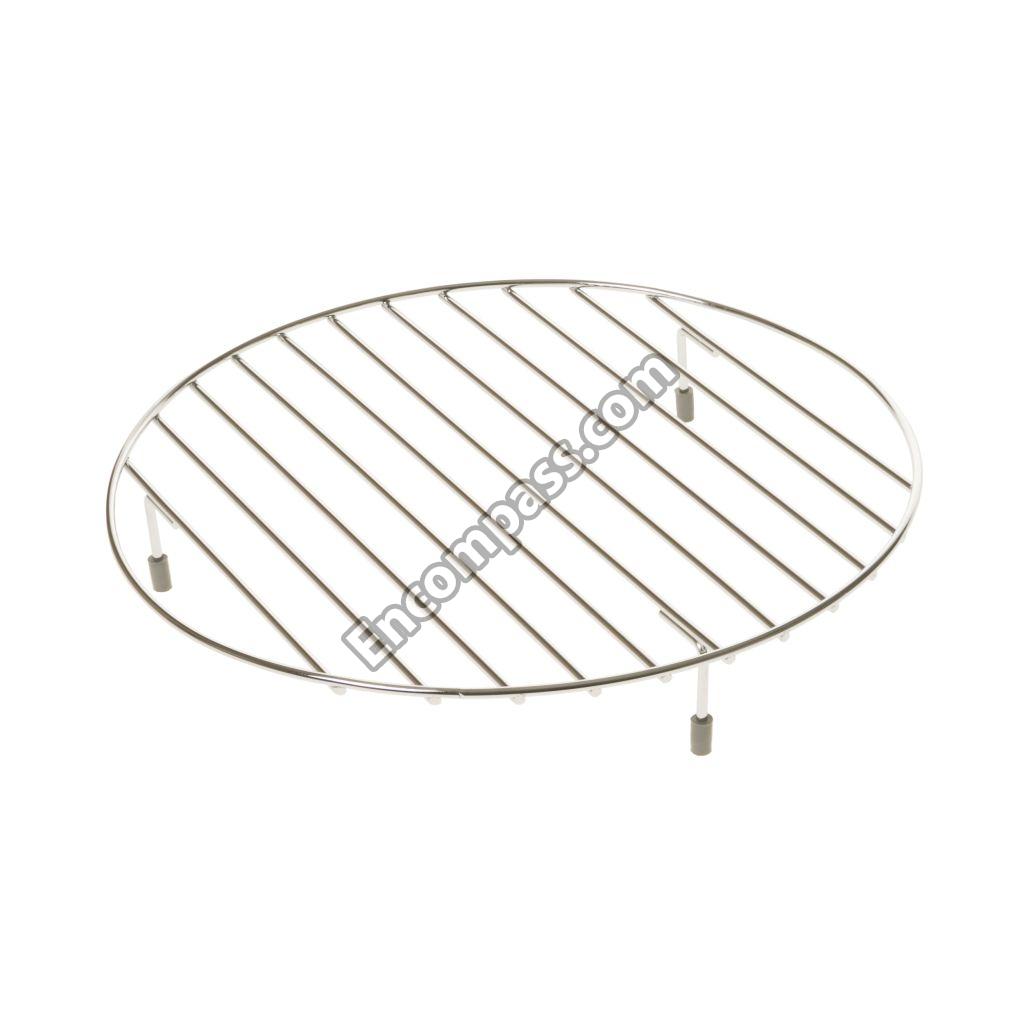

WB48X10073 WB48X10073 SHELF

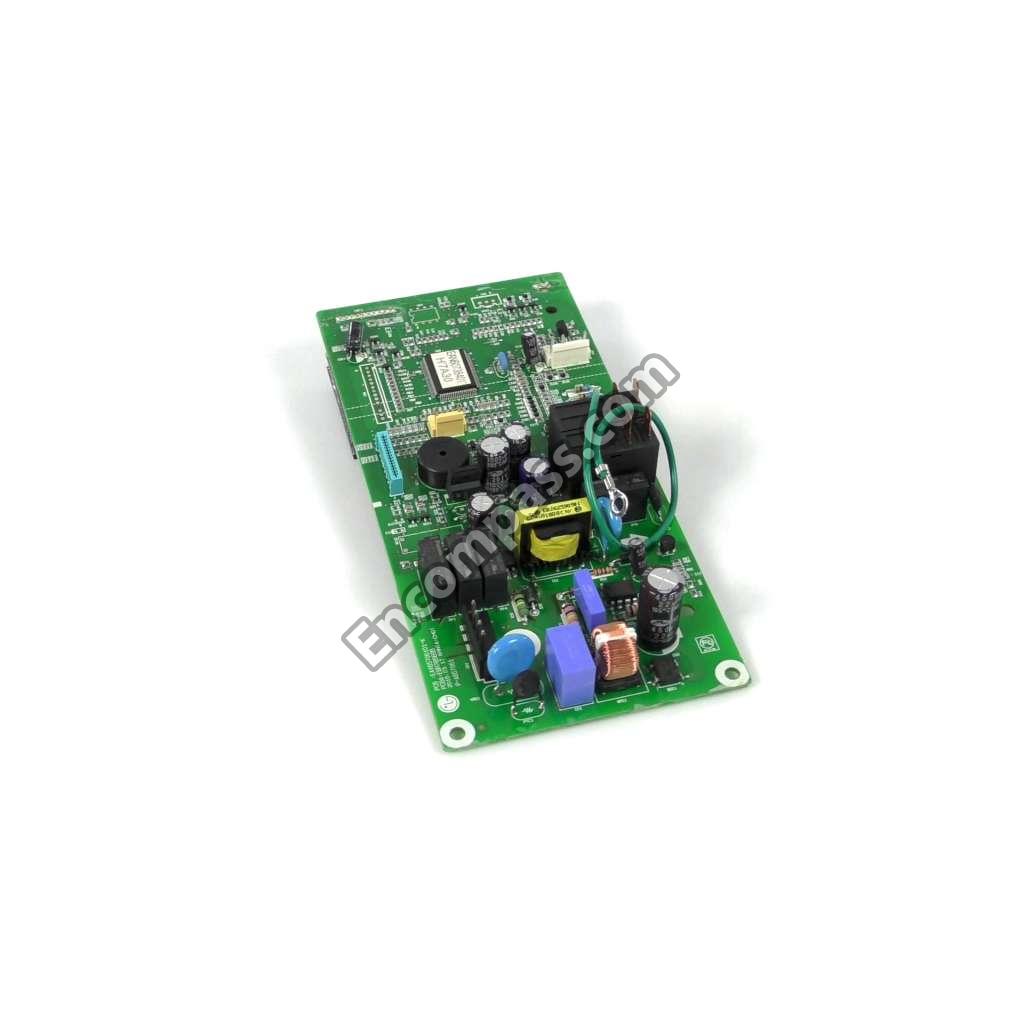

WB27X25300 WB27X25300 SMART BOARD
WB01X1518 WB01X1518 SPACER
4B75675A 4B75675A SPECIAL SCREW
WB09X10015 WB09X10015 SPRING
WB02X32605 WB02X32605 SUPPORTER
WB24X25397 WB24X25397 SWITCH MICRO
WB24X10047 WB24X10047 SWITCH MICRO
WB18X10126 WB18X10126 THERMISTOR NTC
WB21X10148 WB21X10148 THERMOSTAT

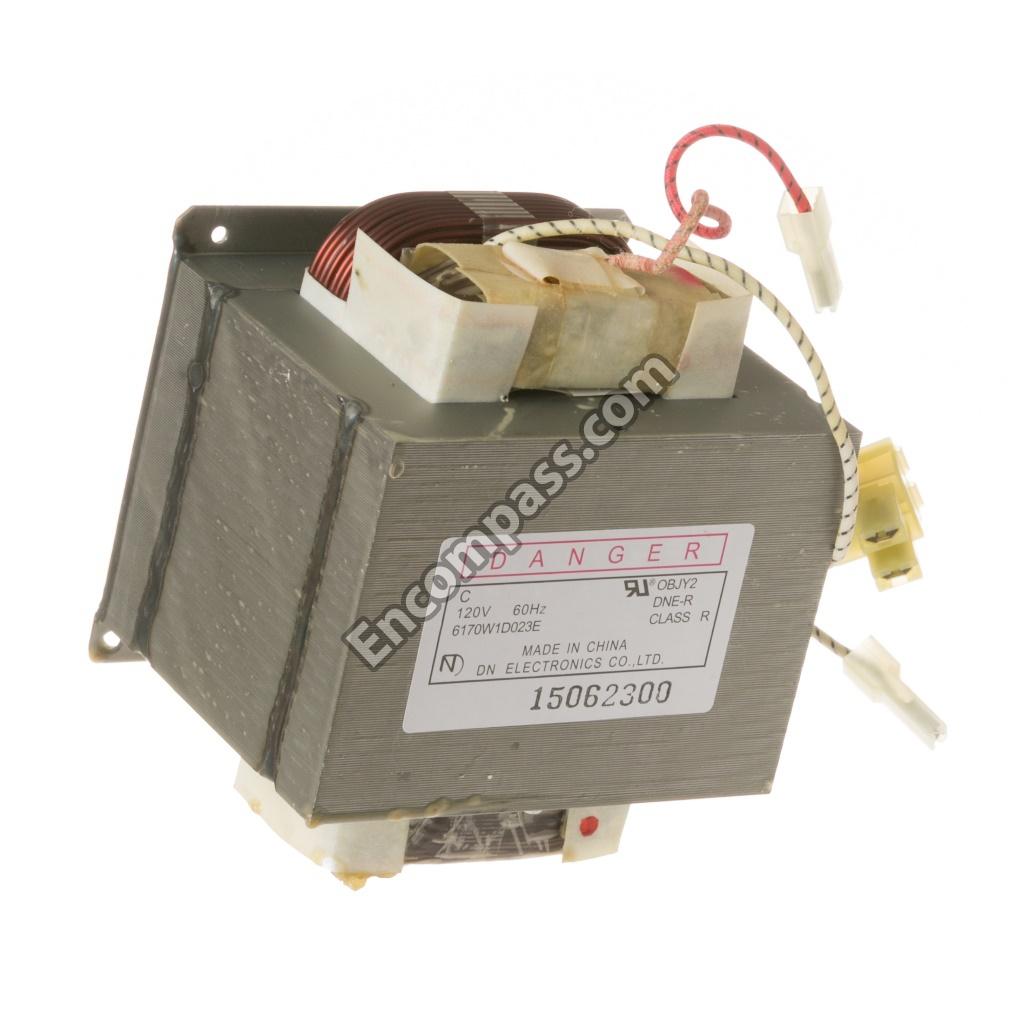

WB27X10957 WB27X10957 TRANSFORMER,HIGH VOLTAGE
WB02X10719 WB02X10719 TURN TABLE
WB01X1522 WB01X1522 WASHER COMMON
WB1X1521 WB1X1521 WASHER PLAIN
WB1X1522 WB1X1522 WASHER SPLK
WB01X1521 WB01X1521 WASHER- PLAIN
WB06X10254 WB06X10254 WAVE GUIDE
