Manufacturer
GE
Model Number
CES750P4M4W2
Description

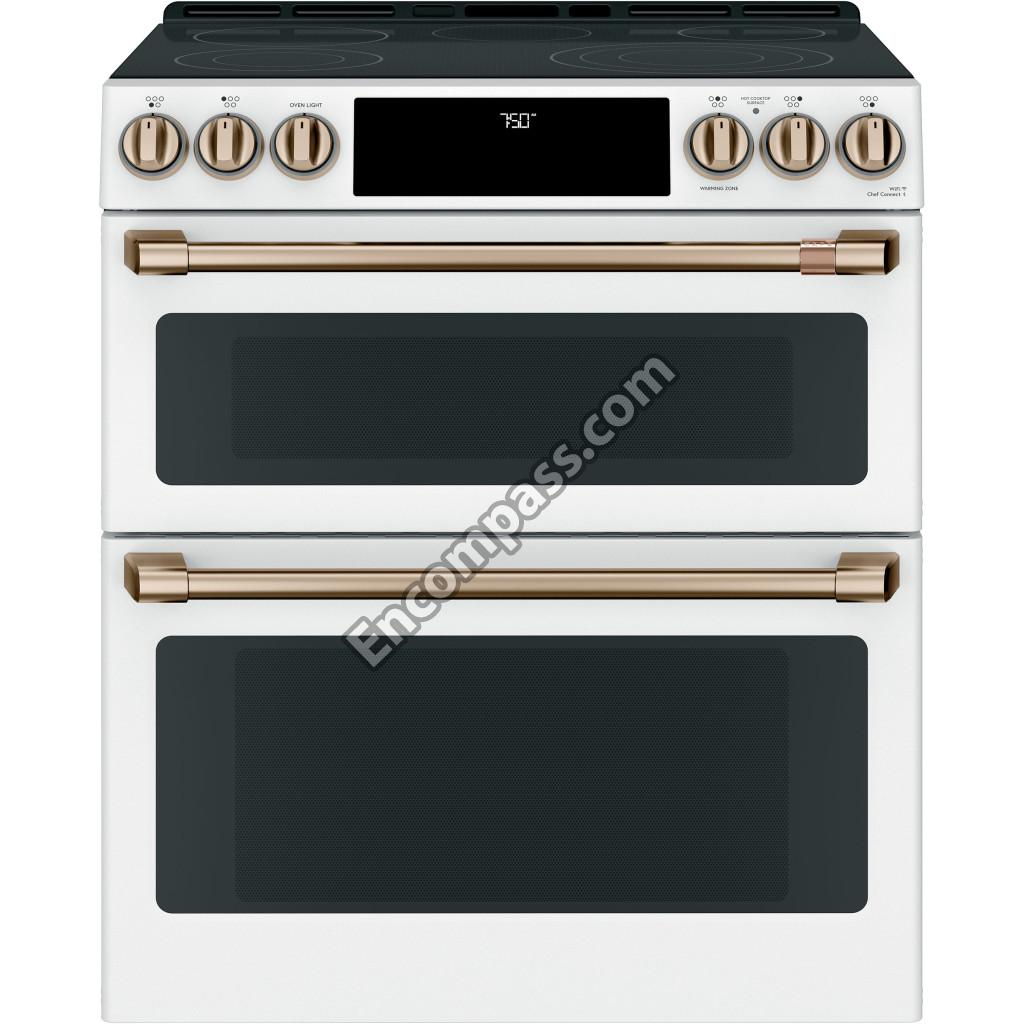

Electric Range
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ANGLE SUPPORT |
|
|
BARRIER DOOR |
|
|
BLACK BARRIER DOOR |
|
|
BLACK STAINLESS HANDLE |
|
|
BLADE FAN |
|
|
BLOWER TANGENTIAL |
|
|
BOARD DAUGHTER RELAY |
|
|
BOARD SENSOR |
|
|
BOTTOM OVEN |
|
|
BOTTOM OVEN |
|
|
BOTTOM RANGE |
|
|
BOTTOM RANGE DEFLECTOR |
|
|
BRACKET |
|
|
BRACKET ASM ANTI-TIP |
|
|
BRACKET OVEN CORNER |
|
|
BROIL ELEMENT |
|
|
BROIL ELEMENT |
|
|
BRONZE RANGE HANDLE |
|
|
BRONZE RANGE HANDLE W/ CAF BAND |
|
|
BRUSHED BLACK DOUBLE BURNER KNOB |
|
|
BRUSHED BLACK HANDLE W/ CAF BAND |
|
|
BRUSHED BLACK LIGHT BEZEL KNOB |
|
|
BRUSHED BLACK OVENT LIGHT/WARMING ZONE K |
|
|
BRUSHED BLACK SINGLE ELEMENT KNOB |
|
|
BRUSHED BLACK TRI RING KNOB |
|
|
BRUSHED BRASS HANDLE ASM |
|
|
BRUSHED BRASS HANDLE ASM |
|
|

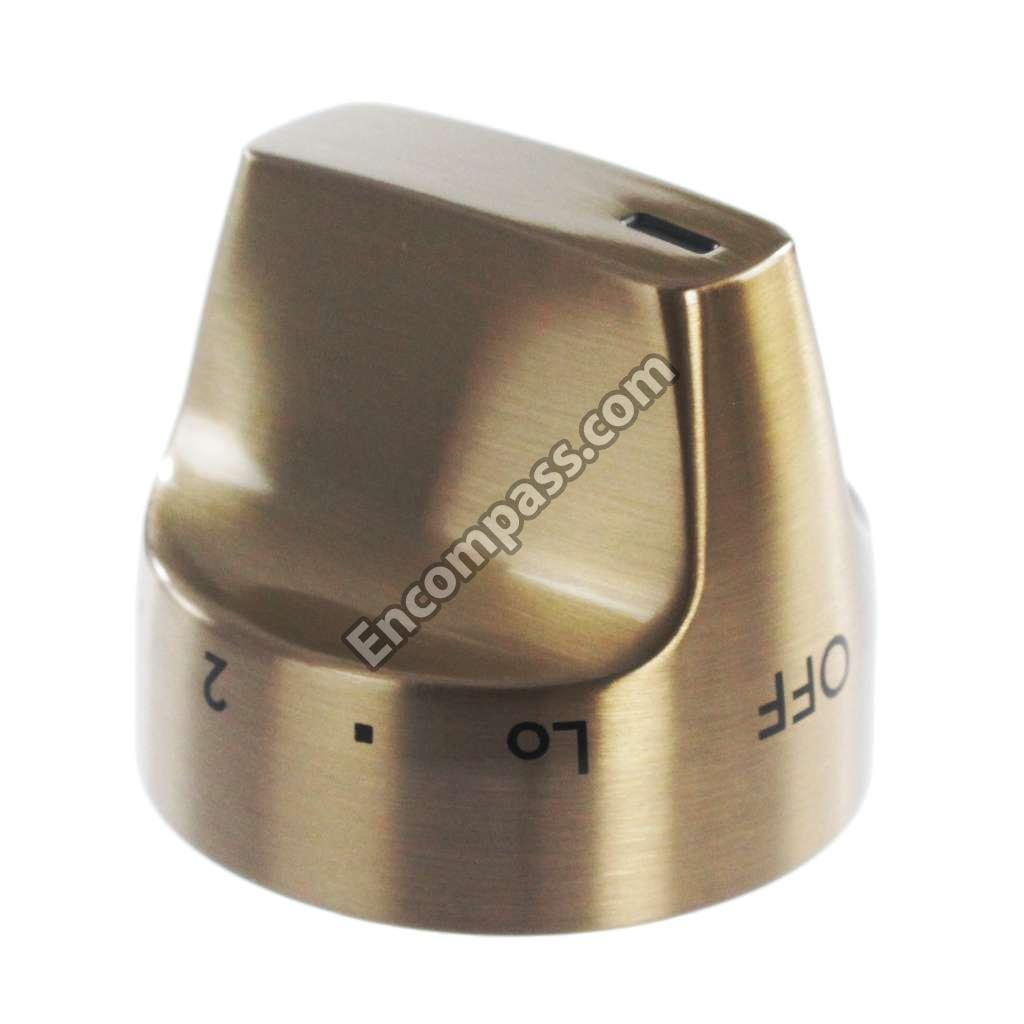

BRUSHED BRASS KNOB AND GRAPHICS ASM |
|
|
BRUSHED BRASS KNOB AND GRAPHICS ASM |
|
|
BRUSHED BRASS KNOB AND GRAPHICS ASM |
|
|
BRUSHED BRASS KNOB AND GRAPHICS ASM |
|
|
BRUSHED BRASS LIGHT BEZEL ASM |
|
|
BRUSHED BRONZE DOUBLE BURNER KNOB |
|
|
BRUSHED BRONZE LIGHT BEZEL KNOB |
|
|
BRUSHED BRONZE SINGLE ELEMENT KNOB |
|
|
BRUSHED BRONZE TRI RING KNOB |
|
|
BRUSHED BRONZE WARMING ZONE KNOB |
|
|
BRUSHED COPPER DOUBLE BURNER KNOB |
|
|
BRUSHED COPPER HANDLE |
|
|
BRUSHED COPPER HANDLE W/ CAF BAND |
|
|
BRUSHED COPPER LIGHT BEZEL KNOB |
|
|
BRUSHED COPPER OVENT LIGHT/WARMING ZONE |
|
|
BRUSHED COPPER SINGLE ELEMENT KNOB |
|
|
BRUSHED COPPER TRI RING KNOB |
|
|
BRUSHED STAINLESS DOUBLE BURNER KNOB |
|
|
BRUSHED STAINLESS LIGHT BEZEL KNOB |
|
|
BRUSHED STAINLESS RANGE HANDLE |
|
|
BRUSHED STAINLESS RANGE HANDLE W/ CAF B |
|
|
BRUSHED STAINLESS SINGLE ELEMENT KNOB |
|
|
BRUSHED STAINLESS TRI RING KNOB |
|
|
BRUSHED STAINLESS WARMING ZONE KNOB |
|
|
CAMERA LENS |
|
|
CAPACITOR HOLDER |
|
|
CAPACITOR MOTOR |
|
|
CATALYST BRACKET |
|
|
CLIP CABLE |
|
|
COVER BACK |
|
|
COVER DOOR LATCH |
|
|
COVER LAMP |
|
|
COVER MOTOR |
|
|
COVER TERMINAL BLOCK |
|
|
CRYSTAL WINDOW |
|
|
CRYSTAL WINDOW |
|
|
DC HARNESS |
|
|
DEFLECTOR UPPER |
|
|
DIVERTER DOOR |
|
|
DIVERTER DOOR |
|
|
DOOR HINGE RIGHT |
|
|
DOOR LATCH AUTOMATIC |
|
|
DOOR LATCH AUTOMATIC |
|
|
ELEMENT HALIANT (DUAL) |
|
|
ELEMENT HALIANT 12 TRPL |
|
|
ELEMENT HALIANT 8 |
|
|
ELEMENT RADIANT 5.5 IN |
|
|
ELEMENT RADIANT 6 WARMER |
|
|
FAN COVER |
|
|
FAN INSULATION |
|
|
FAN INSULATOR |
|
|
FAN SUPPORT |
|
|
FAN SUPPORT |
|
|
FASTENER BRACKET |
|
|
FASTENER BRACKET |
|
|
FASTENER BRACKET UC |
|
|
FASTENER BRACKET UC |
|
|
FASTENER DOOR HANDLE |
|
|
FLAT BLACK DOUBLE BURNER KNOB |
|
|
FLAT BLACK HANDLE |
|
|
FLAT BLACK HANDLE W/ CAF BAND |
|
|
FLAT BLACK LIGHT BEZEL KNOB |
|
|
FLAT BLACK OVEN LIGHT/WARMING ZONE KNOB |
|
|
FLAT BLACK SINGLE ELEMENT KNOB |
|
|
FLAT BLACK TRI RING KNOB |
|
|
FRAME FRONT BUMPER |
|
|
FRAME FRONT BUMPER |
|
|
FRAME WINDOW ASSEMBLY |
|
|
FRAME WINDOW ASSEMBLY |
|
|
FRONT GASKET ASM |
|
|
FRONT SUPPORT LEFT |
|
|
FRONT SUPPORT RIGHT |
|
|
GASEKT OVEN LOWER CAVITY |
|
|
GASKET OVEN |
|
|
GASKET OVEN LIGHT |
|
|
GEA2 WIFI/BLE BOARD W/INSTRUCTIONS |
|
|
GLASS & TOUCH BOARD ASM |
|
|
GROMMET |
|
|
GUARD INSULATION |
|
|
GUARD INSULATION |
|
|
HARNESS BAKE |
|
|
HARNESS BLOWER |
|
|
HARNESS COOKTOP |
|
|
HARNESS DOOR LATCH |
|
|
HARNESS INTERFACE |
|
|
HARNESS JUMPER |
|
|
HARNESS SUPPLIER |
|
|
HARNESS WIRE JUMPER PMVA |
|
|
HEAT ELEMENT CONVECTION |
|
|
HIDDEN BAKE ELEMENT |
|
|
HINGE ASM |
|
|
HINGE DOOR LEFT |
|
|
HOT SURFACE INDICATOR |
|
|
INDICATOR SLEEVE |
|
|
INDUCTION DUCT GASKET |
|
|
INSULATION DOOR |
|
|
INSULATION DOOR |
|
|
INSULATION DOOR |
|
|
INSULATION DOOR |
|
|
INSULATION DOOR |
|
|
INSULATION OVEN BACK |
|
|
INSULATION OVEN BACK |
|
|
INSULATION OVEN BACK |
|
|
LAMP INSULATION |
|
|
LEG LEVELER |
|
|
LIGHT INDICATOR PILOT |
|
|
LINER DOOR ASSEMBLY |
|
|
LINER DOOR WELD ASSEMBLY |
|
|
MACHINE CONTROL RC17 AND RELAY WITH FRAM |
|
|
MOTOR PSC CONV |
|
|
NUT |
|
|
NUT |
|
|
OVEN LAMP HOLDER ASM |
|
|
OVEN RACK |
|
|
PANEL SIDE |
|
|
PANEL SIDE FOIL |
|
|
PANEL VENT BACKER |
|
|
PLUNGER SWITCH |
|
|
PM INSTALL INSTRUCTIONS |
|
|
PM INSTALL INSTRUCTIONS |
|
|
PM OWNERS MANUAL |
|
|
PM QUICK OWNERS MANUAL |
|
|
PM WI FI INSTRUCTIONS |
|
|
PRINTED AND ONLINEMINI MANUAL AND WIRING |
|
|
PROBE |
|
|
RACK OVEN SLIDE ASM |
|
|
RANGETOP & GLASS ASM |
|
|
RECEIVER HINGE |
|
|
RECEIVER HINGE LH |
|
|
RECEIVER HINGE RH |
|
|
RECEPTABLE ASM |
|
|
SCR 8-18 AB X 5/16S |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW 10-16 SHLDR TYPE A |
|
|
SCREW 10-32 TR T |
|
|
SCREW 12-14, 5/8S |
|
|
SCREW GROUND |
|
|
SEAL VALVE |
|
|
SENSOR-OVEN |
|
|
SPEEDNUT |
|
|
SPILL COVER LAMP |
|
|
SPILL GASKET |
|
|
SPRING RADIANT ELEMENT |
|
|
STANDOFF POWER CONTROL BOARD |
|
|
SUPPORT BASE LT |
|
|
SUPPORT BASE RT |
|
|
SUPPORT CATALYST |
|
|
SWITCH ASM |
|
|
SWITCH HIGH LIMIT |
|
|
TERMINAL BLOCK ASM |
|
|
TERMINAL BLOCK BRACKET |
|
|
TRIANGLE COVER |
|
|
TRIM KIT |
|
|
VENT TRIM |
|
|
WHITE SLATE GLASS & PANEL DOOR |
|
|
WHITE SLATE GLASS & PANEL DOOR |
|
|
WHITE SLATE MANIFOLD PANEL |
