Model Image
Manufacturer

GE

Model Number

CGP350SET1SS

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
WB16K10079 WB16K10079 3R BURNER ASM
WB02T10531 WB02T10531 BADGE CAFE

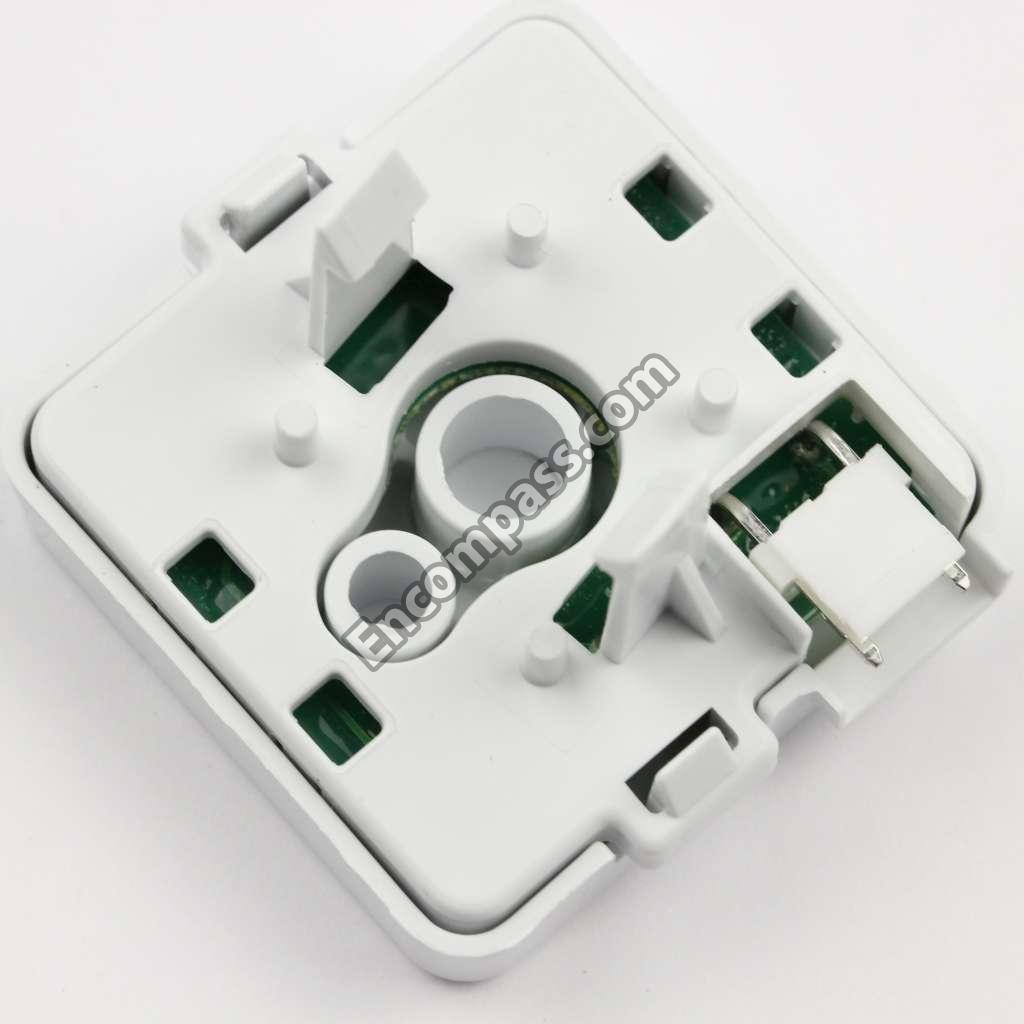

WB17T10027 WB17T10027 BOARD LED ASM
WB64T10070 WB64T10070 BOTTOM BURN BOX
WB02T10567 WB02T10567 BRACKET
WB28T10249 WB28T10249 BRACKET MANIFOLD ASM
WB2K5328 WB2K5328 BRKT HOLD DN
WB28T10278 WB28T10278 BUMPER (BK)
WB29K10045 WB29K10045 BURNER CAP CENTRAL
WB16K10055 WB16K10055 BURNER MEDIUM (9500)
WB08T10039 WB08T10039 BUZZER (120V)
WB29K10023 WB29K10023 CAP BURNER MED
WB29K10022 WB29K10022 CAP BURNER SMALL
WB02K10361 WB02K10361 CKT BRACKET MID
WB02K10360 WB02K10360 CKT BRACKET SM
WB02T10111 WB02T10111 CLEANER-SS
WB01K10112 WB01K10112 CLIP-ELECTRODE
WB27T11382 WB27T11382 CONTROL BOARD LED
WB06T10017 WB06T10017 COOKTOP FOAM TAPE
WB08T10015 WB08T10015 CORD RANGE
WB01K10037 WB01K10037 ECONOMIC NUT
WB13K10014 WB13K10014 ELECTRODE TOP
WB13T10080 WB13T10080 ELECTRODE TOP
WB31T10148 WB31T10148 GRATE CTR 30 PRF
WB31T10150 WB31T10150 GRATE LT 30 PRF
WB31T10149 WB31T10149 GRATE RT 30 PRF
WB48T10081 WB48T10081 GRIDDLE
WB18T10510 WB18T10510 HARNESS WIRE BURNER
WB18T10511 WB18T10511 HARNESS WIRE BURNER
WB02K5328 WB02K5328 HOLD DOWN BRACKET
WB28T10259 WB28T10259 INJECT TOP BURNER ASM
WB35T10246 WB35T10246 INSULATION MAINTOP
WB28T10250 WB28T10250 KIT BUTANE ASM

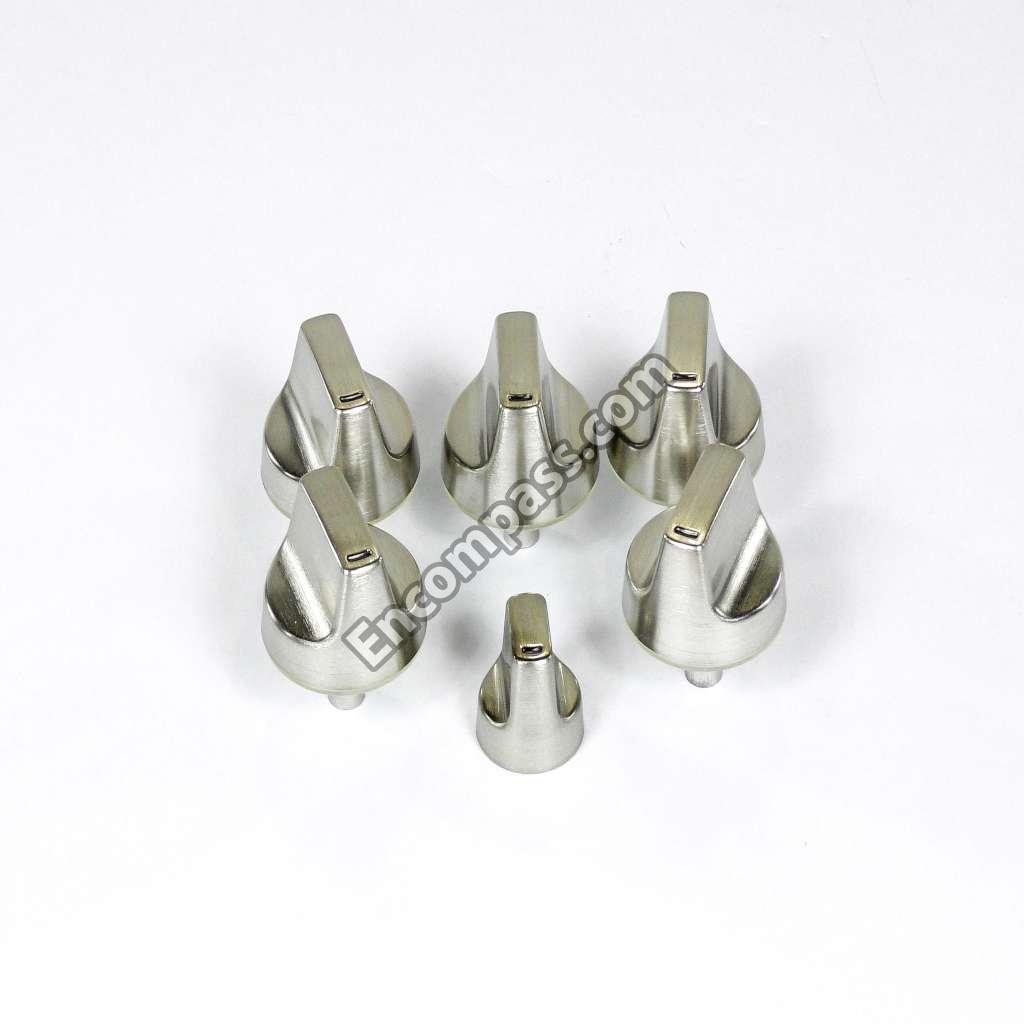

WB03X32194 WB03X32194 KNOB ASSEMBLY
WB25T10041 WB25T10041 LENS
WB27T10626 WB27T10626 LIGHT INDICATOR PILOT
WB62T10820 WB62T10820 MAINTOP GAS ASM 30
WB28T10244 WB28T10244 ORIFICE SPUD
WB28T10243 WB28T10243 ORIFICE SPUD LP CEN(OFF)
WB28T10248 WB28T10248 ORIFICE SPUD LP CENTER
WB28T10246 WB28T10246 ORIFICE SPUD LP LF & RF
WB28T10245 WB28T10245 ORIFICE SPUD LP LR & RR
WB28T10242 WB28T10242 ORIFICE SPUD NG CEN(OFF)
WB02T10569 WB02T10569 PLUG VALVE STEM
31-10807 31-10807 PM INSTALL INSTRUCTIONS
31-10783 31-10783 PM LP INSTRUCTIONS
31-14984 31-14984 PM MANUAL MINI & WD ASM
49-80636 49-80636 PM MANUAL USE & CARE
WB18X25575 WB18X25575 RANGE SWITCH HARNESS
WB19T10089 WB19T10089 REGULATOR CONVERT PRESS
WB01T10106 WB01T10106 SCR 6-32 CA OVT-15 5/8
WB01T10110 WB01T10110 SCR 8-18X.450 AB FLT20 S
WB01X1121 WB01X1121 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5028 WB01K5028 SCREW
WB01K0001 WB01K0001 SCREW
WB1K5119 WB1K5119 SCREW
WB1X1261 WB1X1261 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01X1261 WB01X1261 SCREW GROUND
WB01T10122 WB01T10122 SCREW LP ADJUSTMENT
WB01K10110 WB01K10110 SCREW TRILOBULAR
WB1X1137 WB1X1137 SCREW-10AB
WB1X1121 WB1X1121 SCREW-VLVE
WB04T10084 WB04T10084 SEAL MANIFOLD
WB16K10070 WB16K10070 SMALL BURNER V 5K
WB13X32509 WB13X32509 SPARK MODULE (0+6)
WB02T10207 WB02T10207 STANDOFF
WB2K5275 WB2K5275 STRAIN RELEF
WB02K5275 WB02K5275 STRAIN RELIEF-RT ANGLE
WB04T10082 WB04T10082 SUPPLY INLET
WB06T10016 WB06T10016 TAPE FOAM
WB28T10269 WB28T10269 TUBE BURNER ASM
WB28X29274 WB28X29274 TUBE BURNER ASM
WB28T10268 WB28T10268 TUBE BURNER ASM
WB28T10266 WB28T10266 TUBE BURNER ASM
WB28X27817 WB28X27817 TUBE BURNER RF
WB28T10251 WB28T10251 TUBE MANIFOLD
WB28T10267 WB28T10267 TUBE SUPPLY
WB28T10271 WB28T10271 TUBE TRI RING OUTER
WB19T10087 WB19T10087 VALVE DUAL
WB19T10088 WB19T10088 VALVE DUAL
WB19T10092 WB19T10092 VALVE GAS
WB19T10085 WB19T10085 VALVE GAS
WB19T10084 WB19T10084 VALVE GAS
WB19T10039 WB19T10039 VALVE LOCKOUT
