Model Image
Manufacturer

GE

Model Number

CGP350SET2SS

Description

Gas Range Or Dual Fuel

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB16K10070 WB16K10070 000 BTUS GAS RANGE BURNER BASE; 5
WB29K10022 WB29K10022 000 BTUS GAS RANGE SMALL BURNER CAP; 5

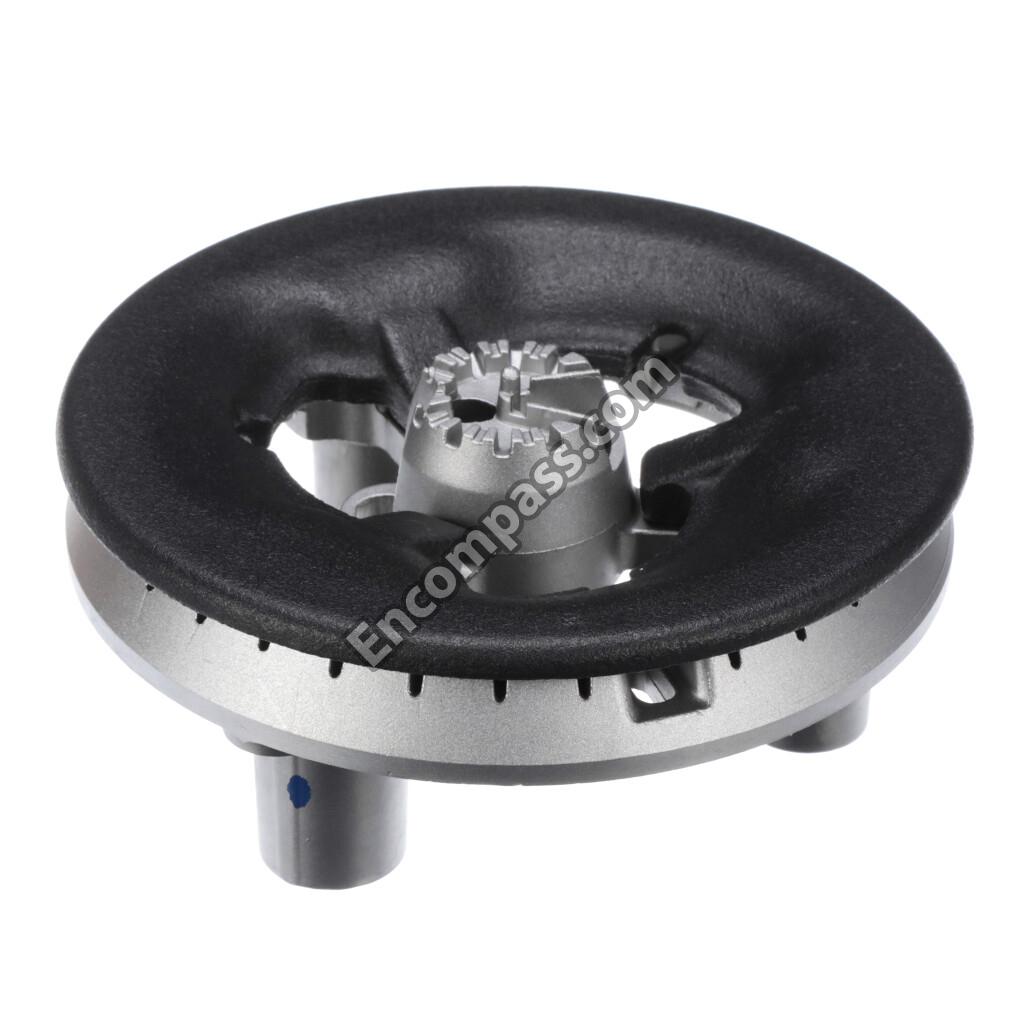

WB16X29082 WB16X29082 3R BURNER ASM
WB29K10023 WB29K10023 500 BTUS GAS RANGE MEDIUM BURNER CAP; 9
WB16K10055 WB16K10055 9 RANGE SURFACE BURNER BASE-MEDIUM 500
WB01T10122 WB01T10122 ADJUSTABLE SCREW
WB03T10342 WB03T10342 BADGE GE
WB17T10027 WB17T10027 BOARD LED ASSEMBLY
WB64T10070 WB64T10070 BOTTOM BURN BOX
WB2K5328 WB2K5328 BRKT HOLD DN
WB29K10045 WB29K10045 BURNER CAP CENTRAL
WB02K10361 WB02K10361 CKT BRACKET MEDIUM
WB02K10360 WB02K10360 CKT BRACKET SMALL
WB02T10111 WB02T10111 CLEANER-SS
WB06T10017 WB06T10017 COOKTOP FOAM TAPE
WB04T10082 WB04T10082 COOKTOP INLET SUPPLY
WB04T10084 WB04T10084 COOKTOP MANIFOLD SEAL
WB08T10015 WB08T10015 COOKTOP POWER CORD
WB01K10037 WB01K10037 ECONOMIC NUT
WB13T10080 WB13T10080 ELECTRODE TOP
WB31T10148 WB31T10148 GRATE CTR 30 (PRF)
WB31T10150 WB31T10150 GRATE LEFT 30 (PRF)
WB31T10149 WB31T10149 GRATE RT 30 (PRF)
WB48T10081 WB48T10081 GRIDDLE
WB28X29274 WB28X29274 GRIDDLE TUBE ASSEMBLY
WB18T10510 WB18T10510 HARNESS WIRE BURNER
WB18T10511 WB18T10511 HARNESS WIRE BURNER

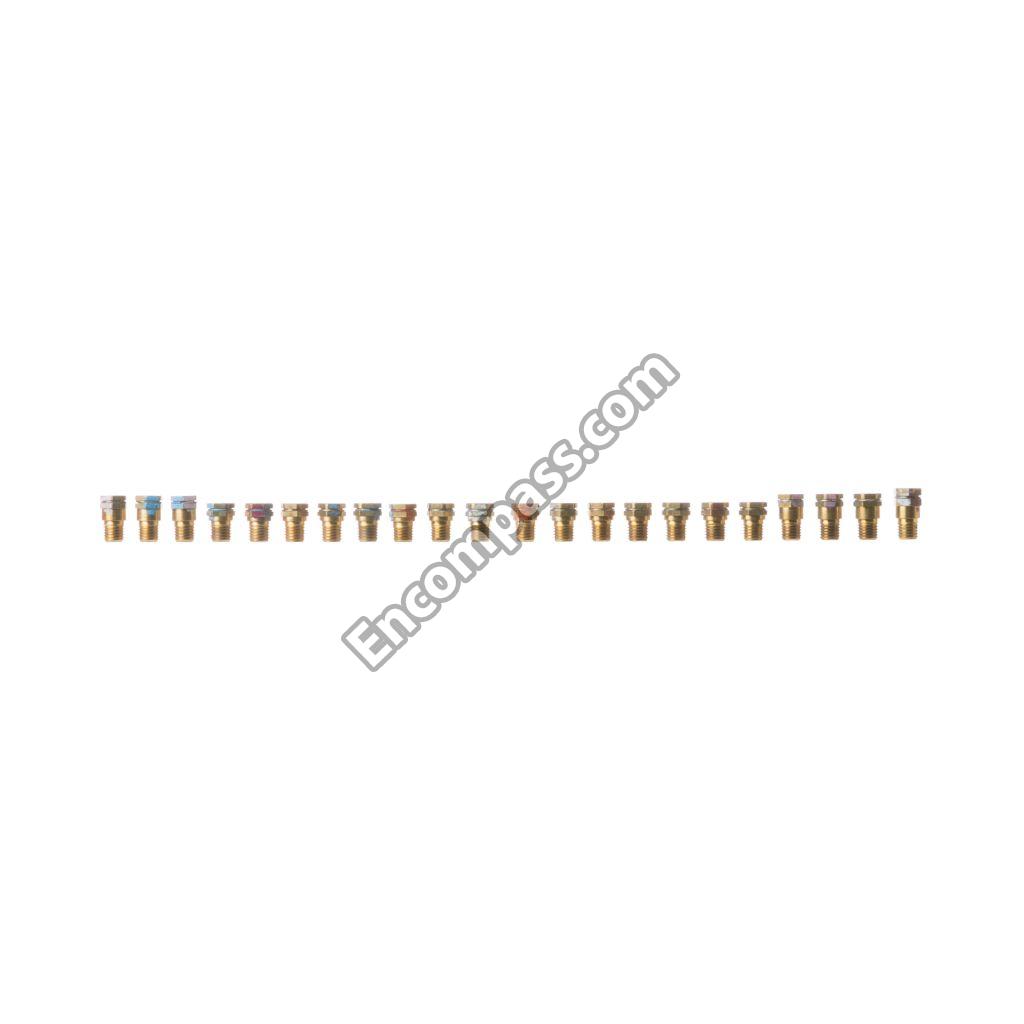

WB28T10279 WB28T10279 HIGH ALT NG CONVERSION KIT
WB02K5328 WB02K5328 HOLD DOWN BRACKET
31-10823 31-10823 INSTALLATION INSTRUCTIONS
31-10826 31-10826 INSTALLATION INSTRUCTIONS
WB35T10246 WB35T10246 INSULATION MAINTOP
WB28T10250 WB28T10250 KIT BUTANE ASSEMBLY
WB27T10626 WB27T10626 LIGHT INDICATOR PILOT
WB62T10820 WB62T10820 MAINTOP ASM CFE
WB28T10243 WB28T10243 ORIFICE SPUD LP
WB28T10245 WB28T10245 ORIFICE SPUD LP 5K
WB28T10246 WB28T10246 ORIFICE SPUD LP 9.1K
WB28T10248 WB28T10248 ORIFICE SPUD SIMMER LP
49-80661 49-80661 OWNERS MANUAL
WB02T10207 WB02T10207 PCB ST AND OFF
31-10858 31-10858 PM INSTALL INSTRUCTIONS
31-10847 31-10847 PM INSTRUCTIONS INSTALL
31-17010 31-17010 PM MANUAL MINI & WD ASM
WB28T10278 WB28T10278 RANGE BLACK BUMPER
WB02T10567 WB02T10567 RANGE BRACKET
WB28T10266 WB28T10266 RANGE BURNER TUBE ASSEMBLY
WB08T10039 WB08T10039 RANGE BUZZER
WB01K10112 WB01K10112 RANGE ELECTRODE CLIP
WB27T11382 WB27T11382 RANGE LED SURGE BOARD
WB28T10249 WB28T10249 RANGE MANIFOLD BRACKET ASSEMBLY
WB28T10251 WB28T10251 RANGE MANIFOLD TUBE
WB28T10242 WB28T10242 RANGE ORIFICE NG
WB28T10244 WB28T10244 RANGE ORIFICE SPUD NG - SIMMER
WB25T10041 WB25T10041 RANGE RED LENS/JEWEL
WB13X32509 WB13X32509 RANGE SPARK IGNITER GENERATOR MODULE
WB13K10014 WB13K10014 RANGE SURFACE BURNER SPARK IGNITER
WB18X25575 WB18X25575 RANGE SWITCH HARNESS
WB28T10259 WB28T10259 RANGE TOP BURNER ASSEMBLY
WB19T10039 WB19T10039 RANGE VALVE LOCKOUT
WB02T10569 WB02T10569 RANGE VALVE STEM PLUG
WB19T10089 WB19T10089 REGULATOR CONVERT PRESS
WB01X50407 WB01X50407 SCR 6-32 CA OVT-15 5/8
WB01T10110 WB01T10110 SCR 8-18X.450 AB FLT20 S
WB01X1137 WB01X1137 SCREW
WB01K5028 WB01K5028 SCREW
WH2X930 WH2X930 SCREW
WB1X536 WB1X536 SCREW
WB1X1261 WB1X1261 SCREW
WB01K10067 WB01K10067 SCREW 8 HD 1/4-20
WB01X1261 WB01X1261 SCREW GROUND
WB1X1137 WB1X1137 SCREW-10AB
WB03X32194 WB03X32194 STAINLESS STEEL KNOB SELECTOR
WB2K5275 WB2K5275 STRAIN RELEF
WB02K5275 WB02K5275 STRAIN RELIEF-RT ANGLE
WB06T10016 WB06T10016 TAPE FOAM
WB28T10268 WB28T10268 TUBE BURNER ASSEMBLY
WB28T10269 WB28T10269 TUBE BURNER ASSEMBLY
WB28X27817 WB28X27817 TUBE BURNER RF
WB28T10267 WB28T10267 TUBE SUPPLY
WB28T10271 WB28T10271 TUBE TRI RING OUTER
WB19T10087 WB19T10087 VALVE DUAL
WB19T10088 WB19T10088 VALVE DUAL
WB19T10084 WB19T10084 VALVE GAS
WB19T10085 WB19T10085 VALVE GAS
WB19T10092 WB19T10092 VALVE GAS
