Model Image
Manufacturer

GE

Model Number

CGS985SET3SS

Description

Gas Range Or Dual Fuel

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB63K10167 WB63K10167 BACK DRAWER
WD34X11435 WD34X11435 BADGE
WB34K10151 WB34K10151 BADGE GE CAFE
WB07K10342 WB07K10342 BARRIER DOOR
WB07K10378 WB07K10378 BARRIER DOOR
WB2X8351 WB2X8351 BLADE FAN

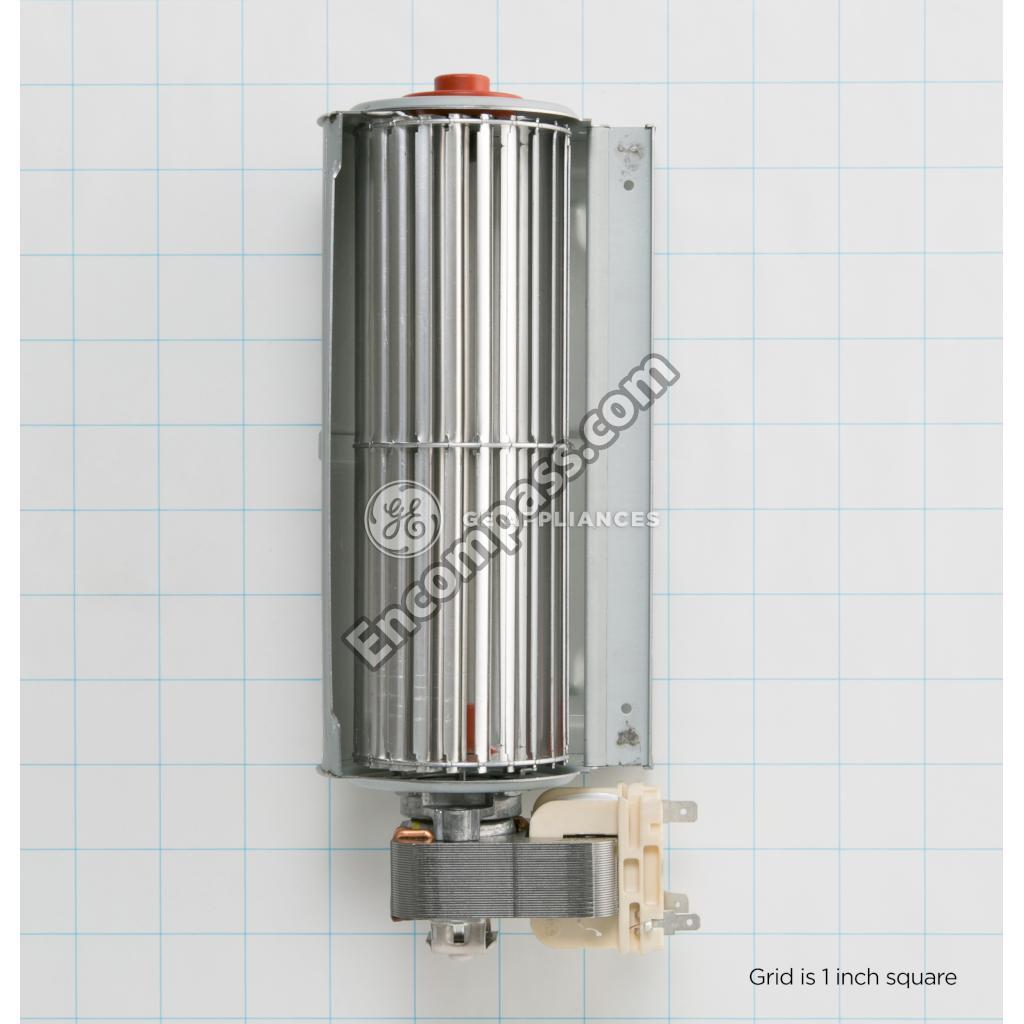

WB26K10018 WB26K10018 BLOWER TANGENTIAL 60MM
WB35X37967 WB35X37967 BOTTOM OVEN ASSEMBLY
WB02K0032 WB02K0032 BOTTOM OVEN BRACKT SUPPO
WB01K0005 WB01K0005 BOTTOM OVEN SCREW
WB63K10060 WB63K10060 BOTTOM RANGE
WB63K0015 WB63K0015 BRACE BOTTOM
WB63K0005 WB63K0005 BRACE BOTTOM
WB63K5 WB63K5 BRACE BOTTOM
WB02K10253 WB02K10253 BRACE VENT
WB02K10360 WB02K10360 BRACKET
WB02K10254 WB02K10254 BRACKET ASM ANTI-TIP
WB02K10353 WB02K10353 BRACKET BACK COOKTOP

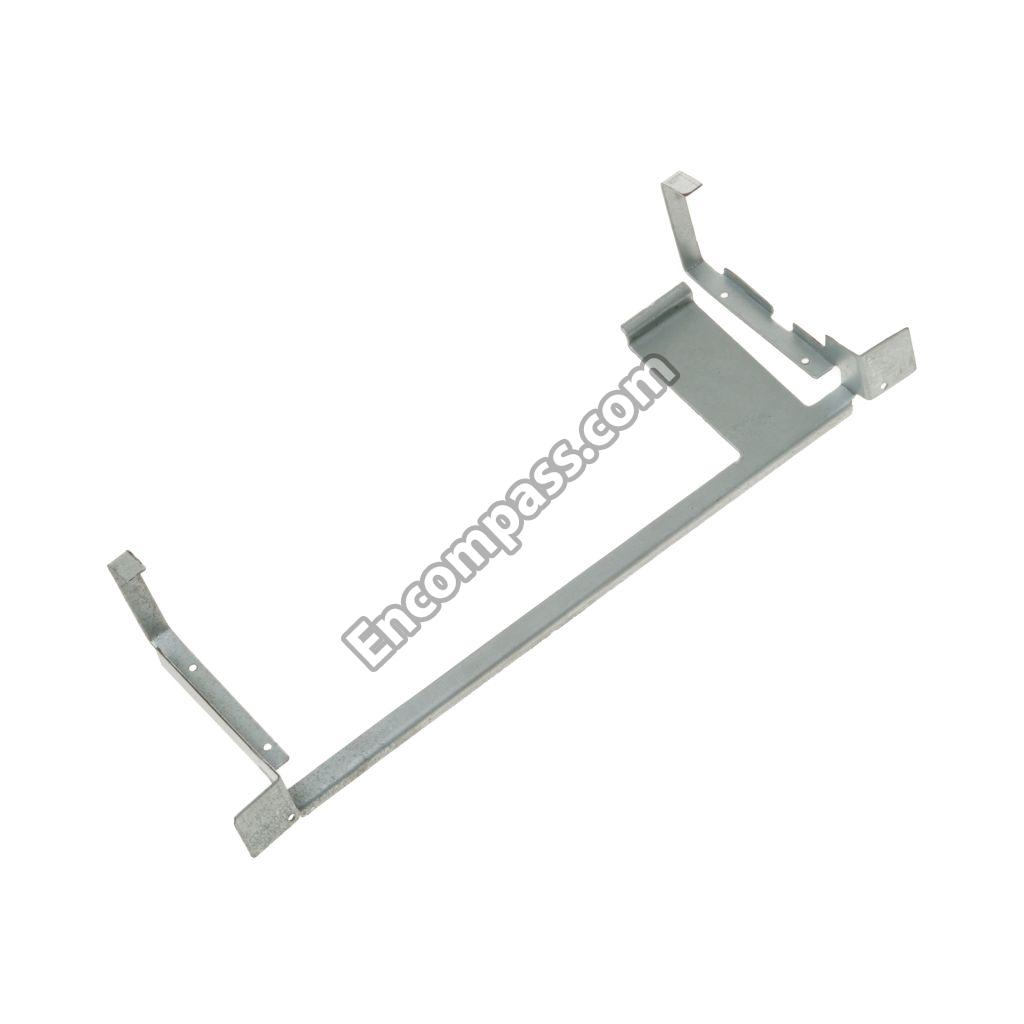

WB02K10169 WB02K10169 BRACKET CONTROL
WB02K10363 WB02K10363 BRACKET COOKTOP
WB02K10175 WB02K10175 BRACKET DOOR
WB02K10357 WB02K10357 BRACKET DOOR
WB63K10062 WB63K10062 BRACKET DRAWER
WB02K10350 WB02K10350 BRACKET GLASS
WB39K0020 WB39K0020 BRACKET MOUNTING DRAWER
WB02K0041 WB02K0041 BRACKET OVEN CORNER
WB02K10178 WB02K10178 BUMPER
WB02K10343 WB02K10343 BUMPER
WB2K15 WB2K15 BUMPER BLACK
WB02K10112 WB02K10112 BUMPER BLUE
WB02X28737 WB02X28737 BUMPER DOOR
WB02K0015 WB02K0015 BUMPER, BLACK
WB16K10081 WB16K10081 BURNER BAKE
WB16K10086 WB16K10086 BURNER BROIL
WB29K10045 WB29K10045 BURNER CAP CENTRAL

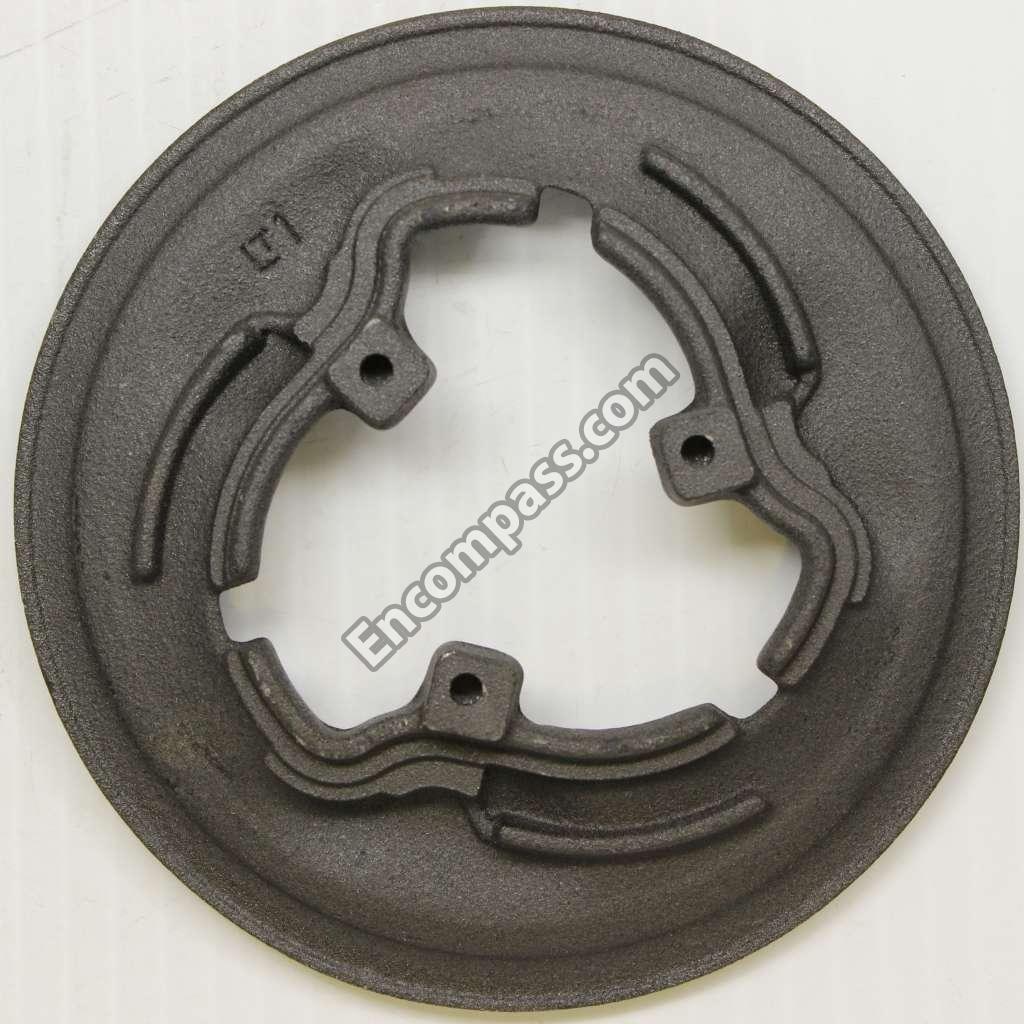

WB29K10044 WB29K10044 BURNER CAP OUTER
WB16K10055 WB16K10055 BURNER MEDIUM (9500)
WB28K10222 WB28K10222 CAP BURNER ASM (15K)
WB29K10023 WB29K10023 CAP BURNER MED
WB29K10022 WB29K10022 CAP BURNER SMALL
WB02K10110 WB02K10110 CATCH

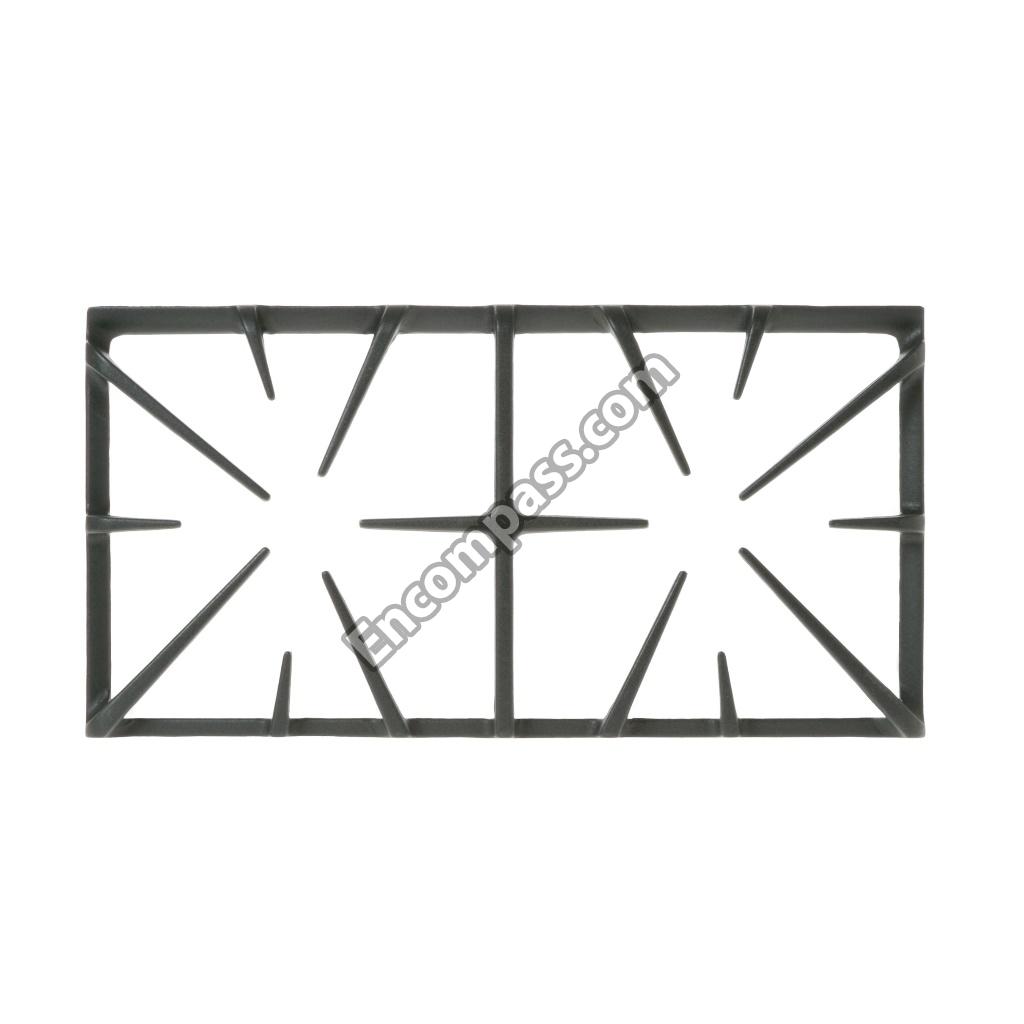

WB31K10218 WB31K10218 CENTER GRATE CAST
WB02K10361 WB02K10361 CKT BRACKET MDM & LGE
WB01K10106 WB01K10106 CKT SCREW
WB02K0036 WB02K0036 CLAMP CABLE
WB2K36 WB2K36 CLAMP CABLE
WB02K10023 WB02K10023 CLAMP-HEAT ELEMENT
WB02T10111 WB02T10111 CLEANER-SS
WB02K0031 WB02K0031 CLIP CABLE
WB02X21679 WB02X21679 CLIP CABLE
WB02K0010 WB02K0010 CLIP CAPILLARY
WB02K10073 WB02K10073 CLIP CAPILLARY

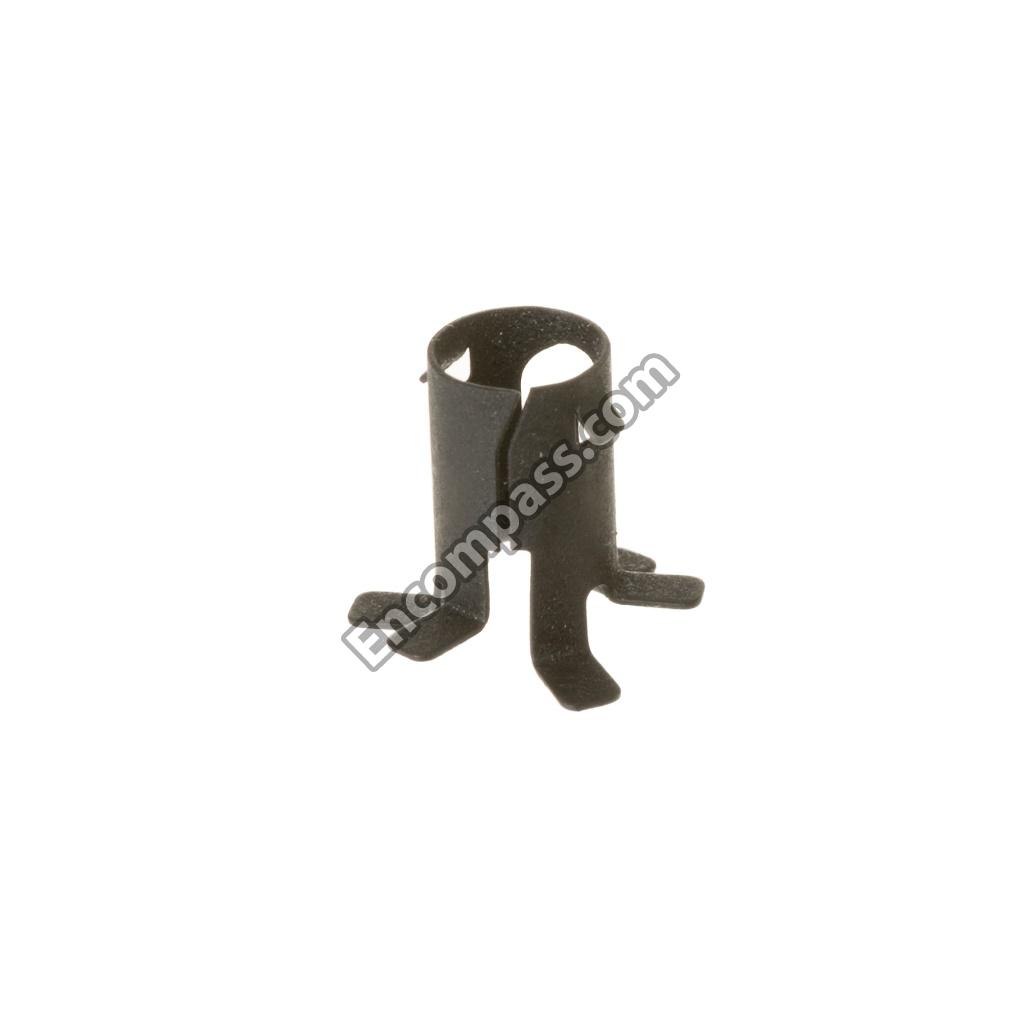

WB01K10114 WB01K10114 CLIP ELECTRODE
WB02K0038 WB02K0038 CLIP WIRE
WB02X7066 WB02X7066 CLIP WIRE
WB01X0119 WB01X0119 CONTOURED WASHER

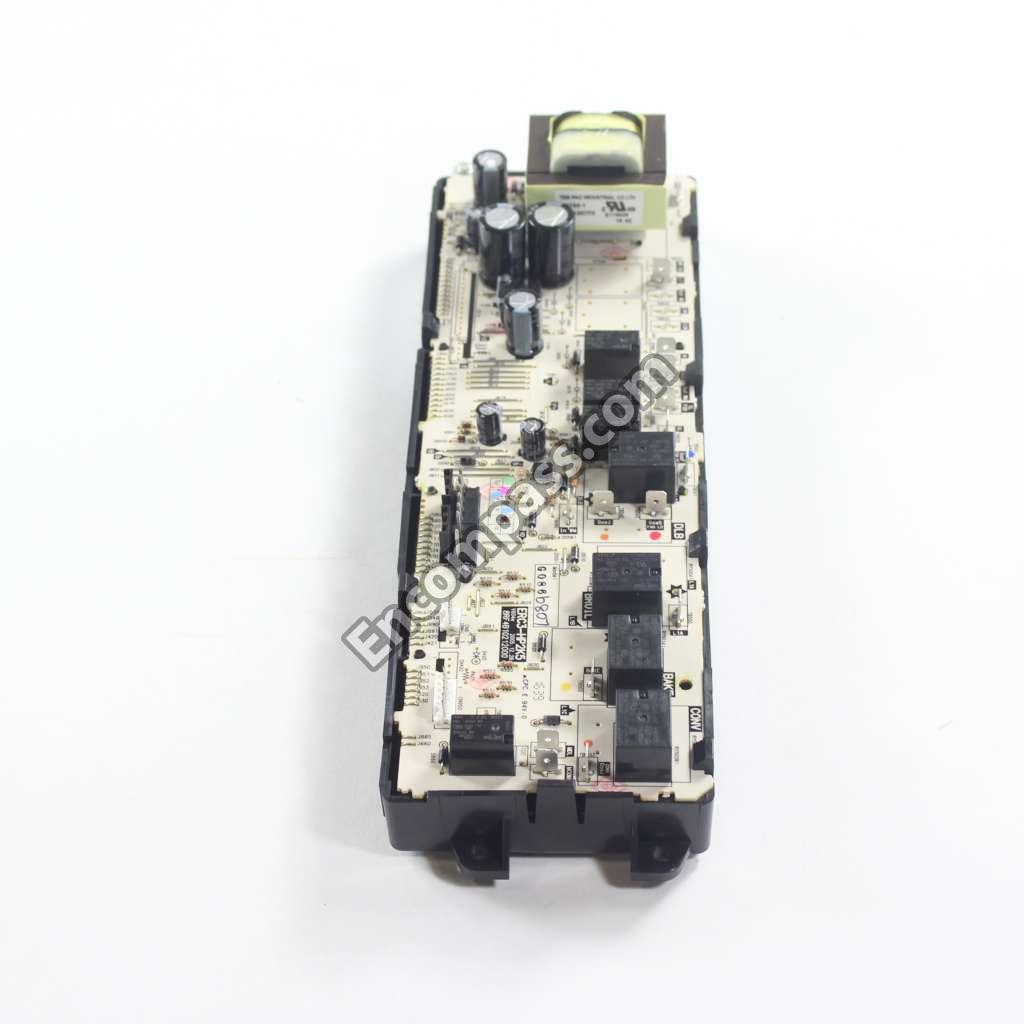

WB27K10421 WB27K10421 CONTROL OVN (ERC3HP)
WB02K10109 WB02K10109 COVER ACCESS SPRING LFT
WB02K10108 WB02K10108 COVER ACCESS SPRING RGT
WB63K10133 WB63K10133 COVER BURNER BOX
WB55K10072 WB55K10072 COVER DRAWER
WB34K10128 WB34K10128 COVER HEATING ELEMENT
WB08K10018 WB08K10018 COVER LAMP
WB34K10097 WB34K10097 COVER MOTOR
WB34K10148 WB34K10148 COVER MOTOR
WB63K10054 WB63K10054 COVER TERMINALS

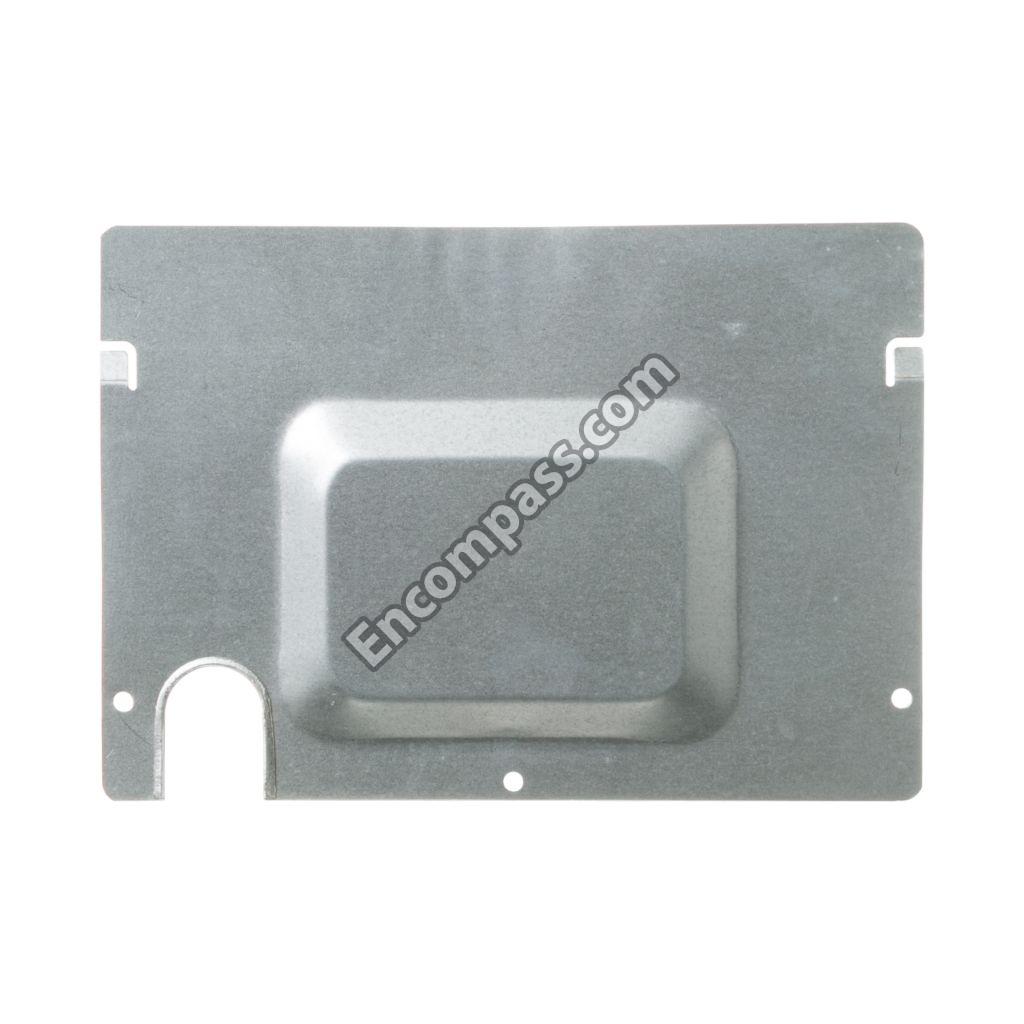

WB02K0024 WB02K0024 COVER VALVE
WB56K0020 WB56K0020 CRYSTAL WINDOW
WB57K10174 WB57K10174 CRYSTAL WINDOW
WB34K13 WB34K13 CVR B PNL SP
WB34K14 WB34K14 CVR IGNITOR
WB49K10025 WB49K10025 DEFLECTOR
WB02K10167 WB02K10167 DEFLECTOR
WB02K10168 WB02K10168 DEFLECTOR
WB49K10011 WB49K10011 DEFLECTOR BOTTOM
WB49K10037 WB49K10037 DEFLECTOR OVER
WB49K10012 WB49K10012 DEFLECTOR TOP
WB63K10136 WB63K10136 DUCT AND BURNER BOX ASM
WB34K10096 WB34K10096 DUCT UPPER HALF
WB01K10037 WB01K10037 ECONOMIC NUT

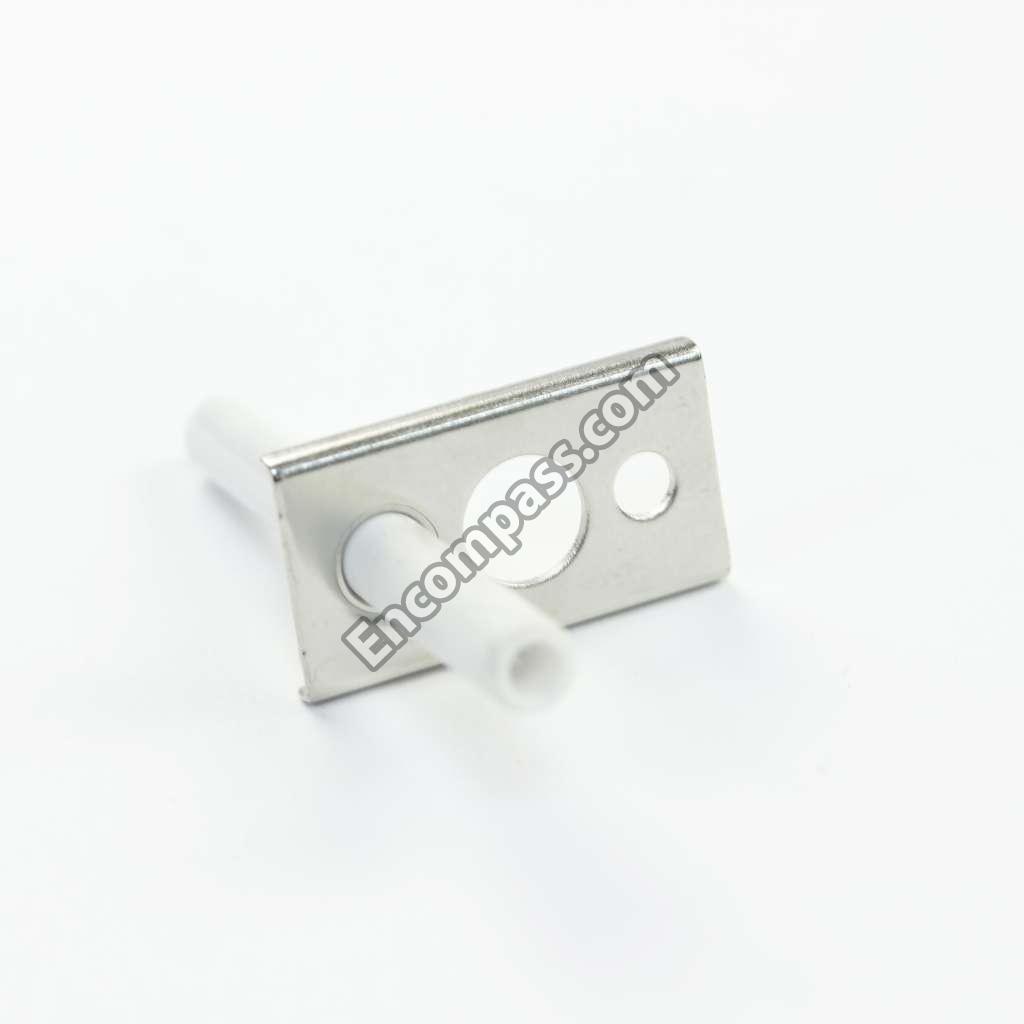

WB13T10080 WB13T10080 ELECTRODE TOP
WB18K10095 WB18K10095 ELECTRODES HARNESS H V

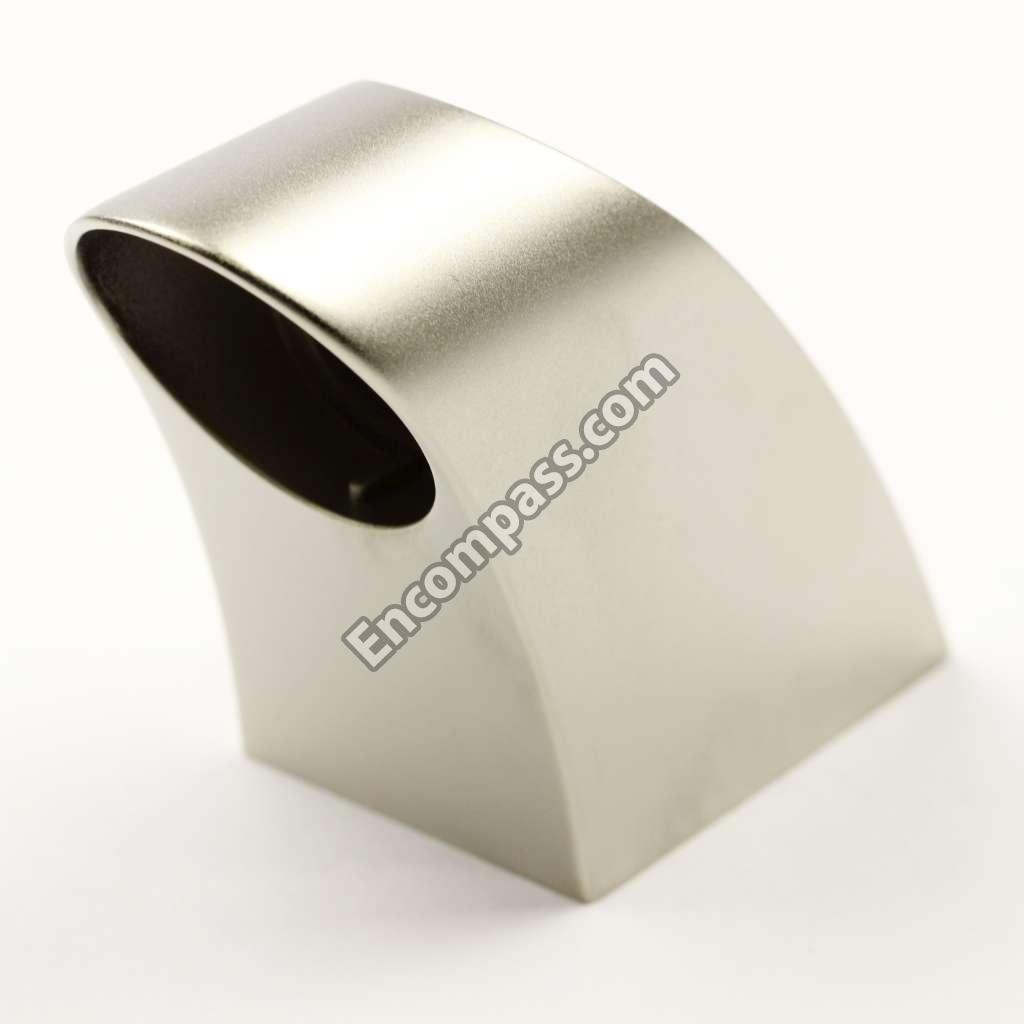

WB07K10426 WB07K10426 ENDCAP HANDLE
WB02X8351 WB02X8351 FAN BLADE
WB34K10038 WB34K10038 FAN COVER BACK
WB35K10038 WB35K10038 FAN INSULATOR
WB26K10003 WB26K10003 FAN MOTOR CONVECT-2SPEED
WB02K10034 WB02K10034 FAN SUPPORT
WB35X31393 WB35X31393 FOIL MANIFOLD
WB35X31391 WB35X31391 FOIL MANIFOLD
WB58K10010 WB58K10010 FRAME DRAWER
WB04K10017 WB04K10017 GASKET DRAWER ASM
WB04K10018 WB04K10018 GASKET LOWER
WB32K10052 WB32K10052 GASKET OVEN ASM
WB32K10044 WB32K10044 GASKET OVEN LIGHT
WB32K10051 WB32K10051 GASKET VENT

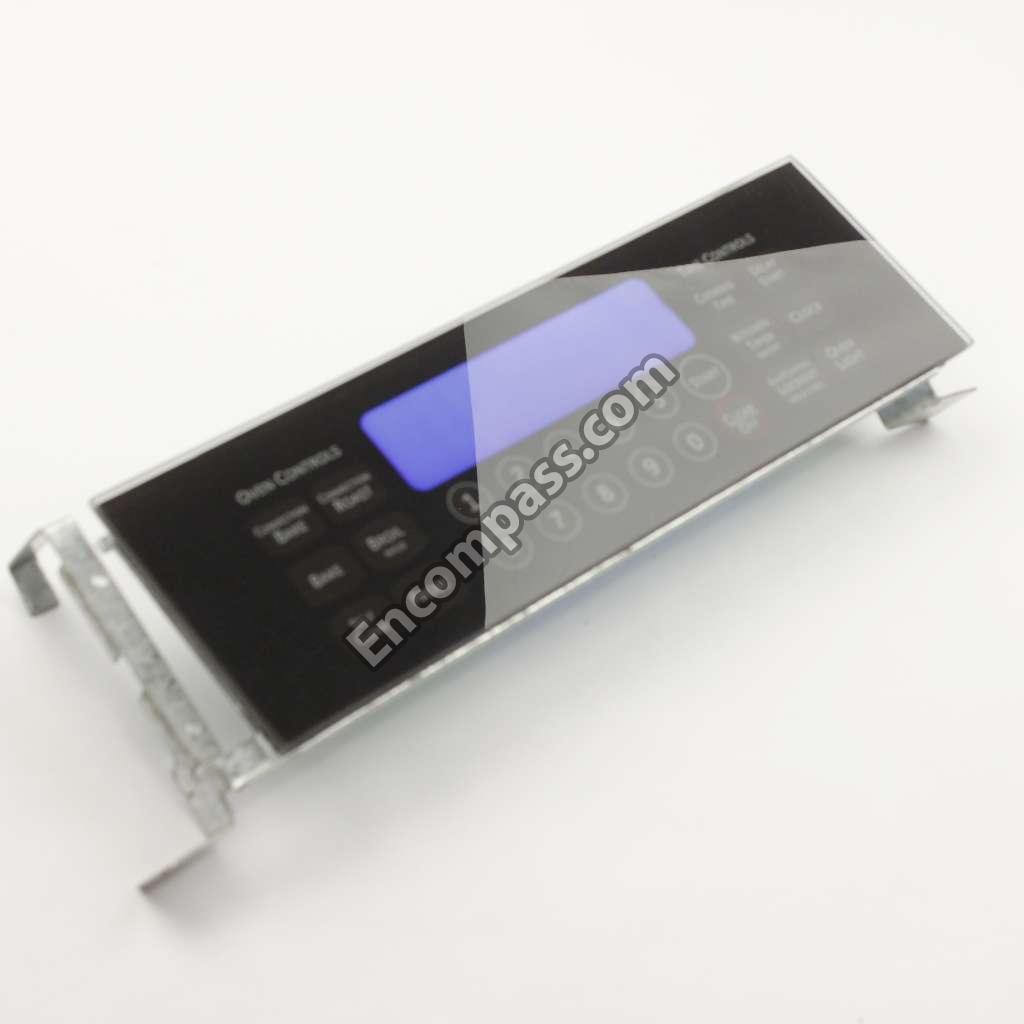

WB27K10389 WB27K10389 GLASS & TOUCH BOARD ASM
WB57K10175 WB57K10175 GLASS PANEL DOOR ASM

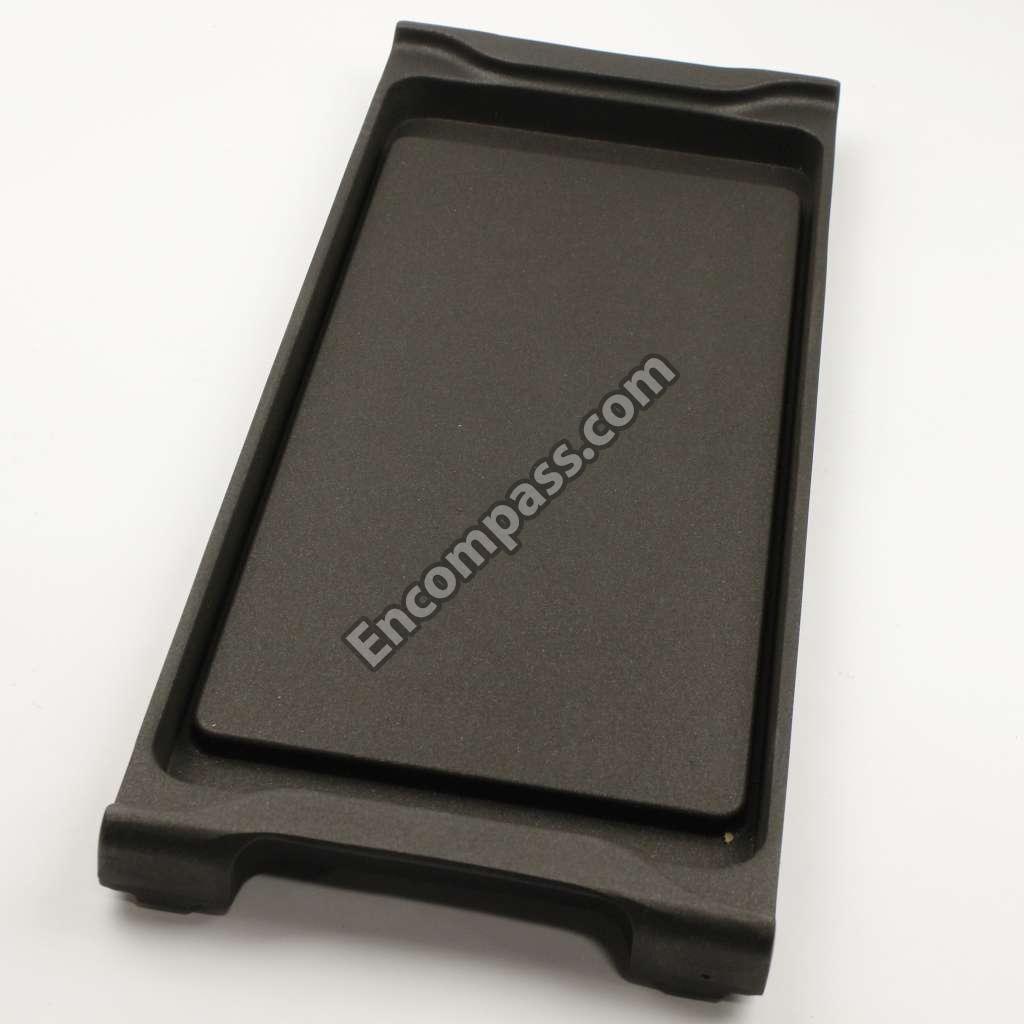

WB31K10220 WB31K10220 GRIDDLE

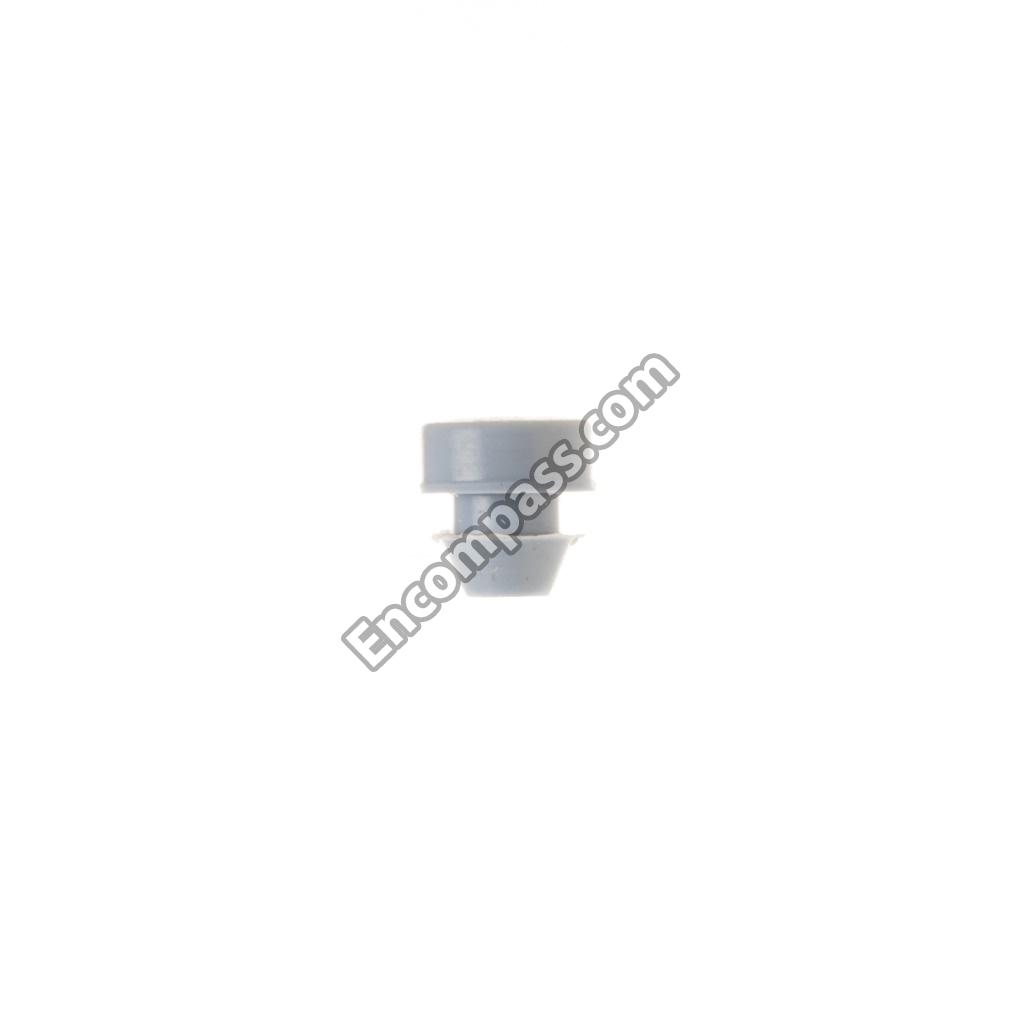

WB2K8 WB2K8 GROMMET
WB18X26507 WB18X26507 GROUND HARNESS
WB34K0031 WB34K0031 GUARD RADIATION LFT
WB34K0030 WB34K0030 GUARD RADIATION RT
WB53K10030 WB53K10030 GUARD TOP INSULATION
WB15K10077 WB15K10077 HANDLE TUBE SS
WB18K10082 WB18K10082 HARNESS HV

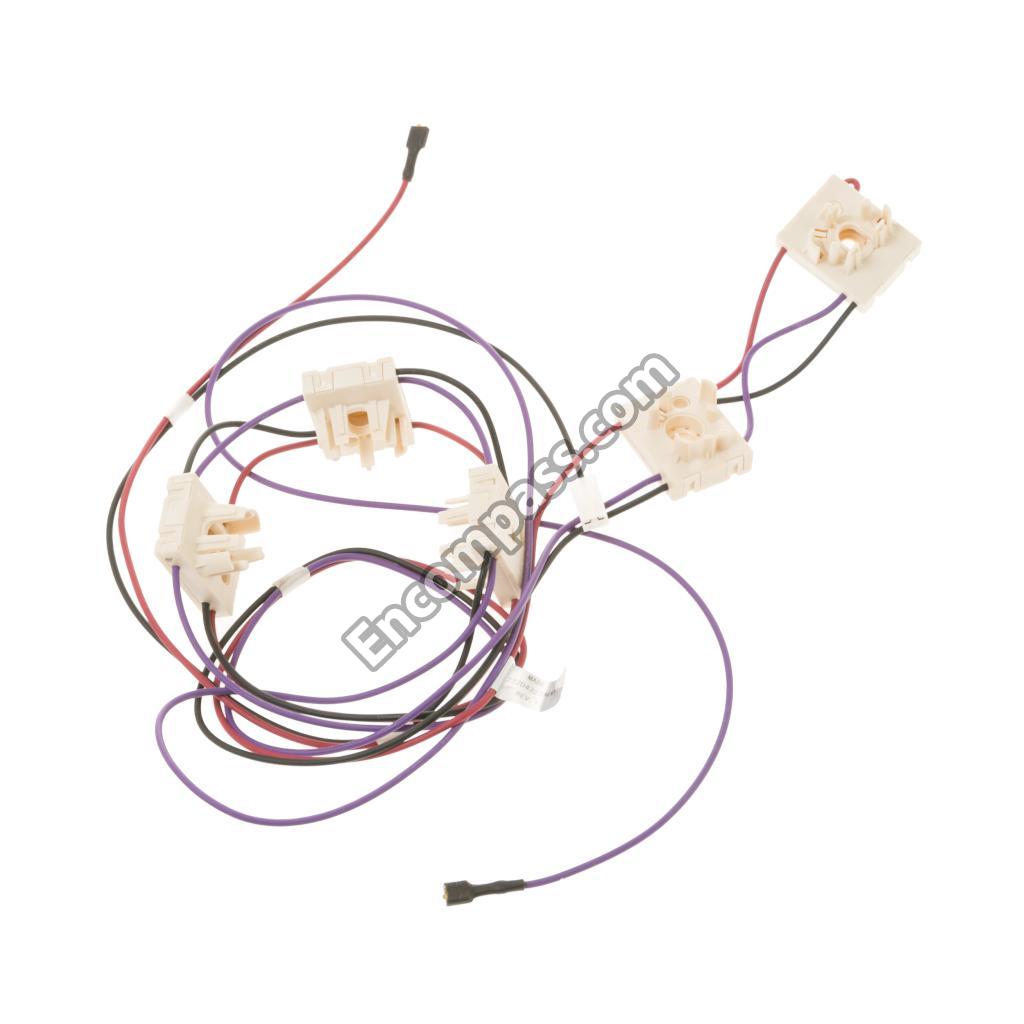

WB18K10077 WB18K10077 HARNESS SWITCHES
WB18T10386 WB18T10386 HARNESS WIRE GLASS TOUCH
WB44K10015 WB44K10015 HEATING ELEMENT BOTTOM
WB44K10014 WB44K10014 HEATING ELEMENT TOP

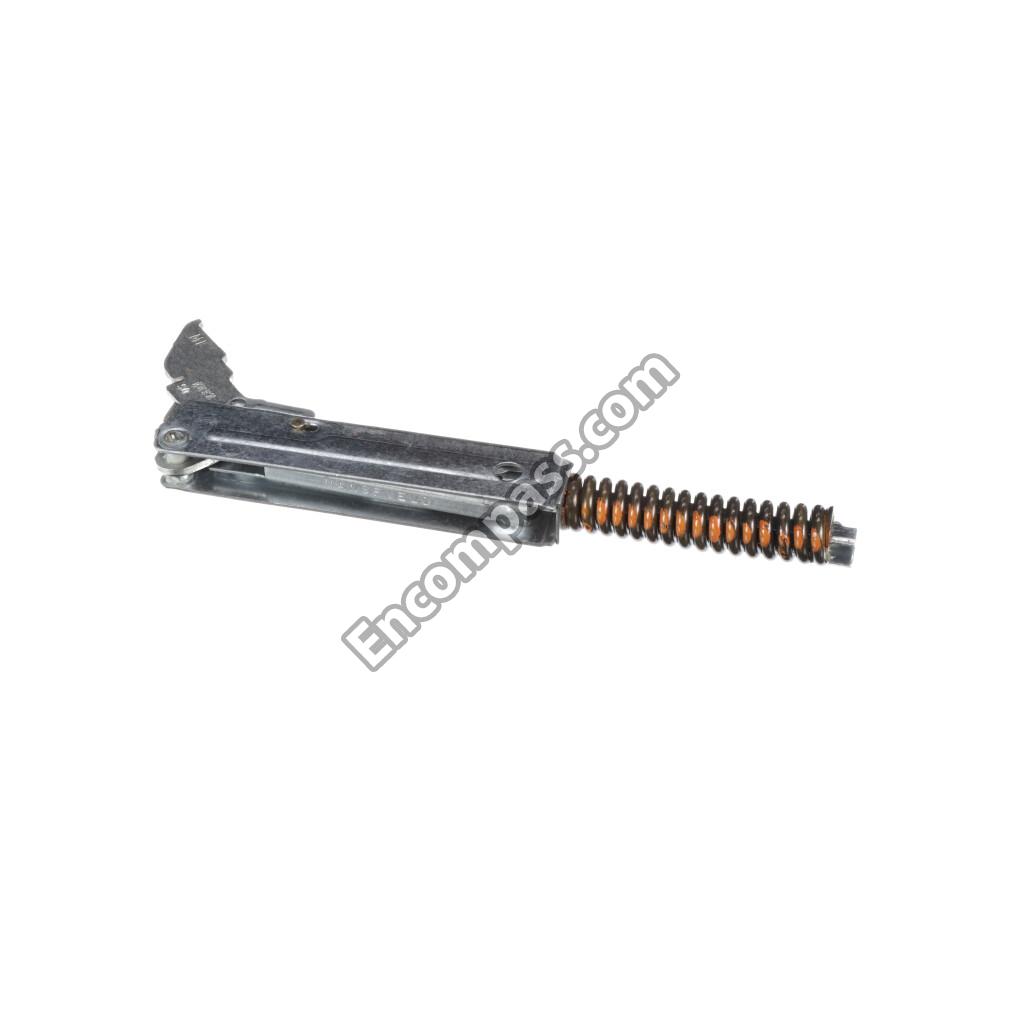

WB10K10037 WB10K10037 HINGE DOOR
WB10K10036 WB10K10036 HINGE DOOR
WB34K0014 WB34K0014 IGNITER COVER
WB13K21 WB13K21 IGNITER GLOWBAR
WB13X25261 WB13X25261 IGNITER GLOWBAR BAKE

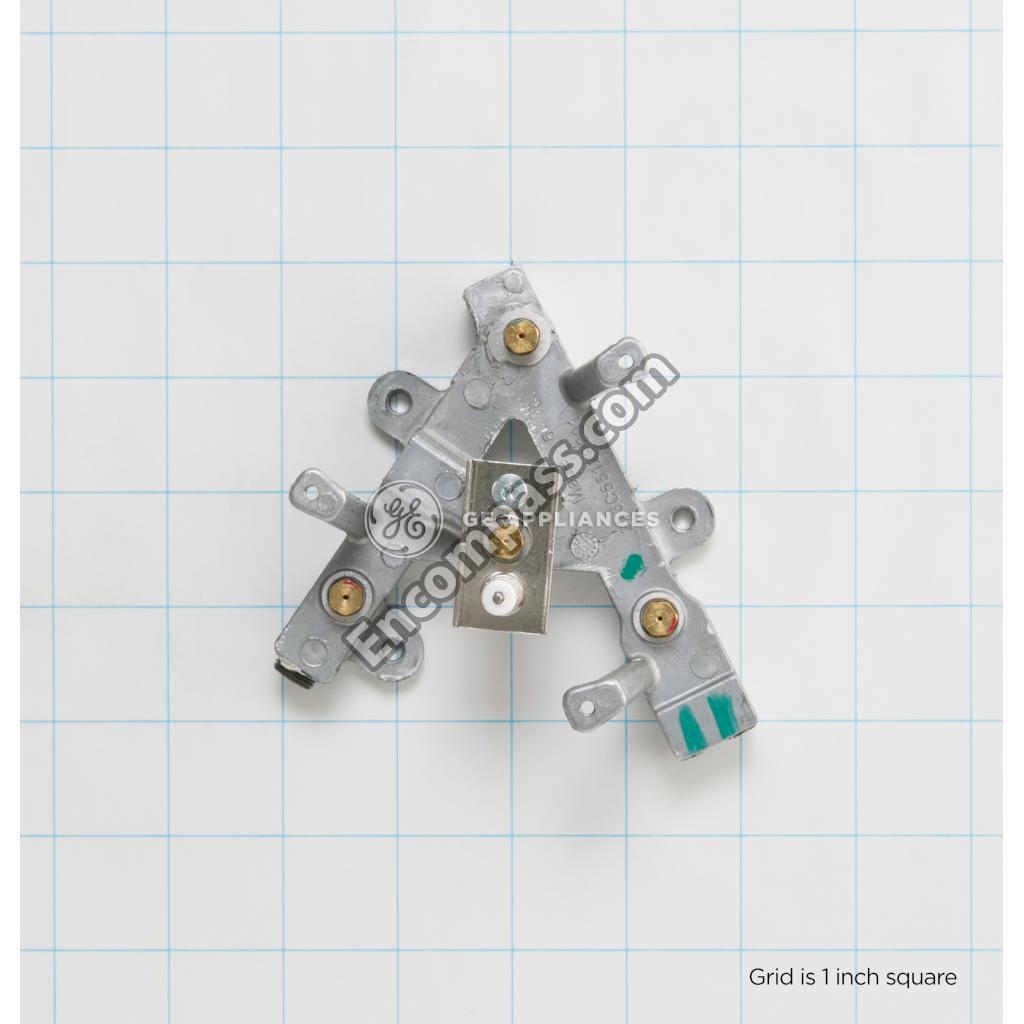

WB28K10785 WB28K10785 INJECT TOP BURNER ASM
WB35K10054 WB35K10054 INSULATION BAKING DRAWER
WB35X20077 WB35X20077 INSULATION DOOR
WB35K10053 WB35K10053 INSULATION DRAWER FRONT
WB35K10143 WB35K10143 INSULATION OVEN WRAP
WB02K10354 WB02K10354 INSULATION RANGE BACK
WB35K10214 WB35K10214 INSULATION RANGE BACK
WB35K10213 WB35K10213 INSULATION VENT
WB28K10797 WB28K10797 KIT CONVERSION LP

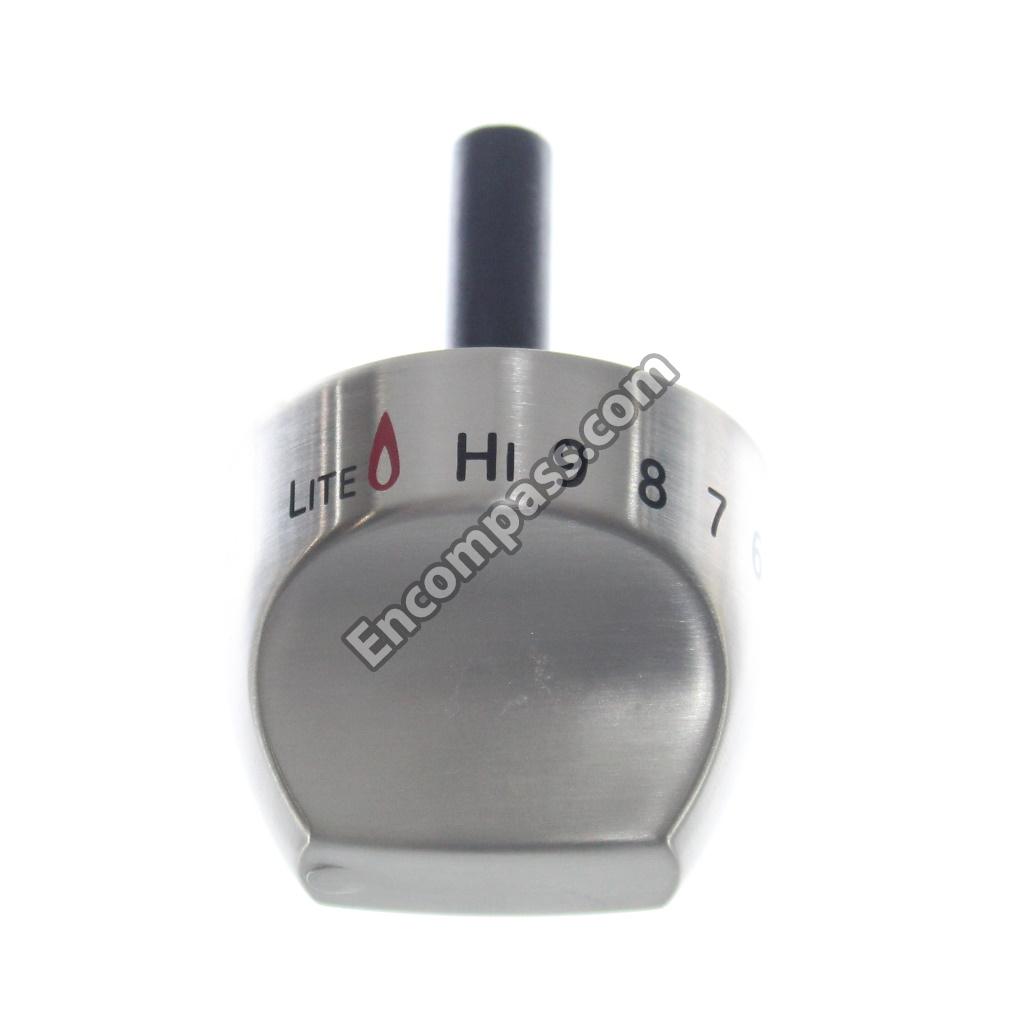

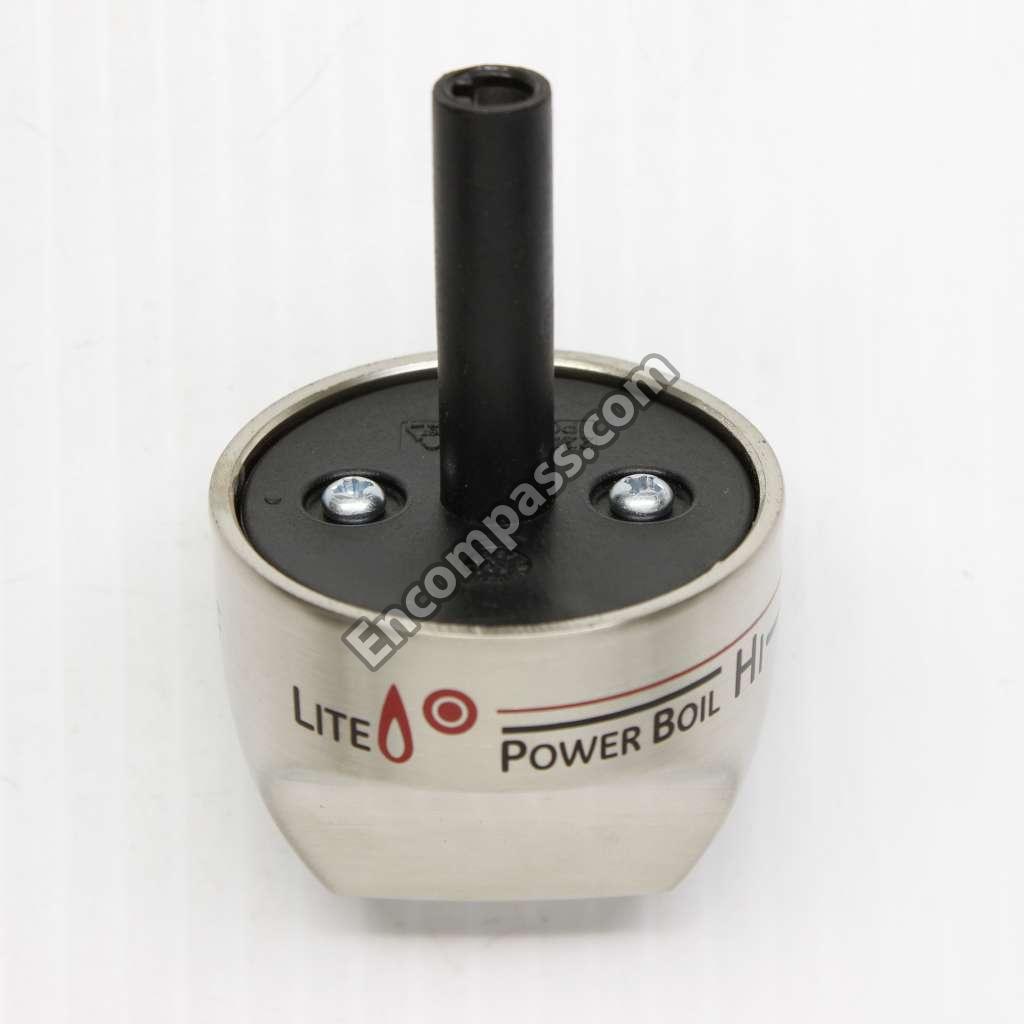

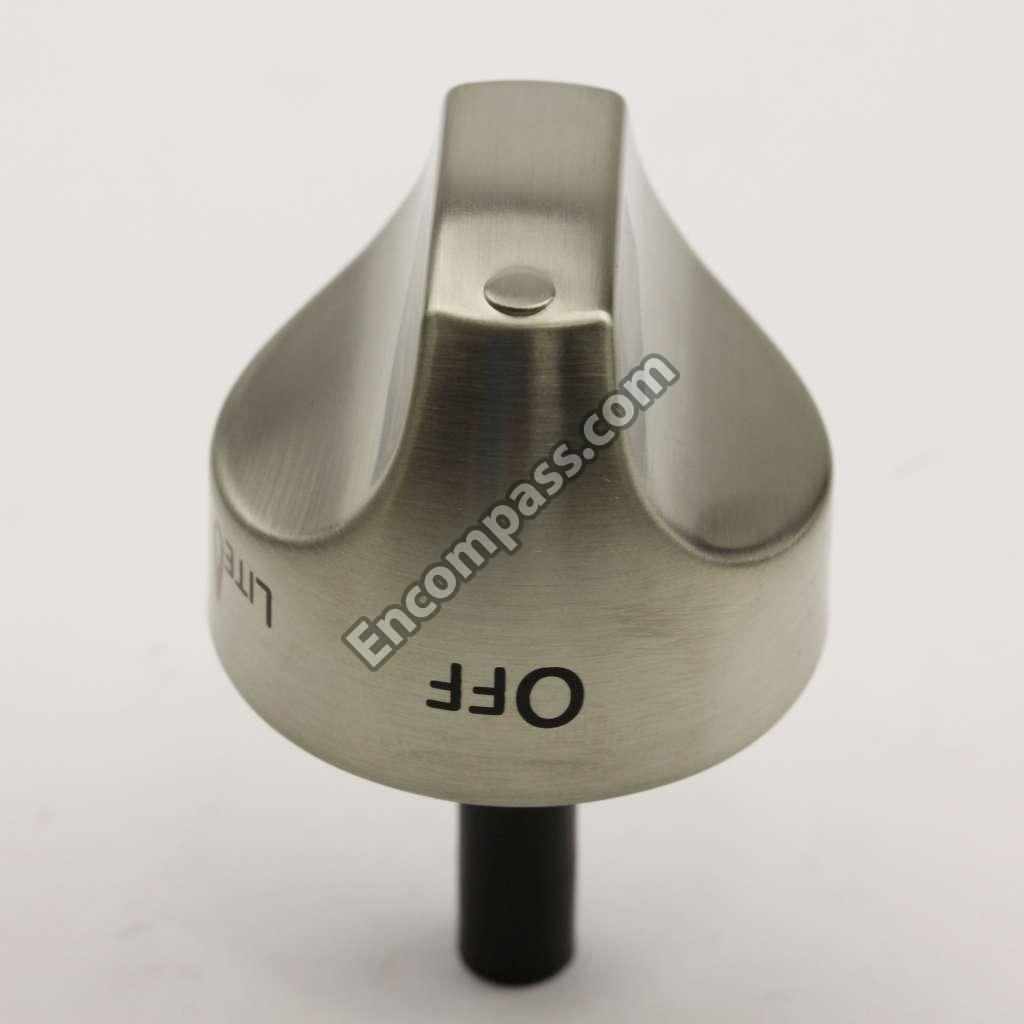

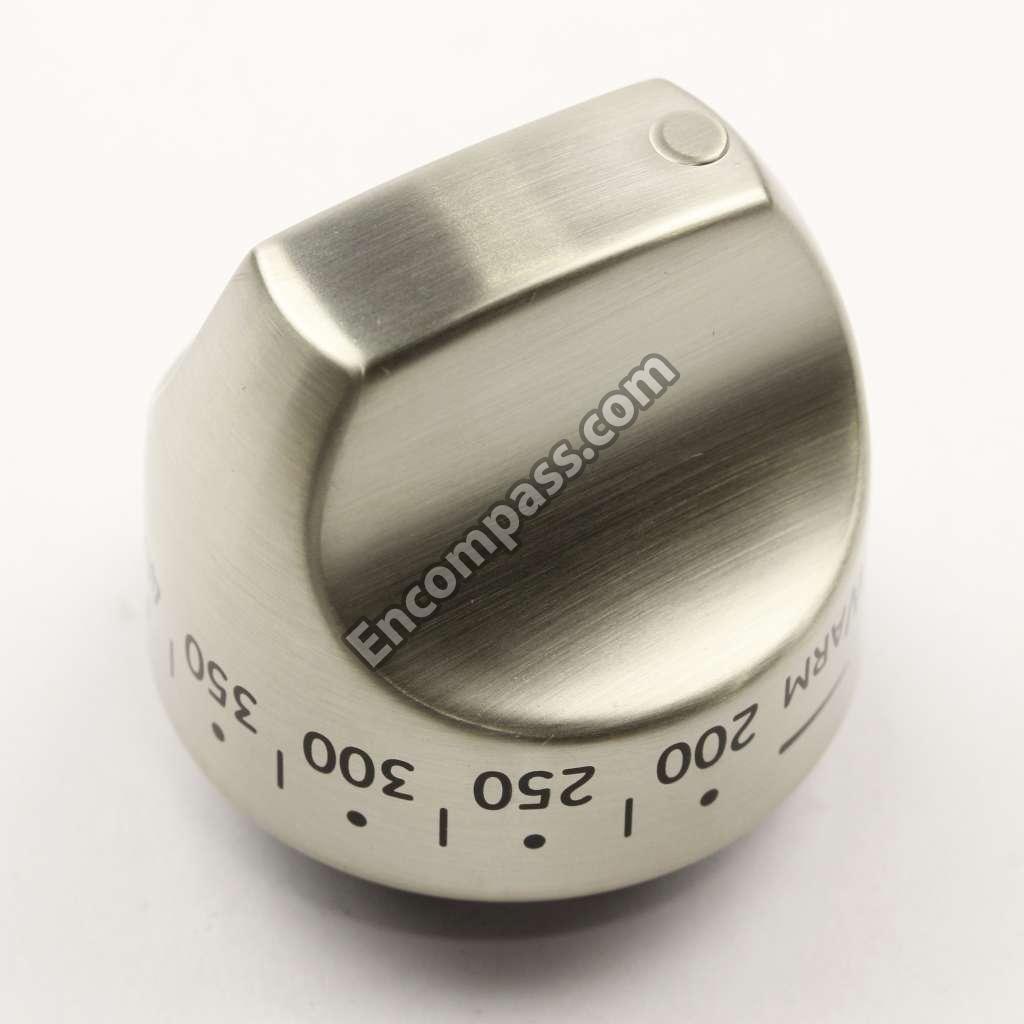

WB03K10265 WB03K10265 KNOB ASSEMBLY
WB03K10308 WB03K10308 KNOB ASSEMBLY
WB03K10267 WB03K10267 KNOB ASSEMBLY
WB03K10266 WB03K10266 KNOB ASSEMBLY
WB02K10349 WB02K10349 LAMP INSULATION

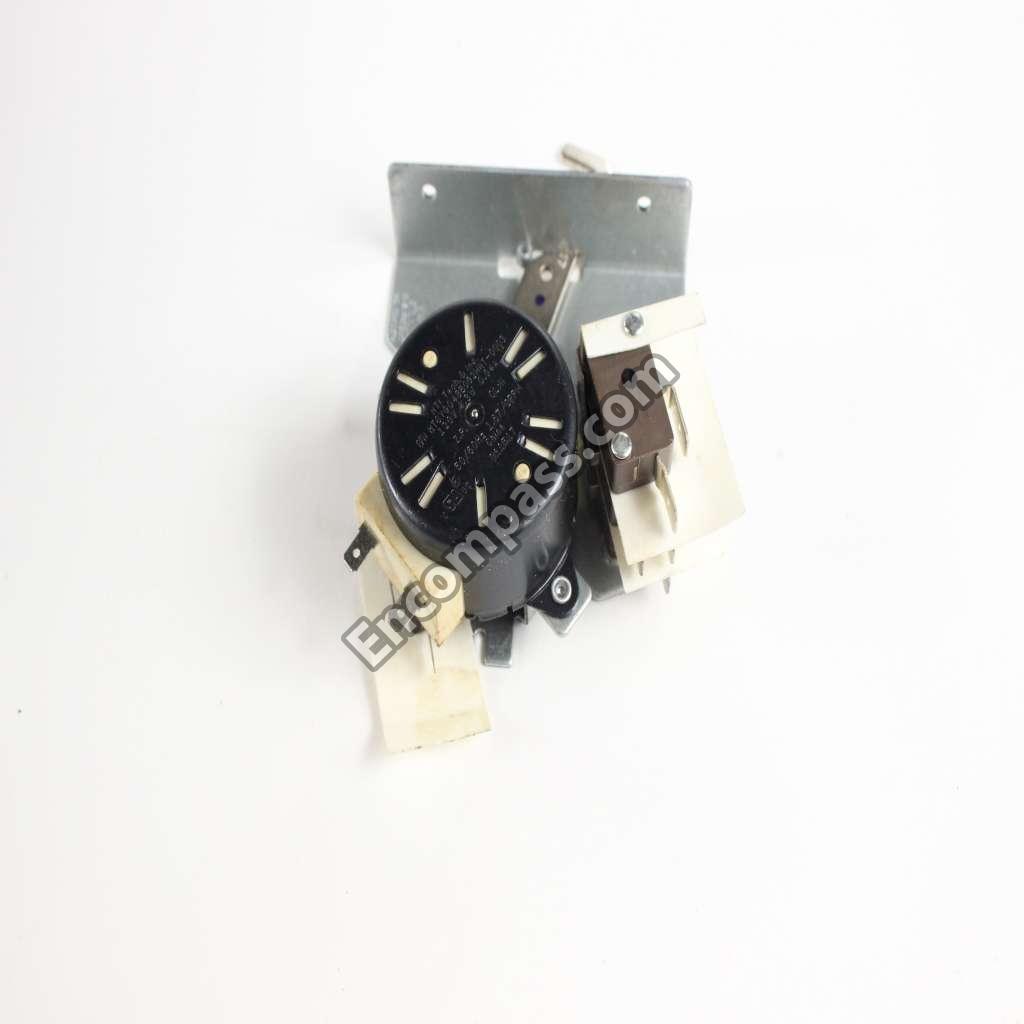

WB02K10342 WB02K10342 LATCH AUTOMATIC
WB02K10182 WB02K10182 LEG LEVELER
WB25K10009 WB25K10009 LENS
WB25K10010 WB25K10010 LIGHT INDICATOR PILOT

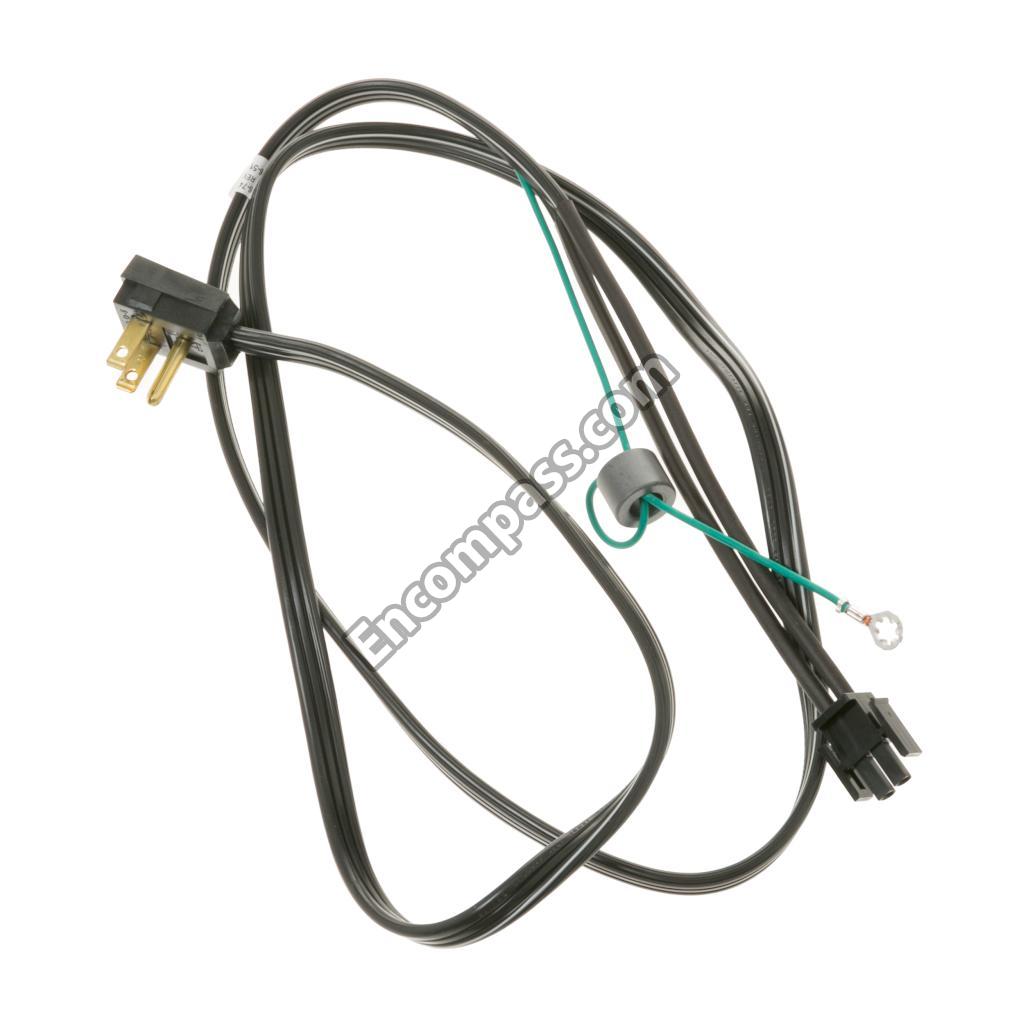

WB18K10081 WB18K10081 LINE CORD
WB55K10084 WB55K10084 LINER DOOR WELD ASSEMBLY
WB55K10024 WB55K10024 LINER DRAWER
WB34K10086 WB34K10086 LOWER HEAT SHIELD
31-10777 31-10777 LP INSTALL INSTRUCTIONS
WB02K10250 WB02K10250 MANIFOLD PANEL SUPPORT L
WB02K10249 WB02K10249 MANIFOLD PANEL SUPPORT R
WB28K10687 WB28K10687 MANIFOLD PIPE ASM

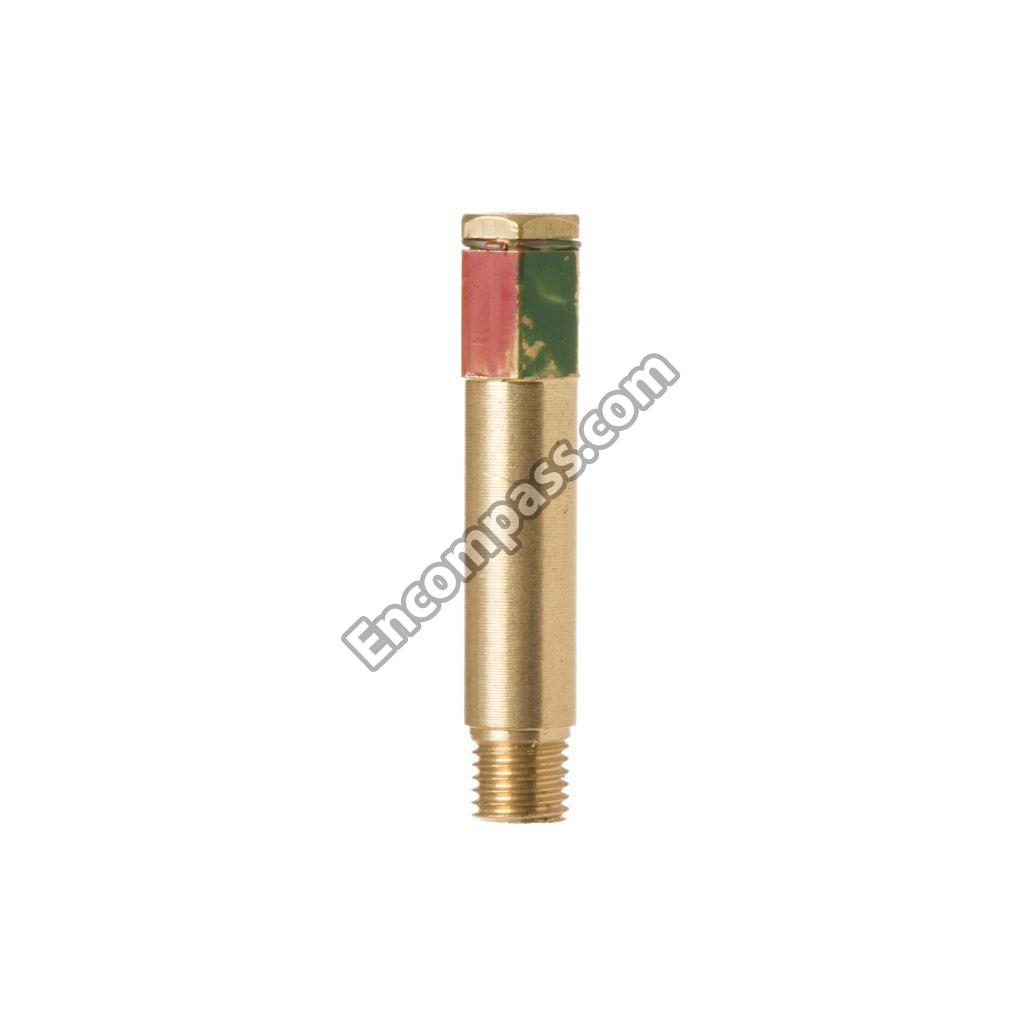

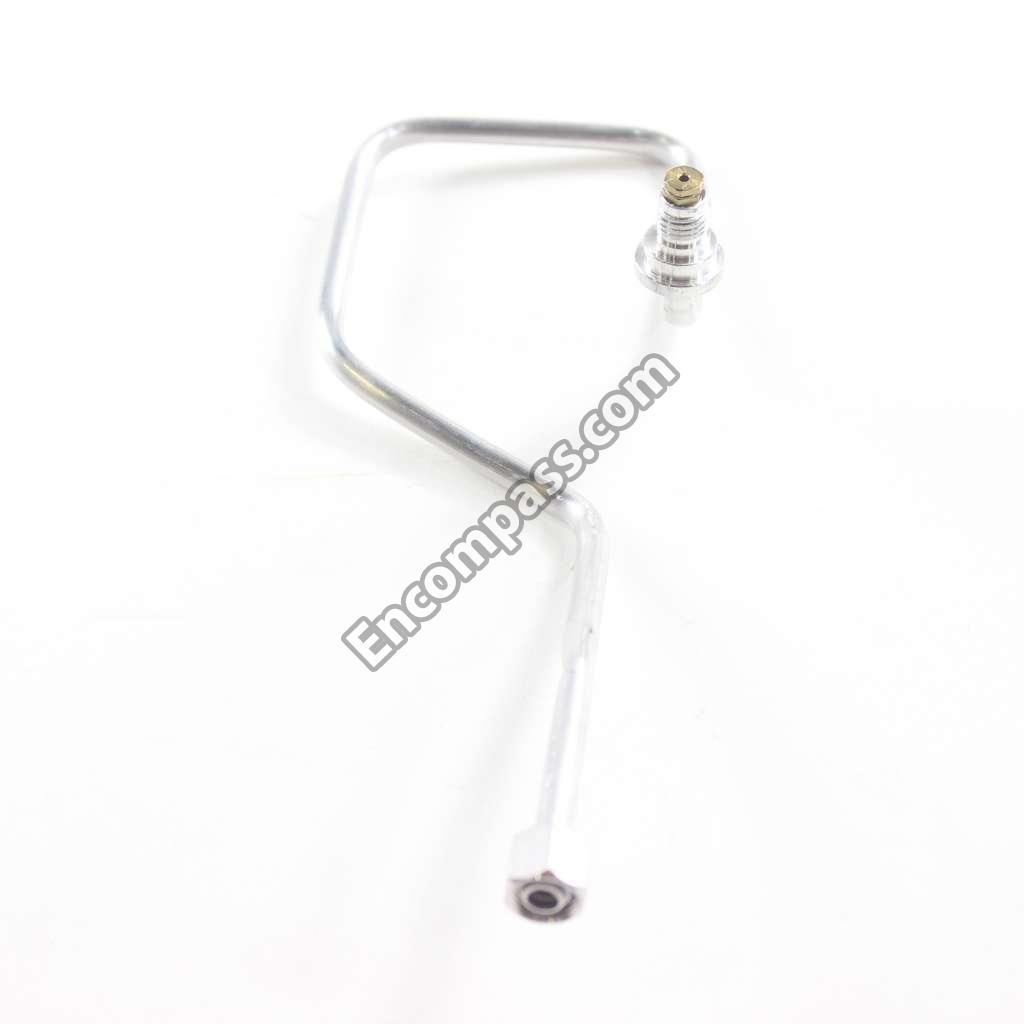

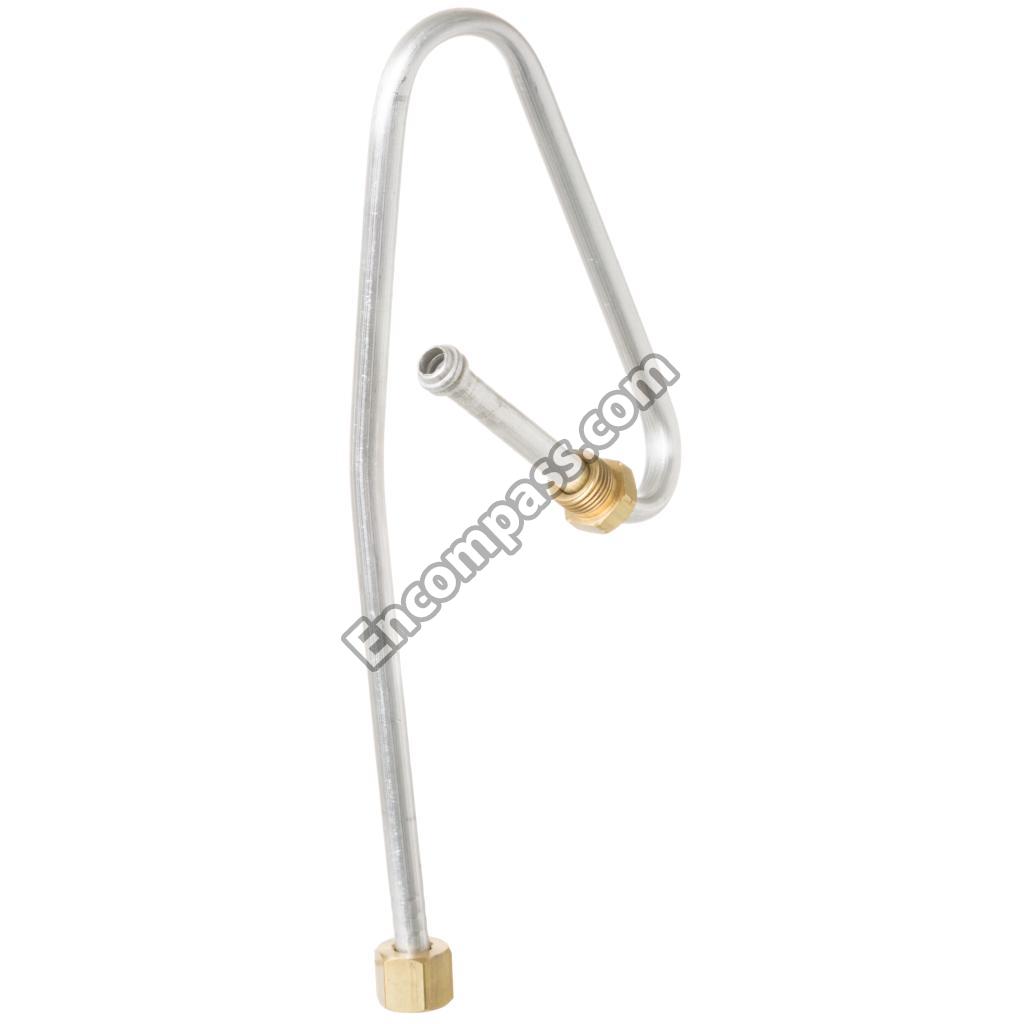

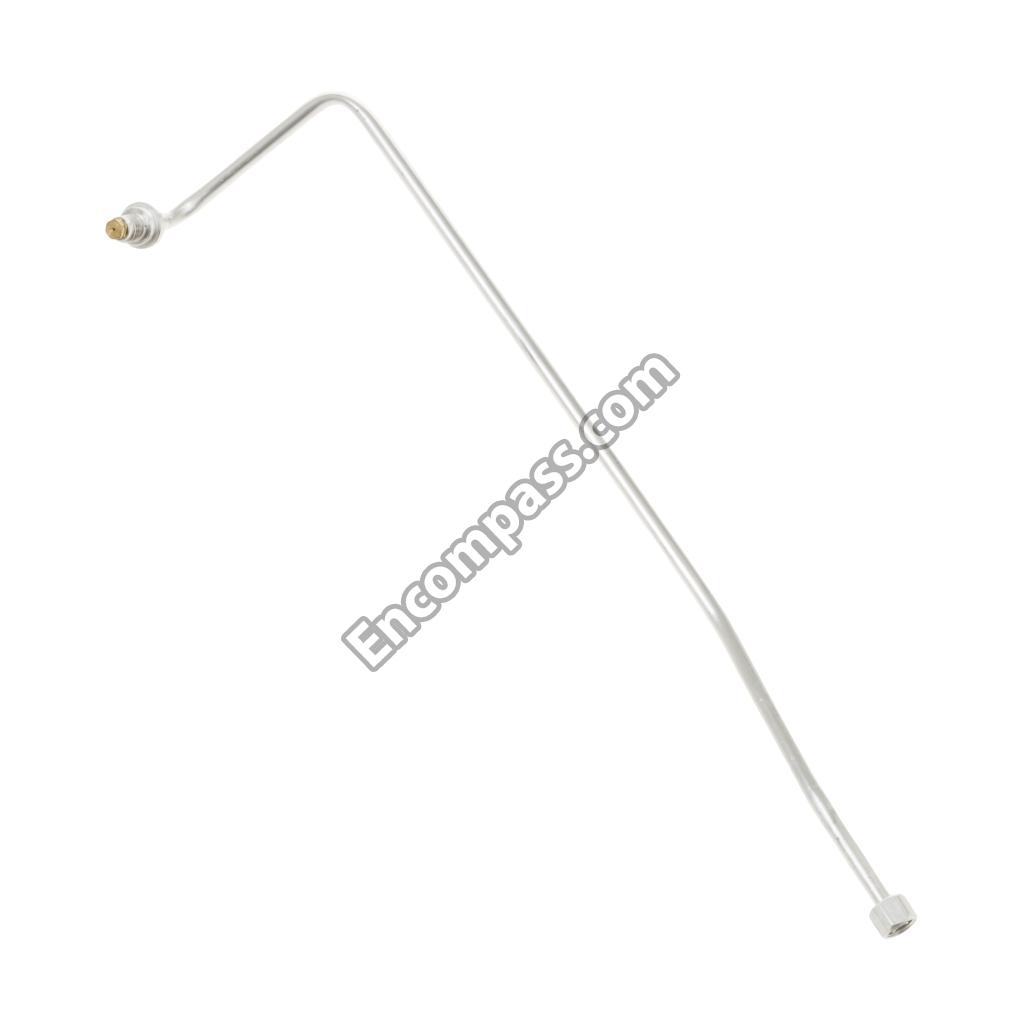

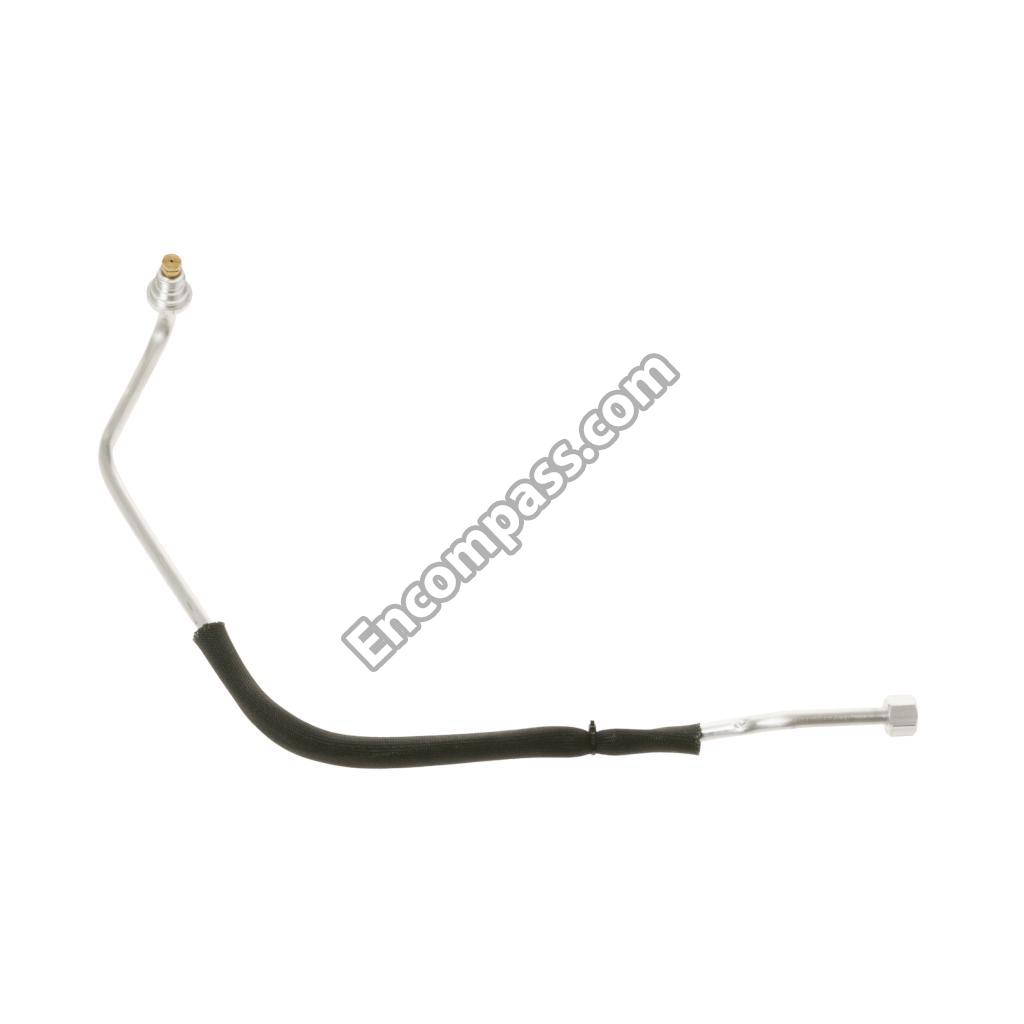

WB28K10696 WB28K10696 NG ORIFICE & TUBE CNTRAL
WB28K10740 WB28K10740 NG ORIFICE & TUBE FL
WB28K10475 WB28K10475 NG ORIFICE & TUBE LR
WB28K10741 WB28K10741 NG ORIFICE & TUBE RR
WB02T10017 WB02T10017 NUT
WB01X1385 WB01X1385 NUT M4
WB01K0003 WB01K0003 NUT SPEED
WB1K3 WB1K3 NUT SPEED

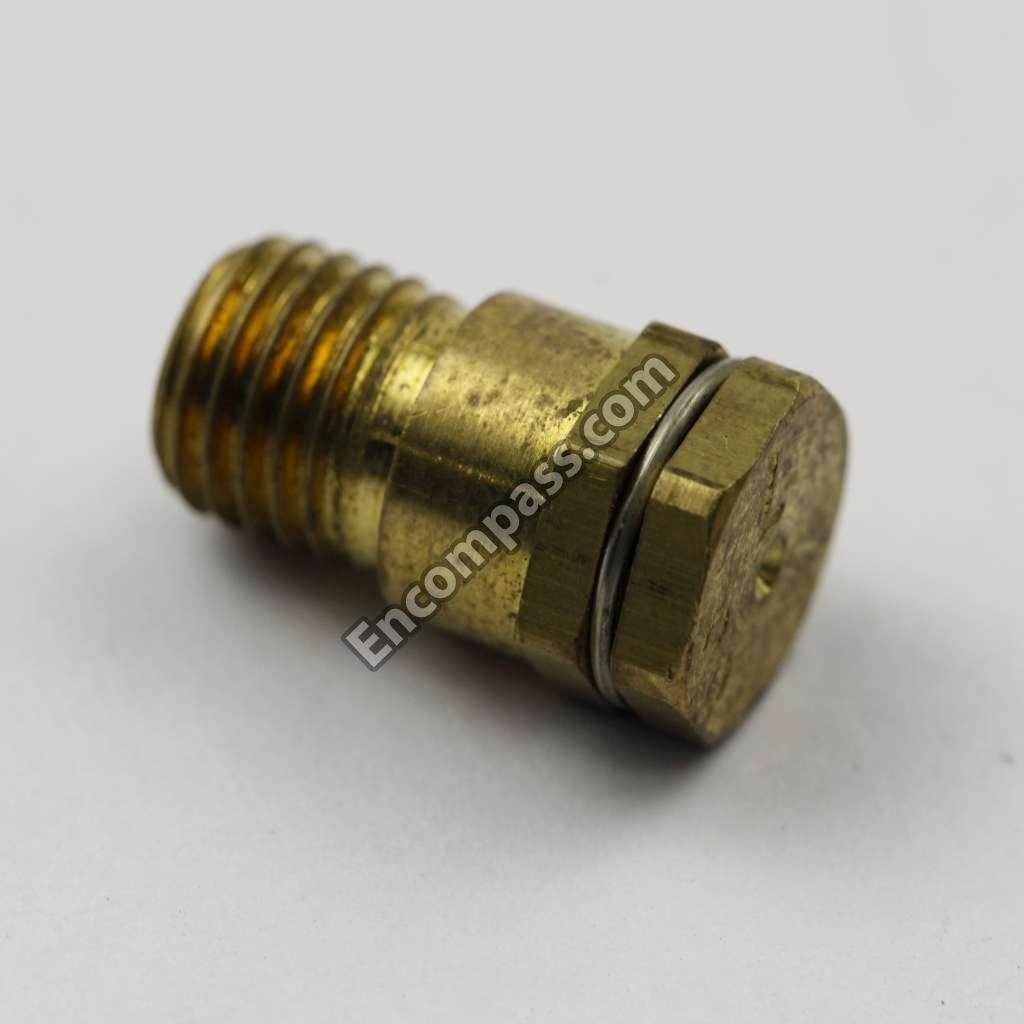

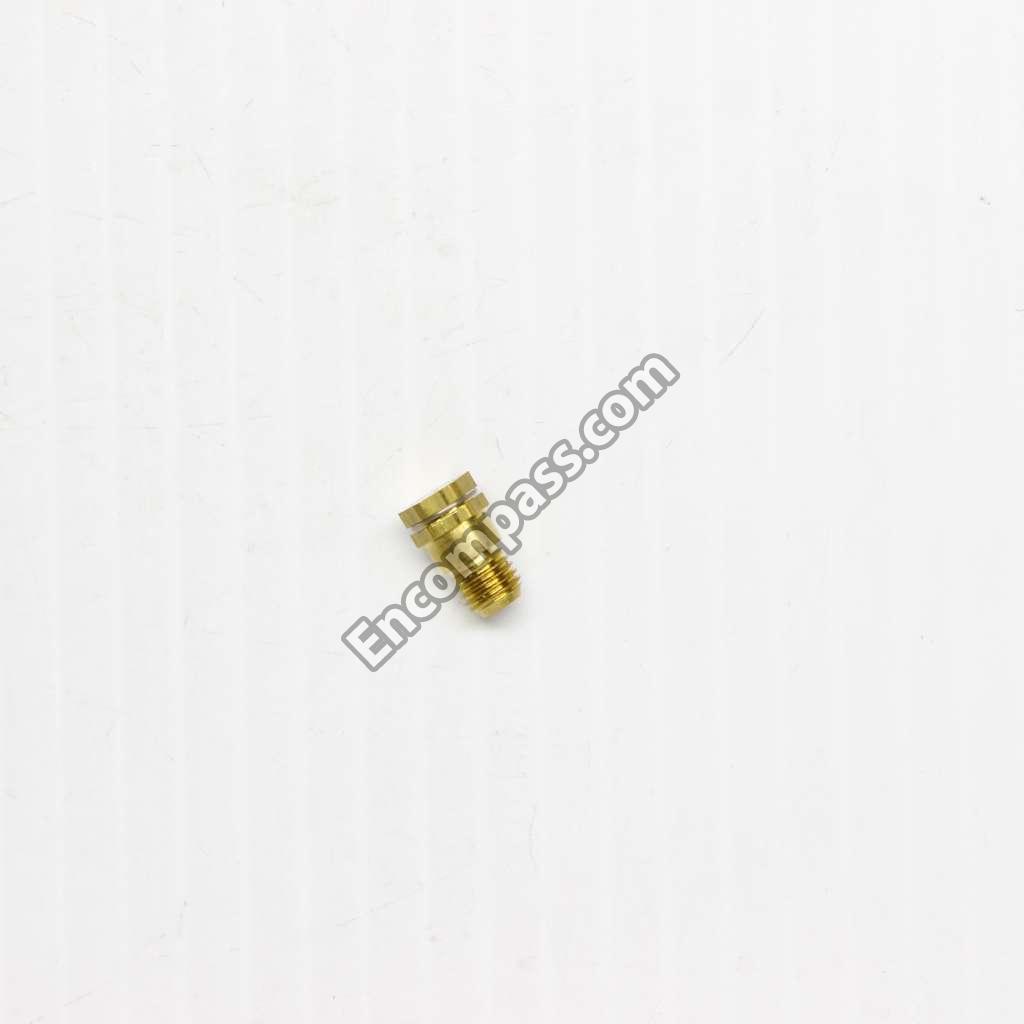

WB28K10834 WB28K10834 ORIFICE SPUD
WB28K10694 WB28K10694 ORIFICE SPUD
WB28K10693 WB28K10693 ORIFICE SPUD LP
WB28K10215 WB28K10215 ORIFICE SPUD LP
WB28K10842 WB28K10842 ORIFICE SPUD LP
WB28K10023 WB28K10023 ORIFICE SPUD LP LR

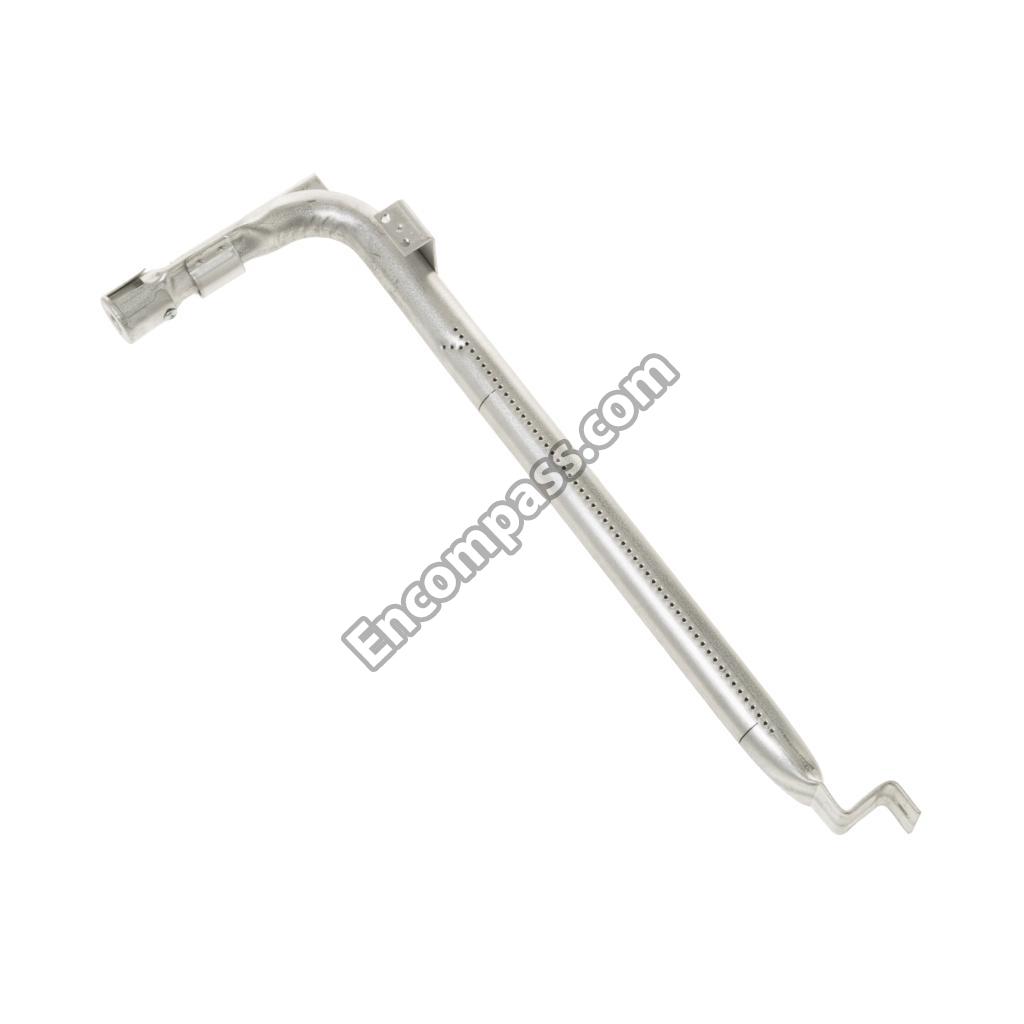

WB16K10076 WB16K10076 OVAL BURNER ASM
WB08T10002 WB08T10002 OVEN LAMP HOLDER ASM
WB48X21508 WB48X21508 OVEN RACK
WB53K10017 WB53K10017 OVEN TOP
WB2X1222 WB2X1222 PAD
WB02K0062 WB02K0062 PAD FELT (2"")
WB2K62 WB2K62 PAD FELT 2
WB02X1222 WB02X1222 PAD GLASS (FELT)
WB48K10033 WB48K10033 PAN DRAWER

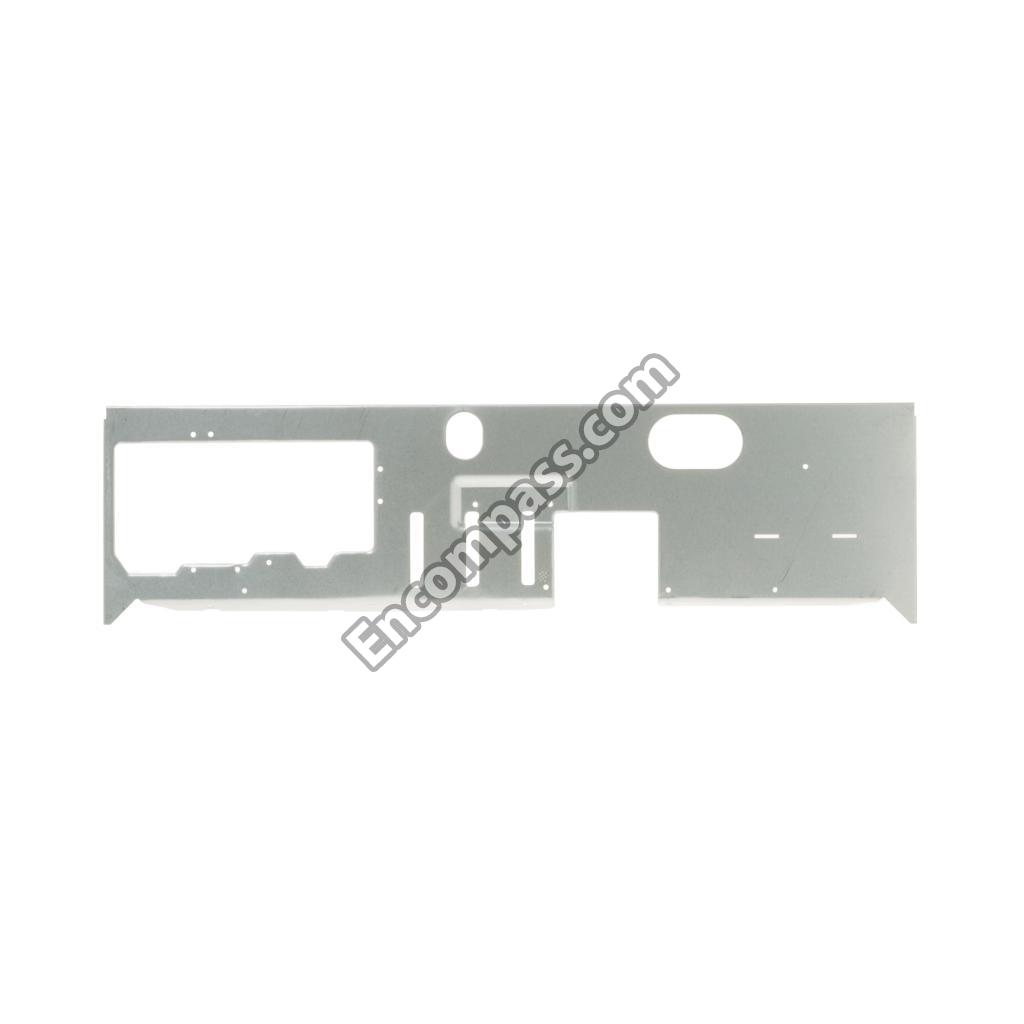

WB36K10989 WB36K10989 PANEL MANIFOLD
WB63K10120 WB63K10120 PANEL REAR BROIL
WB63K10119 WB63K10119 PANEL SIDE
WB63K10056 WB63K10056 PANEL SIDE BROIL LFT
WB63K10055 WB63K10055 PANEL SIDE BROIL RGT
WB14K10004 WB14K10004 PIN LOCATOR
WB24K10068 WB24K10068 PLUNGER SWITCH
WB06K10006 WB06K10006 PM HELPFUL HINT
31-10781 31-10781 PM INSTALL INSTRUCTIONS
31-10869 31-10869 PM KIT INSTRUCTIONS
31-14981 31-14981 PM MINI MANUAL
49-85183-3 49-85183-3 PM OWNERS AND INSTALL
49-85174 49-85174 PM USE & CARE MANUAL
WB2X8309 WB2X8309 PR0BE COVER
WB20T10024 WB20T10024 PROBE THERMISTOR
WB48K10010 WB48K10010 RACK BAKING DRAWER

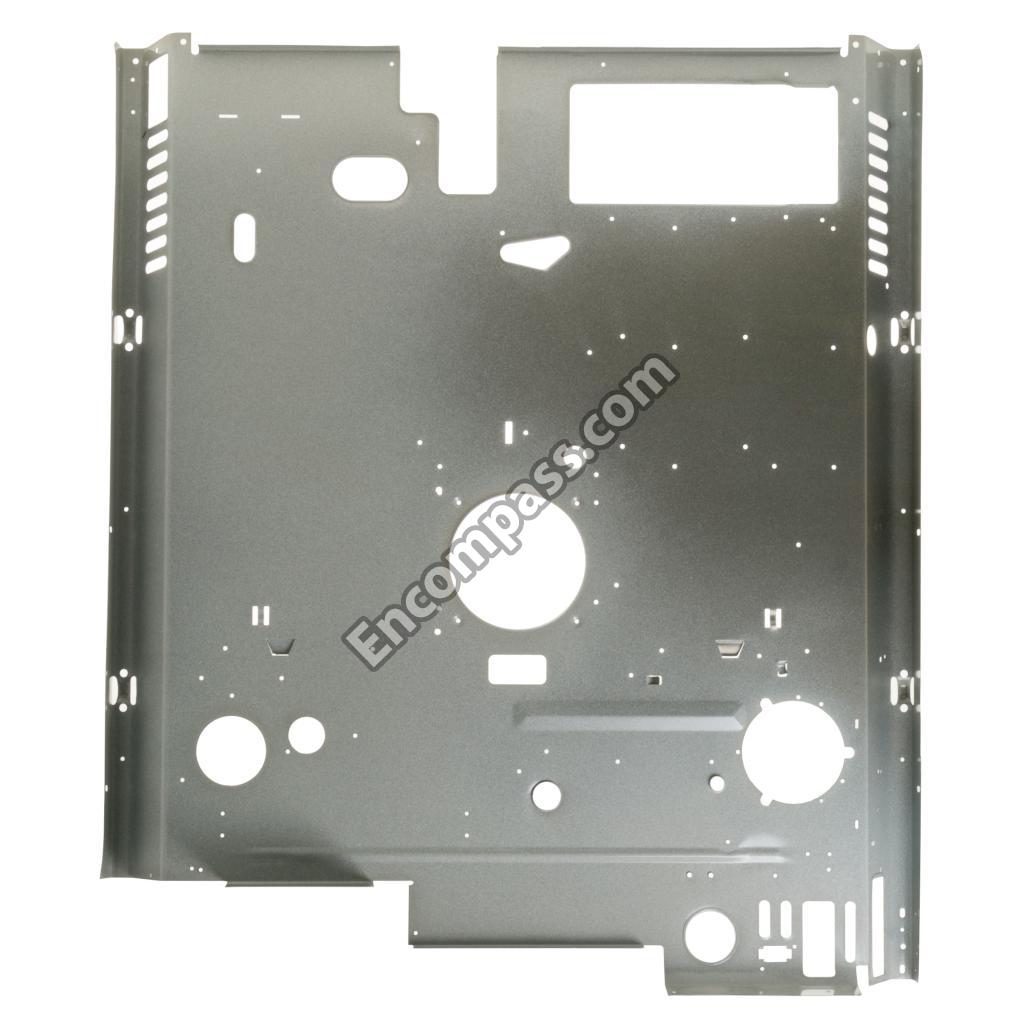

WB63K10227 WB63K10227 RANGE BACK
WB34K10145 WB34K10145 RANGE BACK COVER
WB2K32 WB2K32 RANGE BRACKET SUPPORT
WB35X21691 WB35X21691 RANGE DOOR INSULATION
WB34K10137 WB34K10137 RANGE DOOR INSULATION GUARD
WB39K20 WB39K20 RANGE DRAWER MOUNTING BRACKET
WB28K10798 WB28K10798 RANGE DUAL CAVITY ELBOW
WB34K10142 WB34K10142 RANGE FAN COVER
WB63K10257 WB63K10257 RANGE FRAME
WB15K10112 WB15K10112 RANGE HANDLE - STAINLESS STEEL
WB1X1293 WB1X1293 RANGE IGNITER MOUNTING SCREW
WB35K10222 WB35K10222 RANGE INSULATION
WB35K10221 WB35K10221 RANGE INSULATION
WB28K10686 WB28K10686 RANGE MANIFOLD PIPE
WB28K10684 WB28K10684 RANGE MANIFOLD SUPPLY TUBE
WB28K10830 WB28K10830 RANGE MANIFOLD TUBE
WB28K10871 WB28K10871 RANGE NG ORIFICE AND TUBE
WB63K10228 WB63K10228 RANGE OVEN BACK
WB2K41 WB2K41 RANGE OVEN BRACKET
WB34K10141 WB34K10141 RANGE OVEN GLASS METAL FRAME
WB34K30 WB34K30 RANGE RADIATION GUARD
WB34K31 WB34K31 RANGE RADIATION GUARD

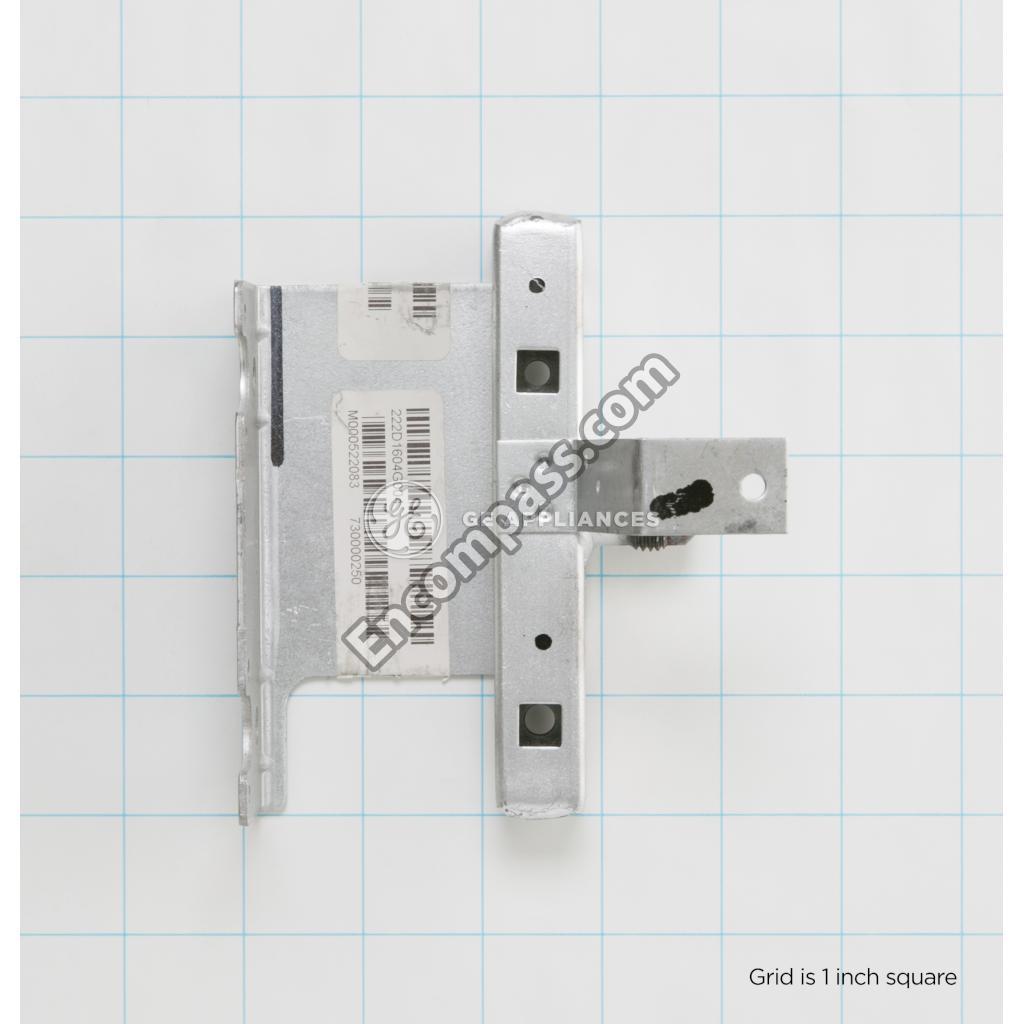

WB10X25602 WB10X25602 RANGE RECEIVER HINGE
WB35K10100 WB35K10100 RANGE SIDE INSULATION
WB63X23062 WB63X23062 RANGE SLIDE AND BEARING ASSEMBLY
WB63X23061 WB63X23061 RANGE SLIDE AND BEARING ASSEMBLY

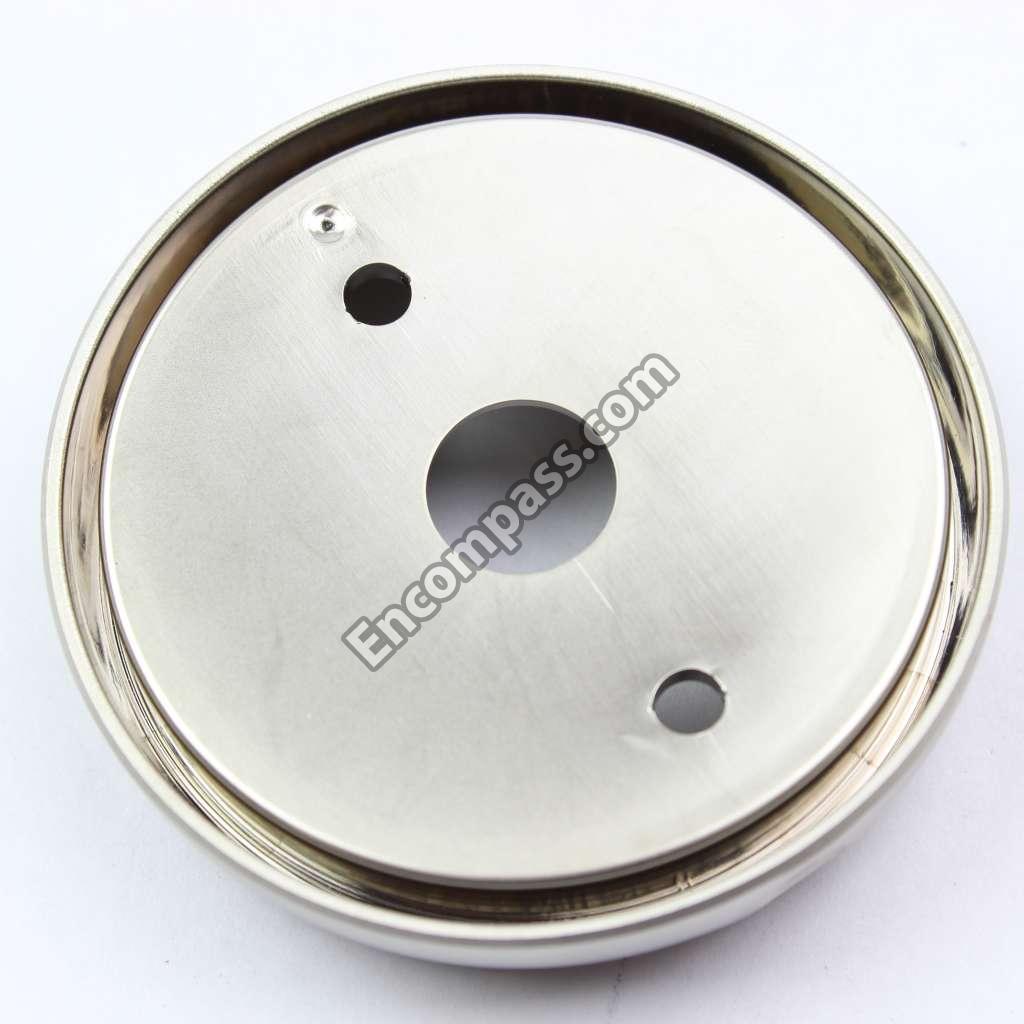

WB04K10037 WB04K10037 RANGE SURFACE BURNER KNOB BEZEL
WB13K10014 WB13K10014 RANGE SURFACE BURNER SPARK IGNITER
WB63K15 WB63K15 RANGE VENT BRACE

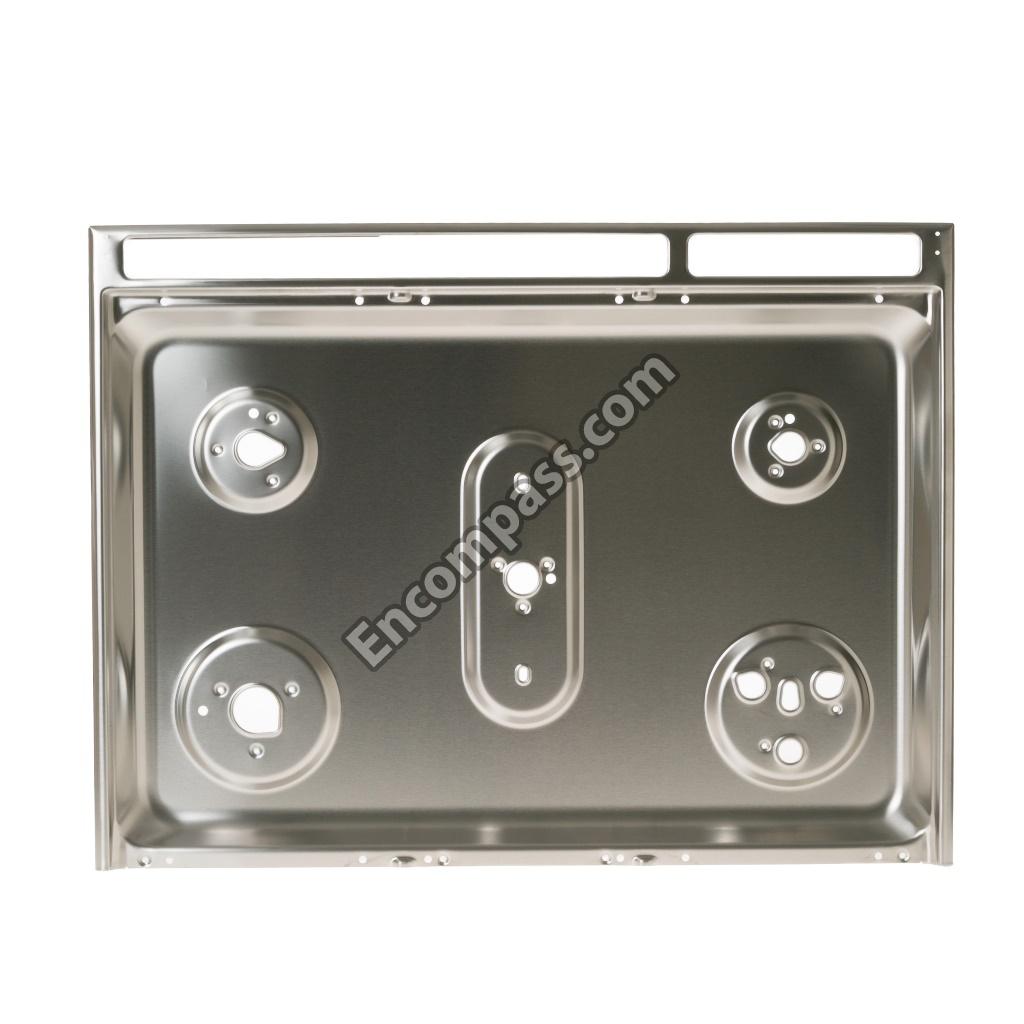

WB63K10237 WB63K10237 RANGETOP
WB63K10283 WB63K10283 RANGETOP
WB10K10029 WB10K10029 RECEIVER HINGE

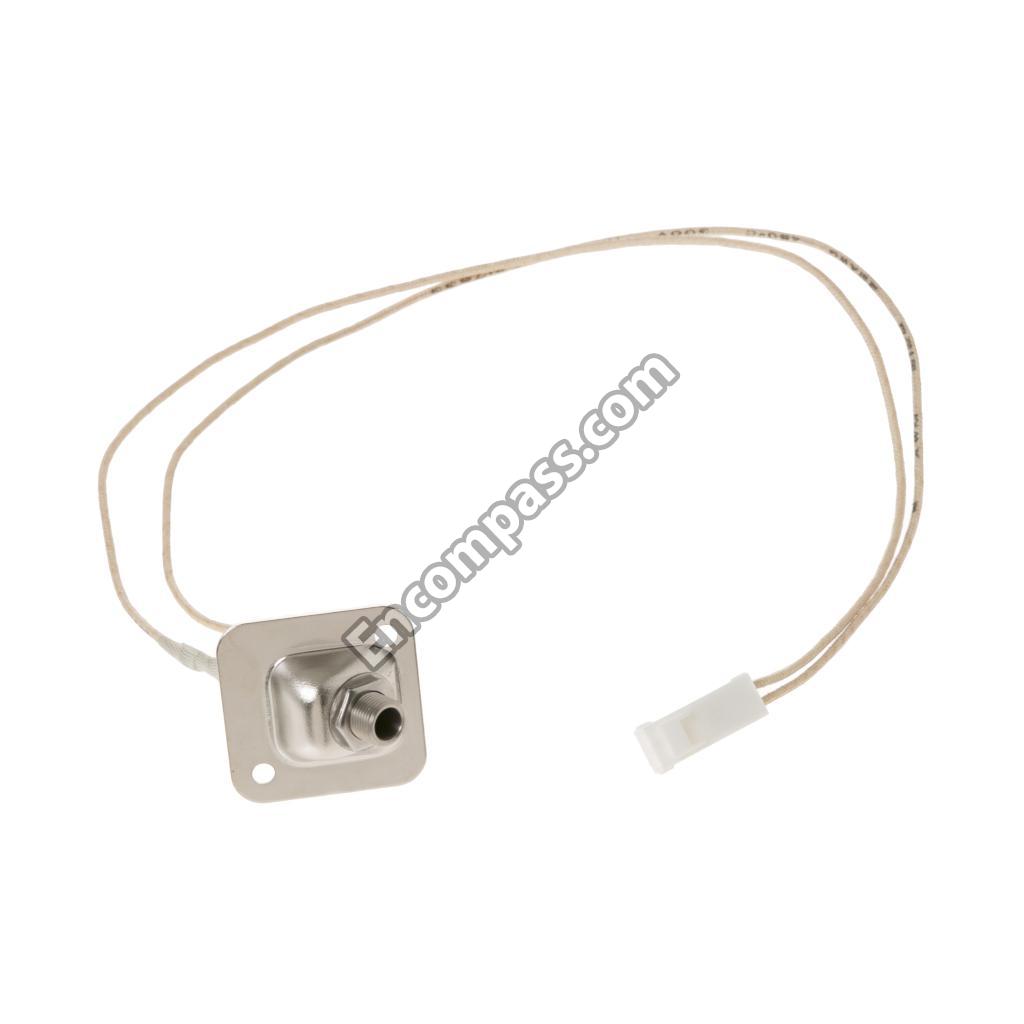

WB34K10121 WB34K10121 RECEPTABLE ASM
WB2X2030 WB2X2030 RETAINER
WB02K0030 WB02K0030 RETAINER-INSULATION VENT
WB1K44 WB1K44 SCEW LATCH
WB01T10008 WB01T10008 SCR 10-32 TR T
WB01K10116 WB01K10116 SCR 1016 AB TRW20 1/2
WB01K10067 WB01K10067 SCR 8 HD 1/4 - 20
WB01K10066 WB01K10066 SCR 8 HD 10-32
WB01K10065 WB01K10065 SCR 8 HD 12-24
WB01K10042 WB01K10042 SCR 8-18 AB IHW 3/8 SN
WB01X26995 WB01X26995 SCR 8-18 AB X 5/16S
WB01K10102 WB01K10102 SCR 818 1/4

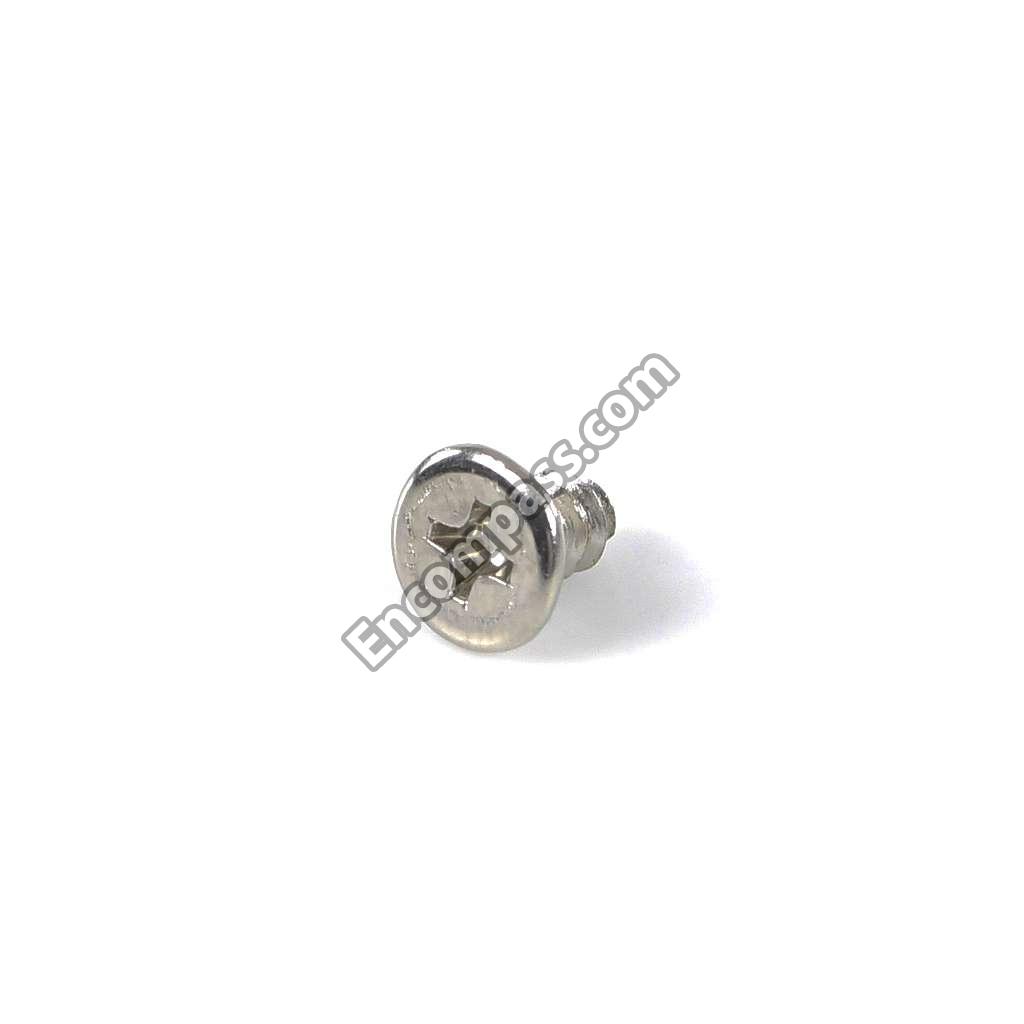

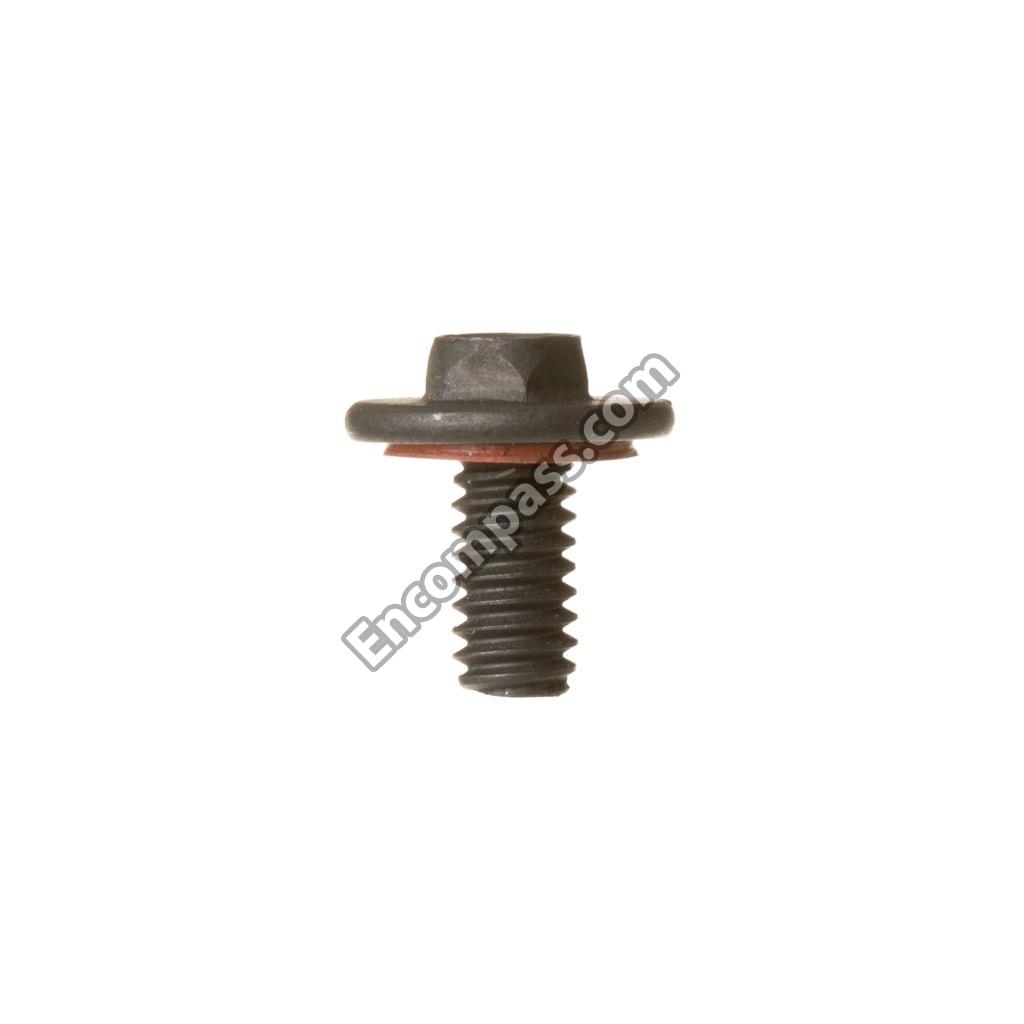

WB01K0063 WB01K0063 SCREW
WB01K0001 WB01K0001 SCREW
WB01K10091 WB01K10091 SCREW
WB01K10030 WB01K10030 SCREW
WB01K10070 WB01K10070 SCREW
WB1K5062 WB1K5062 SCREW
WB1X1261 WB1X1261 SCREW
WB1X5754 WB1X5754 SCREW
WB1K5119 WB1K5119 SCREW
WB1X536 WB1X536 SCREW
WB01K0042 WB01K0042 SCREW (BLK)
WB1K63 WB1K63 SCREW 10-16 X 0.95 TYPE B
WB01X5754 WB01X5754 SCREW 8-18 ABT 1/2 S
WB1K5 WB1K5 SCREW 8-18 X 1/2 -INCH
WZ4X345D WZ4X345D SCREW 8-18X5/8 HXW
WB01K10002 WB01K10002 SCREW 8-32
WB01K0044 WB01K0044 SCREW DOOR LATCH
WB01X1261 WB01X1261 SCREW GROUND
WB1K53 WB1K53 SCREW HINGE

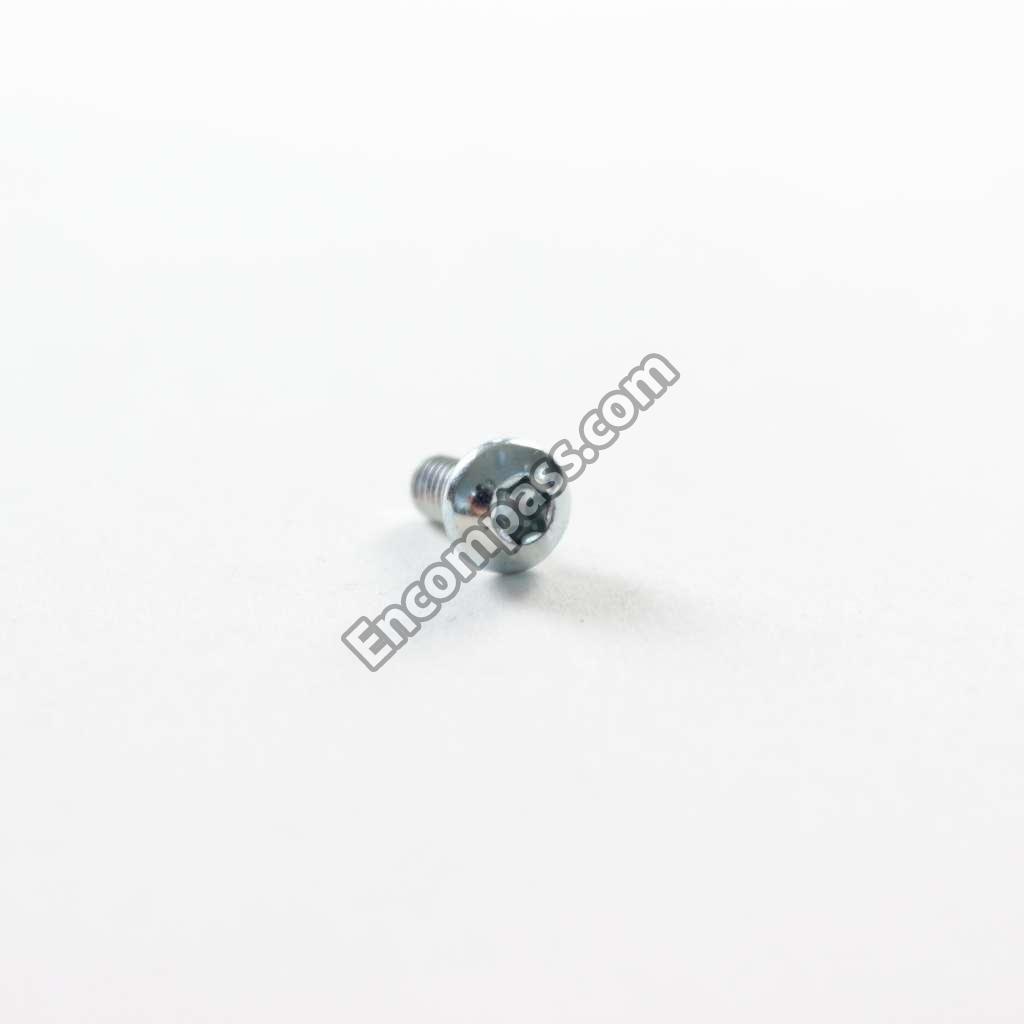

WB01K0053 WB01K0053 SCREW MTG HINGE (TORX)
WB01K0050 WB01K0050 SCREW MTG IGNITER
WB1K8 WB1K8 SCREW THERMO
WB01K0008 WB01K0008 SCREW THERMOSTAT
WB01K10110 WB01K10110 SCREW TRILOBULAR
WB01K0083 WB01K0083 SCREW-MTG VALVE BURNER
WB49K10045 WB49K10045 SHIELD BROIL
WB34K0013 WB34K0013 SHIELD HEAT INNER
WB31K10219 WB31K10219 SIDE GRATE CAST
WB39K10026 WB39K10026 SLIDE & BEARING ASM LFT
WB39K10025 WB39K10025 SLIDE & BEARING ASM RGT
WB39K10027 WB39K10027 SLIDE INTERNAL
WB16K10070 WB16K10070 SMALL BURNER V 5K
WB02K10104 WB02K10104 SPACER BASE
WB02K10270 WB02K10270 SPACER BASE
WB13X26360 WB13X26360 SPARK MODULE 6+0
WB01K0002 WB01K0002 SPEEDNUT
WB01K10093 WB01K10093 SPEEDNUT
WB1K2 WB1K2 SPEEDNUT
WB02K10111 WB02K10111 STRIKE
WB63K10255 WB63K10255 SUPPORT BASE
WB63K10256 WB63K10256 SUPPORT BASE
WB24K10046 WB24K10046 SWITCH LIMIT BIMETAL
WB20K10027 WB20K10027 TEMPERATURE SENSOR
WB20K10017 WB20K10017 THERMOSTAT
WB63K10234 WB63K10234 TOP DRAWER

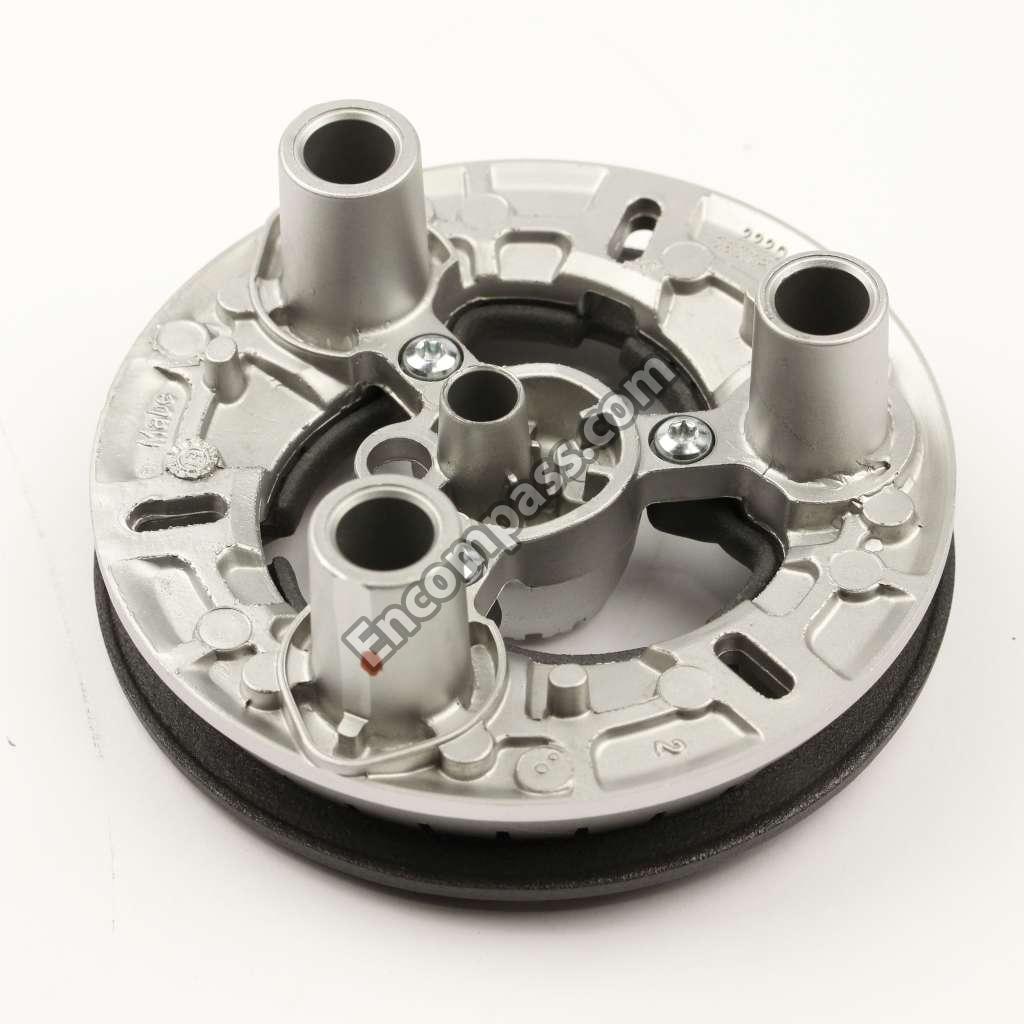

WB16K10079 WB16K10079 TRI RING BURNER ASM

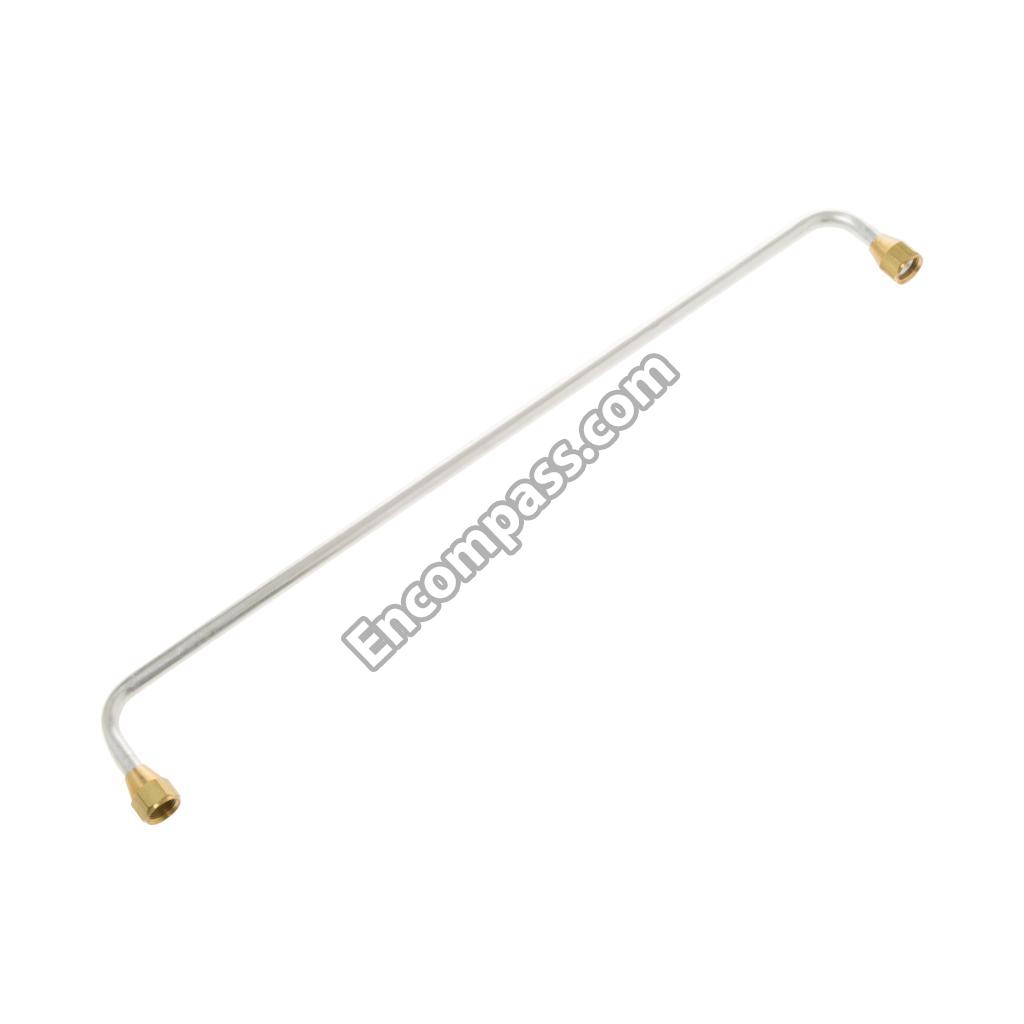

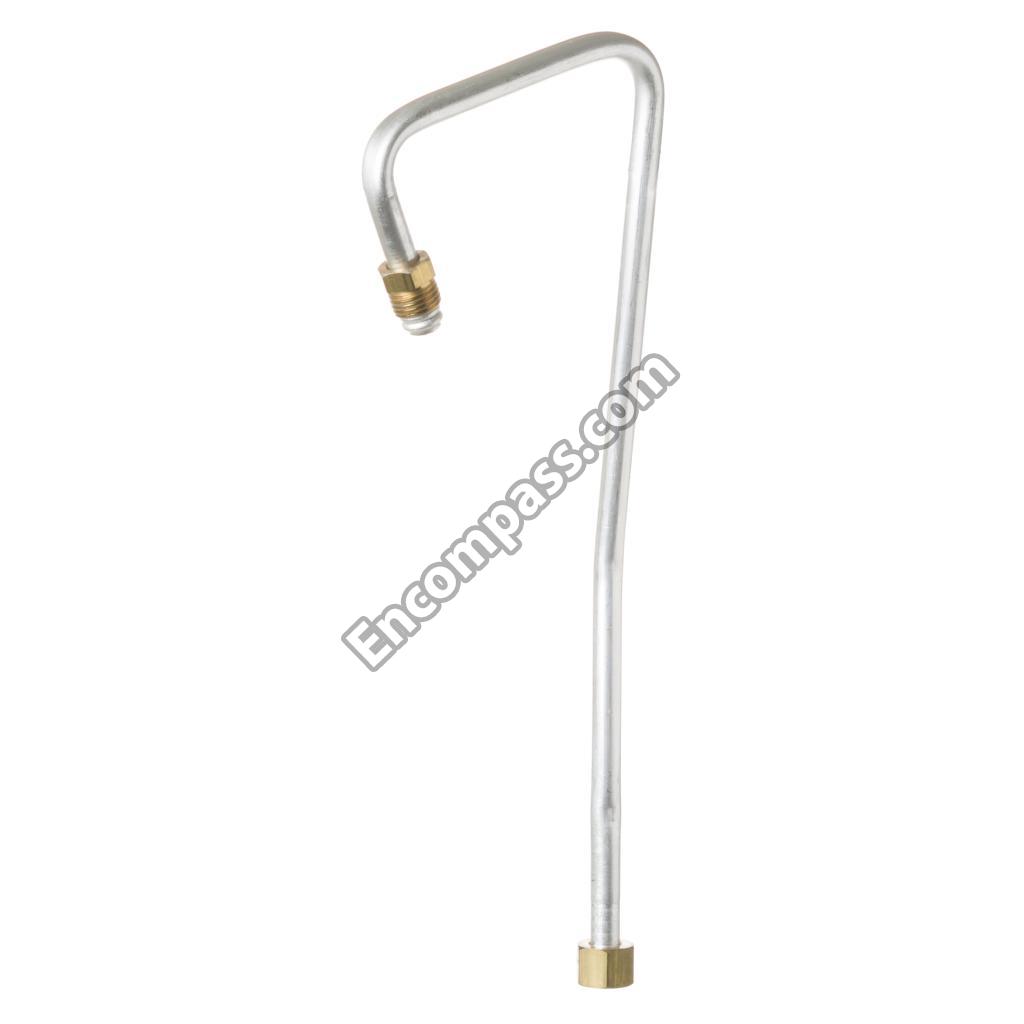

WB28K10168 WB28K10168 TUBE BURNER SUPPLY
WB28K10698 WB28K10698 TUBE MAIN DUAL VALVE
WB28K10699 WB28K10699 TUBE SIMMER DUAL VALVE

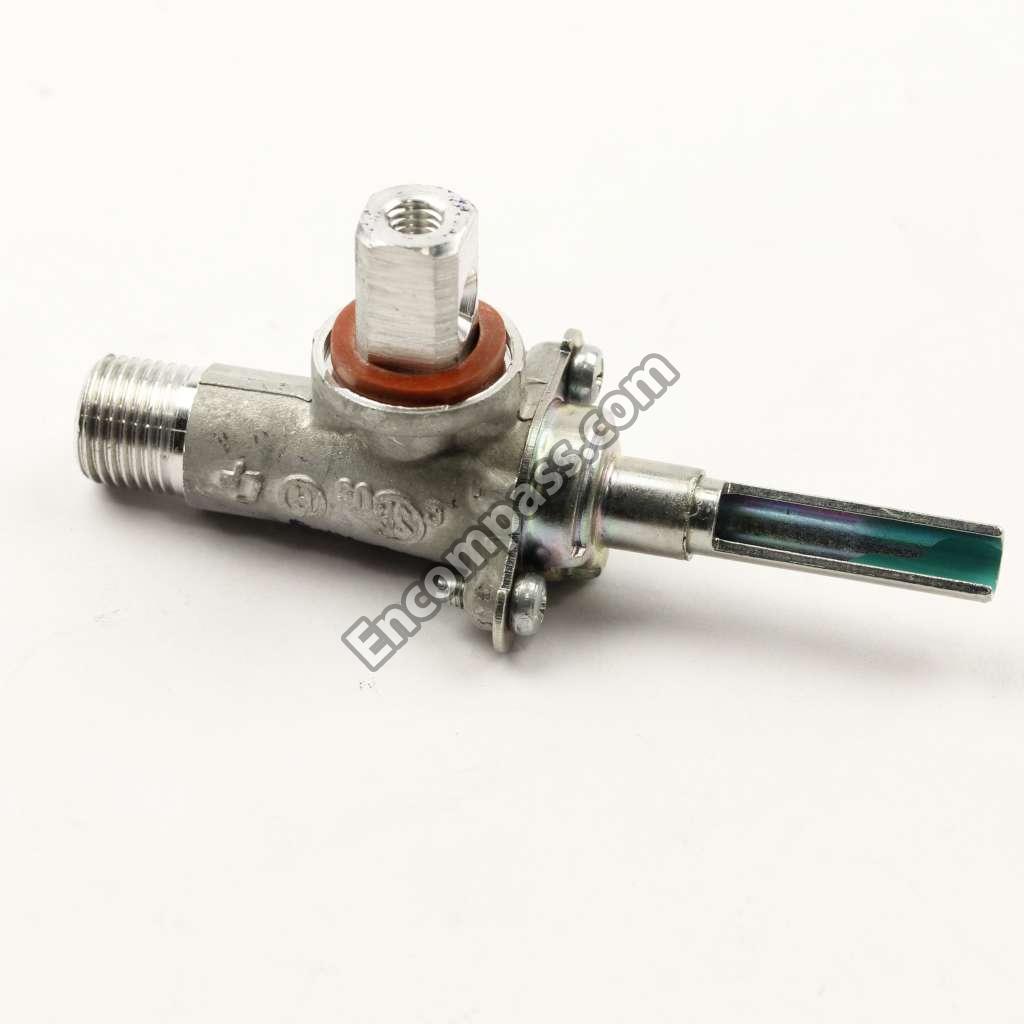

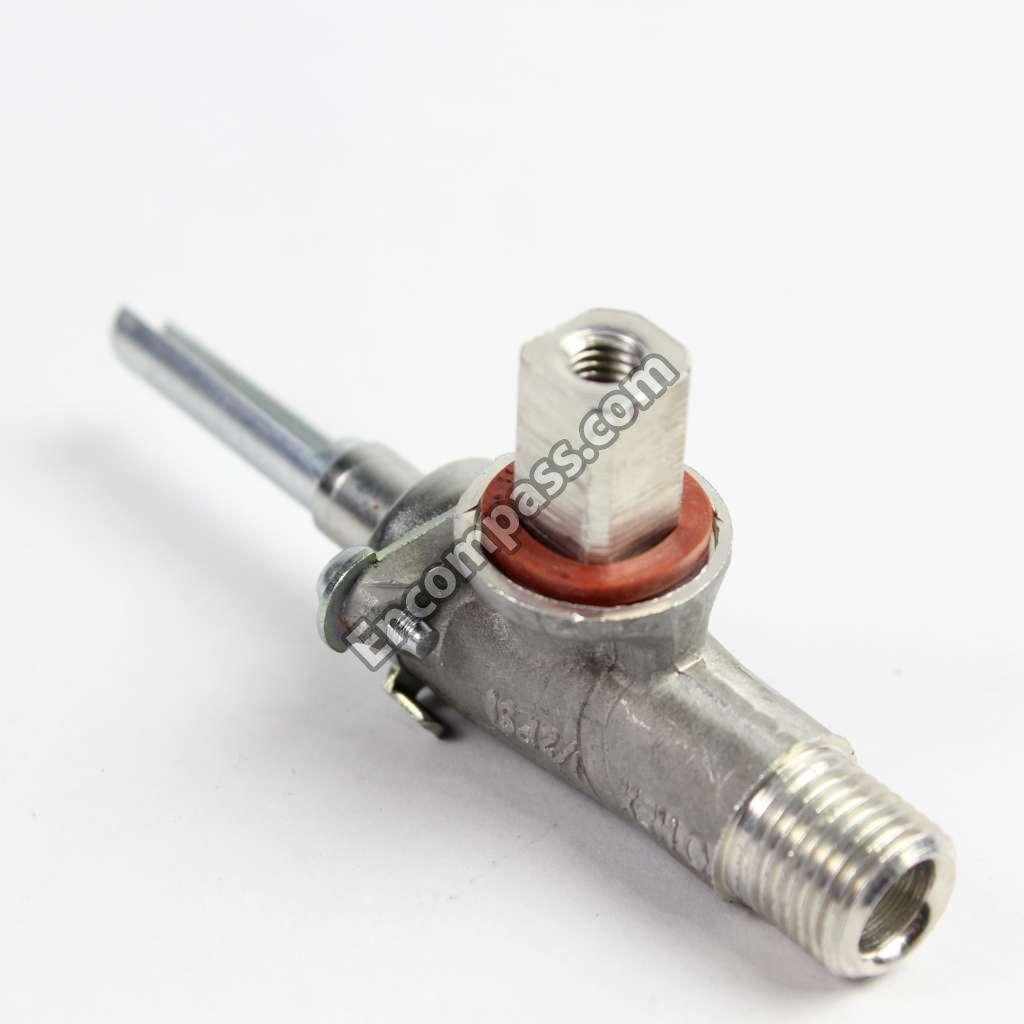

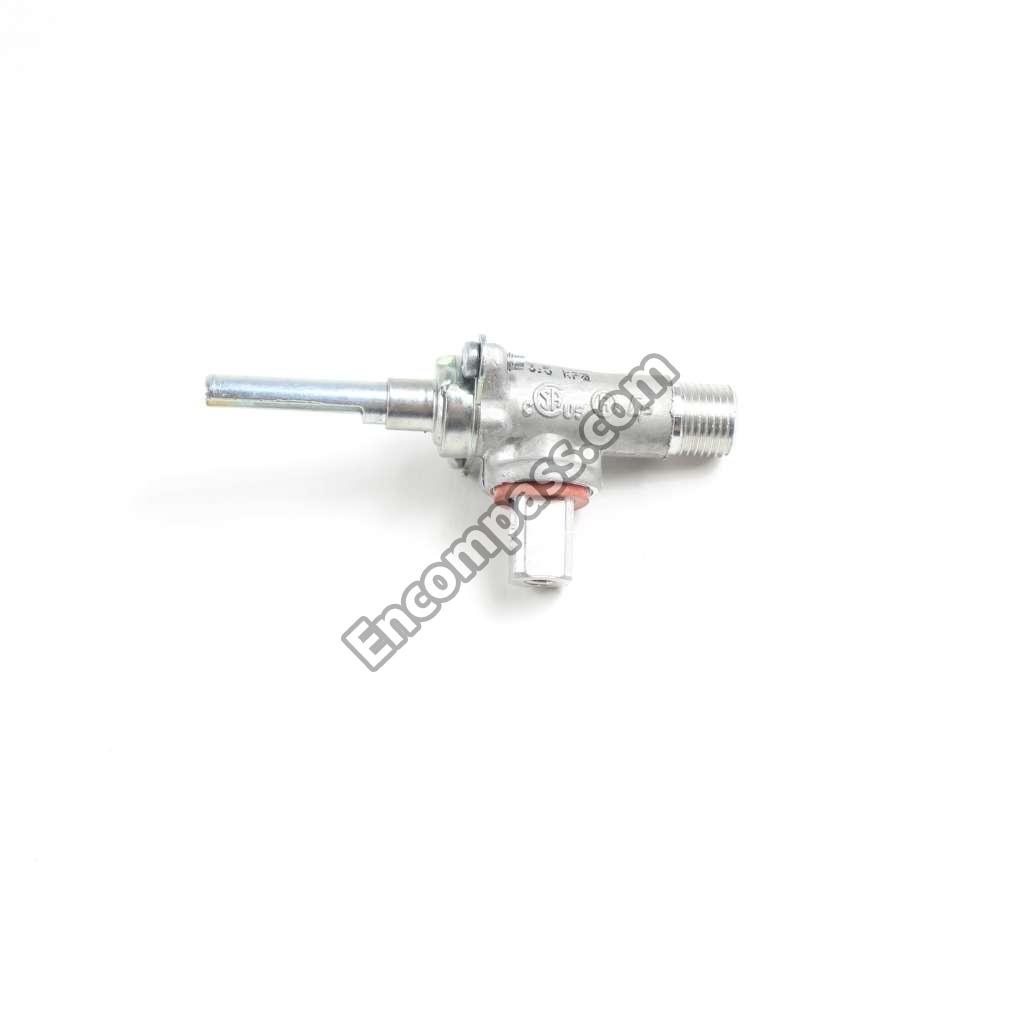

WB21K10097 WB21K10097 VALVE BURNER 270 CN

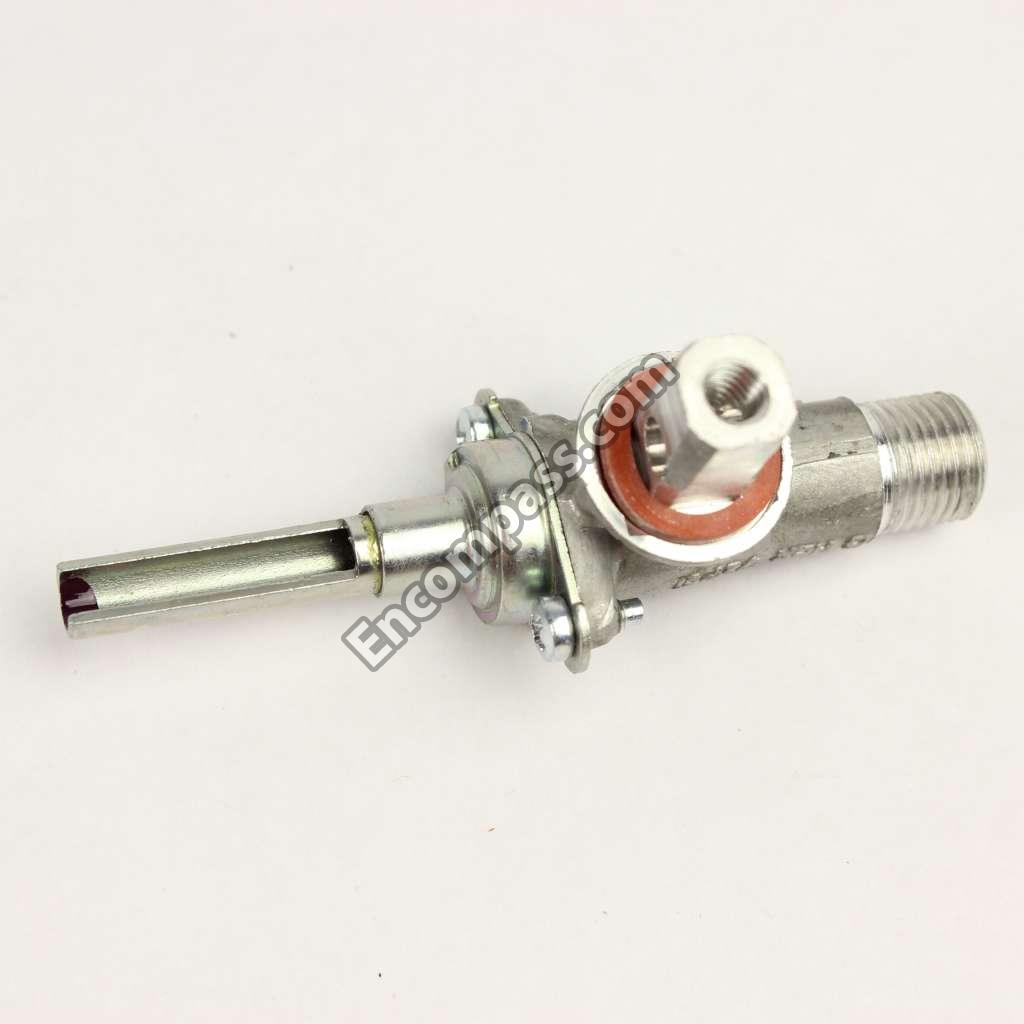

WB21K10080 WB21K10080 VALVE BURNER 270 LF
WB21K10119 WB21K10119 VALVE BURNER 270 LF
WB21K10096 WB21K10096 VALVE BURNER 270 RR

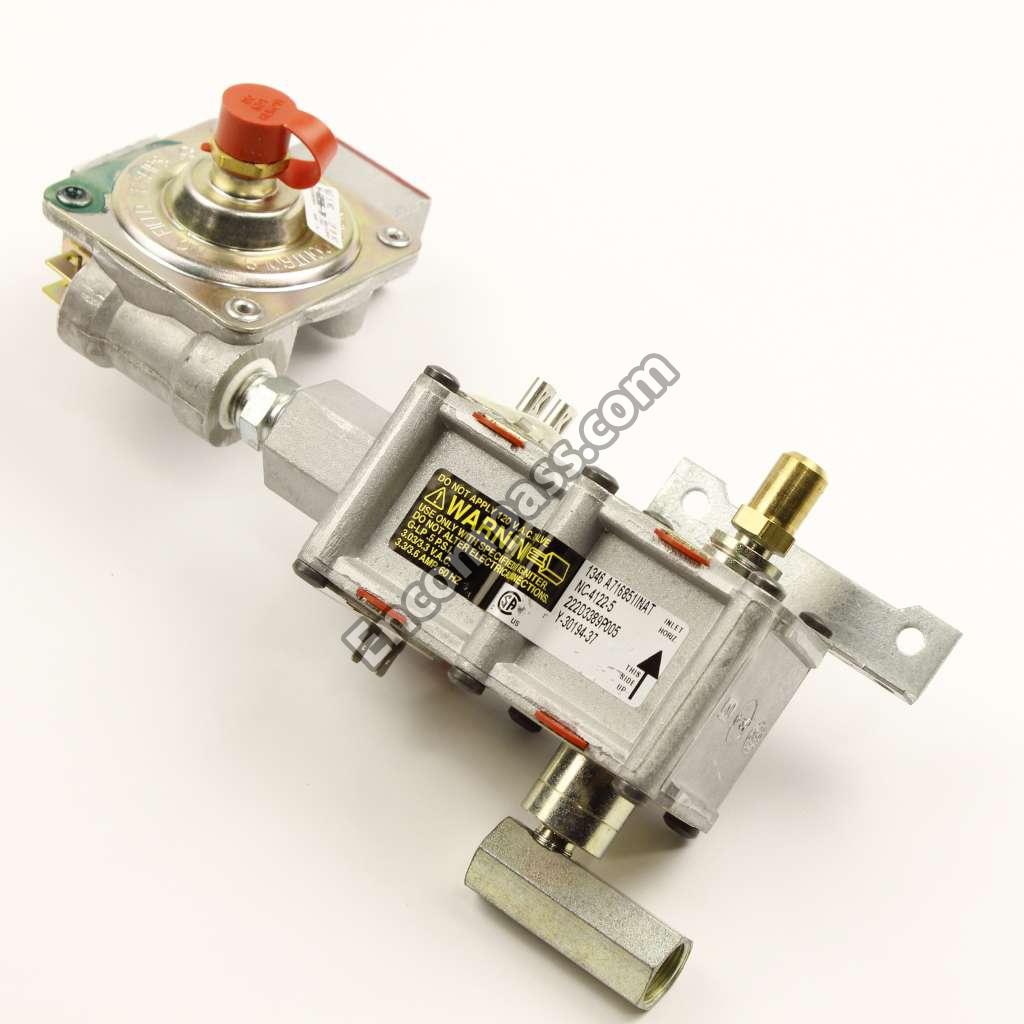

WB19K10079 WB19K10079 VALVE CONTROL ASM NOR. D
WB2K24 WB2K24 VALVE COVER

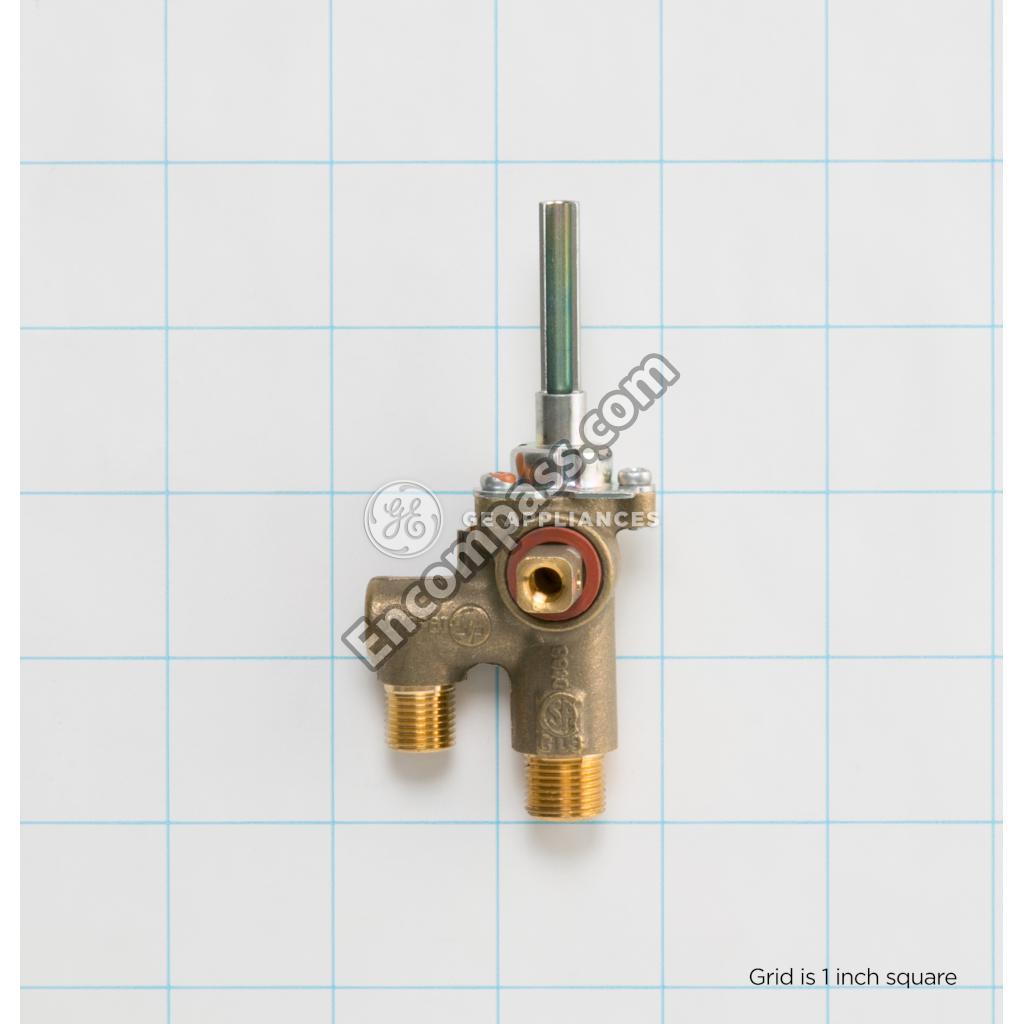

WB21K10141 WB21K10141 VALVE DUAL

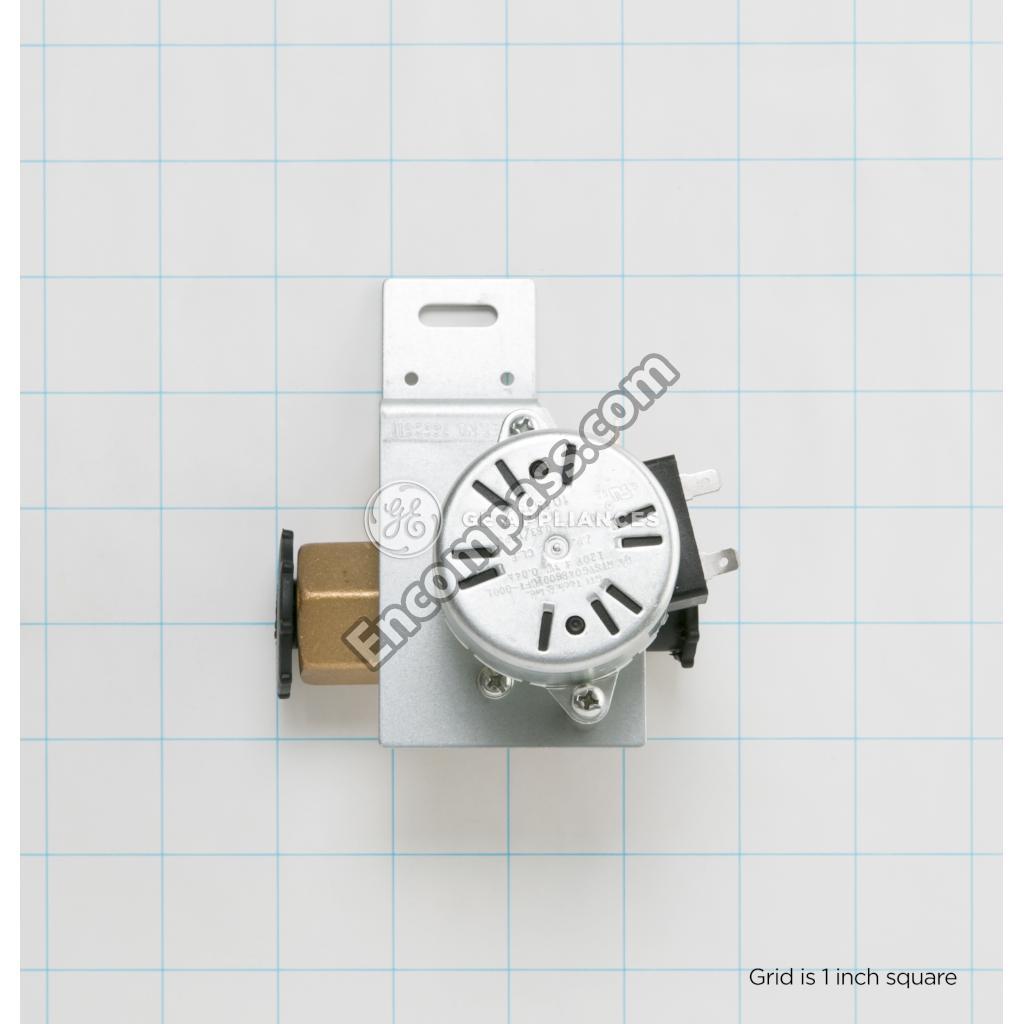

WB19K10059 WB19K10059 VALVE LOCKOUT
WB38K10017 WB38K10017 VENT ASSEMBLY
WB07K10336 WB07K10336 VENT TRIM

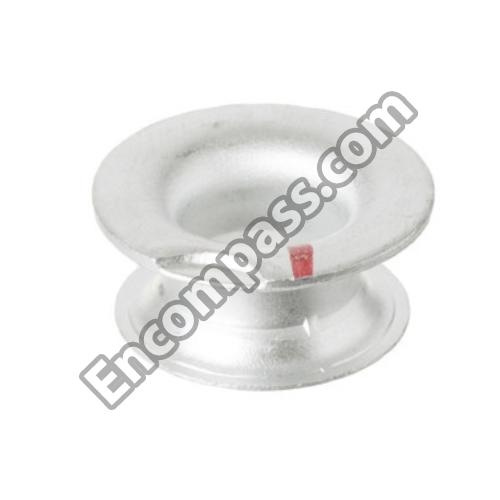

WB16K10083 WB16K10083 VENTURI 15K LP
WB16K10062 WB16K10062 VISION BURNER XL
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
WB56K20 WB56K20 WIND PACK LG
