Model Image
Manufacturer

GE

Model Number

CGS990SET1SS

Description

Gas Range Or Dual Fuel

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB02K0003 WB02K0003 ANGLE SUPPORT
WB44K10034 WB44K10034 ASM ELEMENT BROIL
WD34X11435 WD34X11435 BADGE
WB34K10151 WB34K10151 BADGE GE CAFE

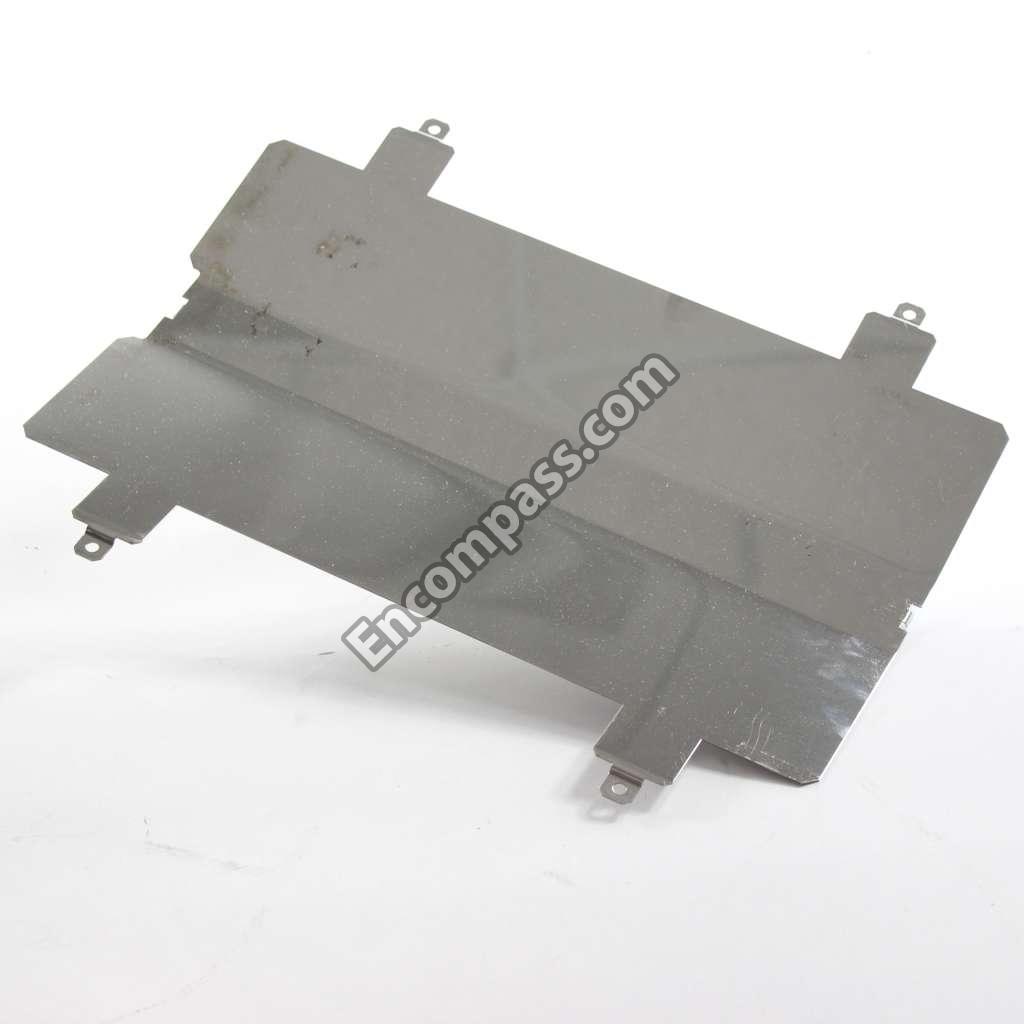

WB63X25414 WB63X25414 BAKE DEFLECTOR COMPLEM
WB49K10036 WB49K10036 BAKE DEFLECTOR COMPLEMEN
WB49K10029 WB49K10029 BAKE DEFLECTOR UC
WB2X8351 WB2X8351 BLADE FAN
WB26K10019 WB26K10019 BLOWER SERVICE KIT
WB26K10008 WB26K10008 BLOWER TANGENTIAL 60MM
WB35X37967 WB35X37967 BOTTOM OVEN ASM
WB63K10239 WB63K10239 BOTTOM RANGE
WB63K10208 WB63K10208 BRACE
WB02K10329 WB02K10329 BRACE OVEN TOP
WB02K10254 WB02K10254 BRACKET ASM ANTI-TIP
WB02K10353 WB02K10353 BRACKET BACK COOKTOP
WB02K10313 WB02K10313 BRACKET CAVITY SUPPORT
WB02K10169 WB02K10169 BRACKET CONTROL
WB02K10082 WB02K10082 BRACKET COOKTOP XL
WB02K10369 WB02K10369 BRACKET DOOR
WB02K10370 WB02K10370 BRACKET DOOR
WB02K10366 WB02K10366 BRACKET DUCT
WB02K10335 WB02K10335 BRACKET INNER DOOR
WB02K0041 WB02K0041 BRACKET OVEN CORNER
WB02X21734 WB02X21734 BRACKET PIPE
WB49K10028 WB49K10028 BROIL DEFLECTOR UC
WB02K10178 WB02K10178 BUMPER
WB2K15 WB2K15 BUMPER BLACK
WB02X28737 WB02X28737 BUMPER DOOR
WB02K0015 WB02K0015 BUMPER, BLACK
WB16K10074 WB16K10074 BURNER BAKE
WB30X28763 WB30X28763 BURNER BAKE
WB16K10077 WB16K10077 BURNER BROIL UPPER
WB29K10045 WB29K10045 BURNER CAP CENTRAL
WB29K10044 WB29K10044 BURNER CAP OUTER
WB16K10055 WB16K10055 BURNER MEDIUM (9500)
WB28K10222 WB28K10222 CAP BURNER ASM (15K)
WB29K10023 WB29K10023 CAP BURNER MED
WB29K10022 WB29K10022 CAP BURNER SMALL
WB31K10218 WB31K10218 CENTER GRATE CAST
WB02K10361 WB02K10361 CKT BRACKET MID
WB02K10360 WB02K10360 CKT BRACKET SM
WB01K10106 WB01K10106 CKT SCREW
WB02K0036 WB02K0036 CLAMP CABLE
WB2K36 WB2K36 CLAMP CABLE
WB02K10367 WB02K10367 CLAMP HEAT ELEMENT
WB02K10023 WB02K10023 CLAMP-HEAT ELEMENT
WB02T10111 WB02T10111 CLEANER-SS
WB02K0031 WB02K0031 CLIP CABLE
WB02X21679 WB02X21679 CLIP CABLE
WB02K0010 WB02K0010 CLIP CAPILLARY
WB02K10073 WB02K10073 CLIP CAPILLARY
WB01K10112 WB01K10112 CLIP ELECTRODE
WB02K0038 WB02K0038 CLIP WIRE
WB02X7066 WB02X7066 CLIP WIRE
WB02K10267 WB02K10267 CLIP WIRE
WB02K10068 WB02K10068 CLIP WIRE

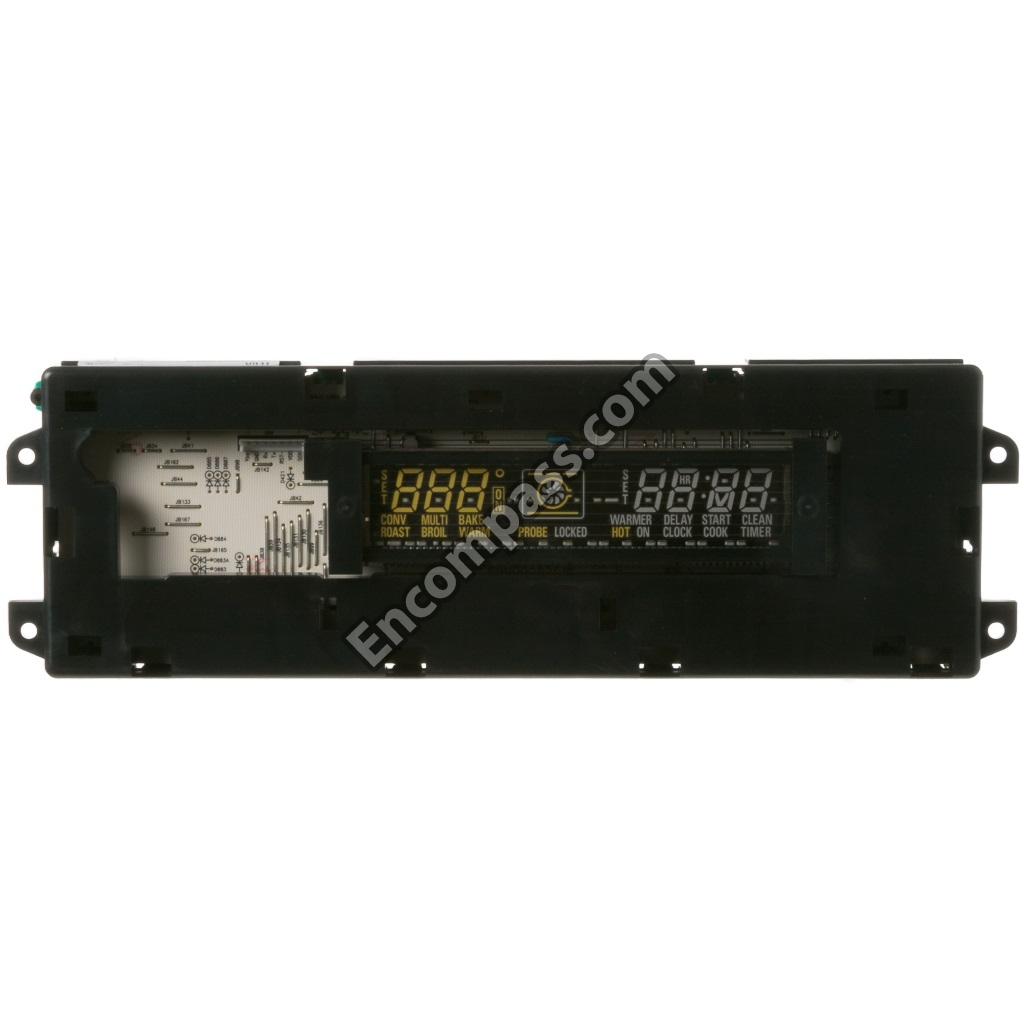

WB27K10423 WB27K10423 CONTROL OVN (ERC3HP)
WB35X31383 WB35X31383 COOKTOP SIDE INSULATION
WB35X21685 WB35X21685 CORD FIBER GLASS
WB34X21731 WB34X21731 COVER BACK BOX
WB63K10133 WB63K10133 COVER BURNER BOX
WB63K10063 WB63K10063 COVER BURNER BOX
WB02K10337 WB02K10337 COVER CAP
WB08K10018 WB08K10018 COVER LAMP
WB02K10317 WB02K10317 COVER LATCH
WB34K10135 WB34K10135 COVER MOTOR
WB34K10133 WB34K10133 COVER SHUTER
WB37K10012 WB37K10012 COVER THERMOSTAT
WB37K10019 WB37K10019 COVER THERMOSTAT
WB02K0024 WB02K0024 COVER VALVE
WB57K10155 WB57K10155 CRYSTAL WINDOW
WB57K10158 WB57K10158 CRYSTAL WINDOW
WB57K10156 WB57K10156 CRYSTAL WINDOW
WB34K14 WB34K14 CVR IGNITOR
WB63X25413 WB63X25413 DEFLECTOR
WB35X37972 WB35X37972 DEFLECTOR OVEN KIT
WB49K10037 WB49K10037 DEFLECTOR OVER
WB63K10136 WB63K10136 DUCT AND BURNER BOX ASM
WB34K10096 WB34K10096 DUCT UPPER HALF
WB01K10037 WB01K10037 ECONOMIC NUT
WB28K10708 WB28K10708 ELBOW BAKE LOWER
WB28K10706 WB28K10706 ELBOW BAKE UPPER
WB28K10738 WB28K10738 ELBOW DUAL CAVITY
WB13T10080 WB13T10080 ELECTRODE TOP
WB13K10014 WB13K10014 ELECTRODE TOP
WB07K10426 WB07K10426 ENDCAP HANDLE
WB02X8351 WB02X8351 FAN BLADE
WB34K10132 WB34K10132 FAN COVER
WB34K10038 WB34K10038 FAN COVER BACK
WB35K10013 WB35K10013 FAN INSULATION
WB35K10038 WB35K10038 FAN INSULATOR
WB26K10003 WB26K10003 FAN MOTOR CONVECT-2SPEED
WB02K10034 WB02K10034 FAN SUPPORT
WB01X1378 WB01X1378 FLAT WASHER-M4
WB02K10182 WB02K10182 FOOT LEVELING
WB63K10250 WB63K10250 FRAME FRONT UC
WB63K10251 WB63K10251 FRAME WELD ASSEMBLY
WB34X28741 WB34X28741 FRAME WINDOW ASSEMBLY
WB34X28740 WB34X28740 FRAME WINDOW PACK ASSEMBLY
WB32K10046 WB32K10046 GASKET OVEN
WB32K10047 WB32K10047 GASKET OVEN
WB32K10044 WB32K10044 GASKET OVEN LIGHT
WB32K0001 WB32K0001 GASKET VENT
WB32K10045 WB32K10045 GASKET VENT
WB32K1 WB32K1 GASKET VENT
WB57K10154 WB57K10154 GLASS & PANEL DOOR ASM

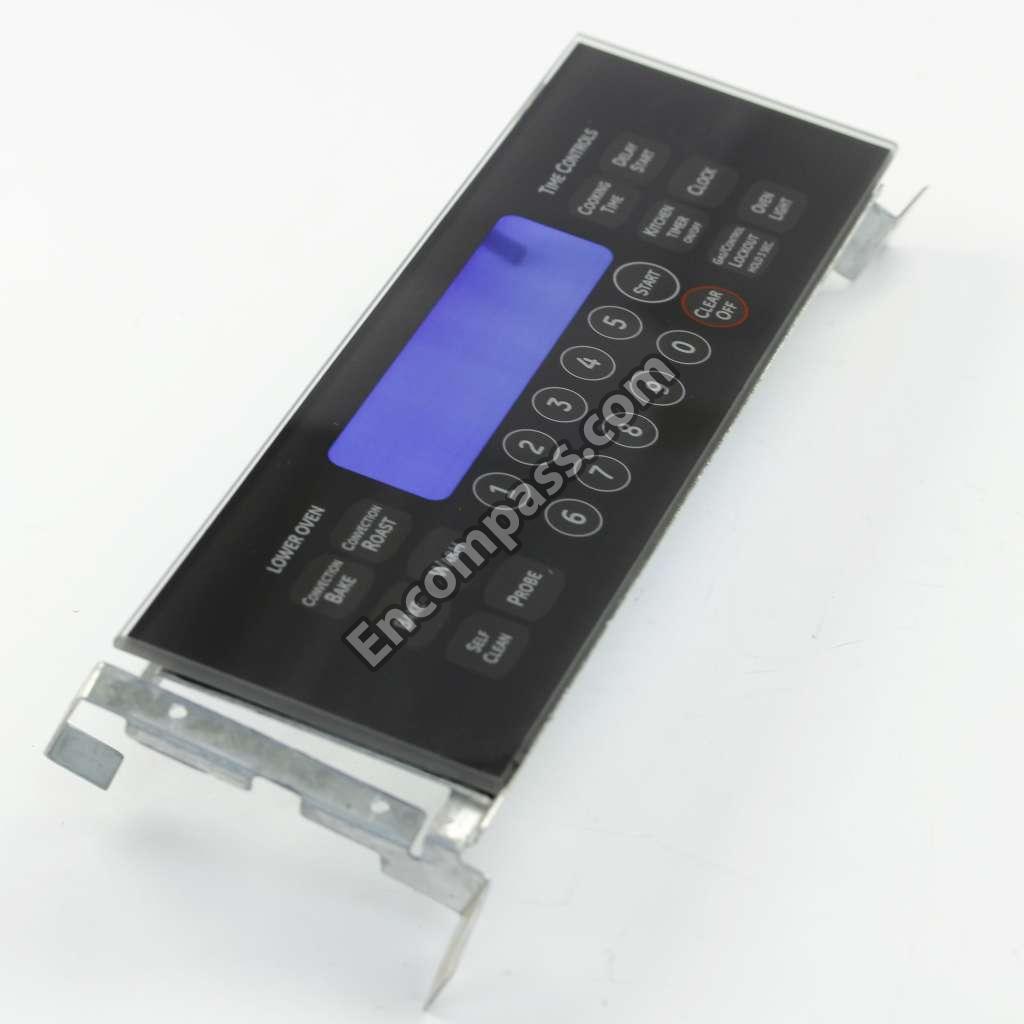

WB27K10369 WB27K10369 GLASS & TOUCH BOARD ASM
WB57K10153 WB57K10153 GLASS AND TRIM ASM
WB31K10220 WB31K10220 GRIDDLE
WB2K8 WB2K8 GROMMET
WB01K10023 WB01K10023 GROMMET HANDLE
WB56K10079 WB56K10079 GUARD INSULATION
WB56K10081 WB56K10081 GUARD INSULATION
WB53K10047 WB53K10047 GUARD TOP INSULATION
WB53K10048 WB53K10048 GUARD TOP INSULATION
WB15K10077 WB15K10077 HANDLE TUBE SS
WB18K10083 WB18K10083 HARNESS GROUND
WB18K10084 WB18K10084 HARNESS HV
WB18K10100 WB18K10100 HARNESS RF FILTER

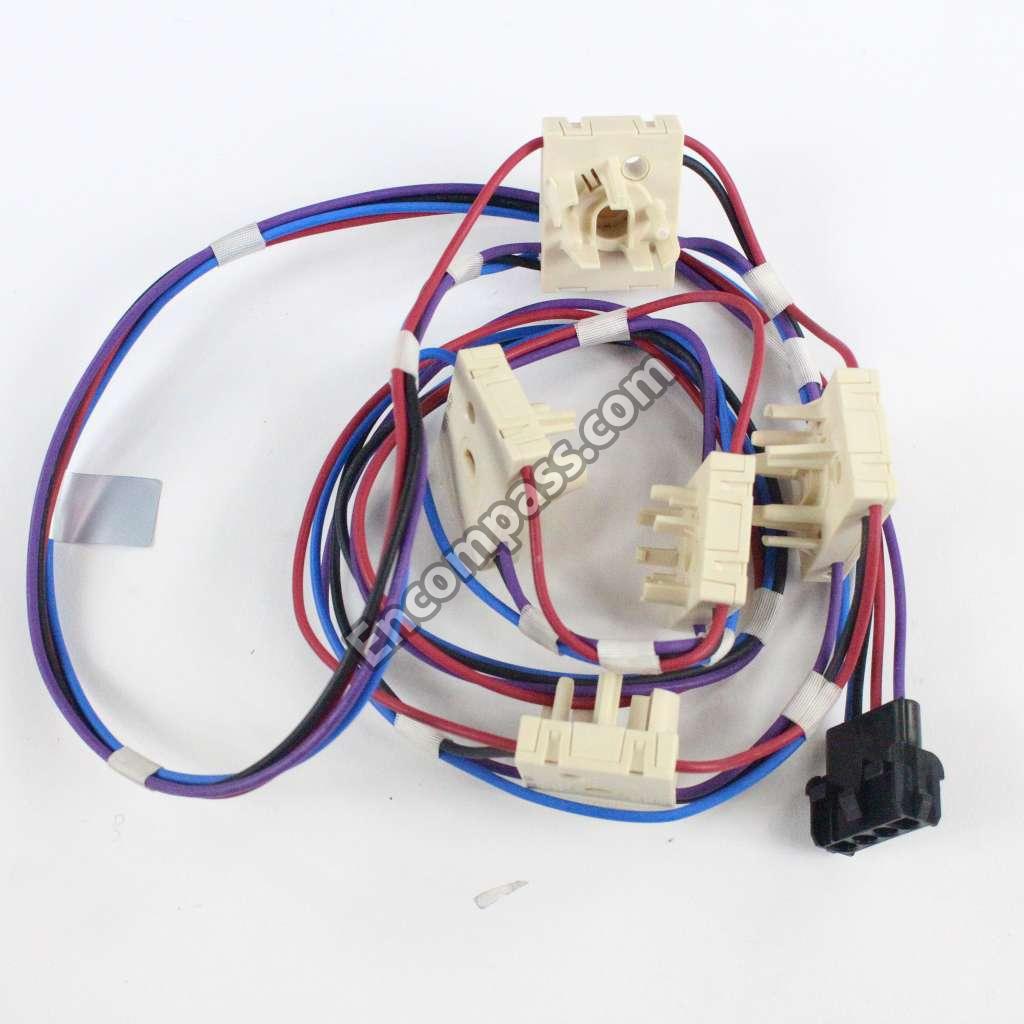

WB18K10074 WB18K10074 HARNESS SWITCH
WB18T10386 WB18T10386 HARNESS WIRE GLASS TOUCH
WB10K10027 WB10K10027 HINGE ASM
WB10K10028 WB10K10028 HINGE ASM
WB10K10023 WB10K10023 HINGE DOOR
WB10K10024 WB10K10024 HINGE DOOR
WB10K10026 WB10K10026 HINGE RECEIVER
WB10K10025 WB10K10025 HINGE RECEIVER
WB28K10712 WB28K10712 HOOD SPUD ORIFICE
WB28K10713 WB28K10713 HOOD SPUD ORIFICE
WB34K0014 WB34K0014 IGNITER COVER
WB13K10043 WB13K10043 IGNITER GLOW BAR
WB13X25262 WB13X25262 IGNITER GLOWBAR
WB13X25263 WB13X25263 IGNITER GLOWBAR
WB28K10785 WB28K10785 INJECT TOP BURNER ASM
WB02K10348 WB02K10348 INSULATION COVER LAMP
WB34X21726 WB34X21726 INSULATION DOOR
WB34X21727 WB34X21727 INSULATION DOOR
WB34X21728 WB34X21728 INSULATION DOOR
WB34X21729 WB34X21729 INSULATION DOOR
WB34X21730 WB34X21730 INSULATION DOOR
WB35K10201 WB35K10201 INSULATION OVEN BACK
WB35K10202 WB35K10202 INSULATION OVEN WRAP
WB35K10204 WB35K10204 INSULATION OVEN WRAP
WB35K10205 WB35K10205 INSULATION OVEN WRAP
WB02K10352 WB02K10352 INSULATION PRESSURE REGU
WB28K10800 WB28K10800 KIT CONVERSION LP
WB03K10309 WB03K10309 KNOB ASSEMBLY
WB03K10266 WB03K10266 KNOB ASSEMBLY
WB03K10308 WB03K10308 KNOB ASSEMBLY
WB03K10265 WB03K10265 KNOB ASSEMBLY
WB02K10326 WB02K10326 L SUPPORT
WB02K10349 WB02K10349 LAMP INSULATION
WB02K10318 WB02K10318 LATCH ASSEMBLY LOWER

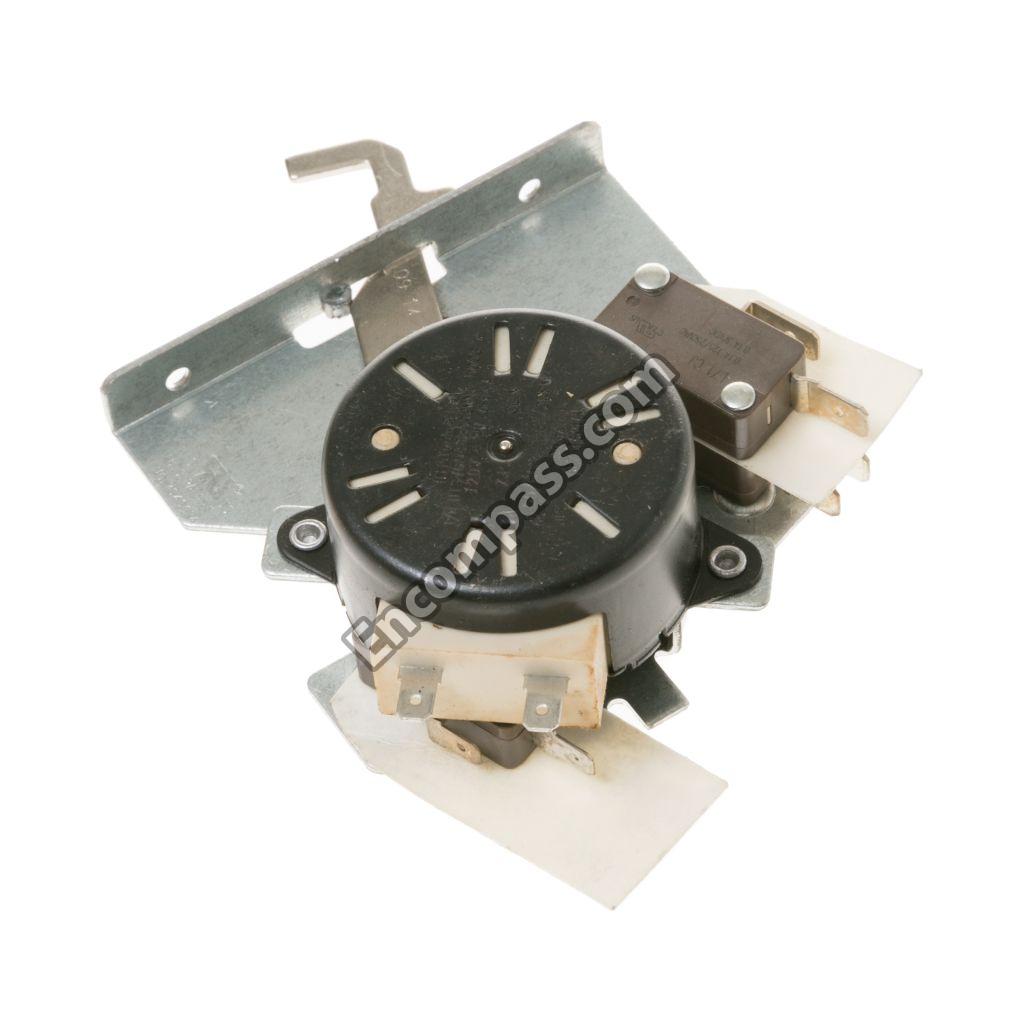

WB02K10315 WB02K10315 LATCH AUTOMATIC
WB25K10009 WB25K10009 LENS
WB25K10010 WB25K10010 LIGHT INDICATOR PILOT
WB18K10073 WB18K10073 LINE CORD
WB55K10081 WB55K10081 LINER DOOR ASSEMBLY
WB55K10080 WB55K10080 LINER DOOR WELD ASSEMBLY
31-10778 31-10778 LP INSTALL INSTRUCTIONS
WB02K10250 WB02K10250 MANIFOLD PANEL SUPPORT
WB02K10249 WB02K10249 MANIFOLD PANEL SUPPORT
WB28K10687 WB28K10687 MANIFOLD PIPE ASM
WB18K10042 WB18K10042 MODULE GROUND WIRE
WB28K10696 WB28K10696 NG ORIFICE & BURNER TUBE
WB28K10740 WB28K10740 NG ORIFICE & TUBE FL
WB28K10475 WB28K10475 NG ORIFICE & TUBE LR
WB28K10741 WB28K10741 NG ORIFICE & TUBE RR
WB02T10017 WB02T10017 NUT
WB01T10086 WB01T10086 NUT KEPS 6-32 SPECIAL
WB01K0003 WB01K0003 NUT SPEED
WB1K3 WB1K3 NUT SPEED
WB28K10694 WB28K10694 ORIFICE SPUD
WB28K10834 WB28K10834 ORIFICE SPUD
WB28K10842 WB28K10842 ORIFICE SPUD LP
WB28K10693 WB28K10693 ORIFICE SPUD LP
WB28K10215 WB28K10215 ORIFICE SPUD LP LR
WB28K10023 WB28K10023 ORIFICE-LP MED LF 9500
WB16K10076 WB16K10076 OVAL BURNER ASM
WB53K10051 WB53K10051 OVEN BACK
WB63K10238 WB63K10238 OVEN BACK UC
WB35K10200 WB35K10200 OVEN BOTTOM UC
WB49K10031 WB49K10031 OVEN DEFLECTOR
WB49K10030 WB49K10030 OVEN DEFLECTOR
WB08T10002 WB08T10002 OVEN LAMP HOLDER ASM
WB48X20783 WB48X20783 OVEN RACK
WB53K10040 WB53K10040 OVEN SIDE
WB53K10041 WB53K10041 OVEN SIDE
WB53K10042 WB53K10042 OVEN SIDE UC
WB53K10043 WB53K10043 OVEN SIDE UC
WB53K10039 WB53K10039 OVEN TOP
WB53K10044 WB53K10044 OVEN TOP
WB36K10920 WB36K10920 PANEL MANIFOLD
WB63K10119 WB63K10119 PANEL SIDE
WB14K10004 WB14K10004 PIN LOCATOR
WB24K10068 WB24K10068 PLUNGER SWITCH
WB06K10007 WB06K10007 PM HELPFUL HINT
31-10781 31-10781 PM INSTALL INSTRUCTIONS
31-10869 31-10869 PM KIT INSTRUCTIONS
31-14982-2 31-14982-2 PM MINI MANUAL
49-85181-3 49-85181-3 PM OWNERS AND INSTALL
49-85181 49-85181 PM OWNERS AND INSTALL
WB34X21733 WB34X21733 POST SIDE
WB19K10077 WB19K10077 PRESSURE REGULATOR
WB02X8309 WB02X8309 PROBE COVER
WB20T10024 WB20T10024 PROBE THERMISTOR
WB63K10212 WB63K10212 RANGE BACK
WB02K10168 WB02K10168 RANGE DEFLECTOR
WB35X21691 WB35X21691 RANGE DOOR INSULATION
WB02K10167 WB02K10167 RANGE FLOW DEVIATOR
WB15K10112 WB15K10112 RANGE HANDLE - STAINLESS STEEL
WB13X25264 WB13X25264 RANGE IGNITER GLOWBAR
WB1X1293 WB1X1293 RANGE IGNITER MOUNTING SCREW
WB02K10324 WB02K10324 RANGE INLET SUPPLY
WB28K10686 WB28K10686 RANGE MANIFOLD PIPE
WB28K10684 WB28K10684 RANGE MANIFOLD SUPPLY TUBE
WB2K41 WB2K41 RANGE OVEN BRACKET
WB35K10100 WB35K10100 RANGE SIDE INSULATION
WB62X25403 WB62X25403 RANGE TOP

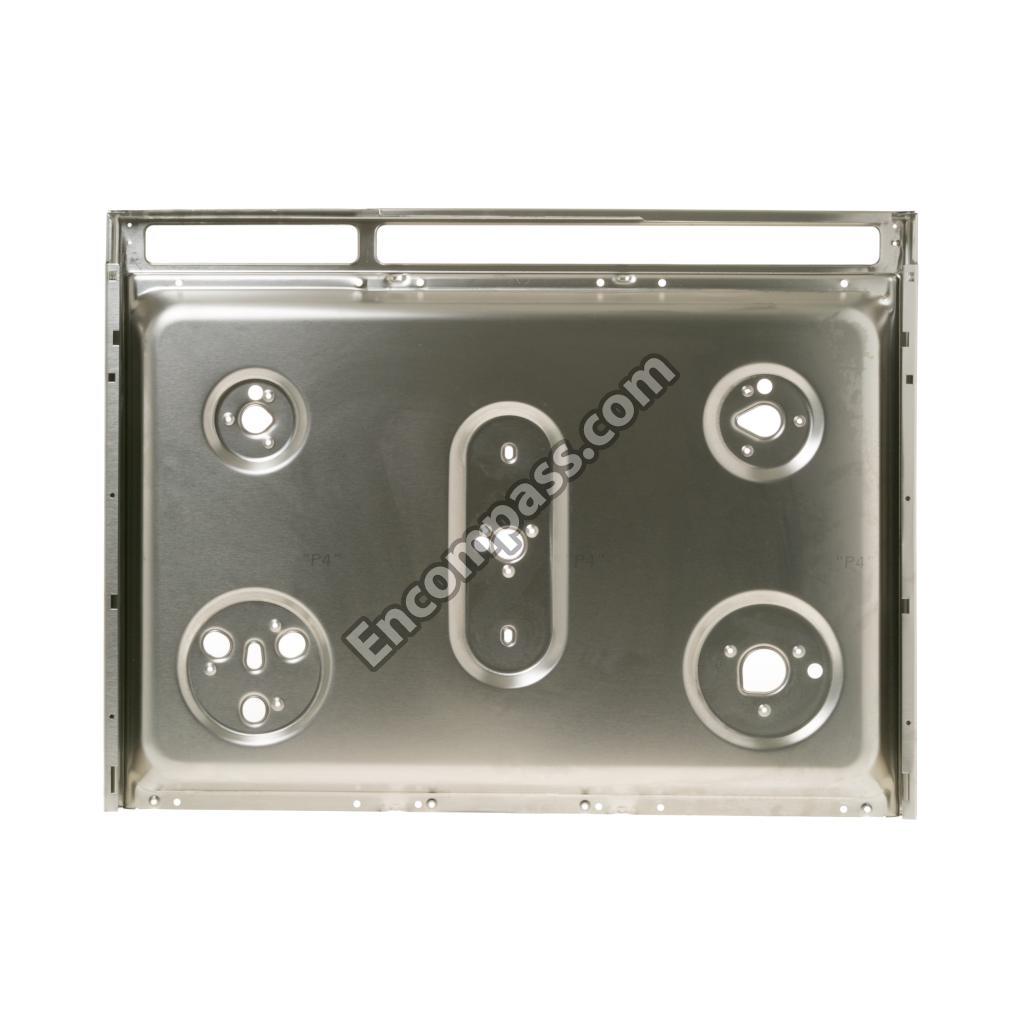

WB63K10237 WB63K10237 RANGETOP
WB10K10029 WB10K10029 RECEIVER HINGE
WB34K10134 WB34K10134 RECEPTABLE ASM
WB13K10050 WB13K10050 RELAY
WB2X2030 WB2X2030 RETAINER
WB02K0030 WB02K0030 RETAINER-INSULATION VENT
WB01K10047 WB01K10047 SCR 10-32 HXW 9/16 S
WB01T10008 WB01T10008 SCR 10-32 TR T
WB01K10067 WB01K10067 SCR 8 HD 1/4 - 20
WB01K10066 WB01K10066 SCR 8 HD 10-32
WR1X1466 WR1X1466 SCR 8-32 T HXW 3/8 S
WZ5X158D WZ5X158D SCR 8-32 T HXW 3/8 S
WB01K0001 WB01K0001 SCREW
WB1X536 WB1X536 SCREW
WB1X1261 WB1X1261 SCREW
WB1K5062 WB1K5062 SCREW
WB01K10070 WB01K10070 SCREW
WB01K10091 WB01K10091 SCREW
WB1K5119 WB1K5119 SCREW
WB01K10099 WB01K10099 SCREW #6-32
WB01K0042 WB01K0042 SCREW (BLK)
WB01X5364 WB01X5364 SCREW (CR)
WB01X0593 WB01X0593 SCREW - DOOR ASM (4 PER)
WB01K10116 WB01K10116 SCREW 10-16
WB01K10009 WB01K10009 SCREW 10-32 MTG HNDL
WZ4X345D WZ4X345D SCREW 8-18X5/8 HXW
WB01K10002 WB01K10002 SCREW 8-32
WB01X1261 WB01X1261 SCREW GROUND
WB1X5364 WB1X5364 SCREW MTG
WB01K0050 WB01K0050 SCREW MTG IGNITER
WB1K8 WB1K8 SCREW THERMO
WB01K0008 WB01K0008 SCREW THERMOSTAT
WB01K10110 WB01K10110 SCREW TRILOBULAR
WB34K10136 WB34K10136 SHIELD BROIL
WB02K10371 WB02K10371 SHIELD HEAT DOOR
WB31K10219 WB31K10219 SIDE GRATE CAST
WB04K10037 WB04K10037 SKIRT
WB39K10040 WB39K10040 SLIDE RACK ASM
WB16K10070 WB16K10070 SMALL BURNER V 5K
WB02K10270 WB02K10270 SPACER BASE
WB02K10320 WB02K10320 SPACER BASE
WB02K10345 WB02K10345 SPACER BASE
WB13X26360 WB13X26360 SPARK MODULE 6+0
WB13K10044 WB13K10044 SPARK MODULE BRACKET
WB01K0002 WB01K0002 SPEEDNUT
WB1K2 WB1K2 SPEEDNUT
WB01K10093 WB01K10093 SPEEDNUT
WB63K10267 WB63K10267 SUPPORT BASE
WB63K10268 WB63K10268 SUPPORT BASE
WB02K10340 WB02K10340 SUPPORT GLASS LINER DOOR
WB02K10333 WB02K10333 SUPPORT H AND LE
WB02K10325 WB02K10325 SUPPORT VALVE SINGLE
WB24K10091 WB24K10091 SWITCH LIMIT BIMETAL
WB24K10046 WB24K10046 SWITCH LIMIT BIMETAL
WB24K10090 WB24K10090 SWITCH THERMOSTAT
WB20K10027 WB20K10027 TEMPERATURE SENSOR
WB20K10036 WB20K10036 THERMOSTAT S.C.G.
WB16K10079 WB16K10079 TRI RING BURNER ASM
WB16X24999 WB16X24999 TRIPLE RING BURNER
WB28K10700 WB28K10700 TUBE BURNER SUPPLY BAKE
WB28K10795 WB28K10795 TUBE BURNER SUPPLY BROIL
WB28K10796 WB28K10796 TUBE INLET SUPPLY
WB28K10698 WB28K10698 TUBE MAIN DUAL VALVE
WB28K10716 WB28K10716 TUBE MANIFOLD SUPPLY
WB28K10688 WB28K10688 TUBE MANIFOLD SUPPLY
WB28K10699 WB28K10699 TUBE SIMMER DUAL VALVE
WB28K10701 WB28K10701 TUBE VALVE SAFETY
WB28K10703 WB28K10703 TUBE VALVE SUPPLY
WB21K10097 WB21K10097 VALVE BURNER 270 CN
WB21K10119 WB21K10119 VALVE BURNER 270 LF
WB21K10080 WB21K10080 VALVE BURNER 270 LF
WB21K10096 WB21K10096 VALVE BURNER 270 RR
WB21K10161 WB21K10161 VALVE CONTROL ASM
WB21K10160 WB21K10160 VALVE CONTROL ASM
WB2K24 WB2K24 VALVE COVER
WB21K10141 WB21K10141 VALVE DUAL
WB19K10072 WB19K10072 VALVE LOCKOUT
WB38K10037 WB38K10037 VENT ASSEMBLY
WB38K10030 WB38K10030 VENT BACKER
WB07K10395 WB07K10395 VENT TRIM
WB07K10396 WB07K10396 VENT TRIM INSULATION
WB16K10083 WB16K10083 VENTURI 15K LP
WB16K10046 WB16K10046 VENTURI 15K LP
WB16K10062 WB16K10062 VISION BURNER XL
Main Menu x
