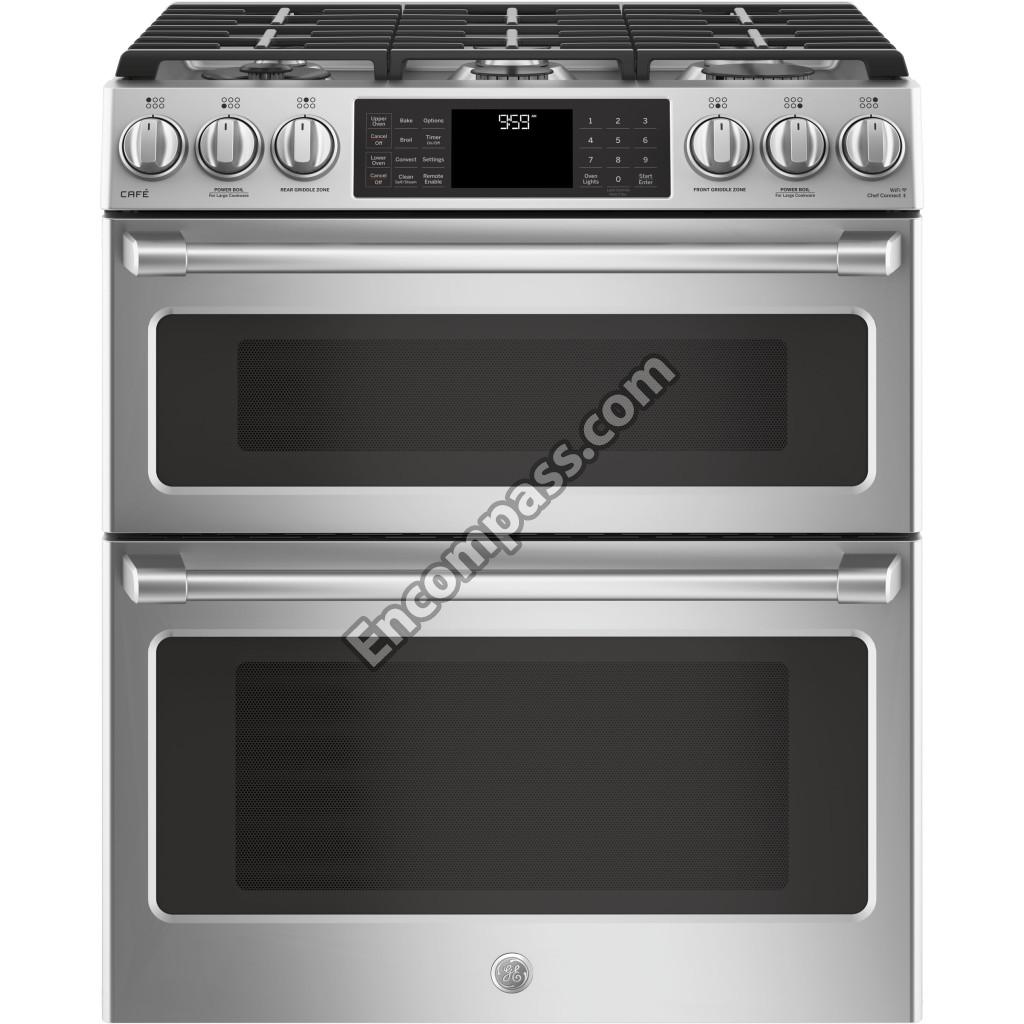

Model Image
Manufacturer

GE

Model Number

CGS995SEL2SS

Description

Free-standing Gas Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB29K10024 WB29K10024 000 BTUS GAS RANGE BURNER CAP-LARGE; 12
WB29K10023 WB29K10023 500 BTUS GAS RANGE MEDIUM BURNER CAP; 9
WB02X28653 WB02X28653 AIR DEVIATOR
WB02X28652 WB02X28652 AIR DEVIATOR
WB02K0003 WB02K0003 ANGLE SUPPORT
WB2K3 WB2K3 ANGLE SUPPRT
WB02X29479 WB02X29479 BADGE ASSEMBLY
WB34X28907 WB34X28907 BAKE DEFLECTOR UC
WB56X20457 WB56X20457 BARRIER BOTTOM FLOOR
WB07X28655 WB07X28655 BARRIER DOOR
WB16X28656 WB16X28656 BASE BURNER
WB2X8351 WB2X8351 BLADE FAN
WB26X32571 WB26X32571 BLOWER TANGENTIAL
WB27X28659 WB27X28659 BOARD SENSOR
WB63X21725 WB63X21725 BOTTOM DUCT
WB34X24912 WB34X24912 BOTTOM OVEN
WB63X20441 WB63X20441 BOTTOM RANGE
WB34X28237 WB34X28237 BRACKET
WB02K10254 WB02K10254 BRACKET ANTI-TIP ASSEMBLY
WB44X47938 WB44X47938 BROIL ELEMENT
WB03X31659 WB03X31659 BRUSHED SS MULTI RING KNOB

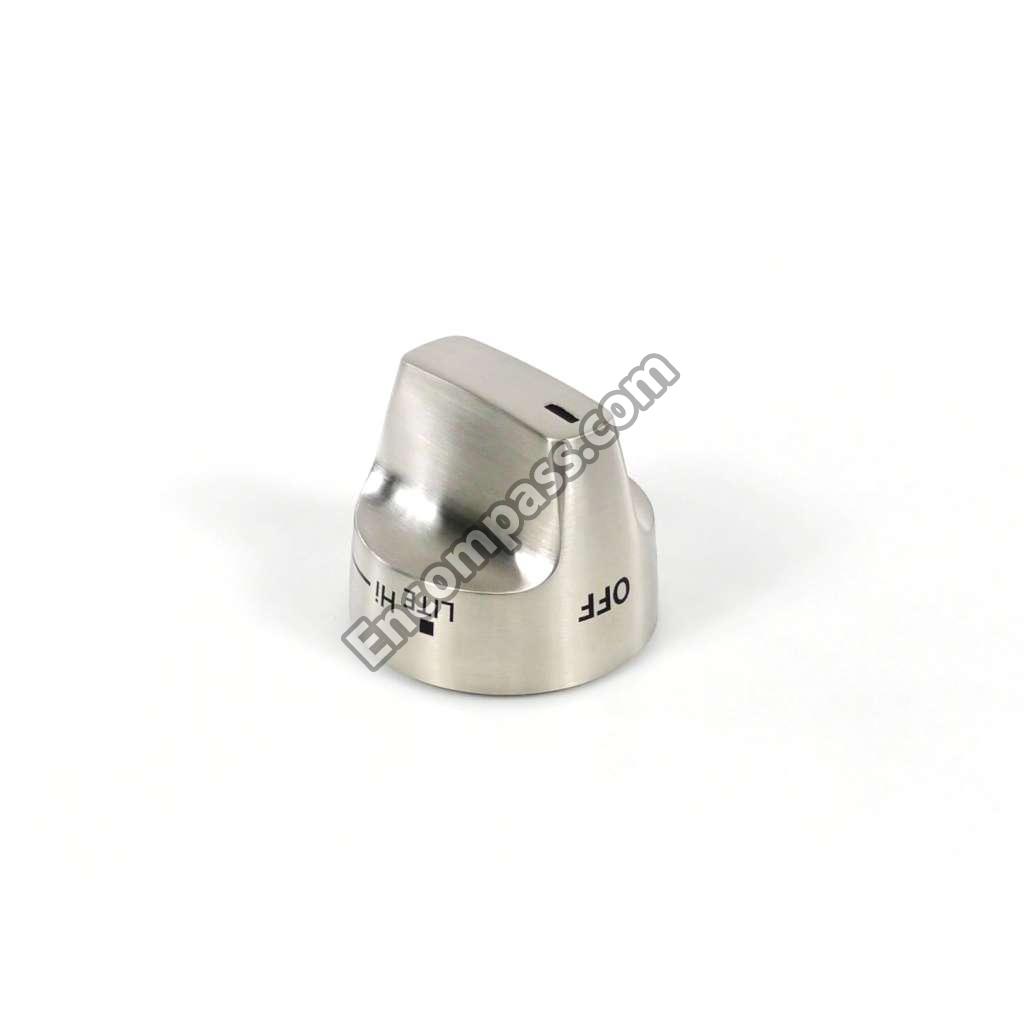

WB03X31672 WB03X31672 BRUSHED SS RANGE CONTROL KNOB

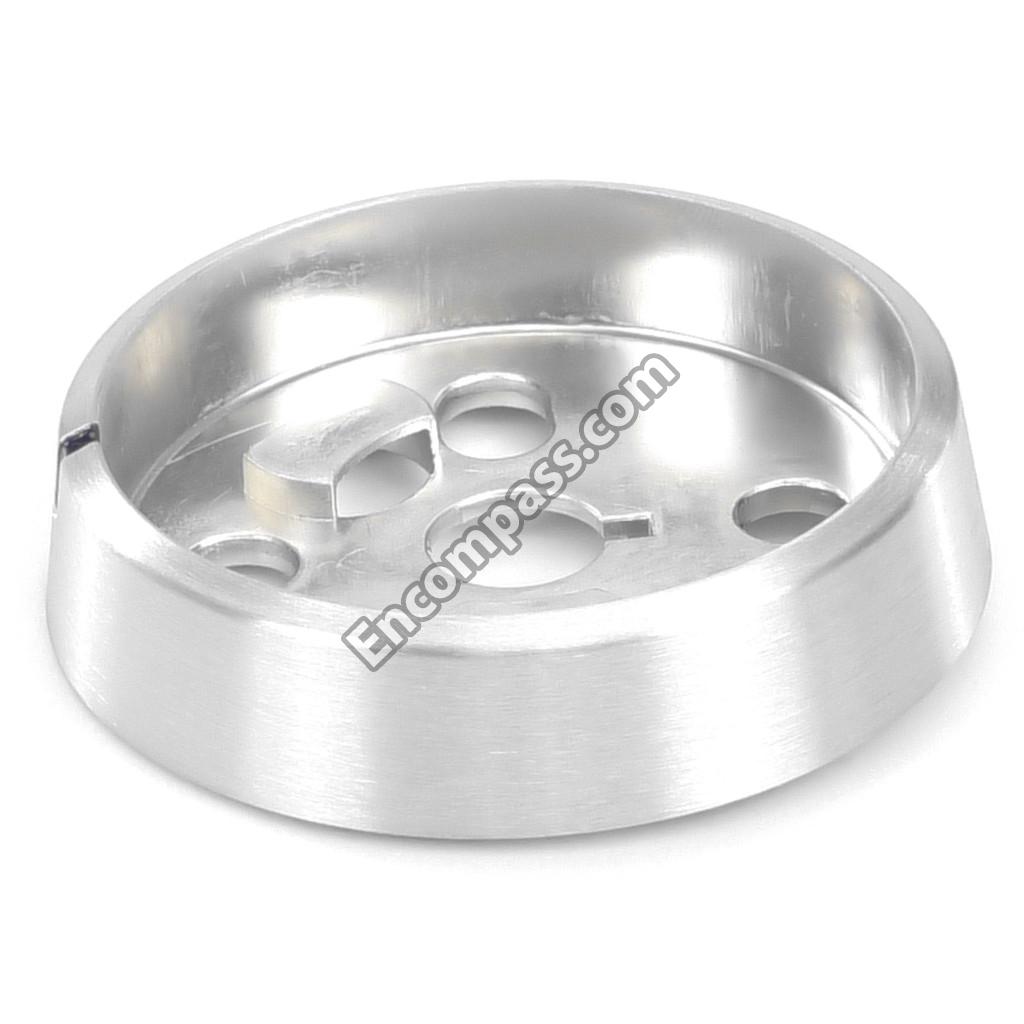

WB03X28165 WB03X28165 BRUSHED SS RANGE KNOB BEZEL
WB03X31662 WB03X31662 BRUSHED STAINLESS STEEL GRIDDLE KNOB
WB15X31680 WB15X31680 BRUSHED STAINLESS STEEL RANGE H AND LE
WB02X24790 WB02X24790 BUMPER
WB16X28252 WB16X28252 CAP INNER
WB29X28253 WB29X28253 CAP OUTER

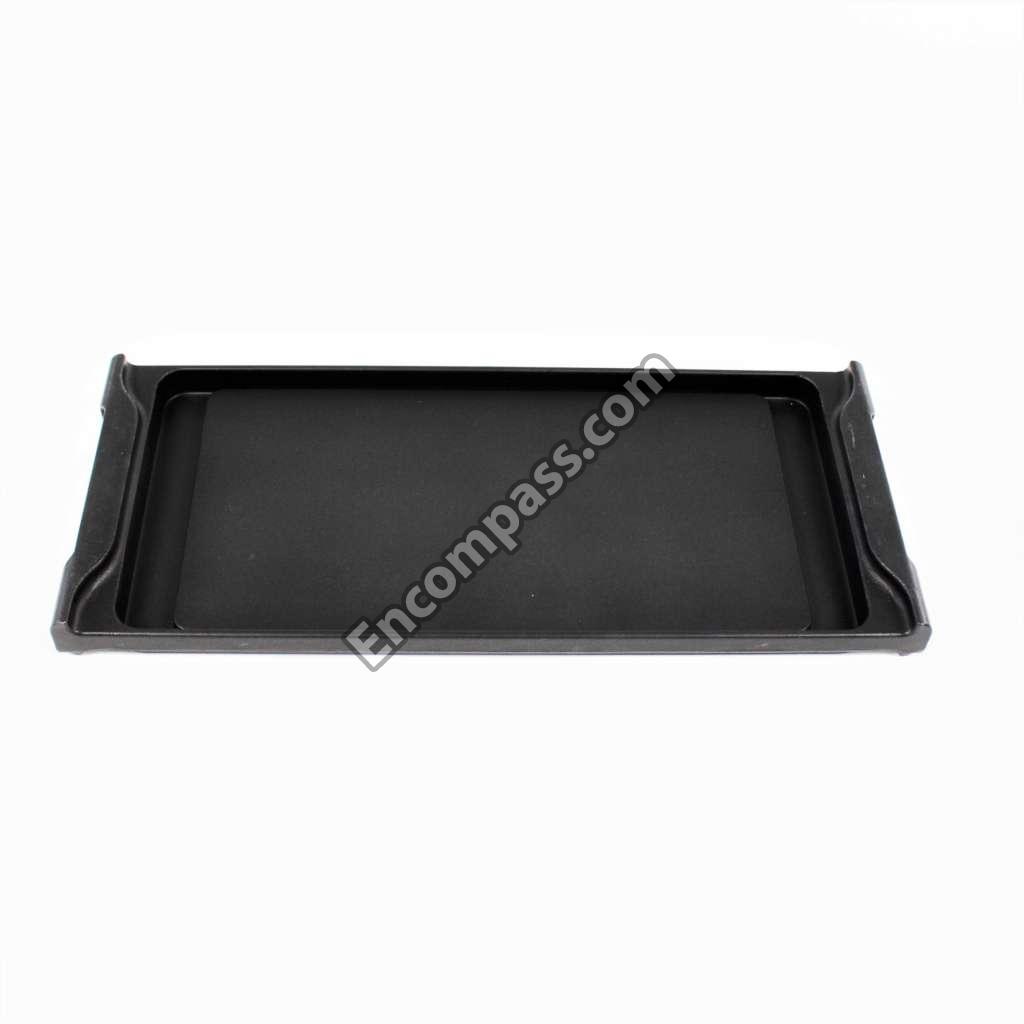

WB31X28254 WB31X28254 CAST GRIDDLE

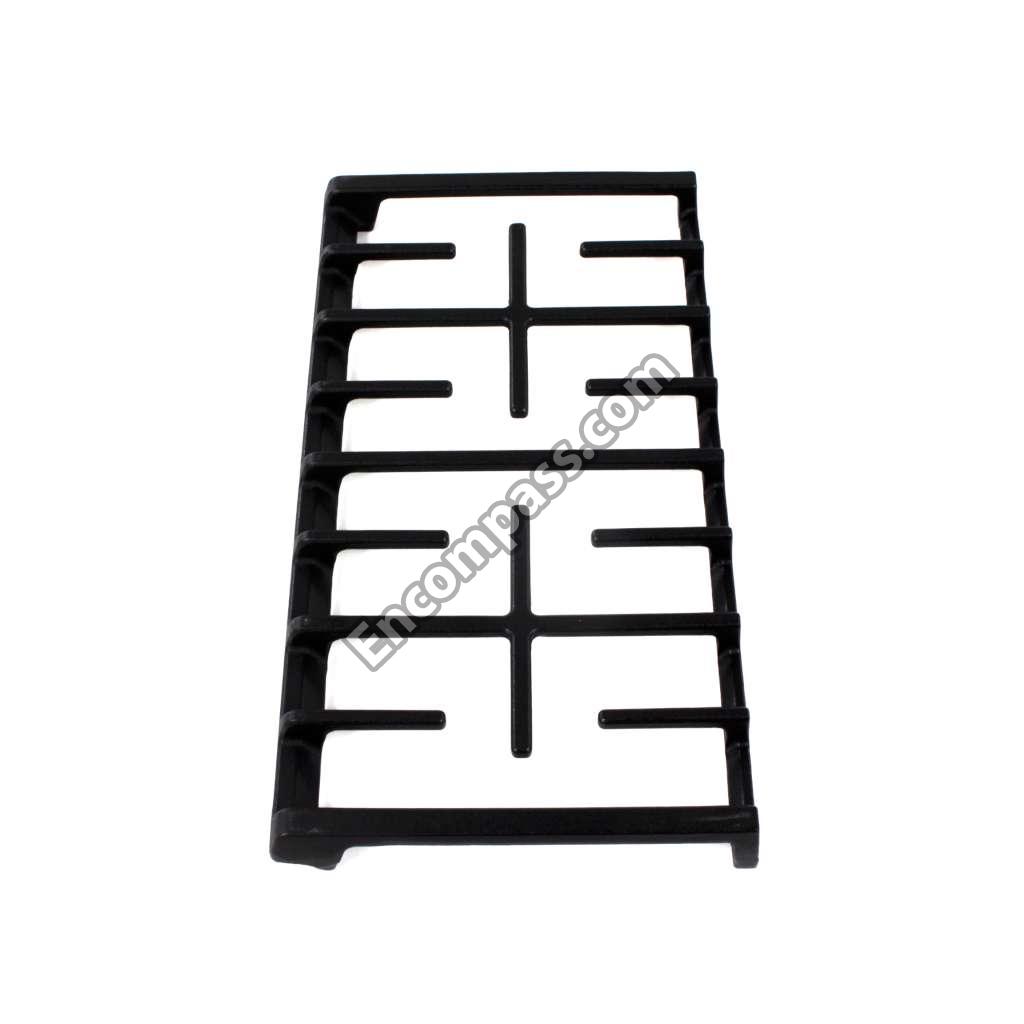

WB31X28256 WB31X28256 CENTRAL GRATE
WB13X28673 WB13X28673 CF ORIFICE HOLDER
WB01X24735 WB01X24735 CKT SCREW
WB02K0031 WB02K0031 CLIP CABLE
WB02X21679 WB02X21679 CLIP CABLE
WB44X10051 WB44X10051 CONVECTION ELEMENT
WB34X28992 WB34X28992 COVER BACK
WB02K10337 WB02K10337 COVER CAP
WB34X21710 WB34X21710 COVER LATCH
WB34X21619 WB34X21619 COVER LATCH
WB34X25587 WB34X25587 COVER MOTOR
WB34X20526 WB34X20526 COVER SHUTTER
WB02X28680 WB02X28680 COVER VALVE
WB16X28685 WB16X28685 CR ORIFICE HOLDER
WB57K10156 WB57K10156 CRYSTAL WINDOW
WB57K10155 WB57K10155 CRYSTAL WINDOW
WB18X28691 WB18X28691 DC HARNESS
WB34X29028 WB34X29028 DEFLECTOR
WB34X42148 WB34X42148 DEFLECTOR OVEN
WB10X26521 WB10X26521 DOOR HINGE LEFT
WB10X26520 WB10X26520 DOOR HINGE RIGHT
WB01K10037 WB01K10037 ECONOMIC NUT
WB28X28696 WB28X28696 ELBOW 90 ASSEMBLY
WB28X28695 WB28X28695 ELBOW 90 ASSEMBLY
WB28X20451 WB28X20451 ELBOW 90 ASSEMBLY
WB18X28728 WB18X28728 ELECTRODES AND HARNESS H. V.
WB02X8351 WB02X8351 FAN BLADE
WB34X28701 WB34X28701 FAN COVER
WB26X28953 WB26X28953 FAN MOTOR CONVECT
WB34X28735 WB34X28735 FAN SUPPORT
WB34X31736 WB34X31736 FASTENER BRACKET
WB34X31732 WB34X31732 FASTENER BRACKET
WB34X31735 WB34X31735 FASTENER BRACKET UC
WB34X31734 WB34X31734 FASTENER BRACKET UC
WB02X28738 WB02X28738 FRAME FRONT BUMPER
WB02X28737 WB02X28737 FRAME FRONT BUMPER
WB34X28741 WB34X28741 FRAME WINDOW ASSEMBLY
WB34X28740 WB34X28740 FRAME WINDOW ASSEMBLY
WB34X28749 WB34X28749 FRONT SUPPORT LH
WB34X28747 WB34X28747 FRONT SUPPORT RH
WB16X28670 WB16X28670 GAS RANGE BAKE BURNER
WB16X28249 WB16X28249 GAS RANGE BAKE BURNER
WB28K10222 WB28K10222 GAS RANGE BURNER CAP - XL V2
WB35X20734 WB35X20734 GASKET FRAME FRONT
WB35X29666 WB35X29666 GASKET OVEN
WB32X29538 WB32X29538 GASKET OVEN ASSEMBLY
WB56X31744 WB56X31744 GLASS AND PANEL DOOR ASSEMBLY
WB31X28754 WB31X28754 GRATE ASSEMBLY
WB2K8 WB2K8 GROMMET
WB56K10081 WB56K10081 GUARD INSULATION
WB56K10079 WB56K10079 GUARD INSULATION
WB18X31604 WB18X31604 HARNESS BLOWER
WB18X25597 WB18X25597 HARNESS GROUND
WB18X28905 WB18X28905 HARNESS INTERFACE
WB18X31621 WB18X31621 HARNESS LATCH
WB18X28899 WB18X28899 HARNESS MAIN
WB18X28758 WB18X28758 HARNESS SWITCHES
WB16X28764 WB16X28764 HEAD BURNER
WB10X28782 WB10X28782 HINGE ASSEMBLY RH
WB28X28781 WB28X28781 IGNITER GLOWBAR
WB28X28780 WB28X28780 IGNITER GLOWBAR
WB13X25633 WB13X25633 IGNITER GLOWBAR
WB16X28867 WB16X28867 INJECT BURNER MRHOB ASSEMBLY
WB16X28863 WB16X28863 INJET MRHOB
WB34X32349 WB34X32349 INSULATION DOOR
WB34X21730 WB34X21730 INSULATION DOOR
WB34X21729 WB34X21729 INSULATION DOOR
WB34X21728 WB34X21728 INSULATION DOOR
WB34X21726 WB34X21726 INSULATION DOOR
WB35X28986 WB35X28986 INSULATION LATCH
WB35X28790 WB35X28790 INSULATION OVEN BACK
WB35X28789 WB35X28789 INSULATION OVEN BACK
WB35X28788 WB35X28788 INSULATION OVEN BACK
295D2744P008 295D2744P008 LABEL WIRE DIAGRAM
WB16X24723 WB16X24723 LARGE V2 BURNER
WB10X28795 WB10X28795 LATCH AUTOMATIC
WB10X28794 WB10X28794 LATCH AUTOMATIC
WB18X28855 WB18X28855 LINE CORD
WB34X28839 WB34X28839 LINER DOOR ASSEMBLY
WB56X24931 WB56X24931 LINER DOOR WELD ASSEMBLY
WB28X39142 WB28X39142 LP CONVERSION KIT
WB28X28141 WB28X28141 LR ORIFICE HOLDER
WB27X29500 WB27X29500 MACHINE BOARD WITH FRAME (SERVICE)
WB28X28203 WB28X28203 MANIFOLD PIPE ASSEMBLY
WB28X28202 WB28X28202 MANIFOLD PIPE ASSEMBLY
WB16X24724 WB16X24724 MEDIUM V2 BURNER
WB35X20728 WB35X20728 MESH FRAME
WB02T10017 WB02T10017 NUT
WB2X8454 WB2X8454 NUT
WB28X29600 WB28X29600 ORIFICE SPUD
WB28X28843 WB28X28843 ORIFICE SPUD NG
WB63X24934 WB63X24934 OVEN BOTTOM UC
WB34X20444 WB34X20444 OVEN DEFLECTOR
WB34X20443 WB34X20443 OVEN DEFLECTOR
WB36X28215 WB36X28215 PANEL MANIFOLD
WB34X31702 WB34X31702 PANEL VENT BACKER
WB24X27550 WB24X27550 PLUNGER SWITCH
31-11056 31-11056 PM INSTALL INSTRUCTIONS
31-11086 31-11086 PM INSTALL INSTRUCTIONS
31-10781 31-10781 PM INSTALL INSTRUCTIONS
31-17272 31-17272 PM MANUAL MINI & WD ASM
49-88066 49-88066 PM QUICK GUIDE
31-11013 31-11013 PM WI FI INSTRUCTIONS
WB19K10077 WB19K10077 PRESSURE REGULATOR
WB20T10024 WB20T10024 PROBE
WB20M112 WB20M112 PROBE ASM **NLA*
WB48X21543 WB48X21543 RACK OVEN SLIDE ASSEMBLY
WB48X21508 WB48X21508 RANGE (GAS) SELF-CLEAN OVEN RACK
WB16X28251 WB16X28251 RANGE BROIL BURNER
WB16X28654 WB16X28654 RANGE BURNER CAP - SMALL - V2
WB21X28821 WB21X28821 RANGE BURNER VALVE 3R 310
WB02K10034 WB02K10034 RANGE FAN SUPPORT
WB56X28191 WB56X28191 RANGE GLASS AND TOUCH BOARD ASSEMBLY
WB1X1293 WB1X1293 RANGE IGNITER MOUNTING SCREW
WB02X24726 WB02X24726 RANGE INJET LARGE
WB02X24727 WB02X24727 RANGE INJET MEDIUM
WB02X24728 WB02X24728 RANGE INJET SMALL
WB02X24725 WB02X24725 RANGE INJET XL V2
WB35K10038 WB35K10038 RANGE INSULATOR FAN
WB02K10182 WB02K10182 RANGE LEVELING LEG
WB08K10018 WB08K10018 RANGE LIGHT COVER
WB02K10349 WB02K10349 RANGE LIGHT INSULATION
WB28X29255 WB28X29255 RANGE LP HIGH ALTITUDE KIT
WB28X29254 WB28X29254 RANGE NG HIGH ALTITUDE KIT
WB08T10002 WB08T10002 RANGE OVEN LAMP ASSEMBLY
WB32K10044 WB32K10044 RANGE OVEN LIGHT GASKET
WB56X28847 WB56X28847 RANGE SIDE PANEL
WB13X26360 WB13X26360 RANGE SPARK MODULE 6+0
WB62X28227 WB62X28227 RANGE TOP
WB10X28563 WB10X28563 RECEIVER HINGE
WB10X29636 WB10X29636 RECEIVER HINGE LH
WB10X29635 WB10X29635 RECEIVER HINGE RH
WB34K10134 WB34K10134 RECEPTABLE ASSEMBLY
WR01X11007 WR01X11007 REFRIGERATOR DOOR HANDLE FASTENER
WB28X28846 WB28X28846 RF ORIFICE HOLDER
WB28X28148 WB28X28148 RR ORIFICE HOLDER
WB21X28835 WB21X28835 SAFETY VALVE DUAL
WB21X28836 WB21X28836 SAFETY VALVE SINGLE
WB01K0021 WB01K0021 SCREW
WB01K10091 WB01K10091 SCREW
WB1X1261 WB1X1261 SCREW
WB1X5754 WB1X5754 SCREW
WR01X10065 WR01X10065 SCREW 10-32 GXTT FLP 595 S
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB1K78 WB1K78 SCREW 12-14
WB01K0078 WB01K0078 SCREW 12-14, 5/8S
WB01K10086 WB01K10086 SCREW 8-18 AB TRPO 3/8 SS
WB01X5754 WB01X5754 SCREW 8-18 ABT 1/2 S
WB01K10002 WB01K10002 SCREW 8-32
WB01X1261 WB01X1261 SCREW GROUND
WB01K0050 WB01K0050 SCREW MTG IGNITER
WB21X22134 WB21X22134 SENSOR ASM
WB24X25557 WB24X25557 SENSOR ASSEMBLY
WB23X5340 WB23X5340 SENSOR-OVEN
WB02K10371 WB02K10371 SHIELD HEAT DOOR
WB16X24721 WB16X24721 SMALL V2 BURNER
WB16X20449 WB16X20449 SPACER BASE
WB16X20448 WB16X20448 SPACER BASE
WB01K0002 WB01K0002 SPEEDNUT
WB1K2 WB1K2 SPEEDNUT
WB56X31642 WB56X31642 STAINLESS STEEL GLASS AND PANEL DOOR
WB63X25481 WB63X25481 SUPPORT BASE LEFT
WB63X25480 WB63X25480 SUPPORT BASE RT
WB02K10325 WB02K10325 SUPPORT VALVE SINGLE
WB07X28824 WB07X28824 TRIM KIT
WB28X28150 WB28X28150 TUBE BURNER BOX SUPPLY
WB28X28152 WB28X28152 TUBE LOWER BAKE SUPPLY
WB28X28155 WB28X28155 TUBE MAIN DUAL VALVE
WB28X28157 WB28X28157 TUBE MANIFOLD SUPPLY
WB28X28159 WB28X28159 TUBE OVEN SUPPLY
WB28X28161 WB28X28161 TUBE SIMMER DUAL VALVE
WB28X28163 WB28X28163 TUBE UPPER BAKE SUPPLY
WB28X28164 WB28X28164 TUBE VALVE SAFETY
WB21X25979 WB21X25979 VALVE BURNER 270
WB21X20612 WB21X20612 VALVE BURNER 270
WB21X20470 WB21X20470 VALVE BURNER 270
WB07X28818 WB07X28818 VENT TRIM
WB16X24722 WB16X24722 XL V2 BURNER
