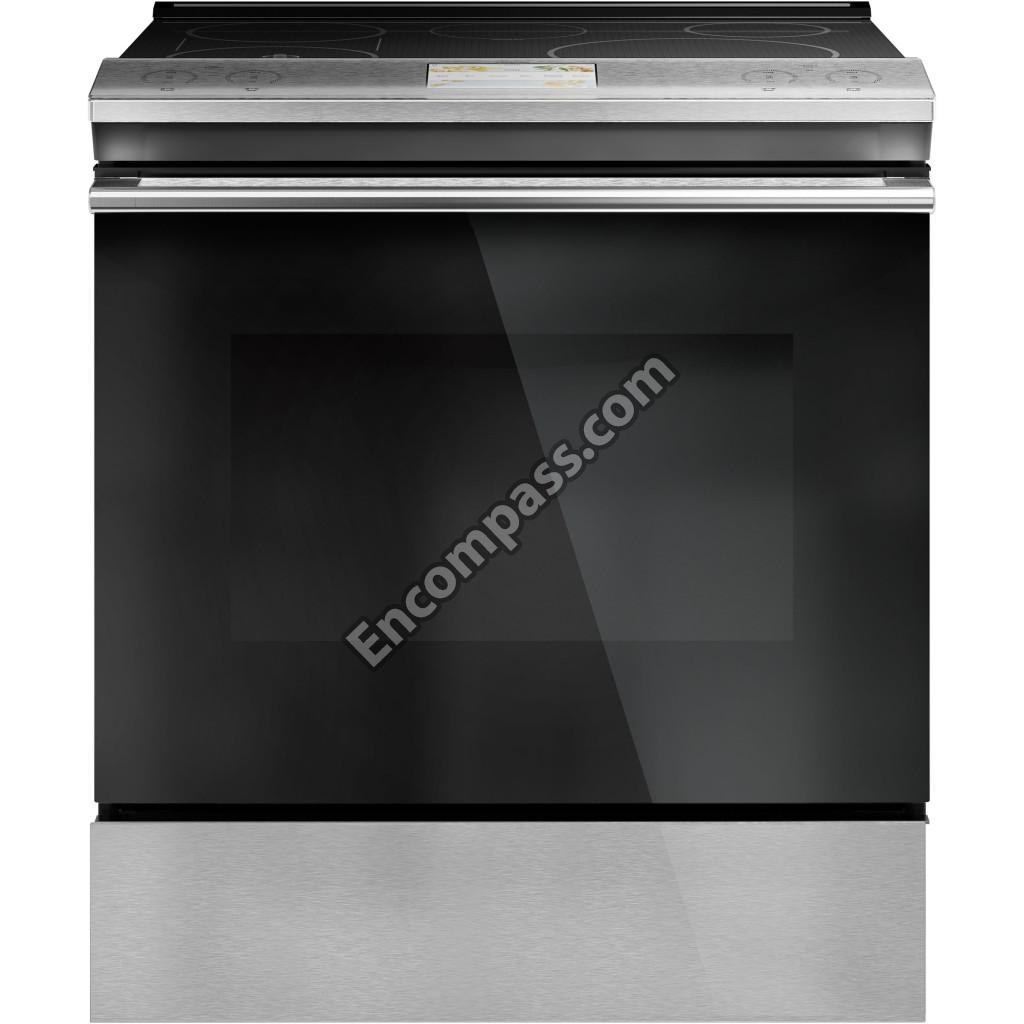

Model Image
Manufacturer

GE

Model Number

CHS90XM2N6S5

Description

Electric Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB18X33322 WB18X33322 GE "POWER GENERATOR HARNESS 6 "" WIRE"
WB18X33317 WB18X33317 GE "POWER GENERATOR HARNESS 8"" WIRE"
WB01T10125 WB01T10125 GE "SCR 10-32, 1/4 HEX, .350"
WB1K5200 WB1K5200 GE 340531
WB34X31766 WB34X31766 GE BLACK CONVECTION FAN COVER
WB17X38438 WB17X38438 GE BLOCK TERMINAL ASM
WB26X10272 WB26X10272 GE BLOWER CENTRIFUGAL 12V
WB27X28659 WB27X28659 GE BOARD SENSOR
WB02T10578 WB02T10578 GE BRACKET ANTI-TIP ASM
WB02X39233 WB02X39233 GE BRACKET CAMERA
WB02T10533 WB02T10533 GE BRACKET CAPACITIOR
WB34X27845 WB34X27845 GE BRACKET FAN
WB44X45491 WB44X45491 GE BROIL ELEMENT
WB01X46149 WB01X46149 GE C CLIP
WB25T10027 WB25T10027 GE CAMERA LENS OVEN LAMP
WB27X39228 WB27X39228 GE CAMERA OVEN
WB18X43009 WB18X43009 GE CAMERA WIRE HARNESS
WB27T10662 WB27T10662 GE CAPACITOR MOTOR
WB07X29079 WB07X29079 GE CHASIS BRACE RT
WB07X33023 WB07X33023 GE CHASSIS BRACE LT
WB64X38025 WB64X38025 GE CLEANER GLASS
WB02T10118 WB02T10118 GE CLIP SEAM OVEN BODY
WB30X38507 WB30X38507 GE COIL PRECISION COOKING
WB27X45011 WB27X45011 GE CONTROL BOARD RC17
WB63X29528 WB63X29528 GE CONTROL LIGHTS GUIDE
WB35X29473 WB35X29473 GE CONTROL PANEL GASKET
WB07X46146 WB07X46146 GE CONTROL PANEL TRIM
WB27X46726 WB27X46726 GE CONTROL PANEL W/WIFI-STAINLESS
WB44X47369 WB44X47369 GE CONVECTION ELEMENT
WB26X29157 WB26X29157 GE CONVECTION MOTOR
WB02X29181 WB02X29181 GE CONVECTION MOTOR BRACKET
WB26X29468 WB26X29468 GE COOLING FAN ASM
WB34X29483 WB34X29483 GE COOLING FAN DUCT
WB34X20009 WB34X20009 GE COVER HOLE (BK)
WB02T10560 WB02T10560 GE COVER TERMINAL BLOCK
WB62X33348 WB62X33348 GE DARK GRAY MAINTOP GLASS ASM
WB07X42987 WB07X42987 GE DOOR GAP FILLER
WB10X29077 WB10X29077 GE DOOR LATCH ASM
WB02X33017 WB02X33017 GE DOOR SPACER
WB02X33015 WB02X33015 GE DOOR SPACER
WB07X33016 WB07X33016 GE DOOR TRIM
WB63X33019 WB63X33019 GE DRAWER BODY AND SLIDES ASM
WB02X29072 WB02X29072 GE DRAWER WEDGE
WB30X38508 WB30X38508 GE ELEMENT INDUCTION 1800W
WB30X38509 WB30X38509 GE ELEMENT INDUCTION 2500W
WB30X38506 WB30X38506 GE ELEMENT INDUCTION 3700W
WB30X10035 WB30X10035 GE ELEMENT WARMER LOW PRF
WB34X29190 WB34X29190 GE ENCLOSURE CONTROL
WB34X33356 WB34X33356 GE FRAME CAMERA MOUNT
WB04T10080 WB04T10080 GE GASKET CONV FAN
WB02T10591 WB02T10591 GE GASKET FOAM TAPE
WB56X33349 WB56X33349 GE GLASS OUTER DOOR ASM
WB01X35349 WB01X35349 GE GROMMET SENSOR ASM
WB18X39235 WB18X39235 GE HARNESS WIRE CAMERA DOOR
WB18X30731 WB18X30731 GE HIDDEN BAKE HARNESS WIRE
WB10X43266 WB10X43266 GE HINGE ASSEMBLY
WB10T10068 WB10T10068 GE HINGE RECEIVER
WB02X26501 WB02X26501 GE HUB BLADE ASM
WB18X33318 WB18X33318 GE INDUCTION COMMUNICATION HARNESS
WB27X46068 WB27X46068 GE INDUCTION CONTROL ASSSEMBLY
WB35X33313 WB35X33313 GE INDUCTION INSULATION
31-10617 31-10617 GE INSTRUCTION INSTALL
WB35X36047 WB35X36047 GE INSULATION DOOR
WB35X36046 WB35X36046 GE INSULATION DOOR
WB18X30704 WB18X30704 GE JUMPER
WB18X32710 WB18X32710 GE JUMPER WIRE GND HARNESS
WB25X40248 WB25X40248 GE LAMP HALOGEN ASM
WB49X29679 WB49X29679 GE LAMP HALOGEN G9
WB18X30745 WB18X30745 GE LEAD WIRE 14 GA GN
WB27X44894 WB27X44894 GE LEFT GENERATOR BOARD
WB02X10521 WB02X10521 GE LEG LEVELER
WB55T10203 WB55T10203 GE LINER OVEN DOOR ASM (BK)
WB34X29069 WB34X29069 GE MAIN WIRE COVER
WB02T10026 WB02T10026 GE MAINTOP STRIKE
WB20T10024 WB20T10024 GE MEAT PROBE
WB18X25985 WB18X25985 GE MEAT PROBE RCPTK W/ HARN
WB35X33320 WB35X33320 GE MICA INSULATION
WB27X44808 WB27X44808 GE MODULE BLE CAT ASM
WB17T10021 WB17T10021 GE MOUNT TERMINAL BLOCK
WB01X32951 WB01X32951 GE MOUNTING STUD
WB02T10494 WB02T10494 GE NUT
WB02X35585 WB02X35585 GE NUT HEX
WB01T10133 WB01T10133 GE NUT HEX M4-.7 THREAD
WB01X5572 WB01X5572 GE NUT MEAT PROBE
WB35X29074 WB35X29074 GE OVEN BACK INSULATION
WB35X29643 WB35X29643 GE OVEN BOTTOM INSULATION
WB35X30048 WB35X30048 GE OVEN DOOR GASKET
WB56T10105 WB56T10105 GE PACK WINDOW ASM
WB02X21423 WB02X21423 GE PLATE COVER (BK)
49-2000988 49-2000988 GE PM INSERT INSTRUCTIONS
31-10781 31-10781 GE PM INSTALL INSTRUCTIONS
31-2000874 31-2000874 GE PM MINI MANUAL AND WIRING
49-2001001 49-2001001 GE PM OWNERS MANUAL
JXPROBE1 JXPROBE1 GE PROBE MARKETING ACCESSORY KIT
WB48T10082 WB48T10082 GE RACK OVEN (SC)
WB48X20881 WB48X20881 GE RACK OVEN SLIDE ASM (BK)
WB02X29562 WB02X29562 GE RANGETOP BUMPER
WB07X29632 WB07X29632 GE REAR TRIM SUPPORT
WB07X29475 WB07X29475 GE REAR VENT TRIM AND GASKET ASM
WB02T10509 WB02T10509 GE REFLECTOR PANE BAKE ELEM
WB56T10178 WB56T10178 GE RETAINER OVN DR INSLN
WB01X35361 WB01X35361 GE RETAINER SENSOR
WB27X44892 WB27X44892 GE RIGHT GENERATOR BOARD
WB18X29523 WB18X29523 GE RJ45 CONNECTOR HARNESS
WZ4X416 WZ4X416 GE SCR 8-18 AB HXW 3/4
WB01X46151 WB01X46151 GE SCR 8-18 AB T15 3/4 WH
WB1X5904 WB1X5904 GE SCR 8-18 BA
WB01X5904 WB01X5904 GE SCR 8-18 BA POR 3/4 SN
WB01K5162 WB01K5162 GE SCREW
WB01X1178 WB01X1178 GE SCREW
WB01K5028 WB01K5028 GE SCREW
WB01M10002 WB01M10002 GE SCREW
WB1K5157 WB1K5157 GE SCREW
WB01T10008 WB01T10008 GE SCREW 10-32 TR T
WB01X33357 WB01X33357 GE SCREW 6-32 FLT-10 1/4
WH2X930 WH2X930 GE SCREW 8-18 AB HXW 3/8
WB01T10017 WB01T10017 GE SCREW 8-18 AB IHW 3/8 S
WB01X30451 WB01X30451 GE SCREW 8-18 AB SKT25 7/8
WB01X33018 WB01X33018 GE SCREW 8-32 TT HXW 1/2 S BK
WB01K5150 WB01K5150 GE SCREW ST10-16 X 7/16""
WB21X22134 WB21X22134 GE SENSOR ASM
WB02X35360 WB02X35360 GE SENSOR ASM TEMP
WR01X11014 WR01X11014 GE SET SCREW
WB34X29183 WB34X29183 GE SIDE DUCT ASM
WB34X29158 WB34X29158 GE SIDE INSULATION RETAINER
WB63X28679 WB63X28679 GE SIDE PANEL DG
WB02T10034 WB02T10034 GE SIDE PANEL SUPPORT
WB49T10007 WB49T10007 GE SIDE REFLECTOR
WB63X33022 WB63X33022 GE SLIDE AND BRACKET ASM
WB02T10482 WB02T10482 GE SPACER
WB27X33354 WB27X33354 GE SPEAKER 70C 3W
WB02X36045 WB02X36045 GE SPILL CONTAINER
WB56X33020 WB56X33020 GE STAINLESS STEEL DRAWER PANEL
WB15X32948 WB15X32948 GE STAINLESS STEEL HANDLE AND ENDCAP
WB24X46908 WB24X46908 GE SWITCH HIGH LIMIT
WB18X33351 WB18X33351 GE TEMPERATURE SENSOR HARNESS
WB34X32516 WB34X32516 GE TOP INSULATION RETAINER
WB44X45499 WB44X45499 GE UNIT ASM (H/B)
WB34X29182 WB34X29182 GE UPPER DUCT ASM
WB38X33651 WB38X33651 GE VENT TUBE
WB01X5573 WB01X5573 GE WASHER
WB1X536 WB1X536 GE WB1X536
WB18X32708 WB18X32708 GE WZ HARNESS
