Model Image
Manufacturer

GE

Model Number

CHS950P4M6W2

Description

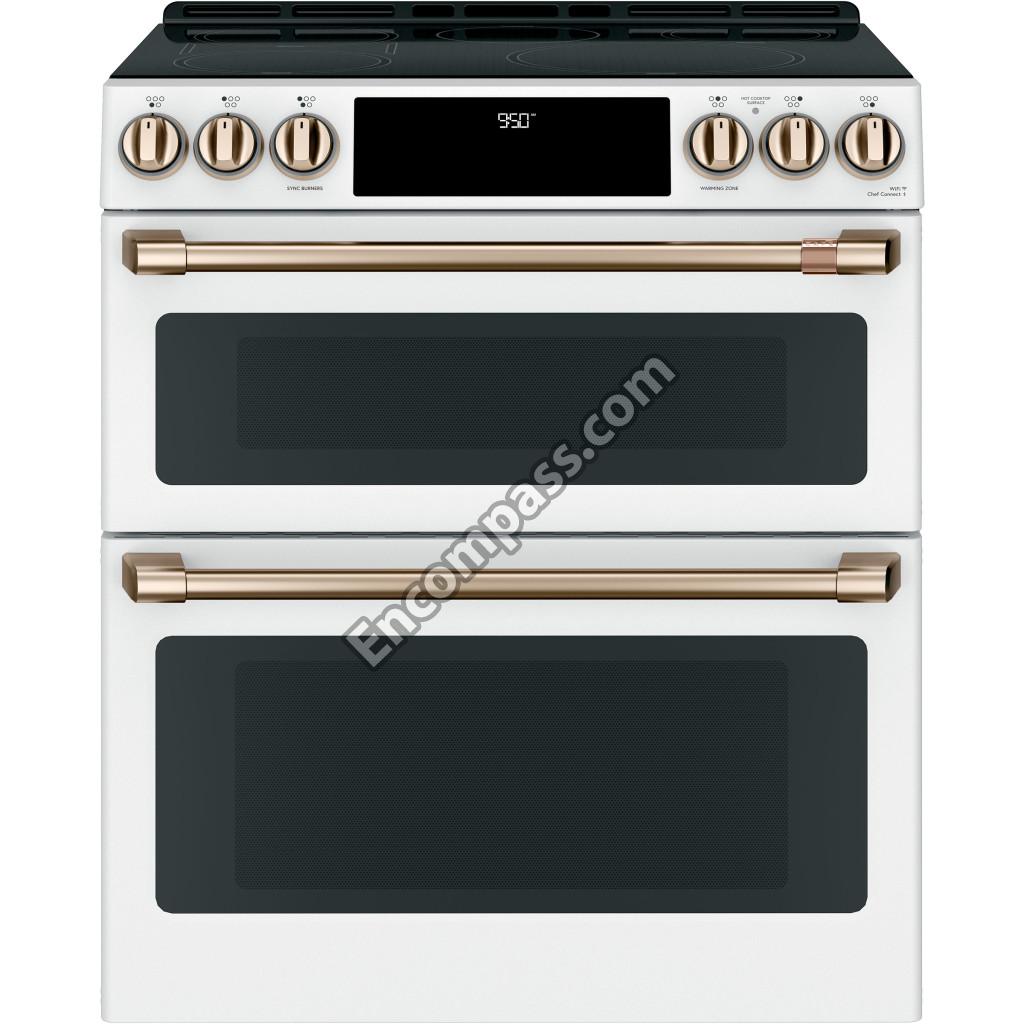

Electric Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB02K0003 WB02K0003 GE ANGLE SUPPORT
WB07X20288 WB07X20288 GE BARRIER DOOR
WB07X43799 WB07X43799 GE BLACK BARRIER DOOR
WB15X33787 WB15X33787 GE BLACK STAINLESS HANDLE
WB2X8351 WB2X8351 GE BLADE FAN
WB27X44806 WB27X44806 GE BLE MODULE
WB26X35086 WB26X35086 GE BLOWER TANGENTIAL
WB27X28658 WB27X28658 GE BOARD DAUGHTER RELAY
WB27X28659 WB27X28659 GE BOARD SENSOR
WB27X33353 WB27X33353 GE BOARD WIFI CAT MODULE
WB63X28661 WB63X28661 GE BOTTOM OVEN
WB63X28660 WB63X28660 GE BOTTOM OVEN
WB63X28975 WB63X28975 GE BOTTOM RANGE
WB63X28663 WB63X28663 GE BOTTOM RANGE DEFLECTOR
WB34X28908 WB34X28908 GE BRACKET
WB02K10386 WB02K10386 GE BRACKET ASM ANTI-TIP
WB02K0041 WB02K0041 GE BRACKET OVEN CORNER
WB44X28669 WB44X28669 GE BROIL ELEMENT
WB44X28668 WB44X28668 GE BROIL ELEMENT
WB15X33466 WB15X33466 GE BRONZE RANGE HANDLE
WB15X33467 WB15X33467 GE BRONZE RANGE HANDLE W/ CAF BAND
WB15X33789 WB15X33789 GE BRUSHED BLACK HANDLE W/ CAF BAND
WB03X32181 WB03X32181 GE BRUSHED BLACK LIGHT BEZEL KNOB
WB03X31905 WB03X31905 GE BRUSHED BLACK PRECISION COOKING KNOB
WB03X31899 WB03X31899 GE BRUSHED BLACK WARMING ZONE KNOB
WB03X46008 WB03X46008 GE BRUSHED BRASS HANDLE ASM
WB03X46006 WB03X46006 GE BRUSHED BRASS HANDLE ASM
WB03X46087 WB03X46087 GE BRUSHED BRASS KNOB ASM
WB03X46086 WB03X46086 GE BRUSHED BRASS KNOB ASM
WB03X46012 WB03X46012 GE BRUSHED BRASS LIGHT BEZEL ASM
WB03X31656 WB03X31656 GE BRUSHED BRONZE LIGHT BEZEL KNOB
WB03X31664 WB03X31664 GE BRUSHED BRONZE PRECISION COOKING KNOB
WB03X31677 WB03X31677 GE BRUSHED BRONZE WARMING ZONE KNOB
WB15X33780 WB15X33780 GE BRUSHED COPPER HANDLE
WB15X33782 WB15X33782 GE BRUSHED COPPER HANDLE W/ CAF BAND
WB03X32182 WB03X32182 GE BRUSHED COPPER LIGHT BEZEL KNOB
WB03X31901 WB03X31901 GE BRUSHED COPPER PRECISION COOKING KNOB
WB03X31900 WB03X31900 GE BRUSHED COPPER WARMING ZONE KNOB
WB03X31674 WB03X31674 GE BRUSHED STAINLESS LIGHT BEZEL KNOB
WB03X31671 WB03X31671 GE BRUSHED STAINLESS PRECISION COOKING KNOB
WB15X31680 WB15X31680 GE BRUSHED STAINLESS RANGE HANDLE
WB15X31679 WB15X31679 GE BRUSHED STAINLESS RANGE HANDLE W/ CAF B
WB03X31669 WB03X31669 GE BRUSHED STAINLESS STEEL WARMING ZONE KN
WB02K10172 WB02K10172 GE CAPACITOR HOLDER
WB08K10009 WB08K10009 GE CAPACITOR MOTOR
WB34X28977 WB34X28977 GE CATALYST BRACKET
WB02K0031 WB02K0031 GE CLIP CABLE
WB27X40326 WB27X40326 GE CONNECT PLUS WIFI AND BLUETOOTH MODULE
WB27X50529 WB27X50529 GE CONTROL IND & GASKET
WB34X28992 WB34X28992 GE COVER BACK
WB34X21619 WB34X21619 GE COVER DOOR LATCH
WB08K10018 WB08K10018 GE COVER LAMP
WB34X25587 WB34X25587 GE COVER MOTOR
WB34X28980 WB34X28980 GE COVER TERMINAL BLOCK
WB57K10156 WB57K10156 GE CRYSTAL WINDOW
WB57K10155 WB57K10155 GE CRYSTAL WINDOW
WB18X31942 WB18X31942 GE DC HARNESS
WB34X43789 WB34X43789 GE DEFLECTOR UPPER
WB34X43787 WB34X43787 GE DIVERTER DOOR
WB34X43786 WB34X43786 GE DIVERTER DOOR
WB10X26521 WB10X26521 GE DOOR HINGE LEFT
WB10X26520 WB10X26520 GE DOOR HINGE RIGHT
WB10X28795 WB10X28795 GE DOOR LATCH AUTOMATIC
WB10X28794 WB10X28794 GE DOOR LATCH AUTOMATIC
WB34X28911 WB34X28911 GE DUCT INDUCTION
WB30X42214 WB30X42214 GE ELEMENT INDUCTION 1800W
WB30X38226 WB30X38226 GE ELEMENT INDUCTION 2500W
WB30X42213 WB30X42213 GE ELEMENT INDUCTION 3700W
WB30X10035 WB30X10035 GE ELEMENT WARMER LOW PRF
WB34X28702 WB34X28702 GE FAN COVER
WB35K10013 WB35K10013 GE FAN INSULATION
WB35X20989 WB35X20989 GE FAN INSULATOR
WB34X28735 WB34X28735 GE FAN SUPPORT
WB02K10170 WB02K10170 GE FAN SUPPORT
WB34X31736 WB34X31736 GE FASTENER BRACKET
WB34X31732 WB34X31732 GE FASTENER BRACKET
WB34X31735 WB34X31735 GE FASTENER BRACKET UC
WB34X31734 WB34X31734 GE FASTENER BRACKET UC
WR01X11007 WR01X11007 GE FASTENER DOOR HANDLE
WB03X45959 WB03X45959 GE FLAT BLACK HANDLE
WB03X45958 WB03X45958 GE FLAT BLACK HANDLE W/ CAF BAND
WB03X45964 WB03X45964 GE FLAT BLACK LIGHT BEZEL KNOB
WB03X45970 WB03X45970 GE FLAT BLACK PRECISION COOKING KNOB
WB03X45971 WB03X45971 GE FLAT BLACK WARMING ZONE KNOB
WB02X28738 WB02X28738 GE FRAME FRONT BUMPER
WB02X28737 WB02X28737 GE FRAME FRONT BUMPER
WB34X28741 WB34X28741 GE FRAME WINDOW ASSEMBLY
WB34X28740 WB34X28740 GE FRAME WINDOW ASSEMBLY
WB35X28743 WB35X28743 GE FRONT GASKET ASM
WB35X43795 WB35X43795 GE GASEKT OVEN LOWER CAVITY
WB35X43794 WB35X43794 GE GASKET OVEN
WB32K10044 WB32K10044 GE GASKET OVEN LIGHT
WB27X45668 WB27X45668 GE GLASS & TOUCH BOARD
WB2K8 WB2K8 GE GROMMET
WB56K10079 WB56K10079 GE GUARD INSULATION
WB35X21704 WB35X21704 GE GUARD INSULATION
WB18X31611 WB18X31611 GE HARNESS BAKE
WB18X31604 WB18X31604 GE HARNESS BLOWER
WB18X31621 WB18X31621 GE HARNESS DOOR LATCH
WB18X25597 WB18X25597 GE HARNESS GROUND
WB18X31605 WB18X31605 GE HARNESS INDUCTION
WB18X29669 WB18X29669 GE HARNESS JUMPER
WB18X31612 WB18X31612 GE HARNESS SUPPLIER
WB18X41891 WB18X41891 GE HARNESS WIRE JUMPER PMVA
WB18X31615 WB18X31615 GE HARNESS WZ
WB44X47934 WB44X47934 GE HEAT ELEMENT CONVECTION
WB30X28763 WB30X28763 GE HIDDEN BAKE ELEMENT
WB10X28782 WB10X28782 GE HINGE ASM
WB02X28779 WB02X28779 GE HOT SURFACE INDICATOR
WB25X28917 WB25X28917 GE INDICATOR SLEEVE
WB34X28918 WB34X28918 GE INDUCTION DIVIDER
WB34X28919 WB34X28919 GE INDUCTION DUCT GASKET
WB35X42766 WB35X42766 GE INSULATION DOOR
WB35X28985 WB35X28985 GE INSULATION DOOR
WB34X21730 WB34X21730 GE INSULATION DOOR
WB34X21729 WB34X21729 GE INSULATION DOOR
WB34X21728 WB34X21728 GE INSULATION DOOR
WB35X35358 WB35X35358 GE INSULATION MODULE
WB35X28790 WB35X28790 GE INSULATION OVEN BACK
WB35X28789 WB35X28789 GE INSULATION OVEN BACK
WB35X28788 WB35X28788 GE INSULATION OVEN BACK
WB02K10349 WB02K10349 GE LAMP INSULATION
WB27X32505 WB27X32505 GE LED / ENCODER BOARD KIT
WB02K10182 WB02K10182 GE LEG LEVELER
WB34X28839 WB34X28839 GE LINER DOOR ASSEMBLY
WB56X24931 WB56X24931 GE LINER DOOR WELD ASSEMBLY
WB27X45355 WB27X45355 GE MACHINE CONTROL RC17 AND RELAY WITH FRAM
WB26X25118 WB26X25118 GE MOTOR PSC CONV
WB02X28860 WB02X28860 GE NUT
WB02T10017 WB02T10017 GE NUT
WB08T10002 WB08T10002 GE OVEN LAMP HOLDER ASM
WB48X21508 WB48X21508 GE OVEN RACK
WB56X28847 WB56X28847 GE PANEL SIDE
WB34X31702 WB34X31702 GE PANEL VENT BACKER
WB24X27550 WB24X27550 GE PLUNGER SWITCH
31-11059 31-11059 GE PM INSTALL INSTRUCTIONS
31-10781 31-10781 GE PM INSTALL INSTRUCTIONS
31-2000938 31-2000938 GE PM MINI MANUAL AND WIRING
49-2001031 49-2001031 GE PM OWNERS MANUAL
49-2001038 49-2001038 GE PM QUICK OWNERS MANUAL
31-11013 31-11013 GE PM WI FI INSTRUCTIONS
JXPROBE1 JXPROBE1 GE PRECISION COOKING PROBE
WB20T10024 WB20T10024 GE PROBE
WB48X20990 WB48X20990 GE RACK OVEN SLIDE ASM
WB34X37386 WB34X37386 GE RANGE TOP GLASS AND FRONT SUPPORT KIT
WB35X41086 WB35X41086 GE REAR GASKET
WB10X28563 WB10X28563 GE RECEIVER HINGE
WB10X29636 WB10X29636 GE RECEIVER HINGE LH
WB10X29635 WB10X29635 GE RECEIVER HINGE RH
WB34K10134 WB34K10134 GE RECEPTABLE ASM
WB01K10086 WB01K10086 GE SCR 8-18 AB TRP 3/8 SS
WB01X26995 WB01X26995 GE SCR 8-18 AB X 5/16S
WB01K0021 WB01K0021 GE SCREW
WB01K10091 WB01K10091 GE SCREW
WB01T10009 WB01T10009 GE SCREW 10-16 SHLDR TYPE A
WB01T10008 WB01T10008 GE SCREW 10-32 TR T
WB01K0078 WB01K0078 GE SCREW 12-14, 5/8S
WB01X1261 WB01X1261 GE SCREW GROUND
WB23X5340 WB23X5340 GE SENSOR-OVEN
WB01K0002 WB01K0002 GE SPEEDNUT
WB34X28861 WB34X28861 GE SPILL COVER LAMP
WB35X41087 WB35X41087 GE SPILL GASKET
WB02T10093 WB02T10093 GE STANDOFF POWER CONTROL BOARD
WB63X25480 WB63X25480 GE SUPPORT BASE LT
WB63X25481 WB63X25481 GE SUPPORT BASE RT
WB35K10028 WB35K10028 GE SUPPORT CATALYST
WB24X29505 WB24X29505 GE SWITCH HIGH LIMIT
WB17T10011 WB17T10011 GE TERMINAL BLOCK ASM
WB18X28834 WB18X28834 GE TERMINAL BLOCK BRACKET
WB34X28832 WB34X28832 GE TRIANGLE COVER
WB07X28825 WB07X28825 GE TRIM KIT
WB34X28916 WB34X28916 GE VENT
WB35X28921 WB35X28921 GE VENT INSULATION
WB07X31938 WB07X31938 GE VENT TRIM

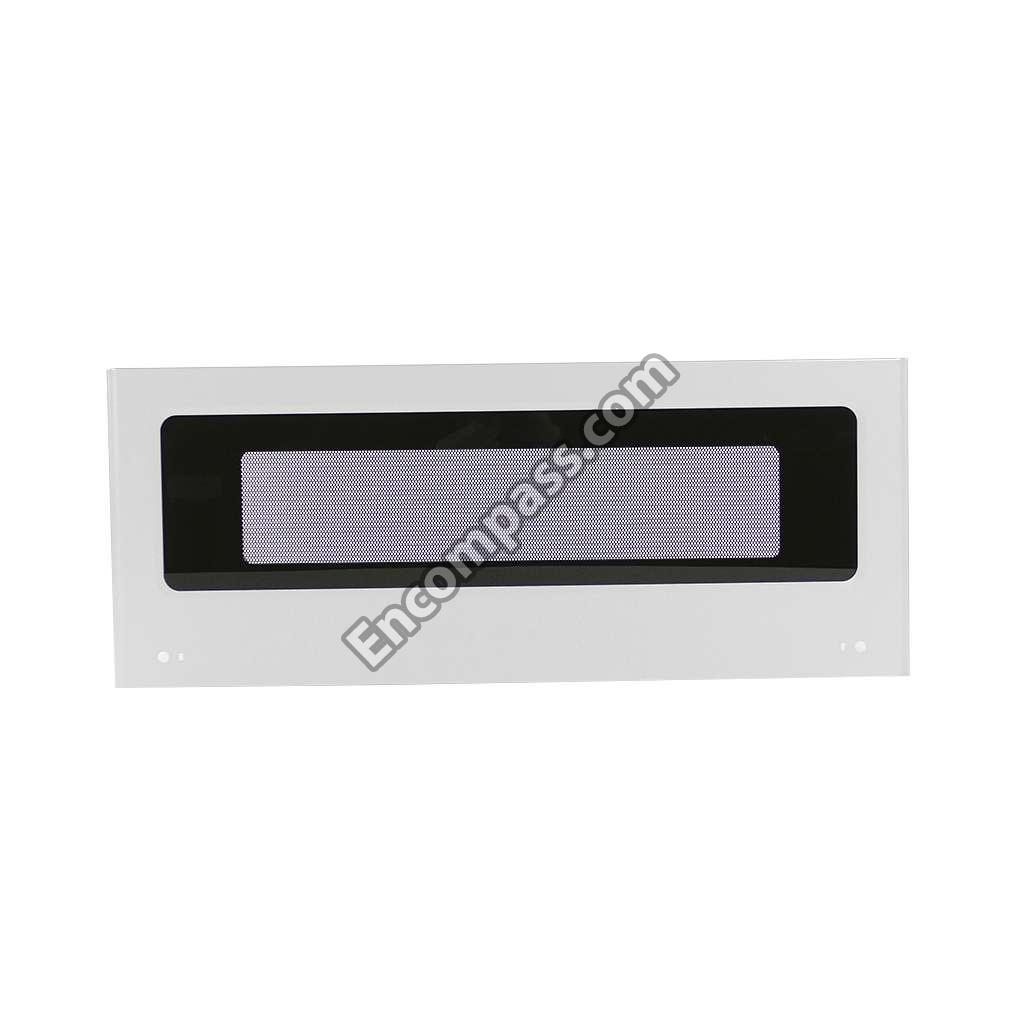

WB56X31651 WB56X31651 GE WHITE SLATE GLASS & PANEL DOOR
WB56X31639 WB56X31639 GE WHITE SLATE GLASS & PANEL DOOR
WB36X31630 WB36X31630 GE WHITE SLATE MANIFOLD PANEL
