Model Image
Manufacturer

GE

Model Number

CSK30DRDAAA

Description

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
WD02X0295 WD02X0295 #10X1\2 PH SMS
WR2X7226 WR2X7226 *NLA*CLIP COVER
WR29X5129 WR29X5129 ARM SHUT OFF
WR17X10068 WR17X10068 AUGER HELIX DISP
WR01X2050 WR01X2050 AXLE WHEEL
WR1X2050 WR1X2050 AXLE WHEEL
WR71X2521 WR71X2521 BASKET WIRE SLIDEOUT FZ
WR29X5117 WR29X5117 BE03687-01
WR1X2048 WR1X2048 BEAR SLIDE
WR17X4321 WR17X4321 BEZEL CONTROL
WR71X2522 WR71X2522 BIN FZ SLIDEOUT
WR60X234 WR60X234 BLADE COND
WR60X0234 WR60X0234 BLADE COND FAN ASM
WR60X255 WR60X255 BLADE EVAP F
WR60X0255 WR60X0255 BLADE EVAP FAN ASM
WR02X7351 WR02X7351 BLADE IN DISP
WR2X7783 WR2X7783 BLADE INDISP
WR2X4140 WR2X4140 BLADE REST
WR02X4140 WR02X4140 BLADE REST DISP
WR17X3738 WR17X3738 BLADE STATIONARY DISP
WR17X3739 WR17X3739 BLADE STATIONARY DISP
WR17X3742 WR17X3742 BLADES MOVING DISP
WR17X3741 WR17X3741 BLADES MOVING DISP
WR17X3740 WR17X3740 BLADES MOVING DISP
WR02X8819 WR02X8819 BOX CONTROL BTM
WR02X8820 WR02X8820 BOX CONTROL TOP
WR02X8647 WR02X8647 BRACKET DEF HTR
WR02X9319 WR02X9319 BRACKET EVAP FAN ECM
WR2X8647 WR2X8647 BRACKET HTR
WR02X10158 WR02X10158 BRACKET WATER VALVE
WR2X9319 WR2X9319 BRKT EVAP FN
WR02X10011 WR02X10011 BRKT IM MTG
WR29X0208 WR29X0208 BRNG INLET(FILL CUP)
WR13X701 WR13X701 BTM HINGE
WR13X0701 WR13X0701 BTM HINGE ASM AD
WR17X10067 WR17X10067 BUCKET & AUGER ASM DISP
WR30X313 WR30X313 BUCKET ICE
WR30X0313 WR30X0313 BUCKET ICE DISP
WR2X7905 WR2X7905 BUCKET SEAL
WR02X7905 WR02X7905 BUCKET SEAL DISP
WR32X1575 WR32X1575 BUCKET UTILITY CLR
WR02X12207 WR02X12207 BULB LIGHT
WR2X7051 WR2X7051 BUTTON PLUG
WR2X8819 WR2X8819 BX CTRL BTM
WR2X8820 WR2X8820 BX CTRL TOP
WR2X9246 WR2X9246 CAM CLOSURE
WR2X9249 WR2X9249 CAM CLOSURE
WR02X9249 WR02X9249 CAM CLOSURE AD FF
WR02X9250 WR02X9250 CAM CLOSURE AD FZ
WR71X2523 WR71X2523 CANTILEVER BASKET FZ
WR2X9439 WR2X9439 CAP DECORATI
WR02X9299 WR02X9299 CAP MULLION DUCT
WR55X24067 WR55X24067 CAPACITOR
WR62X10006 WR62X10006 CAPACITOR START
WR17X3832 WR17X3832 CHUTE ICE
WR02X10024 WR02X10024 CLAMP CAPACITOR
WR02X7226 WR02X7226 CLAMP COVER
WR01X5223 WR01X5223 CLAMP HOSE
WR29X0158 WR29X0158 CLAMP THERMOSTAT
WR2X4754 WR2X4754 CLAMP-FILL T
WR1X5722 WR1X5722 CLIP
WR02X7646 WR02X7646 CLIP BASE GRILLE
WR02X8203 WR02X8203 CLIP COMPRESSOR MOUNT
WR2X7646 WR2X7646 CLIP GRILLE
WR62X26536 WR62X26536 COLLAR SOLENOID DISP
WR02X3198 WR02X3198 COMP. RING, EVAP. FAN
WR84X0206 WR84X0206 COND ASM
WR84X206 WR84X206 CONDENSR ASM
WR09X0591 WR09X0591 CONTROL DEFROST

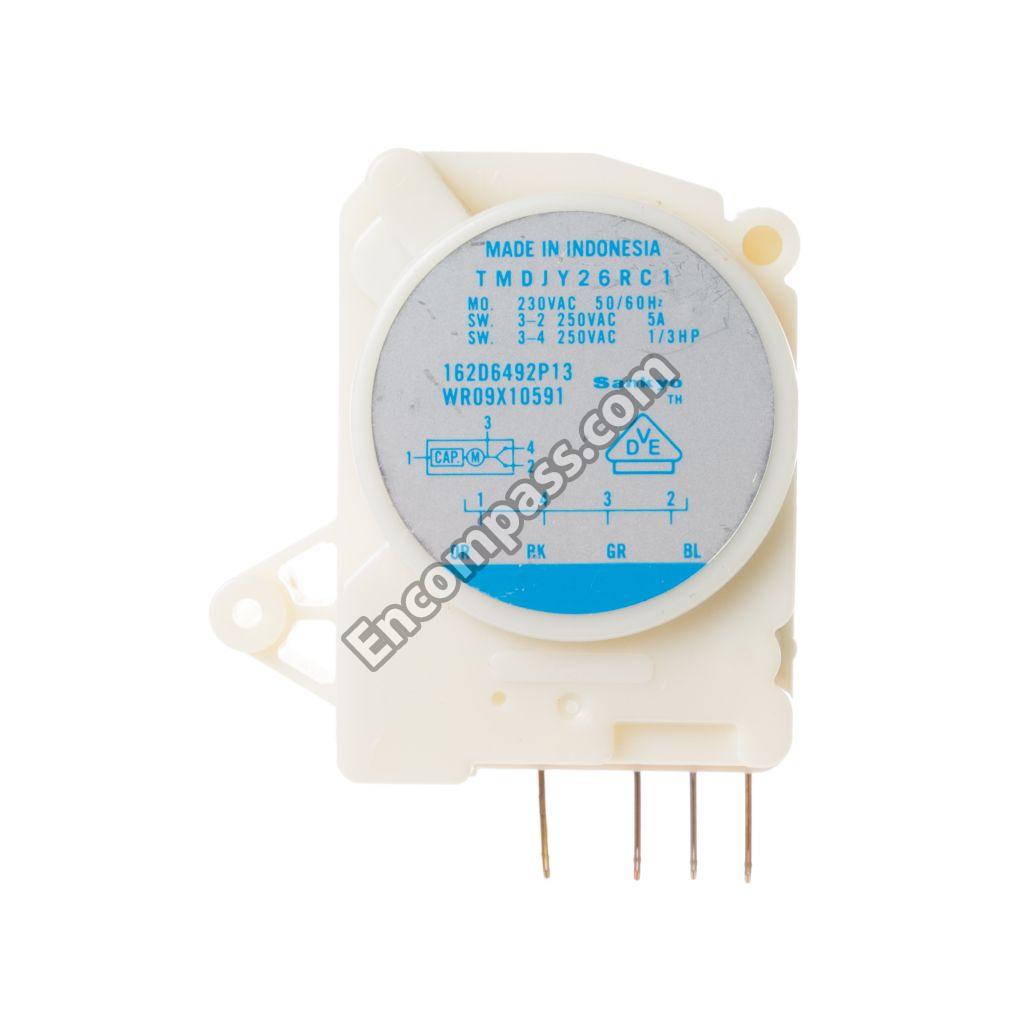

WR09X10182 WR09X10182 CONTROL DEFROST
WR17X10060 WR17X10060 CONTROL MEAT PAN ASM
WR09X0600 WR09X0600 CONTROL TEMP
WR9X600 WR9X600 CONTROL TEMP
WR23X0487 WR23X0487 CORD POWER ASM
WR01X2043 WR01X2043 CORNER COVER FF AD
WR01X2044 WR01X2044 CORNER COVER FZ AD
WR1X2044 WR1X2044 CORNR CVR AD
WR1X2043 WR1X2043 CORNR CVR AD
WR02X7834 WR02X7834 COVER
WR29X193 WR29X193 COVER
WR82X10050 WR82X10050 COVER ACCESS ASM
WR17X10041 WR17X10041 COVER BUCKET ASM
WR17X10017 WR17X10017 COVER DRAIN TROUGH
WR02X8685 WR02X8685 COVER ELECT
WR2X8685 WR2X8685 COVER ELECT
WR17X3835 WR17X3835 COVER EVAP
WR17X3836 WR17X3836 COVER EXTRUSION
WR02X9438 WR02X9438 COVER HINGE AD LH
WR02X9437 WR02X9437 COVER HINGE AD RH
WR29X0193 WR29X0193 COVER IM
WR01X2018 WR01X2018 COVER IM PLUG
WR02X9132 WR02X9132 COVER LAMP
WR2X9132 WR2X9132 COVER LAMP
WR17X10402 WR17X10402 COVER MOTOR & SOLENOID
WR32X1530 WR32X1530 COVER PAN GLASS
WR32X1457 WR32X1457 COVER PAN GLASS
WR2X7834 WR2X7834 COVER RELAY
WR17X3493 WR17X3493 CRADLE ACTUATOR
WR17X3089 WR17X3089 CRANK DOOR RECESS
WR02X4550 WR02X4550 CUP DRIVE DISPENSER
WR1X2018 WR1X2018 CVR IM PLUG
WR09X10002 WR09X10002 DAMPER ASM
WR02X10432 WR02X10432 DART CLIP
WR17X10282 WR17X10282 DEFLECTOR ICE BK
WR17X2059 WR17X2059 DEFLECTOR ICE DISP
WR19X5003 WR19X5003 DISH BUTTER
WR22X0498 WR22X0498 DOOR DAIRY
WR22X498 WR22X498 DOOR DAIRY
WR78X10182 WR78X10182 DOOR FOAM ASM FF AD
WR78X10183 WR78X10183 DOOR FOAM ASM FZ AD
WR17X3838 WR17X3838 DOOR ICE STORAGE DISP
WR77X0650 WR77X0650 DOOR INNER FF
WR77X10003 WR77X10003 DOOR INNER FZ
WR17X11653 WR17X11653 DOOR RECESS ASM
WR2X6058 WR2X6058 DRAIN PLUG
WR02X4854 WR02X4854 DRIVE AUGER DISPENSER
WR2X4550 WR2X4550 DRIVE CUP
WR2X8654 WR2X8654 DUCK MULLION
WR2X7476 WR2X7476 DUCT MULL
WR02X8654 WR02X8654 DUCT MULLION
WR2X8655 WR2X8655 DUCT MULLION
WR02X7476 WR02X7476 DUCT MULLION FF
WR02X8655 WR02X8655 DUCT MULLION FZ
WR29X0115 WR29X0115 E RING
WR29X115 WR29X115 E RING PKG
WR30X10093 WR30X10093 EJECTOR
WR30X10081 WR30X10081 ELECTRONIC IM INTL ROHS
WR17X4275 WR17X4275 EXTENSION SHIELD LIGHT
WR60X114 WR60X114 FAN BLADE
WR1X1936 WR1X1936 FASTENER
WR01X2035 WR01X2035 FASTENER PUSH
WR2X8669 WR2X8669 FASTENER TUB
WR02X8669 WR02X8669 FASTENER TUBULAR
WR01X1936 WR01X1936 FASTENER WATER TUBE
WR1X2035 WR1X2035 FASTENR PUSH
WR29X208 WR29X208 FILL CUP
WR82X10058 WR82X10058 FLOOR
WR14X0460 WR14X0460 FOAM STRIP
WR14X460 WR14X460 FOAM STRIP
WR72X240 WR72X240 FRIDGE CRISPER DRAWER SLIDE RAIL -RIGHT
WR72X239 WR72X239 FRIDGE DRAWER RAIL SLIDE - LEFT
WR1X1585 WR1X1585 FRONT NUT
WR17X3095 WR17X3095 FUNNEL RECESS SHIELD BK
WR24X0560 WR24X0560 GASKET DOOR FF WH
WR24X0559 WR24X0559 GASKET DOOR FZ WH
WR14X462 WR14X462 GASKET FOAM
WR14X0429 WR14X0429 GASKET FOAM BLOCK
WR14X0433 WR14X0433 GASKET LIGHT SHIELD
WR14X0431 WR14X0431 GASKET PAN COVER FRT
WR14X0466 WR14X0466 GASKET SHIELD LOWER
WR14X466 WR14X466 GASKET SHLD
WR02X8829 WR02X8829 GEAR PINION L/S
WR02X8828 WR02X8828 GEAR PINION R/S
WR14X429 WR14X429 GKT FM BLOCK
WR14X433 WR14X433 GKT LGT SHLD
WR14X431 WR14X431 GKT PN CV FT
WR2X8829 WR2X8829 GR PINION LS
WR2X8828 WR2X8828 GR PINION RS
WR17X10262 WR17X10262 GRILLE AIR RETURN
WR74X264 WR74X264 GRILLE BASE ASM AD
WR17X4151 WR17X4151 GRILLE RECESS ALMOND
WR2X8474 WR2X8474 GROMMET
WR2X7391 WR2X7391 GROMMET
WR02X22869 WR02X22869 GROMMET
WR17X3670 WR17X3670 GROMMET & TUBE ASM
WR1X2019 WR1X2019 GROMMET COND
WR01X2019 WR01X2019 GROMMET COND FAN LEG
WR02X7391 WR02X7391 GROMMET EVAP FAN
WR2X8349 WR2X8349 GROMMET SCR CLOSED
WR02X8474 WR02X8474 GROMMET WATER FILL
WR24X559 WR24X559 GSKT FZDRKIT
WR24X560 WR24X560 GSKTFFDR KIT
WR17X4021 WR17X4021 GUARD LIGHT SHIELD FF
WR17X4105 WR17X4105 HANDLE PAN
WR17X4104 WR17X4104 HANDLE PAN
WR12X10116 WR12X10116 HANDLE SXS ASSEMBLY ALMOND
WR29X0192 WR29X0192 HARNESS ASM
WR29X192 WR29X192 HARNESS ASM
WR23X10023 WR23X10023 HARNESS CONTROL MOD
WR23X10103 WR23X10103 HARNESS DR HINGE FZ
WR23X10041 WR23X10041 HARNESS FF LT SW
WR23X458 WR23X458 HARNESS LGT
WR23X0458 WR23X0458 HARNESS LIGHT SW.
WR23X471 WR23X471 HARNESS LOW
WR23X0471 WR23X0471 HARNESS LOW SIDE
WR23X10029 WR23X10029 HARNESS MOTOR DISP

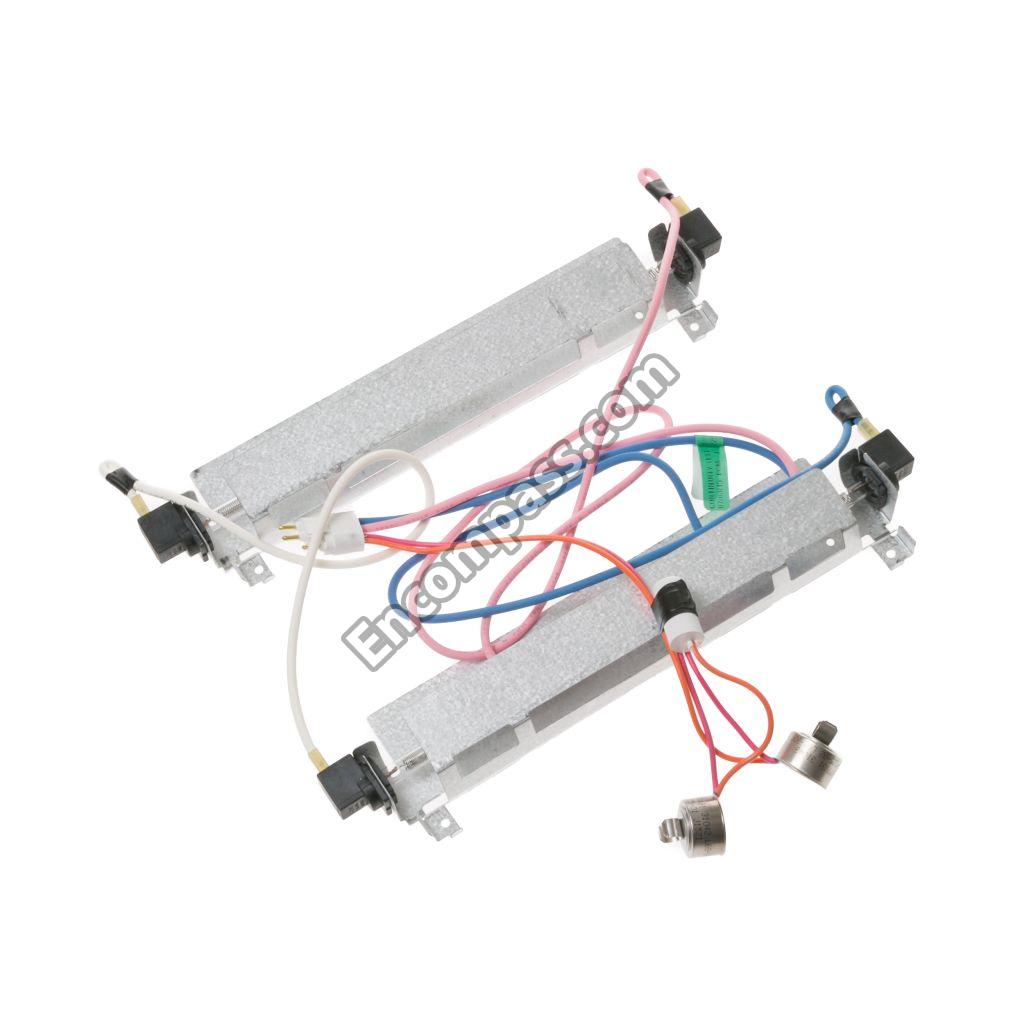

WR51X10023 WR51X10023 HEATER HARNESS DEF ASM
WR51X10001 WR51X10001 HEATER RECESS
WR17X4207 WR17X4207 HELIX FRONT DISP
WR87X509 WR87X509 HI-SIDE ASM
WR87X0509 WR87X0509 HIGH SIDE ASM
WR13X10006 WR13X10006 HINGE BTM ASM AD
WR2X9438 WR2X9438 HINGE COVER
WR2X9437 WR2X9437 HINGE COVER
WR13X10033 WR13X10033 HINGE TOP & PIN ASM FF
WR13X10032 WR13X10032 HINGE TOP & PIN ASM FZ
WR29X0183 WR29X0183 HOUSING
WR29X183 WR29X183 HOUSING
WR17X10189 WR17X10189 HOUSING COND FAN
WR17X2061 WR17X2061 HOUSING CRUSHER DISP
WR02X10026 WR02X10026 HOUSING LAMP SOCKET INT
WR23X10013 WR23X10013 HOUSING LIGHT LWR ASM
WB17X5059 WB17X5059 HOUSING SOCKET PKG 9 PIN
WD01X1440 WD01X1440 HOUSING TERMINAL
WR2X4854 WR2X4854 HUB AUGER
WR30X30972 WR30X30972 ICEMAKER REPLACEMENT KIT
WR30X0331 WR30X0331 IM CRESCENT
WR02X4046 WR02X4046 INSERT
WR2X4046 WR2X4046 INSERT
WR82X10028 WR82X10028 INSULATION
WR17X3980 WR17X3980 INSULATION RECESS
WR1X1547D WR1X1547D J NUT-PKG 12
WR62X23154 WR62X23154 KIT SRV SOLENOID CUBE
WR57X10052 WR57X10052 KIT WATER VALVE
WR02X9439 WR02X9439 KNOB CONTROL
WR2X9154 WR2X9154 KNOB REC DIS
WR02X9154 WR02X9154 KNOB RECESS DISP AD
10S6_10BB 10S6_10BB LAMP 10W 230V E12 BASE
WR23X0442 WR23X0442 LAMP 40W 240 V
WR02X9561 WR02X9561 LAMP SOCKET
WR02X10027 WR02X10027 LEG COND FAN HSG
WR11X176 WR11X176 LEVER ASM AD
WR11X177 WR11X177 LEVER ASM AD
WR11X0176 WR11X0176 LEVER ASM AD FF
WR11X0177 WR11X0177 LEVER ASM AD FZ
WR85X306 WR85X306 LO SIDE REPL ASSEMBLY
WR85X0306 WR85X0306 LOW SIDE REPL ASM
WR11X10002 WR11X10002 MAGNET & COVER ASM AD
WR11X179 WR11X179 MGNT&CVR AD
WR02X9241 WR02X9241 MOBILITY ASM FRONT
WR2X9241 WR2X9241 MOBILITY BRK
WR55X78 WR55X78 MOD TIME DLY
WR71X10064 WR71X10064 MODULE ASM
WR71X10067 WR71X10067 MODULE ASM
WR71X10066 WR71X10066 MODULE ASM
WR71X10062 WR71X10062 MODULE ASM
WR71X2619 WR71X2619 MODULE ASM FZ
WR55X0078 WR55X0078 MODULE TIME DELAY
WR29X204 WR29X204 MOLD BODY AS
WR29X0204 WR29X0204 MOLD/HEATER ASM
WR29X10003 WR29X10003 MOTOR
WR60X0267 WR60X0267 MOTOR COND FAN 230V
WR60X201 WR60X201 MOTOR CRUSH
WR60X0201 WR60X0201 MOTOR CRUSHER DISP
WR60X0269 WR60X0269 MOTOR EVAP FAN 230V
WR60X267 WR60X267 MTR COND FAN
WR60X269 WR60X269 MTR EVAP FAN
WR1X1935 WR1X1935 N/L/A 05/03/06
WR17X4286 WR17X4286 NAMEPLATE RECESS AD
WR29X0160 WR29X0160 NO ITEM DESCRIPTION
WR02X8831 WR02X8831 NOZZLE FOAM
WR2X8831 WR2X8831 NOZZLE FOAM
WR57X57 WR57X57 NUT
WR1X1515 WR1X1515 NUT
WR02X4048 WR02X4048 NUT & SLEEVE 5/16""
WR02X8545 WR02X8545 NUT & UNION ASM
WR01X1585 WR01X1585 NUT AUGER
WR01X1547 WR01X1547 NUT J
WR01X1515 WR01X1515 NUT LOCKING
WR17X10039 WR17X10039 ORIFICE EVAP FAN
WR08X0195 WR08X0195 OVERLOAD
WR8X195 WR8X195 OVERLOAD
WR86X96 WR86X96 P/S DRYER KIT R134A
WR86X25269 WR86X25269 P/S DRYER KIT R134A
WR01X2021 WR01X2021 PAD
WR1X2021 WR1X2021 PAD
WR2X8702 WR2X8702 PAD ACT AD
WR02X8726 WR02X8726 PAD ACTUATOR AD
WR32X10012 WR32X10012 PAN MEAT CLEAR
WR32X1339 WR32X1339 PAN SNACK CLEAR
WR32X10011 WR32X10011 PAN WATER DISPOSAL
WR2X9164 WR2X9164 PIN DEFL DIS
WR02X9164 WR02X9164 PIN DEFLECTOR DISP
WR2X4259 WR2X4259 PIN SPIRAL
WR02X4257 WR02X4257 PIN SPIRAL
WR02X4141 WR02X4141 PIN SPIRAL
WR17X3733 WR17X3733 PLATE FRONT DISP
WR29X5163 WR29X5163 PLATE MOUNTING
WR01X2077 WR01X2077 PLUG BUTTON
WR02X7051 WR02X7051 PLUG BUTTON
49-60068 49-60068 PM GUIDE OWNERS
31-45845 31-45845 PM MINI MANUAL WIRING
WR23X487 WR23X487 POWER CORD
WR17X3318 WR17X3318 RACK GEAR CONTROL L/S
WR17X3319 WR17X3319 RACK GEAR CONTROL R/S
WR17X10483 WR17X10483 RAIL MTG ASM
WR17X10191 WR17X10191 RECESS DISP AD
WR2X8686 WR2X8686 REFL LP SKT
WR02X8686 WR02X8686 REFLECTOR LAMP SOCKET
WR01X2048 WR01X2048 REFRIGERATOR BEARING SLIDE
WR2X8203 WR2X8203 REFRIGERATOR CLIP
WR2X9299 WR2X9299 REFRIGERATOR MULLION AIR DUCT CAP
WR7X273 WR7X273 RELAY
WR07X0273 WR07X0273 RELAY PTCR
WR2X9165 WR2X9165 RET ACT WIRE
WR1X1990 WR1X1990 RET RING E
WR02X9165 WR02X9165 RETAINER ACTUATOR WIRE
WR2X8818 WR2X8818 RETAINER RECESS DOOR
WR01X1990 WR01X1990 RETAINER RING E
WR2X4141 WR2X4141 ROLL PIN
WR2X7309 WR2X7309 SADDLE SOLEN
WR02X7309 WR02X7309 SADDLE SOLENOID
WZ04X0263 WZ04X0263 SCR 10-16 AB HXW 1/2
WR01X2141 WR01X2141 SCR 10-24 TR HXW I S
WR01X2122 WR01X2122 SCR 10-32 BT PNP 3/8 S
WR01X10610 WR01X10610 SCR 10-32 GX PNT20 1 S L
WR01X2134 WR01X2134 SCR 10-32 PNT 1.0 S LW
WR01X10631 WR01X10631 SCR 12-24 TT OVT .900 S
WR01X10019 WR01X10019 SCR 6-10 PL FLP 1/2 S
WR01X10123 WR01X10123 SCR 6-19 HI/LO HXW 1/2 S
WZ04X0230 WZ04X0230 SCR 8-15 A PA 3/8 SS
WR01X1791 WR01X1791 SCR 8-15 SPEC
WR01X10596 WR01X10596 SCR 8-18 AB FLTR 5/8 S
WR01X10038 WR01X10038 SCR 8-18 AB FLTR 5/8 S
WR01X10065 WR01X10065 SCR 8-18 BA POR 5/8 SS
WR01X10618 WR01X10618 SCR 8-18 TPT 1/4
WR01X2024 WR01X2024 SCR 8-32 T PA 7/8 S
WH02X0940 WH02X0940 SCR 8-32 TT FL 1/2 S
WR01X10174 WR01X10174 SCR 9-19 HI/LO TRP 5/8 S
WR01X1788 WR01X1788 SCR MTR MNT 8-18 TPT 1/4
WR01X2022 WR01X2022 SCREW
WR01X2023 WR01X2023 SCREW
WR01X1194 WR01X1194 SCREW
WR1X2025 WR1X2025 SCREW
WR1X2023 WR1X2023 SCREW
WR1X2024 WR1X2024 SCREW
WR1X2122 WR1X2122 SCREW
WD2X295 WD2X295 SCREW
WH2X940 WH2X940 SCREW
WD2X5166 WD2X5166 SCREW
WR01X10601 WR01X10601 SCREW
WZ5X246 WZ5X246 SCREW
WR1X1786 WR1X1786 SCREW
WR01X1966 WR01X1966 SCREW 6-32 PL IHW 3/8
WR01X5034 WR01X5034 SCREW 8-18 A HX 1/2 S
WE02X10011 WE02X10011 SCREW 8-18 X 375
WZ02X0503 WZ02X0503 SCREW 8-32 , 13-32
WD02X0323 WD02X0323 SCREW 8-32 X 3/8 SPH
WR01X1825 WR01X1825 SCREW COND HSG
WR01X2025 WR01X2025 SCREW MOBILITY
WZ04X0244 WZ04X0244 SCREW-FRONT
WR1X1791D WR1X1791D SCREW-PKG - 13 PACK
WZ4X244D WZ4X244D SCREW-PKG 12
WZ4X230D WZ4X230D SCREW-PKG 12
WE2X186D WE2X186D SCREW-PKG 12
WZ2X464D WZ2X464D SCREW-PKG 12
WZ4X338D WZ4X338D SCREW-PKG 12
WD2X323D WD2X323D SCREW-PKG 12
WZ4X241D WZ4X241D SCREW-PKG 12
WR71X2633 WR71X2633 SHELF CANT FF ENCAP
WR71X10003 WR71X10003 SHELF WIRE FZ CANT
WR71X2530 WR71X2530 SHELF WIRE FZ CANT
WR17X10371 WR17X10371 SHIELD LIGHT ASM
WR17X10401 WR17X10401 SHIELD LIGHT FZ
WR17X3909 WR17X3909 SHIELD LIGHT LOWER FF
WR17X3462 WR17X3462 SHIELD RECESS DISP AD
WR02X8914 WR02X8914 SLEEVE VINYL
WR02X10031 WR02X10031 SLEEVE VINYL
WR02X8933 WR02X8933 SLEEVE WATER LINE
WR72X0241 WR72X0241 SLIDE ASM LH
WR72X0239 WR72X0239 SLIDE ASM LH
WR72X0242 WR72X0242 SLIDE ASM RH
WR72X0240 WR72X0240 SLIDE ASM RH
WR72X241 WR72X241 SLIDE ASSEMBLY LH
WR72X242 WR72X242 SLIDE ASSEMBLY RH
WR72X0243 WR72X0243 SLIDE BASKET FZ LH
WR72X0244 WR72X0244 SLIDE BASKET FZ RH
WR72X10004 WR72X10004 SLIDE BIN FZ LH
WR72X10003 WR72X10003 SLIDE BIN FZ RH
WR72X243 WR72X243 SLIDE BSKT
WR72X244 WR72X244 SLIDE BSKT
WR17X10306 WR17X10306 SLIDE CONTROL
WR01X2079 WR01X2079 SLIDE PAN FRONT
WR1X2079 WR1X2079 SLIDE PAN FT
WR72X0211 WR72X0211 SLIDE PAN LH
WR72X211 WR72X211 SLIDE PAN LH
WR72X210 WR72X210 SLIDE PAN RH
WR2X8933 WR2X8933 SLV WATR LIN.
WR2X9347 WR2X9347 SNUGGER MOD
WR02X9347 WR02X9347 SNUGGER MODULE
WR02X9014 WR02X9014 SOCKET & TERMINAL ASM
WR2X9561 WR2X9561 SOCKET LAMP
WR2X9014 WR2X9014 SOCKET&TERM
WR62X0065 WR62X0065 SOLENOID
WR62X10054 WR62X10054 SOLENOID & ARM ASM
WR62X0093 WR62X0093 SOLENOID ASM
WR62X93 WR62X93 SOLENOID ASM
WR2X4139 WR2X4139 SPACER
WR2X4138 WR2X4138 SPACER
WR02X4139 WR02X4139 SPACER CRUSHER MIDDLE
WR02X4138 WR02X4138 SPACER CRUSHER STATIONAR
WR29X5118 WR29X5118 SPACER HOLDING SWITCH
WR02X4145 WR02X4145 SPRING
WR2X4145 WR2X4145 SPRING
WR2X8663 WR2X8663 SPRING
WR2X4561 WR2X4561 SPRING
WR29X10002 WR29X10002 SPRING BEAM
WR1X2027 WR1X2027 SPRING CLOSU
WR02X4561 WR02X4561 SPRING ICE DEFLECTOR
WR02X8663 WR02X8663 SPRING RECESS DOOR
WR29X10009 WR29X10009 SPRING SHUT OFF ARM
WR2X4258 WR2X4258 SPRING SOLENOID LINKAGE
WR01X2029 WR01X2029 STOP BASKET FZ
WR02X10043 WR02X10043 STOP DOOR AD
WR02X3736 WR02X3736 STR RELIEF
WR1X5278 WR1X5278 STR RELIEF
WR49X10041 WR49X10041 STRIKE MAGNET ASM BQ
WR1X1779 WR1X1779 STUD MTGCOMP
WR2X8681 WR2X8681 SUP ACT PAD
WR02X7310 WR02X7310 SUPP0RT TWIST
WR2X2880 WR2X2880 SUPPORT
WR02X8681 WR02X8681 SUPPORT ACTUATOR PAD BK
WR71X10154 WR71X10154 SUPPORT ICE BUCKET
WR02X6347 WR02X6347 SUPPORT SHIELD TOP
WR02X2880 WR02X2880 SUPPORT TWIST
WR2X8943 WR2X8943 SUPT FUNNEL
WR2X6347 WR2X6347 SUPT SHELF
WR2X7310 WR2X7310 SUPT TWIST
WR02X8956 WR02X8956 SUPT. FUNNEL & GUARD AD
WR23X366 WR23X366 SW CRADL ACT
WR29X10007 WR29X10007 SWITCH
WR23X0366 WR23X0366 SWITCH CRADLE ACTUATOR
WR23X10016 WR23X10016 SWITCH LIGHT
WR23X427 WR23X427 SWITCH LIGHT
WR12X10189 WR12X10189 TAIL HANDLE SXS AD
WR12X10149 WR12X10149 TAIL HANDLE SXS AD
WB17X5073 WB17X5073 TERM BLK ASM-1 PIN(1458)
WD1X1440 WD1X1440 TERMINAL
WB17X5060 WB17X5060 TERMINAL BLK ASM (2 PIN)
WR29X0185 WR29X0185 THERMAL CUT-OFF
WR29X0157 WR29X0157 THERMOSTAT
WR50X122 WR50X122 THERMOSTAT DEFROST
WR01X10156 WR01X10156 THIMBLE DOOR BTM FF BQ
WR01X10155 WR01X10155 THIMBLE DOOR BTM FZ BISQUE
WR01X10154 WR01X10154 THIMBLE DOOR TOP BQ
WR01X2033 WR01X2033 THRUST WASHER
WR1X2033 WR1X2033 THRUST WASHR
WR72X0249 WR72X0249 TRACK CANT SHELF
WR72X10006 WR72X10006 TRACK CANT SHELF LH
WR72X10005 WR72X10005 TRACK CANT SHELF RH
WR72X249 WR72X249 TRCK CAN SHF
WR38X1995 WR38X1995 TRIM EXTRUSION
WR12X10150 WR12X10150 TRIM HANDLE SXS
WR12X10190 WR12X10190 TRIM HANDLE SXS
WR38X10122 WR38X10122 TRIM RECESS DISP AD
WR38X2235 WR38X2235 TRIM SNACK PAN
WR57X10001 WR57X10001 TUBE JUMPER WATER VALVE
WR17X2891 WR17X2891 TUBE PLASTIC
WR2X7927 WR2X7927 TUBE WATER
WR02X7927 WR02X7927 TUBE WATER FILL
WR02X11330 WR02X11330 UNION CONNECTOR
WR57X10021 WR57X10021 UNION WATER VALVE
WR32X1492 WR32X1492 VEG PAN UPPER
WR01X1991 WR01X1991 WASHER
WR1X1714 WR1X1714 WASHER
WR1X1991 WR1X1991 WASHER
WR01X1714 WR01X1714 WASHER,CUSION
WR17X10045 WR17X10045 WATER LINE
WR17X4358 WR17X4358 WATER TANK DISP ASM
WR57X0108 WR57X0108 WATER VALVE ASM
WR02X8838 WR02X8838 WHEEL MOBILITY
WR02X10480 WR02X10480 WHEEL MOBILITY
WR2X8838 WR2X8838 WHL MOBILITY
WR17X3853 WR17X3853 WIRE ACTUATOR DISP
WR29X5128 WR29X5128 WR29X0191
Main Menu x
