Model Image
Manufacturer

GE

Model Number

CSX20LJE

Description

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
WR2X7395 WR2X7395 *NLA*CLIP
40A15 40A15 40WATT 15AMP
WR2X4542 WR2X4542 AIR BAFFLE
31-5022 31-5022 ATTENTION INSTALLER
WR02X4742 WR02X4742 AXLE WHEEL
WR2X3595 WR2X3595 AXLE/PIN ASM
WR82X0283 WR82X0283 BAFFLE AIR ASM
WR17X1414 WR17X1414 BAFFLE AIR OUTLET FZ.
WR82X0265 WR82X0265 BAFFLE CENTER ASM
WR82X0271 WR82X0271 BALLE SOUND REAR ASM.
WR21X188 WR21X188 BASKET FRZ.
WR60X220 WR60X220 BLADE COND F
WR60X0167 WR60X0167 BLADE COND FAN
WR17X2087 WR17X2087 BRACE COMP.
WR2X7568 WR2X7568 BRACKET DEF
WR02X7568 WR02X7568 BRACKET DEF CONTROL
WR02X4837 WR02X4837 BRACKET DEF HTR
WR02X7137 WR02X7137 BRACKET EVAP FAN
WR02X4792 WR02X4792 BRACKET EVAP FAN
WR2X7137 WR2X7137 BRACKET FAN
WR02X7494 WR02X7494 BRACKET LIGHT
WR02X7033 WR02X7033 BRACKET MULLION BTM.
WR02X7031 WR02X7031 BRACKET MULLION TOP
WR40X1574 WR40X1574 BREAKER **NLA*
WR40X5376 WR40X5376 BREAKER STRIP-HINGE SIDE
WR40X5375 WR40X5375 BREAKER STRIP-TOP & BTM.
WR40X5371 WR40X5371 BREAKER STRIP-TOP & BTM.
WR2X7033 WR2X7033 BRKR MULL
WR2X7079 WR2X7079 BUMPER GRILL
WR02X7079 WR02X7079 BUMPER GRILLE
WR1X5278 WR1X5278 CABLE CLAMP
WR2X7155 WR2X7155 CAP GRILL LS
WR2X7154 WR2X7154 CAP GRILL RS
WR62X0046 WR62X0046 CAPACITOR
WR62X51 WR62X51 CAPACITOR
WR02X4838 WR02X4838 CLAMP
WR01X5278 WR01X5278 CLAMP CABLE
WR2X4838 WR2X4838 CLAMP TUBE
WR02X7395 WR02X7395 CLIP
WR02X7500 WR02X7500 CLIP COND
WR2X7064 WR2X7064 CLIP COND
WR02X7064 WR02X7064 CLIP COND LOOP
WR02X7257 WR02X7257 CLIP EVAP COVER
WR2X7257 WR2X7257 CLIP EVAP CV
WR2X7080 WR2X7080 CLIP GRILLE
WR02X7080 WR02X7080 CLIP-0. CASE-END CAP
WR01X5463 WR01X5463 CLIP-CONTROL HOUSING
WR87X10082 WR87X10082 COMP. REPL. KIT R-12
WR02X3198 WR02X3198 COMP. RING, EVAP. FAN
WR84X0124 WR84X0124 CONDENSER ASM.
WR84X0110 WR84X0110 CONDENSER LOOP ASM
WR84X45 WR84X45 CONDENSER SUB 84X110 **NLA*
WR02X4495 WR02X4495 CONNECTOR W/LEAD
WR9X442 WR9X442 CONTROL
WR09X0412 WR09X0412 CONTROL DEF-SANKYO SEIKI
WR09X0359 WR09X0359 CONTROL TEMP
WR02X3598 WR02X3598 COTTER PIN
WR2X4339 WR2X4339 COVER
WR32X654 WR32X654 COVER GLASS *NLA*
WR02X4971 WR02X4971 COVER HEATER
WR02X4339 WR02X4339 COVER IM RECEPTACLE
WR32X0654 WR32X0654 COVER PAN GLASS
WR02X7396 WR02X7396 COVER-GUARDETTE
WR9X502 WR9X502 DEF CONTROL
WR19X5003 WR19X5003 DISH BUTTER
WR77X0407 WR77X0407 DOOR INNER FF
WR2X7213 WR2X7213 DOOR STOP
WR2X6058 WR2X6058 DRAIN PLUG
WR17X1382 WR17X1382 DUCT AIR & GASKET ASM FF
WR02X4542 WR02X4542 DUCT AIR RETURN ASM FF
WR02X7155 WR02X7155 END CAP-GRILLE-L. SIDE
WR02X7154 WR02X7154 END CAP-GRILLE-R. SIDE
WR17X2121 WR17X2121 EVAP COVER
WR60X30349 WR60X30349 EVAP FAN MOTOR KIT
WR60X114 WR60X114 FAN BLADE
WR60X0114 WR60X0114 FAN BLADE EVAP MOTOR
WR60X187 WR60X187 FAN MOTOR
WR02X4990 WR02X4990 FASTENER TUBULAR
WR78X7870 WR78X7870 FF O.DOOR (AD)
WR78X7871 WR78X7871 FF O.DOOR (HA)
WR78X7863 WR78X7863 FF O.DOOR (WH)
WR2X6087 WR2X6087 FILL TUBE
WR82X0281 WR82X0281 FLOOR COMPLETE ASM
WR2X4982 WR2X4982 FOAM BLOCK
WR2X4983 WR2X4983 FOAM BLOCK
WR02X4983 WR02X4983 FOAM BLOCK EVAP AIR
WR02X4982 WR02X4982 FOAM BLOCK EVAP AIR
WR2X8019 WR2X8019 FOAM NOZZLE
WR14X0272 WR14X0272 FOAM STRIP
WR02X7493 WR02X7493 FOAM STRIP SE ADH
WR17X6268 WR17X6268 FRONT DOOR SHELF
WR2X4858 WR2X4858 FRONT WHEEL
WR78X7873 WR78X7873 FRZ O.DOOR (AD)
WR78X7874 WR78X7874 FRZ O.DOOR (HA)
WR78X7872 WR78X7872 FRZ O.DOOR (WH)
WR2X3899 WR2X3899 GASKET
WR14X274 WR14X274 GASKET
WR02X4594 WR02X4594 GASKET DRAIN TROUGH
WR14X0274 WR14X0274 GASKET EVAP. COVER

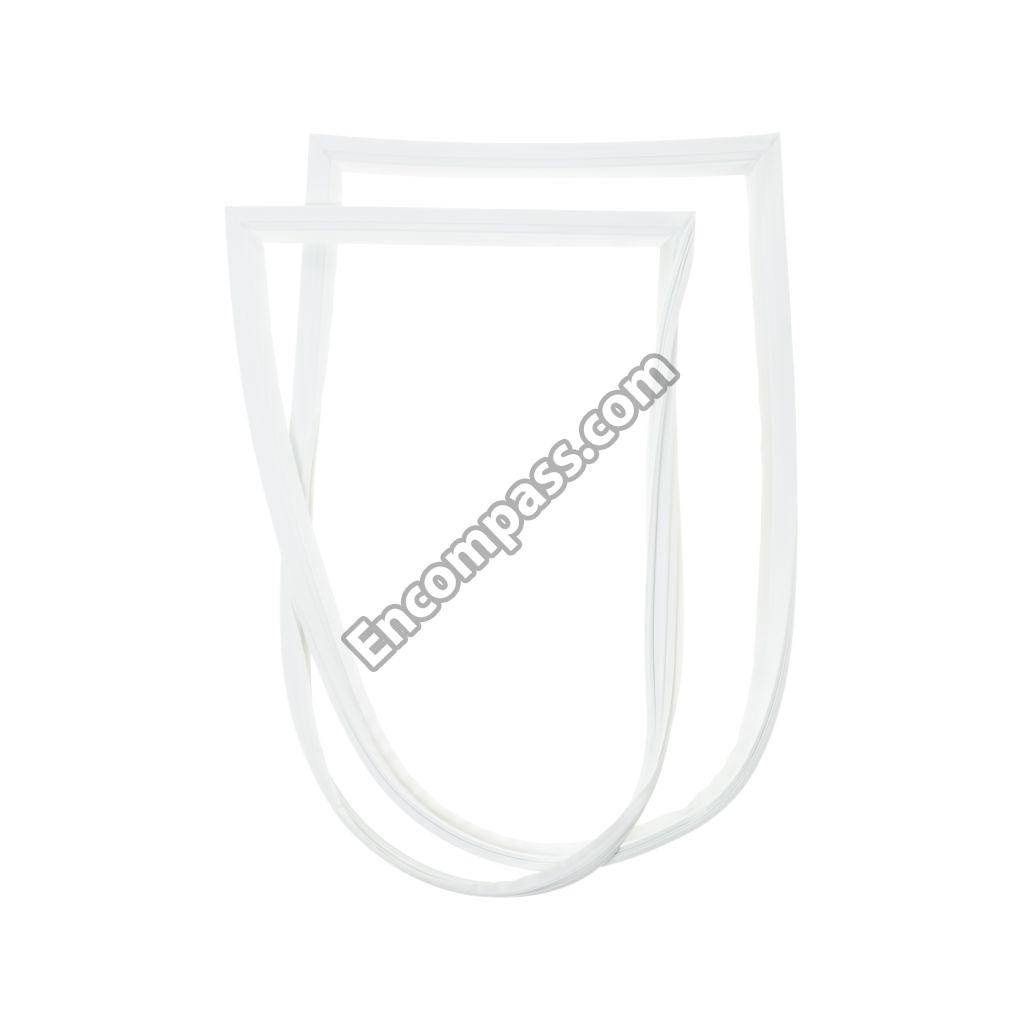

WR24X5232 WR24X5232 GASKET FF DOOR
WR14X0271 WR14X0271 GASKET FOAM
WR14X462 WR14X462 GASKET FOAM
WR24X5230 WR24X5230 GASKET FRZ.O.DOOR
WR14X5111 WR14X5111 GASKET PAN
WR74X0183 WR74X0183 GRILLE O C
WR02X7394 WR02X7394 GROMMET
WR02X7385 WR02X7385 GROMMET
WR02X2945 WR02X2945 GROMMET
WR2X2945 WR2X2945 GROMMET
WR2X7394 WR2X7394 GROMMET
WR2X8474 WR2X8474 GROMMET
WR02X4676 WR02X4676 GROMMET SHELF
WR02X7042 WR02X7042 GUARD EVAP FAN
WR08X0088 WR08X0088 GUARDETTE AND HARNESS
WR17X1495 WR17X1495 HANDLE PAN
WR02X4546 WR02X4546 HARNESS DEF HTR
WR51X0231 WR51X0231 HEATER ASM DEFROST
WR87X0228 WR87X0228 HIGH SIDE ASM
WR13X580 WR13X580 HINGE ASM
WR13X0575 WR13X0575 HINGE BTM PIN & CAM ASM
WR13X0576 WR13X0576 HINGE BTM PIN & CAM ASM
WR13X10020 WR13X10020 HINGE BTM PIN & CAM ASSEMBLY
WR2X4901 WR2X4901 HINGE CAM RISER
WR13X624 WR13X624 HINGE TOP
WR13X0579 WR13X0579 HINGE TOP ASM
WR13X0580 WR13X0580 HINGE TOP ASM
WR17X2102 WR17X2102 HOUSING COND FAN
WR17X1412 WR17X1412 HOUSING CONT
WR2X8514 WR2X8514 HOUSING NOZL
WR02X3880 WR02X3880 HOUSING NOZZLE
WR49X391 WR49X391 HTR&BRK ASM
WR23X312 WR23X312 I M RECEPT
WR77X407 WR77X407 ID PANEL FF **NLA*
WR23X0312 WR23X0312 IM RECEPACLE
WR2X6254 WR2X6254 INSERT
WR02X6254 WR02X6254 INSERT LIGHT SHIELD FZ
WR02X4834 WR02X4834 INSUL FOAM NOZZLE
WR02X4836 WR02X4836 KNOB DAMPER
WR2X9216 WR2X9216 KNOB FRZ CTL
WR02X7157 WR02X7157 KNOB TEMP CONT
WR85X0200 WR85X0200 LOW SIDE ASM
WR60X0173 WR60X0173 MOTOR COND.FAN
WR60X0175 WR60X0175 MOTOR EVAP FAN
WR40X1576 WR40X1576 MULLION & TAB ASM(WHITE)
WR40X1575 WR40X1575 N.L.A. BRKR STRIP
WZ6X105D WZ6X105D N.L.A. SCREW-PKG 12
WR2X5926 WR2X5926 N.L.A.RETAINER
WZ4X247D WZ4X247D N/L/A 01/22/02
WR74X204 WR74X204 N/L/A 03/23/05
WR12X5140 WR12X5140 N/L/A 04/14/05
WR8X88 WR8X88 N/L/A 06/19/08
WR85X200 WR85X200 N/L/A 06/24/03
WR82X271 WR82X271 N/L/A 07/12/05
WR2X4836 WR2X4836 N/L/A 07/13/06
WR17X2088 WR17X2088 N/L/A 08/03/09
WR2X4792 WR2X4792 N/L/A 08/21/02
WR17X1927 WR17X1927 N/L/A 09/10/04
WR77X5668 WR77X5668 N/L/A 09/27/02
WR2X4546 WR2X4546 N/L/A 10/03/02
WR2X3025 WR2X3025 N/L/A 10/06/06
WR2X7042 WR2X7042 N/L/A 12/08/04
WR04X5064 WR04X5064 NAMEPLATE ASM DOOR HPT
WR4X5064 WR4X5064 NAMEPLATE OD
WR1X1515 WR1X1515 NUT
WR01X1515 WR01X1515 NUT LOCKING
WR2X4599 WR2X4599 NUT STRIP
WR2X7143 WR2X7143 NUT STRIP
WR02X4739 WR02X4739 NUT U
WR02X4599 WR02X4599 NUTSTRIP
WR02X7143 WR02X7143 NUTSTRIP HINGE BTM
WR17X1413 WR17X1413 ORIFICE FAN
WR86X0083 WR86X0083 P/S DRYER KIT
WR17X2091 WR17X2091 PAD-COMP.
WR72X194 WR72X194 PAN SLIDE RH
WR32X5137 WR32X5137 PAN VEG.
WR2X4829 WR2X4829 PLUG
WR2X4968 WR2X4968 PLUG BUTTON
WR2X3248 WR2X3248 PLUG BUTTON
WR02X3248 WR02X3248 PLUG BUTTON 1/4"" HOLE
WR02X4097 WR02X4097 PLUG BUTTON BQ
WR02X6058 WR02X6058 PLUG BUTTON(.562""DIA.)
WR02X7217 WR02X7217 PLUG BUTTON(1.187""DIA.)
WR02X4968 WR02X4968 PLUG RECESSED
WR02X3025 WR02X3025 PLUG RECESSED
39-6237 39-6237 PM GUIDE OWNERS
WR23X0108 WR23X0108 POWER CORD
WR23X10300 WR23X10300 POWER CORD
WR49X0233 WR49X0233 R-E-D SERVICE PKG.
WR86X25269 WR86X25269 R134 DRIER
WR21X0115 WR21X0115 RACK FF
WR21X169 WR21X169 RACK FF
WR17X1491 WR17X1491 RAIL MACH MTG FRT
WR17X2210 WR17X2210 RAIL MACH MTG REAR
WR49X233 WR49X233 RED CONNECTO *NLA*
WR97X0086 WR97X0086 REFRIGERANT
WR07X0187 WR07X0187 RELAY
WR7X222 WR7X222 RELAY
WR2X7032 WR2X7032 RETAIN STRIP
WR2X4598 WR2X4598 RETAINER
WR02X4598 WR02X4598 RETAINER BREAKER-BTM FF
WR02X7032 WR02X7032 RETAINER BREAKER-BTM.
WR17X1231 WR17X1231 RETAINER STRIP
WR17X2092 WR17X2092 RETAINER STRIP
WR17X5600 WR17X5600 RETAINER STRIP
WR02X5926 WR02X5926 RETNR BRKR-HINGE & MULL
WR02X5927 WR02X5927 RETNR BRKR-TOP FF & FZ
WR01X1332 WR01X1332 RIVET-PLASTIC
WR49X322 WR49X322 S ABATEM KIT
WR01X1717 WR01X1717 SCR
WZ04X0263 WZ04X0263 SCR 10-16 AB HXW 1/2
WR01X1644 WR01X1644 SCR 10-32 GX HXW 1/2 S
WR01X1464 WR01X1464 SCR 6-18 SPEC HXW 9/16 S
WZ04X0224 WZ04X0224 SCR 6-19 HI/LO HXW 1/2 S
WZ04X0247 WZ04X0247 SCR 8-15 A FL 5/8 SS
WZ06X0136 WZ06X0136 SCR 8-18 AB HXW 1/2 S
WR01X1687 WR01X1687 SCR 8-18 AB HXW 3/8 S
WZ02X0460 WZ02X0460 SCR 8-32 MA TR 1/4 SS
WZ05X0137 WZ05X0137 SCR 8-32 SPEC DRILL PT
WR1X1466 WR1X1466 SCR 8-32 T HXW 3/8 S
WZ5X158D WZ5X158D SCR 8-32 T HXW 3/8 S
WZ06X0113 WZ06X0113 SCR 8-32 T TR 1/2 SS XTW
WR1X1720 WR1X1720 SCR8-32 SPEC
WR01X1720 WR01X1720 SCREW
WZ05X0194 WZ05X0194 SCREW
WR01X1249 WR01X1249 SCREW
WR01X1587 WR01X1587 SCREW
WR01X1194 WR01X1194 SCREW
WZ06X0107 WZ06X0107 SCREW
WR01X1505 WR01X1505 SCREW
WR1X1644 WR1X1644 SCREW
WD2X5166 WD2X5166 SCREW
WZ5X246 WZ5X246 SCREW
WZ6X136 WZ6X136 SCREW
WR1X1750 WR1X1750 SCREW
WZ06X0105 WZ06X0105 SCREW
WZ06X0112 WZ06X0112 SCREW 10-10X1
WR01X5034 WR01X5034 SCREW 8-18 A HX 1/2 S
WZ05X0164 WZ05X0164 SCREW FAN MTR/BRKT
WZ04X0244 WZ04X0244 SCREW-FRONT
WZ4X244D WZ4X244D SCREW-PKG 12
WZ4X338D WZ4X338D SCREW-PKG 12
WR1X1249D WR1X1249D SCREW-PKG 12
WR1X1464D WR1X1464D SCREW-PKG 12
WZ5X194D WZ5X194D SCREW-PKG 12
WZ4X241D WZ4X241D SCREW-PKG 12
WZ6X112D WZ6X112D SCREW-PKG 12
WZ5X164D WZ5X164D SCREW-PKG 12
WZ2X460D WZ2X460D SCREW-PKG 12
WR1X1505D WR1X1505D SCREW-PKG 12
WZ6X107D WZ6X107D SCREW-PKG 12
WZ4X224D WZ4X224D SCREW-PKG 12
WE2X186D WE2X186D SCREW-PKG 12
WR2X4594 WR2X4594 SEAL
WR02X4829 WR02X4829 SEAL PLUG(1.79 HEX HOLE)
WR2X4097 WR2X4097 SEALER PLUG
WR02X4835 WR02X4835 SHAFT DAMPER
WR2X4835 WR2X4835 SHAFT-DAMPER
WR71X1927 WR71X1927 SHELF FF C
WR71X1653 WR71X1653 SHELF FRONT **NLA*
WR71X1656 WR71X1656 SHELF FRZ
WR71X1655 WR71X1655 SHELF FRZ. TOP
WR71X1356 WR71X1356 SHELF FZ-BTM.
WR17X1276 WR17X1276 SHIELD DEF HTR END
WR17X6032 WR17X6032 SHIELD LIGHT FF
WR17X1567 WR17X1567 SHIELD LIGHT FZ
WR2X5031 WR2X5031 SHIELD SUPT
WR2X4194 WR2X4194 SHIM
WR2X6043 WR2X6043 SHIM CAM
WR2X7011 WR2X7011 SHIM HINGE
WR02X7011 WR02X7011 SHIM HINGE BTM.
WR02X4194 WR02X4194 SHIM HINGE TOP
WR02X6043 WR02X6043 SHIM RISER CAM
WR02X6013 WR02X6013 SLIDE PAN
WR02X6012 WR02X6012 SLIDE PAN
WR02X7270 WR02X7270 SOCKET TERMINAL ASM
WR2X9391 WR2X9391 SOCKET&TERM
WR2X4495 WR2X4495 SPADE CONN
WR02X7213 WR02X7213 STOP DOOR
WR2X4548 WR2X4548 SUPPORT
WR2X6253 WR2X6253 SUPPORT
WR2X2880 WR2X2880 SUPPORT
WR02X7036 WR02X7036 SUPPORT BASKET-FRONT
WR02X4548 WR02X4548 SUPPORT BASKET-REAR
WR02X11561 WR02X11561 SUPPORT FZ
WR02X4839 WR02X4839 SUPPORT LT. SHIELD
WR02X4076 WR02X4076 SUPPORT SHELF
WR02X4674 WR02X4674 SUPPORT SHELF
WR02X6347 WR02X6347 SUPPORT SHIELD TOP
WR02X6350 WR02X6350 SUPPORT SHIELD-BTM.
WR02X2880 WR02X2880 SUPPORT TWIST
WR02X4678 WR02X4678 SUPPORT TWIST BUMPER
WR02X4421 WR02X4421 SUPPORT TWIST EVAP
WR2X4839 WR2X4839 SUPPORT-CVR
WR2X4676 WR2X4676 SUPT
WR2X7036 WR2X7036 SUPT BSKT FZ
WR2X8989 WR2X8989 SUPT BUMPER
WR2X6347 WR2X6347 SUPT SHELF
WR2X7396 WR2X7396 SWITCH COVER
WR23X10725 WR23X10725 SWITCH LIGHT
WR23X0193 WR23X0193 SWITCH LIGHT WH
WR50X55 WR50X55 THERMO PKG
WR50X0035 WR50X0035 THERMOSTAT, DEFROST
WR2X7031 WR2X7031 TOP MULL BRACKET **NLA*
WR30X311 WR30X311 TRAY ICE
WR17X1238 WR17X1238 TROUGH DRAIN
WR02X4967 WR02X4967 TUBE DRAIN
WR02X10395 WR02X10395 TUBE DRAIN
WR17X2114 WR17X2114 TUBE DRAIN FZ.
WR02X6087 WR02X6087 TUBE WATER FILL
WR2X4990 WR2X4990 TUBULAR
WR1X1714 WR1X1714 WASHER
WR01X1714 WR01X1714 WASHER,CUSION
WR2X3594 WR2X3594 WHEEL
WR02X4858 WR02X4858 WHEEL ASM FRT
WR02X3594 WR02X3594 WHEEL MOBILITY
WR72X195 WR72X195 WR72X0195
