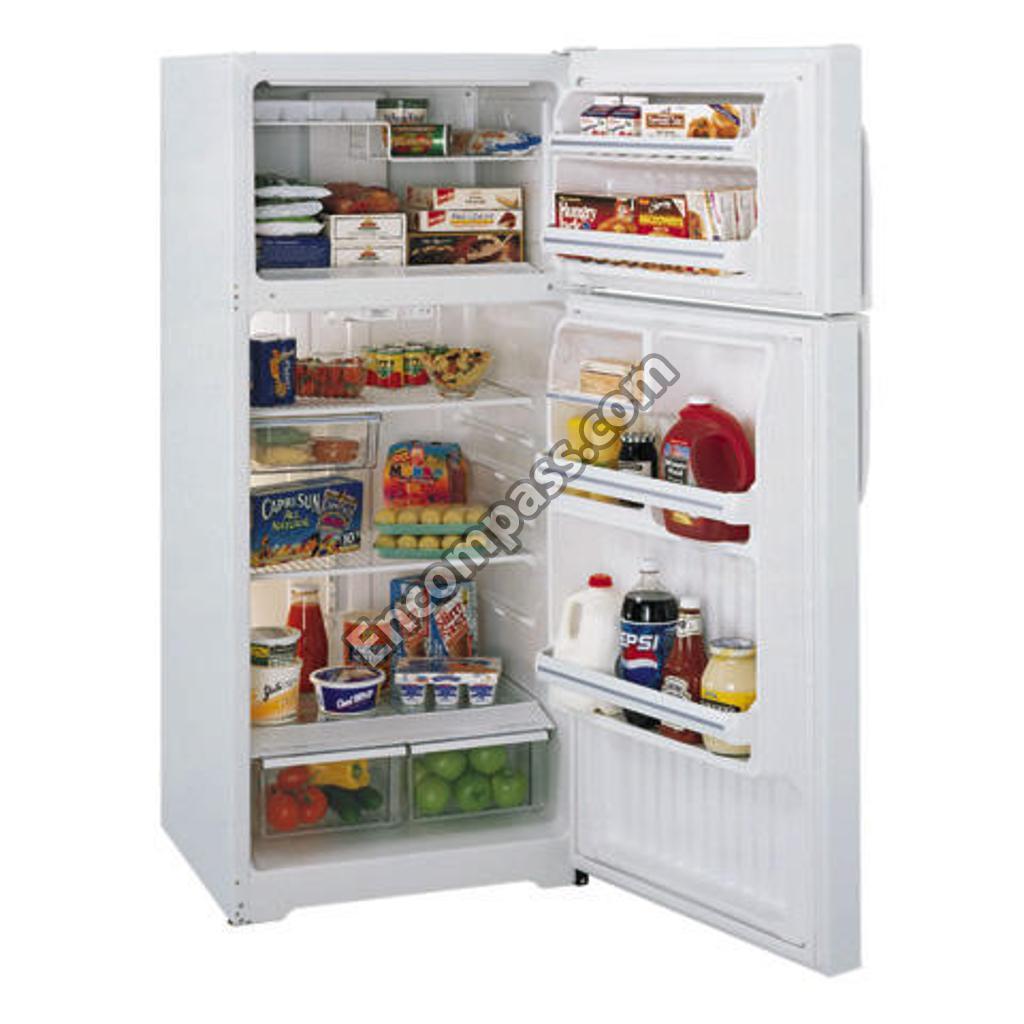

Model Image
Manufacturer

GE

Model Number

CTX18EACERWW

Description

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
40A15 40A15 GE 40WATT 15AMP
WR87X20798 WR87X20798 GE AASM HI SIDE
WR02X9218 WR02X9218 GE ACTUATOR AIR
WR2X9158 WR2X9158 GE ACTUATOR AIR
WR2X8949 WR2X8949 GE AXLE WHEEL
WR2X8214 WR2X8214 GE AXLE WHEEL
WR02X8949 WR02X8949 GE AXLE WHEEL FRONT
WR02X8214 WR02X8214 GE AXLE WHEEL REAR
WR02X8693 WR02X8693 GE BEAUTY BUTTON-WHT
WR60X0275 WR60X0275 GE BLADE COND FAN ASM
WR2X8217 WR2X8217 GE BRACKET EVAP
WR2X8216 WR2X8216 GE BRACKET EVAP
WR02X8216 WR02X8216 GE BRACKET EVAP FAN FRT
WR02X8217 WR02X8217 GE BRACKET EVAP FAN REAR
WR32X1560 WR32X1560 GE BUCKET UTILITY WHITE
WR1X5278 WR1X5278 GE CABLE CLAMP
WR2X8465 WR2X8465 GE CAP CORNER
WR02X8465 WR02X8465 GE CAP CORNER (WH)
WR2X8345 WR2X8345 GE CAP SHEL FRT
WR2X9162 WR2X9162 GE CAP SHELF FR
WR02X9162 WR02X9162 GE CAP SHLF FRNT NARROW
WR02X8345 WR02X8345 GE CAP SHLF FRT
WR01X5278 WR01X5278 GE CLAMP CABLE
WR01X2008 WR01X2008 GE CLAMP WIRE
WR2X8583 WR2X8583 GE CLIP
WR02X8583 WR02X8583 GE CLIP COMP MTNG
WR2X9000 WR2X9000 GE CLIP COND
WR02X7928 WR02X7928 GE CLIP RELAY COVER
WR2X7928 WR2X7928 GE CLIP RELY CV
WR02X3198 WR02X3198 GE COMP. RING, EVAP. FAN
WR87X0479 WR87X0479 GE COMPRESSOR REPL KIT
WR14X0313 WR14X0313 GE COND TOP BAFFLE FOAM
WR84X221 WR84X221 GE COND TUBE WIRE ASSEMBLY
WR9X560 WR9X560 GE CONTROL DEF
WR09X0560 WR09X0560 GE CONTROL DEFROST
WR82X10111 WR82X10111 GE COVER ACCESS
WR82X0322 WR82X0322 GE COVER ACCESS ASM RECIP.
WR17X2628 WR17X2628 GE COVER EVAP ASSEMBLY
WR02X9159 WR02X9159 GE COVER IM RECEPTACLE
WR02X7929 WR02X7929 GE COVER RELAY
WR2X7929 WR2X7929 GE COVER RELAY
WR2X9159 WR2X9159 GE CVR UN RECEP
WR02X8463 WR02X8463 GE DIFFUSER AIR FF
WR2X8463 WR2X8463 GE DIFFUSER FF
WR22X0503 WR22X0503 GE DOOR DAIRY
WR22X10068 WR22X10068 GE DOOR DAIRY
WR77X0651 WR77X0651 GE DOOR INNER FF
WR77X0648 WR77X0648 GE DOOR INNER FZ
WR32X10455 WR32X10455 GE DPO DRAIN PAN
WR77X651 WR77X651 GE DR INNER FF
WR77X648 WR77X648 GE DR INNER FZ
WR17X2647 WR17X2647 GE DRAIN TUBE
WR86X25269 WR86X25269 GE DRYER
WR17X10666 WR17X10666 GE DUCT AIR FZ
WR02X9160 WR02X9160 GE DUCT FOAM
WR02X10701 WR02X10701 GE DUCT FOAM ASSEMBLY
WR2X8536 WR2X8536 GE ELEMT HOLDER
WR60X114 WR60X114 GE FAN BLADE
WR60X0247 WR60X0247 GE FAN BLADE EVAP MOTOR
WR60X275 WR60X275 GE FAN BLD CNDS
WR60X187 WR60X187 GE FAN MOTOR
WR78X8718 WR78X8718 GE FF O DOOR (AD)
WR17X2630 WR17X2630 GE FLOOR FZ
WR17X3881 WR17X3881 GE FRONT DOOR SHELF GESM
WR17X3880 WR17X3880 GE FRONT DR SHELF LG FF
WR02X8246 WR02X8246 GE GASKET AIR DUCT
WR14X313 WR14X313 GE GASKET COVER
WR24X0558 WR24X0558 GE GASKET DOOR FF
WR24X10236 WR24X10236 GE GASKET DOOR FF
WR24X0524 WR24X0524 GE GASKET DOOR FRZ
WR24X10228 WR24X10228 GE GASKET DOOR FZ
WR2X8246 WR2X8246 GE GASKET DUCT
WR02X7877 WR02X7877 GE GLIDER ADJ
WR2X7391 WR2X7391 GE GROMMET
WR02X7238 WR02X7238 GE GROMMET COMP MTG
WR02X7391 WR02X7391 GE GROMMET EVAP FAN
WR2X7238 WR2X7238 GE GROMMET MTG.
39-6424 39-6424 GE GUIDE OWNERS
WR02X9211 WR02X9211 GE GUSSET LH
WR2X9211 WR2X9211 GE GUSSET LH
WR02X9210 WR02X9210 GE GUSSET RH
WR2X9210 WR2X9210 GE GUSSET RH
WR12X10966 WR12X10966 GE HANDLE DOOR ASM FZ
WR12X10115 WR12X10115 GE HANDLE DOOR ASSEMBLY FZ ALMOND
WR12X10060 WR12X10060 GE HANDLE DOOR FF AD
WR12X10965 WR12X10965 GE HANDLE DOOR FF WH
WR38X2036 WR38X2036 GE HANDLE MT PAN
WR38X2016 WR38X2016 GE HANDLE VEG PAN
WR23X358 WR23X358 GE HARN CTL MOD
WR23X0358 WR23X0358 GE HARNESS CONT MODULE
WR02X8536 WR02X8536 GE HEATER ELEMENT HOLDER
WR13X10997 WR13X10997 GE HINGE
WR13X10316 WR13X10316 GE HINGE BTM
WR13X0690 WR13X0690 GE HINGE BTM SHIM ASM
WR13X0693 WR13X0693 GE HINGE/SHIM CTR WH
WR13X0694 WR13X0694 GE HINGE/SHIM TOP WH
WR2X8870 WR2X8870 GE HNG/SHIM BTM
WR17X2632 WR17X2632 GE HOUSING COND FAN
WR17X12852 WR17X12852 GE HOUSING CONTROL
WR51X444 WR51X444 GE HTR ASM
WR02X8248 WR02X8248 GE INSUL ELECT
WR2X8248 WR2X8248 GE INSUL ELECT
WR02X8231 WR02X8231 GE KNOB CONTROL
WR2X8231 WR2X8231 GE KNOB CONTROL
WR04X10020 WR04X10020 GE LENS NAMEPLATE
WR32X1433 WR32X1433 GE MEAT PAN COVER
WR60X0187 WR60X0187 GE MOTOR COND FAN
WR60X203 WR60X203 GE MOTOR EVAP FAN
WR01X1715 WR01X1715 GE NUT
WR1X1715 WR1X1715 GE NUT
WR08X0122 WR08X0122 GE OVERLOAD
WR8X122 WR8X122 GE OVERLOAD
WR32X1448 WR32X1448 GE PAN MEAT
WR32X10340 WR32X10340 GE PAN VEG TWIN LOW
WR02X8232 WR02X8232 GE PIN HINGE CTR
WR17X10195 WR17X10195 GE PLATE COMP MTG ASSEMBLY
WR2X8233 WR2X8233 GE PLUG BTN WHT
WR2X8999 WR2X8999 GE PLUG BUT MTG
WR12X721 WR12X721 GE PLUG BUTN WH
WR02X7148 WR02X7148 GE PLUG BUTTON
WR02X11760 WR02X11760 GE PLUG BUTTON
WR2X9148 WR2X9148 GE PLUG BUTTON
WR2X7051 WR2X7051 GE PLUG BUTTON
WR02X7051 WR02X7051 GE PLUG BUTTON
WR12X0721 WR12X0721 GE PLUG BUTTON INSERT
WR02X8999 WR02X8999 GE PLUG BUTTON MTG
WR02X9148 WR02X9148 GE PLUG BUTTON RAIL
WR02X8233 WR02X8233 GE PLUG BUTTON THIMBLE WH
WR01X21159 WR01X21159 GE PLUG DOOR
31-51224 31-51224 GE PM MINI MANUAL WIRING
WR23X0108 WR23X0108 GE POWER CORD
WR23X10300 WR23X10300 GE POWER CORD
WR78X24554 WR78X24554 GE PS STND FF DOOR WW 18/28
WR78X24553 WR78X24553 GE PS STND FZ DOOR WW 18/28
WR17X3188 WR17X3188 GE RAIL REAR
31-5036 31-5036 GE REF INSTALL INST
WR87X28948 WR87X28948 GE REFRIGERATOR EVAPORATOR
WR07X10011 WR07X10011 GE RELAY PTCR
WR2X9221 WR2X9221 GE RET STRIP V
WR2X8236 WR2X8236 GE RETAINER
WR2X8235 WR2X8235 GE RETAINER
WR02X8235 WR02X8235 GE RETAINER STRIP H
WR02X8236 WR02X8236 GE RETAINER STRIP V
WR02X9221 WR02X9221 GE RETAINER STRIP V
WR01X1717 WR01X1717 GE SCR
WR01X1591 WR01X1591 GE SCR 1/4-14 X 3/4
WR01X1728 WR01X1728 GE SCR 10-16 1/2 PH
WR01X1726 WR01X1726 GE SCR 10-16 AB 3/4 SS
WZ04X0263 WZ04X0263 GE SCR 10-16 AB HXW 1/2
WR01X10590 WR01X10590 GE SCR 10-16 AB PNT20 1/2 S
WR01X1791 WR01X1791 GE SCR 8-15 SPEC
WR01X1790 WR01X1790 GE SCR 8-18 AB TPR 1 1/8 S
WR01X1793 WR01X1793 GE SCR 8-19 HI/LO 1
WR01X1792 WR01X1792 GE SCREW
WZ05X0194 WZ05X0194 GE SCREW
WZ04X0254 WZ04X0254 GE SCREW
WR01X1249 WR01X1249 GE SCREW
WR1X1591 WR1X1591 GE SCREW
WR01X10448 WR01X10448 GE SCREW
WR1X1786 WR1X1786 GE SCREW
WD2X5166 WD2X5166 GE SCREW
WR1X1644 WR1X1644 GE SCREW
WR1X1716 WR1X1716 GE SCREW
WR1X1790 WR1X1790 GE SCREW
WR1X1753 WR1X1753 GE SCREW
WR01X1754 WR01X1754 GE SCREW 12-24
WR01X1753 WR01X1753 GE SCREW 12-24
WR01X2009 WR01X2009 GE SCREW ASM
WZ05X0164 WZ05X0164 GE SCREW FAN MTR/BRKT
WR01X1716 WR01X1716 GE SCREW, FAN MOTOR
WZ04X0244 WZ04X0244 GE SCREW-FRONT
WR1X1791D WR1X1791D GE SCREW-PKG - 13 PACK
WZ5X164D WZ5X164D GE SCREW-PKG 12
WR1X1726D WR1X1726D GE SCREW-PKG 12
WR1X1754D WR1X1754D GE SCREW-PKG 12
WZ5X194D WZ5X194D GE SCREW-PKG 12
WZ4X244D WZ4X244D GE SCREW-PKG 12
WZ4X254D WZ4X254D GE SCREW-PKG 12
WR1X1249D WR1X1249D GE SCREW-PKG 12
WZ4X241D WZ4X241D GE SCREW-PKG 12
WR71X10378 WR71X10378 GE SHELF ASM STATIONARY
WR32X1497 WR32X1497 GE SHELF GLASS
WR2X9212 WR2X9212 GE SHIM HINGE
WR02X8870 WR02X8870 GE SHIM HINGE BTM
WR02X9212 WR02X9212 GE SHIM HINGE CTR
WR02X10539 WR02X10539 GE SHIM HINGE TOP
WR71X2086 WR71X2086 GE SHLF ASM FZ
WR02X8344 WR02X8344 GE SLEEVE VINYL
WR2X8344 WR2X8344 GE SLEEVE VINYL
WR2X7877 WR2X7877 GE SLIDER ADJ
WR02X9391 WR02X9391 GE SOCKET & TERMINAL ASM
WR2X9391 WR2X9391 GE SOCKET&TERM
WR1X1794 WR1X1794 GE SPACER DOOR
WR01X1794 WR01X1794 GE SPACER DOOR FZ
WR02X12212 WR02X12212 GE STOP DOOR
WR02X9219 WR02X9219 GE STOP DOOR FF/FZ
WR02X9220 WR02X9220 GE STOP DOOR FZ
WR2X9220 WR2X9220 GE STOP DOOR FZ
WR1X1779 WR1X1779 GE STUD MTGCOMP
WR2X8429 WR2X8429 GE SUPPORT
WR17X3164 WR17X3164 GE SUPPORT RAIL VP COVERS
WR02X8429 WR02X8429 GE SUPPORT SHLF
WR23X10725 WR23X10725 GE SWITCH LIGHT
WR23X0193 WR23X0193 GE SWITCH LIGHT WH
WR09X20002 WR09X20002 GE TEMPERATURE CONTROL
WR50X10006 WR50X10006 GE THERMOSTAT DEF
WR30X0311 WR30X0311 GE TRAY ICE
WR30X311 WR30X311 GE TRAY ICE
WR38X10001 WR38X10001 GE TRIM BRIGHT
WR38X10297 WR38X10297 GE TRIM VEG PAN
WR17X12656 WR17X12656 GE TROUGH DRAIN KIT
WR32X10500 WR32X10500 GE VEG PAN COVER W/GLASS
WR1X1714 WR1X1714 GE WASHER
WR01X1797 WR01X1797 GE WASHER HINGE .495ID
WR01X1714 WR01X1714 GE WASHER,CUSION
WR1X1797D WR1X1797D GE WASHR-PKG 12
WR2X8244 WR2X8244 GE WHEEL FRT
WR02X8245 WR02X8245 GE WHEEL MOBILITY REAR
WR2X8245 WR2X8245 GE WHEEL REAR
WR02X8244 WR02X8244 GE WHEEL, FRONT
WR17X11225 WR17X11225 GE WR17X10463
WR1X1749 WR1X1749 GE WR1X1749
WZ4X416 WZ4X416 GE WZ04X0408
