Model Image
Manufacturer

GE

Model Number

CTX18LLGRAD

Description

Refrigerators*

Interactive Exploded View

Parts List

Part Number Description
40A15 40A15 40WATT 15AMP
WR1X1774 WR1X1774 AXWHEEL REAR
WR17X2523 WR17X2523 BAFFLE ASSEMBLY LH
WR17X2268 WR17X2268 BAFFLE ASSEMBLY RH
WR17X2084 WR17X2084 BAFFLE CTR **NLA*
WR60X220 WR60X220 BLADE COND F
WR17X2417 WR17X2417 BRACE & BUMPER ASSEMBLY
WR2X7768 WR2X7768 BRKT CONTROL
WR2X7767 WR2X7767 BRKT CONTROL
WR2X7846 WR2X7846 BRKT DEF HTR
WR2X7664 WR2X7664 BRKT FAN
WR1X5278 WR1X5278 CABLE CLAMP
WR2X4928 WR2X4928 CAP
WR2X8069 WR2X8069 CAP BTM CORN
WR2X7657 WR2X7657 CAP CORNER
WR2X7656 WR2X7656 CAP CORNR-WH
WR2X7673 WR2X7673 CAP SHELF
WR2X7674 WR2X7674 CAP SHELF
WR62X51 WR62X51 CAPACITOR
WR2X7792 WR2X7792 CAPTRIM HDLE
WR2X7791 WR2X7791 CAPTRIM HDLE
WR12X643 WR12X643 CHANN HDLE
WR12X471 WR12X471 CHANNEL HDLE
WR2X7915 WR2X7915 CLAMP RELAY
WR2X8203 WR2X8203 CLIP
WR2X4516 WR2X4516 CLIP DRAIN
WR2X7646 WR2X7646 CLIP GRILLE
WR2X7916 WR2X7916 CLIP GUARDTE
WR2X7140 WR2X7140 CLIP HANDLE
WR87X10079 WR87X10079 COMP REPL
WR17X2269 WR17X2269 COVER EVAP ASSEMBLY
WR13X585 WR13X585 CTR HINGE
WR2X8086 WR2X8086 CVR RELAY
WR9X502 WR9X502 DEF CONTROL
WR51X464 WR51X464 DEF HTR KIT
WR78X8724 WR78X8724 DOOR OUTER FF ALMOND
WR78X8725 WR78X8725 DOOR OUTER FZ ALMOND
WR60X30349 WR60X30349 EVAP FAN MOTOR KIT
WR60X114 WR60X114 FAN BLADE
WR60X123 WR60X123 FAN BLADE
WR60X187 WR60X187 FAN MOTOR
WR2X6087 WR2X6087 FILL TUBE
WR17X2385 WR17X2385 FRONT LINER FZ
WR71X1863 WR71X1863 FRT DR SHELF
WR71X1865 WR71X1865 FRT DR SHELF
WR77X516 WR77X516 FRZ INNER DR
WR2X7640 WR2X7640 FUNNEL DRAIN
WR14X313 WR14X313 GASKET COVER
WR14X346 WR14X346 GASKET DRAIN
WR24X450 WR24X450 GASKET FF
WR24X449 WR24X449 GASKET FRZ
WR74X203 WR74X203 GRILLE B ASM
WR2X7019 WR2X7019 GRILLE COVER
WR2X8629 WR2X8629 GRILLE I/S
WR2X9001 WR2X9001 GROMMET
WR2X7391 WR2X7391 GROMMET
WR2X7238 WR2X7238 GROMMET MTG.
WR14X357 WR14X357 GSKT TROUGH
WR8X99 WR8X99 GUARDETTE
WR2X7666 WR2X7666 GUSSET L H **NLA*
WR2X7665 WR2X7665 GUSSET R H **NLA*

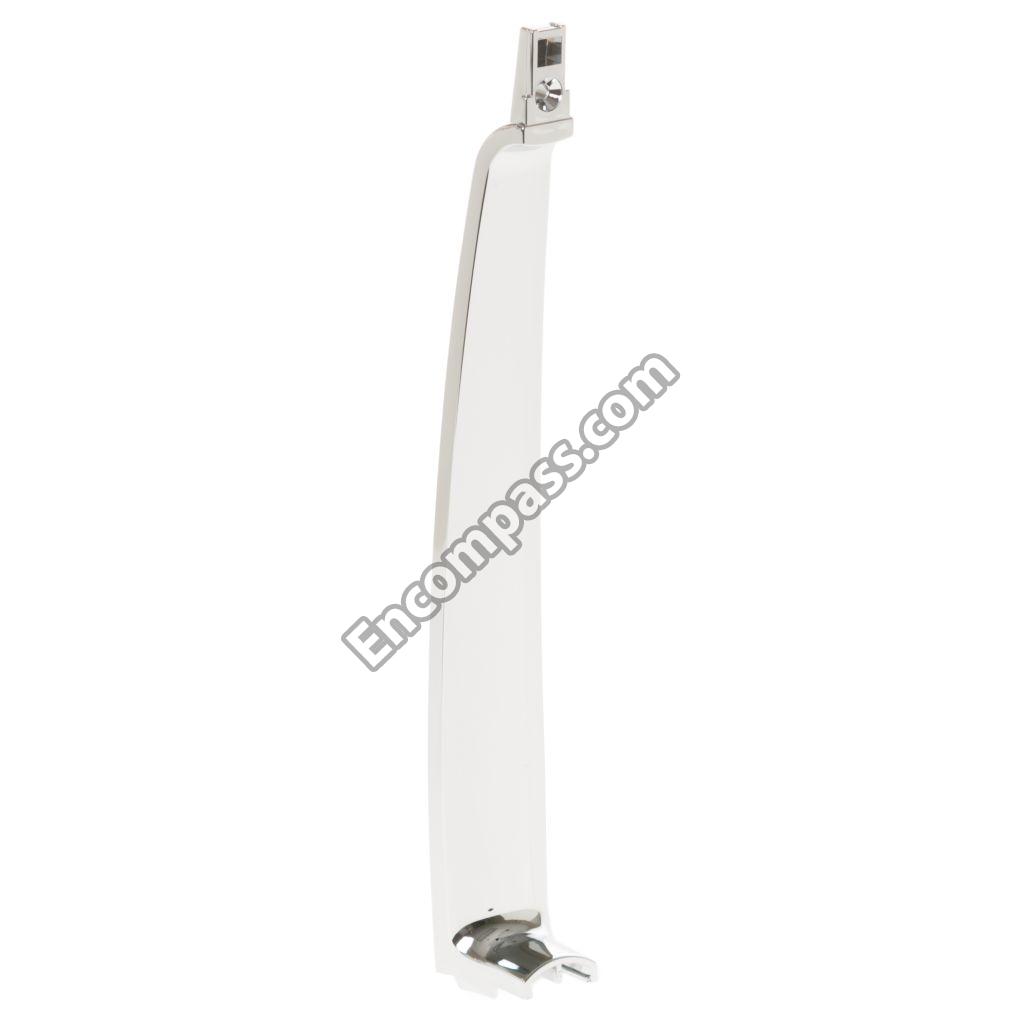

WR12X463 WR12X463 HANDLE DR GE
WR13X611 WR13X611 HINGE ASM
WR13X588 WR13X588 HINGE BOTTOM
WR17X2161 WR17X2161 HOUSING COND FAN
WR17X2180 WR17X2180 HSG CONT & LABEL ASSEMBLY
WR51X358 WR51X358 HTR MULLION
WR12X733 WR12X733 INS NMPL ASM
WR17X2773 WR17X2773 INSUL DIVIDER
WR2X7669 WR2X7669 INSUL ELECT
WR1X1733 WR1X1733 KEY PIVOT
WR2X8692 WR2X8692 KNOB TEMP CO
WR1X1815 WR1X1815 LEVELING NUT
WR17X2275 WR17X2275 LINER BOTTOM FZ
WR2X8842 WR2X8842 MBLTY FT ASM
WR17X4195 WR17X4195 MULLION CROSSPIECE WHITE
WR2X7823 WR2X7823 MULLION L H
WR2X7822 WR2X7822 MULLION RH
WR2X7630 WR2X7630 N.L.A.SHIM HINGTOP
WR77X515 WR77X515 N/L/A 04/14/05
WR2X7629 WR2X7629 N/L/A 08/14/02
WR85X215 WR85X215 N/L/A 11/02/05
WR4X181 WR4X181 NAMEPLATE AD
WR2X8363 WR2X8363 NOZZLE FOAM
WR1X1715 WR1X1715 NUT
WR07X26748 WR07X26748 PCTR
WR13X587 WR13X587 PIN HINGE
WR2X8088 WR2X8088 PLUG BUT INS
WR2X7625 WR2X7625 PLUG BUTTON
WR2X7675 WR2X7675 PLUG BUTTON
WR2X7852 WR2X7852 PLUG BUTTON
WR02X11760 WR02X11760 PLUG BUTTON
WR2X7069 WR2X7069 PLUG BUTTON
WR23X10300 WR23X10300 POWER CORD
WR86X25269 WR86X25269 R134 DRIER
WR17X2278 WR17X2278 RAIL REAR
31-5025 31-5025 REF INSTALL INST
WR17X2279 WR17X2279 RETAINER STRIP H
WR17X2281 WR17X2281 RETAINER STRIP V
WR17X2280 WR17X2280 RETAINER STRIP V
WD2X5166 WD2X5166 SCREW
WR1X1594 WR1X1594 SCREW
WR1X1734 WR1X1734 SCREW
WR1X1746 WR1X1746 SCREW
WR1X1716 WR1X1716 SCREW
WZ5X246 WZ5X246 SCREW
WR1X1591 WR1X1591 SCREW
WR1X1786 WR1X1786 SCREW
WR1X1750 WR1X1750 SCREW
WR1X1752 WR1X1752 SCREW
WR1X1755 WR1X1755 SCREW
WR1X1730 WR1X1730 SCREW
WZ6X133 WZ6X133 SCREW&WASHER
WR1X1791D WR1X1791D SCREW-PKG - 13 PACK
WZ4X254D WZ4X254D SCREW-PKG 12
WR1X1754D WR1X1754D SCREW-PKG 12
WZ4X352D WZ4X352D SCREW-PKG 12
WZ5X158D WZ5X158D SCREW-PKG 12
WZ4X288D WZ4X288D SCREW-PKG 12
WR1X5475D WR1X5475D SCREW-PKG 12
WR1X1726D WR1X1726D SCREW-PKG 12
WR1X1565D WR1X1565D SCREW-PKG 12
WZ4X244D WZ4X244D SCREW-PKG 12
WR2X7650 WR2X7650 SHAFT KNOB
WR71X1866 WR71X1866 SHELF FRNT
WR71X1954 WR71X1954 SHELF ICE TRAY
WR2X4946 WR2X4946 SHIM HANDLE
WR2X7793 WR2X7793 SHIM HDL ASM
WR2X7909 WR2X7909 SHIM HDLE DR
WR2X8077 WR2X8077 SHIM HINGE
WR2X9391 WR2X9391 SOCKET&TERM
WR2X7018 WR2X7018 SPAC CT TRAC
WR12X582 WR12X582 STIFFENER
WR12X645 WR12X645 STIFNER HDLE
WR1X1779 WR1X1779 STUD MTGCOMP
WR2X7973 WR2X7973 SUPT SHELF
WR2X7015 WR2X7015 SUPT SHELF
WR23X309 WR23X309 SW POWER SAVER
WR23X10725 WR23X10725 SWITCH LIGHT
WR9X411 WR9X411 TEMP CONTROL
WR50X60 WR50X60 THERMO PKG
WR02X10111 WR02X10111 THIMBLE DOOR PLASTIC
WR30X311 WR30X311 TRAY ICE
WR17X2283 WR17X2283 TROUGH DRAIN
WR2X4990 WR2X4990 TUBULAR
WR17X2571 WR17X2571 UNIMOUNT
WR1X1714 WR1X1714 WASHER
WR1X1748D WR1X1748D WASHR-PKG 12
WR2X3594 WR2X3594 WHEEL
WR14X347 WR14X347 WR14X347
WR2X9009 WR2X9009 WR2X9009
WZ4X416 WZ4X416 WZ04X0408
