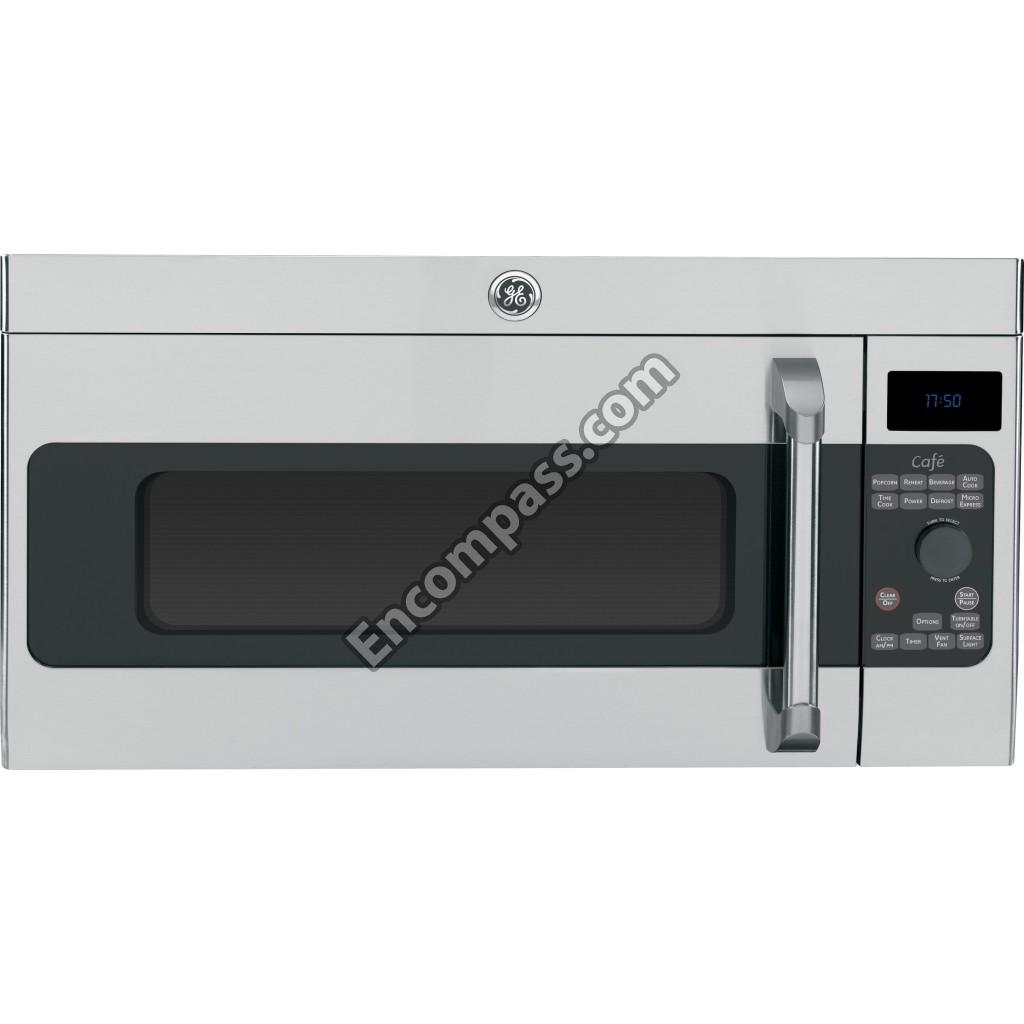

Model Image
Manufacturer

GE

Model Number

CVM1750SH2SS

Description

Microwave Or Advantium

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB10X21789 WB10X21789 "HOLDER ASM,LOCKER"
WB26X10247 WB26X10247 AC FAN MOTOR
WB26X10226 WB26X10226 AC SYNCHRONOUS MOTOR
WB02X33930 WB02X33930 AIR TUNNEL
WB02X11239 WB02X11239 AIR TUNNEL
WB56X10641 WB56X10641 BASE PLATE
WB02X32593 WB02X32593 BRACKET CAPACITOR
WB02X32716 WB02X32716 BRACKET LAMP
WB27X10808 WB27X10808 CAPACITOR

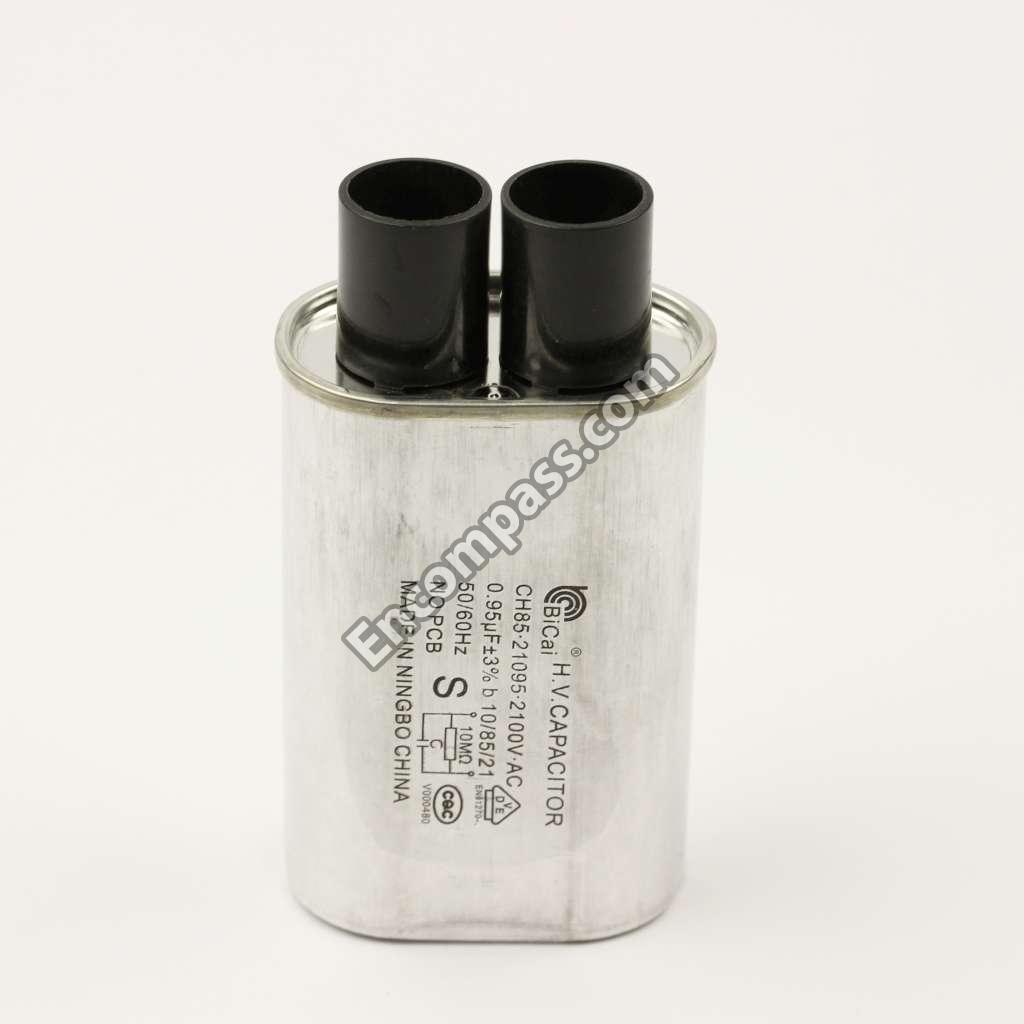

WB27X11031 WB27X11031 CAPACITOR H.V.
WB02X35607 WB02X35607 CHARCOAL FILTER
WB55X10790 WB55X10790 CHOKE COVER
WB56X23242 WB56X23242 CONTROL PANEL SUB ASSEMBLY
WB34X35371 WB34X35371 DAMPER BRACKET
WB03X21967 WB03X21967 DG CONTROL KNOB

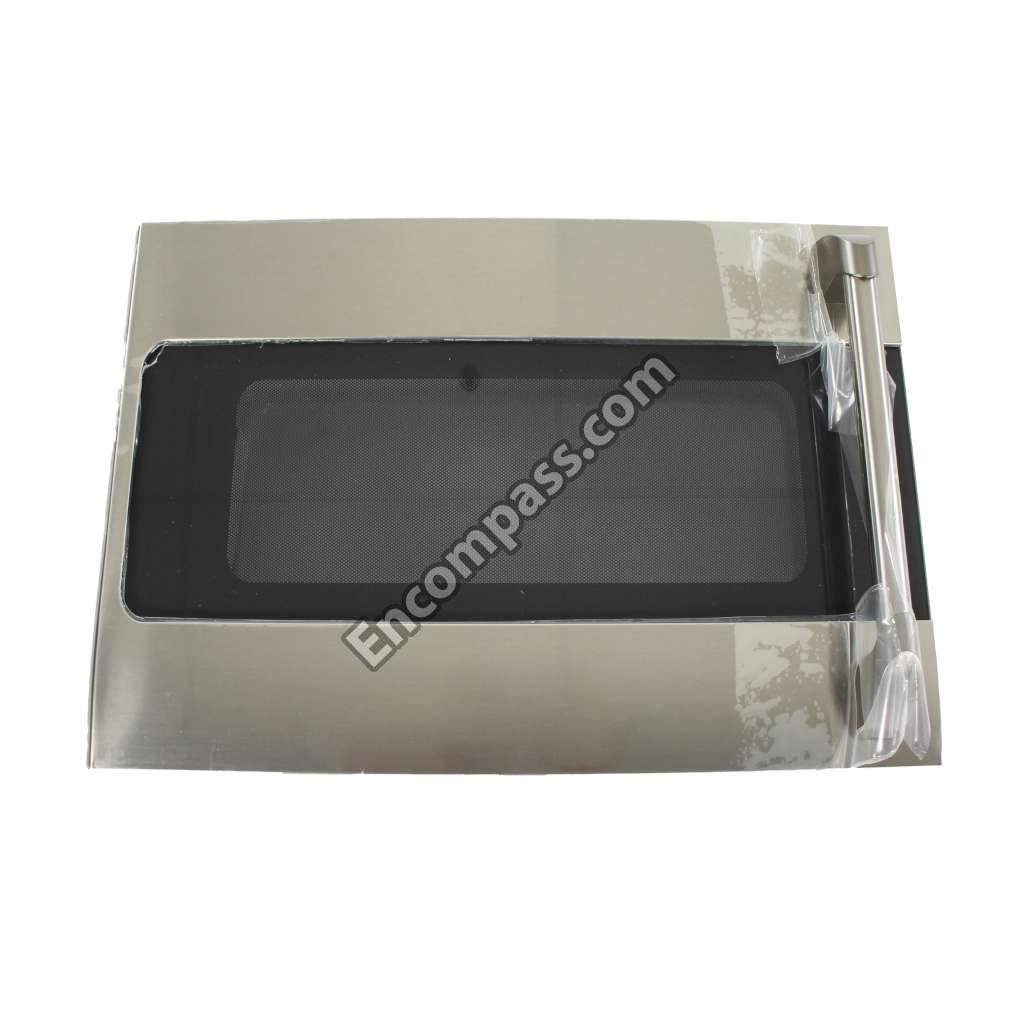

WB56X24488 WB56X24488 DOOR ASSEMBLY
WB56X21097 WB56X21097 DOOR FRAME ASSEMBLY
WB02X32764 WB02X32764 DOOR LATCH
WB02X32715 WB02X32715 EXHAUST ADAPTER
WB38X10099 WB38X10099 FAN ASSEMBLY
WB27X10519 WB27X10519 FILTER ASSEMBLY NOISE
WB36X10345 WB36X10345 GLASS
WB34X32729 WB34X32729 GUIDE AIR
WB38X10096 WB38X10096 GUIDE AIR
WB02X35488 WB02X35488 HALOGEN BULB 130V/50W
WB25X23244 WB25X23244 HALOGEN LAMP
WB18X10294 WB18X10294 HARNESS
WB02X32720 WB02X32720 HOLDER LOCKER
WB01X22142 WB01X22142 INSTALLATION H/W KIT
WB34X23247 WB34X23247 INSULATOR
WB25X23245 WB25X23245 LAMP AND HOLDER ASSEMBLY

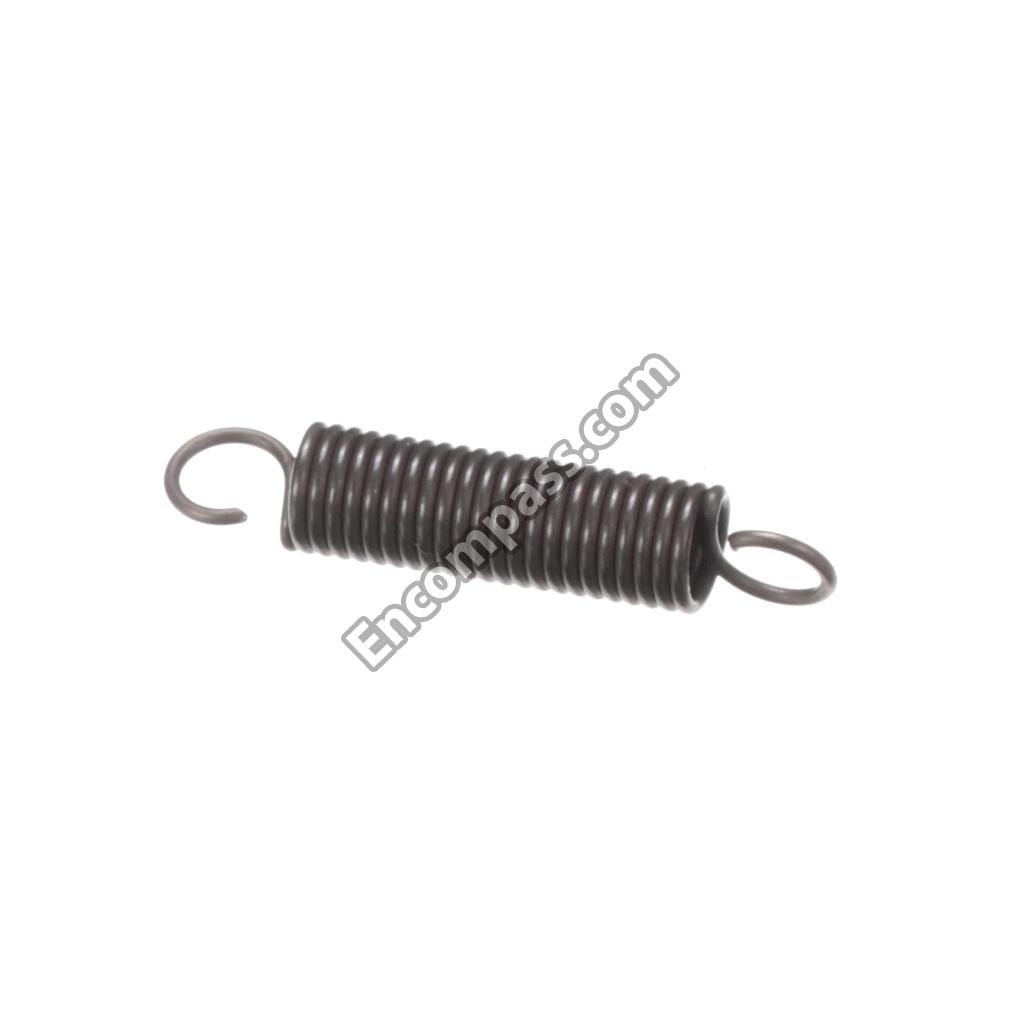

WB10X21107 WB10X21107 LATCH DOOR SPRING

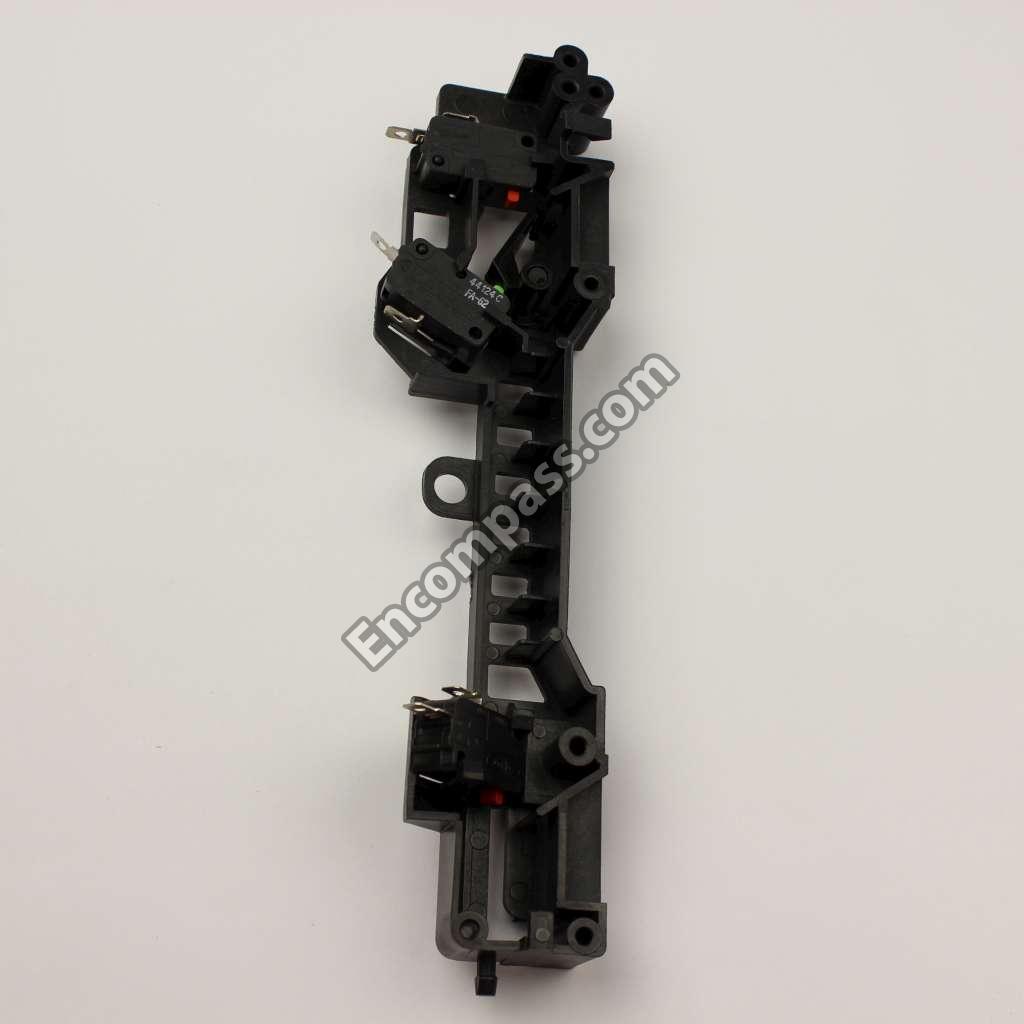

WB10X35397 WB10X35397 LOCKER HOLDER ASSEMBLY
WB27X32766 WB27X32766 MAGNETRON
WB27X44106 WB27X44106 MAGNETRON
WB18X27283 WB18X27283 MAIN HARNESS
WB27X27934 WB27X27934 MAIN PCB

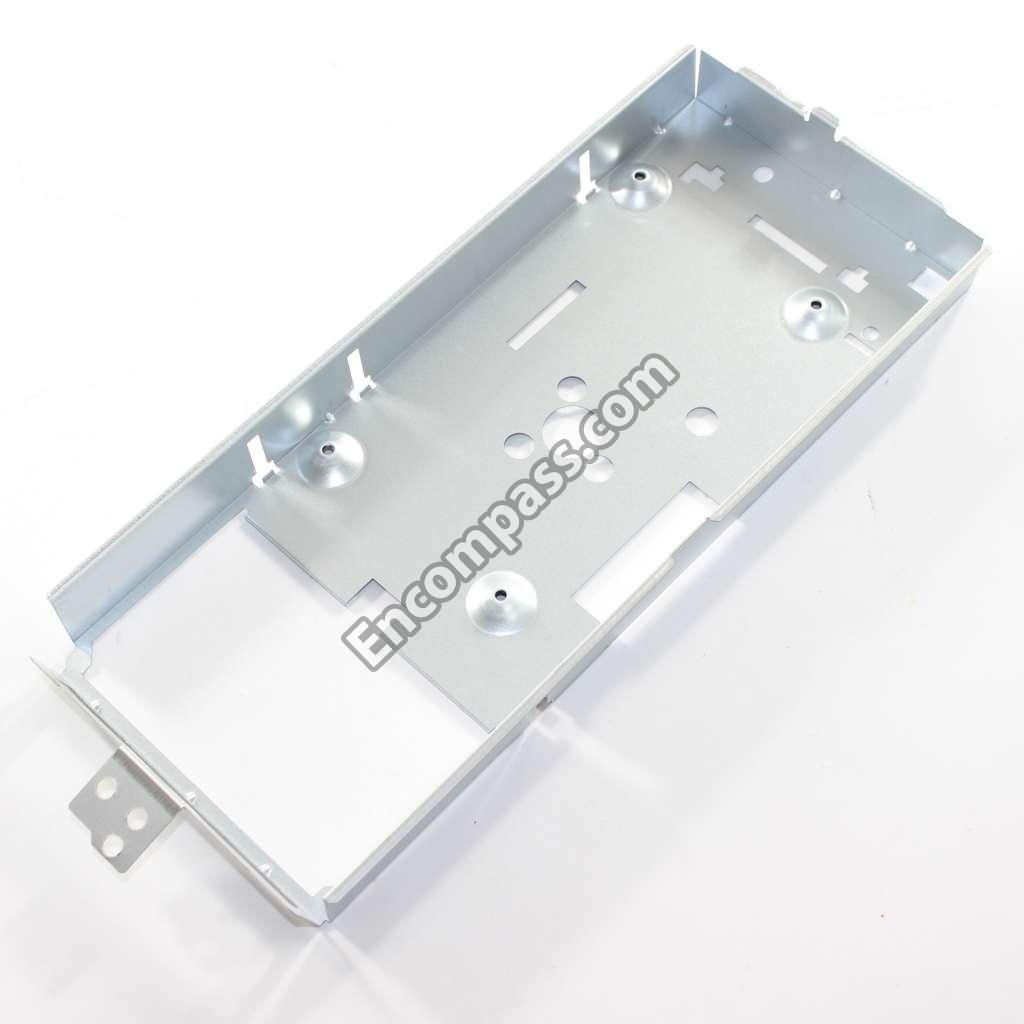

WB07X10930 WB07X10930 MICROWAVE CONTROL PANEL BRACKET
WB02X11235 WB02X11235 MICROWAVE DAMPER BRACKET
WB27X10037 WB27X10037 MICROWAVE DIODE CABLE
WB06X10565 WB06X10565 MICROWAVE EXHAUST DAMPER
WB02X32719 WB02X32719 MICROWAVE FAN COVER
WB06X10359 WB06X10359 MICROWAVE GREASE FILTER

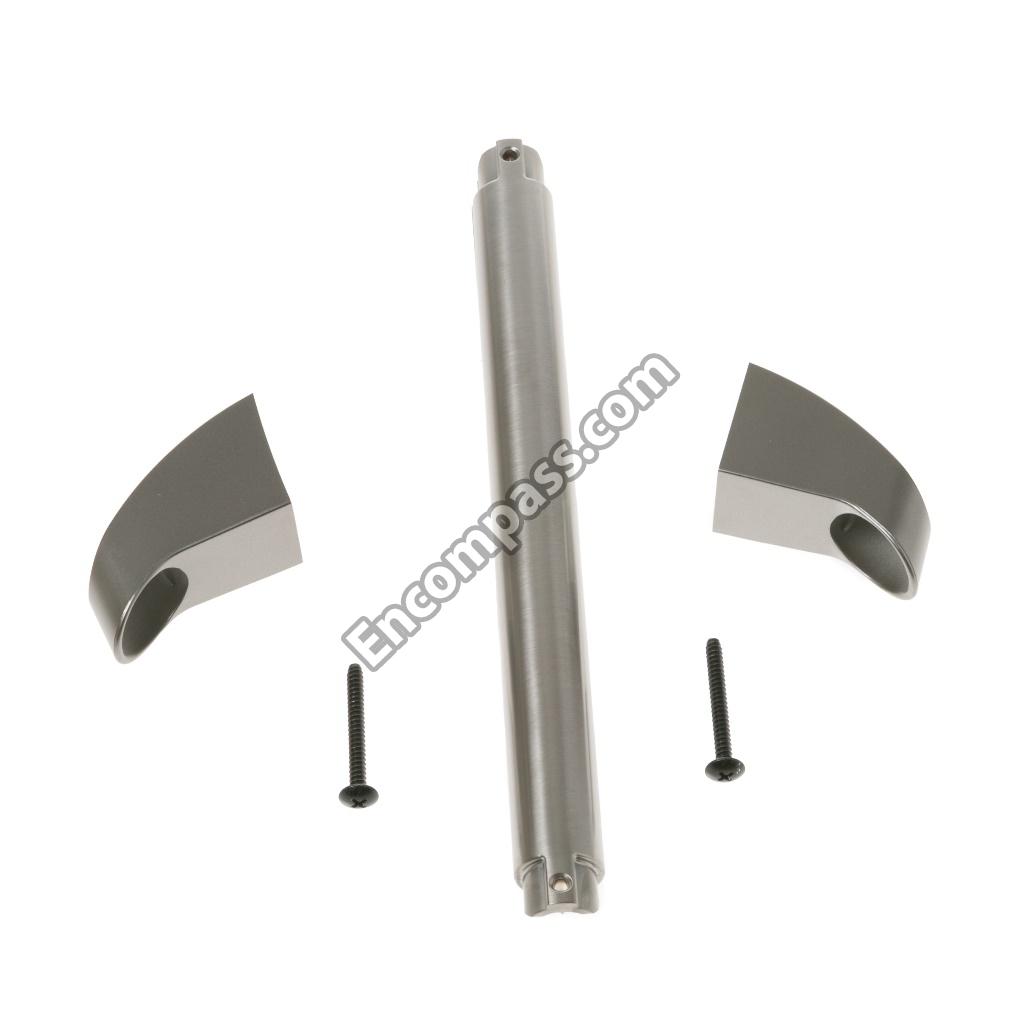

WB15X24486 WB15X24486 MICROWAVE HANDLE KIT - SS LOOK
WB02X32722 WB02X32722 MICROWAVE INSTALLATION HARDWARE
WB06X10559 WB06X10559 MICROWAVE LEVER
WB27X10928 WB27X10928 MICROWAVE LINE FUSE
WB06X10308 WB06X10308 MICROWAVE POWER CORD COVER
WB26X21108 WB26X21108 MICROWAVE TRANSFORMER
WB06X10705 WB06X10705 MICROWAVE TRAY ROLLER ASSEMBLY
WB26X36106 WB26X36106 MICROWAVE VENTILATION MOTOR
WB26X10185 WB26X10185 MOTOR(CIRC) SYNCHRONOUS
WB02X32725 WB02X32725 MOUNT VENT MOTOR COVER
WB06X10907 WB06X10907 MOUNTING PLATE ASSEMBLY
WB01X10124 WB01X10124 NUT ASSEMBLY
WB56X21105 WB56X21105 OUTER CASE
WB02X10730 WB02X10730 PAN HEAD TAPPING SCREW
WB56X10640 WB56X10640 PLATE BOTTOM
49-40724 49-40724 PM INSTALL INSTRUCTIONS
31-30682 31-30682 PM MINI MANUAL
49-40734 49-40734 PM QUICK REF OTR N-CONV
WB18X10465 WB18X10465 POWER CORD ASSEMBLY
WB06X10657 WB06X10657 PROTECTOR (MECH)
WB38X10005 WB38X10005 RANGE BLOWER FAN
WB06X10859 WB06X10859 RANGE REFLECTOR
WB39X32800 WB39X32800 RANGE SUCTION GUIDE
WB34X23243 WB34X23243 REAR COVER
WB02X10728 WB02X10728 SCREW
WB02X10720 WB02X10720 SCREW
WB01X10121 WB01X10121 SCREW
WB1X1514 WB1X1514 SCREW
WB02X10745 WB02X10745 SCREW - BINDING HEAD
WB01X10130 WB01X10130 SCREW - FUSE
WB01X1514 WB01X1514 SCREW TAPPING
WB01X10134 WB01X10134 SCREW TAPPING PAN HEAD
WB02X10760 WB02X10760 SCREW TAPPING TRUSS HEAD
WB27X10857 WB27X10857 SENSOR ASSEMBLY
WB06X45595 WB06X45595 SHAFT TURN TABLE
WB24X25397 WB24X25397 SWITCH MICRO
WB24X10047 WB24X10047 SWITCH MICRO
49-40464 49-40464 TEMPLATE TOP
49-40177 49-40177 TEMPLATE(REAR)
WB20X10048 WB20X10048 THERMOSTAT
WB20X10052 WB20X10052 THERMOSTAT
WB27X11034 WB27X11034 THERMOSTAT(PLATE)
WB49X10176 WB49X10176 TRAY GLASS.

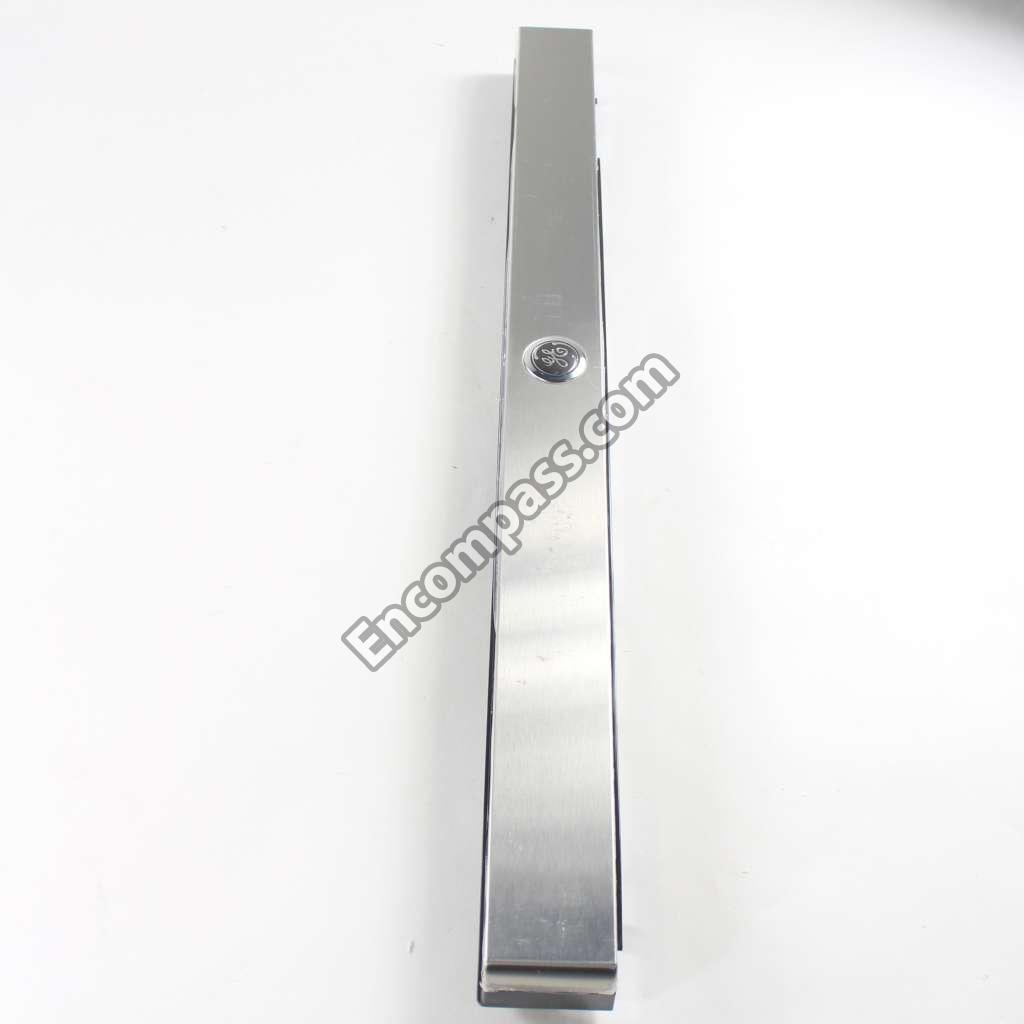

WB07X21968 WB07X21968 W/LOGO GRILLE ASSEMBLY DG
