Model Image
Manufacturer

GE

Model Number

CVM1790SS2SS

Description

Microwave Or Advantium

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB10X21789 WB10X21789 "HOLDER ASM,LOCKER"
WB26X10226 WB26X10226 AC SYNCHRONOUS MOTOR
WB02X33930 WB02X33930 AIR TUNNEL
WB02X11239 WB02X11239 AIR TUNNEL
WB56X10641 WB56X10641 BASE PLATE
WB02X32593 WB02X32593 BRACKET CAPACITOR
WB07X10930 WB07X10930 BRACKET CONTROL PANEL
WB02X11235 WB02X11235 BRACKET DAMPER
WB34X35371 WB34X35371 BRACKET DAMPER
WB02X32716 WB02X32716 BRACKET LAMP
WB27X10808 WB27X10808 CAPACITOR
WB27X11031 WB27X11031 CAPACITOR H.V.
WB56X10941 WB56X10941 CASE FLAT
WB06X10865 WB06X10865 CHAMBER

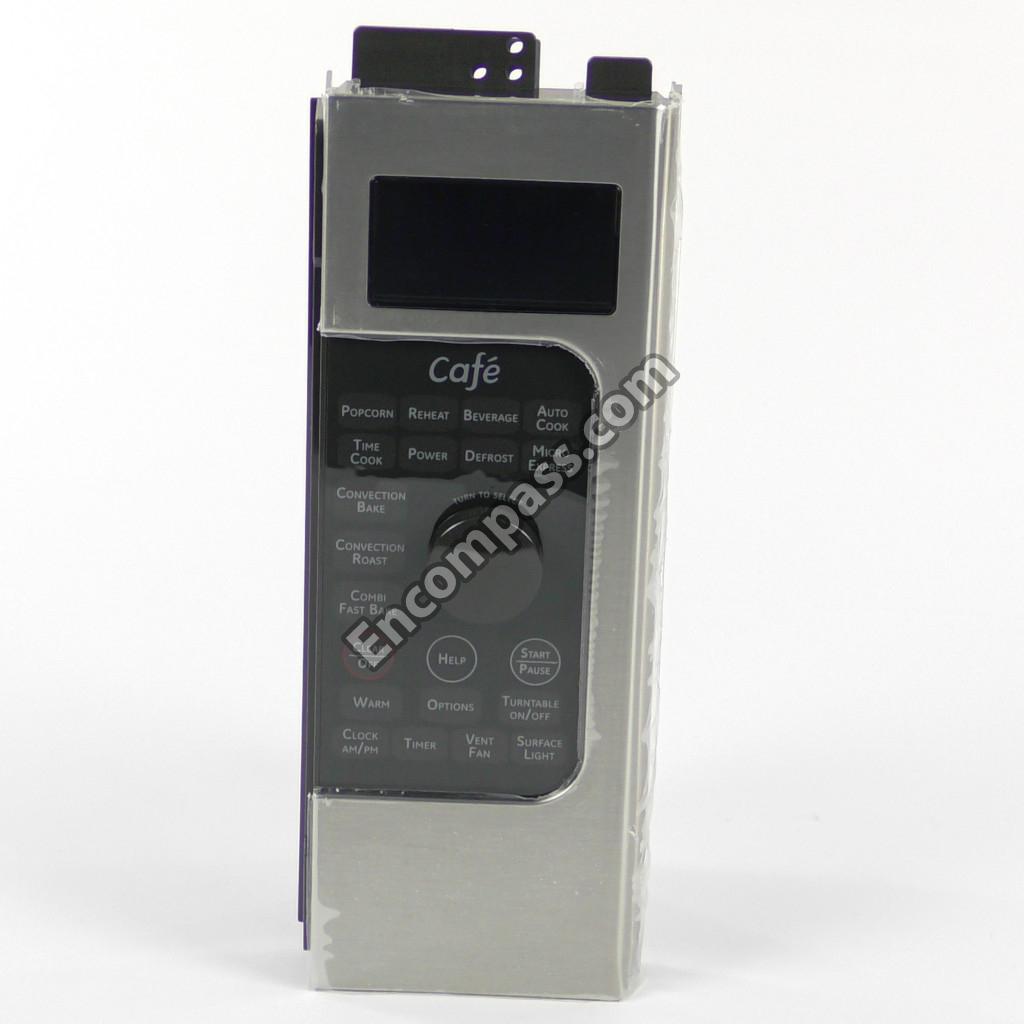

WB56X23866 WB56X23866 CONTROL PANEL ASSEMBLY
WB56X32728 WB56X32728 COVER ASM BACK
WB02X32719 WB02X32719 COVER ASM STIRRER FAN
WB02X11291 WB02X11291 COVER LAMP
WB06X10308 WB06X10308 COVER POWER CORD
WB03X21967 WB03X21967 DG CONTROL KNOB

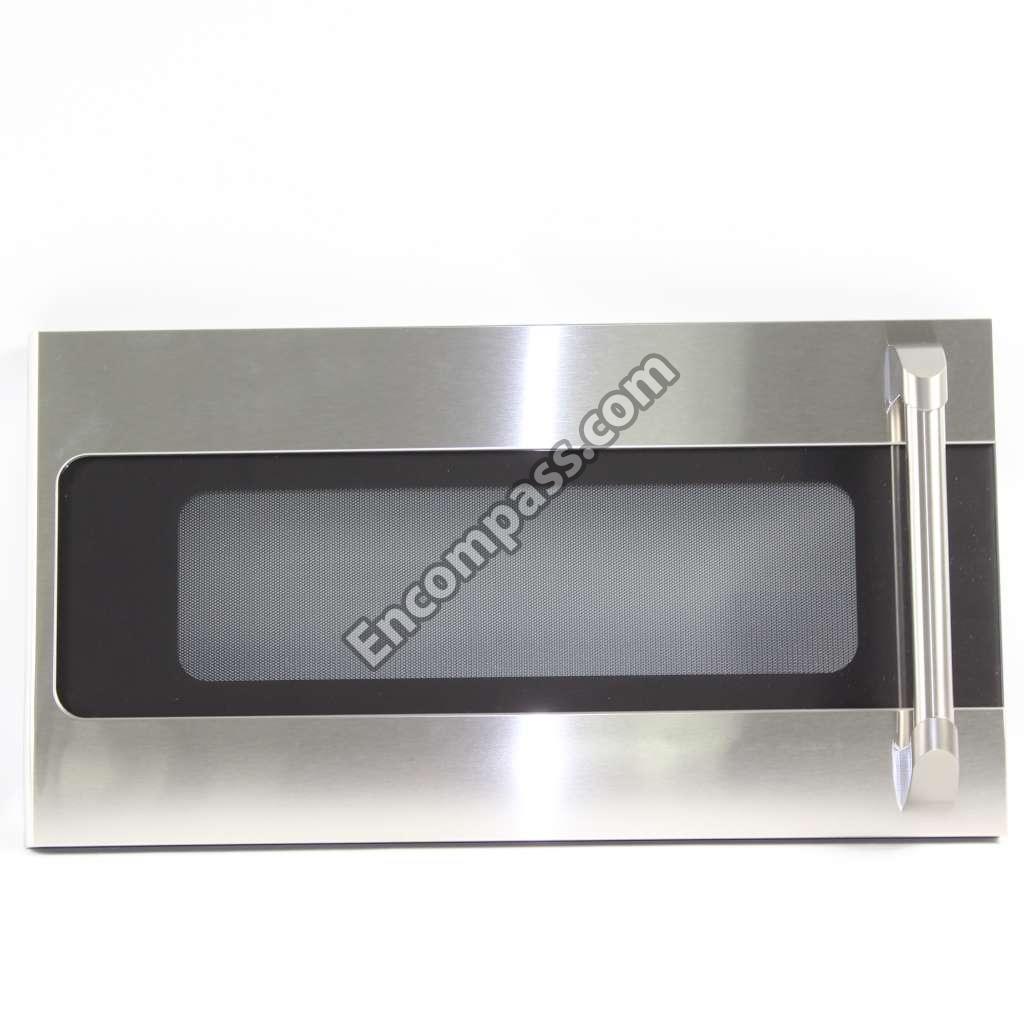

WB56X23868 WB56X23868 DOOR ASM
WB56X25402 WB56X25402 DOOR ASSEMBLY
WB02X32715 WB02X32715 EXHAUST ADAPTER
WB02X32727 WB02X32727 FAN
WB38X10099 WB38X10099 FAN ASM
WB38X10005 WB38X10005 FAN BLADE
WB27X10519 WB27X10519 FILTER ASSEMBLY NOISE
WB06X10359 WB06X10359 FILTER GREASE
WB36X10345 WB36X10345 GLASS
WB07X21968 WB07X21968 GRILLE ASM W/LOGO
WB38X10096 WB38X10096 GUIDE AIR
WB34X32729 WB34X32729 GUIDE AIR
WB39X32800 WB39X32800 GUIDE SUCTION
WB25X10019 WB25X10019 HALOGEN LAMP
WB18X10294 WB18X10294 HARNESS
WB18X10466 WB18X10466 HARNESS SINGLE
WB44X10046 WB44X10046 HEATER SHEATH
WB02X32605 WB02X32605 HOLDER - HEATER
WB06X10783 WB06X10783 HOLDER ASM
WB06X10554 WB06X10554 HOLDER ASSEMBLY
WB02X32720 WB02X32720 HOLDER LOCKER
WB01X10414 WB01X10414 HOUSING SUPPORTER
WB01X22142 WB01X22142 INSTALLATION H/W KIT
WB06X10661 WB06X10661 INSULATOR
WB06X10663 WB06X10663 INSULATOR ASSEMBLY
WB06X10662 WB06X10662 INSULATOR ASSEMBLY
WB03X10339 WB03X10339 KNOB SS CONTROL
WB02X35488 WB02X35488 LAMP HALOGEN
WB06X10559 WB06X10559 LEVER SWITCH-LOWER
WB10X35397 WB10X35397 LOCKER HOLDER ASSEMBLY
WB27X32766 WB27X32766 MAGNETRON
WB27X44106 WB27X44106 MAGNETRON

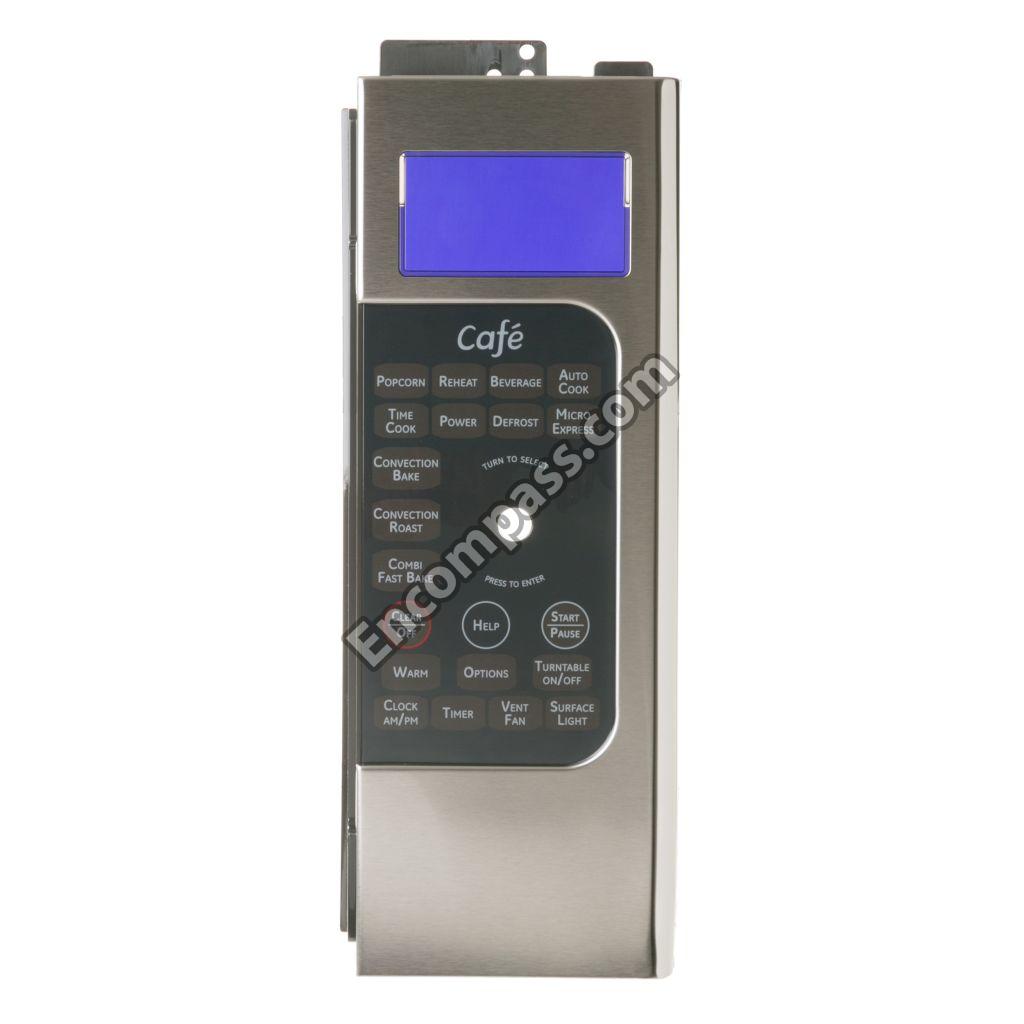

WB56X23862 WB56X23862 MICROWAVE CONTROL PANEL - SS AND BLACK
WB27X10037 WB27X10037 MICROWAVE DIODE CABLE
WB06X10565 WB06X10565 MICROWAVE EXHAUST DAMPER
WB15X24486 WB15X24486 MICROWAVE HANDLE KIT - SS LOOK
WB27X10928 WB27X10928 MICROWAVE LINE FUSE
WB26X36106 WB26X36106 MICROWAVE VENTILATION MOTOR
WB26X10247 WB26X10247 MOTOR AC FAN
WB26X10248 WB26X10248 MOTOR AC SYNCHRONOUS
WB26X10270 WB26X10270 MOTOR(CIRC) CIRCULATION
WB26X10185 WB26X10185 MOTOR(CIRC) SYNCHRONOUS
WB02X32725 WB02X32725 MOUNT VENT MOTOR COVER
WB06X10907 WB06X10907 MOUNTING PLATE ASSM
WB01X10124 WB01X10124 NUT ASSEMBLY
WB01X1520 WB01X1520 NUT COMMON
WB02X32755 WB02X32755 NUT HEXAGON
WB1X1520 WB1X1520 NUT HEXAGON
WB02X32722 WB02X32722 OTR HARDWARE ASM BAG
WB56X21105 WB56X21105 OUTER CASE
WB56X10640 WB56X10640 PLATE BOTTOM
WB56X32723 WB56X32723 PLATE SIDE HEATER
49-40654 49-40654 PM INSTALLATION INSTRUCT
31-41067 31-41067 PM MINI MANUAL
49-40729 49-40729 PM QUICK REF OTR CONV
WB18X10465 WB18X10465 POWER CORD ASM
WB06X10657 WB06X10657 PROTECTOR (MECH)

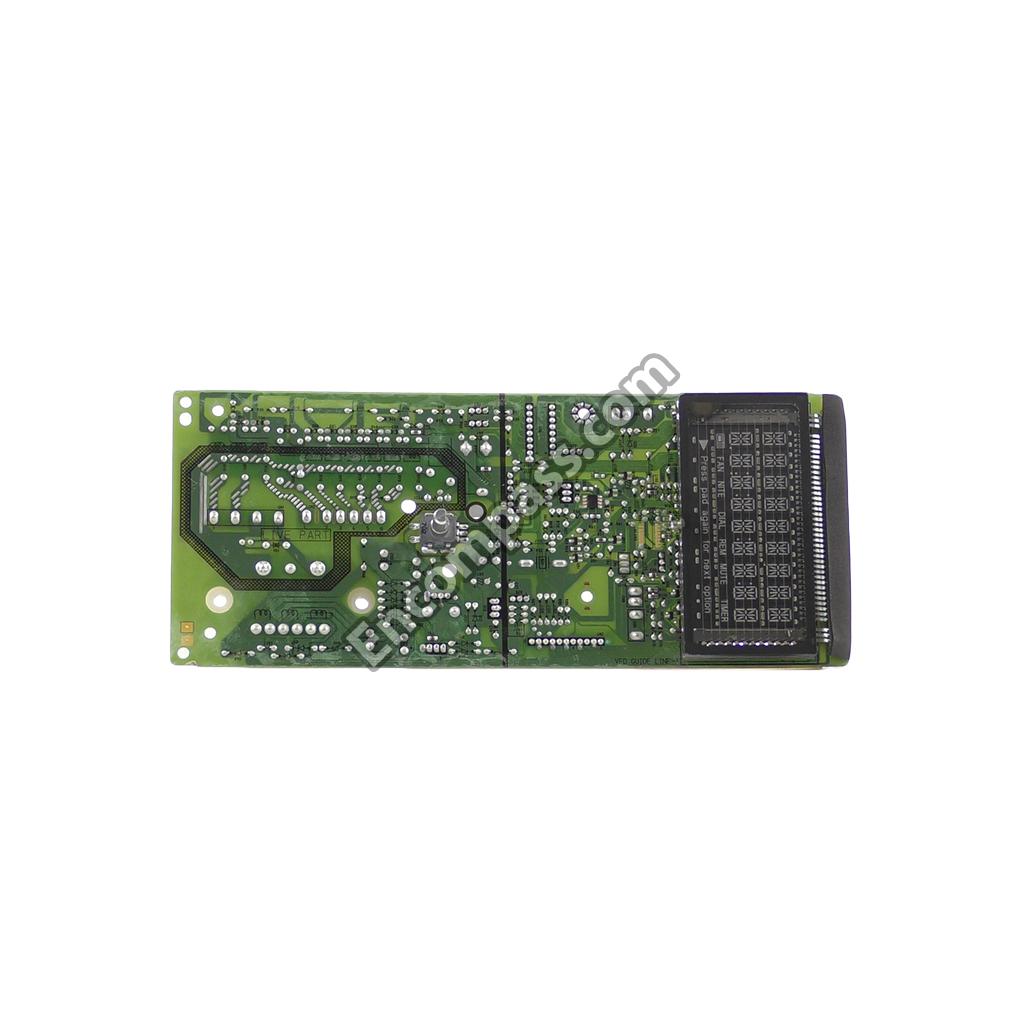

WB27X10866 WB27X10866 PWB(PCB) ASM SUB
WB02X10750 WB02X10750 RACK HOLDER
WB06X10859 WB06X10859 REFLECTOR
WB01X10121 WB01X10121 SCREW
WB1X1514 WB1X1514 SCREW
WB01X10130 WB01X10130 SCREW - FUSE
WB02X10728 WB02X10728 SCREW - HAND
WB02X10730 WB02X10730 SCREW - PAN HEAD TAPPING
WB01X1514 WB01X1514 SCREW TAPPING
WB01X10134 WB01X10134 SCREW TAPPING PAN HEAD
WB02X10720 WB02X10720 SCREW TAPPING TRUSS HEAD
WB02X10760 WB02X10760 SCREW TAPPING TRUSS HEAD
WB27X10857 WB27X10857 SENSOR ASM
WB06X45595 WB06X45595 SHAFT TURN TABLE
WB48X10064 WB48X10064 SHELF
WB24X25397 WB24X25397 SWITCH MICRO
WB24X10047 WB24X10047 SWITCH MICRO
WB01X23440 WB01X23440 TAPPING SCREW - TRUSS HEAD
WB18X10126 WB18X10126 THERMISTOR
WB20X10052 WB20X10052 THERMOSTAT
WB20X10048 WB20X10048 THERMOSTAT
WB27X11034 WB27X11034 THERMOSTAT(PLATE)
WB26X21108 WB26X21108 TRANSFORMER H.V.
WB49X10176 WB49X10176 TRAY GLASS.
WB06X10705 WB06X10705 TURNTABLE ASM
WB01X1522 WB01X1522 WASHER COMMON
WB1X1522 WB1X1522 WASHER SPLK
WB02X10745 WB02X10745 WB02X10745
