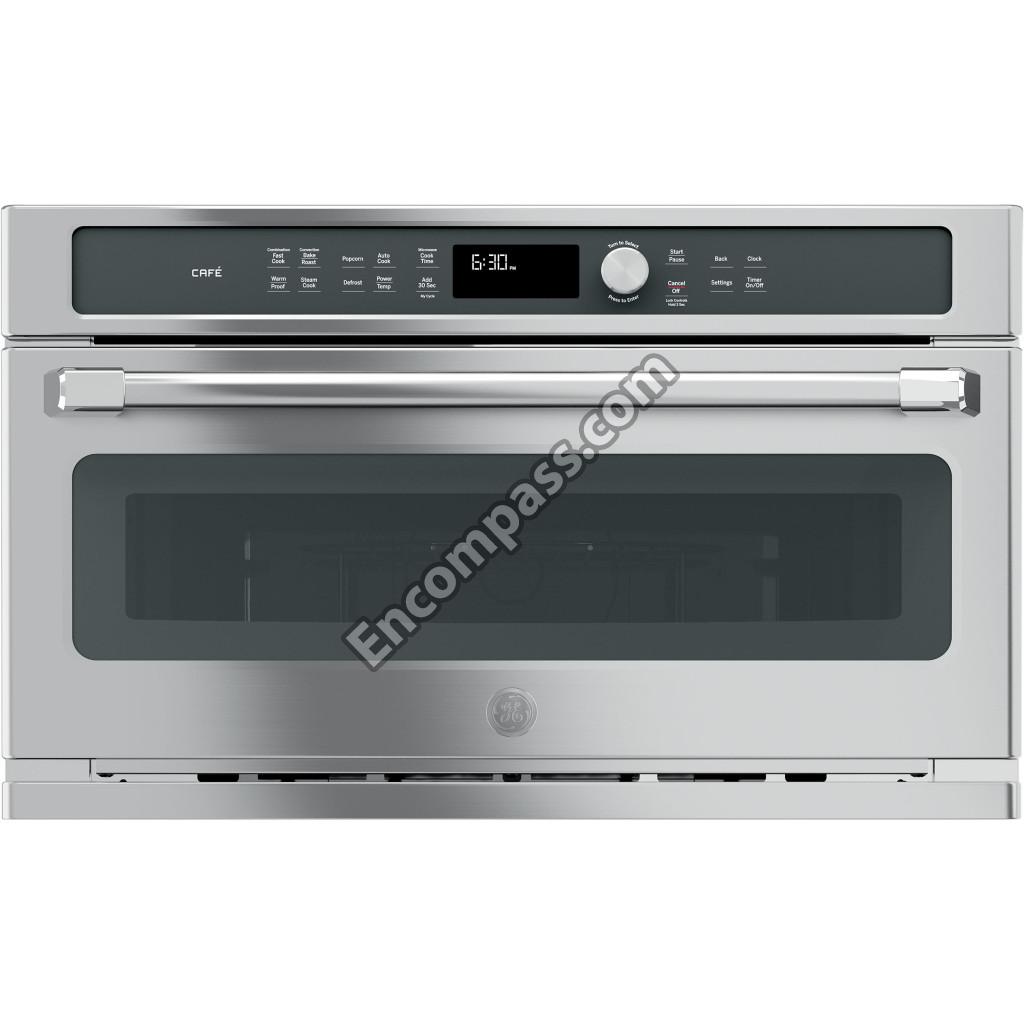

Model Image
Manufacturer

GE

Model Number

CWB7030SL3SS

Description

Microwave Or Advantium

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB18X33767 WB18X33767 "HARNESS, SINGLE"
WB26X10211 WB26X10211 AC FAN MOTOR
WB34X32602 WB34X32602 AIR TUNNEL
WB07X32844 WB07X32844 BARRIER SS
WB63X21381 WB63X21381 BASE PLATE
WB02X32634 WB02X32634 BOARD SUPPORTER
WB07X32854 WB07X32854 BOTTOM TRIM
WB02X32593 WB02X32593 BRACKET CAPACITOR
WB02X11223 WB02X11223 BRACKET HEATER
WB06X10638 WB06X10638 CANOPY MICA
WB06X10642 WB06X10642 CHAMBER
WB02X32630 WB02X32630 CONTROL BOARD BRACKET
WB56X32917 WB56X32917 CONTROL PANEL ASSEMBLY
WB02X24481 WB02X24481 COVER TOP
WB27X10856 WB27X10856 DIGITRON
WB01X34910 WB01X34910 DOOR REMOVAL TOOL
WB34X32584 WB34X32584 DOOR SWITCH ACCESS COVER
WB34X32608 WB34X32608 DUCT ASSEMBLY
WB56X32578 WB56X32578 FLAT OUTER CASE
WB06X10650 WB06X10650 GLASS WOOL
WB02X35488 WB02X35488 HALOGEN BULB 130V/50W
WB18X27764 WB18X27764 HARNESS SINGLE
WB18X32597 WB18X32597 HARNESS WIRE
WB44X41528 WB44X41528 HEATER MIRACLON
WB44X10050 WB44X10050 HEATER SHEATH
WB17X10030 WB17X10030 HIGH VOLTAGE TRANSFORMER
WB02X32605 WB02X32605 HOLDER - HEATER
WB02X32855 WB02X32855 HOLDER DISPLAY
WB02X11233 WB02X11233 HOLDER WIRE
WB27X30032 WB27X30032 INDICATOR
WB01X32574 WB01X32574 INSTALLATION HARDWARE
WB34X32583 WB34X32583 LIGHT COVER
WB26X32629 WB26X32629 MAGNETRON
WB27X32915 WB27X32915 MAIN BOARD
WB02X32590 WB02X32590 MICROWAVE BARRIER BRACKET
WB06X10641 WB06X10641 MICROWAVE BOTTOM PANEL
WB06X10570 WB06X10570 MICROWAVE BRACKET
WB02X11225 WB02X11225 MICROWAVE BRACKET
WB02X32591 WB02X32591 MICROWAVE BRACKET
WB27X11033 WB27X11033 MICROWAVE CAPACITOR
WB27X10037 WB27X10037 MICROWAVE DIODE CABLE
WB34X32594 WB34X32594 MICROWAVE DUCT ASSEMBLY
WB26X32609 WB26X32609 MICROWAVE FAN MOTOR
WB06X10646 WB06X10646 MICROWAVE HOLDER ASSEMBLY
WB10X32573 WB10X32573 MICROWAVE LATCH BODY - LEFT
WB10X32577 WB10X32577 MICROWAVE LATCH BODY - RT
WB02X32588 WB02X32588 MICROWAVE LEVER
WB27X10928 WB27X10928 MICROWAVE LINE FUSE
WB24X25397 WB24X25397 MICROWAVE MONITOR SWITCH
WB34X32592 WB34X32592 MICROWAVE PROTECTOR
WB02X22095 WB02X22095 MICROWAVE SUPPORTER
WB07X32622 WB07X32622 MICROWAVE TRIM - RIGHT
WB26X10193 WB26X10193 MOTOR TURNTABLE
WB26X10182 WB26X10182 MOTOR(CIRC) CIRCULATION
WB34X32596 WB34X32596 MOUNT
WB02X32599 WB02X32599 MOUNT
WB6X475 WB6X475 MTR CL BLADE
WB02X35865 WB02X35865 NOISE FILTER
WB01X1520 WB01X1520 NUT COMMON
WB1X1520 WB1X1520 NUT HEXAGON
31-2000001 31-2000001 PM INSTALL INSTRUCTIONS
31-2000001-1 31-2000001-1 PM INSTALLATION INSTRUCTIONS
31-30816 31-30816 PM MINI MANUAL
49-40777 49-40777 PM USE AND CARE MANUAL
WB27X32842 WB27X32842 POWER BOARD
WB27X43190 WB27X43190 POWER CORD ASSEMBLY
WB49X10213 WB49X10213 RACK
WB07X32843 WB07X32843 RANGE BOTTOM PLATE
WB03X10281 WB03X10281 RANGE KNOB - STAINLESS STEEL
WB02X10542 WB02X10542 RANGE MOTOR BRACKET
WB02X11318 WB02X11318 REFLECTOR
WB27X32916 WB27X32916 RELAY BOARD
WB02X32600 WB02X32600 ROTATING RING ASSEMBLY
WB02X10726 WB02X10726 SCREW
WB01X10121 WB01X10121 SCREW
WB02X10745 WB02X10745 SCREW - BINDING HEAD
WB01X1504 WB01X1504 SCREW - HEATER SHEATH
WB1X1504 WB1X1504 SCREW TRUSS
WB02X32576 WB02X32576 SEAL TAPE
WB27X10857 WB27X10857 SENSOR ASSEMBLY
WB06X10693 WB06X10693 SHAFT ASSEMBLY
WB1X1518 WB1X1518 SHAFT RING
WB56X32696 WB56X32696 STAINLESS STEEL DOOR
WB27X32846 WB27X32846 SUB PCB ASSEMBLY
WB24X10047 WB24X10047 SW PRIM INTERLOCK & DOOR
WB18X10287 WB18X10287 THERMISTOR NTC
WB21X10149 WB21X10149 THERMOSTAT
WB20X10048 WB20X10048 THERMOSTAT
WB27X43590 WB27X43590 TRAY GLASS
WB07X32627 WB07X32627 TRIM LH
WB01X1522 WB01X1522 WASHER COMMON
WB1X1521 WB1X1521 WASHER PLAIN
WB1X1522 WB1X1522 WASHER SPLK
WB01X1521 WB01X1521 WASHER- PLAIN
