HOTCWE23SP4MEW2

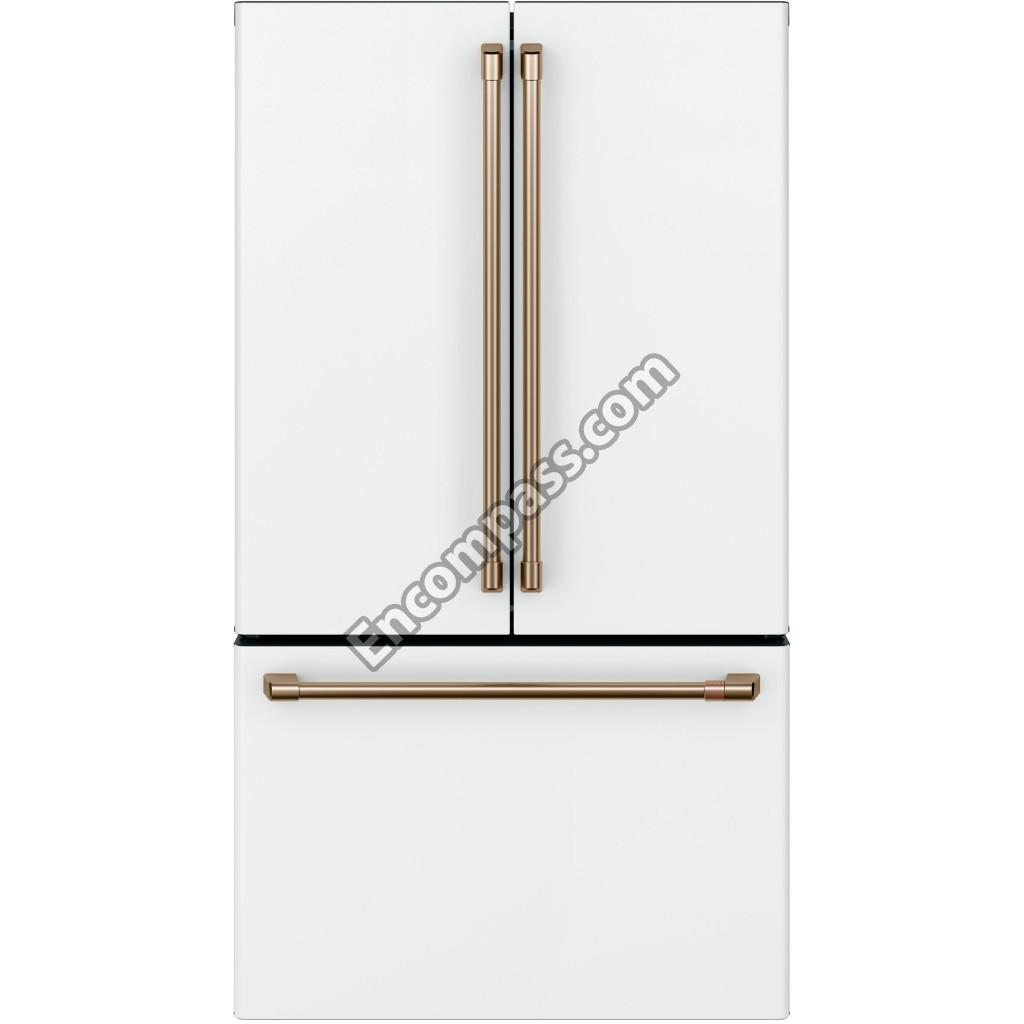

Model Image
Manufacturer

GE

Model Number

CWE23SP4MEW2

Description

Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WR97X10142 WR97X10142 GE 10MM X 8MM LOKRING
WR97X10143 WR97X10143 GE 3.5MM X 3.5MM LOKRING
WR97X10140 WR97X10140 GE 3MM X 2MM LOKRING
WR97X10137 WR97X10137 GE 4MM X 4MM LOKRING
WR97X10075 WR97X10075 GE 5MM X 4MM LOKRING
WR97X10034 WR97X10034 GE 6MM X 5MM LOKRING
WR97X10076 WR97X10076 GE 8.5MM X 6MM LOKRING
WR02X29370 WR02X29370 GE 8911201P328
WR97X10035 WR97X10035 GE 8MM X 2MM LOKRING
WR97X10021 WR97X10021 GE 8MM X 8MM LOKRING
WR23X29160 WR23X29160 GE AC DOOR SWITCH HARNESS
WR32X32028 WR32X32028 GE ADJUSTABLE TEMPERATURE DRAWER BIS
WR17X35668 WR17X35668 GE AIR TOWER
WR32X10910 WR32X10910 GE ART FRAME VP ASSEMBLY
WR01X11008 WR01X11008 GE AXLE WHEEL
WR17X13045 WR17X13045 GE BAFFLE COND AIR
WR02X21803 WR02X21803 GE BAR REINFORCEMENT
WR21X10254 WR21X10254 GE BASKET BOTTOM ASSEMBLY
WR32X26450 WR32X26450 GE BASKET UPPER ASM
WR71X11068 WR71X11068 GE BIN COND LH FF ASSEMBLY
WR71X11040 WR71X11040 GE BIN COND RH FF ASSEMBLY
WR71X11063 WR71X11063 GE BIN DAIRY RH FF ASSEMBLY
WR71X11038 WR71X11038 GE BIN FREEZER
WR71X11067 WR71X11067 GE BIN GAL LH FF ASSEMBLY
WR71X11044 WR71X11044 GE BIN GAL RH FF ASSEMBLY
WR02X13725 WR02X13725 GE BLOCK EVAPORATOR SEAL
WR02X13622 WR02X13622 GE BRACKET CONDENSER
WR02X36886 WR02X36886 GE BRACKET DOOR FZ LH
WR02X25185 WR02X25185 GE BRACKET DOOR FZ RH
WR17X13069 WR17X13069 GE BRACKET FILTER MANIFOLD
WR17X13195 WR17X13195 GE BRACKET SLIDE FZ LH
WR17X13194 WR17X13194 GE BRACKET SLIDE FZ RH
WR12X32177 WR12X32177 GE BRUSHED BLACK FREEZER DOOR HANDLE W/CAFE
WR12X30443 WR12X30443 GE BRUSHED BLACK FRESH FOOD DOOR H AND LE
WR12X44294 WR12X44294 GE BRUSHED BRASS DOOR HANDLE
WR12X44303 WR12X44303 GE BRUSHED BRASS DOOR HANDLE W/ CAFE BAND
WR12X32006 WR12X32006 GE BRUSHED BRONZE FREEZR DOOR HANDLE W/CAFE
WR12X31663 WR12X31663 GE BRUSHED BRONZE FRESH FOOD DOOR H AND LE
WR12X32182 WR12X32182 GE BRUSHED COPPER FREEZR DOOR HANDLE W/CAFE
WR12X31652 WR12X31652 GE BRUSHED COPPER FRESH FOOD DOOR H AND LE
WR12X30436 WR12X30436 GE BRUSHED SS FREEZR DOOR H AND L W/CAFE B AND
WR12X27968 WR12X27968 GE BRUSHED STAINLESS FRESH FOOD DOOR H AND LE
WR30X23327 WR30X23327 GE BUCKET ICE ASSEMBLY
WR02X13627 WR02X13627 GE CAM VERT ADJUSTMENT
WR02X13759 WR02X13759 GE CAP CASE CORNER ASSEMBLY DGY
WR02X29328 WR02X29328 GE CENTER TRACK SCREW COVER
WR02X10522 WR02X10522 GE CLAMP TUBE
WR02X10879 WR02X10879 GE CLIP EVAPORATOR THERMISTOR
WR01X11064 WR01X11064 GE CLIP PHGL
WR17X27628 WR17X27628 GE COILED COLD WATER TANK
WR84X34173 WR84X34173 GE COMPRESSOR DISCHARGE JUMPER TUBE
WR02X28299 WR02X28299 GE COMPRESSOR MOUNTING CLIP
WR84X10115 WR84X10115 GE CONDENSER ASSEMBLY FORMED
WR02X13631 WR02X13631 GE CONNNECTOR GEAR PINION
WR55X39247 WR55X39247 GE CONTROL LH DOOR SIDE ASM
WR82X37208 WR82X37208 GE COVER ACCESS
WR17X35246 WR17X35246 GE COVER FAN FZ
WR02X13730 WR02X13730 GE COVER HARNESS
WR02X11614 WR02X11614 GE COVER HARNESS
WR55X30604 WR55X30604 GE COVER LED FZ ASSEMBLY
WR02X25126 WR02X25126 GE COVER MAINBOARD
WR02X26526 WR02X26526 GE COVER WATER FILTER ASSEMBLY
WR02X13765 WR02X13765 GE CROSSBAR PINION
WR30X25485 WR30X25485 GE CUP FILL FZ IM
WR17X24925 WR17X24925 GE DAMPER VEGETABLE PAN
WR55X31590 WR55X31590 GE DELI PAN BOARD
WR32X30867 WR32X30867 GE DELI PAN BOARD AND TOP COVER
WR72X31329 WR72X31329 GE DELI PAN TOP REAR COVER
WR32X40765 WR32X40765 GE DIFFUSER MEAT PAN
WD02X10129 WD02X10129 GE DISHWASHER 6-19X1/4 TORX PAN HEAD SCREW
WR55X10794 WR55X10794 GE DISPENSER ASSEMBLY
WR02X13764 WR02X13764 GE DIVIDER BASKET BOTTOM
WR02X23046 WR02X23046 GE DIVIDER BASKET UPPER
WR17X13086 WR17X13086 GE DIVIDER GALLON BIN
WR17X13193 WR17X13193 GE DIVIDER MEAT PAN
WR11X38266 WR11X38266 GE DOOR CLOSURE LH
WR17X13240 WR17X13240 GE DORIAN GRAY ARTICULATING MULLION
WR86X25269 WR86X25269 GE DRYER FILTER
WR87X36103 WR87X36103 GE EVAPORATOR AND TUBE ASSEMBLY FF
WR87X36102 WR87X36102 GE EVAPORATOR AND TUBE ASSEMBLY FZ
WR60X23363 WR60X23363 GE FAN GASKET ASSEMBLY
WR29X10110 WR29X10110 GE FEELER ARM
WR01X11033 WR01X11033 GE FEELER ARM SPRING
WR55X11132 WR55X11132 GE FF COVER LED ASSEMBLY
WR02X13684 WR02X13684 GE FILTER MANIFOLD
WR12X44276 WR12X44276 GE FLAT BLACK FREEZER DOOR HANDLE W/ CAFE
WR12X44267 WR12X44267 GE FLAT BLACK REFRIGERATOR DOOR HANDLE
WR02X29333 WR02X29333 GE FOAM SEAL
WR78X37410 WR78X37410 GE FREEZER DRAWER FRONT - WHITE S
WR17X34326 WR17X34326 GE FREEZER EVAPORATOR COVER
WR60X35669 WR60X35669 GE FREEZER EVAPORATOR FAN
WR23X29161 WR23X29161 GE FRESH FOOD DOOR LIGHT SWITCH
WR17X28921 WR17X28921 GE FRESH FOOD FAN CONNECTOR COVER
WR02X30166 WR02X30166 GE FRESH FOOD FAN MOUNTING GASKET
WR55X48386 WR55X48386 GE FRESH FOOD LED CHROME
WR78X30556 WR78X30556 GE FRIDGE DOOR-FF RIGHT H AND MATTE WHITE
WR49X10268 WR49X10268 GE FRONT/REAR WHEEL AND AXLE
WR14X29300 WR14X29300 GE GASKET FF DGY
WR14X36194 WR14X36194 GE GASKET FZ DGY ES
WR02X13630 WR02X13630 GE GEAR LWR DRW LH
WR02X13629 WR02X13629 GE GEAR LWR DRW RH
WR32X10911 WR32X10911 GE GLASS VEGETABLE PAN
WR72X27074 WR72X27074 GE GLIDE SUPPORT LH AND RH BIS
WR02X23082 WR02X23082 GE GROMMET
WR02X13719 WR02X13719 GE GROMMET COMPRESSOR
WR02X13760 WR02X13760 GE GROMMET FF LINER
WR14X10055 WR14X10055 GE GROMMET TUBING SLIT.
WR72X10447 WR72X10447 GE GUIDE ROLLER VEGETABLE PAN
WR23X10777 WR23X10777 GE HARNESS DOOR CASE
WR23X10748 WR23X10748 GE HARNESS GROUND
WR23X24389 WR23X24389 GE HARNESS POWER CORD
WR51X10133 WR51X10133 GE HEATER CONDUCTION FF
WR51X10134 WR51X10134 GE HEATER CONDUCTION FZ
WR51X10132 WR51X10132 GE HEATER DEF ASSEMBLY FF
WR51X10131 WR51X10131 GE HEATER DEF ASSEMBLY FZ
WR23X23626 WR23X23626 GE HEATER HARNESS FF
WR23X10745 WR23X10745 GE HEATER HARNESS FZ W/TCO
WR02X13739 WR02X13739 GE HINGE CAP
WR13X10984 WR13X10984 GE HINGE CENTER MULLION
WR17X20164 WR17X20164 GE HINGE ENDCAP ASSEMBLY DGY (2PK)
WR13X10985 WR13X10985 GE HINGE MULLION
WR13X25911 WR13X25911 GE HINGE TOP PIN ASSEMBLY LH
WR13X25910 WR13X25910 GE HINGE TOP PIN ASSEMBLY RH
WR02X10518 WR02X10518 GE HOLDER ELEMENT
WR02X13678 WR02X13678 GE HOLDER ELEMENT ASSEMBLY
WR17X23054 WR17X23054 GE HOUSING WIRE IM FZ
WR55X34645 WR55X34645 GE HUMIDITY AND WIFI BOARD
WR30X28682 WR30X28682 GE ICEMAKER
WR84X27946 WR84X27946 GE JUMPER COMPRESSOR SUCTION TUBE
WR02X13770 WR02X13770 GE KIT ANTI TIP ASSEMBLY
WR02X13724 WR02X13724 GE MASTIC SOUND DEADENING
WR72X29093 WR72X29093 GE MEAT PAN SLIDE
WR01X31733 WR01X31733 GE MULLION STRIKER
WR55X30430 WR55X30430 GE NON-DISPENSER CONTROL MATTE WHITE
WR04X23038 WR04X23038 GE OVERLAY MEAT PAN ASSEMBLY
WR02X32130 WR02X32130 GE PEX WATER LINE
WR02X48625 WR02X48625 GE PEX WATER LINE
WR01X11023 WR01X11023 GE PIN CROSS BAR
WR2X8247 WR2X8247 GE PLUG BUTTON
WR02X8247 WR02X8247 GE PLUG BUTTON WATER FILL
WR02X20877 WR02X20877 GE PLUG CONDUIT WATER TANK
31-1000465 31-1000465 GE PM MINI MANUAL AND WIRING
WR01X11040 WR01X11040 GE QUICK CLIP CONN 5/16
WR01X11041 WR01X11041 GE QUICK CLIP CONNECTOR 1/4
WR78X37423 WR78X37423 GE REFIGERATOR DOOR - FRESH FOOD LEFT HAND
RPWFE RPWFE GE REFRIGERATION WATER FILTER
WR55X24064 WR55X24064 GE REFRIGERATOR CAPACITOR
WR13X32039 WR13X32039 GE REFRIGERATOR CENTER HINGE LEFT
WR13X32036 WR13X32036 GE REFRIGERATOR CENTER HINGE RIGHT
WR87X33165 WR87X33165 GE REFRIGERATOR COMPRESSOR
WR49X38267 WR49X38267 GE REFRIGERATOR DOOR CLOSURE RIGHT
WR01X11007 WR01X11007 GE REFRIGERATOR DOOR HANDLE FASTENER
WR02X28514 WR02X28514 GE REFRIGERATOR DRAIN TUBE
WR17X34327 WR17X34327 GE REFRIGERATOR EVAPORATOR COVER
WR60X35205 WR60X35205 GE REFRIGERATOR FAN MOTOR
WR23X37285 WR23X37285 GE REFRIGERATOR LIGHT SWITCH
WR55X46805 WR55X46805 GE REFRIGERATOR MAIN CONTROL BOARD
WR32X32035 WR32X32035 GE REFRIGERATOR QUICK SPACE SHELF BIS
WR08X22874 WR08X22874 GE REFRIGERATOR RELAY AND OVERLOAD KIT
WR32X32029 WR32X32029 GE REFRIGERATOR SHELF BIS
WR02X13738 WR02X13738 GE REFRIGERATOR UNION CONNECTOR - 1/4-INCH
WR32X32031 WR32X32031 GE REFRIGERATOR VEGETABLE PAN BIS
WR01X29059 WR01X29059 GE REFRIGERATOR WATER FILTER BYPASS PLUG
WR02X13658 WR02X13658 GE ROLLER ASSEMBLY
WR01X11010 WR01X11010 GE SCR 1/4-20 GX TRT 7/8 S
WR01X11049 WR01X11049 GE SCR 1/4-20 HXW 7/8 S
WR01X11013 WR01X11013 GE SCR 10-18 FLT20 3/4 S
WR01X11032 WR01X11032 GE SCR 10-24 AB RNT 20 5/8
WR01X10897 WR01X10897 GE SCR 12-24TT BHT20 .700 S
WR01X10605 WR01X10605 GE SCR 6-22 PL IHXW 3/8 S
WR01X10649 WR01X10649 GE SCR 8-10 PL PNP 1/2 S
WR01X11012 WR01X11012 GE SCR 8-18 AB HXW 9/16 S
WR01X11060 WR01X11060 GE SCR 8-18 AB HXWP 9/16S
WR01X10593 WR01X10593 GE SCR 8-18 AB IHXW 3/4 S
WR01X10588 WR01X10588 GE SCR 8-18 AB IHXW 9/16 S
WR01X11054 WR01X11054 GE SCR 8-18 FLP 1/2 S
WR01X11029 WR01X11029 GE SCR 8-18 FLP 1/2 S
WR01X11061 WR01X11061 GE SCR 8-18 HI/LO HWX 3/4
WR01X1757 WR01X1757 GE SCR 8-18 HXW 1 1/4S
WR01X10618 WR01X10618 GE SCR 8-18 TPT 1/4
WR01X10602 WR01X10602 GE SCR 8-32 AB IHWS 3/8 S
WR01X10635 WR01X10635 GE SCR 8-32 CA IHXW .625 S
WR01X26257 WR01X26257 GE SCR 8-32 HXW 3/4 S
WR01X10626 WR01X10626 GE SCR HXW 11/4
WR1X1786 WR1X1786 GE SCREW
WB01X5364 WB01X5364 GE SCREW (CR)
WR01X11011 WR01X11011 GE SCREW 1/4-20 HXW 3/4S
WR01X10196 WR01X10196 GE SCREW 8-18 HI/LO 5/8
WR01X11046 WR01X11046 GE SCREW LEVELING ASSEMBLY
WB1X5364 WB1X5364 GE SCREW MTG
WR01X11036 WR01X11036 GE SCREW SET DOOR FZ
WZ5X158D WZ5X158D GE SCREW-PKG 12
WR55X10025 WR55X10025 GE SENSOR TEMPERATURE
WR01X20424 WR01X20424 GE SET SCREW
WR01X27135 WR01X27135 GE SET SCREW
WR01X11053 WR01X11053 GE SLEEVE SPRING MULLION
WR72X10453 WR72X10453 GE SLIDE HOLDER FZ LH
WR72X10451 WR72X10451 GE SLIDE HOLDER FZ RH
WR72X10454 WR72X10454 GE SLIDE LOWER FZ LH
WR72X10452 WR72X10452 GE SLIDE LOWER FZ RH
WR02X13679 WR02X13679 GE SPACER TRACK
WR01X11052 WR01X11052 GE SPRING HINGE MULLION
WR02X13634 WR02X13634 GE STOP DOOR RH/LH ASSEMBLY
WR02X13706 WR02X13706 GE STOPPER DIVIDER FZ UPPER
WR02X13628 WR02X13628 GE SUPPORT BIN FZ
WR02X13668 WR02X13668 GE SUPPORT CONDENSER
WR72X10461 WR72X10461 GE SUPPORT SIDE LH
WR72X10456 WR72X10456 GE SUPPORT SIDE RH
WR02X13674 WR02X13674 GE SUPPORT SLIDE FZ
WR23X10333 WR23X10333 GE SWITCH ACTUATOR
WR02X13734 WR02X13734 GE TAPE FELT
WR50X10108 WR50X10108 GE THERMOSTAT DEFROST FZ
WR17X13226 WR17X13226 GE TOP COVER MIDDLE DGY
WR72X10429 WR72X10429 GE TRACK CENTER FF
WR72X21071 WR72X21071 GE TRACK SIDE FF
WR17X13091 WR17X13091 GE TROUGH DRAIN FF
WR17X13080 WR17X13080 GE TROUGH DRAIN FZ
WR02X20621 WR02X20621 GE TUBE FZ IM FILL HTR ASSEMBLY
WR84X10113 WR84X10113 GE TUBE FZ REPAIR ASSEMBLY
WR02X20879 WR02X20879 GE TUBE WATER DISP
WR01X28515 WR01X28515 GE VACUUM BREAK ASSEMBLY
WR86X10094 WR86X10094 GE VALVE BODY ASSEMBLY
WR57X27517 WR57X27517 GE VALVE DOUBLE IW ASSEMBLY
WR02X13685 WR02X13685 GE WHEEL
WR02X13616 WR02X13616 GE WHEEL OVERMOLD ASM FRONT
WZ4X416 WZ4X416 GE WZ04X0408
