Model Image
Manufacturer

GE

Model Number

DBL333GB8WW

Description

Dryer Gas

Interactive Exploded View

Parts List

Part Number Description
WE02X10071 WE02X10071 GE 8-18AB X0.44 SCREW QUAD
WE01X10218 WE01X10218 GE ASMY-IDLER BRKT & PULLEY
WE01X1152 WE01X1152 GE BALL
WE1X1152 WE1X1152 GE BALL
WE3X70 WE3X70 GE BEARING
WE12X10009 WE12X10009 GE BELT-DRYER
WE14X10025 WE14X10025 GE BLOWER HOUSING ASM
WE13X28680 WE13X28680 GE BRACKET BEARING
WE14X10067 WE14X10067 GE BRACKET BURNER
WE13X10008 WE13X10008 GE BRACKET-BELT SWITCH
WE13X10026 WE13X10026 GE BRACKET-MOTOR

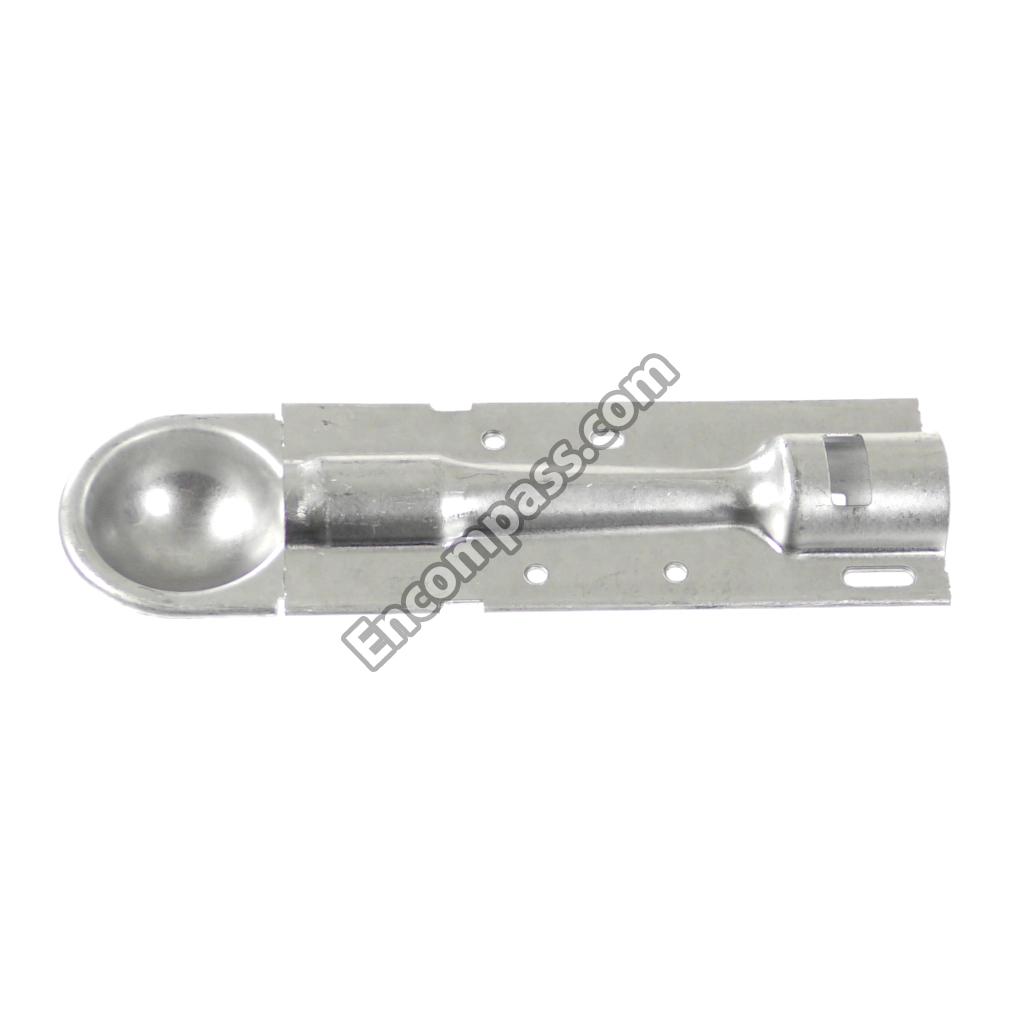

WE14X10068 WE14X10068 GE BURNER ASSEMBLY
WE01X10247 WE01X10247 GE BUSHING COUPLER
WE01X10020 WE01X10020 GE CAP-PIPE
WE01X10211 WE01X10211 GE CLAMP MOTOR
WE2X358 WE2X358 GE CLIP
WE02X0358 WE02X0358 GE CLIP BALL
WE02X10013 WE02X10013 GE CLIP CABINET BTM
WE2X361 WE2X361 GE CLIP GUIDE
WE02X0361 WE02X0361 GE CLIP-GUIDE
WE02X10053 WE02X10053 GE CLIP-RETENTION
WE02X10009 WE02X10009 GE CLIP-TOP FRONT/PANEL
WE02X10010 WE02X10010 GE CLIP-WIRING
WE04X10020 WE04X10020 GE COIL SECONDARY
WE19X10035 WE19X10035 GE CONSOLE BOTTOM
WE08X10069 WE08X10069 GE CORD-ELECTRIC POWER
WE18X10001 WE18X10001 GE COVER LINT TRAP
WE01X10034 WE01X10034 GE COVER-PLATE
WE20X10004 WE20X10004 GE COVER-TERM BLOCK
WE01X10023 WE01X10023 GE DOOR CATCH
WE10X10002 WE10X10002 GE DOOR OUTER WHITE
WE10X10008 WE10X10008 GE DOOR-INNER WHITE
WE10X10012 WE10X10012 GE DOOR-OUTER CC
WE10X10009 WE10X10009 GE DOOR-OUTER WH
WE21X10013 WE21X10013 GE DRUM ASM.
WE14X10026 WE14X10026 GE DUCT - HEAT
WE14X10102 WE14X10102 GE DUCT-AIR
WE19X10022 WE19X10022 GE END CAP L H WHITE
WE19X10061 WE19X10061 GE END CAP L.H.
WE19X10020 WE19X10020 GE END CAP R H WHITE
WE19X10060 WE19X10060 GE END CAP R.H.
WE09X10014 WE09X10014 GE FELT-LOWER
WE09X10013 WE09X10013 GE FELT-UPPER
WR2X9485 WR2X9485 GE FOOT ADJ.
WE14X207 WE14X207 GE GAS VALVE AS
WE14X0207 WE14X0207 GE GAS VALVE ASM
WE08X10068 WE08X10068 GE GAS VALVE HARNESS
WE09X0107 WE09X0107 GE GASKET DOOR
WE9X107 WE9X107 GE GASKET DOOR
WE03X10007 WE03X10007 GE GLIDE-DRUM
WE08X10006 WE08X10006 GE GROUND WIRE
WE01X10089 WE01X10089 GE HANDLE-DOOR CC
WE01X10013 WE01X10013 GE HANDLE-DOOR WH
WE14X10017 WE14X10017 GE HEATER HOUSING
WE01X10012 WE01X10012 GE HINGE-DOOR
WE01X10027 WE01X10027 GE IDLER SPRING

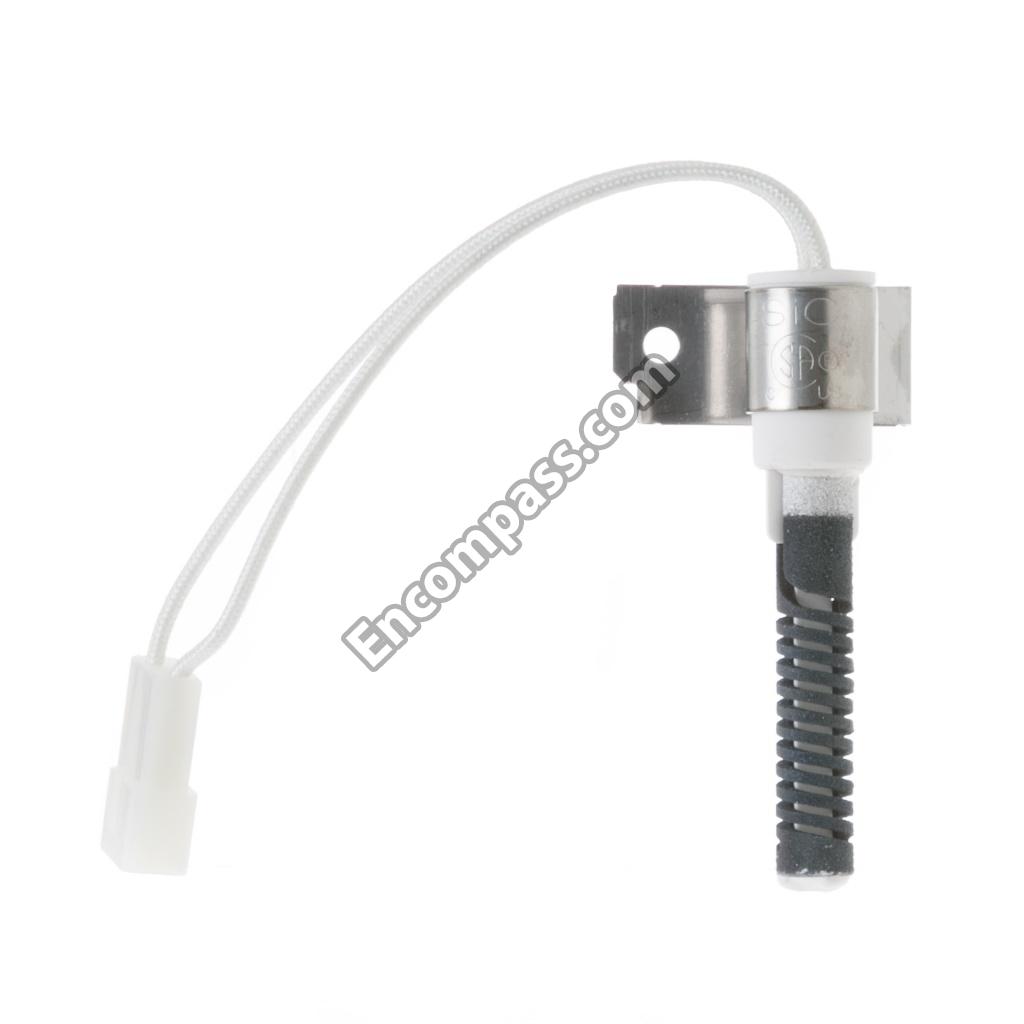

WE4X739 WE4X739 GE IGNITER ASSEMBLY
WE04X25996 WE04X25996 GE IGNITER ASSEMBLY
WE25X10001 WE25X10001 GE KIT REAR BEARING
WH01X10060 WH01X10060 GE KNOB AND CLIP ASSEMBLY
WE01X10146 WE01X10146 GE KNOB-TIMER
WE01X10141 WE01X10141 GE KNOB-TIMER
WE18X10002 WE18X10002 GE LINT TRAP
WE01X10016 WE01X10016 GE LOCKFAN HOUSING
WE25X10016 WE25X10016 GE LP GAS CONVERSION KIT
31-15496 31-15496 GE MINI MANUAL
WE17X10001 WE17X10001 GE MOTOR & PULLEY
WE01X10022 WE01X10022 GE ORIFICE NATURAL GAS
WE20X10009 WE20X10009 GE PANEL ACCESS
WE20X10010 WE20X10010 GE PANEL BACK
WE20X10011 WE20X10011 GE PANEL TOP WH
WE20X10049 WE20X10049 GE PANEL-FRONT CC
WE20X10012 WE20X10012 GE PANEL-FRONT WHITE
WE01X10035 WE01X10035 GE PIN LOCATING
WE01X10171 WE01X10171 GE PIPE
WE01X10248 WE01X10248 GE PIPE GAS
WE01X10169 WE01X10169 GE PLUG
WE01X10170 WE01X10170 GE PLUG
WE01X10088 WE01X10088 GE PLUG BISQUE
WE01X10010 WE01X10010 GE PLUG-DOME WHITE
WE01X10137 WE01X10137 GE PLUG-LIGHT HOLE
WH2X1150 WH2X1150 GE SCREW
WE02X10007 WE02X10007 GE SCREW 10-14 X 1 00
WR2X9494 WR2X9494 GE SCREW 10-16 X 375
WE02X10002 WE02X10002 GE SCREW 10-16 X 625
WH02X10013 WH02X10013 GE SCREW 8-18 X 1/2
WE02X10011 WE02X10011 GE SCREW 8-18 X 375
WE02X10021 WE02X10021 GE SCREW 8-18 X 50
WH01X10004 WH01X10004 GE SCREW 8-18AB X 375
WR02X9494 WR02X9494 GE SCREW 8-18B X 0.31
WE02X10014 WE02X10014 GE SCREW-
WE02X10005 WE02X10005 GE SCREW-BRACKET
WE02X10057 WE02X10057 GE SCREW-GROUND
WH02X10009 WH02X10009 GE SCREW-LOCK 10-16X 50
WE09X10003 WE09X10003 GE SEAL EXHAUST TUBE
WE09X10004 WE09X10004 GE SEAL-HEATER HOUSING
WE04X10037 WE04X10037 GE SELECTOR SWITCH
WE04X0751 WE04X0751 GE SENSOR
WE4X751 WE4X751 GE SENSOR
WE01X10158 WE01X10158 GE SHIELD-HEATER PAN
WE01X10029 WE01X10029 GE SPACER-IDLER
WE01X1158 WE01X1158 GE STRIKE DOOR
WE1X1158 WE1X1158 GE STRIKE DOOR
WE13X10011 WE13X10011 GE SUPPORT SHAFT
WE4X881 WE4X881 GE SW ROTARY ST
WE04X10096 WE04X10096 GE SWITCH-BELT
WE04X10034 WE04X10034 GE SWITCH-DOOR W/O LITE
WE04X10017 WE04X10017 GE THERMOSTAT - SAFETY
WE04X10018 WE04X10018 GE THERMOSTAT CONTROL

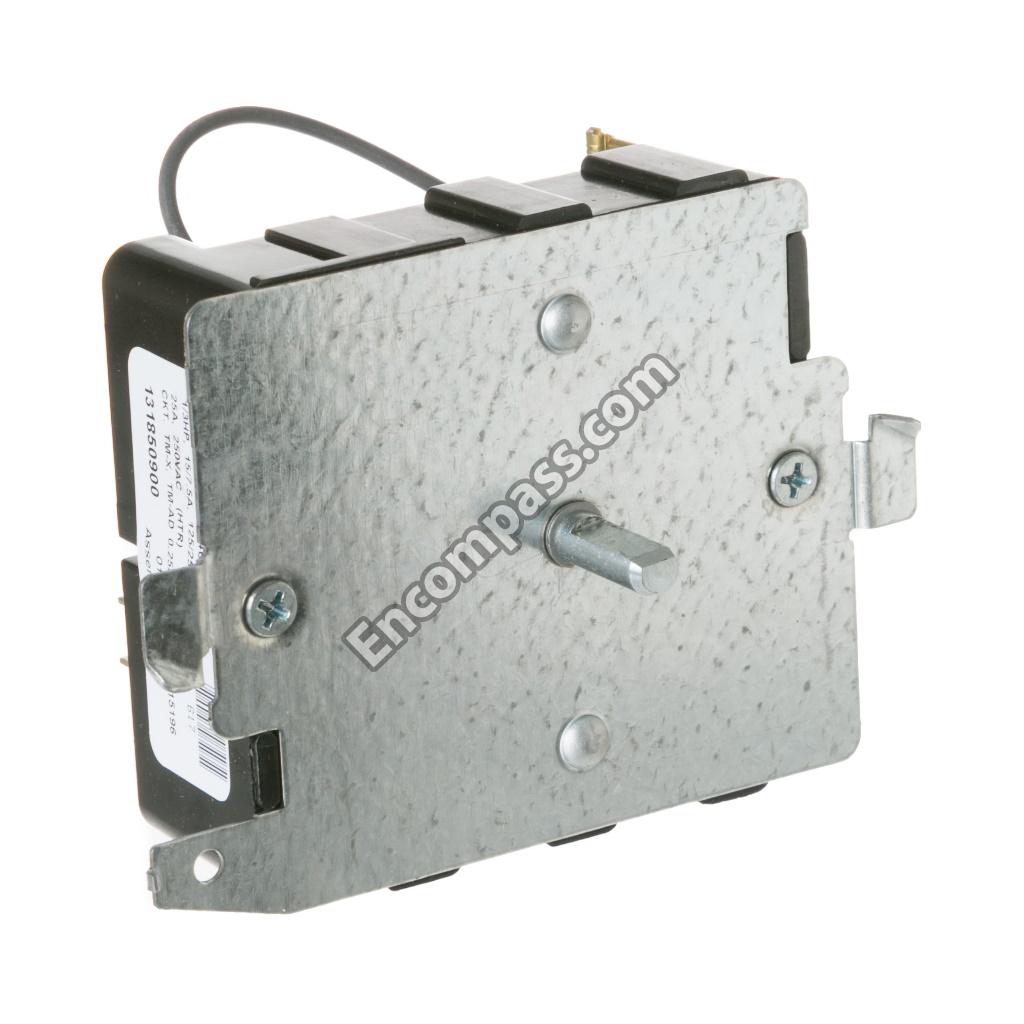

WH12X10079 WH12X10079 GE TIMER
WE19X10059 WE19X10059 GE TRIMPLATE
WE19X10054 WE19X10054 GE TRIMPLATE
WE14X10069 WE14X10069 GE TUBE BURNER RIVETED
WE14X10007 WE14X10007 GE TUBE EXHAUST ASM
WE02X10058 WE02X10058 GE UNION HEX NUT
49-90172-1 49-90172-1 GE USE & CARE GUIDE
WE21X0069 WE21X0069 GE VANE
WE21X69 WE21X69 GE VANE DRUM
WH2X1118 WH2X1118 GE WH2X1118
