Model Image
Manufacturer

GE

Model Number

DBSR453GB2CC

Description

Dryer Gas

Interactive Exploded View

Parts List

Part Number Description
WE14X25080 WE14X25080 AIR DUCT ASM.
WE14X21334 WE14X21334 AIR DUCT ASSEMBLY
WE14M75 WE14M75 BAFFLE DRUM
WE25M40 WE25M40 BEARING KIT
WE1M300 WE1M300 BEARING RETAINER
WE1M462 WE1M462 BEARING, DRUM SHAFT
WE1M504 WE1M504 BEARING-SLIDE WHITE
WE12M29 WE12M29 BELT DRIVE
WE03X29897 WE03X29897 BELT DRIVE
WE00M112 WE00M112 BLOWER CLAMP
WE00M111 WE00M111 BLOWER CLAMP
WE09X27636 WE09X27636 BLOWER GASKET (EXHAUST)
WE14M93 WE14M93 BLOWER HOUSING
WE16M15 WE16M15 BLOWER WHEEL
WE20M253 WE20M253 BOTTOM COVER (E-COAT)
WE13X169 WE13X169 BRACKET COIL
WE13X0195 WE13X0195 BRACKET GAS VALVE
WE13X0118 WE13X0118 BRACKET SPACER
WE1M467 WE1M467 BRKT LVL SCREW FRONT
WE1M468 WE1M468 BRKT LVL SCREW REAR
WE13X0169 WE13X0169 BRKT. COIL

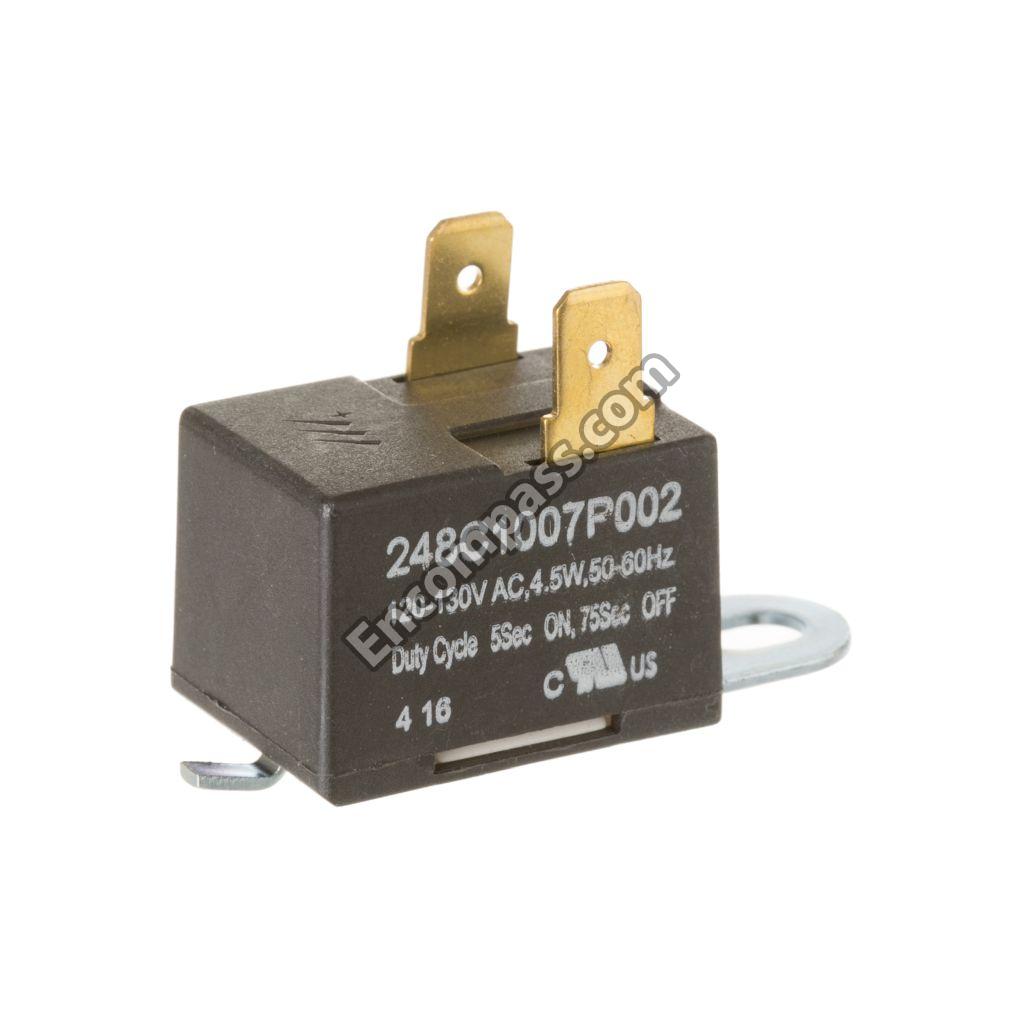

WE4M318 WE4M318 BUZZER FIXED
WE20M398 WE20M398 CABINET BASE
WE49X22295 WE49X22295 CABINET FRONT WH
WE1X688 WE1X688 CLAMP AND SCREW
WH01X10106 WH01X10106 CLIP KNOB
WE04X0692 WE04X0692 COIL DUAL
WE04X0693 WE04X0693 COIL MAIN
WE14X20581 WE14X20581 COMBUSTION CHAMBER
WE11X29440 WE11X29440 COMBUSTION CHAMBER
WE26M341 WE26M341 CORD SET - GAS
WE20X20576 WE20X20576 COVER TOP
WE20X20417 WE20X20417 COVER WH
WE14X20408 WE14X20408 DEFLECTOR HEAT
WE11X29438 WE11X29438 DEFLECTOR HEAT
WE11X29443 WE11X29443 DIFFUSER GAS
WE14X20401 WE14X20401 DIFFUSER GAS ASM.
WE21X20562 WE21X20562 DRUM ASM 7.0 CU FT
WE21X20566 WE21X20566 DRUM ASSEMBLY
WE4M415 WE4M415 DRYER DOOR SWITCH
WE3M26 WE3M26 DRYER FRONT DRUM BEARING
WE14M104 WE14M104 DRYER GAS BURNER
WE1X921 WE1X921 DRYER MOTOR STRAP
WE20X20559 WE20X20559 DRYER REAR PANEL
WE4M519 WE4M519 DRYER ROTARY START SWITCH
WE4X692 WE4X692 DUAL COIL
WE14M197 WE14M197 DUCT TRANSITION
WE11X29441 WE11X29441 DUCT TRANSITION
WE14X0239 WE14X0239 ELBOW
WE14X20421 WE14X20421 ELBOW EXHAUST
WE02X25595 WE02X25595 ELBOW VALVE
WE19M1238 WE19M1238 END CAP LH CC
WE19M1418 WE19M1418 END CAP LH WHITE
WE19M1239 WE19M1239 END CAP RH CC
WE19M1419 WE19M1419 END CAP RH WH
WE09X20441 WE09X20441 FELT
WE09X27634 WE09X27634 FELT
WE18X25100 WE18X25100 FILTER FRAME ASM
WE4X448 WE4X448 FLAME DETECTOR
WE1M527 WE1M527 FRONT BRACKET LEVEL LEG
WE2M188 WE2M188 FRONT STABILIZING LEGS
WE25X217 WE25X217 GAS DRYER LP CONVERSION K
WE14X0215 WE14X0215 GAS VALVE ASM
WE00M169 WE00M169 GASKET (SEAL)
WE1M825 WE1M825 GASKET (SEAL) 39 INCH
WE1M966 WE1M966 GASKET SEAL
WE1X1172 WE1X1172 GR STRAP ASM
WE01X1172 WE01X1172 GROUND STRAP ASM
WE01X20580 WE01X20580 HANDLE DOOR CC
WE01X20419 WE01X20419 HANDLE DOOR WH
WE1M1033 WE1M1033 HINGE
WE03X20434 WE03X20434 IDLER ARM
WE04X25996 WE04X25996 IGNITER
WE04X0739 WE04X0739 IGNITER ASM
WE10X20578 WE10X20578 INNER DOOR & GSKT ASM.
31-16077 31-16077 INSTR INSTALL (GAS)
WE25X0218 WE25X0218 KIT NAT GAS ORIFICE CONV
WE25X218 WE25X218 KIT-NATL GAS
WH01X10060 WH01X10060 KNOB & CLIP ASSEMBLY
WE1M483 WE1M483 KNOB ASSEMBLY DRYER
WE05X20431 WE05X20431 LAMP
WE1M1011 WE1M1011 LATCH
WE01X1076 WE01X1076 LEAK LIMITER
WE1X1076 WE1X1076 LEAK LIMITER
WE1M642 WE1M642 LEVELLING SCREW GRAY
WE4X693 WE4X693 MAIN COIL
31-16094 31-16094 MINI-MANUAL
WE17X10010 WE17X10010 MOTOR & PULLEY ASM.
WE01X0921 WE01X0921 MOTOR BRACKET
WE13X20394 WE13X20394 MOTOR PLATE
WE13M39 WE13M39 MOTOR SUPPORT
WE2X396 WE2X396 NIPPLE SHTOF
WE02X0396 WE02X0396 NIPPLE, SHUTOFF VALVE
WE02X0319 WE02X0319 NO ITEM DESCRIPTION
WE2X319 WE2X319 NUT GASVALV
WE1M461 WE1M461 O-RING
WE01X1148 WE01X1148 ORIFICE
WE1X1148 WE1X1148 ORIFICE MAIN
WE20X814 WE20X814 PANEL BACK
WE10X20577 WE10X20577 PANEL DOOR OUTER BISQUE
WE20M393 WE20M393 PANEL SIDE AB
WE20M307 WE20M307 PANEL SIDE CC
WE1M512 WE1M512 PIPE & LUG ASSEMBLY
WE01X0617 WE01X0617 PIPE CLAMP
WE1X617 WE1X617 PIPE CLAMP
WE12X83 WE12X83 PULLEY IDLER
WH01X10217 WH01X10217 PUSH MOUNT CABLE TIE
WH01X10704 WH01X10704 PUSH MOUNT CABLE TIE
WE1M528 WE1M528 REAR BRACKET LEVEL LEG
WE20X811 WE20X811 REAR PANEL
WE49X22354 WE49X22354 REAR PANEL REWORK MABE
WE4M520 WE4M520 ROTARY SWITCH 4TEMP
WR01X21263 WR01X21263 RVSBL DOOR CAPS BISQUE
WR01X10317 WR01X10317 SCR 8-32 CA HXW 1/2
WD2M101 WD2M101 SCREW
WE2M180 WE2M180 SCREW
WE2M189 WE2M189 SCREW
WE2M173 WE2M173 SCREW
WR2X9260 WR2X9260 SCREW
WE2M98 WE2M98 SCREW
WE2M202 WE2M202 SCREW
WE1M280 WE1M280 SCREW
WE2M174 WE2M174 SCREW # 10
WE2M163 WE2M163 SCREW #10
WE2M160 WE2M160 SCREW #8
WE2M170 WE2M170 SCREW #8
WE02X0333 WE02X0333 SCREW (COIL MTG BRKT)
WD02X10057 WD02X10057 SCREW 10-16X1/2 AB HXW S
WH02X10089 WH02X10089 SCREW 8-18 AB FLT 9/16 SN
WZ5X158D WZ5X158D SCREW-PKG 12
WE1M1067 WE1M1067 SLIDE DRUM - GREEN
WE03X37317 WE03X37317 SLIDE DRUM - GREEN
WE5M48 WE5M48 SOCKET ASM
WE13X118 WE13X118 SPACER BRKT
WE13X0200 WE13X0200 STRAP MOTOR
WE13X200 WE13X200 STRAP MOTOR
WE1X1192 WE1X1192 STRIKE DOOR
WH46X10073 WH46X10073 SUPPORT SWITCH
WD21X0557 WD21X0557 SWITCH INTERLOCK
WD21X10261 WD21X10261 SWITCH INTERLOCK
WE19M1282 WE19M1282 SWITCH TRIM BQ
WE19M1268 WE19M1268 SWITCH TRIM WH
WE4M216 WE4M216 T'STAT BIAS DRUM OUT
WE4M181 WE4M181 T'STAT INLET BIASED
WE4M182 WE4M182 T'STAT TRIMMER
WE4M80 WE4M80 THERMOSTAT SAFETY
WE4M271 WE4M271 TIMER DRYER
WE01X0980 WE01X0980 U CLIP
49-90195 49-90195 USE & CARE

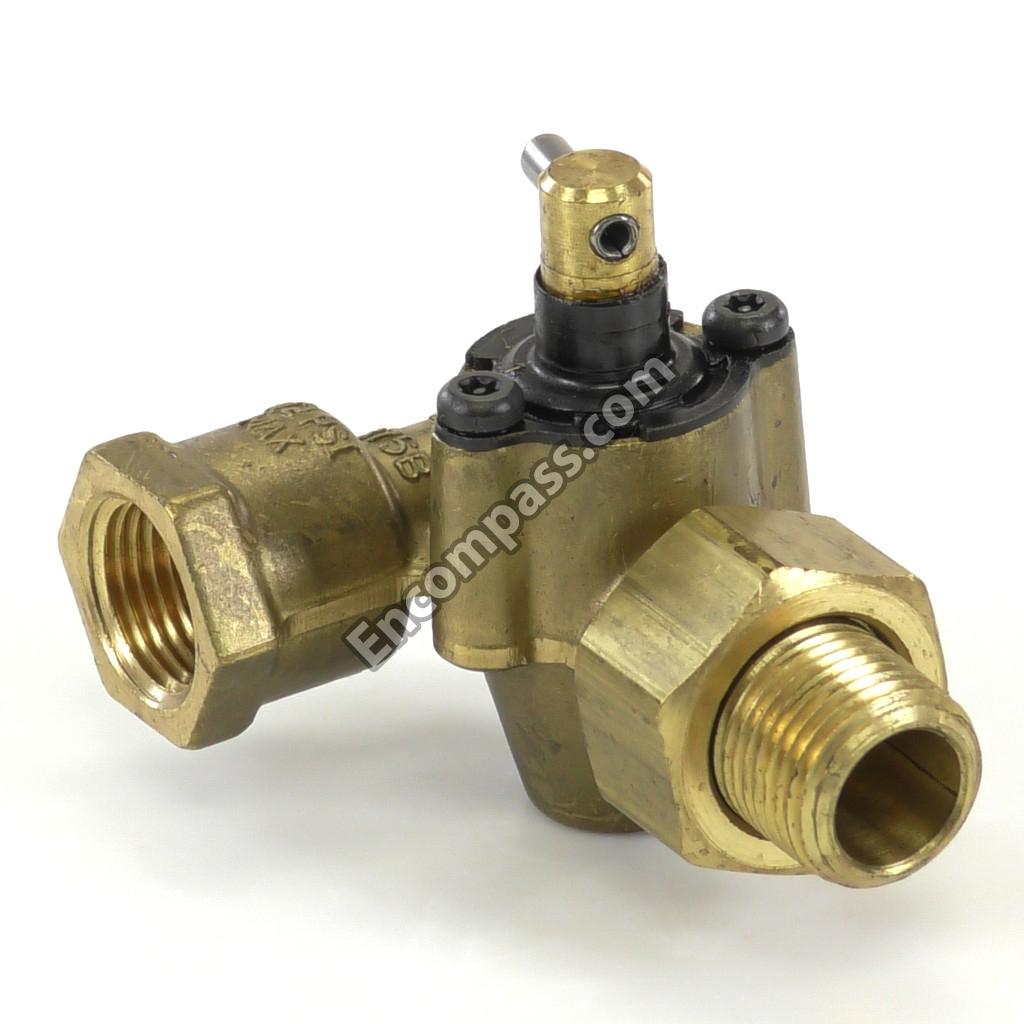

WE14X215 WE14X215 VALVE ASSEMBLY SHUTOFF
WE13X195 WE13X195 VALVE BRKT
WE1X1091 WE1X1091 WE1X1091
WE2X263D WE2X263D WE2X263D
WE2M96 WE2M96 WE2X329
