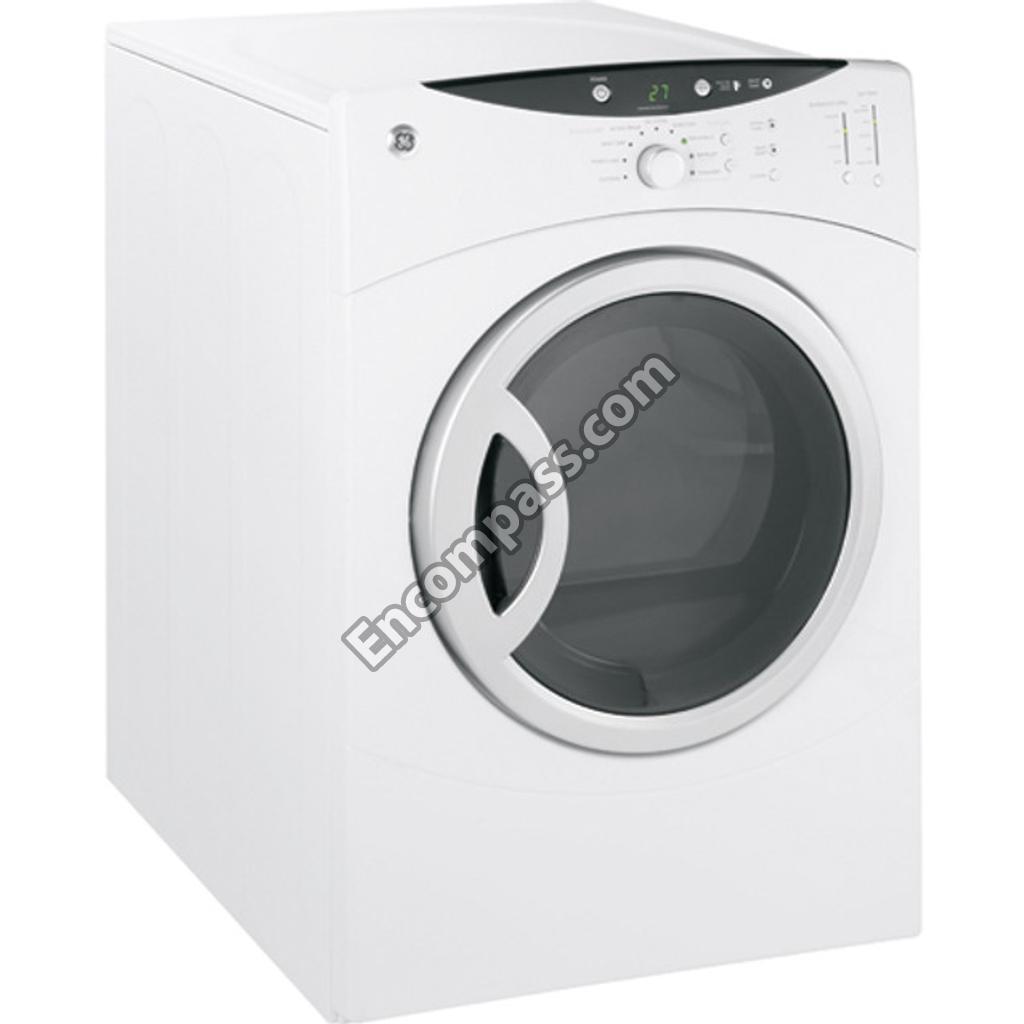

Model Image
Manufacturer

GE

Model Number

DCVH515EF1WW

Description

Dryer Electric

Interactive Exploded View

Parts List

Part Number Description
WE19M1437 WE19M1437 GE BACK HOUSING WHITE
WE14M75 WE14M75 GE BAFFLE
WE1M560 WE1M560 GE BAR GRAPH BUTTONS
WE25M40 WE25M40 GE BEARING KIT
WE1M300 WE1M300 GE BEARING RETAINER
WR02X8693 WR02X8693 GE BEAUTY BUTTON-WHT
WE12M29 WE12M29 GE BELT DRIVE
WE03X29897 WE03X29897 GE BELT DRIVE
WE00M112 WE00M112 GE BLOWER CLAMP
WE00M111 WE00M111 GE BLOWER CLAMP
WE09X27636 WE09X27636 GE BLOWER GASKET (EXHAUST)
WE16M15 WE16M15 GE BLOWER WHEEL
WE1M468 WE1M468 GE BRKT LVL SCREW REAR
WE1M452 WE1M452 GE CERAMIC INSULATOR
WE20M331 WE20M331 GE CHASSIS BOTTOM
WE1X688 WE1X688 GE CLAMP AND SCREW
WE19M1524 WE19M1524 GE CNTRL PNL ASM WH
WE1M650 WE1M650 GE CONNECTOR MOTOR
WE20M327 WE20M327 GE COVER WH
WE14X20408 WE14X20408 GE DEFLECTOR HEAT
WE11X29438 WE11X29438 GE DEFLECTOR HEAT
WE10X25714 WE10X25714 GE DOOR ASM
WE9M19 WE9M19 GE DOOR GASKET
WE1M571 WE1M571 GE DOOR GUIDE
WE1M576 WE1M576 GE DOOR HANDLE COVER
WE1M710 WE1M710 GE DOOR HINGE ASM - PLATED
WE1M579 WE1M579 GE DOOR HINGE COVER
WE01X25715 WE01X25715 GE DOOR OUTER RING
WE1M578 WE1M578 GE DOOR OUTER WINDOW
WE21X20566 WE21X20566 GE DRUM ASSEMBLY
WE1M1011 WE1M1011 GE DRYER DOOR LATCH
WE4M415 WE4M415 GE DRYER DOOR SWITCH
WE03X37317 WE03X37317 GE DRYER FRONT BEARING DRUM SLIDE - GREEN
WE1M504 WE1M504 GE DRYER FRONT BEARING DRUM SLIDE - WHITE
WE1M864 WE1M864 GE DRYER MAIN POWER BOARD MOUNTING BRACKET
WE1X921 WE1X921 GE DRYER MOTOR STRAP
WE1M575 WE1M575 GE DRYER SENSOR ROD
WE14M107 WE14M107 GE EXHAUST DUCT
WE1M587 WE1M587 GE EXHAUST PROTECTOR ASM
WE09X20441 WE09X20441 GE FELT
WE09X27634 WE09X27634 GE FELT
WE9M31 WE9M31 GE FELT CLEANING
WE18M24 WE18M24 GE FILTER ASM
WE20M325 WE20M325 GE FRONT PANEL WHITE
WE1M564 WE1M564 GE FRONT SHEILD
WE1M966 WE1M966 GE GASKET SEAL
WE1M566 WE1M566 GE GASKET SEAL SIDE FRONT S
WE1M565 WE1M565 GE GASKET SEAL TOP FRONT SH
WE1M1015 WE1M1015 GE GROUND STRAP
WE5M47 WE5M47 GE HARNESS SENSORS
WE14M94 WE14M94 GE HOUSING BLOWER
WE11M23 WE11M23 GE HOUSING HEATER ASSEMBLY
WE03X20434 WE03X20434 GE IDLER ARM
WE4M398 WE4M398 GE INLET CONTROL THERMISTOR
WE10X10032 WE10X10032 GE INNER WINDOW RETAINER
31-16149 31-16149 GE INSTALL INSTRUCTION
WE05X20431 WE05X20431 GE LAMP
WE1M642 WE1M642 GE LEVELLING SCREW GRAY
WE19M1606 WE19M1606 GE LEXAN WINDOW
WE1M562 WE1M562 GE LOCK BUTTON
WE4M488 WE4M488 GE MAIN PWR BOARD ASSEMBLY ELECT
31-16122 31-16122 GE MINI-MANUAL WIRING ELECT
WE01X0921 WE01X0921 GE MOTOR BRACKET
WE17X10010 WE17X10010 GE MOTOR KIT
WE13M41 WE13M41 GE MOTOR PLATE
WE13M39 WE13M39 GE MOTOR SUPPORT
WE1M558 WE1M558 GE MY CYCLE BUTTON
WE2M213 WE2M213 GE NUT-STRIP DOOR GUIDE
WE1M461 WE1M461 GE O RING
WE1M561 WE1M561 GE OPTION BUTTONS
WE20M301 WE20M301 GE PANEL REAR (6CU)
WR01X21159 WR01X21159 GE PLUG DOOR
WE1M563 WE1M563 GE PLUS MINUS BUTTONS
WE1M557 WE1M557 GE POWER BUTTON
WE12X83 WE12X83 GE PULLEY IDLER
WE1M528 WE1M528 GE REAR BRACKET LEVEL LEG
WE1M585 WE1M585 GE REAR PLATE
WE1M592 WE1M592 GE ROTARY KNOB
WE2M98 WE2M98 GE SCREW
WE2M202 WE2M202 GE SCREW
WR2X9260 WR2X9260 GE SCREW
WE2M174 WE2M174 GE SCREW # 10
WE2M163 WE2M163 GE SCREW #10
WE2M196 WE2M196 GE SCREW #8
WE1M582 WE1M582 GE SCREW #8 X 5/8 SS DOOR H
WE1M583 WE1M583 GE SCREW #8-32 X 1/2 HINGE
WD02X10057 WD02X10057 GE SCREW 10-16X1/2 AB HXW S
WE2M210 WE2M210 GE SCREW BACK HOUSING
WE02X25454 WE02X25454 GE SCREW FLAT HEAD/AB
WE2M211 WE2M211 GE SCREW FRONT
WE2M200 WE2M200 GE SCREW GROUND
WD21M131 WD21M131 GE SCREW GROUND FRONT
WE2M212 WE2M212 GE SCREW HINGE TO FRONT
WE2M302 WE2M302 GE SCREW HINGE TO FRONT
WE2M225 WE2M225 GE SCREW WHITE #10-16 3/4
WZ4X241D WZ4X241D GE SCREW-PKG 12
WZ5X158D WZ5X158D GE SCREW-PKG 12
WE1M568 WE1M568 GE SHOE RACK
WE20M382 WE20M382 GE SIDE PANEL WHITE
WE1M462 WE1M462 GE SLEEVE DRUM
WE1M1067 WE1M1067 GE SLIDE DRUM - GREEN
WE5M62 WE5M62 GE SOCKET WITH HARNESS
WE1M827 WE1M827 GE START PAUSE BUTTON
WE01X20423 WE01X20423 GE STRAIN RELIEF BRACKET
WE13X0200 WE13X0200 GE STRAP MOTOR
WE13X200 WE13X200 GE STRAP MOTOR
WE1X1192 WE1X1192 GE STRIKE DOOR
WE1M569 WE1M569 GE STRIKE PLATE
WE1M570 WE1M570 GE STRIKE PLATE W/STRK HOLE
WD21X0557 WD21X0557 GE SWITCH INTERLOCK
WD21X10261 WD21X10261 GE SWITCH INTERLOCK
WE4M300 WE4M300 GE T-STAT OUTLET BKUP ORG
WE4M325 WE4M325 GE TERM BLK & GRND STRAP
WE1M1102 WE1M1102 GE TERM. BLOCK COVER
WE04X20685 WE04X20685 GE THERMISTOR OUTLET CNTR
WE4M137 WE4M137 GE THERMOSTAT HI-LIMIT
WE4M160 WE4M160 GE THERMOSTAT SAFETY LEFT
WE14M124 WE14M124 GE TOP BEARING ASM W/FELTS
WE14M119 WE14M119 GE TRAP DUCT COMPLETE ASM
49-90311 49-90311 GE USE & CARE ( GE )
WE4M385 WE4M385 GE USER INTERFACE BOARD ASM
WE2X263D WE2X263D GE WE2X263D
WE2M96 WE2M96 GE WE2X329
