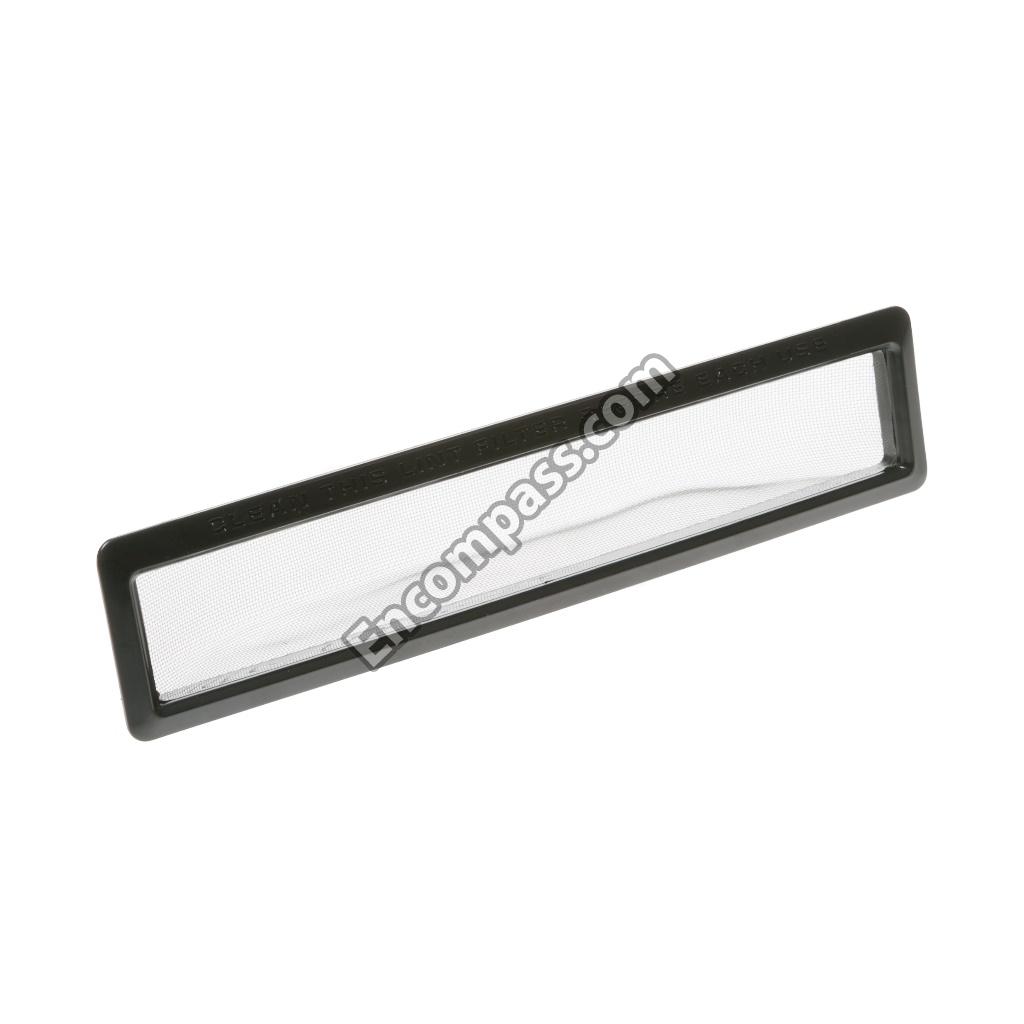

Model Image
Manufacturer

GE

Model Number

DDC4408AKL

Description

Dryer Electric

Interactive Exploded View

Parts List

Part Number Description
WE10X265 WE10X265 ACCESS DOOR **NLA*
WE10X263 WE10X263 ACCESS DOOR **NLA*
WE1X425 WE1X425 ACCESS PLATE
WE01X0667 WE01X0667 ADAPTER SWITCH
WE01X1171 WE01X1171 AIR SEAL
WE1X1171 WE1X1171 AIR SEAL
WE01X0689 WE01X0689 BAFFLE BLOWER HOUSING
WE03X0072 WE03X0072 BEARING DRUM
WE3X75 WE3X75 BEARING DRUM
WE25M40 WE25M40 BEARING KIT
WE01X0461 WE01X0461 BEARING RETAINER
WE12X0082 WE12X0082 BELT DRIVE
WE12X10014 WE12X10014 BELT DRIVE
WE13X160 WE13X160 BELT SW BRKT
WE04X0168 WE04X0168 BLOCK TERMINAL
WE16M15 WE16M15 BLOWER WHEEL
WE14X134 WE14X134 BLOWR HSG AS
WZ2X514D WZ2X514D BOLT-PKG 12
WE2X177D WE2X177D BOLT-PKG 12
WE1X344 WE1X344 BRACKET
WE1X345 WE1X345 BRACKET
WE01X0344 WE01X0344 BRACKET ASM HINGE
WE01X0345 WE01X0345 BRACKET ASM HINGE
WE13X0160 WE13X0160 BRACKET BELT SWITCH
WE01X1094 WE01X1094 BRACKET HINGE
WE13X0159 WE13X0159 BRACKET IDLER SPRING
WE13X0104 WE13X0104 BRACKET LEVEL SCR SUPT
WE13X0161 WE13X0161 BRACKET MOTOR
WE13X0162 WE13X0162 BRACKET TERMINAL BLOCK
WE1X461 WE1X461 BRG.RETAINER
WE1X1094 WE1X1094 BRKT HINGE
WE13X104 WE13X104 BRKT LVL SCR
WE13X162 WE13X162 BRKT-TERM BL
WE01X0956 WE01X0956 BUSHING
WE01X0404 WE01X0404 BUSHING HINGE
WH01X2257 WH01X2257 BUTTON SWITCH
WE20X500 WE20X500 CAB FRT ASM
WE20X757 WE20X757 CABINET ASM
WE20X756 WE20X756 CABINET ASM
WE20X0755 WE20X0755 CABINET ASM AD
WE20X0756 WE20X0756 CABINET ASM HA
WE20X0757 WE20X0757 CABINET ASM WH
WE20X0566 WE20X0566 CABINET FRONT ASM AD
WE20X0564 WE20X0564 CABINET FRONT ASM HA
WE20X0496 WE20X0496 CABINET FRONT ASM WH
WE01X0965 WE01X0965 CABINET STRAP ASM
WE01X0688 WE01X0688 CLAMP
WE01X0409 WE01X0409 CLAMP
WE1X409 WE1X409 CLAMP
WE1X688 WE1X688 CLAMP& SCREW
WE01X0299 WE01X0299 CLIP
WE02X0192 WE02X0192 CLIP
WE02X0134 WE02X0134 CLIP
WE1X762 WE1X762 CLIP
WE01X0762 WE01X0762 CLIP GROUNDING
WE1X299D WE1X299D CLIP-PKG 12
31-1700 31-1700 COMMERCIAL STACKED DRYER INST
WE01X0944 WE01X0944 COVER THERMOSTAT
WE14X0086 WE14X0086 DEFLECTOR
WE1X689 WE1X689 DEFLECTOR
WE14X86 WE14X86 DEFLECTOR
WE10X0262 WE10X0262 DOOR ASM AD
WE10X0260 WE10X0260 DOOR ASM HA
WE10X0263 WE10X0263 DOOR ASM PAINTED AD
WE10X0264 WE10X0264 DOOR ASM PAINTED HA
WE10X0265 WE10X0265 DOOR ASM PAINTED WH
WE10X0258 WE10X0258 DOOR ASM WH
WE9X28 WE9X28 DOOR GASKET
WE1X257 WE1X257 DOOR HANDLE
WE01X1032 WE01X1032 DOOR LATCH DOOR
WL11X56 WL11X56 DOOR SWITCH
WE21X0049 WE21X0049 DRUM ASM
WE03X0039 WE03X0039 DRUM SHAFT & BRACKET
WE14X0144 WE14X0144 DUCT TRAP
WE14X0213 WE14X0213 ELBOW EXHAUST
WE14X213 WE14X213 ELBOW EXT.
WE9X38 WE9X38 FELT SEAL AS
WE18X0043 WE18X0043 FILTER ASM LINT
WE09X0028 WE09X0028 GASKET DOOR
WE1X1172 WE1X1172 GR STRAP ASM
WE01X0339 WE01X0339 GROUND STRAP
WE1X339 WE1X339 GROUND STRAP
WE01X1172 WE01X1172 GROUND STRAP ASM
WE01X0257 WE01X0257 HANDLE DOOR
WE11X0091 WE11X0091 HEATER ASM
WE1X404 WE1X404 HINGE BUSHNG
WE20X0600 WE20X0600 HOUSING ASM PAINTED AD
WE20X0602 WE20X0602 HOUSING ASM PAINTED HA
WE20X0604 WE20X0604 HOUSING ASM PAINTED WH
WE14X0134 WE14X0134 HOUSING BLOWER
WE11X103 WE11X103 HTR ASM 240V
WE13X159 WE13X159 IDLER SP BKT
WE1X1176 WE1X1176 INS. CERAMIC
WE1X975 WE1X975 INST PLATE
WE01X1176 WE01X1176 INSULATOR CERAMIC
WE2X134D WE2X134D JCLIP-PKG 12
WE01X0976 WE01X0976 LAMP ASM
WE1X976 WE1X976 LAMP ASM
WE1M1011 WE1M1011 LATCH DOOR
WE1X468 WE1X468 LEVELG PLATE
WE1M642 WE1M642 LEVELLING SCREW GRAY
WE18X43 WE18X43 LINT FILTER
WE20X0656 WE20X0656 METER CASE PAINTED AD
WE20X0657 WE20X0657 METER CASE PAINTED HA
WE20X0658 WE20X0658 METER CASE PAINTED WH
WE17X0032 WE17X0032 MOTOR ASM
WE01X0921 WE01X0921 MOTOR BRACKET
WE13X161 WE13X161 MOTOR BRKT
WE17X10010 WE17X10010 MOTOR KIT
WE1X921 WE1X921 MOTOR STRAP
WE20X564 WE20X564 N.L.A. FRONT ASM
WE1X944 WE1X944 N/L/A 01/14/08
WE1X446 WE1X446 N/L/A 02/13/09
WE14X144 WE14X144 N/L/A 03/31/04
WE21X49 WE21X49 N/L/A 05/17/06
WE10X332 WE10X332 N/L/A 08/21/06
WE10X333 WE10X333 N/L/A 11/04/02
WE02X0280 WE02X0280 NO ITEM DESCRIPTION
WH02X0885 WH02X0885 NUT
WE02X0125 WE02X0125 NUT
WZ07X0031 WZ07X0031 NUT
WE2X125 WE2X125 NUT
WR01X10212 WR01X10212 NUT 8-32
WH02X0923 WH02X0923 NUT CLIP
WE02X0169 WE02X0169 NUT SHEET METAL
WL02X0071 WL02X0071 NUT SHEET METAL
WE02X0110 WE02X0110 NUT SHEET METAL K
WE02X0245 WE02X0245 NUT STOP
WZ7X31D WZ7X31D NUT-PKG 12
WH2X885D WH2X885D NUT-PKG 12
WE2X110D WE2X110D NUT-PKG 12
WE25X0143 WE25X0143 PACK ASM INSTALLATION
WE02X0154 WE02X0154 PALNUT
WE14X0212 WE14X0212 PANEL ACCESS
WE14X212 WE14X212 PANEL ACCESS
WE20X611 WE20X611 PANEL ASM
WE20X0611 WE20X0611 PANEL ASM PAINTED AD
WE20X0612 WE20X0612 PANEL ASM PAINTED HA
WE20X0613 WE20X0613 PANEL ASM PAINTED WH
WE25X0144 WE25X0144 PARTS PACK-STACK DRYER
WE4X569 WE4X569 PB SW ASM
WE01X0425 WE01X0425 PLATE
WE01X1174 WE01X1174 PLATE
WE1X1174 WE1X1174 PLATE
WE01X0446 WE01X0446 PLATE CLOSURE
WE01X0468 WE01X0468 PLATE LEVELING SCREW
WE01X0966 WE01X0966 PLUG
31-1701 31-1701 PM INSTRUCTION INSTAL
WE01X0975 WE01X0975 PM INSTRUCTION PLATE ASM
WE12X0041 WE12X0041 PULLEY DRIVE
WE12X0083 WE12X0083 PULLEY IDLER
WE12X83 WE12X83 PULLEY IDLER
WE12X41 WE12X41 PULLEY&SCREW
WZ04X0236 WZ04X0236 SCR
WZ02X0514 WZ02X0514 SCR 1/4-20 M HX 13/16 S
WH02X0893 WH02X0893 SCR 10-16 HX 3/8 S
WE02X0227 WE02X0227 SCR 10-24 T 13/16
WE02X0177 WE02X0177 SCR 10-32 M RD 1/2 S
WZ04X0257 WZ04X0257 SCR 10-32 TT T 3/8 S
WH02X0967 WH02X0967 SCR 12-14 AB HXW 1/2 S
WE02X0272 WE02X0272 SCR 4-40 M HX 7/8 S
WE02X0283 WE02X0283 SCR 5/16-18 CAP HX 8 S
WE02X0270 WE02X0270 SCR 8-15 A TR 1/2 S
WE02X0281 WE02X0281 SCR 8-18 AB HWX 3/8 S
WZ05X0155 WZ05X0155 SCR 8-18 AB HX 3/8 SS
WE02X0153 WE02X0153 SCREW
WE02X0194 WE02X0194 SCREW
WE2X272 WE2X272 SCREW
WH2X937 WH2X937 SCREW
WZ04X0288 WZ04X0288 SCREW 10-16 X 1/2"" HEX
WZ04X0264 WZ04X0264 SCREW 10-16 X 3/4"" HEX
WE02X0263 WE02X0263 SCREW 10-16X1/2 HXW
WE2X280D WE2X280D SCREW 14-10 A HX 1 S
WZ04X0280 WZ04X0280 SCREW 8-18 HXW
WZ04X0345 WZ04X0345 SCREW 8-18X5/8 HXW
WE02X0355 WE02X0355 SCREW LEVELLING 5/16-24
WH2X893D WH2X893D SCREW-PKG 12
WZ4X421D WZ4X421D SCREW-PKG 12
WZ5X158D WZ5X158D SCREW-PKG 12
WZ4X345D WZ4X345D SCREW-PKG 12
WZ4X257D WZ4X257D SCREW-PKG 12
WE2X227D WE2X227D SCREW-PKG 12
WE2X153D WE2X153D SCREW-PKG 12
WZ4X264D WZ4X264D SCREW-PKG 12
WH2X967D WH2X967D SCREW-PKG 12
WZ4X288D WZ4X288D SCREW-PKG 12
WE2X194D WE2X194D SCREW-PKG 12
WZ4X236D WZ4X236D SCREW-PKG 12
WE2X263D WE2X263D SCREW-PKG 12
WH02X0937 WH02X0937 SCREW-TYPE A
WE09X0030 WE09X0030 SEAL ASM
WE09X0038 WE09X0038 SEAL ASM FELT
WE9X30 WE9X30 SEAL&RING AS
WE01X0844 WE01X0844 SHIELD SWITCH
WE25X0060 WE25X0060 SLIDE ASM
WE25X60 WE25X60 SLIDE ASM KT
WL2X71D WL2X71D SNUT-PKG 12 **NLA*
WE1X932 WE1X932 SPACER
WE1X945 WE1X945 SPACER
WE01X0945 WE01X0945 SPACER SWITCH
WE1X956 WE1X956 SPLIT SLEEVE
WE03X0069 WE03X0069 SPRING IDLER
WE3X69 WE3X69 SPRING IDLER
WE25X144 WE25X144 STACK PTS PK
WE2X245 WE2X245 STOP NUT
WE13X200 WE13X200 STRAP MOTOR
WE13X0182 WE13X0182 STRAP, MOTOR
WE01X1042 WE01X1042 STRIKE
WE1X1042 WE1X1042 STRIKE
WH1X2257 WH1X2257 SW BUTTON
WE1X977 WE1X977 SW LABEL
WE1X844 WE1X844 SW SHIELD
WE4X532 WE4X532 SWITCH
WE04X0532 WE04X0532 SWITCH ASM
WE04X0569 WE04X0569 SWITCH ASM 4 BUTTON
WL11X0056 WL11X0056 SWITCH ASM PUSH BUTTON
WE1X667 WE1X667 SWITCH PLATE
WE01X0977 WE01X0977 SWITCH TRIM ASM
WE04X0710 WE04X0710 SWITCH-START FORM J MTR.
WE04X0730 WE04X0730 T'STAT ASM SAFETY
WE4X595 WE4X595 TEMP CONTROL
WE4X168 WE4X168 TERM BLOCK
WE1X1177 WE1X1177 TERM.RECEPT.
WE01X1177 WE01X1177 TERMINAL RECEPTACLE
WE4X584 WE4X584 THERMOSTAT
WE4X590 WE4X590 THERMOSTAT
WE04X0590 WE04X0590 THERMOSTAT L135-15
WE04X0595 WE04X0595 THERMOSTAT L155-20
WE04X0584 WE04X0584 THERMOSTAT L258-50
WE20X613 WE20X613 TOE KICK PNL
WE4X800 WE4X800 TSTAT SAFE
WE01X0932 WE01X0932 TUBE
WH01X2194 WH01X2194 TUBE PLUG
WH1X2194 WH1X2194 TUBE PLUG
WE02X0252 WE02X0252 WASHER
WZ10X0016 WZ10X0016 WASHER
WE02X0279 WE02X0279 WASHER
WE02X0200 WE02X0200 WASHER FLAT
WE2X252D WE2X252D WASHR PKG 12
WZ10X16D WZ10X16D WASHR-PKG 12
WE2X198D WE2X198D WASHR-PKG 12
WE2X192D WE2X192D WE2X192D
WE2X279D WE2X279D WE2X279D
WE2X281D WE2X281D WE2X281D
WE20X0608 WE20X0608 WELD ASM COVER AD
WE20X0609 WE20X0609 WELD ASM COVER HA
WE20X0610 WE20X0610 WELD ASM COVER WH
WE16X0017 WE16X0017 WHEEL BLOWER
