Model Image
Manufacturer

GE

Model Number

DDE7100MBL

Description

Dryer Electric

Interactive Exploded View

Parts List

Part Number Description
WE1X425 WE1X425 ACCESS PLATE
WE01X1171 WE01X1171 AIR SEAL
WE1X1171 WE1X1171 AIR SEAL
WH46X0211 WH46X0211 BACKSPLASH WRAPPER WH
WE01X0689 WE01X0689 BAFFLE BLOWER HOUSING
WE03X0072 WE03X0072 BEARING DRUM
WE3X75 WE3X75 BEARING DRUM
WE25M40 WE25M40 BEARING KIT
WE01X0461 WE01X0461 BEARING RETAINER
WE12X0082 WE12X0082 BELT DRIVE
WE12X10014 WE12X10014 BELT DRIVE
WE04X0168 WE04X0168 BLOCK TERMINAL
WE16X16 WE16X16 BLOWER WHEEL
WE14X134 WE14X134 BLOWR HSG AS
WE2X177D WE2X177D BOLT-PKG 12
WH16X514 WH16X514 BRACE
WE14X0037 WE14X0037 BRACE CABINET TOP
WE1X345 WE1X345 BRACKET
WE1X344 WE1X344 BRACKET
WE01X0345 WE01X0345 BRACKET ASM HINGE
WE01X0344 WE01X0344 BRACKET ASM HINGE
WE01X1094 WE01X1094 BRACKET HINGE
WE13X0159 WE13X0159 BRACKET IDLER SPRING
WE13X0161 WE13X0161 BRACKET MOTOR
WE13X0162 WE13X0162 BRACKET TERMINAL BLOCK
WE1X461 WE1X461 BRG.RETAINER
WE1X1094 WE1X1094 BRKT HINGE
WE13X162 WE13X162 BRKT-TERM BL
WE01X0404 WE01X0404 BUSHING HINGE
WH01X2571 WH01X2571 BUTTON PLUG
WE20X500 WE20X500 CAB FRT ASM
WE20X665 WE20X665 CAB TOP&PLUG **NLA*
WE20X664 WE20X664 CAB TOP&PLUG **NLA*
WE20X756 WE20X756 CABINET ASM
WE20X757 WE20X757 CABINET ASM
WE20X0755 WE20X0755 CABINET ASM AD
WE20X0756 WE20X0756 CABINET ASM HA
WE20X0757 WE20X0757 CABINET ASM WH
WE20X0566 WE20X0566 CABINET FRONT ASM AD
WE20X0496 WE20X0496 CABINET FRONT ASM WH
WE01X0688 WE01X0688 CLAMP
WE01X0409 WE01X0409 CLAMP
WE1X409 WE1X409 CLAMP
WE1X688 WE1X688 CLAMP& SCREW
WE01X0299 WE01X0299 CLIP
WE02X0192 WE02X0192 CLIP
WE02X0134 WE02X0134 CLIP
WE1X335 WE1X335 CLIP
WE1X762 WE1X762 CLIP
WE01X0762 WE01X0762 CLIP GROUNDING
WE01X0335 WE01X0335 CLIP HEATER COIL
WH01X10106 WH01X10106 CLIP KNOB
WH01X2008 WH01X2008 CLIP TRIM
WE1X299D WE1X299D CLIP-PKG 12
WE11X0060 WE11X0060 COIL HEATER
WE13X76 WE13X76 CONTROL PLAT
WE01X0944 WE01X0944 COVER THERMOSTAT
WE14X0086 WE14X0086 DEFLECTOR
WE14X86 WE14X86 DEFLECTOR
WE1X689 WE1X689 DEFLECTOR
WE10X0262 WE10X0262 DOOR ASM AD
WE10X0258 WE10X0258 DOOR ASM WH
WE9X28 WE9X28 DOOR GASKET
WE1X257 WE1X257 DOOR HANDLE
WE01X1032 WE01X1032 DOOR LATCH DOOR
WE4X197 WE4X197 DOOR SWITCH
WE21X0049 WE21X0049 DRUM ASM
WE03X0039 WE03X0039 DRUM SHAFT & BRACKET
31-1702 31-1702 DRYER INSTALLATION INST
WE14X0144 WE14X0144 DUCT TRAP
WE14X0213 WE14X0213 ELBOW EXHAUST
WE14X213 WE14X213 ELBOW EXT.
WE19X0719 WE19X0719 ESCUTCHEON ASM
WE9X38 WE9X38 FELT SEAL AS
WE18X0026 WE18X0026 FILTER ASM LINT
WE09X0028 WE09X0028 GASKET DOOR
WE01X0553 WE01X0553 GASKET INSULATING
WE01X0339 WE01X0339 GROUND STRAP
WE1X339 WE1X339 GROUND STRAP
WE01X0257 WE01X0257 HANDLE DOOR
WE1X404 WE1X404 HINGE BUSHNG
WE14X0134 WE14X0134 HOUSING BLOWER
WE11X0086 WE11X0086 HOUSING HEATER
WH46X212 WH46X212 HSNG&NUT ASM
WH46X215 WH46X215 HSNG&NUT ASM

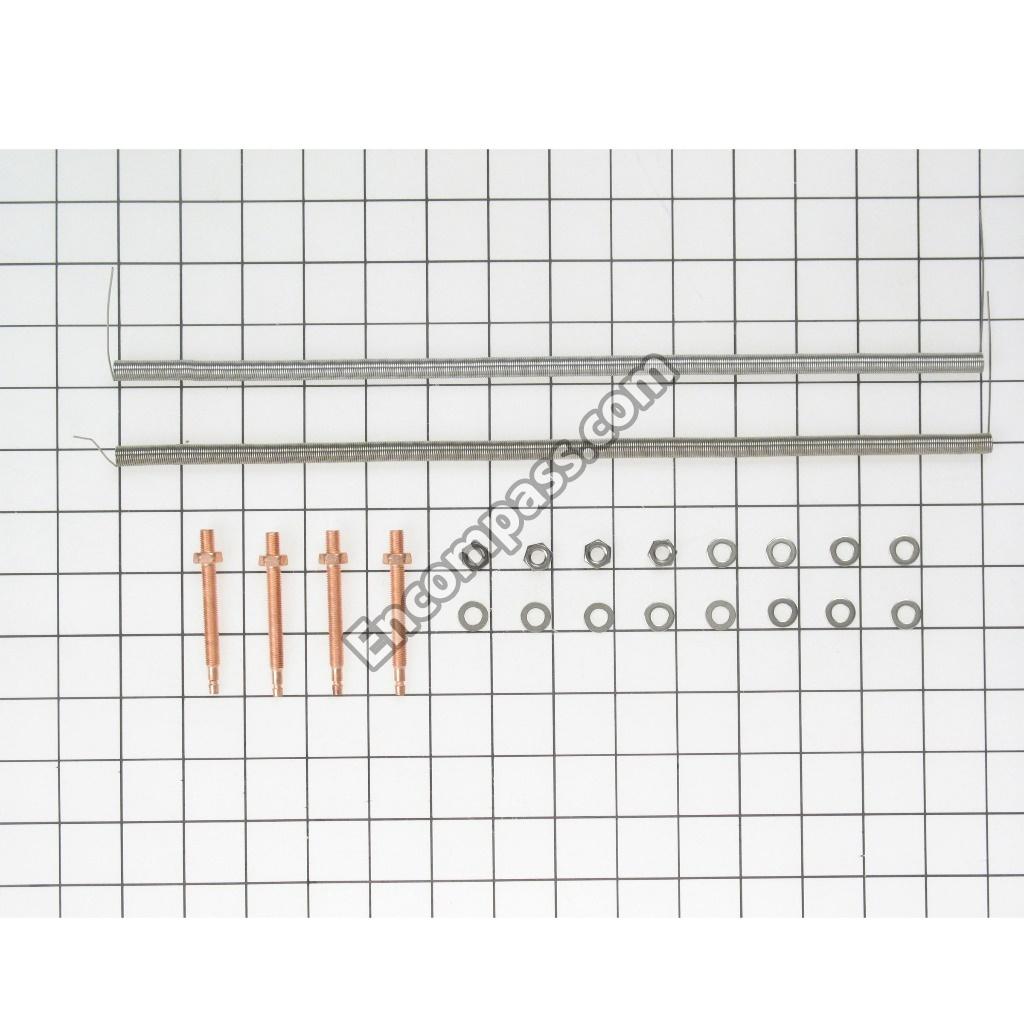

WE11X260 WE11X260 HTR 230 2PK
WE1X1063 WE1X1063 HTR TERMINAL
WE13X159 WE13X159 IDLER SP BKT
WE25X97 WE25X97 INSTL KIT
WE1X158D WE1X158D INSUL-PKG 12
WE1X336D WE1X336D INSUL-PKG 12
WE01X0336 WE01X0336 INSULATOR
WE1X159D WE1X159D INSULATOR (EACH)
WE01X0159 WE01X0159 INSULATOR INNER
WE01X0158 WE01X0158 INSULATOR OUTER
WE2X134D WE2X134D JCLIP-PKG 12
WE01X0978 WE01X0978 KNOB CLIP ASM
WE1X1266 WE1X1266 KNOB TIMER
WE1M1011 WE1M1011 LATCH DOOR
WE1X468 WE1X468 LEVELG PLATE
WE1M642 WE1M642 LEVELLING SCREW GRAY
WE18X26 WE18X26 LINT FILTER
31-2525 31-2525 MINI MANUAL
WE17X0032 WE17X0032 MOTOR ASM
WE01X0921 WE01X0921 MOTOR BRACKET
WE13X161 WE13X161 MOTOR BRKT
WE17X10010 WE17X10010 MOTOR KIT
WE1X921 WE1X921 MOTOR STRAP
WE1X944 WE1X944 N/L/A 01/14/08
WE11X86 WE11X86 N/L/A 02/08/01
WE1X446 WE1X446 N/L/A 02/13/09
WE4X762 WE4X762 N/L/A 03/04/08
WE14X144 WE14X144 N/L/A 03/31/04
WE21X49 WE21X49 N/L/A 05/17/06
WE10X332 WE10X332 N/L/A 08/21/06
WE10X333 WE10X333 N/L/A 11/04/02
WE19X719 WE19X719 NLA PART
WE02X0280 WE02X0280 NO ITEM DESCRIPTION
WE02X0278 WE02X0278 NUT
WH02X0885 WH02X0885 NUT
WZ07X0031 WZ07X0031 NUT
WL02X0071 WL02X0071 NUT SHEET METAL
WB01X0358 WB01X0358 NUT SHEET METAL
WE02X0110 WE02X0110 NUT SHEET METAL K
WE2X278D WE2X278D NUT-PKG 12
WH2X885D WH2X885D NUT-PKG 12
WZ7X31D WZ7X31D NUT-PKG 12
WE2X110D WE2X110D NUT-PKG 12
WE25X0097 WE25X0097 PACK ASM INSTALLATION
WE02X0154 WE02X0154 PALNUT
WE14X0212 WE14X0212 PANEL ACCESS
WE14X212 WE14X212 PANEL ACCESS
340653 340653 PART
WH01X1394 WH01X1394 PIN
WH1X1394 WH1X1394 PIN
WE01X0425 WE01X0425 PLATE
WE01X1174 WE01X1174 PLATE
WE1X1174 WE1X1174 PLATE
WE01X0446 WE01X0446 PLATE CLOSURE
WE13X0076 WE13X0076 PLATE CONTROL
WE01X0468 WE01X0468 PLATE LEVELING SCREW
49-9693 49-9693 PM MANUAL USE CARE
WE12X0041 WE12X0041 PULLEY DRIVE
WE12X0083 WE12X0083 PULLEY IDLER
WE12X83 WE12X83 PULLEY IDLER
WE12X41 WE12X41 PULLEY&SCREW
WE04X0499 WE04X0499 RESISTOR BOARD
WZ04X0236 WZ04X0236 SCR
WH02X0893 WH02X0893 SCR 10-16 HX 3/8 S
WE02X0227 WE02X0227 SCR 10-24 T 13/16
WE02X0177 WE02X0177 SCR 10-32 M RD 1/2 S
WZ04X0257 WZ04X0257 SCR 10-32 TT T 3/8 S
WH02X0967 WH02X0967 SCR 12-14 AB HXW 1/2 S
WE02X0270 WE02X0270 SCR 8-15 A TR 1/2 S
WE02X0281 WE02X0281 SCR 8-18 AB HWX 3/8 S
WZ05X0155 WZ05X0155 SCR 8-18 AB HX 3/8 SS
WE02X0367 WE02X0367 SCR 8-18 AB OPR 3/4 S
WD02X5063 WD02X5063 SCR 8-18 PH HX 13/32 S
WE02X0153 WE02X0153 SCREW
WE02X0194 WE02X0194 SCREW
WE02X0186 WE02X0186 SCREW
WH02X0947 WH02X0947 SCREW
WZ02X0510 WZ02X0510 SCREW
WH2X930 WH2X930 SCREW
WE2X367 WE2X367 SCREW
WZ04X0288 WZ04X0288 SCREW 10-16 X 1/2"" HEX
WZ04X0264 WZ04X0264 SCREW 10-16 X 3/4"" HEX
WE02X0263 WE02X0263 SCREW 10-16X1/2 HXW
WE2X280D WE2X280D SCREW 14-10 A HX 1 S
WE02X0355 WE02X0355 SCREW LEVELLING 5/16-24
WE2X194D WE2X194D SCREW-PKG 12
WE2X186D WE2X186D SCREW-PKG 12
WZ4X288D WZ4X288D SCREW-PKG 12
WE2X263D WE2X263D SCREW-PKG 12
WE2X227D WE2X227D SCREW-PKG 12
WH2X967D WH2X967D SCREW-PKG 12
WZ2X510D WZ2X510D SCREW-PKG 12
WZ4X421D WZ4X421D SCREW-PKG 12
WZ4X264D WZ4X264D SCREW-PKG 12
WZ4X257D WZ4X257D SCREW-PKG 12
WE2X153D WE2X153D SCREW-PKG 12
WZ4X236D WZ4X236D SCREW-PKG 12
WH2X893D WH2X893D SCREW-PKG 12
WH2X947D WH2X947D SCREW-PKG 12
WZ5X158D WZ5X158D SCREW-PKG 12
WD2X5063D WD2X5063D SCREW-PKG 12
WE09X0030 WE09X0030 SEAL ASM
WE09X0038 WE09X0038 SEAL ASM FELT
WE9X30 WE9X30 SEAL&RING AS
WH01X2572 WH01X2572 SLEEVE SPLIT
WH1X2572 WH1X2572 SLEEVE SPLIT
WE25X0060 WE25X0060 SLIDE ASM
WE25X60 WE25X60 SLIDE ASM KT
WL2X71D WL2X71D SNUT-PKG 12 **NLA*
WE03X0069 WE03X0069 SPRING IDLER
WE3X69 WE3X69 SPRING IDLER
WE4X344 WE4X344 START SW
WE13X200 WE13X200 STRAP MOTOR
WE13X0182 WE13X0182 STRAP, MOTOR
WE01X1042 WE01X1042 STRIKE
WE1X1042 WE1X1042 STRIKE
WE02X0136 WE02X0136 STUD HEATER
WE04X0762 WE04X0762 SWITCH ASM 2 TOGL
WE04X0197 WE04X0197 SWITCH ASM PB DOOR
WE19X0912 WE19X0912 SWITCH TRIM ASM
WE04X0710 WE04X0710 SWITCH-START FORM J MTR.
WE04X0344 WE04X0344 SWITCH-START FORM T MTR
WE04X0730 WE04X0730 T'STAT ASM SAFETY
WE4X168 WE4X168 TERM BLOCK
WE4X499 WE4X499 TERMBD&RES A
WE01X1063 WE01X1063 TERMINAL (HEATER COIL)
WE4X601 WE4X601 THERMOSTAT
WE4X584 WE4X584 THERMOSTAT
WE4X600 WE4X600 THERMOSTAT
WE04X0601 WE04X0601 THERMOSTAT L135-15
WE04X0600 WE04X0600 THERMOSTAT L145-15
WE04X0584 WE04X0584 THERMOSTAT L258-50
WE04X0759 WE04X0759 TIMER ASM
WE4X821 WE4X821 TIMER ASM
WE20X0347 WE20X0347 TOEBOARD
WE20X347 WE20X347 TOEBOARD
WH1X2008 WH1X2008 TRIM CLIP
WH42X2199 WH42X2199 TRIM END L H
WH42X2200 WH42X2200 TRIM END R H
WH42X2201 WH42X2201 TRIM TOP
WE4X800 WE4X800 TSTAT SAFE
WE01X0980 WE01X0980 U CLIP
WZ10X0016 WZ10X0016 WASHER
WE02X0279 WE02X0279 WASHER
WZ10X16D WZ10X16D WASHR-PKG 12
WE2X192D WE2X192D WE2X192D
WE2X279D WE2X279D WE2X279D
WE2X281D WE2X281D WE2X281D
WE20X0665 WE20X0665 WELD ASM COVER AD
WE20X0664 WE20X0664 WELD ASM COVER WH
WH46X0212 WH46X0212 WELD ASM-HOUSING AD
WH46X0215 WH46X0215 WELD ASM-HOUSING HA
WE16X0016 WE16X0016 WHEEL BLOWER
WE1X553 WE1X553 WRAPP GASKET
WH1X2571 WH1X2571 {{NLA}} PLUG BUTTON
