Model Image
Manufacturer

GE

Model Number

DDG9280BAC

Description

Dryer Electric

Interactive Exploded View

Parts List

Part Number Description
WB02X0817 WB02X0817 1/4"" FEMALE TERM.
WE19X0704 WE19X0704 BACKSPLASH WRAPPER AD
WE19X0703 WE19X0703 BACKSPLASH WRAPPER CF
WE19X0701 WE19X0701 BACKSPLASH WRAPPER FA
WE19X0702 WE19X0702 BACKSPLASH WRAPPER HA
WE20X0441 WE20X0441 BACKSPLASH WRAPPER WH
WE03X0041 WE03X0041 BAR ASM-IDLER
WE20X0537 WE20X0537 BASE - WRAPPER ASM AD
WE20X0536 WE20X0536 BASE - WRAPPER ASM CF
WE20X0534 WE20X0534 BASE - WRAPPER ASM FA
WE20X0535 WE20X0535 BASE - WRAPPER ASM HA
WE20X0507 WE20X0507 BASE - WRAPPER ASM WH
WE01X0902 WE01X0902 BEARING
WE01X0759 WE01X0759 BEARING
WE03X0040 WE03X0040 BEARING
WE3X75 WE3X75 BEARING DRUM
WE25M40 WE25M40 BEARING KIT
WE01X0461 WE01X0461 BEARING RETAINER
WE03X0037 WE03X0037 BEARING-DRUM

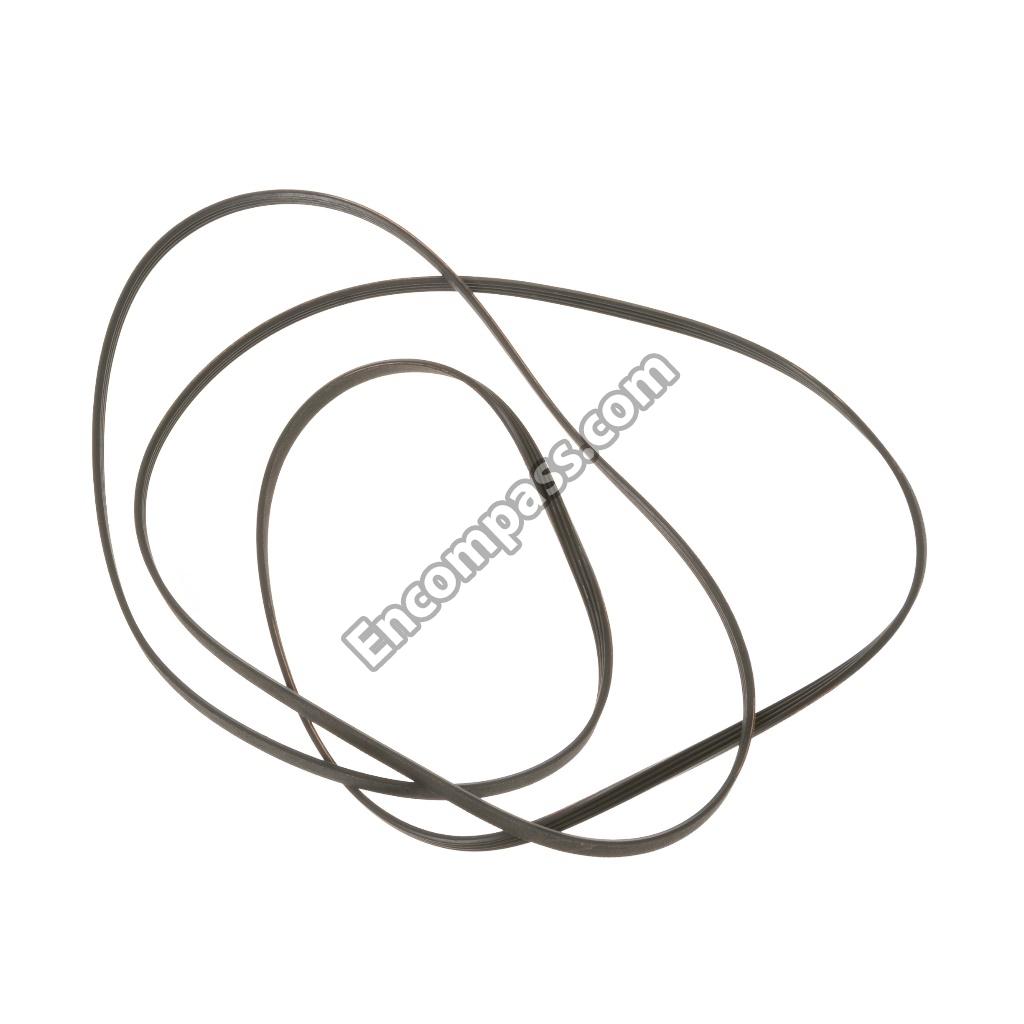

WE12X0049 WE12X0049 BELT-DRIVE
WE16M15 WE16M15 BLOWER WHEEL
WE04X0425 WE04X0425 BOARD ASM CIRCUIT
WE13X116 WE13X116 BRACKET
WE13X0092 WE13X0092 BRACKET ASM-MOTOR
WE13X0116 WE13X0116 BRACKET IGNITER
WH16X0434 WH16X0434 BRACKET SWITCH
WE13X0098 WE13X0098 BRACKET-CHAMBER
WE13X0114 WE13X0114 BRACKET-SPACER
WE13X0139 WE13X0139 BRACKET-VALVE
WE13X0101 WE13X0101 BRACKET-WIRE
WE1X461 WE1X461 BRG.RETAINER
WE1X967 WE1X967 BURNER ASM
WE01X0967 WE01X0967 BURNER ASM
WE01X0981 WE01X0981 BUTTON SWITCH
WE1X690 WE1X690 BUZZER
WE01X0690 WE01X0690 BUZZER FIXED
WE20X0593 WE20X0593 CABINET FRONT AD
WE20X0546 WE20X0546 CABINET FRONT FA
WE20X0547 WE20X0547 CABINET FRONT HA
WE20X0527 WE20X0527 CABINET FRONT WH
WE1X353D WE1X353D CBHNG-PKG 12
WE14X0124 WE14X0124 CHAMBER-COMBUSTION
WE01X0748 WE01X0748 CLAMP
WE02X0224 WE02X0224 CLIP
WE1X762 WE1X762 CLIP
WE01X0408 WE01X0408 CLIP CABLE
WH01X1923 WH01X1923 CLIP COVER
WE01X0762 WE01X0762 CLIP GROUNDING
WH01X10106 WH01X10106 CLIP KNOB
WH01X2008 WH01X2008 CLIP TRIM
WE1X941 WE1X941 CLIP&LEAD AS
WE1X408D WE1X408D CLIP-PKG 12
WE04X0560 WE04X0560 COIL ASM SPLIT COIL
WE13X76 WE13X76 CONTROL PLAT
WH19X5028 WH19X5028 CORDSET ASM-GROUNDING
WH1X2187 WH1X2187 COVER STOP
WH1X1946 WH1X1946 COVER STRAP
WE01X0754 WE01X0754 COVER-BEARING
WE01X0755 WE01X0755 COVER-TERMINAL
WE14X0086 WE14X0086 DEFLECTOR
WE14X86 WE14X86 DEFLECTOR
WE04X0448 WE04X0448 DETECTOR ASM
WE14X219 WE14X219 DIFFUSER ASM
WE14X105 WE14X105 DIFFUSER PLT
WE14X0125 WE14X0125 DIFFUSER SEAL ASM
10C7DC 10C7DC DISCONTINUED
WE18X36 WE18X36 DISCONTINUED
WE10X0248 WE10X0248 DOOR ASM AD
WE10X0247 WE10X0247 DOOR ASM CF
WE10X0245 WE10X0245 DOOR ASM FA
WE10X0246 WE10X0246 DOOR ASM HA
WE10X0236 WE10X0236 DOOR ASM WH
WE9X41 WE9X41 DOOR GASKET
WE1X257 WE1X257 DOOR HANDLE
WE01X0903 WE01X0903 DOOR LATCH
WE4X197 WE4X197 DOOR SWITCH
WE10X0244 WE10X0244 DOOR-ACCESS AD
WE10X0243 WE10X0243 DOOR-ACCESS CF
WE10X0241 WE10X0241 DOOR-ACCESS FA
WE10X0242 WE10X0242 DOOR-ACCESS HA
WE10X0193 WE10X0193 DOOR-ACCESS WH
WE12X49 WE12X49 DRIVE BELT
WE21X0047 WE21X0047 DRUM ASM
WE03X0039 WE03X0039 DRUM SHAFT & BRACKET
WE14X0126 WE14X0126 DUCT ASM
WE14X0104 WE14X0104 DUCT-TRAP
WE2X210 WE2X210 E RING
WE19X793 WE19X793 END TRIM-LH
WE19X792 WE19X792 END TRIM-RH
WE19X0681 WE19X0681 ESCUTCHEON ASM
WE19X0733 WE19X0733 ESCUTCHEON ASM
WE14X0137 WE14X0137 EXHAUST DUCT ASM
WE4X448 WE4X448 FLAME DETECTOR
WE14X141 WE14X141 GAS VALVE AS
WE09X0041 WE09X0041 GASKET-DOOR
WE01X0926 WE01X0926 GASKET-HOUSING
WE1X1172 WE1X1172 GR STRAP ASM
WE01X0744 WE01X0744 GROMMET
WH01X5122 WH01X5122 GROMMET-CABINET A
WE01X0733 WE01X0733 HANDLE & INSERT ASM
WE01X0353 WE01X0353 HANGER-CABLE
WE01X0901 WE01X0901 HINGE
WE1X901 WE1X901 HINGE **NLA*
WE01X0427 WE01X0427 HOUSING LAMP
WH12X0242 WH12X0242 HOUSING TERMINAL
WH12X0237 WH12X0237 HOUSING TERMINAL
WE14X0135 WE14X0135 HOUSING-BLOWER
WE04X0444 WE04X0444 IGNITER
WE4X444 WE4X444 IGNITOR
49-9048 49-9048 INSTALLATION INSTR
49-9402 49-9402 INSTRUCTION SHEET
WE01X0979 WE01X0979 KNOB AND CLIP ASM
WE01X0978 WE01X0978 KNOB CLIP ASM
WE1X1266 WE1X1266 KNOB TIMER
WE1X427 WE1X427 LAMP HOUS
WX12X0079 WX12X0079 LAMP K
WE1M1011 WE1M1011 LATCH DOOR
WE01X0606 WE01X0606 LEAK LIMITER
WE1X606 WE1X606 LEAK LIMITER
WE1M642 WE1M642 LEVELLING SCREW GRAY
WE18X0036 WE18X0036 LINT FILTER ASM
WE17X0032 WE17X0032 MOTOR ASM
WE01X0921 WE01X0921 MOTOR BRACKET
WE17X10010 WE17X10010 MOTOR KIT
WE1X921 WE1X921 MOTOR STRAP
WE2X223 WE2X223 N.L.A. SCREW
WE2X258 WE2X258 N.L.A. SCREW
WE10X240 WE10X240 N.L.A.SENSOR MOUNT
WE1X888 WE1X888 N/L/A 01/19/09
WE4X605 WE4X605 N/L/A 03/23/05
WE2X183D WE2X183D N/L/A 04/13/05
WE12X45 WE12X45 N/L/A 04/21/05
WE9X44 WE9X44 N/L/A 09/27/04
WE4X586 WE4X586 N/L/A 09/30/03
WE12X50 WE12X50 N/L/A 09/30/98
WE3X40 WE3X40 N/L/A 11/04/02
WE4X611 WE4X611 NLA PART
WE02X0280 WE02X0280 NO ITEM DESCRIPTION
WE02X0216 WE02X0216 NUT
WZ07X0038 WZ07X0038 NUT
WR01X10212 WR01X10212 NUT 8-32
WZ7X38D WZ7X38D NUT PKG 12
WE02X0169 WE02X0169 NUT SHEET METAL
WH02X5002 WH02X5002 NUT-TWIN SPEED A
WE01X0968 WE01X0968 ORIFICE
WE1X968 WE1X968 ORIFICE
WE25X0098 WE25X0098 PACK ASM INSTALLATION
WE09X0044 WE09X0044 PAD FELT
WE02X0154 WE02X0154 PALNUT
WE14X0103 WE14X0103 PANEL-ACCESS
WB17X145D WB17X145D PIN-M-PKG 12
WB17X151D WB17X151D PIN-PKG 12
WE01X0757 WE01X0757 PIPE
WE13X0076 WE13X0076 PLATE CONTROL
WH16X0343 WH16X0343 PLATE SWITCH
WE01X0925 WE01X0925 PLATE-CORDSET
WE14X0105 WE14X0105 PLATE-DIFFUSER
WE01X0888 WE01X0888 PLATE-DOOR LATCH
WE13X0132 WE13X0132 PLATE-MOTOR MTG
WE13X0131 WE13X0131 PLATE-THERMOSTAT
WE12X81 WE12X81 PULEY IDLKIT
WE12X0050 WE12X0050 PULLEY-DRIVE
WE12X0045 WE12X0045 PULLEY-IDLER
WE01X0706 WE01X0706 RETAINER
WZ13X0031 WZ13X0031 RING E
WE02X0210 WE02X0210 RING-E
WE02X0191 WE02X0191 RIVET
WE2X191D WE2X191D RIVET-PKG 12
WZ13X31D WZ13X31D RTRNG PKG 12
WZ04X0236 WZ04X0236 SCR
8-32X5_8 8-32X5_8 SCR (GAS VALVE ASM)
6-32X7_16 6-32X7_16 SCR (GAS VALVE ASM)
8-32X7_16 8-32X7_16 SCR (GAS VALVE ASM)
WH02X0893 WH02X0893 SCR 10-16 HX 3/8 S
WE02X0227 WE02X0227 SCR 10-24 T 13/16
WE02X0229 WE02X0229 SCR 5/16-24 LVL 2 S
WZ04X0220 WZ04X0220 SCR 6-20 AB HXW 1/2 S
WE02X0270 WE02X0270 SCR 8-15 A TR 1/2 S
WE02X0281 WE02X0281 SCR 8-18 AB HWX 3/8 S
WZ04X0319 WZ04X0319 SCR 8-18 BA OPR 1 7/16 S
WD02X5063 WD02X5063 SCR 8-18 PH HX 13/32 S
WE02X0153 WE02X0153 SCREW
WE02X0194 WE02X0194 SCREW
WE02X0186 WE02X0186 SCREW
WZ05X0120 WZ05X0120 SCREW
WZ02X0510 WZ02X0510 SCREW
WH2X937 WH2X937 SCREW
WH2X930 WH2X930 SCREW
WE2X275 WE2X275 SCREW
WE02X0215 WE02X0215 SCREW 1/4-20 X 2 1/2 HEX
10-18X114 10-18X114 SCREW 10-12 X 1 1/4 RD
WE02X0269 WE02X0269 SCREW 10-12 X 3/4 HEX
10-16X1_2 10-16X1_2 SCREW 10-16 X 1/2 HEX
10-16X3_4 10-16X3_4 SCREW 10-16 X 13/16 HEX
10-16X3_8 10-16X3_8 SCREW 10-16 X 3/8 HEX
WE02X0268 WE02X0268 SCREW 10-16 X 5/8 HEX
WE02X0263 WE02X0263 SCREW 10-16X1/2 HXW
WE2X280D WE2X280D SCREW 14-10 A HX 1 S
WE02X0223 WE02X0223 SCREW 4-24 X 1/4 TRUSS
WE02X0267 WE02X0267 SCREW 8-15 X 1/2 HEX
WE02X0275 WE02X0275 SCREW 8-18 X 1/2 HEX
8-18X3_4 8-18X3_4 SCREW 8-18 X 3/4 HEX
WL02X0139 WL02X0139 SCREW 8-18 X 3/8 HEX
WE02X0266 WE02X0266 SCREW 8-18 X 3/8 PAN
WE02X0258 WE02X0258 SCREW 8-18 X 7/16 OVAL
WH02X5137 WH02X5137 SCREW 8-32 X 5/32 PAN
WE02X0277 WE02X0277 SCREW 8-40 X 1/2 HEX
WZ4X319D WZ4X319D SCREW-PKG 12
WZ4X236D WZ4X236D SCREW-PKG 12
WE2X263D WE2X263D SCREW-PKG 12
WE2X186D WE2X186D SCREW-PKG 12
WE2X194D WE2X194D SCREW-PKG 12
WD2X5063D WD2X5063D SCREW-PKG 12
WZ5X120D WZ5X120D SCREW-PKG 12
WZ4X220D WZ4X220D SCREW-PKG 12
WE2X227D WE2X227D SCREW-PKG 12
WZ2X510D WZ2X510D SCREW-PKG 12
WH2X893D WH2X893D SCREW-PKG 12
WE2X153D WE2X153D SCREW-PKG 12
WZ5X158D WZ5X158D SCREW-PKG 12
WL2X139D WL2X139D SCREW-PKG 12 **NLA*
WH02X0937 WH02X0937 SCREW-TYPE A
WE09X0042 WE09X0042 SEAL
WE09X0040 WE09X0040 SEAL ASM
WE20X0584 WE20X0584 SELD ASM-COVER SL
WE10X0240 WE10X0240 SENSOR MOUNT ASM
WE13X0093 WE13X0093 SLIDE ASM
WE13X93 WE13X93 SLIDE ASM
WE04X0185 WE04X0185 SOCKET ASM
WE4X185 WE4X185 SOCKET ASM
WE4X560 WE4X560 SPLIT COIL
WE01X0866 WE01X0866 SPRING
WE01X0941 WE01X0941 SPRING ASM
WE4X344 WE4X344 START SW
WH01X2187 WH01X2187 STOP COVER
WH01X1946 WH01X1946 STRAP COVER
WE01X0627 WE01X0627 STRAP GROUND
WE13X0051 WE13X0051 STRAP MOTOR
WE13X200 WE13X200 STRAP MOTOR
WE01X0890 WE01X0890 STRIKE
WE1X1042 WE1X1042 STRIKE
WE13X0094 WE13X0094 SUPPORT
WH16X434 WH16X434 SW BRACKET
WE1X979 WE1X979 SW KNOB ASM
WE4X613 WE4X613 SWITCH ASM
WE04X0613 WE04X0613 SWITCH ASM 5 BUTTON
WE04X0197 WE04X0197 SWITCH ASM PB DOOR
WE04X0605 WE04X0605 SWITCH ASM ROTARY
WH16X343 WH16X343 SWITCH PLATE
WE19X0790 WE19X0790 SWITCH TRIM ASM
WE04X0614 WE04X0614 SWITCH-SELECTOR
WE04X0344 WE04X0344 SWITCH-START FORM T MTR
WH12X237 WH12X237 TERM HOUSING
WH12X242 WH12X242 TERM HOUSNG **NLA*
WH01X1719 WH01X1719 TERMINAL
WB17X0151 WB17X0151 TERMINAL
WB17X0145 WB17X0145 TERMINAL FOR WB17X0147
WE01X0704 WE01X0704 TERMINAL SPECIAL
WE1X704D WE1X704D TERML-PKG 12
WH1X1719D WH1X1719D TERMNL QTY12
WE4X608 WE4X608 THERMOSTAT
WE4X607 WE4X607 THERMOSTAT
WE04X0608 WE04X0608 THERMOSTAT ASM L135-10
WE04X0607 WE04X0607 THERMOSTAT ASM L142-24
WE04X0586 WE04X0586 THERMOSTAT L335-40
WE04X0611 WE04X0611 TIMER ASM
WE19X791 WE19X791 TOP TRIM **NLA*
WE19X0791 WE19X0791 TRIM ASM-TOP
WH1X2008 WH1X2008 TRIM CLIP
WE19X0793 WE19X0793 TRIM END LH
WE19X0792 WE19X0792 TRIM END RH
WB2X817 WB2X817 TRMNL- EACH **NLA*
WE01X0980 WE01X0980 U CLIP
49-9401 49-9401 USE - CARE BOOK
WE1X1078 WE1X1078 VALV SHUTOFF
WE14X0141 WE14X0141 VALVE ASM
WE01X0758 WE01X0758 VALVE ASM SHUTOFF
WE13X195 WE13X195 VALVE BRKT
WZ10X0016 WZ10X0016 WASHER
WE02X0195 WE02X0195 WASHER
WE02X0092 WE02X0092 WASHER CUP
WE02X0198 WE02X0198 WASHER FLAT
WE02X0183 WE02X0183 WASHER FLAT
WE02X0211 WE02X0211 WASHER-FLAT
WZ10X16D WZ10X16D WASHR-PKG 12
WE2X198D WE2X198D WASHR-PKG 12
WE04X10001 WE04X10001 WE04X10001
WE2X281D WE2X281D WE2X281D
WE20X0583 WE20X0583 WELD ASM-COVER AD
WE20X0585 WE20X0585 WELD ASM-COVER FA
WE20X0586 WE20X0586 WELD ASM-COVER HA
WE20X0582 WE20X0582 WELD ASM-COVER WH
WH1X1923D WH1X1923D WH1X1923D
WH1X2562 WH1X2562 WH1X2562
WE16X0017 WE16X0017 WHEEL BLOWER
WH16X0370 WH16X0370 WIRE
WH16X370 WH16X370 WIRE
