Model Image
Manufacturer

GE

Model Number

DDP1380GCM

Description

Dryer Electric

Interactive Exploded View

Parts List

Part Number Description
WE01X0689 WE01X0689 BAFFLE BLOWER HOUSING
WE01X1093 WE01X1093 BAFFLE DRUM
WE03X0063 WE03X0063 BEARING DOOR
WE3X63 WE3X63 BEARING DRUM
WE25M40 WE25M40 BEARING KIT
WE01X0461 WE01X0461 BEARING RETAINER

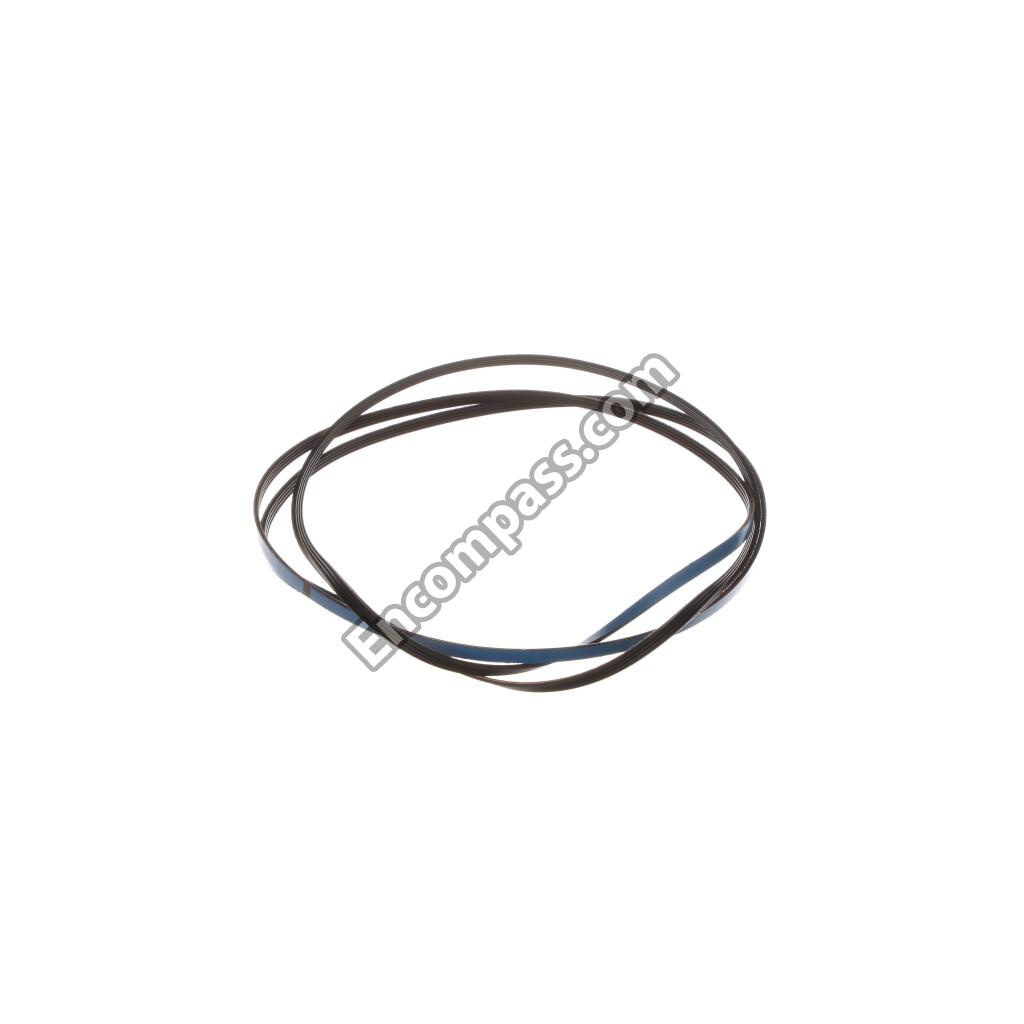

WE12X0079 WE12X0079 BELT DRIVE
WE03X32037 WE03X32037 BELT DRIVE

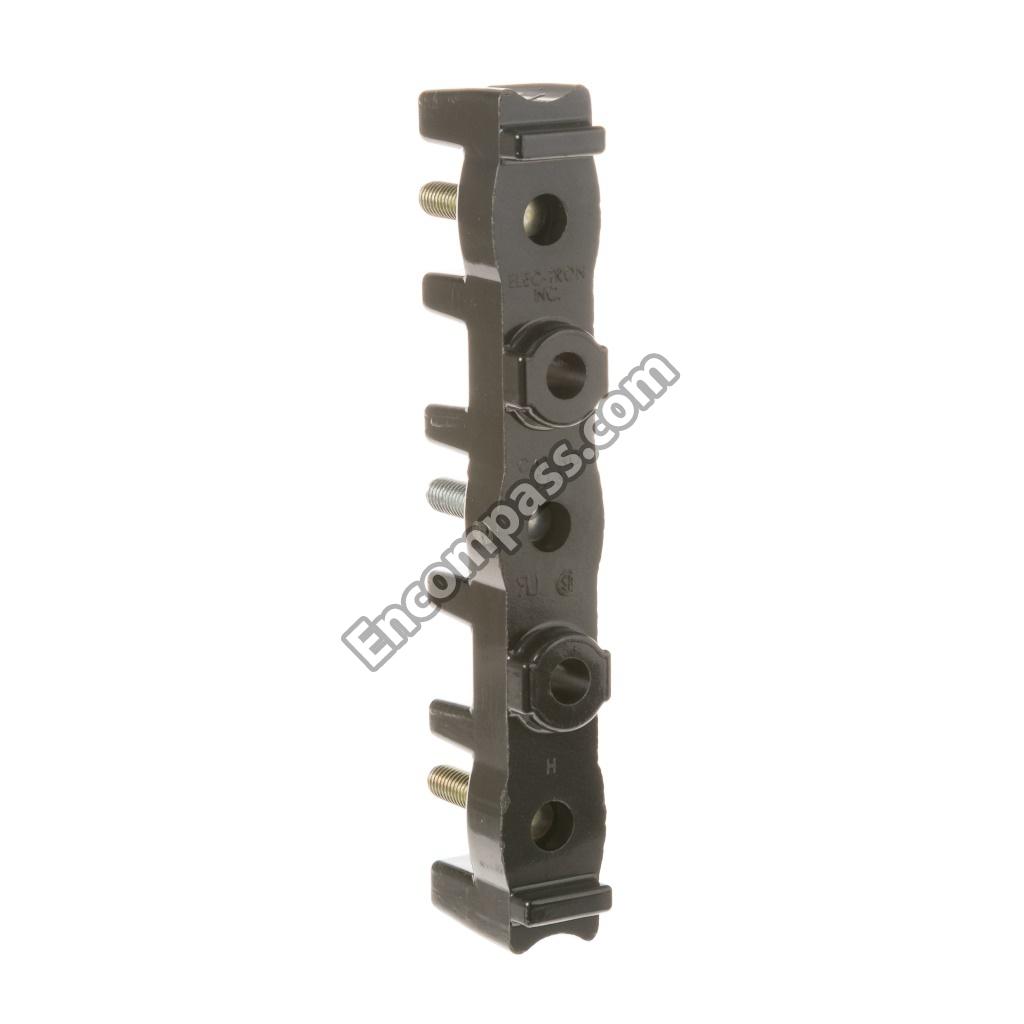

WE04X0168 WE04X0168 BLOCK TERMINAL

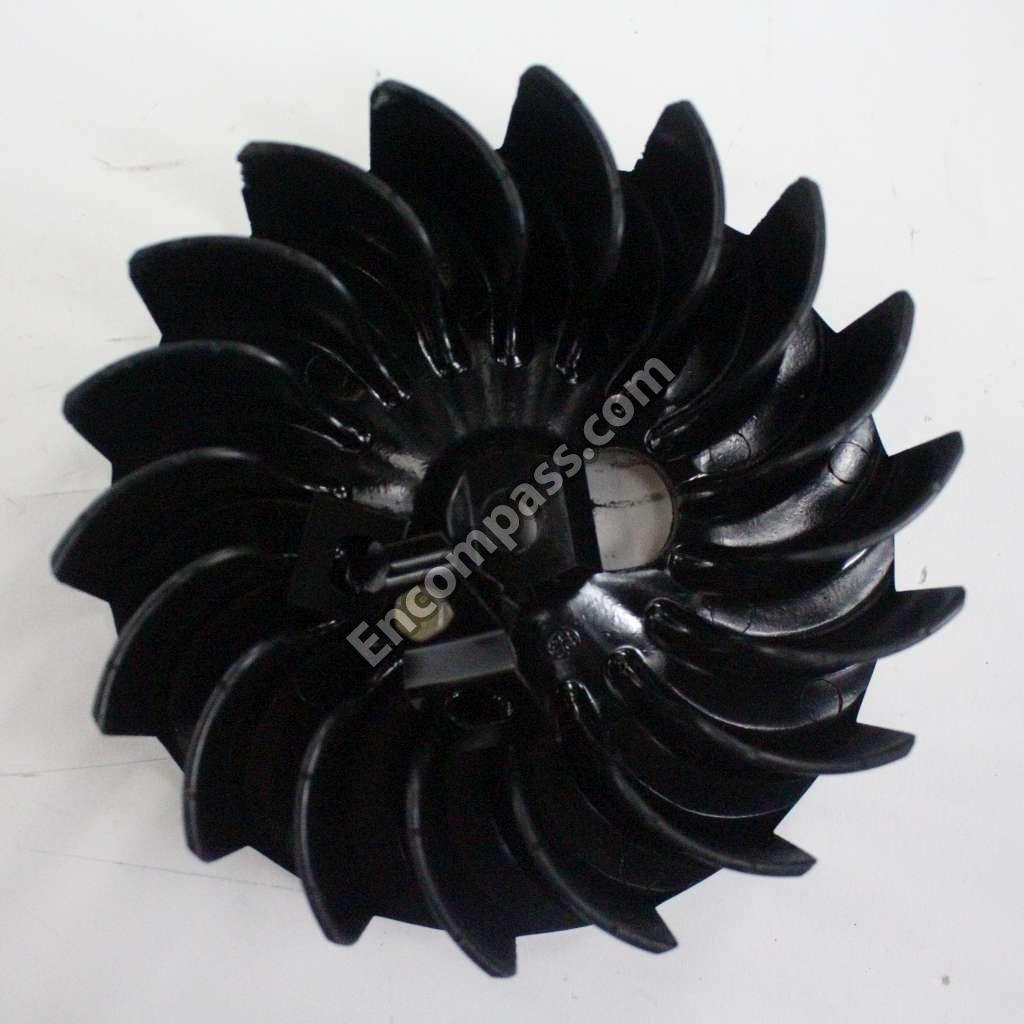

WE16X16 WE16X16 BLOWER WHEEL
WE13X0167 WE13X0167 BRACKET CAB FRONT
WE13X0181 WE13X0181 BRACKET MOTOR
WE13X181 WE13X181 BRACKET MTR
WE1X461 WE1X461 BRG.RETAINER
WE13X167 WE13X167 BRKT CAB FRT
WE01X1079 WE01X1079 BUMPER
WE20X0710 WE20X0710 CABINET BASE REAR
WE01X1081 WE01X1081 CABLE CLIP
WE1X1081 WE1X1081 CABLE CLIP
WE02X0329 WE02X0329 CAP NUT
WE2M96 WE2M96 CAP NUT
WE01X0688 WE01X0688 CLAMP
WE1X688 WE1X688 CLAMP& SCREW
WE02X0326 WE02X0326 CLIP
WE1X335 WE1X335 CLIP
WR2M1052 WR2M1052 CLIP
WE01X0408 WE01X0408 CLIP CABLE
WE01X1091 WE01X1091 CLIP CORDSET
WE1X1091 WE1X1091 CLIP CORDSET
WE01X0335 WE01X0335 CLIP HEATER COIL
WH01X10106 WH01X10106 CLIP KNOB
WE2X321 WE2X321 CLIP SPEED
WE01X1080 WE01X1080 CLIP TOP COVER
WE1X1080 WE1X1080 CLIP TOPCVR
WE1X408D WE1X408D CLIP-PKG 12
WE08X0040 WE08X0040 CORDSET
WE01X1088 WE01X1088 COVER
WE1X1088 WE1X1088 CVR KNOCKOUT
31-1583 31-1583 DDP1380G INSTALLATION
WE14X0173 WE14X0173 DEFLECTOR
WE1X689 WE1X689 DEFLECTOR
WE10X0306 WE10X0306 DOOR ASM AD
WE10X0305 WE10X0305 DOOR ASM WH
WE01X1032 WE01X1032 DOOR LATCH DOOR
WE4X197 WE4X197 DOOR SWITCH
WE21X0061 WE21X0061 DRUM
WE21X28955 WE21X28955 DRUM ASM
WE03X0064 WE03X0064 DRUM SHAFT & BRACKET
WE14X0184 WE14X0184 DUCT AIR
WE14X0174 WE14X0174 ELBOW
WE01X1092 WE01X1092 FASTENER
WE1X1092 WE1X1092 FASTENER
WE18X0046 WE18X0046 FILTER
WE18X46 WE18X46 FILTER **NLA*
WE20X0709 WE20X0709 FRONT CABINET AD
WE20X0708 WE20X0708 FRONT CABINET WH
WE20X709 WE20X709 FRT CAB AD
WE09X0087 WE09X0087 GASKET LARGE
WE09X0086 WE09X0086 GASKET SMALL
WE9X86 WE9X86 GASKET SMALL **NLA*
WE1X1172 WE1X1172 GR STRAP ASM
WR1X1326D WR1X1326D GROMMT 12 PK
WE01X0339 WE01X0339 GROUND STRAP
WE1X339 WE1X339 GROUND STRAP
WE11X83 WE11X83 HEATER 230V
WE11X0083 WE11X0083 HEATER COIL
WE1M1033 WE1M1033 HINGE
WE01X1084 WE01X1084 HINGE DOOR
WE14X0176 WE14X0176 HOUSING BLOWER
WE11X0084 WE11X0084 HOUSING HEATER
WE1X1063 WE1X1063 HTR TERMINAL
WE3M18 WE3M18 IDLER ARM
WE1X336D WE1X336D INSUL-PKG 12
WE1X158D WE1X158D INSUL-PKG 12
WE01X0336 WE01X0336 INSULATOR
WE1X159D WE1X159D INSULATOR (EACH)
WE01X0159 WE01X0159 INSULATOR INNER
WE01X0158 WE01X0158 INSULATOR OUTER
WE14M65 WE14M65 KIT BAFFLE
WE01X1086 WE01X1086 KNOB
WE1X1086 WE1X1086 KNOB SWITCH
WE01X1085 WE01X1085 KNOB TIMER
WE01X1087 WE01X1087 KNOCKOUT COVER
WE1X1087 WE1X1087 KNOCKOUT RD
WE1M1011 WE1M1011 LATCH DOOR
WE17X39 WE17X39 MOTOR
WE01X0921 WE01X0921 MOTOR BRACKET
WE17X0039 WE17X0039 MOTOR PULLEY
WE1X921 WE1X921 MOTOR STRAP
WE9X85 WE9X85 N/L/A 05/20/05
WE8X40 WE8X40 N/L/A 11/23/01
WE03X0065 WE03X0065 NO ITEM DESCRIPTION
WE02X0278 WE02X0278 NUT
WZ07X0031 WZ07X0031 NUT
WZ7X31D WZ7X31D NUT-PKG 12
WE2X278D WE2X278D NUT-PKG 12
WE02X0154 WE02X0154 PALNUT
WE20X0697 WE20X0697 PANEL SIDE AD
WE20X0696 WE20X0696 PANEL SIDE WH
WE20X697 WE20X697 PANELSIDE AD
WE20X696 WE20X696 PANELSIDE WH
WE14M41 WE14M41 PLATE & ELBOW EXAUST
49-9518 49-9518 PM BOOK USE - CARE
WE12X83 WE12X83 PULLEY IDLER
WE12X0080 WE12X0080 PULLY IDLER
WE04X0721 WE04X0721 RECEPTACLE
WE4X721 WE4X721 RECEPTACLE
WE04X0499 WE04X0499 RESISTOR BOARD
WE1X1082 WE1X1082 RET BOT TRIM
WE01X1082 WE01X1082 RETAINER BOTTOM TRIM
WE4X492 WE4X492 ROTARY SW
WE04X0492 WE04X0492 ROTARY SWITCH-TEMP. SELECTION, 4 POS.ELEC.
WE2X196D WE2X196D SCLIP-PKG 12
WE02X0332 WE02X0332 SCR
WE02X0331 WE02X0331 SCR
WZ04X0239 WZ04X0239 SCR
WE02X0328 WE02X0328 SCR
WE02X0324 WE02X0324 SCR
WZ04X0236 WZ04X0236 SCR
WE02X0325 WE02X0325 SCR
WE02X0194 WE02X0194 SCREW
WZ05X0120 WZ05X0120 SCREW
WE2X332 WE2X332 SCREW
WE2X331 WE2X331 SCREW
WE02X0263 WE02X0263 SCREW 10-16X1/2 HXW
WZ4X236D WZ4X236D SCREW-PKG 12
WZ4X241D WZ4X241D SCREW-PKG 12
WZ4X338D WZ4X338D SCREW-PKG 12
WZ5X120D WZ5X120D SCREW-PKG 12
WE2X194D WE2X194D SCREW-PKG 12
WE2X263D WE2X263D SCREW-PKG 12
WE09X0085 WE09X0085 SEAL FELT
WE3X64 WE3X64 SHAF BRKDRUM
WE02X0321 WE02X0321 SPEED CLIP
WE02X0196 WE02X0196 SPEED CLIP
WE02X0330 WE02X0330 SPEEDNUT
WE02X0323 WE02X0323 SPEEDNUT
WE03X0066 WE03X0066 SPRING IDLER
WE01X0627 WE01X0627 STRAP GROUND
WE13X0051 WE13X0051 STRAP MOTOR
WE13X200 WE13X200 STRAP MOTOR
WE01X1042 WE01X1042 STRIKE
WE1X1042 WE1X1042 STRIKE
WE01X1083 WE01X1083 STRIKE RETAINER
WE02X0136 WE02X0136 STUD HEATER
WE4X679 WE4X679 SW ROTARY
WE4X689 WE4X689 SW SPART R
WE4X688 WE4X688 SW START--T
WE04X0197 WE04X0197 SWITCH ASM PB DOOR
WE04X0679 WE04X0679 SWITCH ROTARY START
WE04X0689 WE04X0689 SWITCH STARTING (FORM R)
WE04X0688 WE04X0688 SWITCH STARTING (FORM T)
WE4X168 WE4X168 TERM BLOCK
WE4X499 WE4X499 TERMBD&RES A
WE01X1063 WE01X1063 TERMINAL (HEATER COIL)
WE4X687 WE4X687 THERMO SAFEY

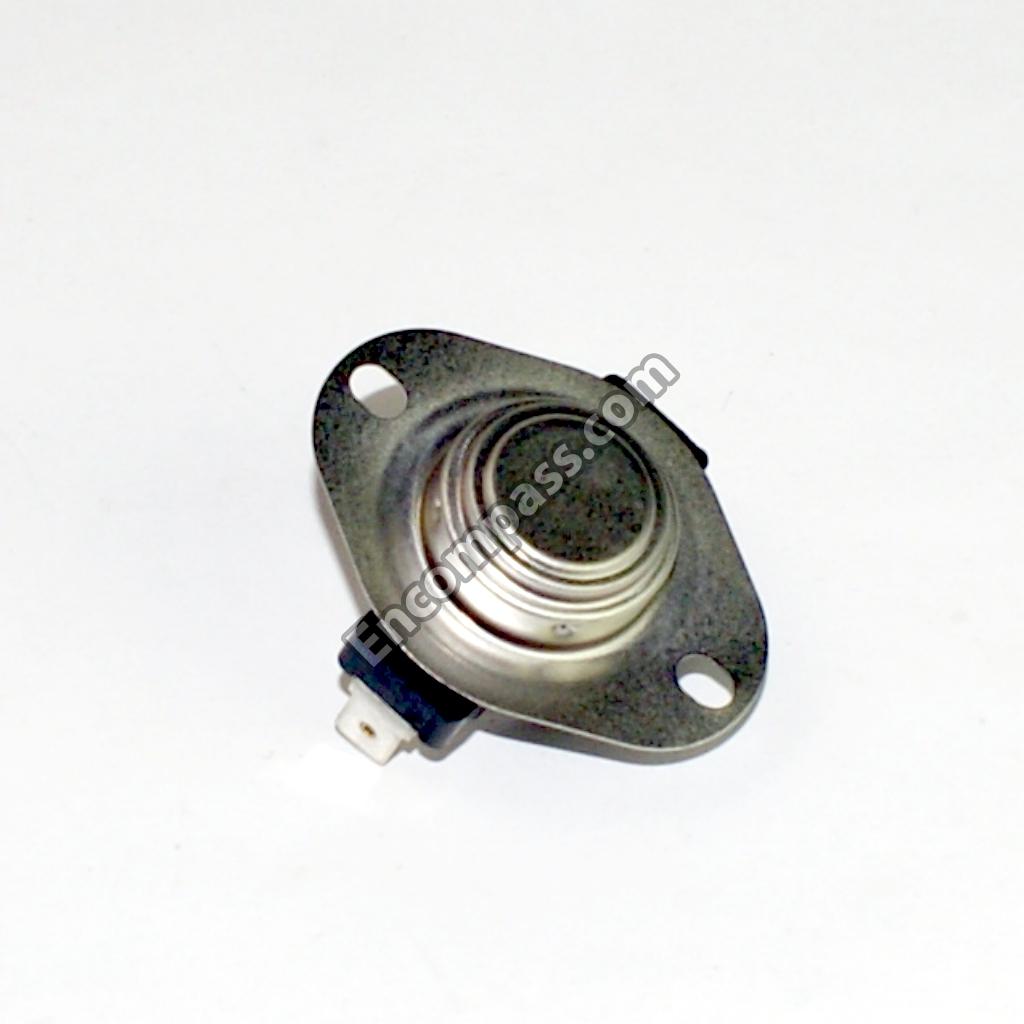

WE04X0722 WE04X0722 THERMOSTAT
WE4M127 WE4M127 THERMOSTAT DRUM OUT
WE04X0691 WE04X0691 THERMOSTAT L130-22
WE04X0687 WE04X0687 THERMOSTAT SAFETY L240
WE04X0720 WE04X0720 TIMER
WE4X720 WE4X720 TIMER
WE20X694 WE20X694 TOP COVER WH
WE20X0695 WE20X0695 TOP, COVER AD
WE20X0694 WE20X0694 TOP, COVER WH
WE19X0866 WE19X0866 TRIM SWITCH
WE01X0980 WE01X0980 U CLIP
WE02X0195 WE02X0195 WASHER
WE02X0279 WE02X0279 WASHER
WE02X0327 WE02X0327 WASHER
WE02X0322 WE02X0322 WASHER
WE2X327 WE2X327 WASHER
WE2X322 WE2X322 WASHER **NLA*
WE1M357 WE1M357 WE1M357
WE2X279D WE2X279D WE2X279D
WE16X0016 WE16X0016 WHEEL BLOWER
