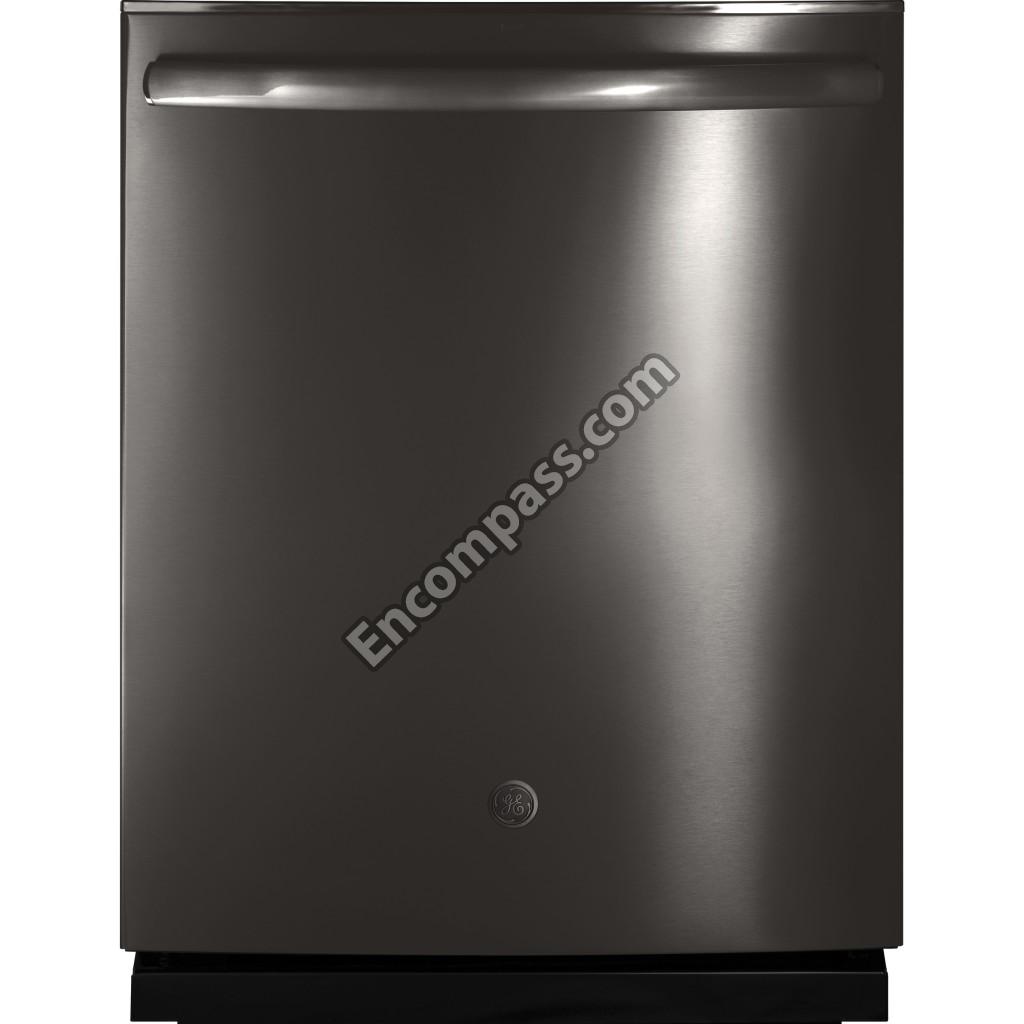

Model Image
Manufacturer

GE

Model Number

DDT595SBL3TS

Description

Built-in Dishwasher

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WD02X10220 WD02X10220 GE 3/8-INCH HEX HEAD SCREW 10-32
WD12X10419 WD12X10419 GE ADAPTOR FILTER
WD14X23739 WD14X23739 GE ARM HINGE ASSEMBLY LH
WD14X23738 WD14X23738 GE ARM HINGE ASSEMBLY RH
WD22X33499 WD22X33499 GE ARM SPRAY LOWER ASM
WD22X33498 WD22X33498 GE ARM SPRAY MID ASM
WD35X10393 WD35X10393 GE ARM SPRAY MID ASSEMBLY
WD01X23936 WD01X23936 GE BAG INSULATION ASSEMBLY
WD28X22867 WD28X22867 GE BASKET ASSEMBLY SIDE
WD34X23757 WD34X23757 GE BEZEL AND CVR CONSOLE ASSEMBLY
WD01X10585 WD01X10585 GE BLOCK FOAM DOOR
WD30X22340 WD30X22340 GE BRACE TUB MOUNT
WD12X20109 WD12X20109 GE BRACKET ASSEMBLY UPPER RACK
WD12X20108 WD12X20108 GE BRACKET ASSEMBLY UPPER RACK
WD12X20113 WD12X20113 GE BRACKET FIXED
WD12X20112 WD12X20112 GE BRACKET FIXED
WD01X20135 WD01X20135 GE BRACKET H AND LE
WD12X25060 WD12X25060 GE BRACKET JUNCTION BOX
WD49X30778 WD49X30778 GE CABLE ASM PULLEY
WD12X20834 WD12X20834 GE CAP FILL FUNNEL
WD01X35298 WD01X35298 GE CARRIER ROLLER
WD35X10382 WD35X10382 GE CLAMP
WD01X24246 WD01X24246 GE CLAMP
WD01X10104 WD01X10104 GE CLAMP
WD01X21975 WD01X21975 GE CLIP CONTROL BOARD
WD12X20171 WD12X20171 GE CLIP LOWER RACK
WD12X21681 WD12X21681 GE CONDUIT MAIN
WD22X10094 WD22X10094 GE CONDUIT MID ASSEMBLY
WD21X24901 WD21X24901 GE CONFIGURED MACHINE CONTROL
WD21X24901C WD21X24901C GE CONFIGURED MACHINE CONTROL
WD21X31910 WD21X31910 GE CONFIGURED UI CONTROL
WD12X10469 WD12X10469 GE CONSOLE TOP CONTROL
WD30X21714 WD30X21714 GE CONTROL BOX BOTTOM
WD12X10412 WD12X10412 GE COVER JUNCTION BOX
WD12X32798 WD12X32798 GE DETERGENT DISP NO SENSOR
WD21X24096 WD21X24096 GE DISHWASHER AC HARNESS
WD01X34879 WD01X34879 GE DISHWASHER ATTACH STRIP - LH
WD01X22836 WD01X22836 GE DISHWASHER ATTACH STRIP - RH
WD01X23777 WD01X23777 GE DISHWASHER BRACKET CABLE - LEFT
WD01X23776 WD01X23776 GE DISHWASHER BRACKET CABLE - RIGHT
WD09X22799 WD09X22799 GE DISHWASHER BUTTON AND GRAPHICS
WD01X23982 WD01X23982 GE DISHWASHER CONDUIT CLIP
WD27X32298 WD27X32298 GE DISHWASHER CONTROL BOX TOP
WD01X21740 WD01X21740 GE DISHWASHER COUNTERTOP BRACKET
WD35X10383 WD35X10383 GE DISHWASHER COUNTERTOP SCREW AND BUTTONPLUG
WD21X23563 WD21X23563 GE DISHWASHER DC HARNESS
WD21X21664 WD21X21664 GE DISHWASHER DOOR HARNESS
WD01X26419 WD01X26419 GE DISHWASHER DOOR TRIM - LEFT
WD24X10062 WD24X10062 GE DISHWASHER DRAIN HOSE
WD19X25187 WD19X25187 GE DISHWASHER DRAIN PUMP
WD02X22342 WD02X22342 GE DISHWASHER END CAP - REAR THIRD RACK
WD21X22822 WD21X22822 GE DISHWASHER FLOOD FLOAT
WD21X22838 WD21X22838 GE DISHWASHER FLOOD STEM
WD21X23498 WD21X23498 GE DISHWASHER FLOOD SWITCH
WD01X23496 WD01X23496 GE DISHWASHER FLOOD SWITCH HOUSING
WD01X22786 WD01X22786 GE DISHWASHER HOSE CLAMP
WD30X20110 WD30X20110 GE DISHWASHER INNER RAIL UPPER RACK ASSMBLY
WD21X23559 WD21X23559 GE DISHWASHER JUMPER HARNESS
WD21X10490 WD21X10490 GE DISHWASHER LATCH AND SWITCH ASSEMBLY
WD01X10632 WD01X10632 GE DISHWASHER LATCH CAM
WD18X22842 WD18X22842 GE DISHWASHER LEAK PAN
WD28X34743 WD28X34743 GE DISHWASHER LOWER RACK
WD01X22825 WD01X22825 GE DISHWASHER O RING
WD01X10101 WD01X10101 GE DISHWASHER PUMP GROMMET
WD09X22840 WD09X22840 GE DISHWASHER RACK HANDLE COVER
WD27X22351 WD27X22351 GE DISHWASHER RAIL AND END CAP
WD30X22347 WD30X22347 GE DISHWASHER ROLLER AND BRACKET
WD21X22830 WD21X22830 GE DISHWASHER SENSOR
WD18X22782 WD18X22782 GE DISHWASHER SUMP MANIFOLD
WD28X22348 WD28X22348 GE DISHWASHER THIRD RACK TRAY
WD27X21334 WD27X21334 GE DISHWASHER TOE KICK INSULATION
WD13X22837 WD13X22837 GE DISHWASHER TOP STRIP ATTACHMENT
WD01X23558 WD01X23558 GE DISHWASHER TUB FRONT SPACER
WD01X31618 WD01X31618 GE DISHWASHER TUB TRIM
WD24X20586 WD24X20586 GE DISHWASHER VENT COVER
WD08X10092 WD08X10092 GE DISHWASHER VENT DOOR SEAL
WD24X20256 WD24X20256 GE DISHWASHER VENT FAN
WD30X22343 WD30X22343 GE DISHWASHER WIRE FRAME
WD19X25278 WD19X25278 GE DIVERTER ASSEMBLY KIT
WD12X35640 WD12X35640 GE DOCKING PORT SS
WD09X24121 WD09X24121 GE DOOR HANDLE ASSEMBLY BS
WD31X29644 WD31X29644 GE DOOR INNER SS
WD01X26418 WD01X26418 GE DOOR TRIM RH
WD01X25218 WD01X25218 GE DRAIN PUMP HANGER
WD05X30818 WD05X30818 GE ELEMENT HEATING ASSEMBLY
WD28X20164 WD28X20164 GE FDT COATED LOWER RACK
WD28X20165 WD28X20165 GE FDT COATED LOWER RACK
WD22X10093 WD22X10093 GE FILTER COARSE SS
WD16X23497 WD16X23497 GE FLOOD SWITCH LEVER
WD01X20593 WD01X20593 GE FRICTION WASHER
WD49X25081 WD49X25081 GE FUNNEL AND GASKET ASSEMBLY
WD08X22758 WD08X22758 GE GASKET SUMP MANIFOLD
WD08X23567 WD08X23567 GE GASKET TUB MOUNT
WD08X22095 WD08X22095 GE GASKET TUB SS
WD08X23477 WD08X23477 GE GASKET TUB SS
WR04X28513 WR04X28513 GE GE BADGE BLACK STAINLESS
WD24X29378 WD24X29378 GE HIGH LOOP DRAIN HOSE
WD24X10064 WD24X10064 GE HOSE FILL
WD12X10470 WD12X10470 GE HOUSING BOTTOM
WD22X20688 WD22X20688 GE HUB
WD22X20689 WD22X20689 GE IMPELLER
WD28X20166 WD28X20166 GE INDEXER
165D9739P031 165D9739P031 GE INSERT MINI MANUAL
WD01X10575 WD01X10575 GE LATCH CAM
WD09X20066 WD09X20066 GE LENS AND ADHESIVE ASSEMBLY
WD02X31882 WD02X31882 GE LEVELING SCREW
WD01X10070 WD01X10070 GE NUT TOWER HEATER
WD12X10462 WD12X10462 GE PLATE DETERGENT
WD12X21677 WD12X21677 GE PLATE FLOOR MANUAL
31-31560 31-31560 GE PM INSTALL INSTRUCTIONS
31-30792 31-30792 GE PM MINI-MANUAL
49-55119 49-55119 GE PM OWNERS MANUAL
49-55118 49-55118 GE PM QUICK START GUIDE
WD16X21836 WD16X21836 GE PULLEY HINGE
WD26X23258 WD26X23258 GE PUMP WASH KIT
WD28X30221 WD28X30221 GE RACK LOWER ASM COATED
WD28X30226 WD28X30226 GE RACK UPPER ASSEMBLY COATED
WD27X22350 WD27X22350 GE RAIL AND END CAP ASSEMBLY
WD12X26146 WD12X26146 GE ROLLER LOWER RACK
WD30X23280 WD30X23280 GE ROLLER TUB
WB01T10103 WB01T10103 GE SCR 10-16 AB HXW .532
WD02X20140 WD02X20140 GE SCR 10-16 PL PNT 2.25 S
WD02X22781 WD02X22781 GE SCR 10-18 X 5/8
WD01X22514 WD01X22514 GE SCR 10-32 GX IHXW 9/16 S
WB02T10324 WB02T10324 GE SCR 6-20 GXB IHXW 3/8 NI.
WR01X10380 WR01X10380 GE SCR 8-18 AB TSQ 5/8 SS
WD02X22736 WD02X22736 GE SCR10 - 16 AB HXW 3/4 SS
WD01X20934 WD01X20934 GE SCREW 1/4-28 FL IHXW 15/16
WD01X21837 WD01X21837 GE SCREW 10-32
WD02X10067 WD02X10067 GE SCREW 8-16 HXW 1/2 SS
WD02X10160 WD02X10160 GE SCREW 8-18 B HXW 480 S
WD02X22628 WD02X22628 GE SCREW T15 8-16 PLASTITE
WZ5X158D WZ5X158D GE SCREW-PKG 12
WD34X25753 WD34X25753 GE SERVICE OUTER DOOR ASSEMBLY TS
WD01X21974 WD01X21974 GE SHIELD DIELECTRIC
WD12X20139 WD12X20139 GE SILICONE LIGHT PIPE
WD02X20685 WD02X20685 GE SLEEVE TUB MOUNT
WD03X20446 WD03X20446 GE SPRING DOOR
WD03X20316 WD03X20316 GE SPRING DOOR
WD13X10071 WD13X10071 GE STRIKER LATCH
WD01X20120 WD01X20120 GE SUPPORT HEATER SS
WD27X34579 WD27X34579 GE TOE KICK ASSEMBLY BB
WD12X23557 WD12X23557 GE TRANSITION PIECE ASSEMBLY
WD30X35299 WD30X35299 GE TUB INSULATION
WD49X24057 WD49X24057 GE ULTRA FINE FILTER KIT
WD22X25463 WD22X25463 GE USER CLEANABLE FINE FILTER
WD15X26140 WD15X26140 GE VALVE WATER ASSEMBLY
WD12X20218 WD12X20218 GE VENT CONDUIT ASSEMBLY
WD24X10057 WD24X10057 GE VENT FILTER
WD3X767 WD3X767 GE WASHER
