Model Image
Manufacturer

GE

Model Number

DHDSR46EE1WW

Description

Dryer Electric

Interactive Exploded View

Parts List

Part Number Description

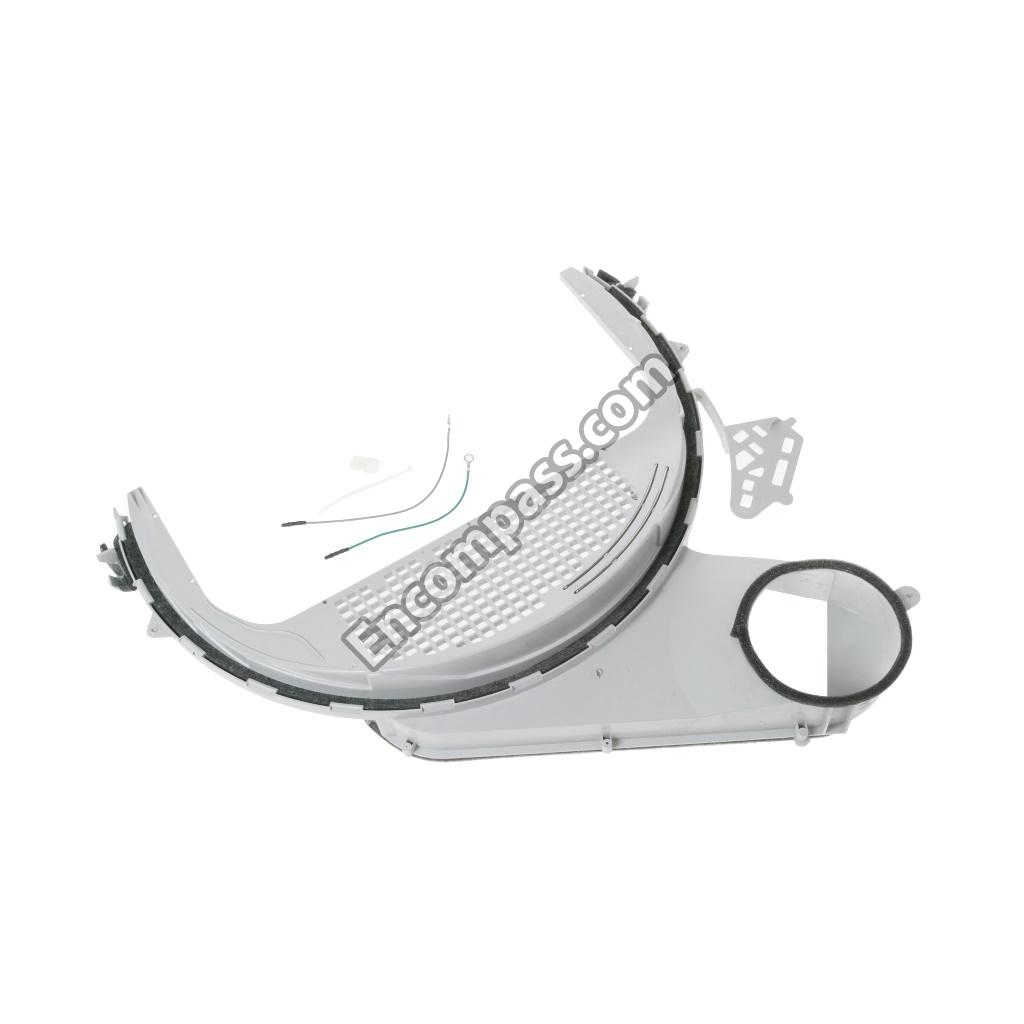

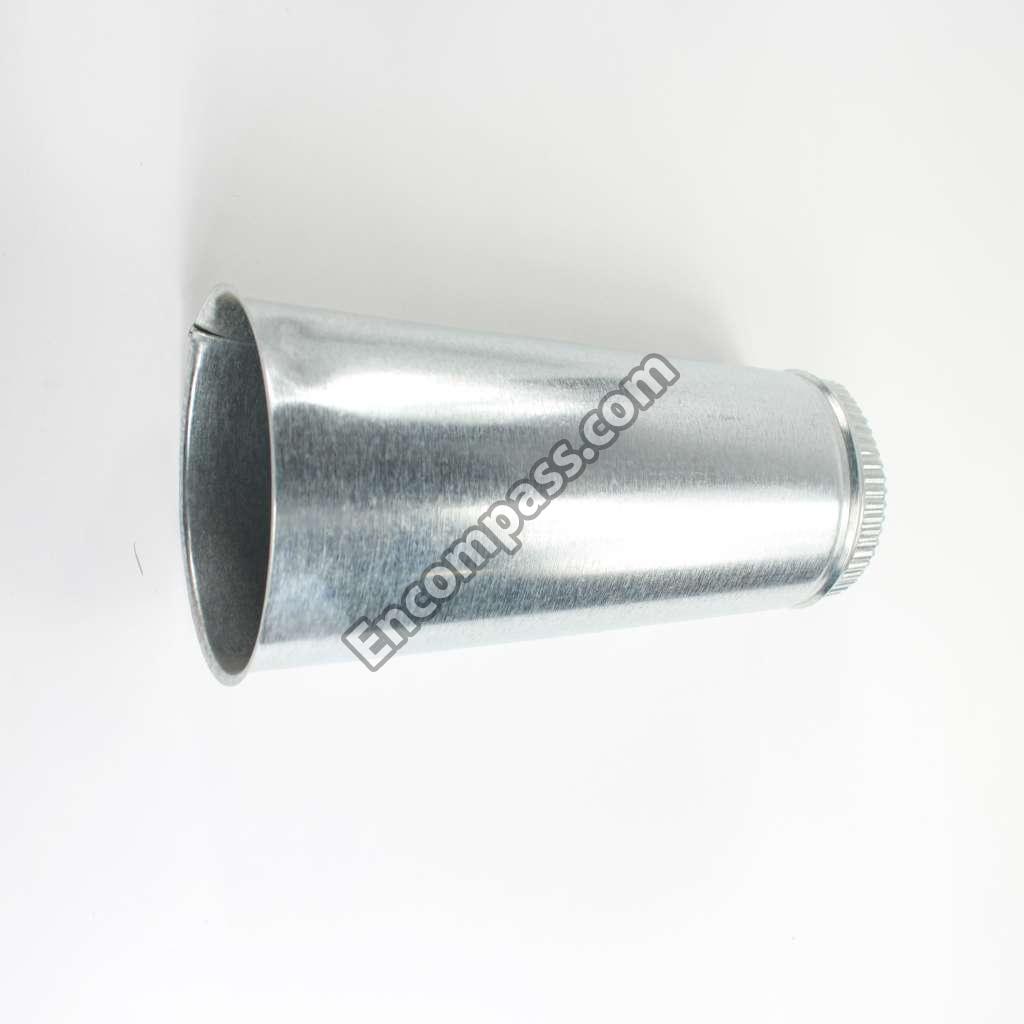

WE14X25080 WE14X25080 AIR DUCT ASM.
WE14X21334 WE14X21334 AIR DUCT ASSEMBLY
WE14M75 WE14M75 BAFFLE DRUM
WE25M40 WE25M40 BEARING KIT

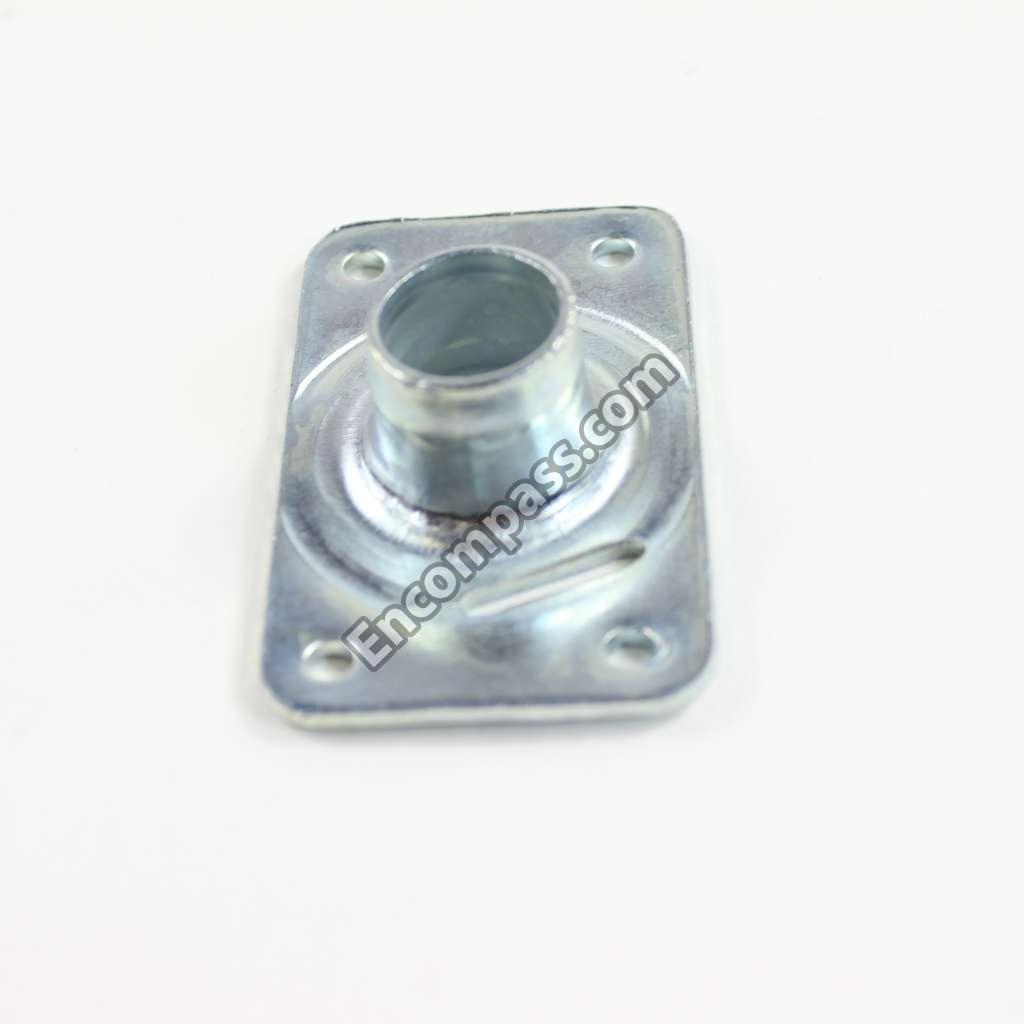

WE1M300 WE1M300 BEARING RETAINER

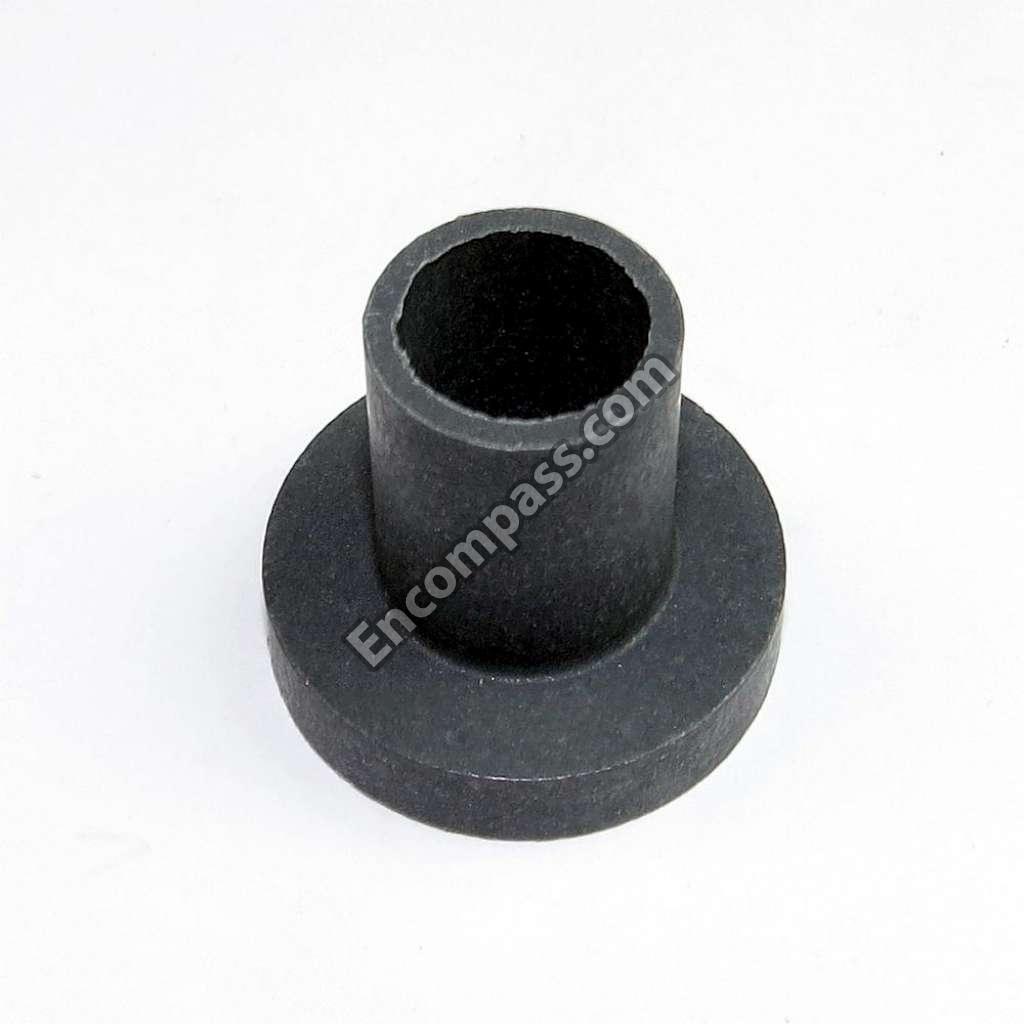

WE1M462 WE1M462 BEARING, DRUM SHAFT

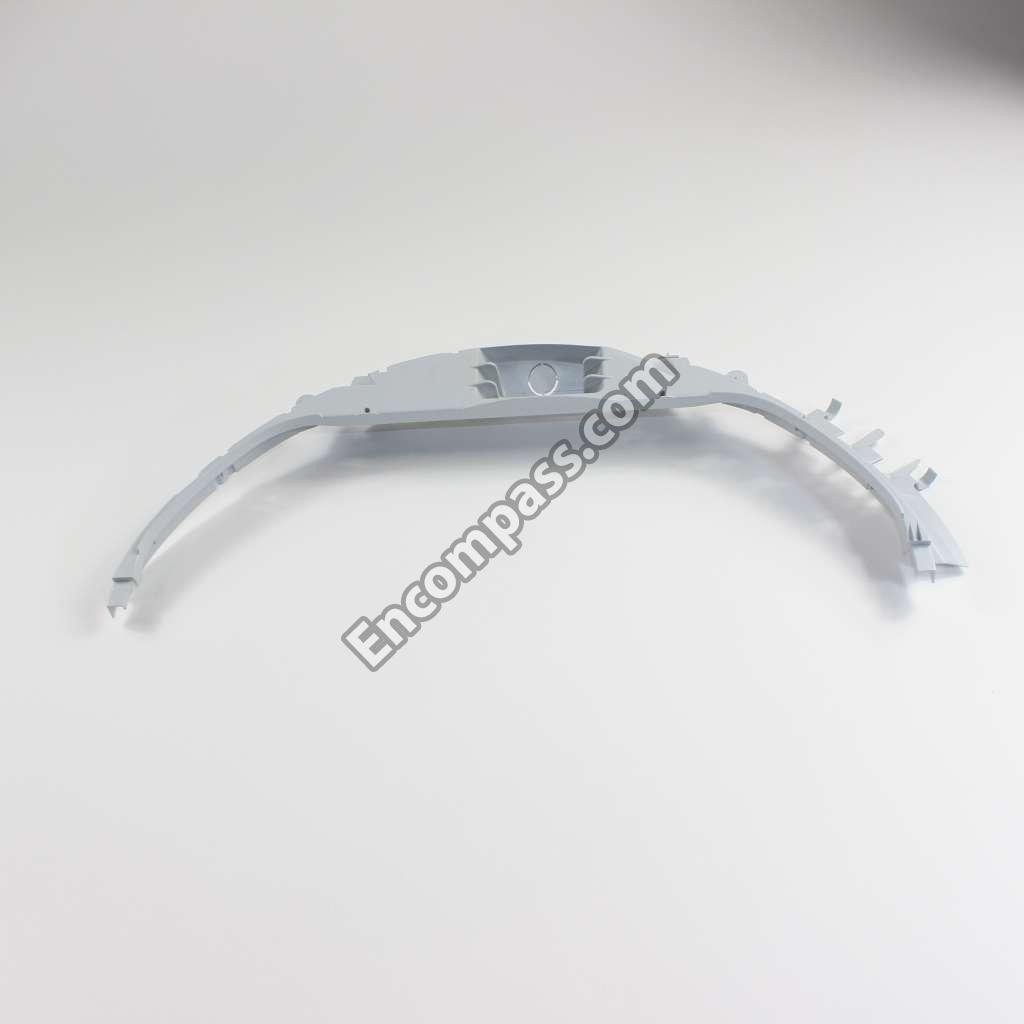

WE1M504 WE1M504 BEARING-SLIDE WHITE
WR02X8693 WR02X8693 BEAUTY BUTTON-WHT

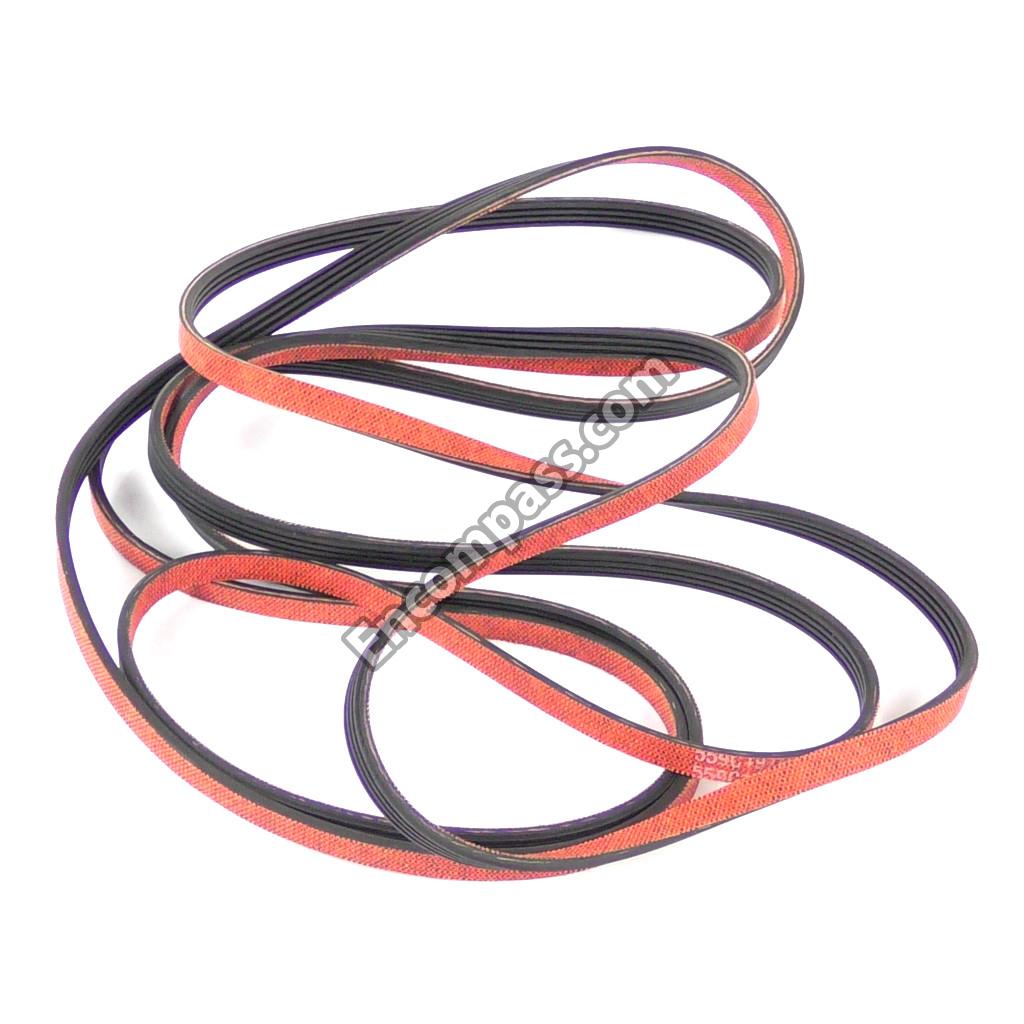

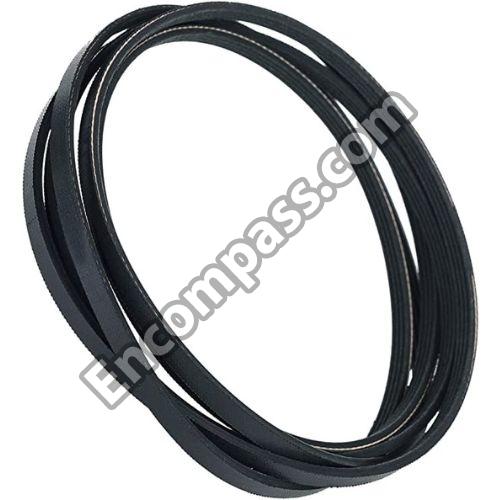

WE12M29 WE12M29 BELT DRIVE
WE03X29897 WE03X29897 BELT DRIVE
WE00M112 WE00M112 BLOWER CLAMP
WE00M111 WE00M111 BLOWER CLAMP
WE09X27636 WE09X27636 BLOWER GASKET (EXHAUST)
WE14M93 WE14M93 BLOWER HOUSING
WE16M15 WE16M15 BLOWER WHEEL
WE20M253 WE20M253 BOTTOM COVER (E-COAT)

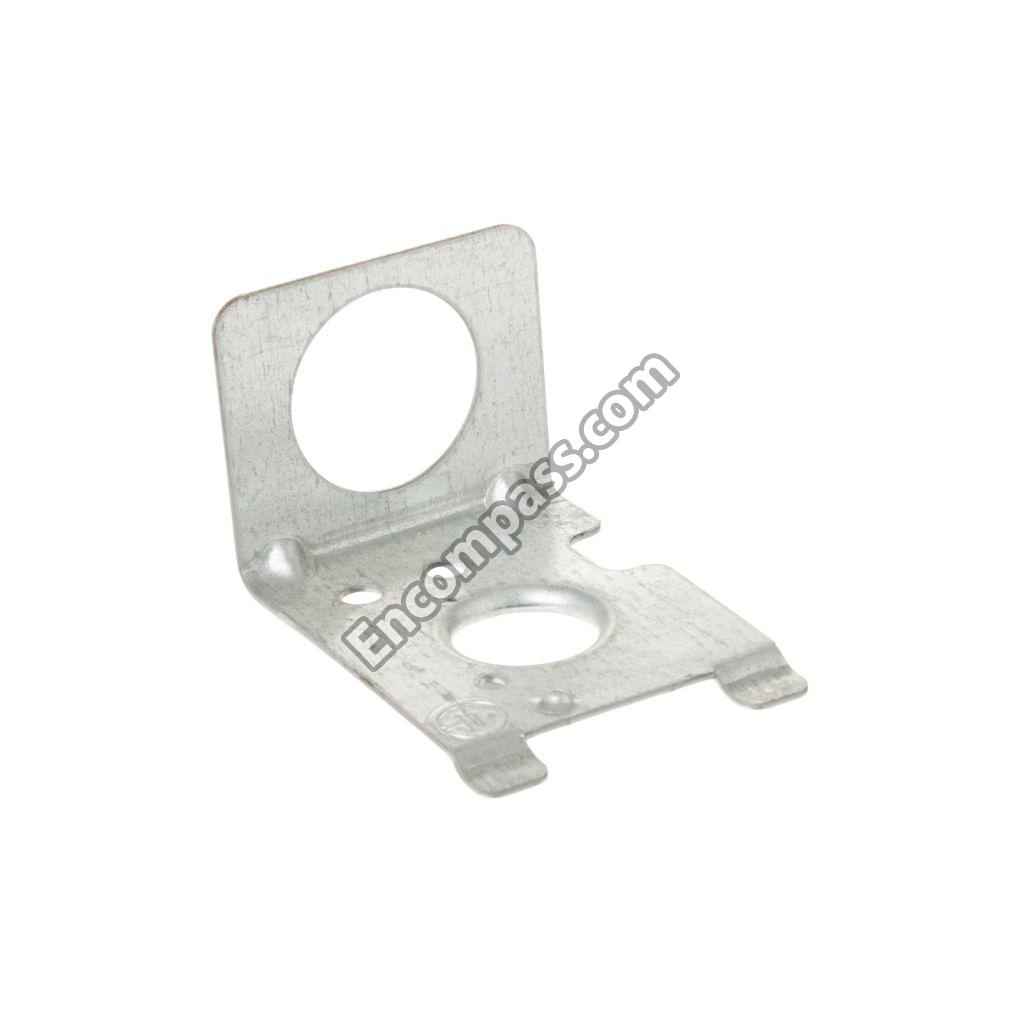

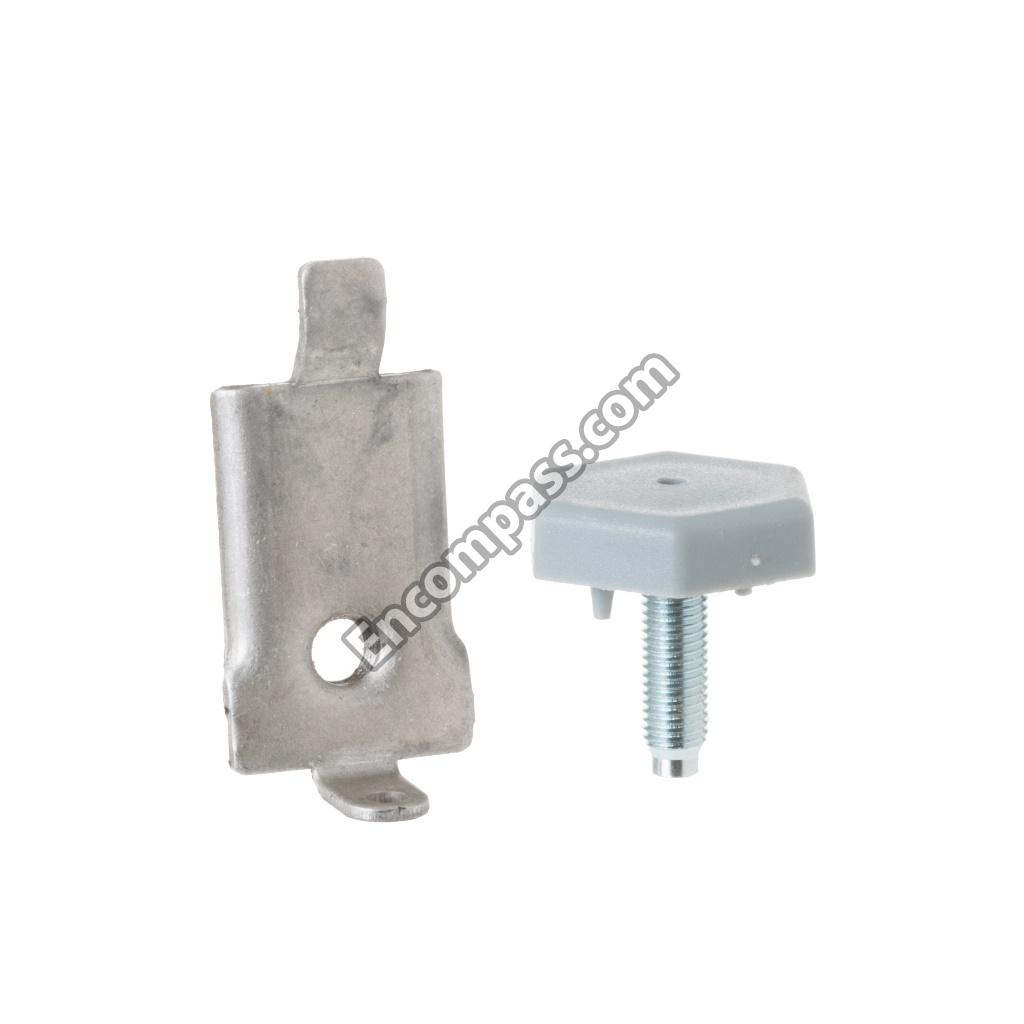

WE1M467 WE1M467 BRKT LVL SCREW FRONT

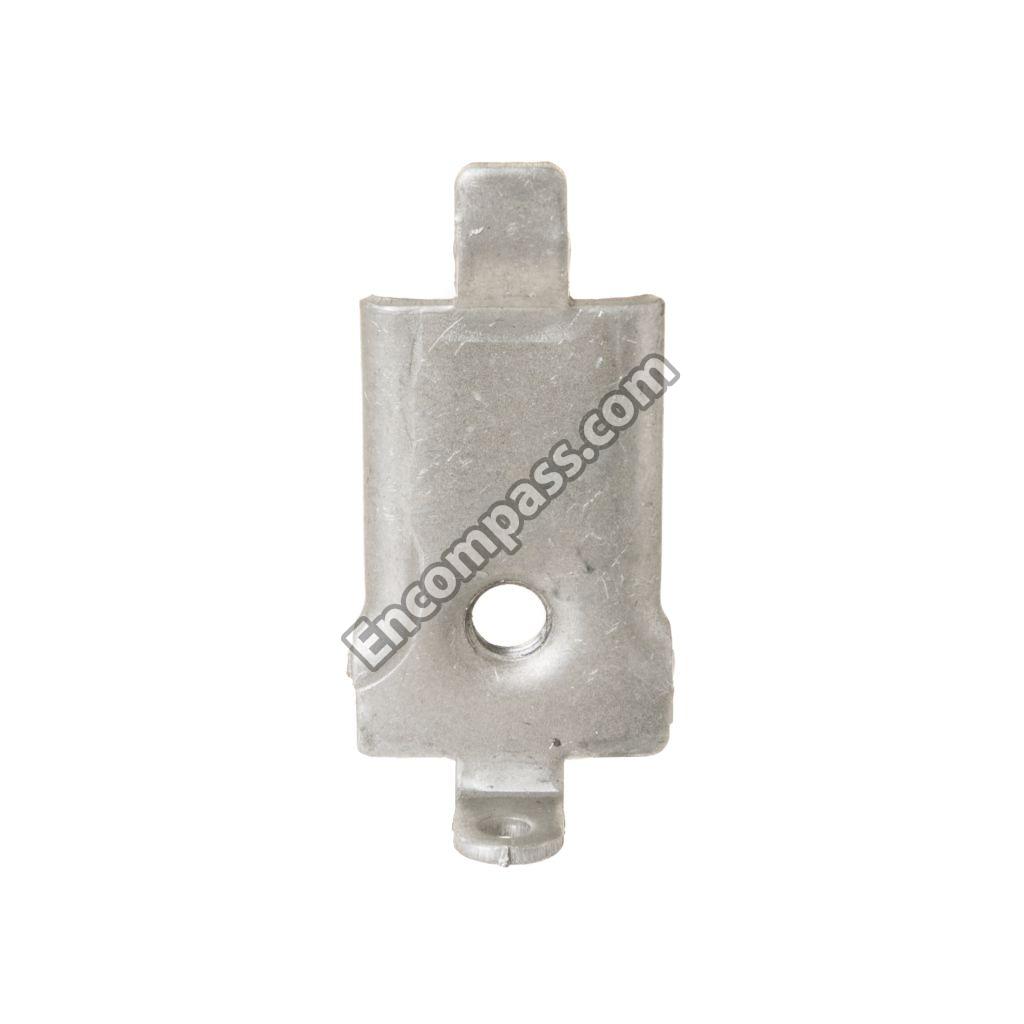

WE1M468 WE1M468 BRKT LVL SCREW REAR
WE4M257 WE4M257 BUZZER VARIABLE
WE20M398 WE20M398 CABINET BASE

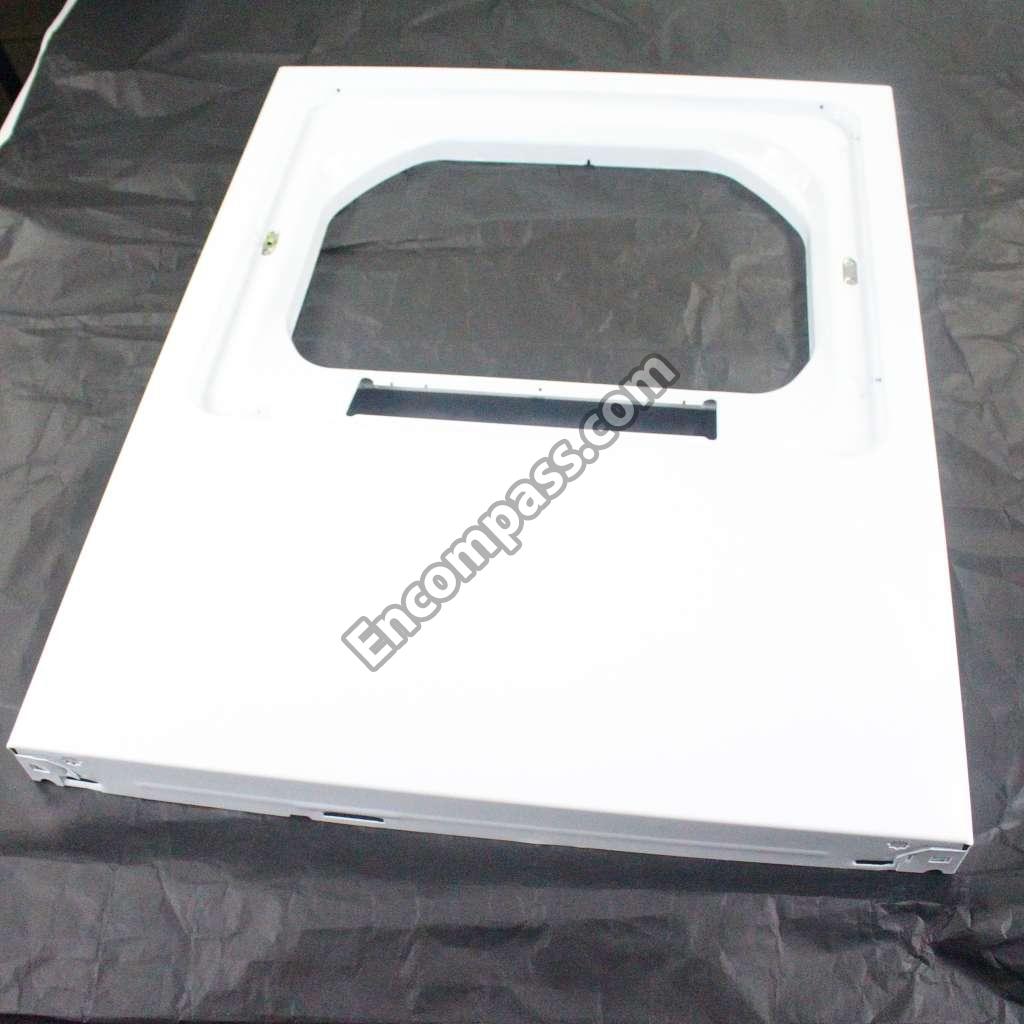

WE49X22295 WE49X22295 CABINET FRONT WH
WE1M452 WE1M452 CERAMIC INSULATOR
WE1X688 WE1X688 CLAMP AND SCREW
WH01X10106 WH01X10106 CLIP KNOB

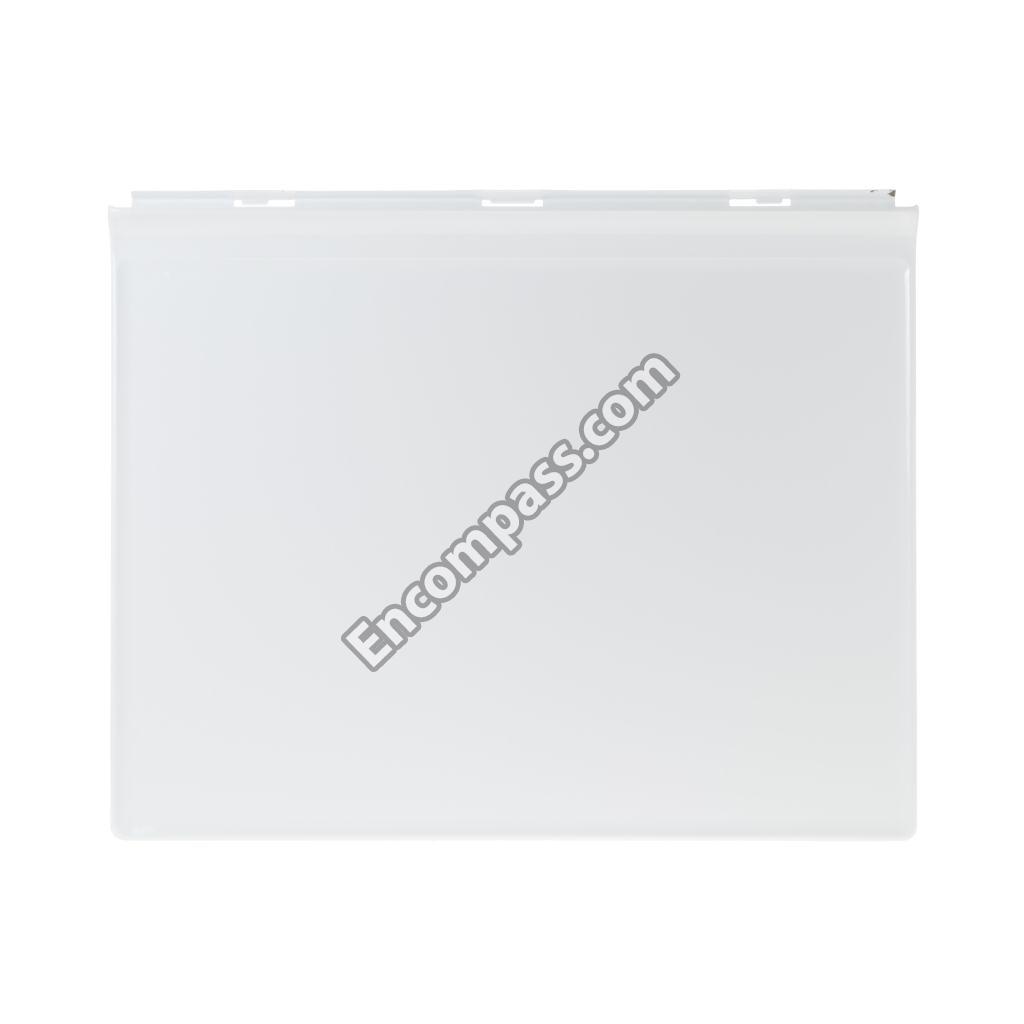

WE20X20417 WE20X20417 COVER WH

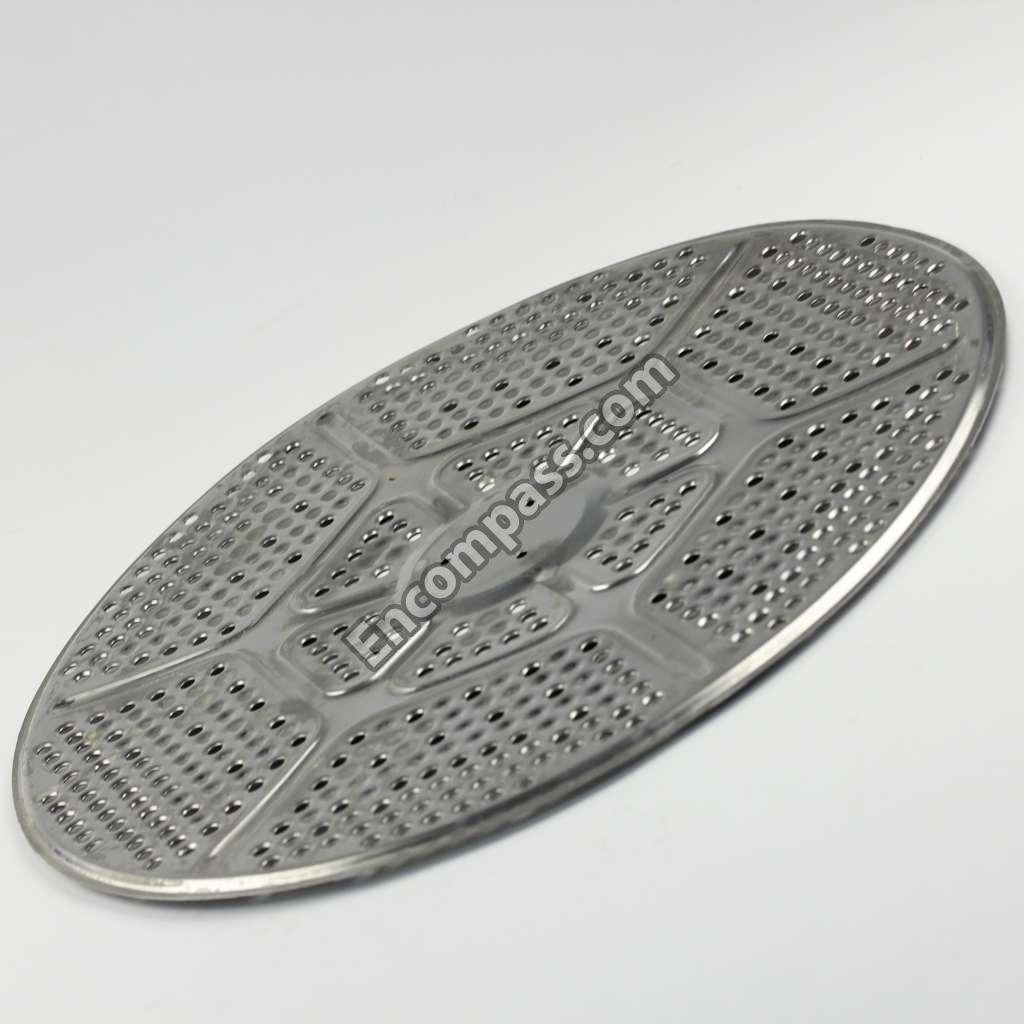

WE14X20408 WE14X20408 DEFLECTOR HEAT
WE11X29438 WE11X29438 DEFLECTOR HEAT

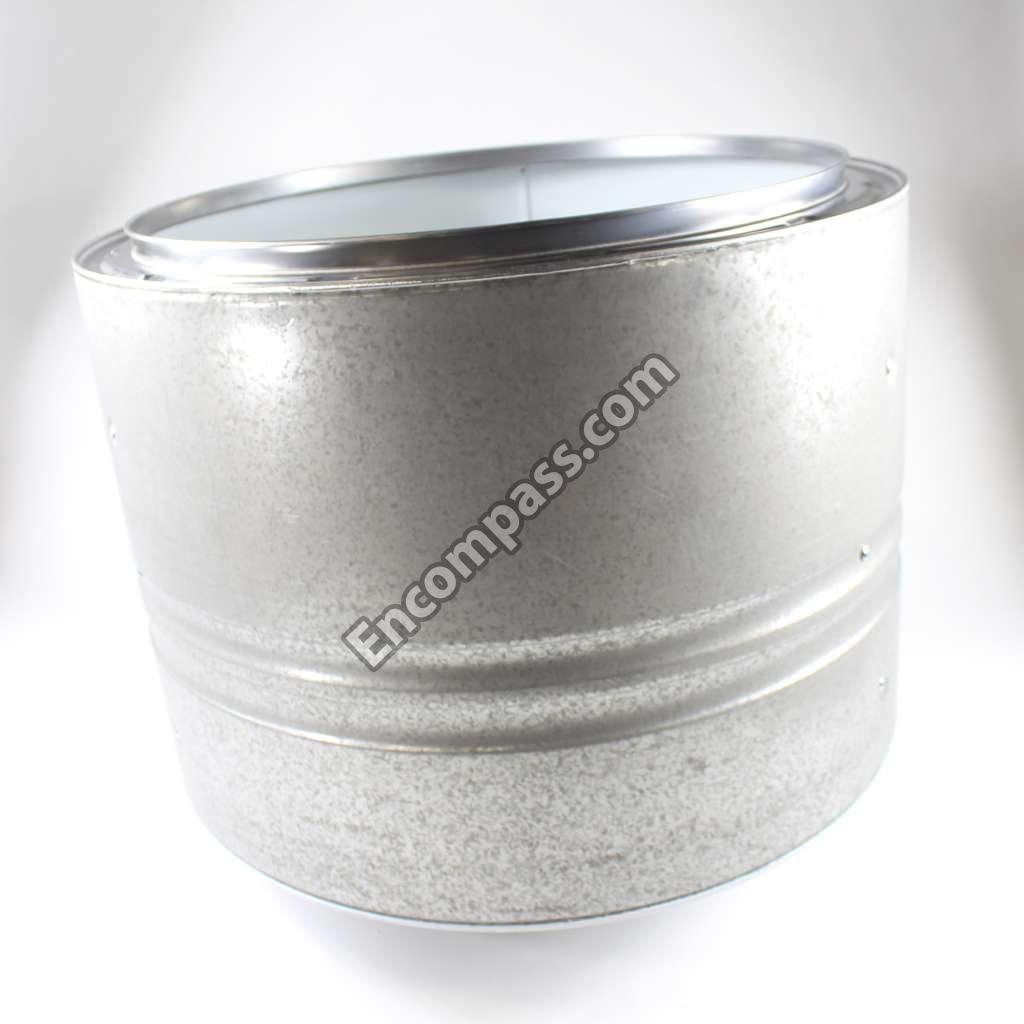

WE21X20562 WE21X20562 DRUM ASM 7.0 CU FT

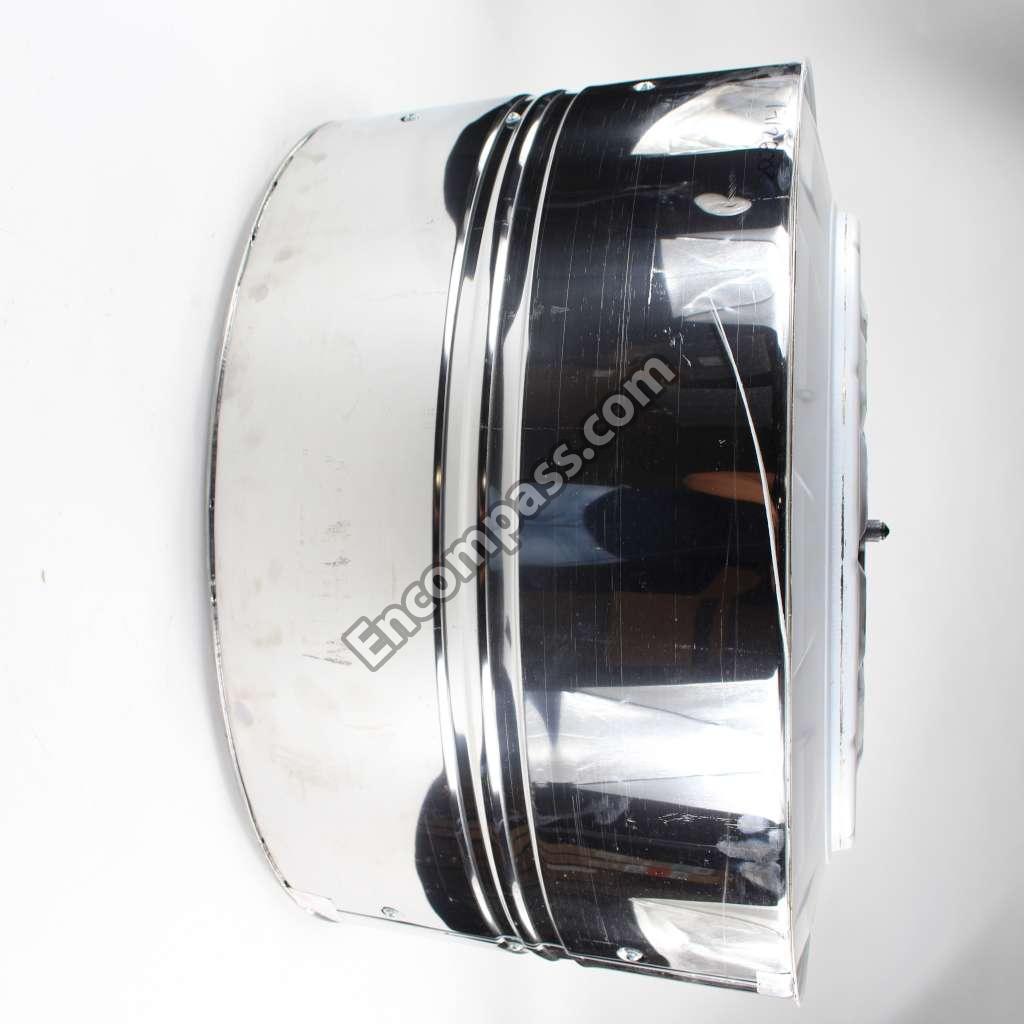

WE21X20566 WE21X20566 DRUM ASSEMBLY

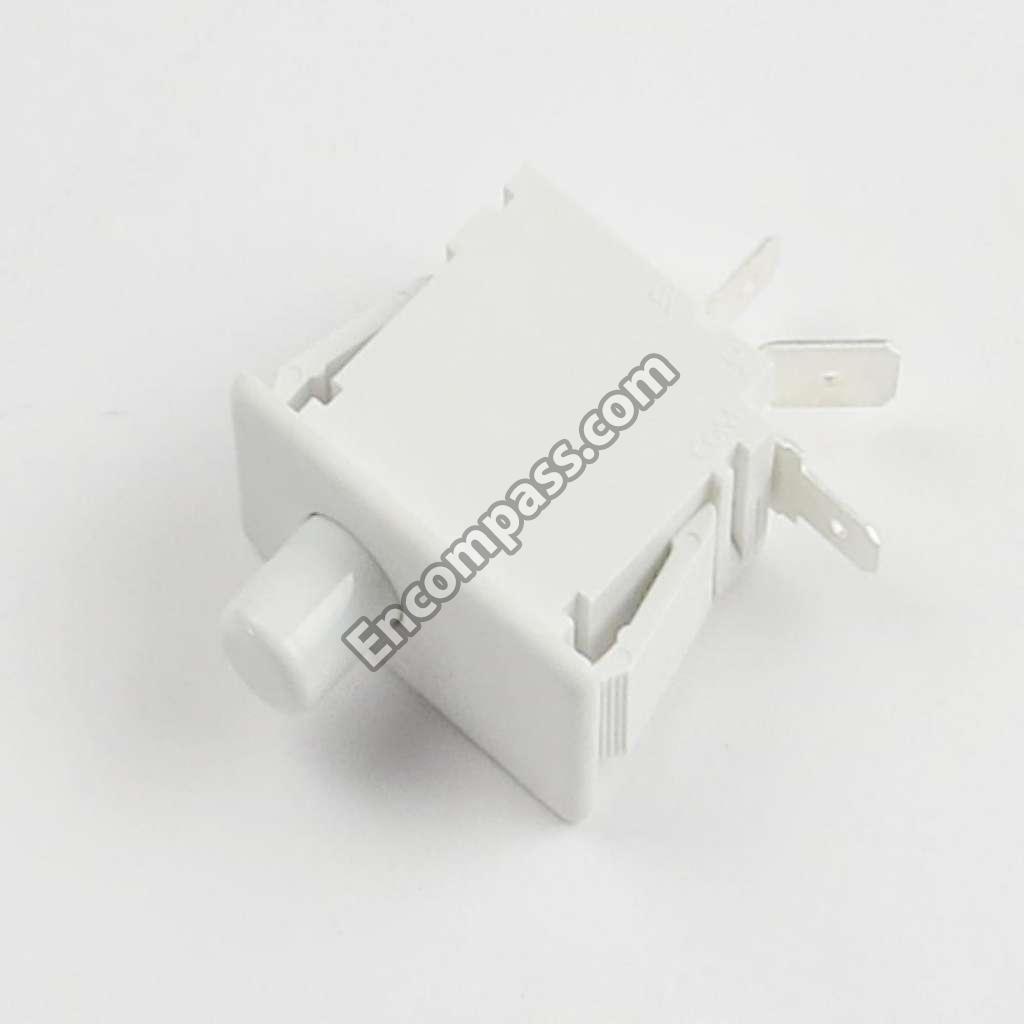

WE4M415 WE4M415 DRYER DOOR SWITCH

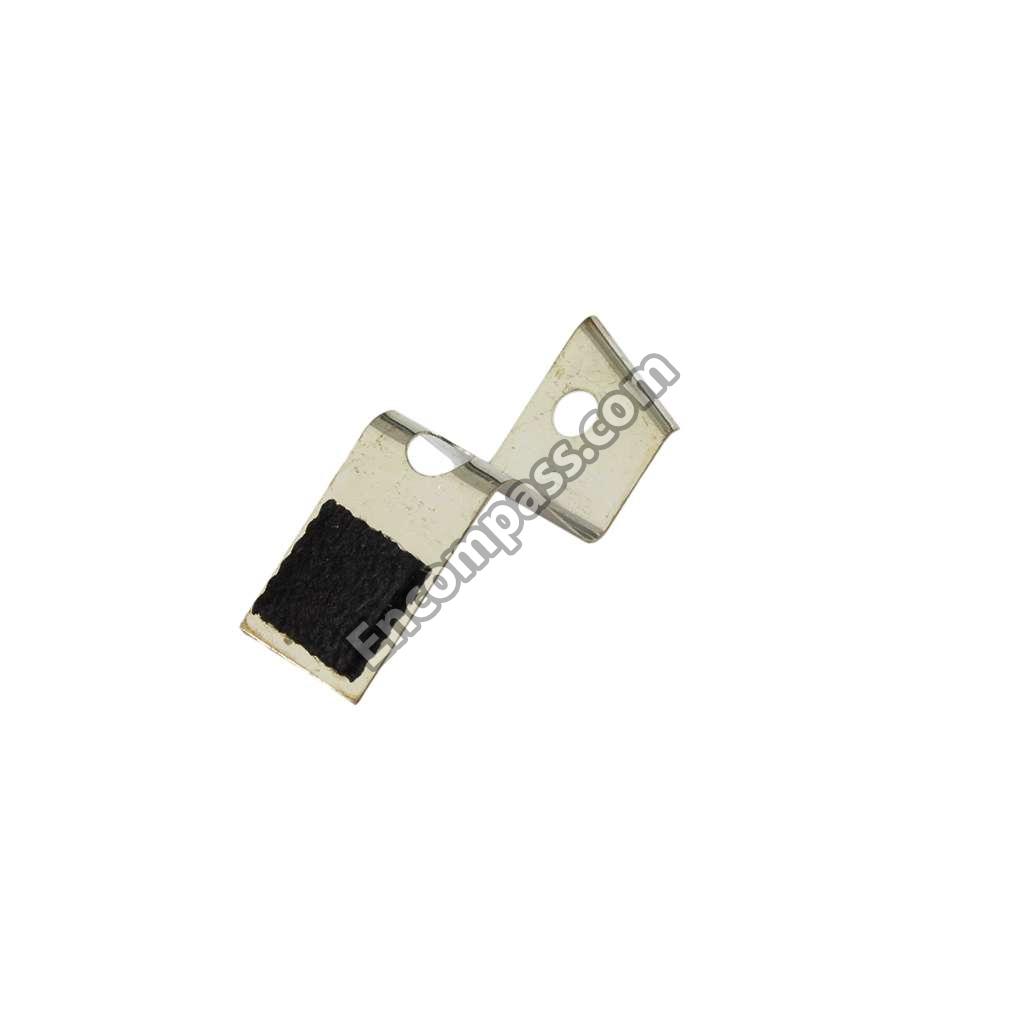

WE3M26 WE3M26 DRYER FRONT DRUM BEARING

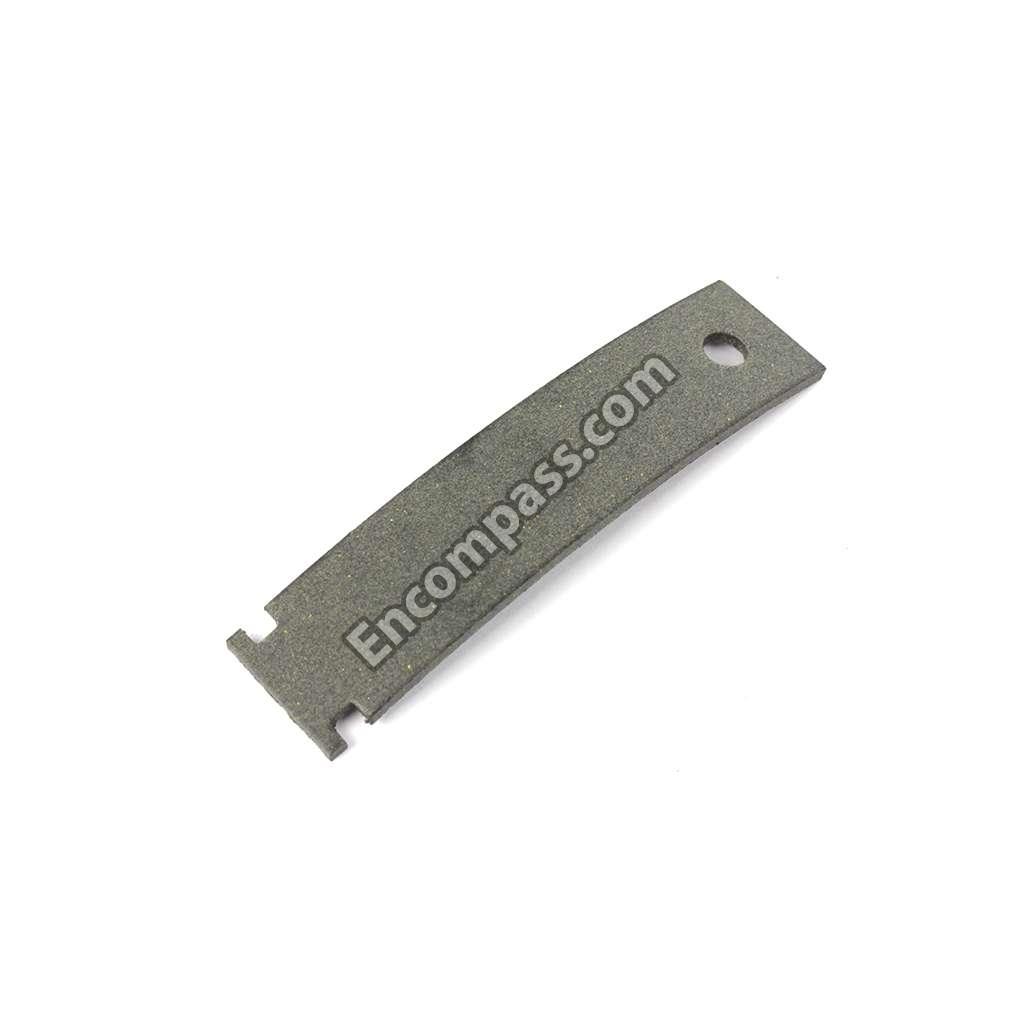

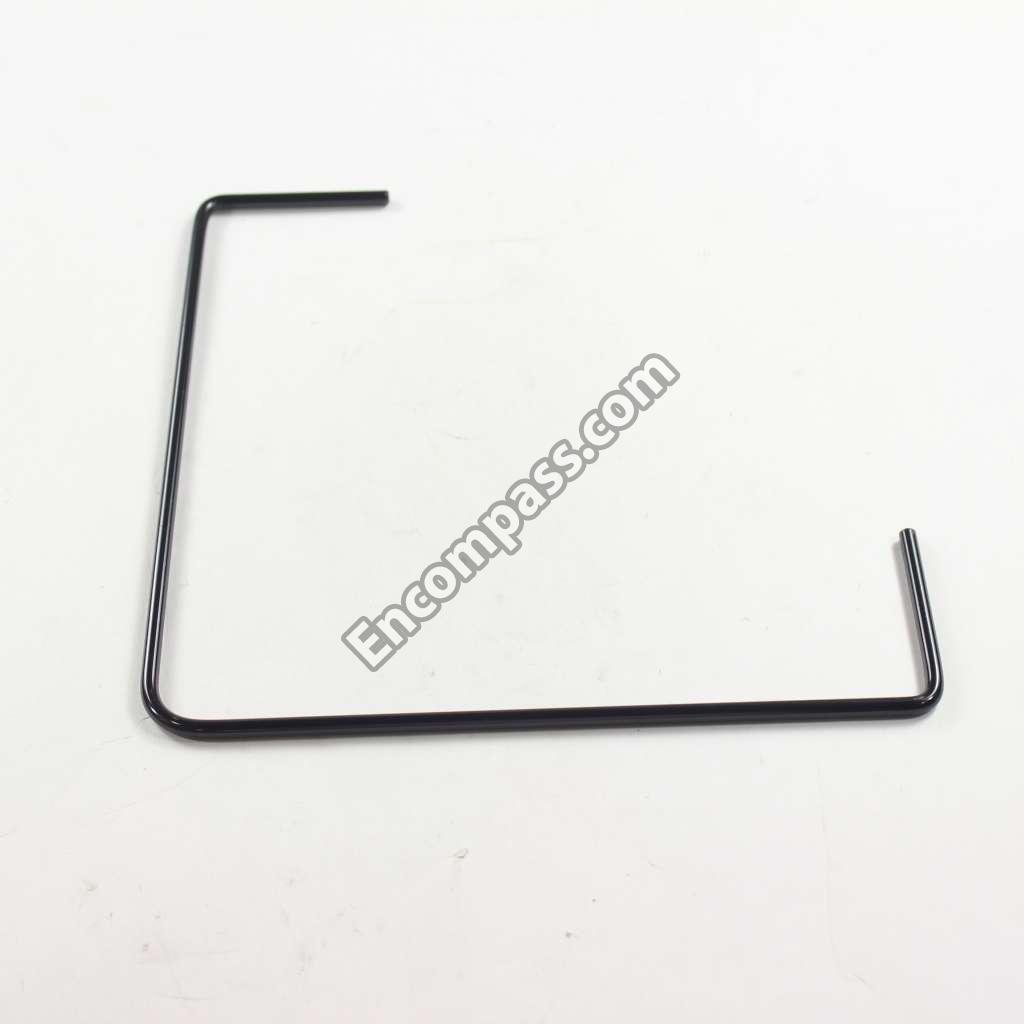

WE1X921 WE1X921 DRYER MOTOR STRAP
WE20X20559 WE20X20559 DRYER REAR PANEL

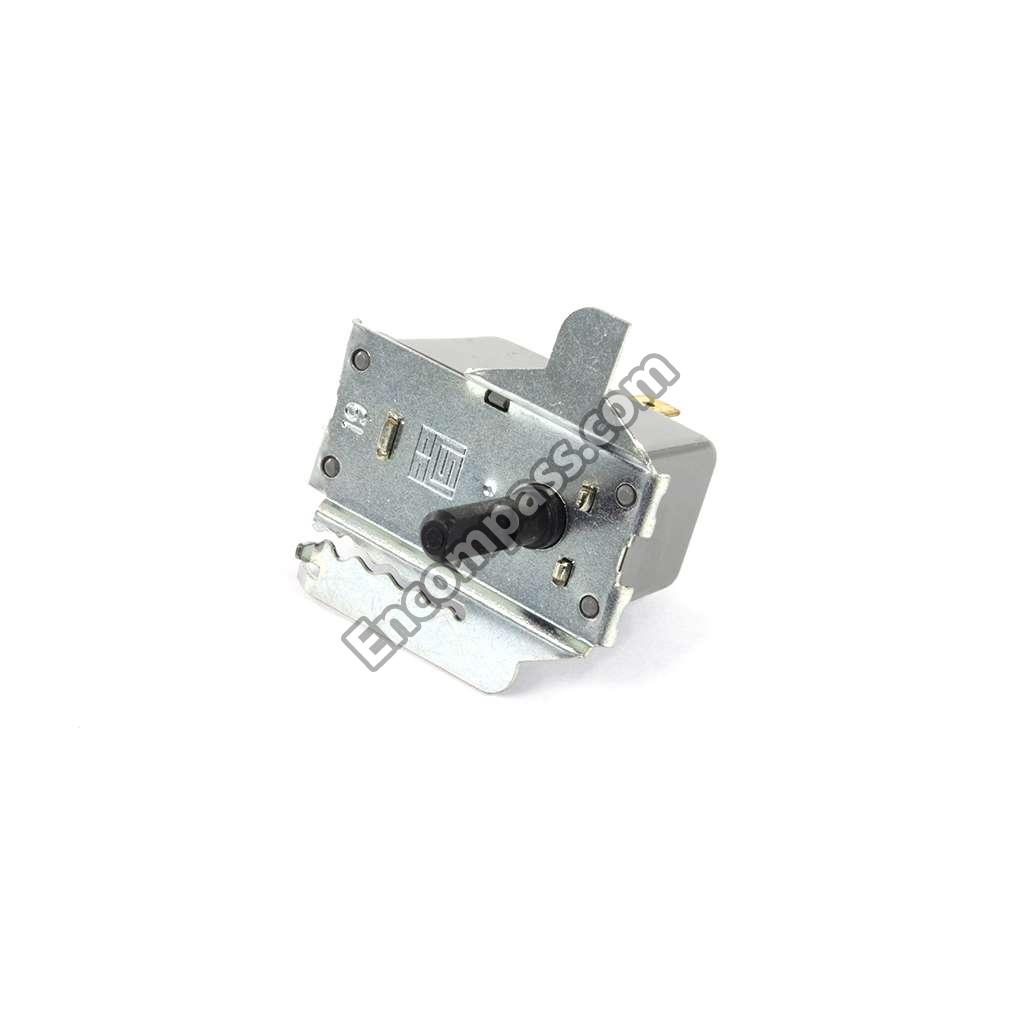

WE4M519 WE4M519 DRYER ROTARY START SWITCH

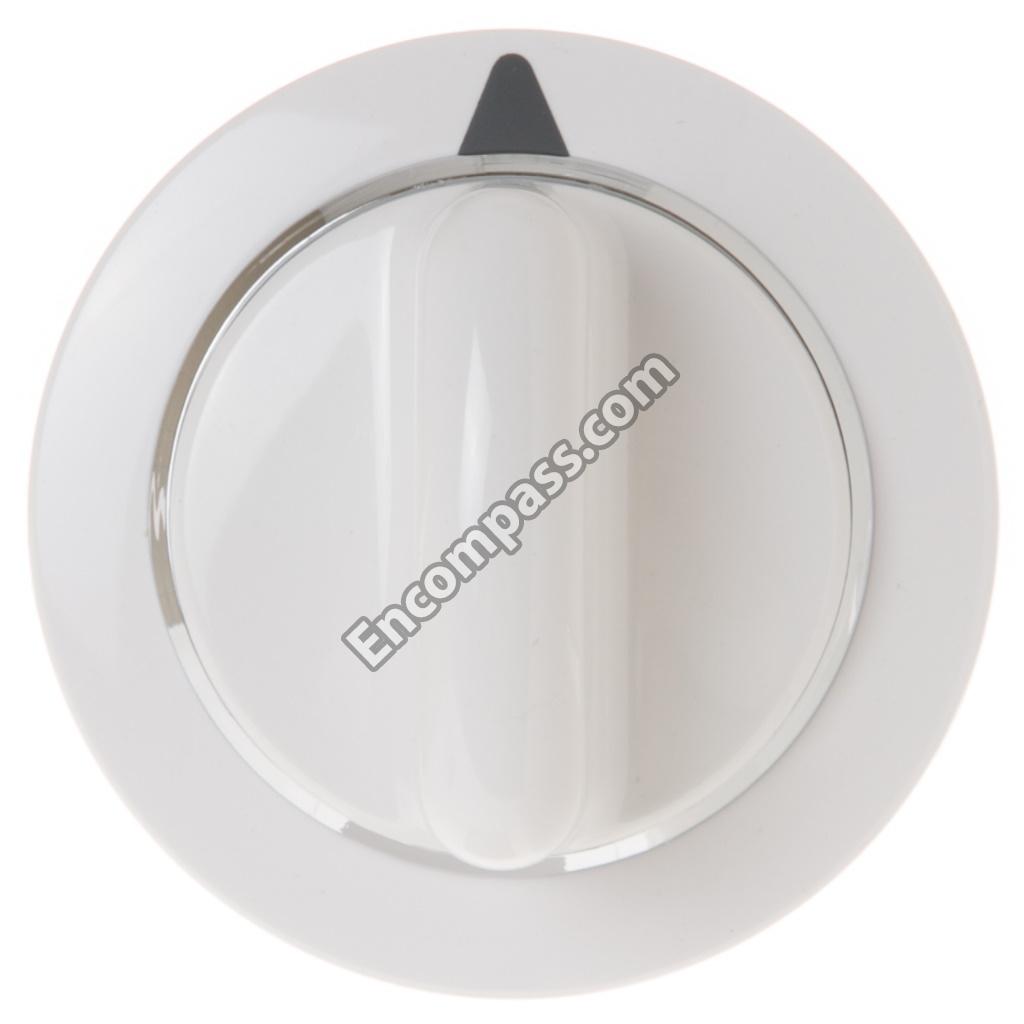

WE1M654 WE1M654 DRYER TIMER KNOB - WHITE
WE14X20421 WE14X20421 ELBOW EXHAUST

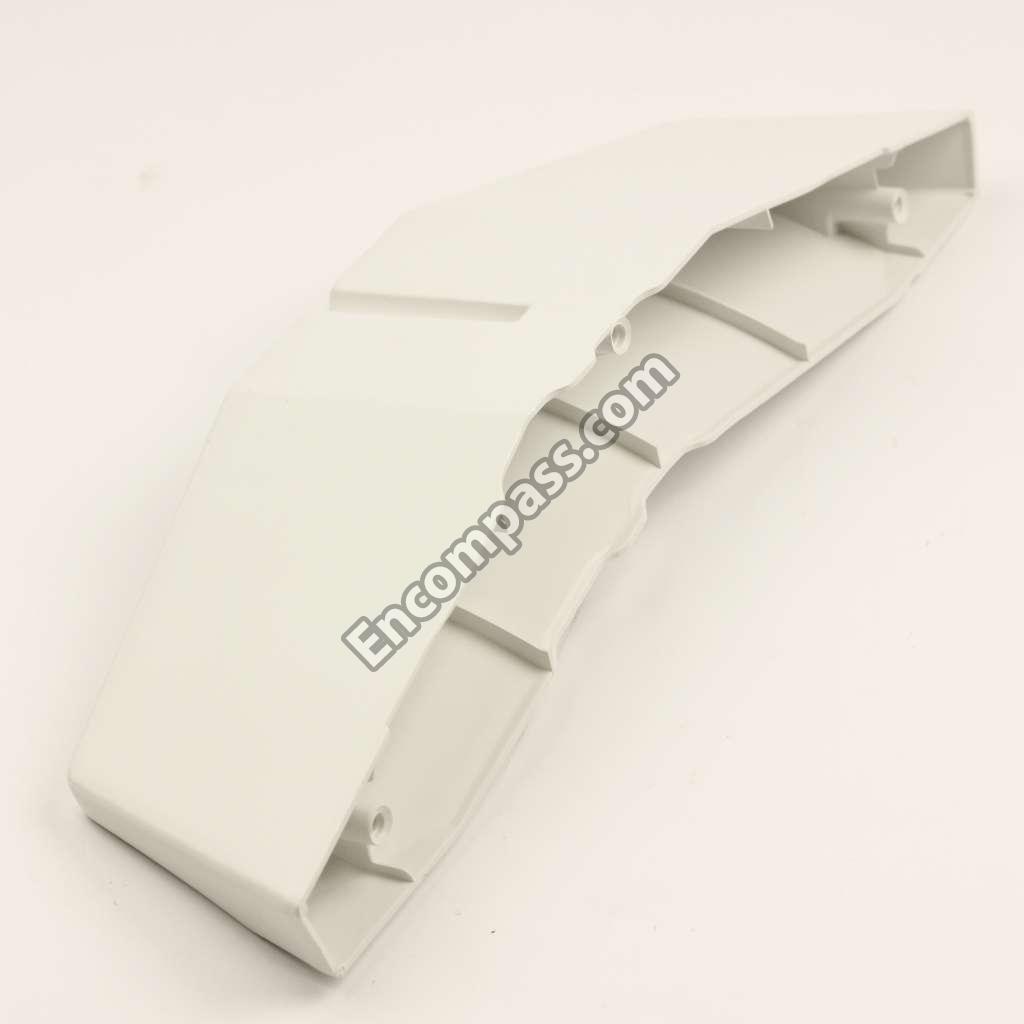

WE19M1418 WE19M1418 END CAP LH WHITE
WE19M1419 WE19M1419 END CAP RH WH

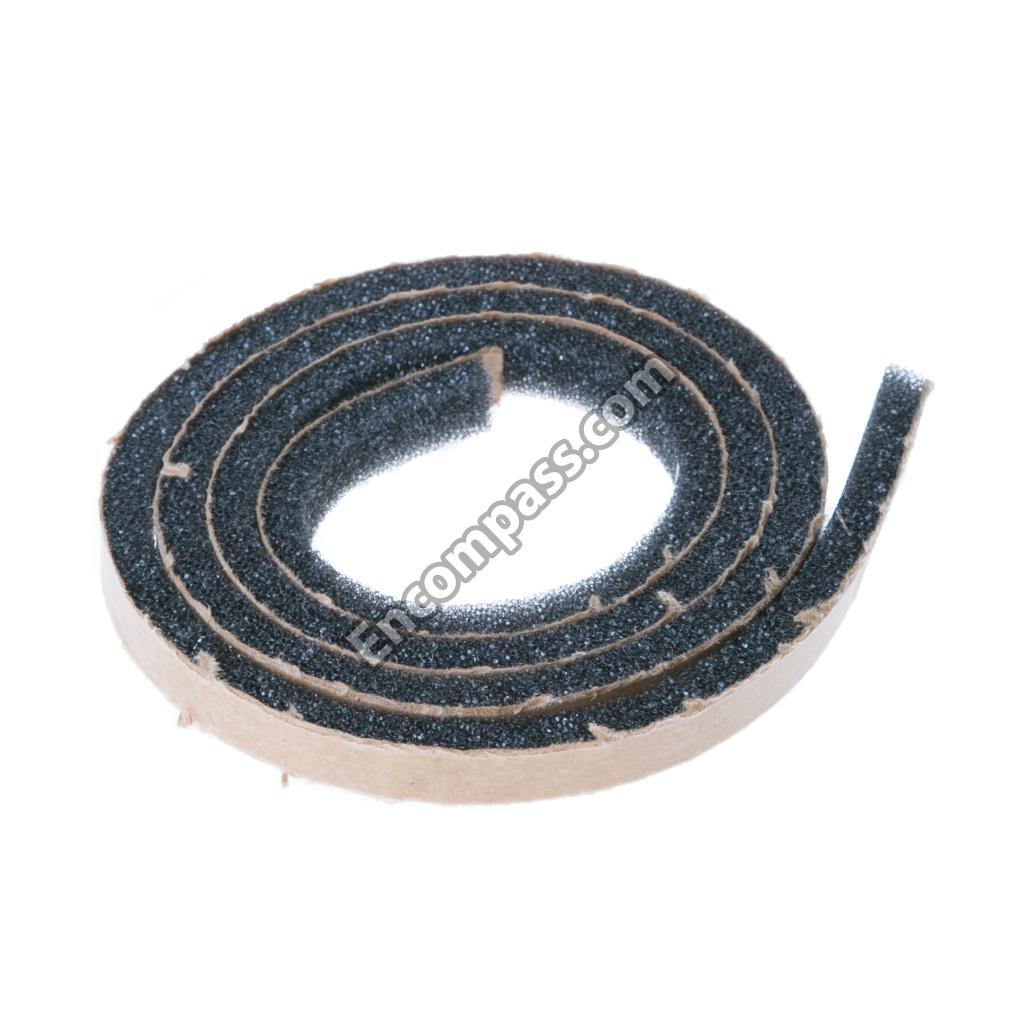

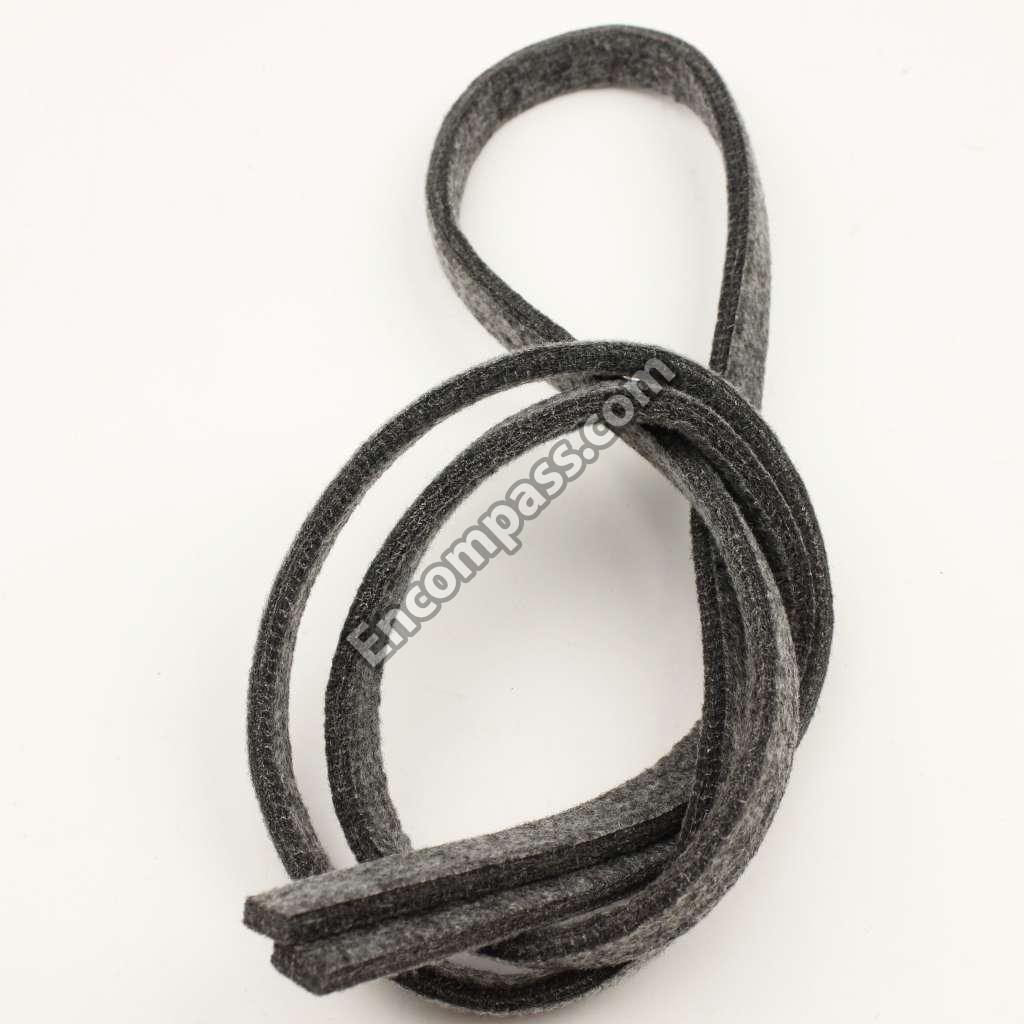

WE09X20441 WE09X20441 FELT
WE09X27634 WE09X27634 FELT

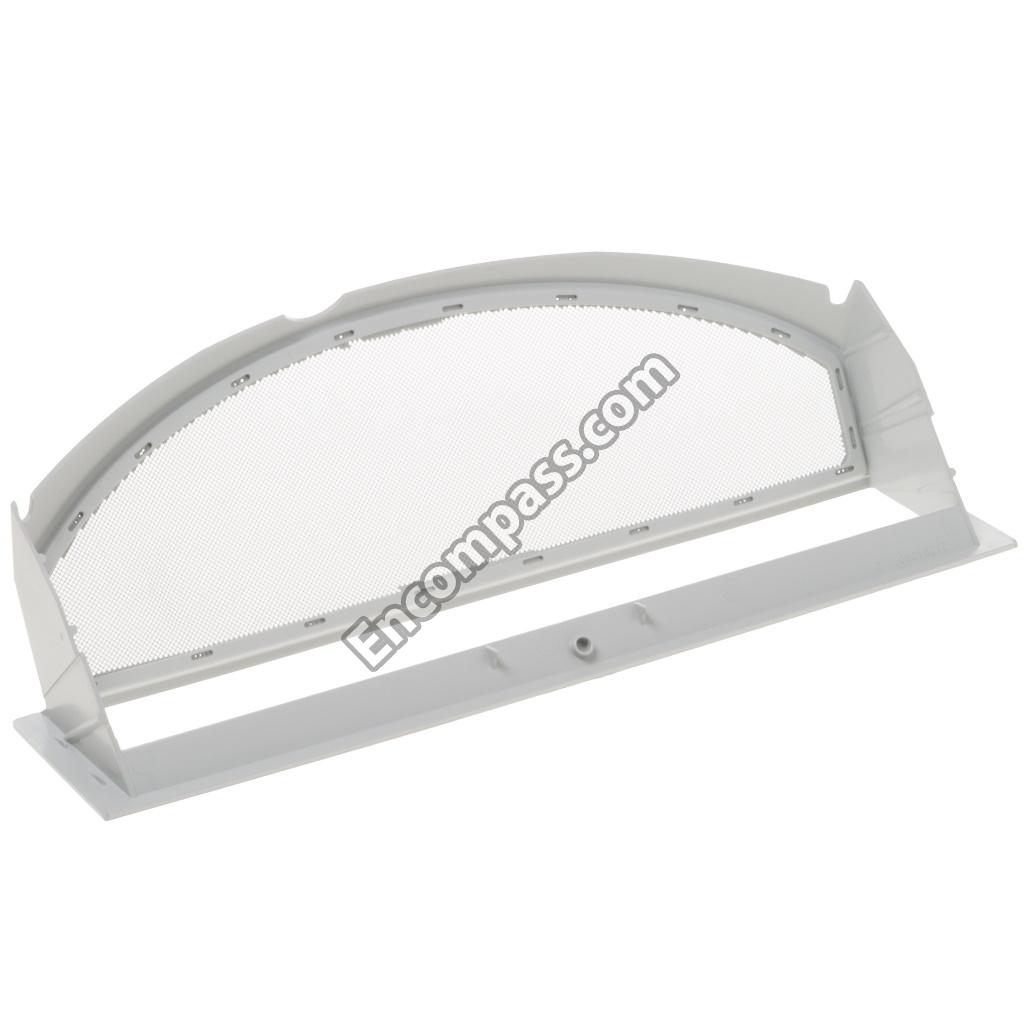

WE18X25100 WE18X25100 FILTER FRAME ASM
WE1M527 WE1M527 FRONT BRACKET LEVEL LEG
WE00M169 WE00M169 GASKET (SEAL)
WE1M825 WE1M825 GASKET (SEAL) 39 INCH
WE1M966 WE1M966 GASKET SEAL
WE1X1172 WE1X1172 GR STRAP ASM
WE01X1172 WE01X1172 GROUND STRAP ASM

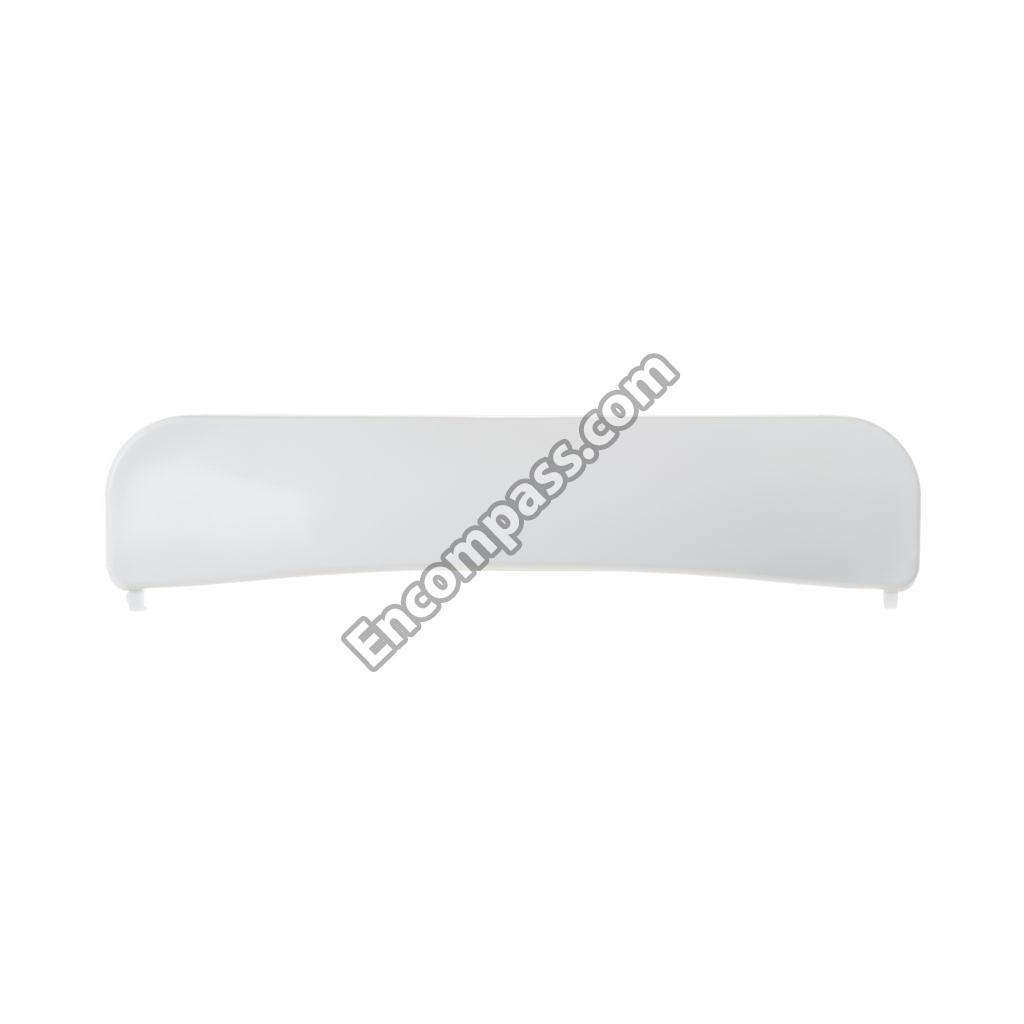

WE01X20419 WE01X20419 HANDLE DOOR WH
WE11M23 WE11M23 HEATER ASM.
WE1M1033 WE1M1033 HINGE
WE03X20434 WE03X20434 IDLER ARM
WE10X20418 WE10X20418 INNER DOOR GSKT ASM
31-15475 31-15475 INSTALL INSTRUCTIONS
WE05X20431 WE05X20431 LAMP
WE1M1011 WE1M1011 LATCH

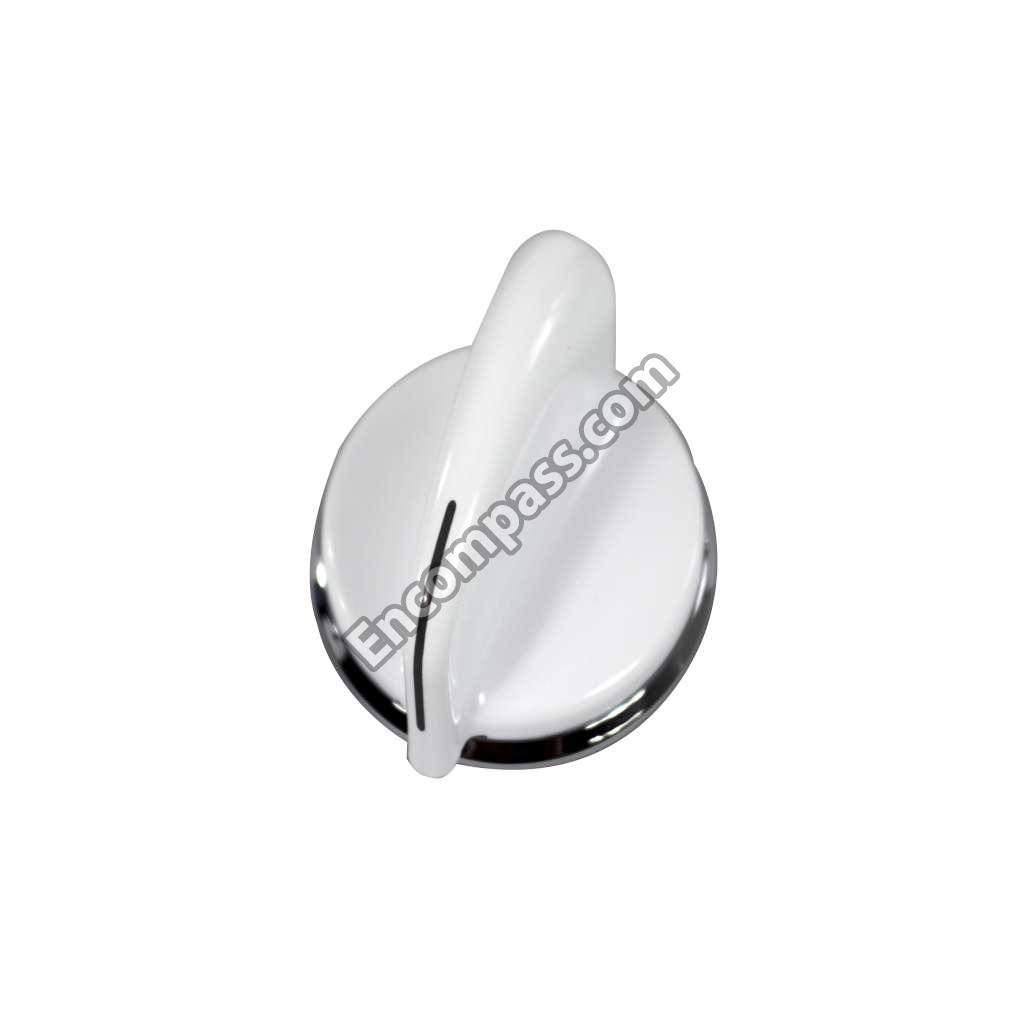

WH01X10060 WH01X10060 LAUNDRY CONTROL KNOB
WE1M642 WE1M642 LEVELLING SCREW GRAY
31-16093 31-16093 MINI MANUAL
WE17X10010 WE17X10010 MOTOR & PULLEY ASM.

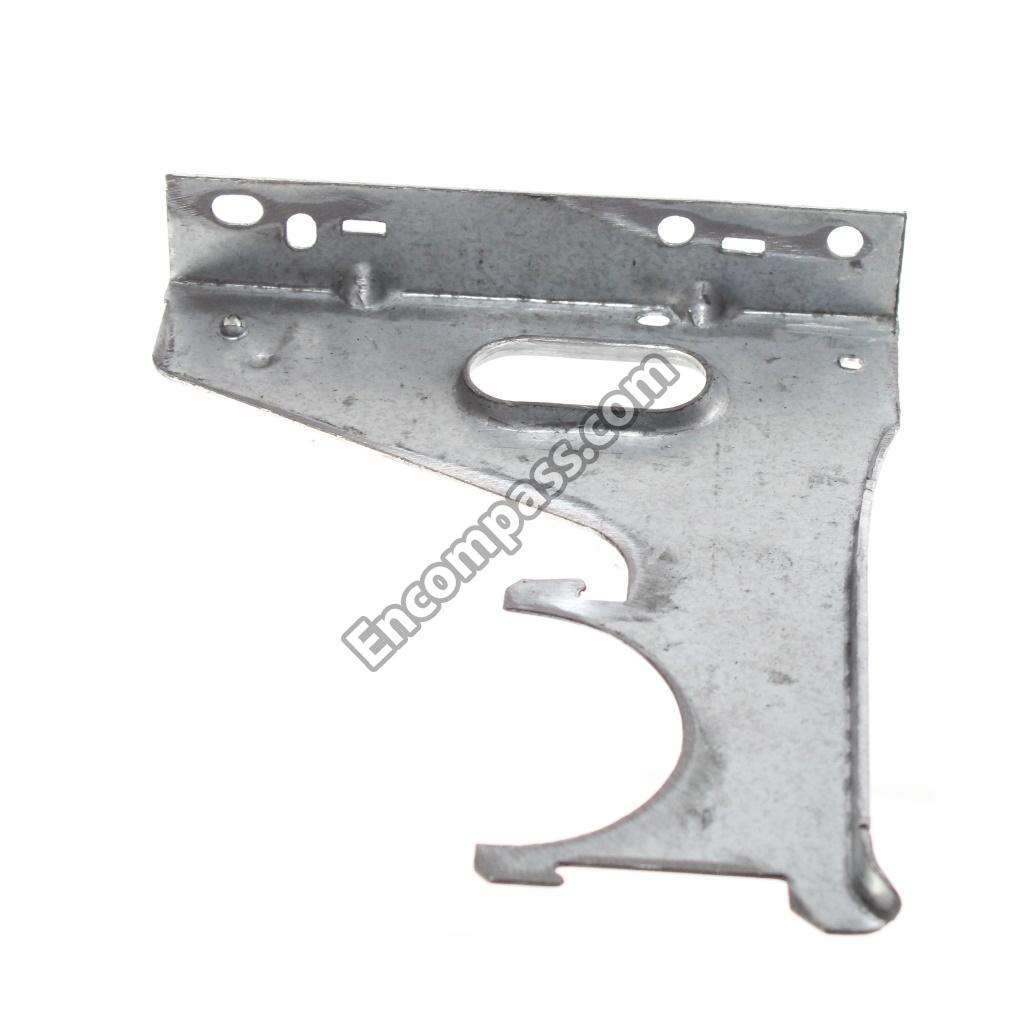

WE01X0921 WE01X0921 MOTOR BRACKET

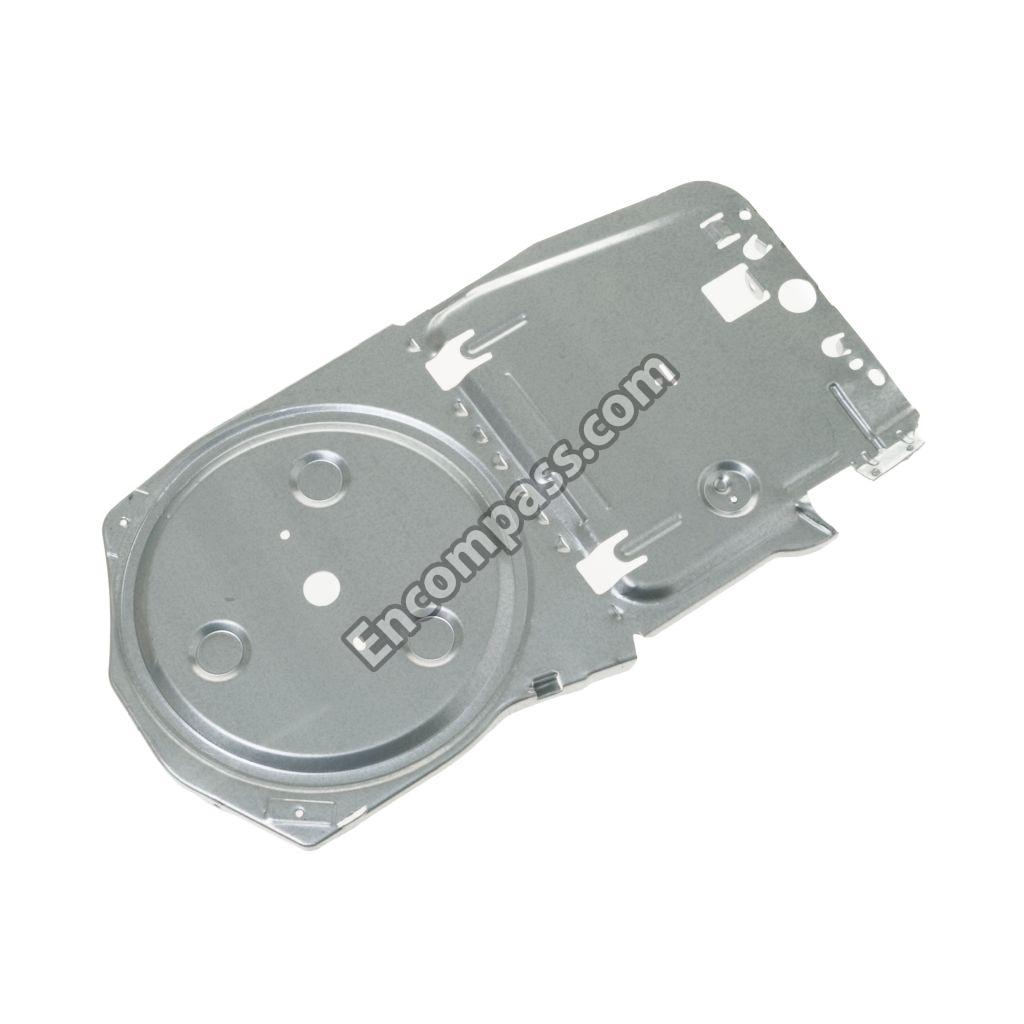

WE13X20394 WE13X20394 MOTOR PLATE
WE13M39 WE13M39 MOTOR SUPPORT

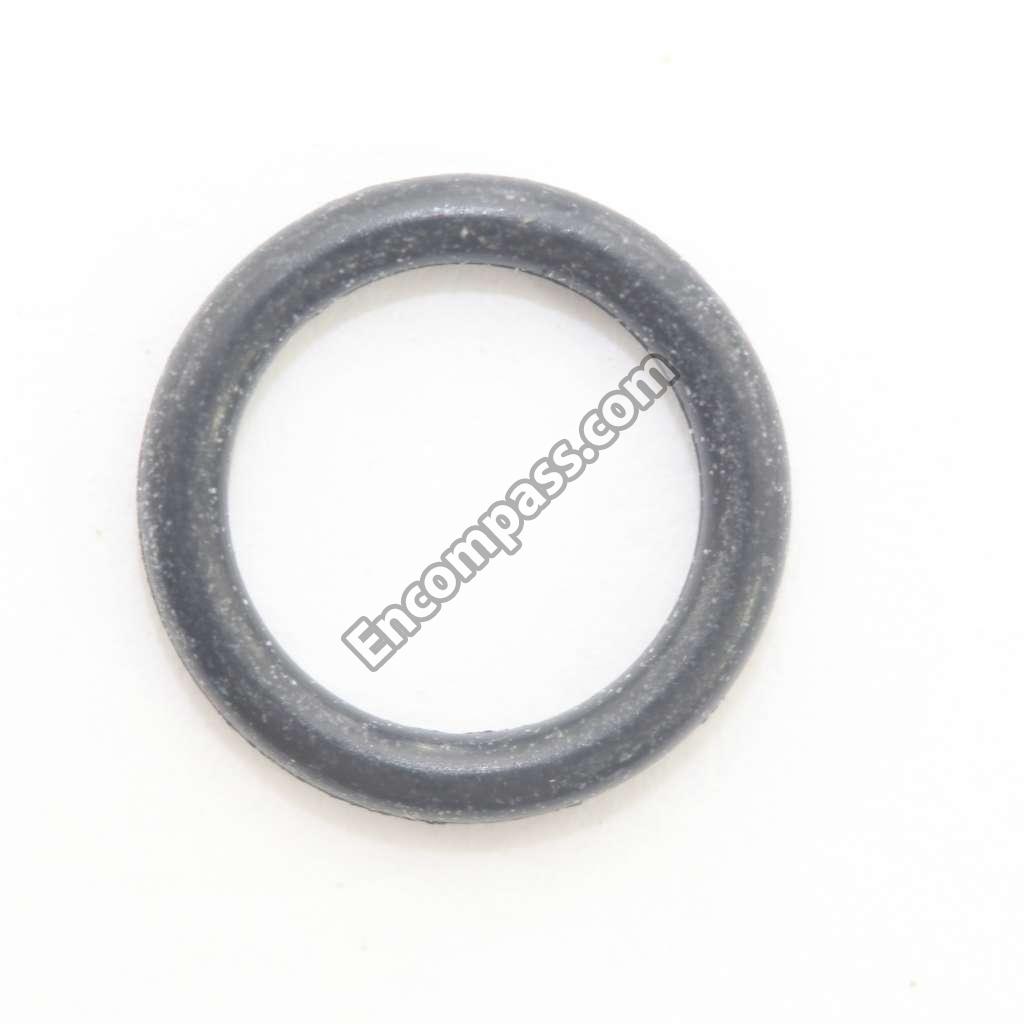

WE1M461 WE1M461 O-RING

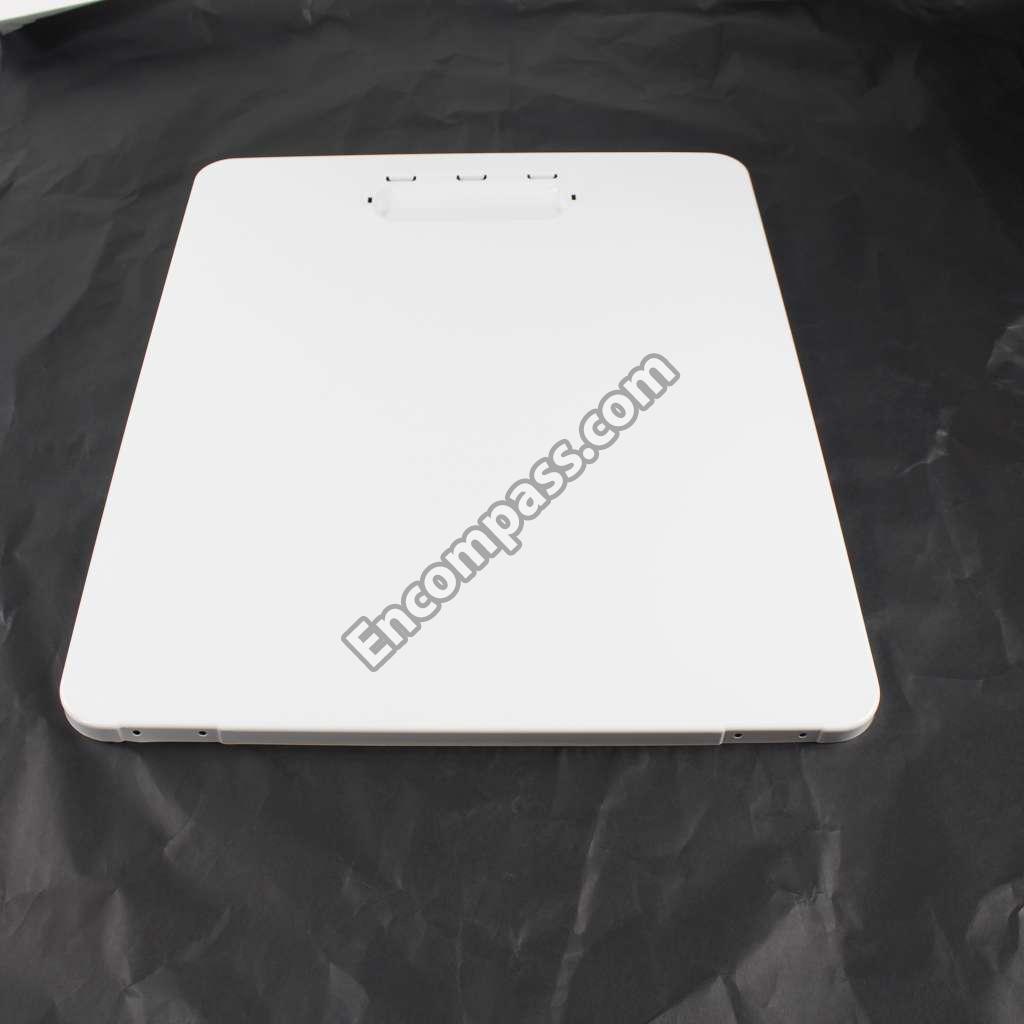

WE10X20468 WE10X20468 OUTER DOOR WH
WE20X814 WE20X814 PANEL BACK
WE20M393 WE20M393 PANEL SIDE AB

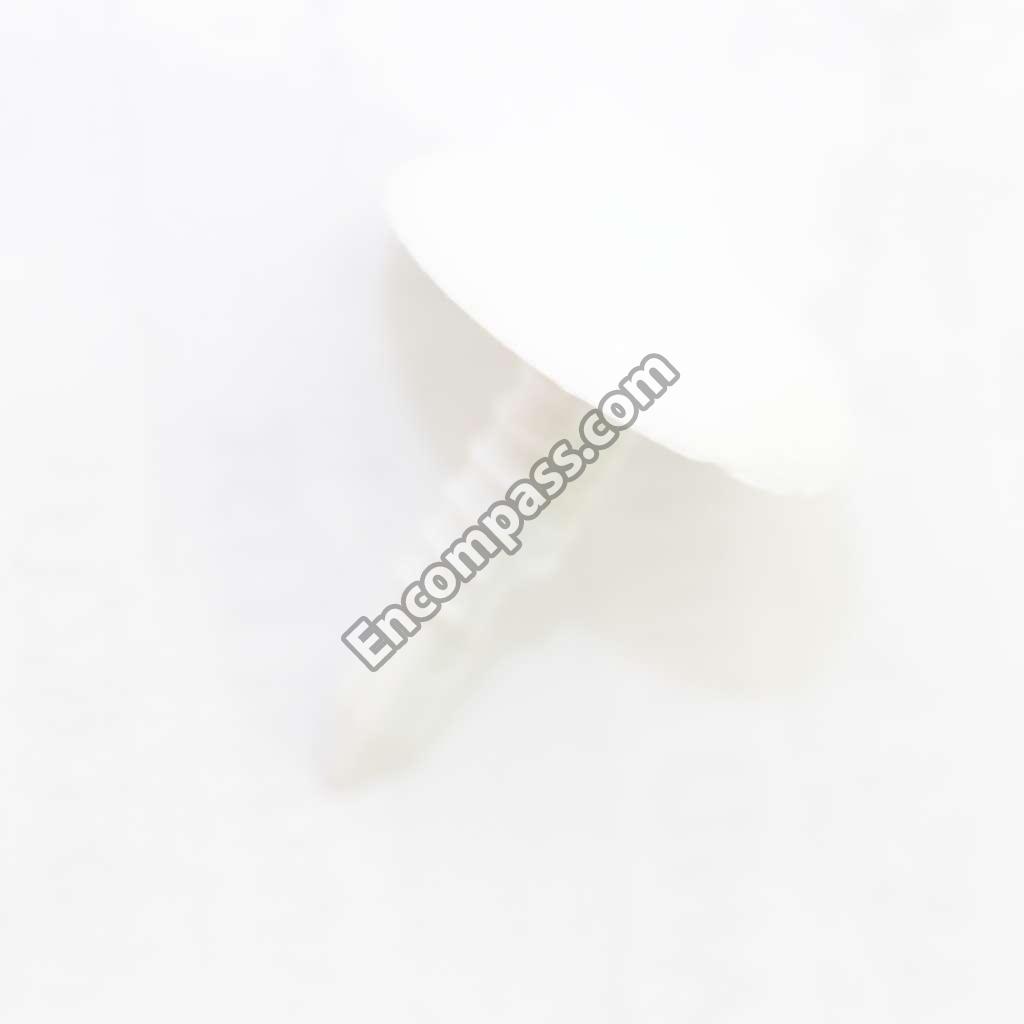

WR01X21159 WR01X21159 PLUG DOOR
WE12X83 WE12X83 PULLEY IDLER
WH01X10217 WH01X10217 PUSH MOUNT CABLE TIE
WH01X10704 WH01X10704 PUSH MOUNT CABLE TIE
WE1M528 WE1M528 REAR BRACKET LEVEL LEG
WE20X811 WE20X811 REAR PANEL
WE4M255 WE4M255 RESISTOR

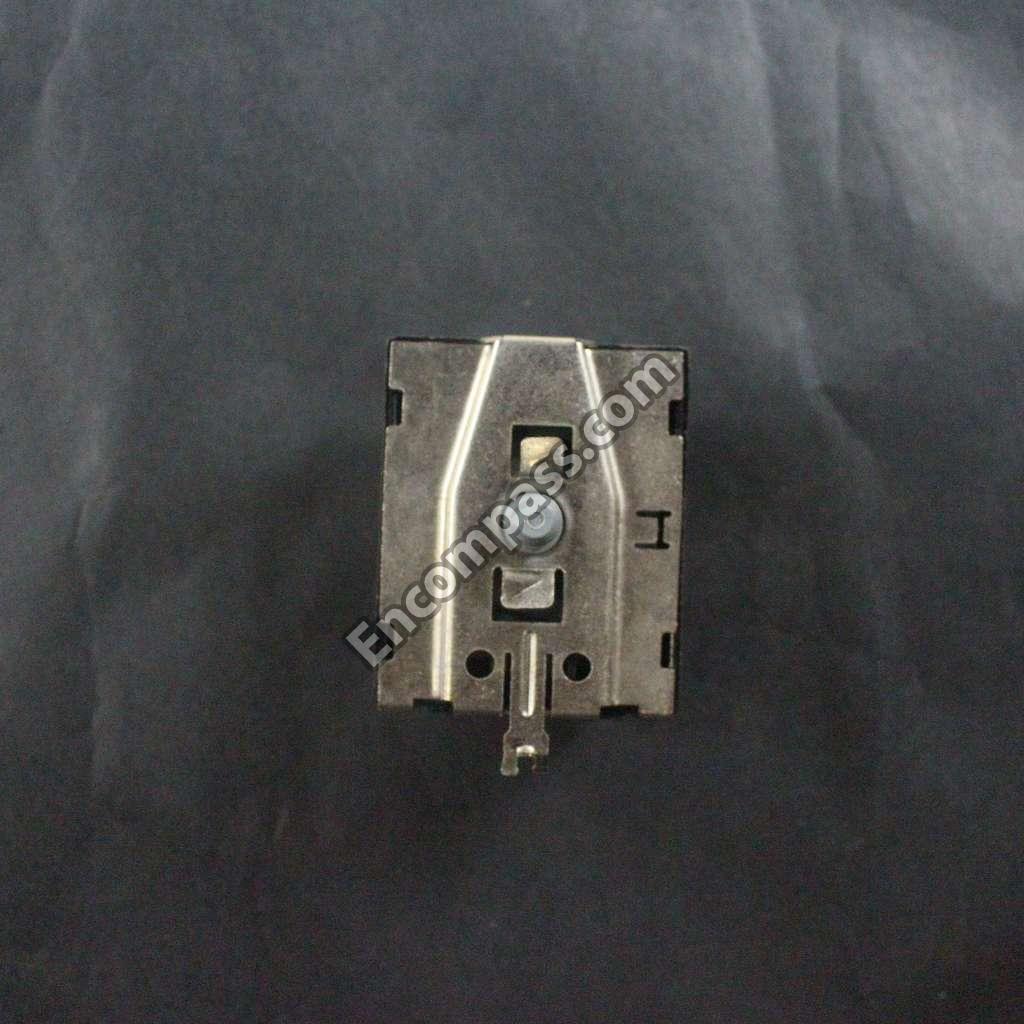

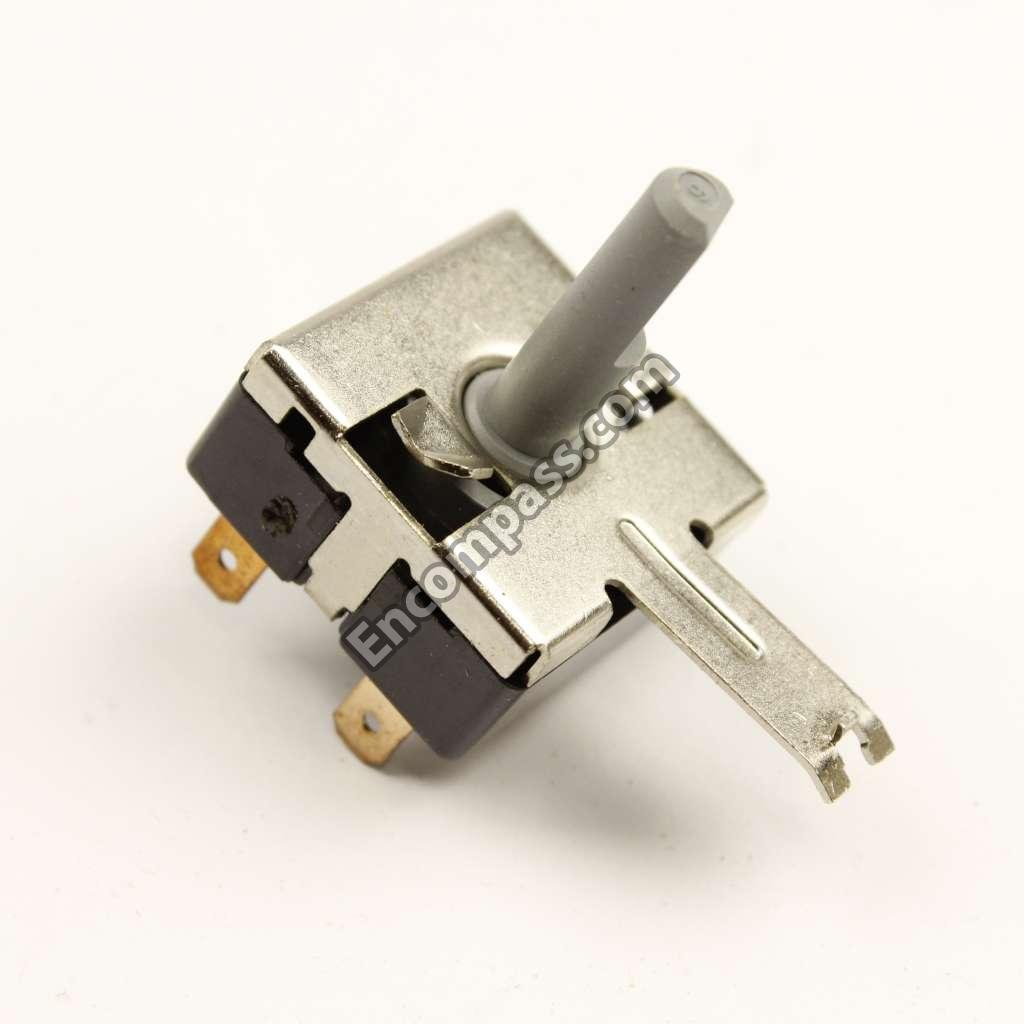

WE4M407 WE4M407 ROTARY SWITCH 4TEMP REG

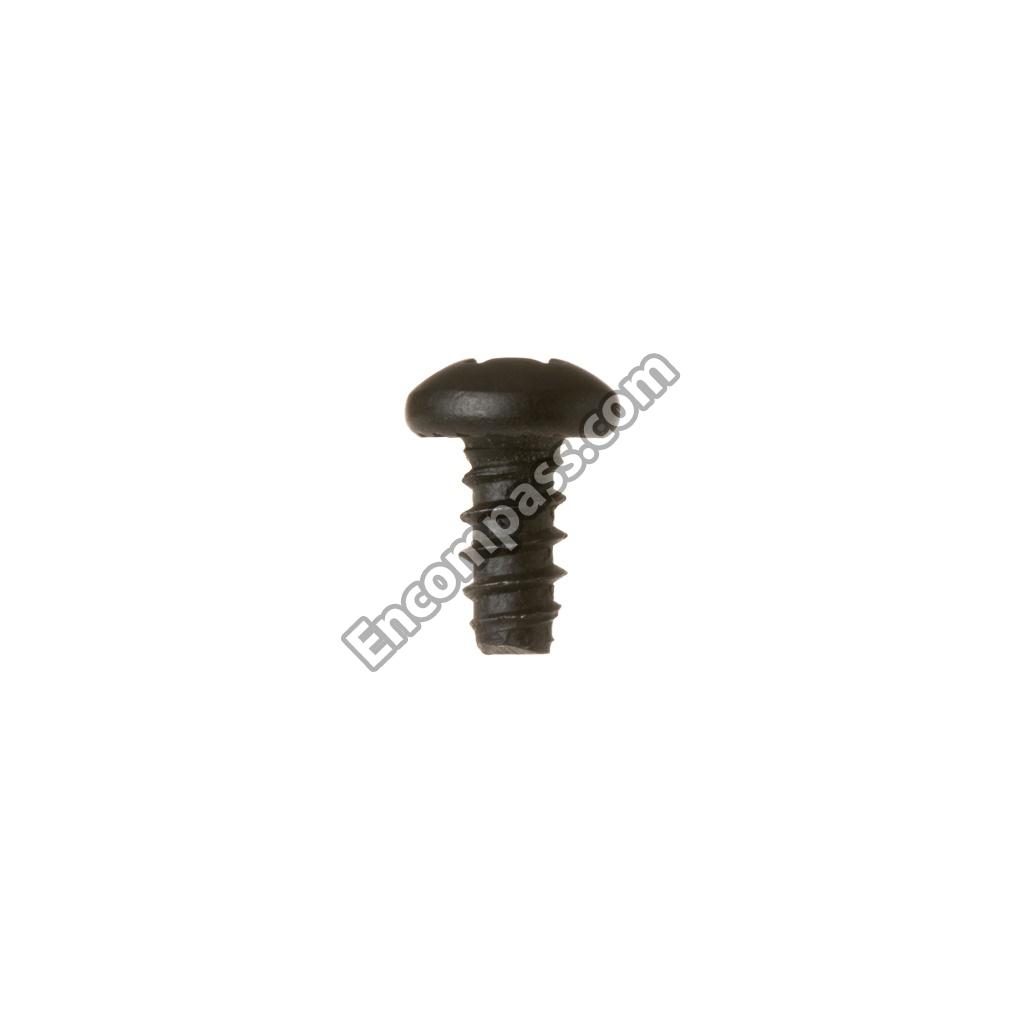

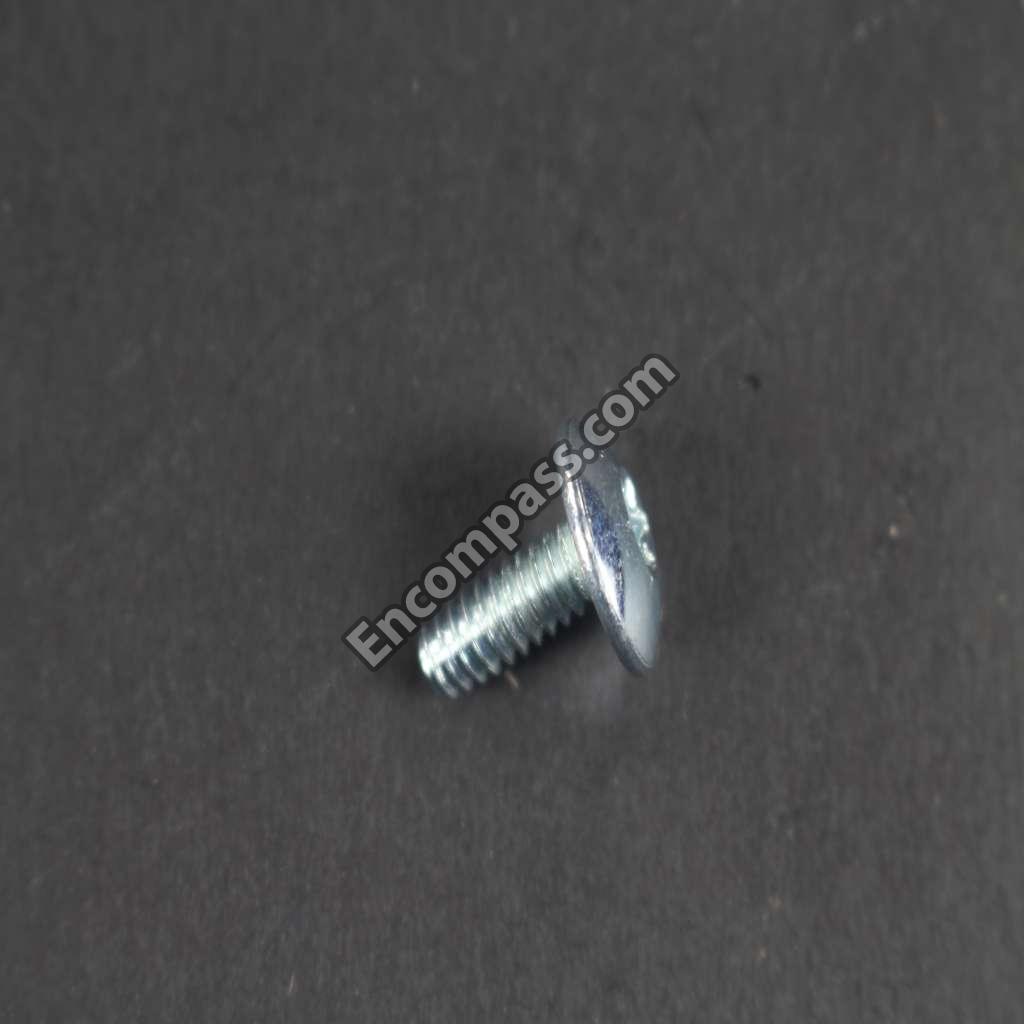

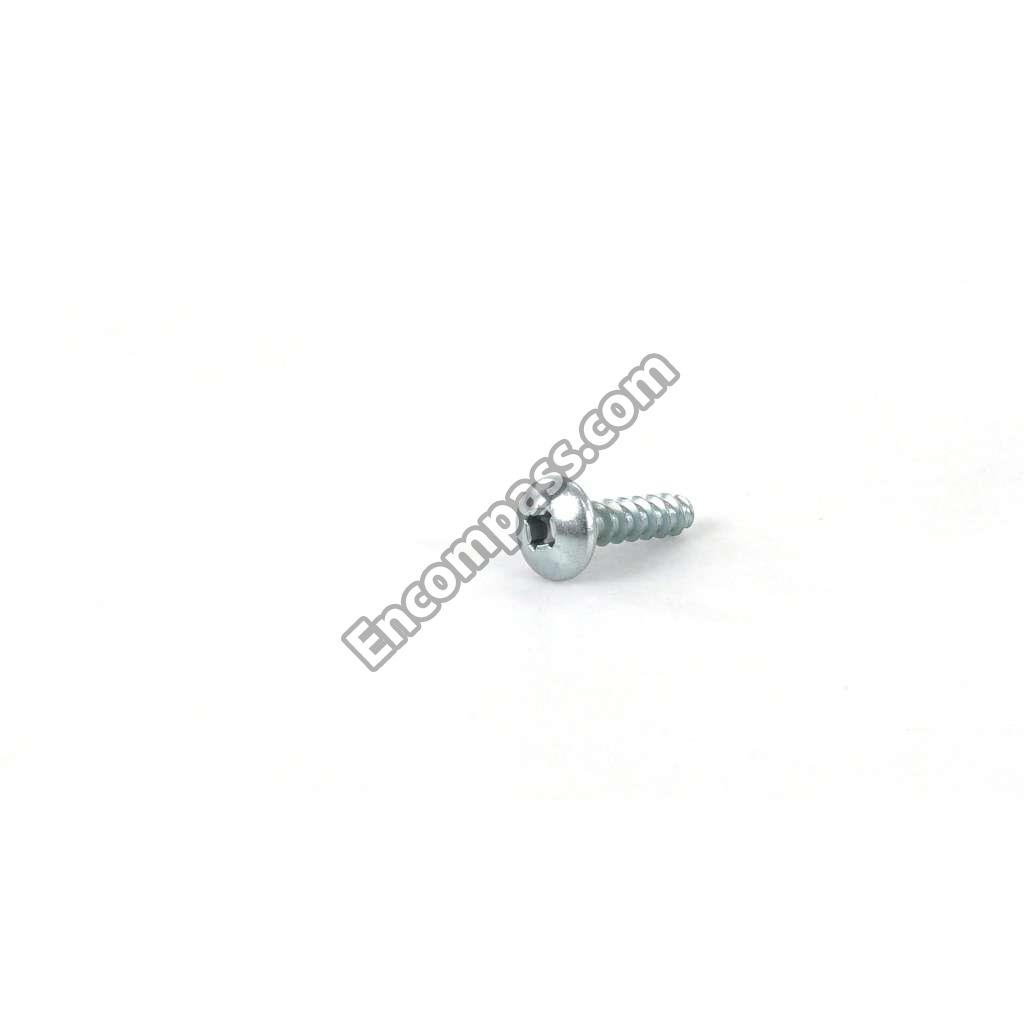

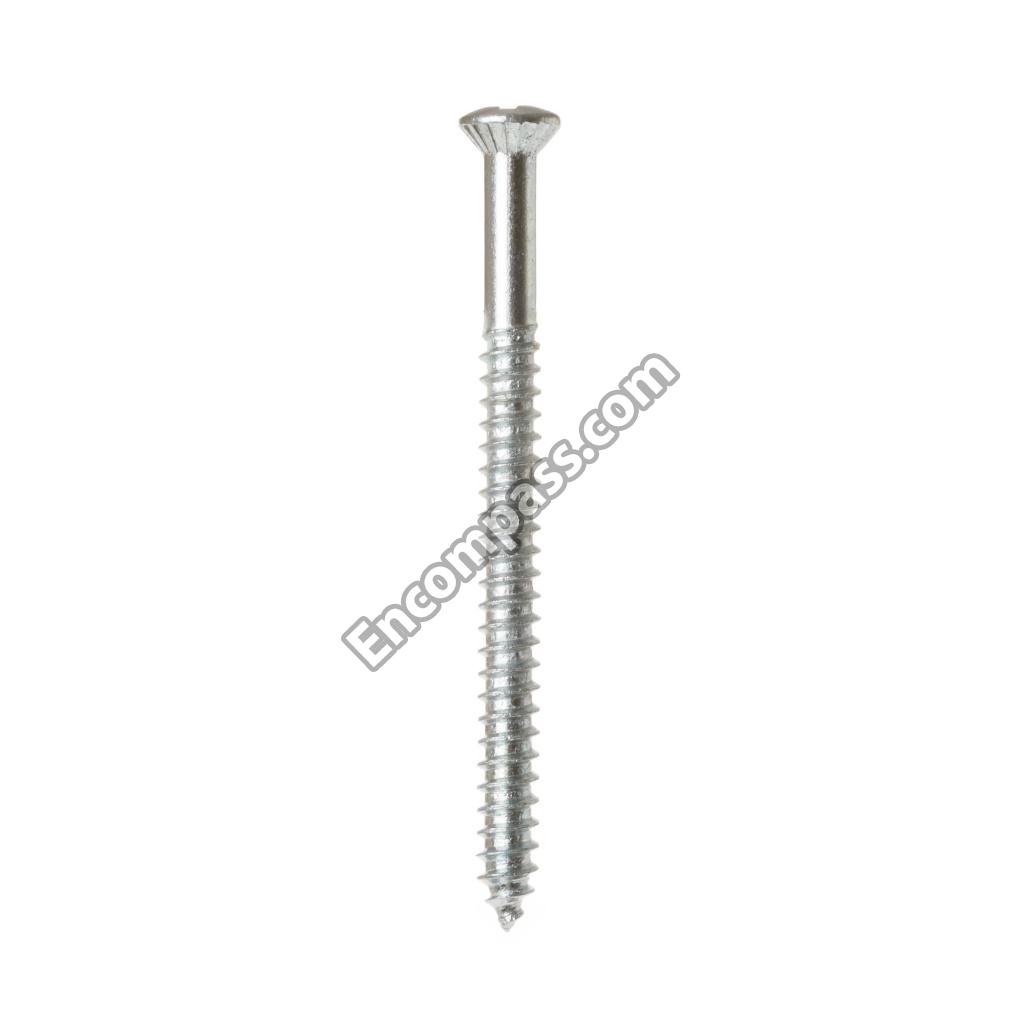

WE2M189 WE2M189 SCREW

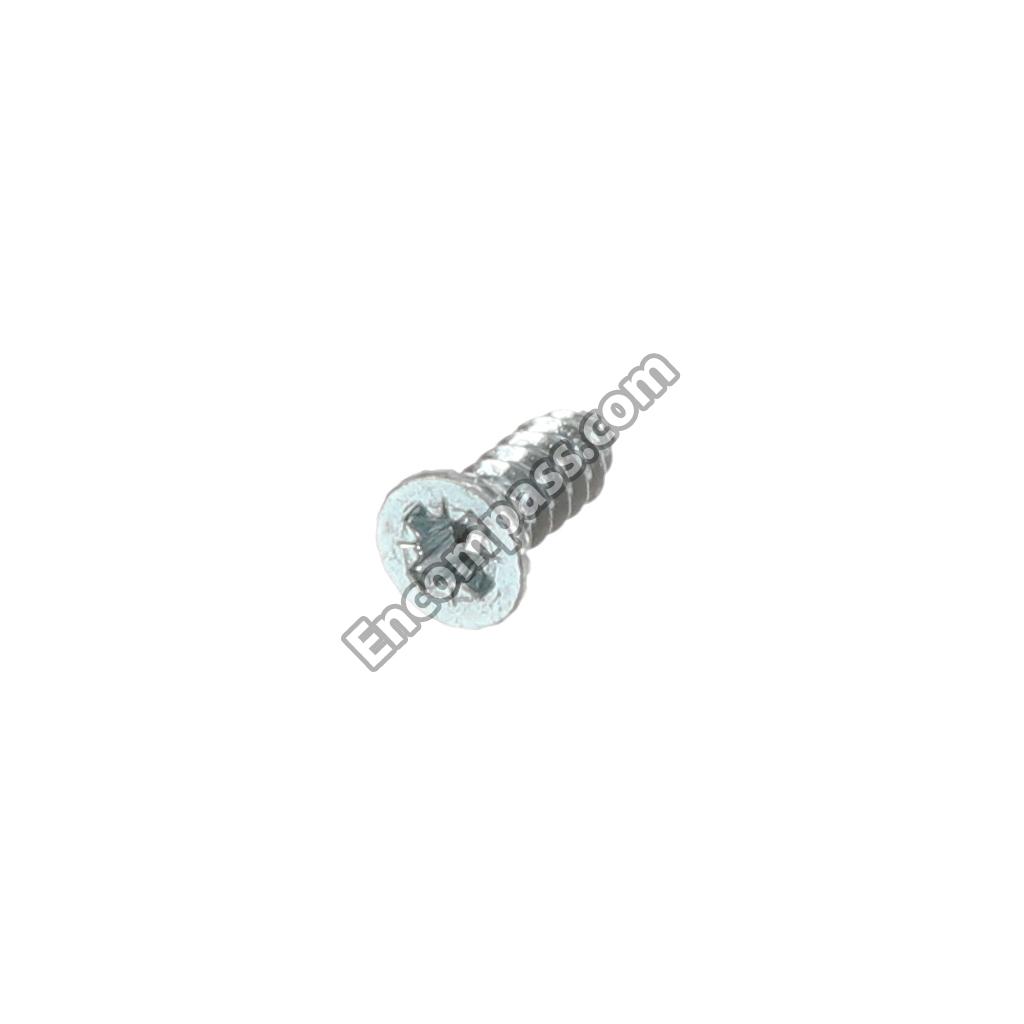

WE2M98 WE2M98 SCREW

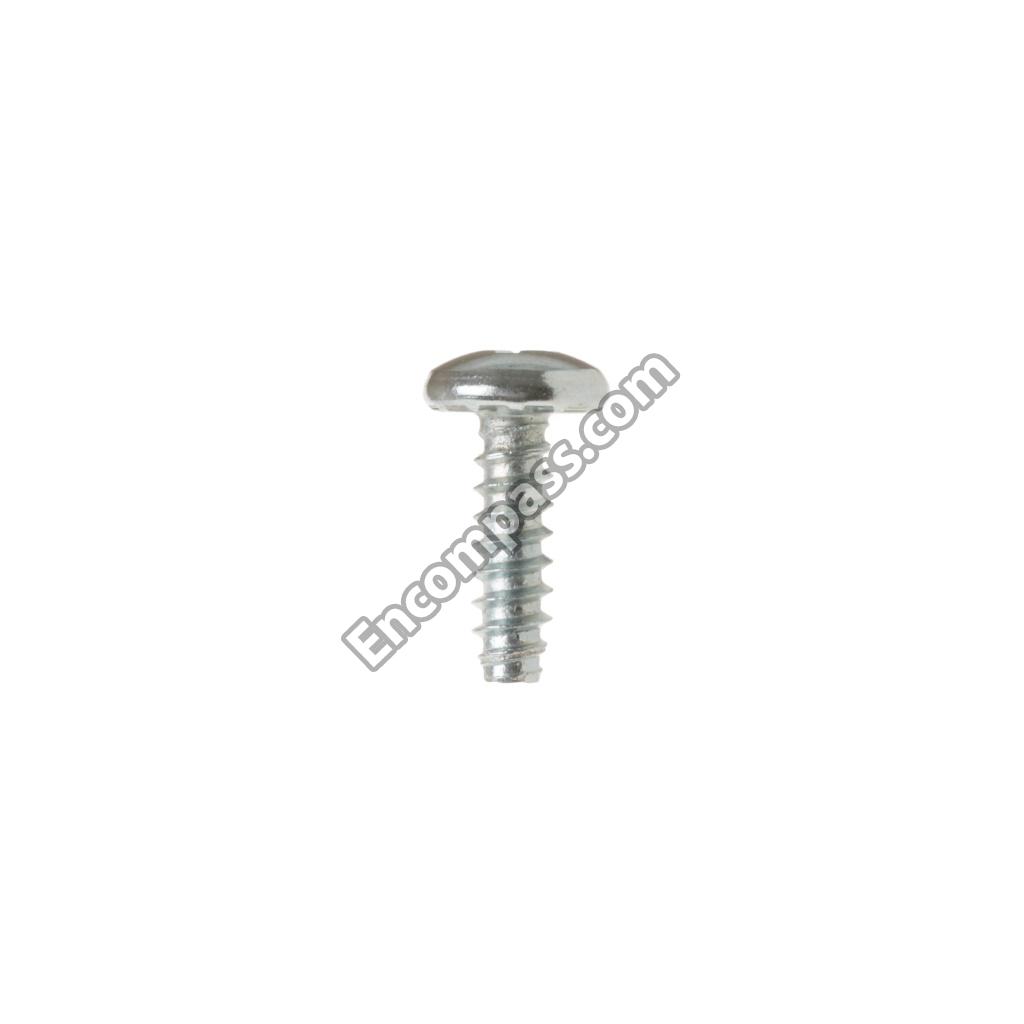

WE2M202 WE2M202 SCREW
WE2M173 WE2M173 SCREW
WR2X9260 WR2X9260 SCREW
WE1M280 WE1M280 SCREW
WE2M174 WE2M174 SCREW # 10
WE2M163 WE2M163 SCREW #10
WE2M160 WE2M160 SCREW #8
WE2M170 WE2M170 SCREW #8

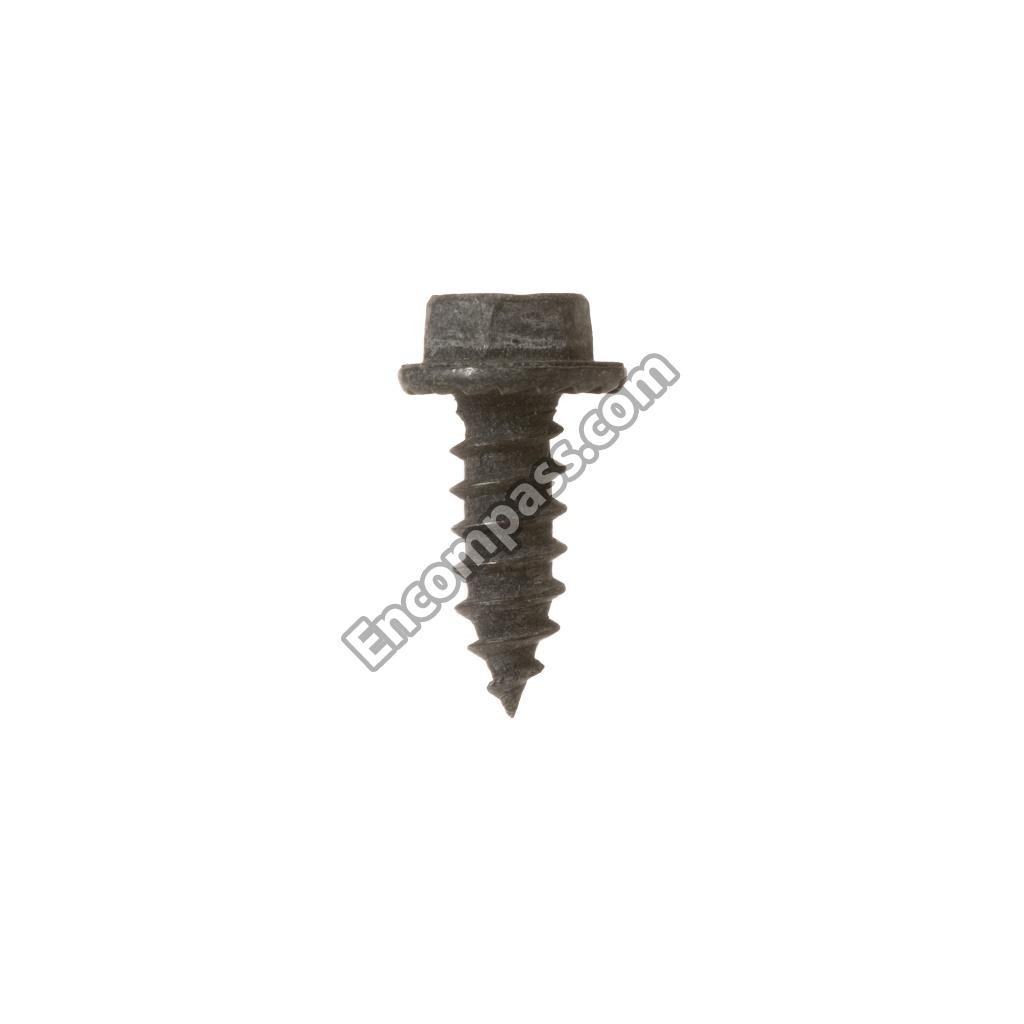

WD02X10057 WD02X10057 SCREW 10-16X1/2 AB HXW S
WH02X10089 WH02X10089 SCREW 8-18 AB FLT 9/16 SN
WZ4X241D WZ4X241D SCREW-PKG 12
WE13M26 WE13M26 SHIELD
WE1M1067 WE1M1067 SLIDE DRUM - GREEN
WE03X37317 WE03X37317 SLIDE DRUM - GREEN

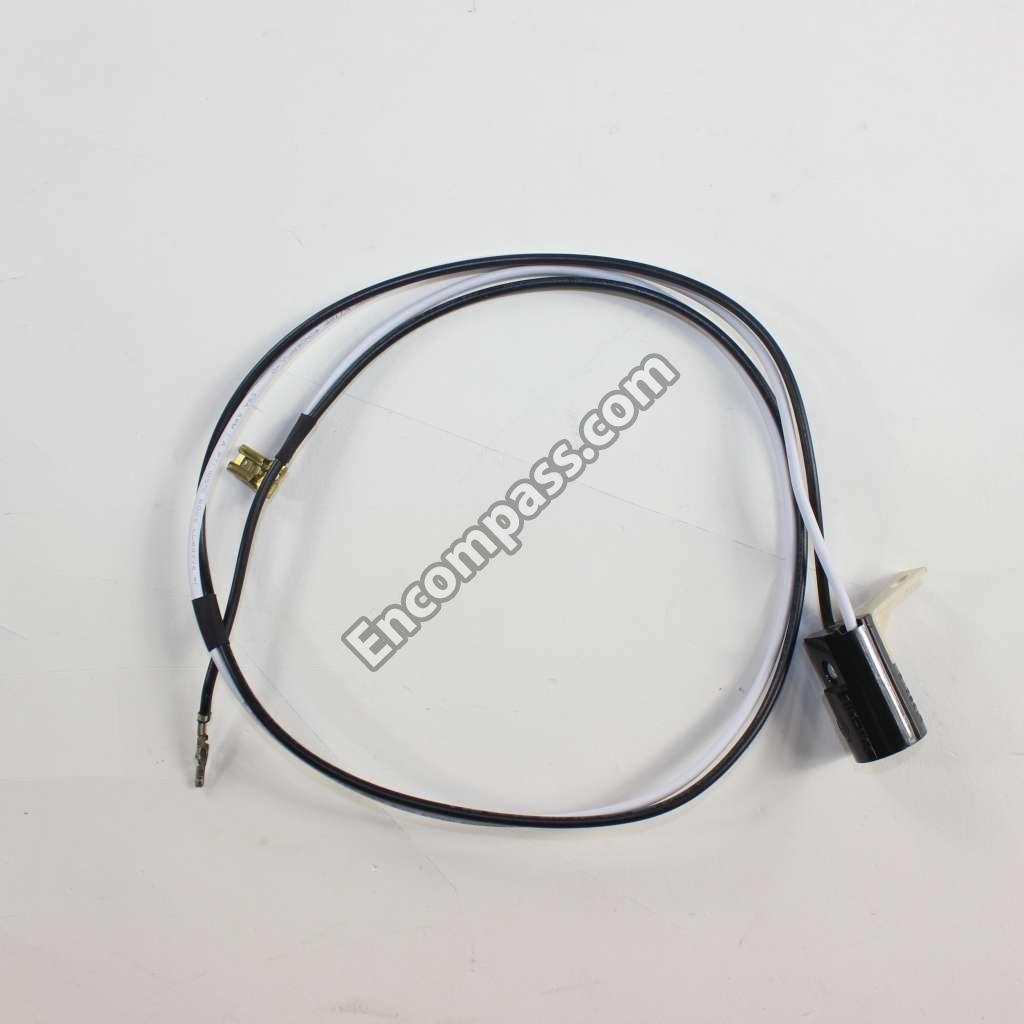

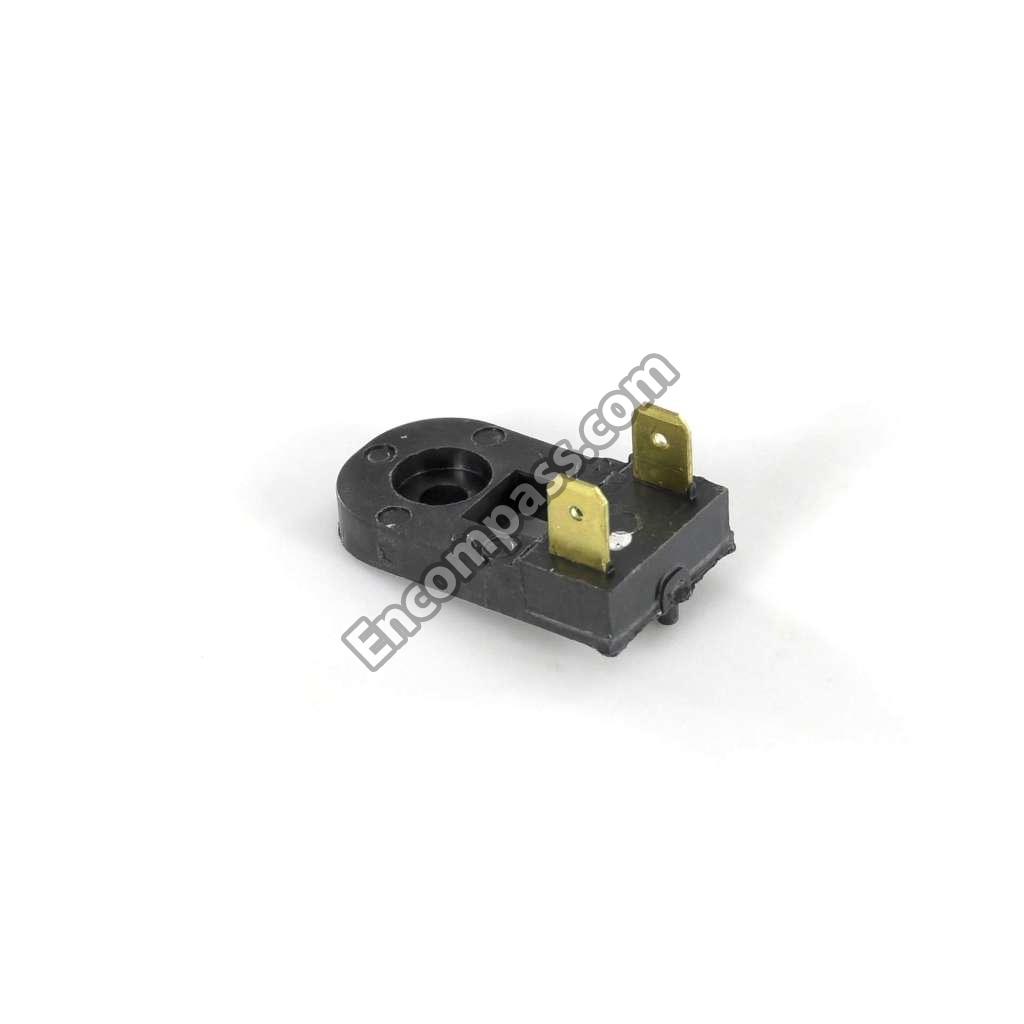

WE5M48 WE5M48 SOCKET ASM
WE01X20423 WE01X20423 STRAIN RELIEF BRACKET
WE13X0200 WE13X0200 STRAP MOTOR
WE13X200 WE13X200 STRAP MOTOR
WE1X1192 WE1X1192 STRIKE DOOR
WE19M1286 WE19M1286 SUPPORT SWITCH
WD21X0557 WD21X0557 SWITCH INTERLOCK
WD21X10261 WD21X10261 SWITCH INTERLOCK
WE19M1413 WE19M1413 SWITCH TRIM PANEL ASSEMBLY
WE4M160 WE4M160 T'STAT , SAFETY LEFT
WE4M216 WE4M216 T'STAT BIAS DRUM OUT

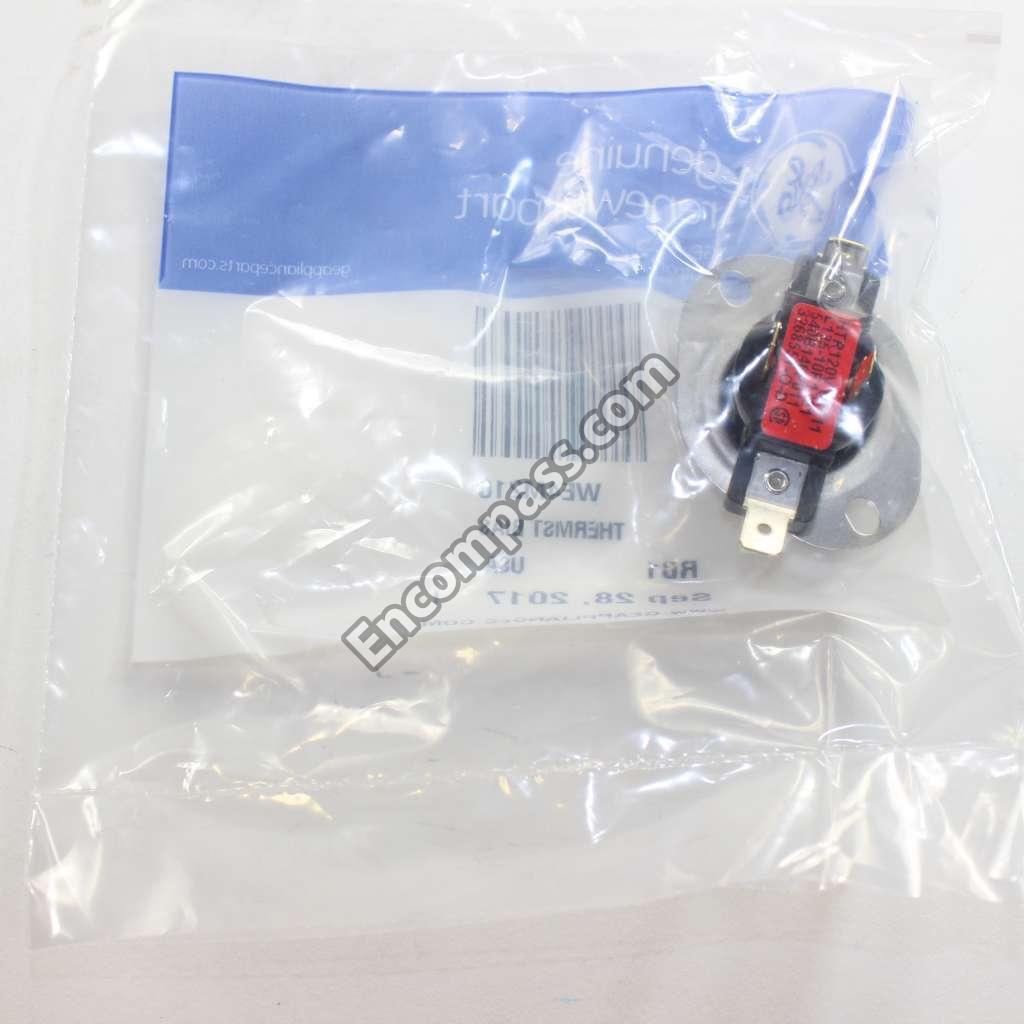

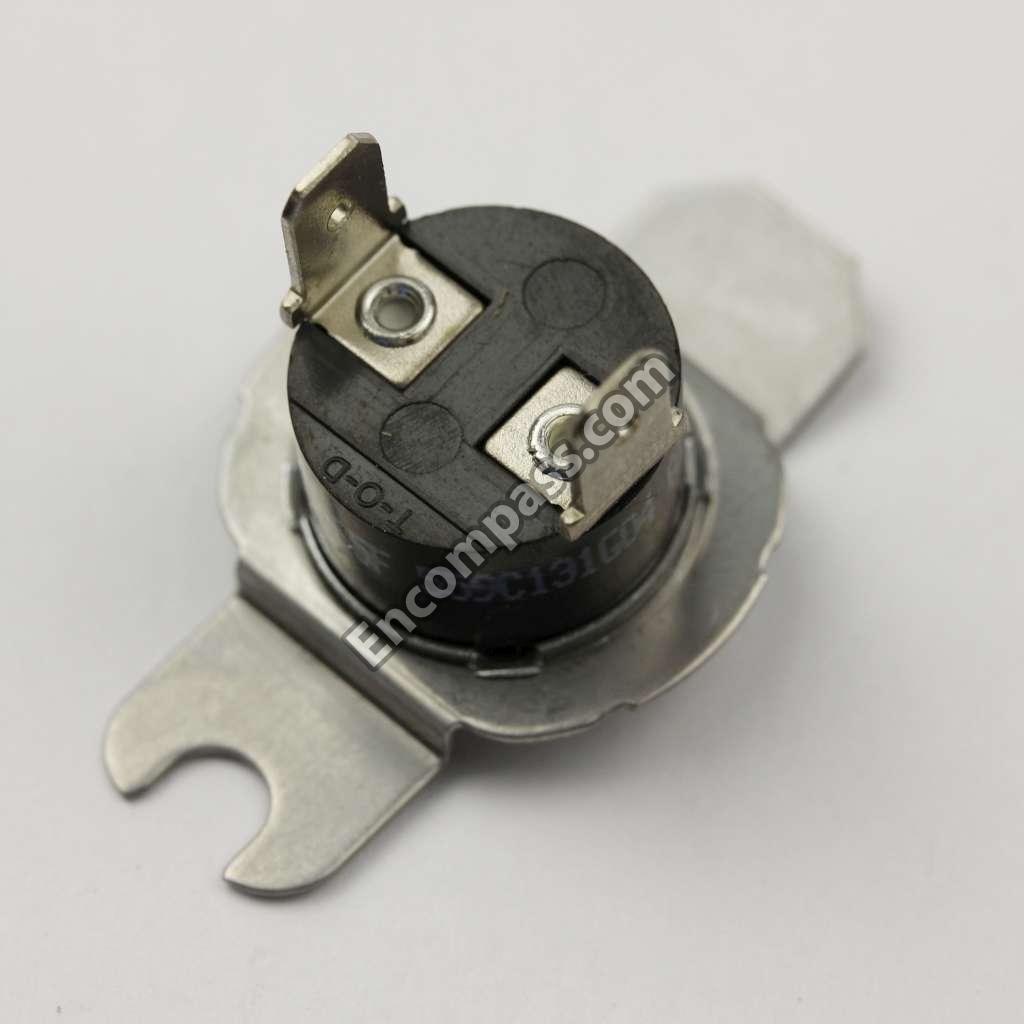

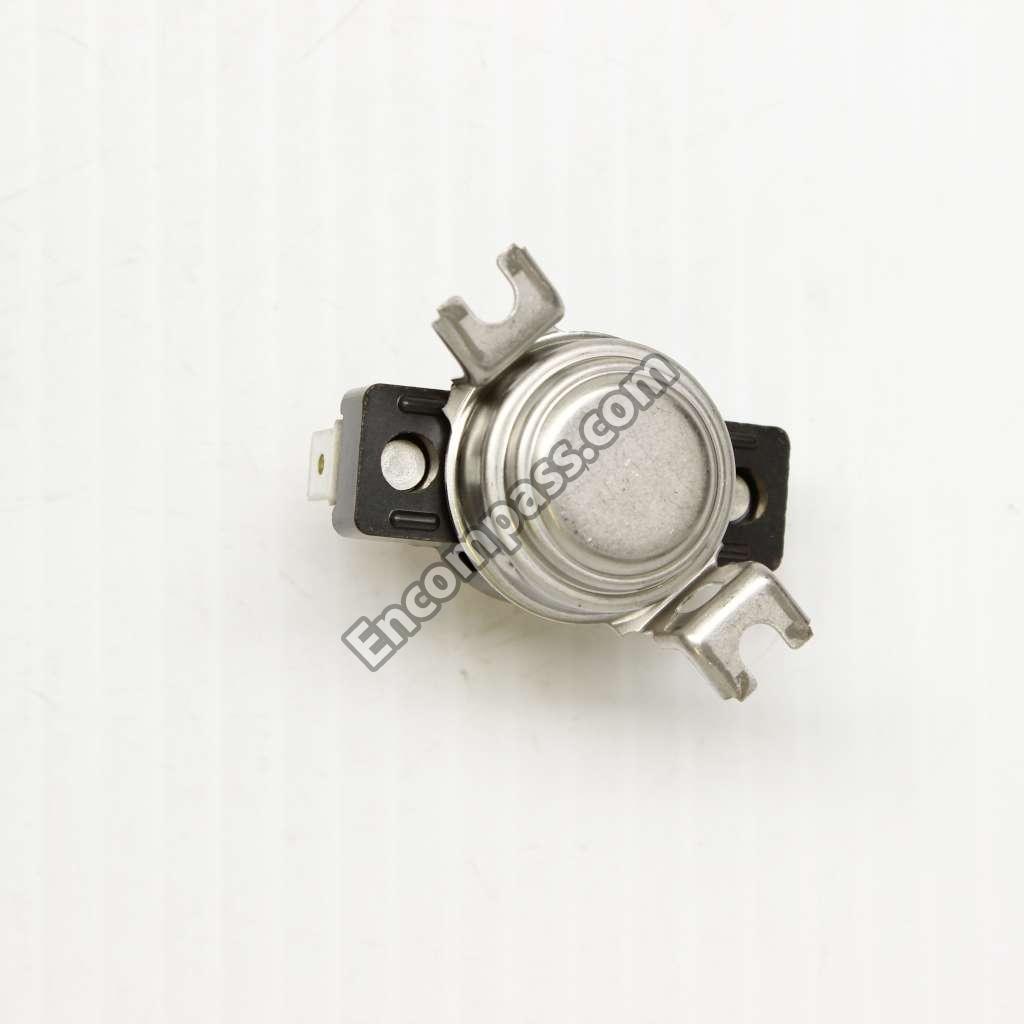

WE4M137 WE4M137 T'STAT HI-LIMIT
WE4M181 WE4M181 T'STAT INLET BIASED

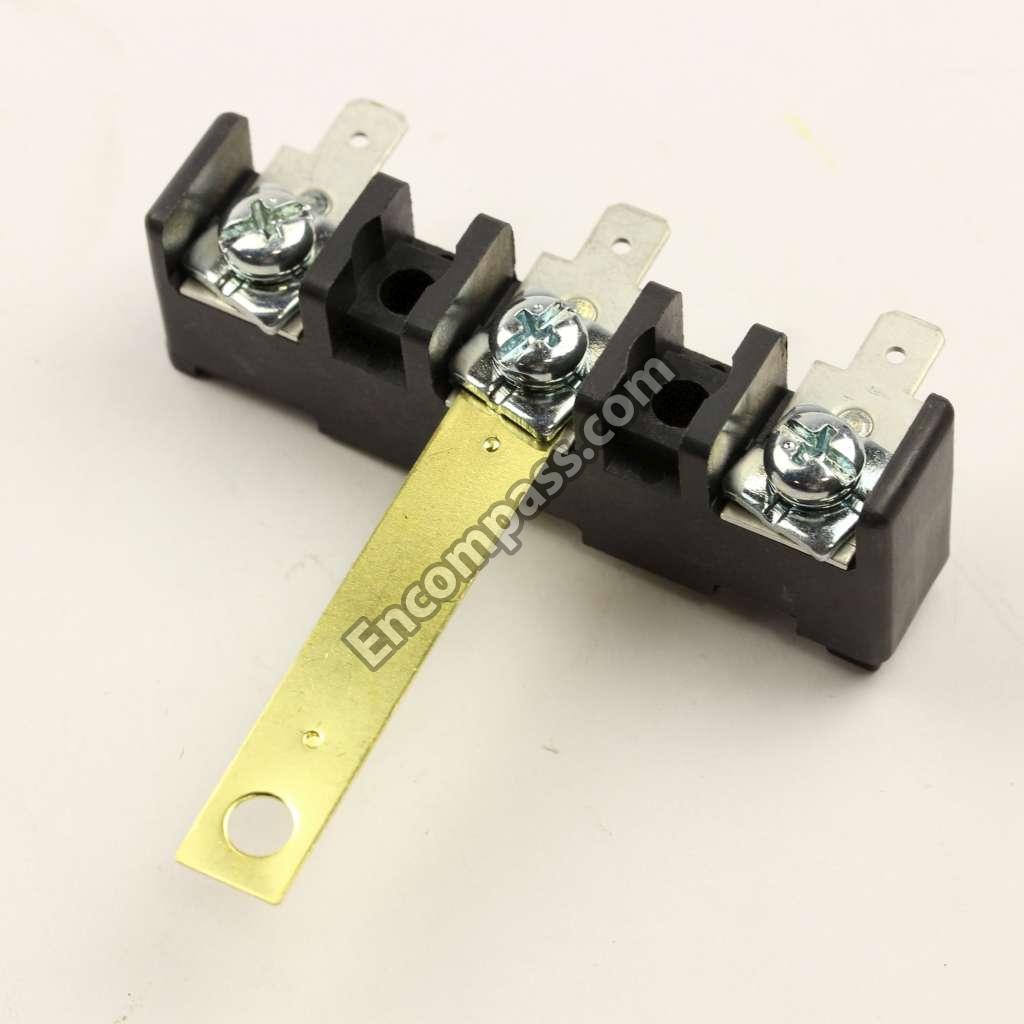

WE4M325 WE4M325 TERM BLK AND GRND STRAP

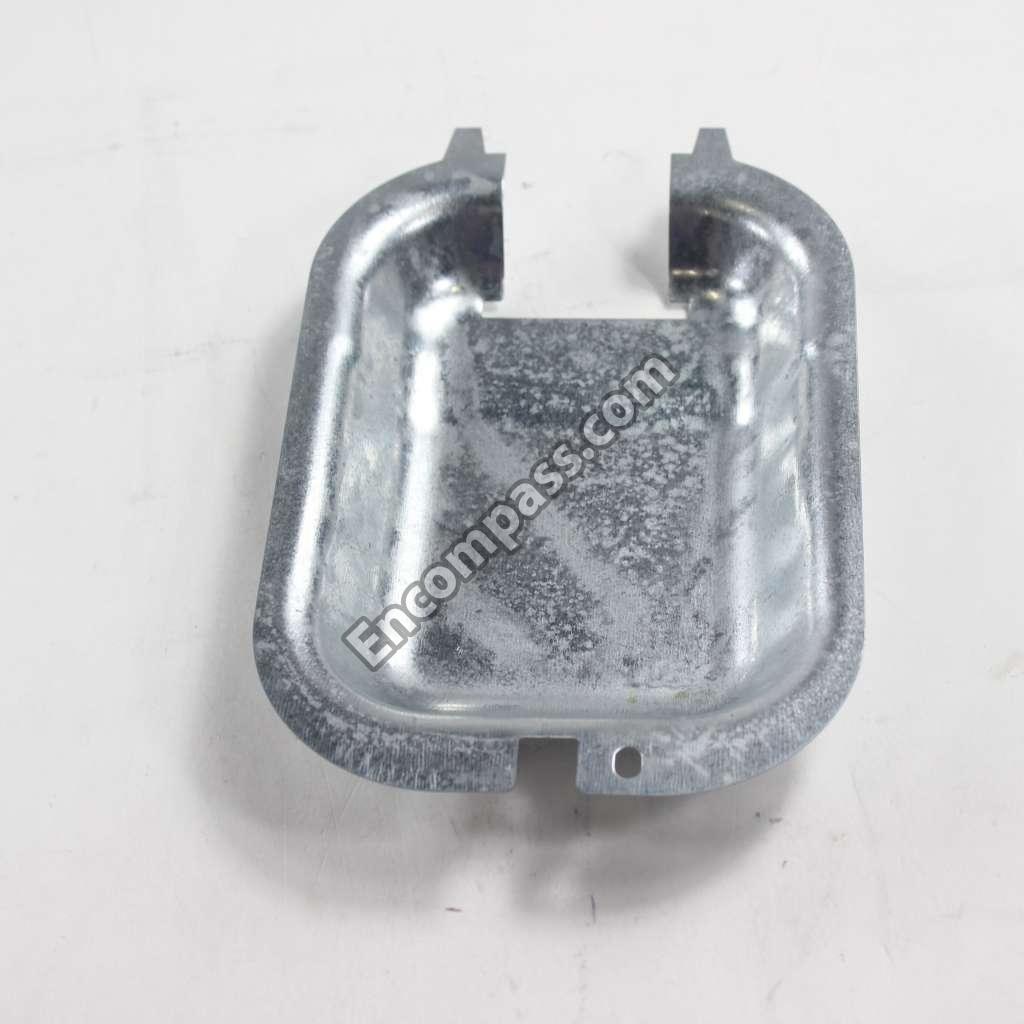

WE1M1102 WE1M1102 TERM. BLOCK COVER

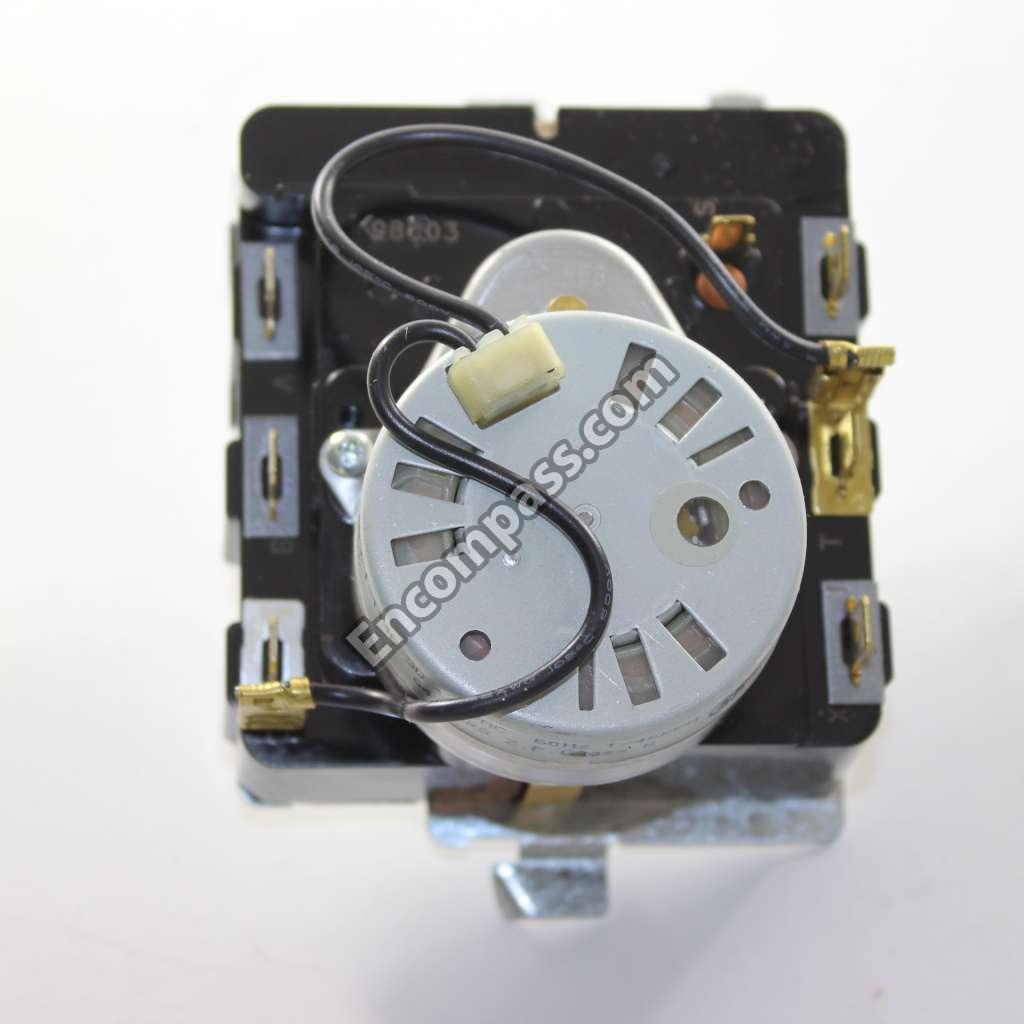

WE4M271 WE4M271 TIMER DRYER
WE01X0980 WE01X0980 U CLIP
49-90210 49-90210 USE & CARE
WE2X263D WE2X263D WE2X263D
WE2M96 WE2M96 WE2X329
