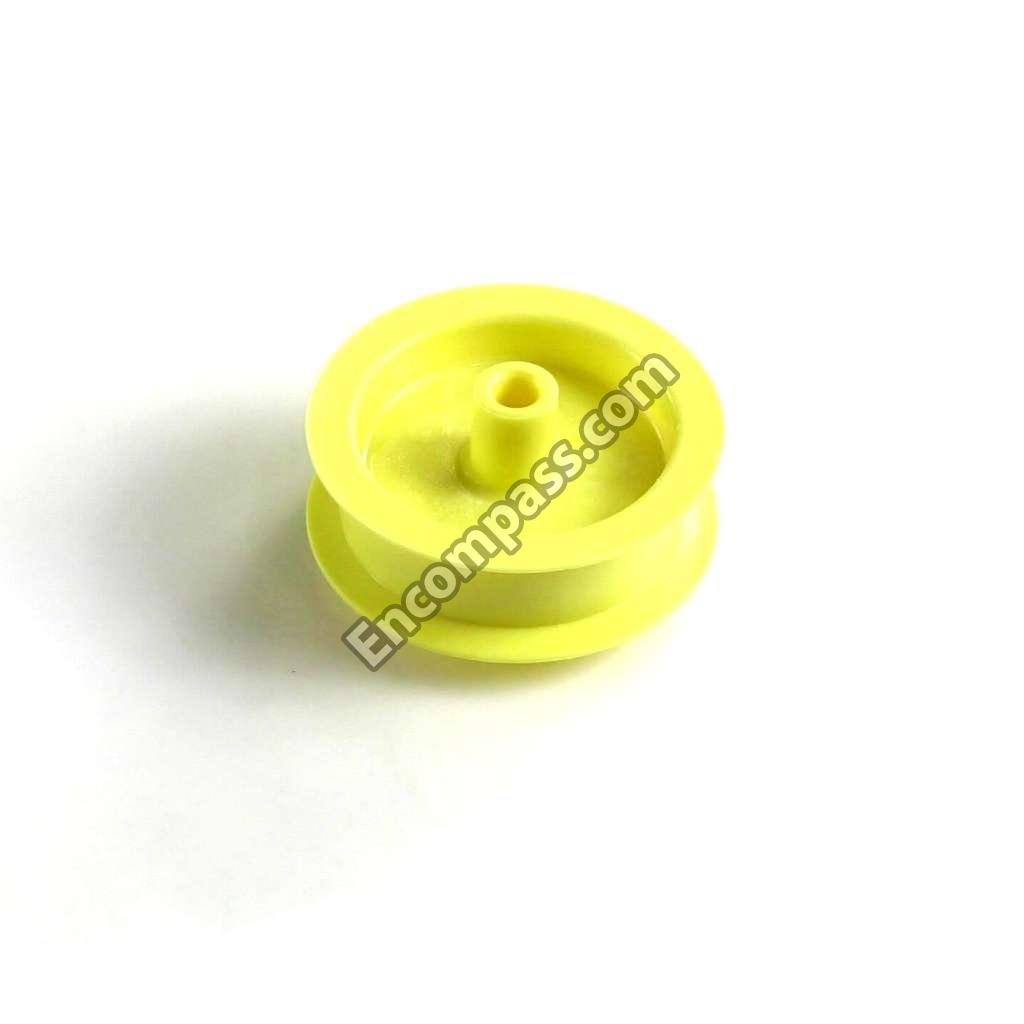

Model Image
Manufacturer

GE

Model Number

DLL1550BGL

Description

Dryer Gas

Interactive Exploded View

Parts List

Part Number Description
WE10X205 WE10X205 ACC DOOR
WE10X256 WE10X256 ACCESS DOOR
WE10X254 WE10X254 ACCESS DOOR **NLA*
WE1X425 WE1X425 ACCESS PLATE
WH46X0211 WH46X0211 BACKSPLASH WRAPPER WH
WE01X0689 WE01X0689 BAFFLE BLOWER HOUSING
WE01X0759 WE01X0759 BEARING
WE3X75 WE3X75 BEARING DRUM
WE25M40 WE25M40 BEARING KIT
WE01X0461 WE01X0461 BEARING RETAINER
WE03X0037 WE03X0037 BEARING-DRUM
WE12X0042 WE12X0042 BELT DRIVE
WE12X10014 WE12X10014 BELT DRIVE
WE16M15 WE16M15 BLOWER WHEEL
WE14X134 WE14X134 BLOWR HSG AS
WE2X177D WE2X177D BOLT-PKG 12
WE14X0066 WE14X0066 BOX RECESS
WH16X514 WH16X514 BRACE
WE14X0037 WE14X0037 BRACE CABINET TOP
WE13X116 WE13X116 BRACKET
WE1X345 WE1X345 BRACKET
WE1X344 WE1X344 BRACKET
WE01X0344 WE01X0344 BRACKET ASM HINGE
WE01X0345 WE01X0345 BRACKET ASM HINGE
WE13X169 WE13X169 BRACKET COIL
WE13X0166 WE13X0166 BRACKET GAS VALVE
WH16X0431 WH16X0431 BRACKET HINGE
WE13X0159 WE13X0159 BRACKET IDLER SPRING
WE13X0116 WE13X0116 BRACKET IGNITER
WE13X0161 WE13X0161 BRACKET MOTOR
WE13X0118 WE13X0118 BRACKET SPACER
WH16X0434 WH16X0434 BRACKET SWITCH
WE13X0137 WE13X0137 BRACKET SWITCH
WE13X0138 WE13X0138 BRACKET THERMOSTAT
WE13X0117 WE13X0117 BRACKET VALVE
WE1X461 WE1X461 BRG.RETAINER
WE13X166 WE13X166 BRKT GASVALV
WE13X0169 WE13X0169 BRKT. COIL
WE01X1068 WE01X1068 BURNER ASM
WE14M104 WE14M104 BURNER ASM.
WE01X0956 WE01X0956 BUSHING
WE01X0404 WE01X0404 BUSHING HINGE
WE20X500 WE20X500 CAB FRT ASM
WE20X664 WE20X664 CAB TOP&PLUG **NLA*
WE20X666 WE20X666 CAB TOP&PLUG **NLA*
WE20X665 WE20X665 CAB TOP&PLUG **NLA*
WE20X0670 WE20X0670 CABINET ASM AD
WE20X0671 WE20X0671 CABINET ASM HA
WE20X0672 WE20X0672 CABINET ASM WH
WE14X0112 WE14X0112 CHAMBER COMBUSTION 6'
WE01X0409 WE01X0409 CLAMP
WE01X0688 WE01X0688 CLAMP
WE1X409 WE1X409 CLAMP
WE1X688 WE1X688 CLAMP& SCREW
WE02X0192 WE02X0192 CLIP
WE01X0299 WE01X0299 CLIP
WE02X0134 WE02X0134 CLIP
WE1X762 WE1X762 CLIP
WE01X0762 WE01X0762 CLIP GROUNDING
WH01X10106 WH01X10106 CLIP KNOB
WE01X0577 WE01X0577 CLIP TRIM
WE1X299D WE1X299D CLIP-PKG 12
WE04X0692 WE04X0692 COIL DUAL
WE04X0693 WE04X0693 COIL MAIN
WE14X112 WE14X112 COMB CHAMBER
WE13X76 WE13X76 CONTROL PLAT
WE08X0031 WE08X0031 CORDSET ASM
WE8X31 WE8X31 CORDSET ASM
WE1X937 WE1X937 COUNTERWEIGH **NLA*
WE01X0937 WE01X0937 COUNTERWEIGHT DRYER
WE01X0944 WE01X0944 COVER THERMOSTAT
WE14X0086 WE14X0086 DEFLECTOR
WE14X86 WE14X86 DEFLECTOR
WE1X689 WE1X689 DEFLECTOR
WE04X0448 WE04X0448 DETECTOR ASM
WE14X219 WE14X219 DIFFUSER ASM
WE14X105 WE14X105 DIFFUSER PLT
WE14X0125 WE14X0125 DIFFUSER SEAL ASM
WE10X0256 WE10X0256 DOOR ACCESS AD
WE10X0254 WE10X0254 DOOR ACCESS HA
WE10X0205 WE10X0205 DOOR ACCESS WH
WE10X0262 WE10X0262 DOOR ASM AD
WE10X0260 WE10X0260 DOOR ASM HA
WE10X0258 WE10X0258 DOOR ASM WH
WE9X28 WE9X28 DOOR GASKET
WE1X257 WE1X257 DOOR HANDLE
WE01X1032 WE01X1032 DOOR LATCH DOOR
WE4X197 WE4X197 DOOR SWITCH
WE21X0049 WE21X0049 DRUM ASM
WE03X0039 WE03X0039 DRUM SHAFT & BRACKET
WE4X692 WE4X692 DUAL COIL
WE14X0083 WE14X0083 DUCT ASM
WE14X83 WE14X83 DUCT ASM **NLA*
WE14X0144 WE14X0144 DUCT TRAP
WE14X0139 WE14X0139 ELBOW EXHAUST
WH42X2006 WH42X2006 END TRIM RH **NLA*
WE19X0719 WE19X0719 ESCUTCHEON ASM
WE14X139 WE14X139 EXH ELBOW
WE9X38 WE9X38 FELT SEAL AS
WE18X0026 WE18X0026 FILTER ASM LINT
WE4X448 WE4X448 FLAME DETECTOR
WE20X568 WE20X568 FRONT ASM **NLA*
WE09X0028 WE09X0028 GASKET DOOR
WE01X0553 WE01X0553 GASKET INSULATING
WE1X1172 WE1X1172 GR STRAP ASM
WE01X0257 WE01X0257 HANDLE DOOR
WH16X431 WH16X431 HINGE BCKT **NLA*
WE1X404 WE1X404 HINGE BUSHNG
WE14X0134 WE14X0134 HOUSING BLOWER
WH12X0497 WH12X0497 HOUSING TERMINAL
WH12X0538 WH12X0538 HOUSING TERMINAL
WH46X212 WH46X212 HSNG&NUT ASM
WH46X215 WH46X215 HSNG&NUT ASM
WE13X159 WE13X159 IDLER SP BKT
WE04X0444 WE04X0444 IGNITER
WE4X444 WE4X444 IGNITOR
WE2X134D WE2X134D JCLIP-PKG 12
WH01X2274 WH01X2274 KNOB CLIP ASM
WE01X0978 WE01X0978 KNOB CLIP ASM
WE1X1266 WE1X1266 KNOB TIMER
WE1M1011 WE1M1011 LATCH DOOR
WE01X1076 WE01X1076 LEAK LIMITER
WE1X1076 WE1X1076 LEAK LIMITER
WE1X468 WE1X468 LEVELG PLATE
WE1M642 WE1M642 LEVELLING SCREW GRAY
WE18X26 WE18X26 LINT FILTER
WE4X693 WE4X693 MAIN COIL
WE17X0032 WE17X0032 MOTOR ASM
WE01X0921 WE01X0921 MOTOR BRACKET
WE13X161 WE13X161 MOTOR BRKT
WE17X10010 WE17X10010 MOTOR KIT
WE1X921 WE1X921 MOTOR STRAP
WH42X2005 WH42X2005 N.L.A.END TRIM LH
WE1X944 WE1X944 N/L/A 01/14/08
WE1X446 WE1X446 N/L/A 02/13/09
WE14X144 WE14X144 N/L/A 03/31/04
WE2X183D WE2X183D N/L/A 04/13/05
WE21X49 WE21X49 N/L/A 05/17/06
WE10X332 WE10X332 N/L/A 08/21/06
WE9X44 WE9X44 N/L/A 09/27/04
WE10X333 WE10X333 N/L/A 11/04/02
WE02X0320 WE02X0320 NIPPLE GAS VALVE
WE2X396 WE2X396 NIPPLE SHTOF
WE20X570 WE20X570 NLA PART
WE19X719 WE19X719 NLA PART
WE02X0280 WE02X0280 NO ITEM DESCRIPTION
WE02X0319 WE02X0319 NO ITEM DESCRIPTION
WE01X1077 WE01X1077 NO ITEM DESCRIPTION
WH02X0885 WH02X0885 NUT
WZ07X0038 WZ07X0038 NUT
WR01X10212 WR01X10212 NUT 8-32
WE2X319 WE2X319 NUT GASVALV
WZ7X38D WZ7X38D NUT PKG 12
WE02X0169 WE02X0169 NUT SHEET METAL
WL02X0071 WL02X0071 NUT SHEET METAL
WB01X0358 WB01X0358 NUT SHEET METAL
WE02X0110 WE02X0110 NUT SHEET METAL K
WH2X885D WH2X885D NUT-PKG 12
WE2X110D WE2X110D NUT-PKG 12
WE01X0968 WE01X0968 ORIFICE
WE1X968 WE1X968 ORIFICE
WE25X0098 WE25X0098 PACK ASM INSTALLATION
WE09X0044 WE09X0044 PAD FELT
WE02X0154 WE02X0154 PALNUT
340653 340653 PART
WE01X0617 WE01X0617 PIPE CLAMP
WE1X617 WE1X617 PIPE CLAMP
WE1X1077 WE1X1077 PIPE LUG AS
WE01X0425 WE01X0425 PLATE
WE01X0446 WE01X0446 PLATE CLOSURE
WE13X0076 WE13X0076 PLATE CONTROL
WE14X0072 WE14X0072 PLATE DIFFUSER
WE01X0468 WE01X0468 PLATE LEVELING SCREW
31-1584 31-1584 PM INSTRUCTION INSTL
39-9246 39-9246 PM USE & CARE BOOK
WE12X81 WE12X81 PULEY IDLKIT
WE12X0047 WE12X0047 PULLEY ASM IDLER
WE12X0041 WE12X0041 PULLEY DRIVE
WE12X41 WE12X41 PULLEY&SCREW
WE01X5104 WE01X5104 RING RETAINING
WE1X5104D WE1X5104D RING-PKG 12
WE02X0191 WE02X0191 RIVET
WE2X191D WE2X191D RIVET-PKG 12
WE4X631 WE4X631 ROTARY SW AS
WZ04X0236 WZ04X0236 SCR
WH02X0893 WH02X0893 SCR 10-16 HX 3/8 S
WE02X0227 WE02X0227 SCR 10-24 T 13/16
WE02X0177 WE02X0177 SCR 10-32 M RD 1/2 S
WZ04X0257 WZ04X0257 SCR 10-32 TT T 3/8 S
WH02X0967 WH02X0967 SCR 12-14 AB HXW 1/2 S
WE02X0229 WE02X0229 SCR 5/16-24 LVL 2 S
WZ04X0220 WZ04X0220 SCR 6-20 AB HXW 1/2 S
WE02X0270 WE02X0270 SCR 8-15 A TR 1/2 S
WE02X0281 WE02X0281 SCR 8-18 AB HWX 3/8 S
WZ05X0155 WZ05X0155 SCR 8-18 AB HX 3/8 SS
WD02X5063 WD02X5063 SCR 8-18 PH HX 13/32 S
WR01X10317 WR01X10317 SCR 8-32 CA HXW 1/2
WE02X0153 WE02X0153 SCREW
WE02X0194 WE02X0194 SCREW
WE02X0186 WE02X0186 SCREW
WH02X0947 WH02X0947 SCREW
WZ02X0510 WZ02X0510 SCREW
WH2X937 WH2X937 SCREW
WE2X275 WE2X275 SCREW
WH2X930 WH2X930 SCREW
WE02X0333 WE02X0333 SCREW (COIL MTG BRKT)
WZ04X0288 WZ04X0288 SCREW 10-16 X 1/2"" HEX
WZ04X0264 WZ04X0264 SCREW 10-16 X 3/4"" HEX
WE02X0263 WE02X0263 SCREW 10-16X1/2 HXW
WE2X280D WE2X280D SCREW 14-10 A HX 1 S
WE02X0275 WE02X0275 SCREW 8-18 X 1/2 HEX
WE13X80 WE13X80 SCREW SUPPRT
WE2X186D WE2X186D SCREW-PKG 12
WH2X967D WH2X967D SCREW-PKG 12
WH2X893D WH2X893D SCREW-PKG 12
WZ4X288D WZ4X288D SCREW-PKG 12
WZ4X421D WZ4X421D SCREW-PKG 12
WE2X263D WE2X263D SCREW-PKG 12
WZ4X236D WZ4X236D SCREW-PKG 12
WZ2X510D WZ2X510D SCREW-PKG 12
WZ5X158D WZ5X158D SCREW-PKG 12
WE2X153D WE2X153D SCREW-PKG 12
WZ4X220D WZ4X220D SCREW-PKG 12
WH2X947D WH2X947D SCREW-PKG 12
WE2X227D WE2X227D SCREW-PKG 12
WD2X5063D WD2X5063D SCREW-PKG 12
WZ4X257D WZ4X257D SCREW-PKG 12
WZ4X264D WZ4X264D SCREW-PKG 12
WE2X194D WE2X194D SCREW-PKG 12
WH02X0937 WH02X0937 SCREW-TYPE A
WE09X0030 WE09X0030 SEAL ASM
WE09X0038 WE09X0038 SEAL ASM FELT
WE9X30 WE9X30 SEAL&RING AS
WE1X1055 WE1X1055 SHIELD
WE01X1055 WE01X1055 SHIELD-WIRE
WE25X0060 WE25X0060 SLIDE ASM
WE25X60 WE25X60 SLIDE ASM KT
WL2X71D WL2X71D SNUT-PKG 12 **NLA*
WE13X118 WE13X118 SPACER BRKT
WE1X956 WE1X956 SPLIT SLEEVE
WE1X1075 WE1X1075 SPR LEAD AS
WE01X1075 WE01X1075 SPRING & LEAD ASM
WE03X0062 WE03X0062 SPRING IDLER
WE3X69 WE3X69 SPRING IDLER
WE4X344 WE4X344 START SW
WE01X0627 WE01X0627 STRAP GROUND
WE13X0051 WE13X0051 STRAP MOTOR
WE13X200 WE13X200 STRAP MOTOR
WE01X1042 WE01X1042 STRIKE
WE1X1042 WE1X1042 STRIKE
WE13X0080 WE13X0080 SUPPORT LEVEL SCREW
WH16X434 WH16X434 SW BRACKET
WE13X137 WE13X137 SW BRACKET
WH1X2274 WH1X2274 SW KNOB ASM
WE4X679 WE4X679 SW ROTARY
WE04X0197 WE04X0197 SWITCH ASM PB DOOR
WE04X0631 WE04X0631 SWITCH ASM ROTARY
WE04X0679 WE04X0679 SWITCH ROTARY START
WE04X0488 WE04X0488 SWITCH START FORM V MTR
WE19X0846 WE19X0846 SWITCH TRIM ASM
WE04X0344 WE04X0344 SWITCH-START FORM T MTR
WH12X497 WH12X497 TERM HOUSING
WH12X538 WH12X538 TERM HSNG
WB17X5053 WB17X5053 TERMINAL
WB17X5054 WB17X5054 TERMINAL
WE13X138 WE13X138 THERMO BRKT
WE4X592 WE4X592 THERMOSTAT
WE4X608 WE4X608 THERMOSTAT
WE4X607 WE4X607 THERMOSTAT
WE04X0608 WE04X0608 THERMOSTAT ASM L135-10
WE04X0607 WE04X0607 THERMOSTAT ASM L142-24
WE04X0592 WE04X0592 THERMOSTAT L300-40
WE4X754 WE4X754 TIMER
WE04X0629 WE04X0629 TIMER ASM
WE20X0347 WE20X0347 TOEBOARD
WE20X347 WE20X347 TOEBOARD
WH42X2004 WH42X2004 TRIM-TOP **NLA*
WE01X0980 WE01X0980 U CLIP
WE1X1078 WE1X1078 VALV SHUTOFF
WE14X0171 WE14X0171 VALVE & HARNESS ASM
WE14X215 WE14X215 VALVE ASSEMBLY SHUTOFF
WE13X195 WE13X195 VALVE BRKT
WE01X1078 WE01X1078 VALVE SHUTOFF
WZ10X0016 WZ10X0016 WASHER
WE02X0279 WE02X0279 WASHER
WE02X0195 WE02X0195 WASHER
WE02X0198 WE02X0198 WASHER FLAT
WE02X0183 WE02X0183 WASHER FLAT
WZ10X16D WZ10X16D WASHR-PKG 12
WE2X198D WE2X198D WASHR-PKG 12
WE2X192D WE2X192D WE2X192D
WE2X279D WE2X279D WE2X279D
WE2X281D WE2X281D WE2X281D
WE20X0570 WE20X0570 WELD ASM CAB FRONT AD
WE20X0568 WE20X0568 WELD ASM CAB FRONT HA
WE20X0500 WE20X0500 WELD ASM CAB FRONT WH
WE20X0665 WE20X0665 WELD ASM COVER AD
WE20X0666 WE20X0666 WELD ASM COVER HA
WE20X0664 WE20X0664 WELD ASM COVER WH
WH46X0212 WH46X0212 WELD ASM-HOUSING AD
WH46X0215 WH46X0215 WELD ASM-HOUSING HA
WE16X0017 WE16X0017 WHEEL BLOWER
WH16X0370 WH16X0370 WIRE
WH16X370 WH16X370 WIRE
WE1X553 WE1X553 WRAPP GASKET
WE01X0426 WE01X0426 WRAPPER CABINET KNOCKOUT
