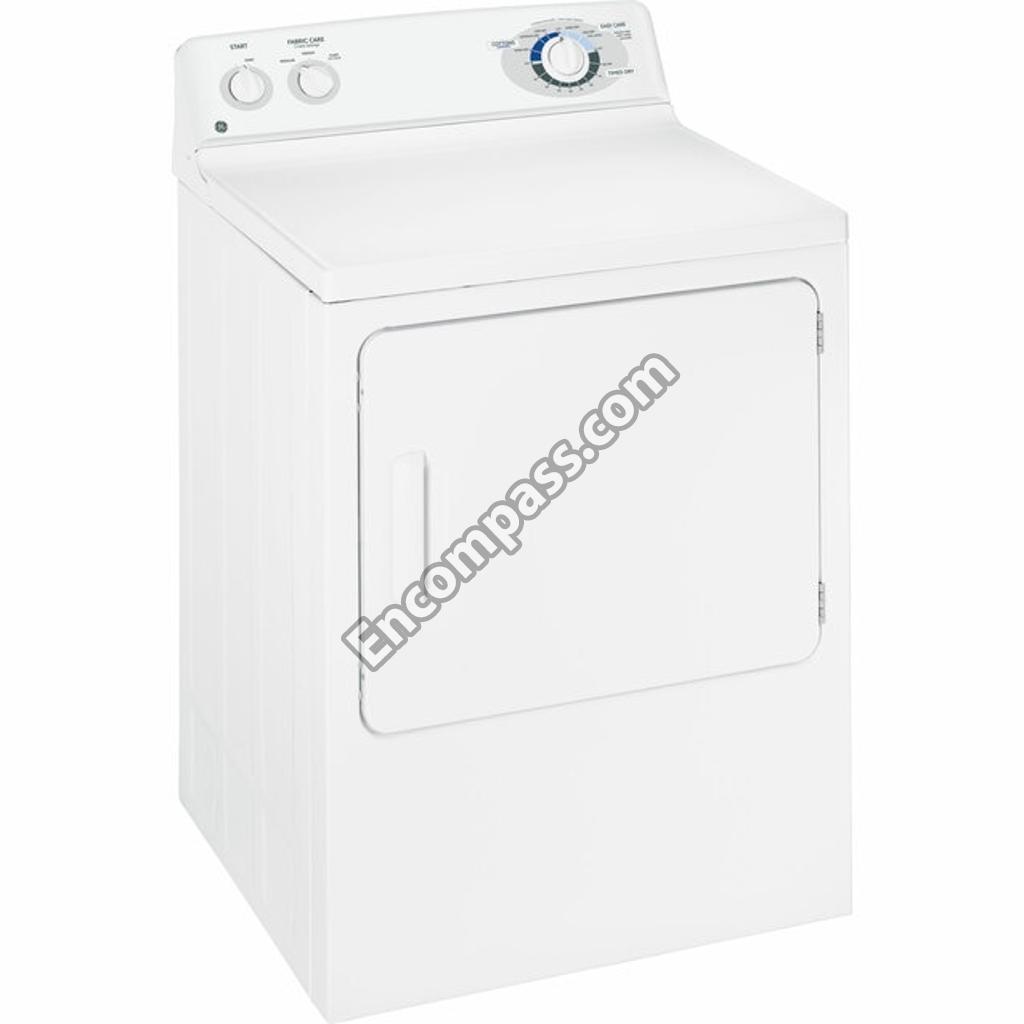

Model Image
Manufacturer

GE

Model Number

DLLLR33EJ0WW

Description

Dryer Electric

Interactive Exploded View

Parts List

Part Number Description
WE14X21334 WE14X21334 AIR DUCT ASSEMBLY
WE14X25080 WE14X25080 AIR DUCT ASSEMBLY
WE14M75 WE14M75 BAFFLE
WE25M40 WE25M40 BEARING KIT
WE1M300 WE1M300 BEARING RETAINER
WE1M504 WE1M504 BEARING-SLIDE WHITE
WR02X8693 WR02X8693 BEAUTY BUTTON-WHT
WE14M93 WE14M93 BLOWER HOUSING
WE16X20393 WE16X20393 BLOWER WHEEL W/INSERT
WE20M253 WE20M253 BOTTOM COVER (E-COAT)
WE1M467 WE1M467 BRKT LVL SCREW FRONT
WE1M468 WE1M468 BRKT LVL SCREW REAR
WE20M398 WE20M398 CABINET BASE
WH01X10106 WH01X10106 CLIP KNOB
WE1M650 WE1M650 CONNECTOR MOTOR
WE19M1607 WE19M1607 CONTROL PANEL ASM WH
WE20X20417 WE20X20417 COVER WH
WE14X20408 WE14X20408 DEFLECTOR HEAT
WE11X29438 WE11X29438 DEFLECTOR HEAT
WE4M415 WE4M415 DOOR SWITCH
WE21X20562 WE21X20562 DRUM ASSEMBLY 6 0 CU FT
WE03X29897 WE03X29897 DRYER DRUM DRIVE BELT
WE1X921 WE1X921 DRYER MOTOR STRAP
WE14X20421 WE14X20421 ELBOW EXHAUST
WE49X22294 WE49X22294 END CAP LH WH
WE19X20467 WE19X20467 END CAP RH WH
WE09X20441 WE09X20441 FELT
WE09X27634 WE09X27634 FELT
WE18X25100 WE18X25100 FILTER WH PLASTIC MESH
WE1M527 WE1M527 FRONT BRACKET LEVEL LEG
WE1M966 WE1M966 GASKET SEAL
WE09X27636 WE09X27636 GASKET SEAL
WE1M1015 WE1M1015 GROUND STRAP
WE01X20419 WE01X20419 HANDLE DOOR WH
WE1M776 WE1M776 HEAT PAD ADHESIVE
WE1M775 WE1M775 HEAT SHEILD MICA
WE14M172 WE14M172 HEAT SHIELD KIT
WE1M1033 WE1M1033 HINGE
WE11M10002 WE11M10002 HOUSING HEATER
WE03X20434 WE03X20434 IDLER ARM
WE49X22295 WE49X22295 INNER DOOR&GSKT WHITE
31-16135 31-16135 INSTALL INSTRUCTION
WE01X20378 WE01X20378 KNOB AND CLIP ASSEMBLY
WE1M1011 WE1M1011 LATCH
WE1M642 WE1M642 LEVELLING SCREW GRAY
WE11X20397 WE11X20397 MICA HEATER AND HSNG ASSEMBLY
WE11M10001 WE11M10001 MICA UNIT ASSEMBLY
31-16174 31-16174 MINI-MANUAL WIRING
WE01X0921 WE01X0921 MOTOR BRACKET
WE13X20394 WE13X20394 MOTOR PLATE
WE13M39 WE13M39 MOTOR SUPPORT
WE17X22217 WE17X22217 MOTOR THRD SHAFT AND PULLY
WE1M461 WE1M461 O RING
WE10X20468 WE10X20468 OUTER DOOR WH
WE20M301 WE20M301 PANEL REAR (6CU)
WE20M393 WE20M393 PANEL SIDE WH
WR01X21159 WR01X21159 PLUG DOOR
WE1M780 WE1M780 PROTECTION BRACKET
WE12X83 WE12X83 PULLEY IDLER
WE1M528 WE1M528 REAR BRACKET LEVEL LEG
WE19M1481 WE19M1481 REAR PANEL
WE4M255 WE4M255 RESISTOR
WE4M409 WE4M409 ROTARY SWITCH 3 TEMP
WD02X10057 WD02X10057 SCREW
WE2M202 WE2M202 SCREW
WR2X9260 WR2X9260 SCREW
WE2M173 WE2M173 SCREW
WE2M189 WE2M189 SCREW
WE1M280 WE1M280 SCREW
WE2M174 WE2M174 SCREW # 10
WE2M163 WE2M163 SCREW #10
WE2M196 WE2M196 SCREW #8
WE2M160 WE2M160 SCREW #8
WE2M200 WE2M200 SCREW GROUND
WE2M228 WE2M228 SCREW NO.8 ( GROUND )
WZ4X241D WZ4X241D SCREW-PKG 12
WZ5X158D WZ5X158D SCREW-PKG 12
WE1M825 WE1M825 SEAL GASKET
WE1M462 WE1M462 SLEEVE DRUM
WE1M1067 WE1M1067 SLIDE DRUM - GREEN
WE03X37317 WE03X37317 SLIDE DRUM - GREEN
WE4M519 WE4M519 START SWITCH
WE01X20423 WE01X20423 STRAIN RELIEF BRACKET
WE13X0200 WE13X0200 STRAP MOTOR
WE13X200 WE13X200 STRAP MOTOR
WE1X1192 WE1X1192 STRIKE DOOR
WD21X0557 WD21X0557 SWITCH INTERLOCK
WD21X10261 WD21X10261 SWITCH INTERLOCK
WE1M1102 WE1M1102 T-BLOCK COVER
WE4M325 WE4M325 TERM BLK & GRND STRAP
WE4M181 WE4M181 THERMOSTAT BIAS CTR INLT
WE4M127 WE4M127 THERMOSTAT DRUM OUT
WE4M137 WE4M137 THERMOSTAT HI-LIMIT
WE4M160 WE4M160 THERMOSTAT SAFETY LEFT
WE1M654 WE1M654 TIMER KNOB ASM WH
WE4M532 WE4M532 TIMER PLAS. SHAFT
WE3M26 WE3M26 TOP BEARING
WE01X0980 WE01X0980 U CLIP
49-90318 49-90318 USE & CARE
WE2X263D WE2X263D WE2X263D
WE2M96 WE2M96 WE2X329
