Model Image
Manufacturer

GE

Model Number

DLSR483EG2WW

Description

Dryer Electric

Interactive Exploded View

Parts List

Part Number Description
WE14X21334 WE14X21334 AIR DUCT ASSEMBLY
WE14X25080 WE14X25080 AIR DUCT ASSEMBLY
WE19M1485 WE19M1485 BACK. ASM
WE14M75 WE14M75 BAFFLE
WE25M40 WE25M40 BEARING KIT
WE1M300 WE1M300 BEARING RETAINER
WE1M504 WE1M504 BEARING-SLIDE WHITE
WR02X8693 WR02X8693 BEAUTY BUTTON-WHT
WE09X27636 WE09X27636 BLOWER GASKET (EXHAUST)
WE14M93 WE14M93 BLOWER HOUSING
WE16M15 WE16M15 BLOWER WHEEL
WE20M253 WE20M253 BOTTOM COVER (E-COAT)
WE1M773 WE1M773 BRACKET & LEVEL LEG ASM
WE1M772 WE1M772 BRACKET LEVELLING LEG
WE20M398 WE20M398 CABINET BASE
WE1M452 WE1M452 CERAMIC INSULATOR
WH01X10106 WH01X10106 CLIP KNOB
WE1M650 WE1M650 CONNECTOR MOTOR
WE20X20417 WE20X20417 COVER WH
WE14X20408 WE14X20408 DEFLECTOR HEAT
WE11X29438 WE11X29438 DEFLECTOR HEAT
WE21X20566 WE21X20566 DRUM ASSEMBLY
WE1M1011 WE1M1011 DRYER DOOR LATCH
WE4M415 WE4M415 DRYER DOOR SWITCH
WE03X29897 WE03X29897 DRYER DRUM DRIVE BELT
WE09X27634 WE09X27634 DRYER DUCT TRAP FELT
WE20X20559 WE20X20559 DRYER REAR PANEL
WE14X20421 WE14X20421 ELBOW EXHAUST
WE19X20467 WE19X20467 END CAP RH WH
WE09X20441 WE09X20441 FELT
WE18X25100 WE18X25100 FILTER & MESH ASM.
WE1M781 WE1M781 FRONT BRACKET LEVEL LEG
WE49X22295 WE49X22295 FRONT PANEL AND INNE
WE1M825 WE1M825 GASKET (SEAL) 39 INCH
WE1M966 WE1M966 GASKET SEAL
WE1M1015 WE1M1015 GROUND STRAP
WE01X20419 WE01X20419 HANDLE WHITE
WE1M1033 WE1M1033 HINGE
WE11M23 WE11M23 HOUSING HEATER ASSEMBLY
WE03X21438 WE03X21438 IDLER ARM
WE10X20418 WE10X20418 INNER DOOR GSKT ASM
31-16136 31-16136 INSTALL INSTR
WE49X22294 WE49X22294 KIT OF SERVICE END CAP
WE01X20378 WE01X20378 KNOB AND CLIP ASSEMBLY
WE05X20431 WE05X20431 LAMP
WE1M782 WE1M782 LEVEL LEG & BRACKET FRNT
WE01X29357 WE01X29357 LEVELING LEG
31-16107 31-16107 MINI-MANUAL
WE49X22596 WE49X22596 MOTOR AND CAPACITOR
WE1M555 WE1M555 MOTOR CLIP
WE13X20394 WE13X20394 MOTOR PLATE
WE13M38 WE13M38 MOTOR PLATE
WE13M54 WE13M54 MTR PLATE LONG VENT
WE17X23355 WE17X23355 MTR/PULLEY ASSEMBLY L.V.
WE1M461 WE1M461 O RING
WE10X20468 WE10X20468 OUTER DOOR WH
WE20M393 WE20M393 PANEL SIDE WH
WR01X21159 WR01X21159 PLUG DOOR
WE12X83 WE12X83 PULLEY IDLER
WH01X10217 WH01X10217 PUSH MOUNT CABLE TIE
WH01X10704 WH01X10704 PUSH MOUNT CABLE TIE
WE4M399 WE4M399 R.SWITCH (XCARE) ON/OFF
WE19M1481 WE19M1481 REAR PANEL
WE4M255 WE4M255 RESISTOR
WE4M412 WE4M412 ROTARY START SWITCH LONG

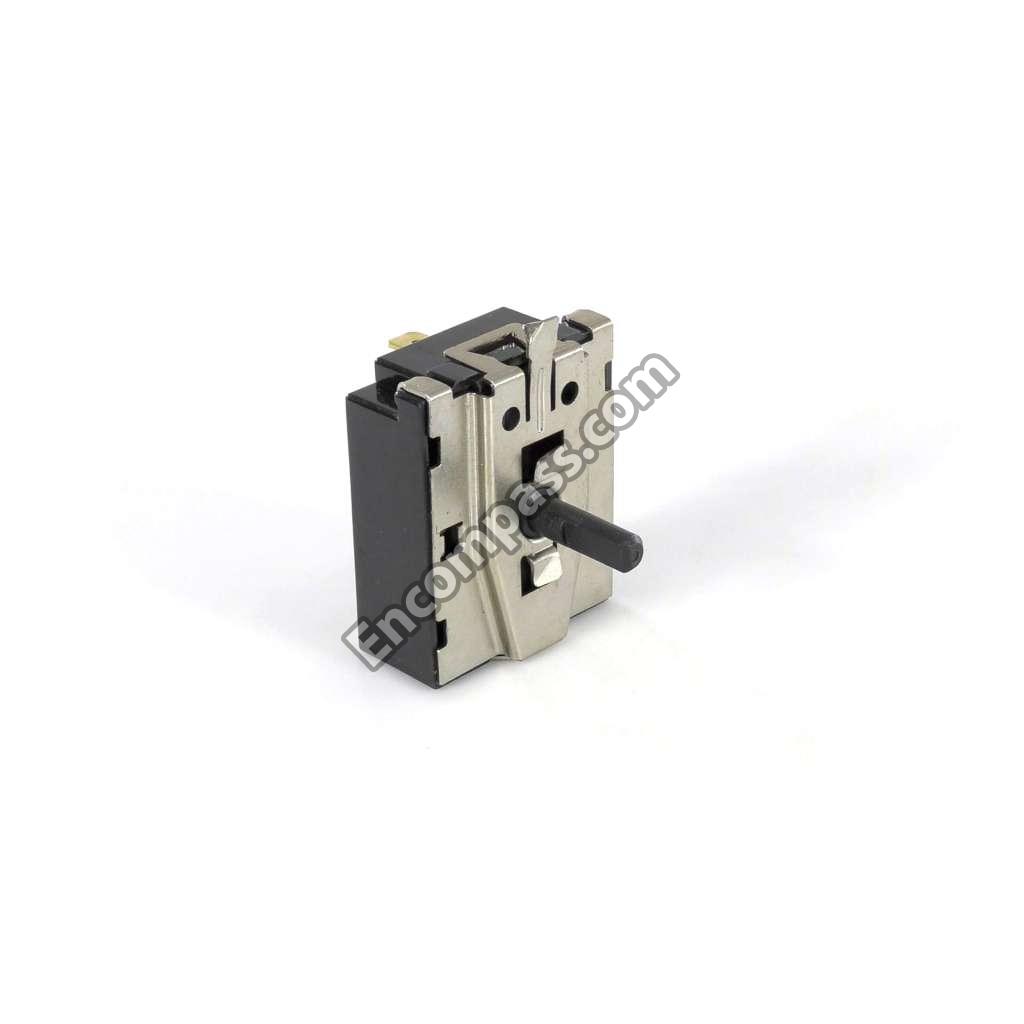

WE4M411 WE4M411 ROTARY SWITCH ZODIAC 4TEMP
WE2M206 WE2M206 RUBBER GROMMET
WE2M229 WE2M229 SCREW
WE2M202 WE2M202 SCREW
WR2X9260 WR2X9260 SCREW
WE2M173 WE2M173 SCREW
WE2M189 WE2M189 SCREW
WE1M280 WE1M280 SCREW
WE2M174 WE2M174 SCREW # 10
WE2M163 WE2M163 SCREW #10
WE2M196 WE2M196 SCREW #8
WE2M160 WE2M160 SCREW #8
WD02X10057 WD02X10057 SCREW 10-16X1/2 AB HXW S
WE2M200 WE2M200 SCREW GROUND
WZ4X241D WZ4X241D SCREW-PKG 12
WZ5X158D WZ5X158D SCREW-PKG 12
WE2M203 WE2M203 SHAFT ADAPTER
WE1M462 WE1M462 SLEEVE DRUM
WE1M1067 WE1M1067 SLIDE DRUM - GREEN
WE03X37317 WE03X37317 SLIDE DRUM - GREEN
WE5M48 WE5M48 SOCKET ASM
WE01X20423 WE01X20423 STRAIN RELIEF BRACKET
WE1X1192 WE1X1192 STRIKE DOOR
WD21X0557 WD21X0557 SWITCH INTERLOCK
WD21X10261 WD21X10261 SWITCH INTERLOCK
WE4M216 WE4M216 T'STAT OUTLET CTRL
WE4M325 WE4M325 TERM BLK & GRND STRAP
WE1M1102 WE1M1102 TERM. BLOCK COVER
WE4M181 WE4M181 THERMOSTAT BIAS CTR INLT
WE4M137 WE4M137 THERMOSTAT HI-LIMIT
WE4M160 WE4M160 THERMOSTAT SAFETY LEFT
WE04X23134 WE04X23134 TIMER
WE1M654 WE1M654 TIMER KNOB ASM WH
WE3M26 WE3M26 TOP BEARING
WE01X0980 WE01X0980 U CLIP
49-90299 49-90299 USE & CARE MANUAL
WE4M368 WE4M368 VARIABLE BUZZER
WH2M283 WH2M283 WASHER
WE2X263D WE2X263D WE2X263D
WE2M96 WE2M96 WE2X329
