Model Image
Manufacturer

GE

Model Number

DPSE810GG1WT

Description

Dryer Gas

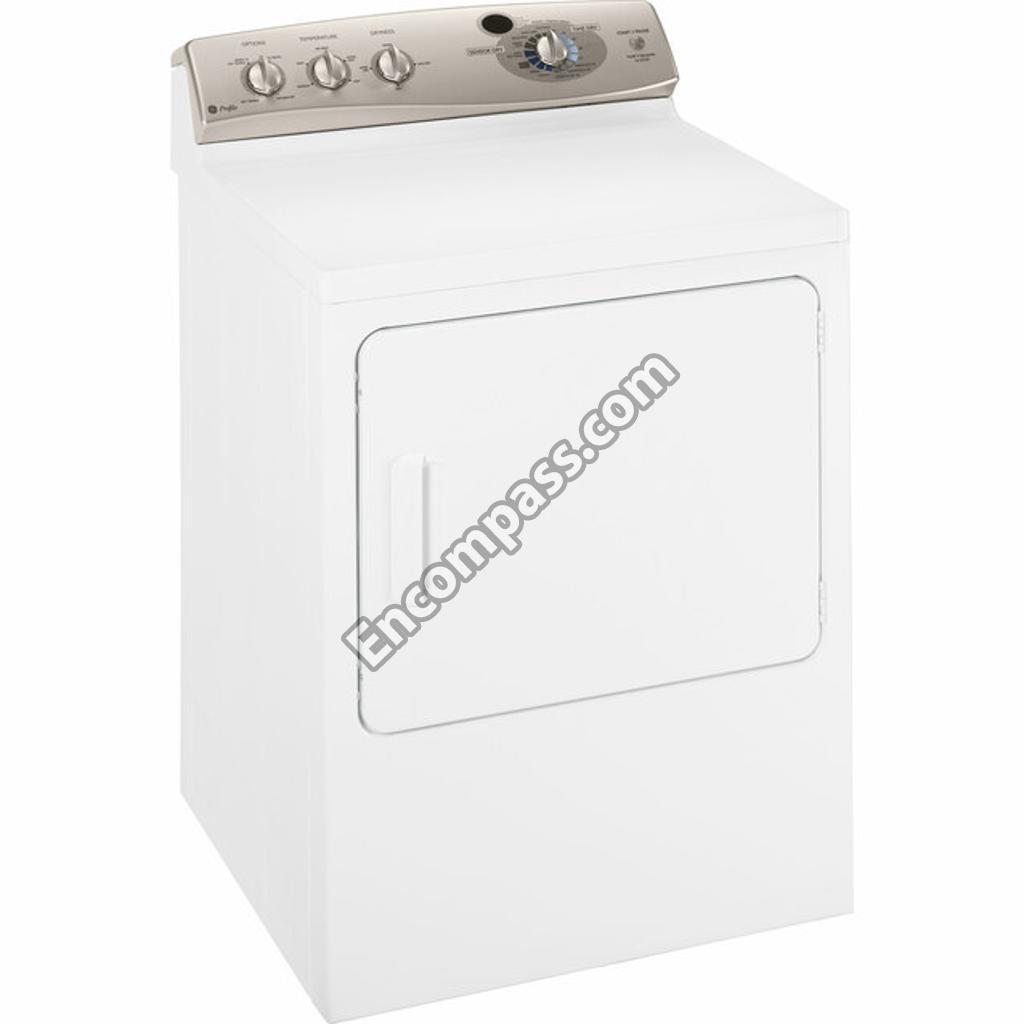

Interactive Exploded View

Parts List

Part Number Description
WD2M174 WD2M174 ABSORBER-FOAM
WE14X21334 WE14X21334 AIR DUCT ASSEMBLY
WE14X25080 WE14X25080 AIR DUCT ASSEMBLY
WE19M1310 WE19M1310 BACK PANEL
WE19M1506 WE19M1506 BACKSPLASH ASM
WE14M75 WE14M75 BAFFLE
WE25M40 WE25M40 BEARING KIT
WE1M300 WE1M300 BEARING RETAINER
WE1M504 WE1M504 BEARING-SLIDE WHITE
WR02X8693 WR02X8693 BEAUTY BUTTON-WHT
WE16X20393 WE16X20393 BLOWER WHEEL W/INSERT

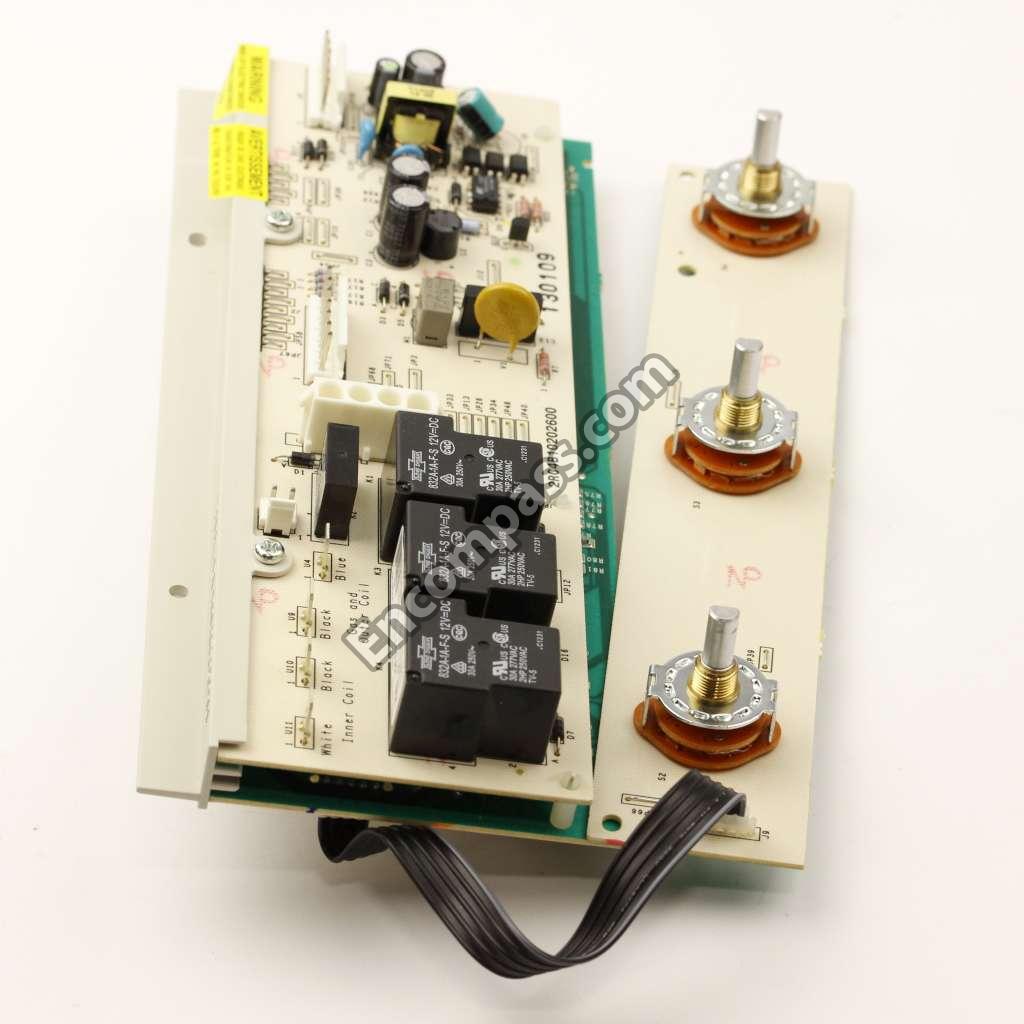

WE04M10004 WE04M10004 BOARD ASSEMBLY MOUNTED
WE20M253 WE20M253 BOTTOM COVER (E-COAT)
WE13X169 WE13X169 BRACKET COIL
WE13X0195 WE13X0195 BRACKET GAS VALVE
WE13X0118 WE13X0118 BRACKET SPACER
WE1M467 WE1M467 BRKT LVL SCREW FRONT
WE1M468 WE1M468 BRKT LVL SCREW REAR
WE13X0169 WE13X0169 BRKT. COIL
WE14M104 WE14M104 BURNER ASM.
WH01X10088 WH01X10088 BUTTON SWITCH
WH01X10306 WH01X10306 BUTTON SWITCH
WE20M398 WE20M398 CABUBET BASE
WE04X0692 WE04X0692 COIL DUAL
WE04X0693 WE04X0693 COIL MAIN
WE14X20581 WE14X20581 COMBUSTION CHAMBER
WE11X29440 WE11X29440 COMBUSTION CHAMBER
WD21X10024 WD21X10024 CONNECTOR MODEL SELECT
WE1M650 WE1M650 CONNECTOR MOTOR
WE26M341 WE26M341 CORD SET 120V
WE20X20417 WE20X20417 COVER WH
WE1M433 WE1M433 DAMPENING BAND-DRUM
WE1M869 WE1M869 DAMPENING PLATE FRONT PN
WE1M508 WE1M508 DAMPENING PLATE TOP CV
WE14X20408 WE14X20408 DEFLECTOR HEAT
WE11X29438 WE11X29438 DEFLECTOR HEAT
WE11X29443 WE11X29443 DIFFUSER GAS
WE14X20401 WE14X20401 DIFFUSER GAS ASSEMBLY
WE4M415 WE4M415 DOOR SWITCH
WE21X20566 WE21X20566 DRUM ASM 7.0 S.S
WE03X29897 WE03X29897 DRYER DRUM DRIVE BELT
WE19M1461 WE19M1461 DRYER END CAP LH WH
WE19M1460 WE19M1460 DRYER END CAP RH WH
WE1X921 WE1X921 DRYER MOTOR STRAP
WE1M575 WE1M575 DRYER SENSOR ROD
WE4X692 WE4X692 DUAL COIL
WE14M197 WE14M197 DUCT TRANSITION
WE11X29441 WE11X29441 DUCT TRANSITION
WE14X20421 WE14X20421 ELBOW EXHAUST
WE09X20441 WE09X20441 FELT
WE09X27634 WE09X27634 FELT
WE18X25100 WE18X25100 FILTER & MESH ASM.
WE4X448 WE4X448 FLAME DETECTOR
WE1M527 WE1M527 FRONT BRACKET LEVEL LEG
WE2M188 WE2M188 FRONT STABILIZING LEGS
WE25X217 WE25X217 GAS DRYER LP CONVERSION K
WE14M114 WE14M114 GAS VALVE & PIPE ASM. NG
WE1M966 WE1M966 GASKET SEAL
WE09X27636 WE09X27636 GASKET SEAL
WE1M1015 WE1M1015 GROUND STRAP
WE01X20419 WE01X20419 HANDLE DOOR WH
WE5M37 WE5M37 HARNESS GAS W/ T-STATS
WE5M39 WE5M39 HARNESS SENSOR
WE1M1033 WE1M1033 HINGE
WE14M94 WE14M94 HOUSING BLOWER
WE03X20434 WE03X20434 IDLER ARM
WE04X25996 WE04X25996 IGNITER
WE04X0739 WE04X0739 IGNITER ASM
WE4M398 WE4M398 INLET CONTROL THERMISTOR
WE10X20418 WE10X20418 INNER DOOR GSKT ASM
WE49X22295 WE49X22295 INNER DOOR GSKT ASM
31-16139 31-16139 INSTALL INSTRUCTION
WE2M176 WE2M176 INSULATED WASHER
WE25X0218 WE25X0218 KIT NAT GAS ORIFICE CONV
WE25X218 WE25X218 KIT-NATL GAS
WH01X10305 WH01X10305 KNOB ASM
WE05X20431 WE05X20431 LAMP
WE1M1011 WE1M1011 LATCH
WE01X1076 WE01X1076 LEAK LIMITER
WE1X1076 WE1X1076 LEAK LIMITER
WE1M642 WE1M642 LEVELLING SCREW GRAY
WE4X693 WE4X693 MAIN COIL
31-16131 31-16131 MINI MANUAL
WE01X0921 WE01X0921 MOTOR BRACKET
WE13X20394 WE13X20394 MOTOR PLATE
WE13M39 WE13M39 MOTOR SUPPORT
WE17X22217 WE17X22217 MOTOR THRD SHAFT AND PULLY
WE1M461 WE1M461 O RING
WE01X1148 WE01X1148 ORIFICE
WE1X1148 WE1X1148 ORIFICE MAIN
WE10X20468 WE10X20468 OUTER DOOR WH
WE20X20559 WE20X20559 PANEL REAR 7 CU FT
WE20M393 WE20M393 PANEL SIDE AB
WE01X0617 WE01X0617 PIPE CLAMP
WE1X617 WE1X617 PIPE CLAMP
WR01X21159 WR01X21159 PLUG DOOR
WE12X83 WE12X83 PULLEY IDLER
WE01X20677 WE01X20677 RACK DRYING
WE1M528 WE1M528 REAR BRACKET LEVEL LEG
WR01X10317 WR01X10317 SCR 8-32 CA HXW 1/2
WH02X10236 WH02X10236 SCR M4-1.44 B PA 25 S
WD02X10057 WD02X10057 SCREW
WD2M101 WD2M101 SCREW
WR2X9260 WR2X9260 SCREW
WE2M202 WE2M202 SCREW
WE2M189 WE2M189 SCREW
WE2M173 WE2M173 SCREW
WE1M280 WE1M280 SCREW
WE2M174 WE2M174 SCREW # 10
WE2M163 WE2M163 SCREW #10
WE2M160 WE2M160 SCREW #8
WE2M196 WE2M196 SCREW #8
WE02X0333 WE02X0333 SCREW (COIL MTG BRKT)
WE2M200 WE2M200 SCREW GROUND
WZ5X158D WZ5X158D SCREW-PKG 12
WE1M825 WE1M825 SEAL GASKET
WE14M119 WE14M119 SENSOR RODS
WE1M462 WE1M462 SLEEVE DRUM
WE1M1067 WE1M1067 SLIDE DRUM - GREEN
WE03X37317 WE03X37317 SLIDE DRUM - GREEN
WE5M48 WE5M48 SOCKET ASM
WE13X118 WE13X118 SPACER BRKT
WE13X0200 WE13X0200 STRAP MOTOR
WE13X200 WE13X200 STRAP MOTOR
WE1X1192 WE1X1192 STRIKE DOOR
WD21X0557 WD21X0557 SWITCH INTERLOCK
WD21X10261 WD21X10261 SWITCH INTERLOCK
WE4M300 WE4M300 T-STAT OUTLET BKUP ORG
WE04X20685 WE04X20685 THERMISTOR OUTLET CNTR
WE4M80 WE4M80 THERMOSTAT SAFETY
WE3M26 WE3M26 TOP BEARING
49-90290 49-90290 USE & CARE MANUAL
WE13X195 WE13X195 VALVE BRKT
WE2M185 WE2M185 WASHER - DAMPENING BAND
WE1X1091 WE1X1091 WE1X1091
WE2X263D WE2X263D WE2X263D
WE2M96 WE2M96 WE2X329
