Model Image
Manufacturer

GE

Model Number

DPSR405GA0WW

Description

Dryer Gas

Interactive Exploded View

Parts List

Part Number Description
WE14M75 WE14M75 BAFFLE
WE14M0075 WE14M0075 BAFFLE DRUM
WE03M0020 WE03M0020 BEARING DRUM
WE25M40 WE25M40 BEARING KIT
WE1M300 WE1M300 BEARING RETAINER
WE03X37317 WE03X37317 BEARING SLIDE
WE1M462 WE1M462 BEARING, DRUM SHAFT
WE1M504 WE1M504 BEARING-SLIDE WHITE
WE12M0022 WE12M0022 BELT DRIVE
WE03X29897 WE03X29897 BELT DRIVE
WE16X0030 WE16X0030 BLOWER WHEEL
WE16M15 WE16M15 BLOWER WHEEL

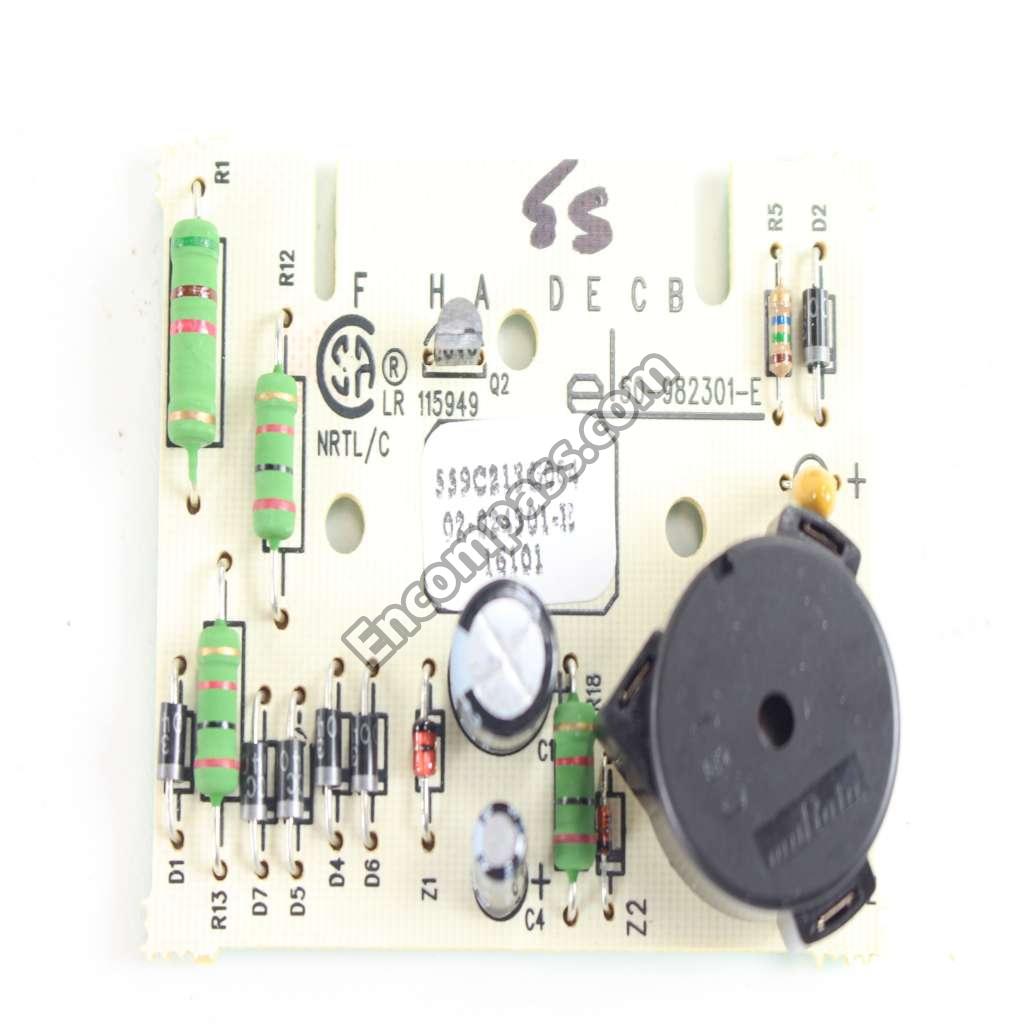

WE04X10102 WE04X10102 BOARD W/BUZZER
WE20M253 WE20M253 BOTTOM COVER (E-COAT)
WE13X169 WE13X169 BRACKET COIL
WE13X0195 WE13X0195 BRACKET GAS VALVE
WE13X0118 WE13X0118 BRACKET SPACER
WE1M467 WE1M467 BRKT LVL SCREW FRONT
WE1M468 WE1M468 BRKT LVL SCREW REAR
WE13M25 WE13M25 BRKT MOTOR
WE13X0169 WE13X0169 BRKT. COIL
WE14X0217 WE14X0217 BURNER ASM
WE14M104 WE14M104 BURNER ASM.
WE20M255 WE20M255 CABINET FRONT ALMOND
WE20M0254 WE20M0254 CABINET FRONT WH
WE02M0096 WE02M0096 CAP NUT.
WE01X0688 WE01X0688 CLAMP
WE1X688 WE1X688 CLAMP AND SCREW
WH01X10106 WH01X10106 CLIP KNOB
WE04X0692 WE04X0692 COIL DUAL
WE04X0693 WE04X0693 COIL MAIN
WE11X29440 WE11X29440 COMBUSTION CHAMBER
WE26M341 WE26M341 CORD SET - GAS
WE20M0253 WE20M0253 COVER BOTTOM
WE20X20417 WE20X20417 COVER WHITE
WE1M508 WE1M508 DAMPENING PLATE TOP CV
WE14M0077 WE14M0077 DEFLECTOR HEAT
WE04X0448 WE04X0448 DETECTOR ASM
WE11X29438 WE11X29438 DIFFUSER
WE14M0083 WE14M0083 DIFFUSER AND PLATE ASSM
WE11X29443 WE11X29443 DIFFUSER GAS
WE01X0903 WE01X0903 DOOR LATCH
WE1X1192 WE1X1192 DOOR STRIKE
WE21X20566 WE21X20566 DRUM ASM
WE03X0039 WE03X0039 DRUM SHAFT & BRACKET
WE4M415 WE4M415 DRYER DOOR SWITCH
WE18X25100 WE18X25100 DRYER LINT FILTER
WE1X921 WE1X921 DRYER MOTOR STRAP
WE20X20559 WE20X20559 DRYER REAR PANEL
WE1M654 WE1M654 DRYER TIMER KNOB - WHITE
WE4X692 WE4X692 DUAL COIL
WE14M0076 WE14M0076 DUCT AIR
WE14M0082 WE14M0082 DUCT ASM
WE14X0239 WE14X0239 ELBOW
WE14X20421 WE14X20421 ELBOW EXHAUST
WE02X25595 WE02X25595 ELBOW VALVE
WE19M1418 WE19M1418 END CAP LH WHITE
WE19M1419 WE19M1419 END CAP RH SNOW WH
WE09M0015 WE09M0015 FELT
WE09X27634 WE09X27634 FELT TRAP DUCT
WE4X448 WE4X448 FLAME DETECTOR
WE25X217 WE25X217 GAS DRYER LP CONVERSION K
WE14X0215 WE14X0215 GAS VALVE ASM
WE01M0376 WE01M0376 GASKET
WE9M13 WE9M13 GASKET
WE1M825 WE1M825 GASKET (SEAL) 39 INCH
WE09M0013 WE09M0013 GASKET DOOR
WE1X1172 WE1X1172 GR STRAP ASM
WE01X1172 WE01X1172 GROUND STRAP ASM
WE1M419 WE1M419 H EDGE CONNECTOR
WE01X20419 WE01X20419 HANDLE WHITE
WE01X1188 WE01X1188 HANDLE, DOOR WH
WE1M1033 WE1M1033 HINGE
WE01M0394 WE01M0394 HINGE DOOR
WE03X25374 WE03X25374 HOUS BLOWER
WE14M0078 WE14M0078 HOUSING BLOWER
WE01M0419 WE01M0419 HOUSING PC BOARD
WE03X20434 WE03X20434 IDLER ARM
WE04X25996 WE04X25996 IGNITER
WE04X0739 WE04X0739 IGNITER ASM
31-16022 31-16022 INSTALL INSTRUCTIONS
WE49X22295 WE49X22295 KIT FRONT PANEL AND INNE
WE25X0218 WE25X0218 KIT NAT GAS ORIFICE CONV
WE25X218 WE25X218 KIT-NATL GAS
WE04X0718 WE04X0718 LAMP
WE05X20431 WE05X20431 LAMP
WE1M1011 WE1M1011 LATCH DOOR
WH01X10060 WH01X10060 LAUNDRY CONTROL KNOB
WE01X1076 WE01X1076 LEAK LIMITER
WE1X1076 WE1X1076 LEAK LIMITER
WE5M6 WE5M6 LENS SNAP-IN
WE01M0368 WE01M0368 LEVELLING SCREW
WE1M642 WE1M642 LEVELLING SCREW GRAY
WE1M418 WE1M418 LOCKING C B SUPPORT
WE4X693 WE4X693 MAIN COIL
31-16031 31-16031 MINI MANUAL
WE17M0022 WE17M0022 MOTOR ASM
WE01X0921 WE01X0921 MOTOR BRACKET
WE17X10010 WE17X10010 MOTOR KIT
WE13M0022 WE13M0022 MOTOR SUPPORT
WE13M39 WE13M39 MOTOR SUPPORT
WE2X396 WE2X396 NIPPLE SHTOF
WE02X0396 WE02X0396 NIPPLE, SHUTOFF VALVE
WE21M0013 WE21M0013 NO ITEM DESCRIPTION
WE01M0316 WE01M0316 NO ITEM DESCRIPTION
WE02M0155 WE02M0155 NO ITEM DESCRIPTION
WE02X0280 WE02X0280 NO ITEM DESCRIPTION
WE19M0941 WE19M0941 NO ITEM DESCRIPTION
WE02X0319 WE02X0319 NO ITEM DESCRIPTION
WE01X1077 WE01X1077 NO ITEM DESCRIPTION
WE2X319 WE2X319 NUT GASVALV
WE1M461 WE1M461 O-RING
WE01X1148 WE01X1148 ORIFICE
WE1X1148 WE1X1148 ORIFICE MAIN
WE10X20468 WE10X20468 OUTER DOOR WH
WE20X814 WE20X814 PANEL BACK
WE20X0811 WE20X0811 PANEL BACK
WE10M0092 WE10M0092 PANEL DOOR INNER WH
WE20M0260 WE20M0260 PANEL SIDE WH
WE20M393 WE20M393 PANEL SIDE WH
WE5M7 WE5M7 PILOT LIGHT ASSEMBLY
WE01X0617 WE01X0617 PIPE CLAMP
WE1X617 WE1X617 PIPE CLAMP
WE1X1077 WE1X1077 PIPE LUG AS
WE01M0401 WE01M0401 PLATE DAMPENING TOP CVR
WE12X0041 WE12X0041 PULLEY DRIVE
WE12M0008 WE12M0008 PULLEY IDLER
WE12X83 WE12X83 PULLEY IDLER
WE12X41 WE12X41 PULLEY&SCREW
WE4M399 WE4M399 R.SWITCH (XCARE) ON/OFF
WE01M0300 WE01M0300 RETAINER BEARING
WE4M520 WE4M520 ROTARY SWITCH 4TEMP
WH2X1206 WH2X1206 SCR 8-18 AB
WH02X1206 WH02X1206 SCR 8-18 ABFLT 5/8 SN WH
WR01X10317 WR01X10317 SCR 8-32 CA HXW 1/2
WE01M0280 WE01M0280 SCREW
WE02M0163 WE02M0163 SCREW
WE02M0174 WE02M0174 SCREW
WH02M0388 WH02M0388 SCREW
WE02M0160 WE02M0160 SCREW
WE02M0153 WE02M0153 SCREW
WE02M0154 WE02M0154 SCREW
WE02M0167 WE02M0167 SCREW
WE02M0148 WE02M0148 SCREW
WE02M0156 WE02M0156 SCREW
WE02M0175 WE02M0175 SCREW
WE02M0173 WE02M0173 SCREW
WE1M280 WE1M280 SCREW
WR2X9260 WR2X9260 SCREW
WE2M202 WE2M202 SCREW
WD02X10057 WD02X10057 SCREW
WE2M173 WE2M173 SCREW
WH02M0342 WH02M0342 SCREW
WE2M174 WE2M174 SCREW # 10
WE2M163 WE2M163 SCREW #10
WE2M196 WE2M196 SCREW #8
WE2M160 WE2M160 SCREW #8
WE02X0333 WE02X0333 SCREW (COIL MTG BRKT)
WE2X280D WE2X280D SCREW 14-10 A HX 1 S
WE2M200 WE2M200 SCREW GROUND
WE1M180 WE1M180 SCREW TIMMER
WE1M0180 WE1M0180 SCREW TIMMER T-STAT
WZ4X241D WZ4X241D SCREW-PKG 12
WH2X820D WH2X820D SCREW-PKG 12
WE1M449 WE1M449 SHIELD DOOR SWITCH
WE01M0333 WE01M0333 SLIDE DRUM (WH)
WE05M0005 WE05M0005 SOCKET ASM
WE5M48 WE5M48 SOCKET ASM
WE13X118 WE13X118 SPACER BRKT
WE2M165 WE2M165 SPEED NUT
WE02M0165 WE02M0165 SPEEDNUT
WE03M0017 WE03M0017 SPRING IDLER
WE13X200 WE13X200 STRAP MOTOR
WE13X0182 WE13X0182 STRAP, MOTOR
WE01M0314 WE01M0314 STRIKE
WE01M0418 WE01M0418 SUPPORT PC BOARD
WH46X10073 WH46X10073 SUPPORT SWITCH
WE4X881 WE4X881 SW ROTARY ST
WD21X0557 WD21X0557 SWITCH INTERLOCK
WD21X10261 WD21X10261 SWITCH INTERLOCK
WE04M0177 WE04M0177 SWITCH ROTARY
WE04X0881 WE04X0881 SWITCH ROTARY START
WE19M1155 WE19M1155 SWITCH TRIM ALMOND
WE19M1154 WE19M1154 SWITCH TRIM WHITE
WE4M181 WE4M181 THERMOSTAT BIAS CTR INLT
WE4M216 WE4M216 THERMOSTAT BIAS DRUM OUT
WE4M0181 WE4M0181 THERMOSTAT CTR INLET
WE04M216 WE04M216 THERMOSTAT DRUM OUTLET
WE4M80 WE4M80 THERMOSTAT SAFETY
WE04M0080 WE04M0080 THERMOSTAT SAFETY LEFT
WE04M0182 WE04M0182 THERMOSTAT TRIMMER
WE4M182 WE4M182 THERMOSTAT TRIMMER
WE4M190 WE4M190 TIMER
WE04M0190 WE04M0190 TIMER DRYER
WE4M260 WE4M260 TIMER DRYER
WE1M444 WE1M444 TIMER KNOB AD/CHR
WE3M26 WE3M26 TOP BEARING
WE20M0286 WE20M0286 TOP COVER WH
WE11X29441 WE11X29441 TRANSITION DUCT
WE14X25080 WE14X25080 TRAP DUCT ASM
WE18M0019 WE18M0019 TRAP LINT
WE01X0980 WE01X0980 U CLIP
49-90042 49-90042 USE & CARE
WE14X215 WE14X215 VALVE ASSEMBLY SHUTOFF
WE13X195 WE13X195 VALVE BRKT
WE20M398 WE20M398 WE20M262
WE2M96 WE2M96 WE2X329
