Model Image
Manufacturer

GE

Model Number

DPSR610GG7WT

Description

Gas Dryer

Interactive Exploded View

Parts List

Part Number Description
WE14X25080 WE14X25080 AIR DUCT ASSEMBLY
WE19M1310 WE19M1310 BACK PANEL
WE19M1505 WE19M1505 BACKSPLASH ASSEMBLY
WE14M75 WE14M75 BAFFLE
WE25M40 WE25M40 BEARING KIT
WE1M300 WE1M300 BEARING RETAINER
WE1M966 WE1M966 BLOWER GASKET (EXHAUST)
WE14M93 WE14M93 BLOWER HOUSING
WE16X20393 WE16X20393 BLOWER WHEEL
WE04X10102 WE04X10102 BOARD W/BUZZER
WE20M253 WE20M253 BOTTOM COVER (E-COAT)
WE1M773 WE1M773 BRACKET AND LEVEL LEG ASSEMBLY
WE13M48 WE13M48 BRACKET GAS VALVE
WE1M772 WE1M772 BRACKET LEVELLING LEG
WE1M661 WE1M661 BUTTON PUSH
WE20M398 WE20M398 CABINET BASE
WE11X29440 WE11X29440 CHAMBER COMBUSTION
WE1X1091 WE1X1091 CLIP CORDSET.
WH01X10106 WH01X10106 CLIP KNOB
WE1M650 WE1M650 CONNECTOR MOTOR
WE20X20417 WE20X20417 COVER WH
WE1M508 WE1M508 DAMPENING PLATE TOP CV
WE14X20408 WE14X20408 DEFLECTOR HEAT
WE11X29443 WE11X29443 DIFFUSER GAS
WE21X20566 WE21X20566 DRUM ASSEMBLY
WE4M181 WE4M181 DRYER CYCLING THERMOSTAT - 4 WIRE
WE1M1011 WE1M1011 DRYER DOOR LATCH
WE4M415 WE4M415 DRYER DOOR SWITCH
WE17X22217 WE17X22217 DRYER DRIVE MOTOR
WE12M29 WE12M29 DRYER DRUM DRIVE BELT
WE1M462 WE1M462 DRYER DRUM SLEEVE
WE09X27634 WE09X27634 DRYER DUCT TRAP FELT
WE19M1461 WE19M1461 DRYER END CAP LH WH
WE19M1460 WE19M1460 DRYER END CAP RH WH
WE1M504 WE1M504 DRYER FRONT BEARING DRUM SLIDE - WHITE
WE3M26 WE3M26 DRYER FRONT DRUM BEARING
WE14M104 WE14M104 DRYER GAS BURNER
WE1X921 WE1X921 DRYER MOTOR STRAP
WE20X20559 WE20X20559 DRYER REAR PANEL
WE1M575 WE1M575 DRYER SENSOR ROD
WE4M137 WE4M137 DRYER THERMOSTAT
WE4M182 WE4M182 DRYER THERMOSTAT TRIMMER
WE4M527 WE4M527 DRYER TIMER
WE14M197 WE14M197 DRYER TRANSITION DUCT
WE14X20421 WE14X20421 EXHAUST DUCT
WE18X25100 WE18X25100 FILTER AND MESH ASSEMBLY.
WE4X448 WE4X448 FLAME DETECTOR
WE1M781 WE1M781 FRONT BRACKET LEVEL LEG
WE49X22295 WE49X22295 FRONT PANEL AND INNE
WE2M188 WE2M188 FRONT STABILIZING LEGS
WE1M869 WE1M869 FT HEAT DEFLECTION PLATE
WE25X217 WE25X217 GAS DRYER LP CONVERSION K
WE14M114 WE14M114 GAS VALVE AND PIPE ASSEMBLY. NG
WE1M825 WE1M825 GASKET (SEAL) 39 INCH
WE1M1015 WE1M1015 GROUND STRAP
WE1M419 WE1M419 H EDGE CONNECTOR
WE01X20419 WE01X20419 HANDLE WHITE
WE1M1033 WE1M1033 HINGE
WE03X20434 WE03X20434 IDLER ARM
WE1M660 WE1M660 KNOB ASSEMBLY
WE05X20431 WE05X20431 LAMP
WE1M782 WE1M782 LEVEL LEG AND BRACKET FRNT
WE01X29357 WE01X29357 LEVELING LEG
WE1M418 WE1M418 LOCKING C B SUPPORT
WE13X20394 WE13X20394 MOTOR PLATE
WE13M39 WE13M39 MOTOR SUPPORT
WE1M461 WE1M461 O RING
WE10X20468 WE10X20468 OUTER DOOR WH
WE20M393 WE20M393 PANEL SIDE WH
WE12X83 WE12X83 PULLEY IDLER
WE4M399 WE4M399 R.SWITCH (XCARE) ON/OFF
WE4M406 WE4M406 ROTARY SWITCH 4TEMP SENS
WD2M101 WD2M101 SCREW
WE1M280 WE1M280 SCREW
WE2M173 WE2M173 SCREW
WE2M180 WE2M180 SCREW
WE2M189 WE2M189 SCREW
WE2M202 WE2M202 SCREW
WR2X9260 WR2X9260 SCREW
WE2M174 WE2M174 SCREW # 10
WE2M163 WE2M163 SCREW #10
WE2M160 WE2M160 SCREW #8
WE2M196 WE2M196 SCREW #8
WD02X10057 WD02X10057 SCREW 10-16X1/2 AB HXW S
WE2M200 WE2M200 SCREW GROUND
WZ5X158D WZ5X158D SCREW-PKG 12
WE2X263D WE2X263D SCREW-PKG 12
WE01X20677 WE01X20677 SHOE RACK (CAN)
WE1M1067 WE1M1067 SLIDE DRUM - GREEN
WE5M48 WE5M48 SOCKET ASSEMBLY
WD21X10261 WD21X10261 SWITCH INTERLOCK
WE4M145 WE4M145 SWITCH START
WE4M216 WE4M216 THERMOSTAT BIAS DRUM OUT
WE4M80 WE4M80 THERMOSTAT SAFETY
WE14M119 WE14M119 TRAP DUCT COMPLETE ASSEMBLY

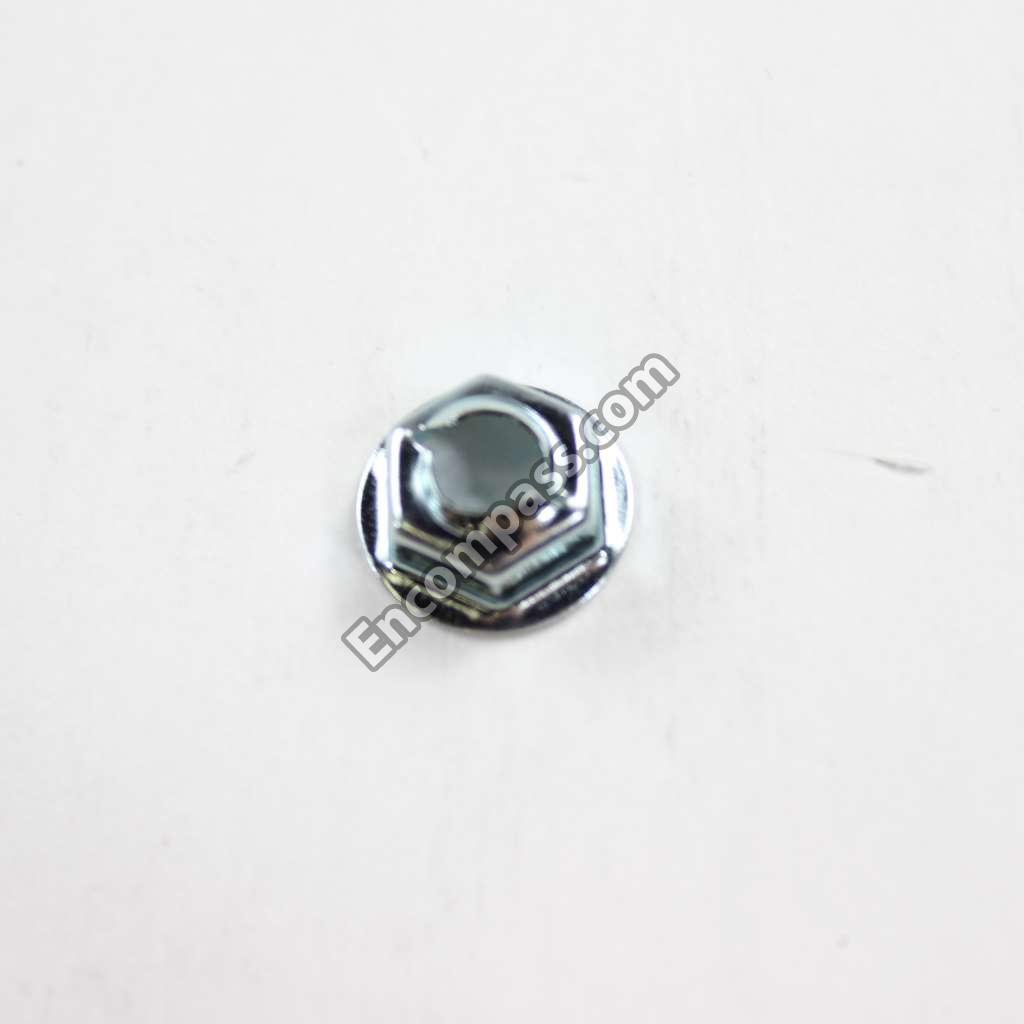

WE2X329 WE2X329 WE2X329
