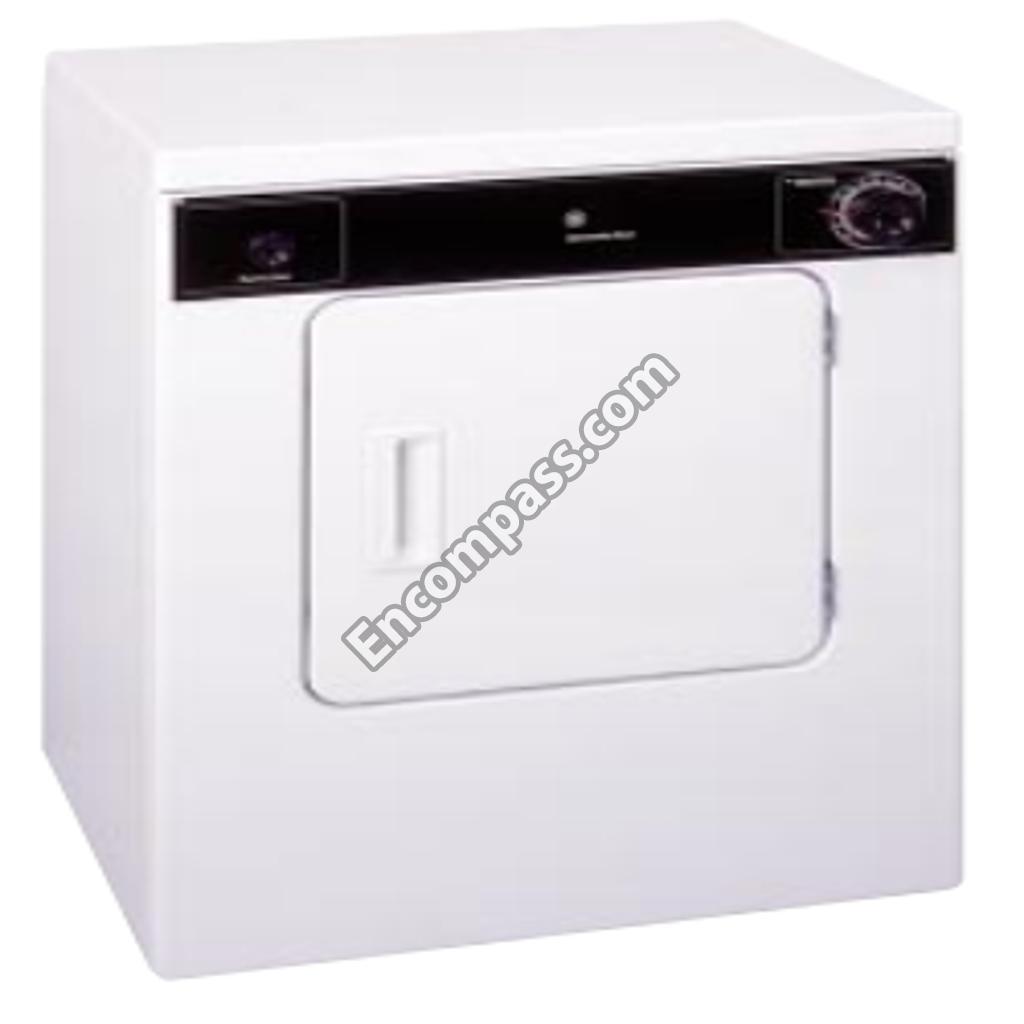

Model Image
Manufacturer

GE

Model Number

DSKP233ETDWB

Description

Dryer Electric

Interactive Exploded View

Parts List

Part Number Description
WE14X233 WE14X233 AIR DUCT ASM
WE14X0233 WE14X0233 AIR DUCT ASSM
WE21X73 WE21X73 BAFFLE DRUM
WE21X0073 WE21X0073 BAFFLE, DRUM
WE20X803 WE20X803 BASE ASM
WE20X0803 WE20X0803 BASE ASM.
WE03X0078 WE03X0078 BEARING & SEAL
WE3X78 WE3X78 BEARING&SEAL
WE12X93 WE12X93 BELT DRIVE
WE12X0093 WE12X0093 BELT, DRIVE
WE13X214 WE13X214 BKT POWER CORD
WE13X201 WE13X201 BRACKET MTR
WE13X0214 WE13X0214 BRACKET POWER CORD
WE13X0216 WE13X0216 BRACKET TIMER
WE13X0201 WE13X0201 BRACKET, MOTOR
WE13X216 WE13X216 BRKT TIMER
WE20X0790 WE20X0790 BULKHEAD
WE20X790 WE20X790 BULKHEAD
WE01X1248 WE01X1248 BUMPER
WE1X1248 WE1X1248 BUMPER
WE01X10060 WE01X10060 BUSHING SNAP
WH12X0954 WH12X0954 BUZZER
WH12X954 WH12X954 BUZZER
WE01X1219 WE01X1219 CAP, SCREW
WE01X1257 WE01X1257 CASTER
WE1X1257 WE1X1257 CASTER
WE1X1195 WE1X1195 CATCH DOOR
WE01X1195 WE01X1195 CATCH, DOOR
WE2X383 WE2X383 CLAMP MTR MT
WE02X0383 WE02X0383 CLAMP, MOTOR MNTG
WE01X1239 WE01X1239 CLIP
WE01X1243 WE01X1243 CLIP
WE1X1217 WE1X1217 CLIP
WE1X1239 WE1X1239 CLIP
WE1X1193 WE1X1193 CLIP FELTPAD
WE01X25997 WE01X25997 CLIP FRT PNL
WE01X1245 WE01X1245 CLIP SENSOR
WE1X1245 WE1X1245 CLIP SENSOR
WE01X1193 WE01X1193 CLIP, FELT PAD
WE01X1212 WE01X1212 CLIP, FRT PANEL
WE01X1213 WE01X1213 CLIP, GROUND
WE1X1244 WE1X1244 CONNECT EDGE
WE01X10064 WE01X10064 CONNECTOR 3 CIRCUIT
WE01X1244 WE01X1244 CONNECTOR EDGE
WE01X10062 WE01X10062 CONNECTOR HOUSING
WE01X10063 WE01X10063 CONNECTOR TIMER
WE04X0862 WE04X0862 CONTROL ELECTRONIC
WE18X0056 WE18X0056 COVER, LINT SCREEN
WE4X862 WE4X862 CTRL ELECTRO
WE18X25155 WE18X25155 CVR LINT SCR
WE10X328 WE10X328 DOOR FRT WH
WE10X327 WE10X327 DOOR REAR
WE04X10056 WE04X10056 DOOR SWITCH
WE10X0328 WE10X0328 DOOR, FRONT WH.
WE10X0327 WE10X0327 DOOR, REAR
WE21X72 WE21X72 DRUM DRYER
WE21X0072 WE21X0072 DRUM, DRYER
31-1736 31-1736 DRYER INSTALLATION INST
WE4X865 WE4X865 ELECTRODE
WE4X864 WE4X864 ELECTRODE
WE04X0864 WE04X0864 ELECTRODE INSIDE
WE04X0865 WE04X0865 ELECTRODE OUTSIDE
WE20X806 WE20X806 FRNT PNL WH
WE20X0806 WE20X0806 FRONT PANEL WH
WE02X10031 WE02X10031 GND SCREW 10-32 X 5/8
WE01X1242 WE01X1242 GUARD EXHAUST
WE1X1242 WE1X1242 GUARD EXHUST
WE13X10015 WE13X10015 GUSSET
WE1X1196 WE1X1196 HANDLE DR WH
WE01X1196 WE01X1196 HANDLE, DOOR WH
WE11X97 WE11X97 HEATER
WE11X0097 WE11X0097 HEATER BOX
WE11X10006 WE11X10006 HEATER ELEMENT
WE1X1198 WE1X1198 HINGE & PIN
WE01X1198 WE01X1198 HINGE & PIN, DOOR
WE12X95 WE12X95 IDLER & BRKT
WE12X0095 WE12X0095 IDLER BRACKET ASM
WE01X1260 WE01X1260 KNOB DIAL TIMER
WE01X10065 WE01X10065 KNOB DIAL TIMER
WE1X1259 WE1X1259 KNOB PUSH-ST
WE01X1259 WE01X1259 KNOB PUSH-START
WE01X10066 WE01X10066 KNOB PUSH-START
WE1X1260 WE1X1260 KNOB&DIAL TM
WE18X0055 WE18X0055 LINT SCREEN
WH1X2700 WH1X2700 LOCK TOP
WH01X2700 WH01X2700 LOCK, TOP
31-2753 31-2753 MINI MANUAL
WE17X50 WE17X50 MOTOR SW
WE17X0050 WE17X0050 MOTOR, SW., PULLEY ASM
WE04X0863 WE04X0863 PAD SENSOR
WE4X863 WE4X863 PAD SENSOR
WE19X981 WE19X981 PANEL CONTRL
WE19X0981 WE19X0981 PANEL CONTROL
WE19X10037 WE19X10037 PANEL CONTROL
WE20X0801 WE20X0801 PANEL REAR WH
WE20X0804 WE20X0804 PANEL SIDE WH
WH01X10074 WH01X10074 PLUG DRUM HOLE
WE20X801 WE20X801 PNL REAR WH
WE20X804 WE20X804 PNL SIDE WH
WE08X10019 WE08X10019 POWER CORD
WE12X10003 WE12X10003 PULLEY MOTOR
WE12X0096 WE12X0096 PULLEY, MOTOR
WE1X1215 WE1X1215 RESTRAINER
WE01X1215 WE01X1215 RESTRAINER, BELT
WE3X80 WE3X80 RING BEARING
WE03X0080 WE03X0080 RING, BEARING
WE02X0403 WE02X0403 RIVET POP
WE2X403 WE2X403 RIVET POP
WE3X82 WE3X82 ROLLER SUPP
WE03X0082 WE03X0082 ROLLER, SUPPORT
WH02X10068 WH02X10068 SCREW 11-16 X 7/8
WE02X10032 WE02X10032 SCREW 6-20 X 7/8
WH02X1178 WH02X1178 SCREW 8-18 3/8
WH02X10066 WH02X10066 SCREW 8-18 X 3/16
WE02X10030 WE02X10030 SCREW 8-32 X 7/32
WH2X1178 WH2X1178 SCREW MTG
WE14X0234 WE14X0234 SCROLL FAN
WE14X234 WE14X234 SCROLL FAN
WE09X0112 WE09X0112 SEAL
WE9X114 WE9X114 SEAL
WE9X112 WE9X112 SEAL
WE9X116 WE9X116 SEAL
WE9X111 WE9X111 SEAL DOOR
WE09X0114 WE09X0114 SEAL REAR
WE09X0111 WE09X0111 SEAL, DOOR
WE09X0116 WE09X0116 SEAL, FAN SCROLL
WE3X79 WE3X79 SHAFT ROLLER
WE3X86 WE3X86 SHAFT ROLLER
WE03X0086 WE03X0086 SHAFT, ROLLER L.H.
WE03X0085 WE03X0085 SHAFT, ROLLER R.H.
WE14X0235 WE14X0235 SHIELD EXHAUST
WE14X235 WE14X235 SHIELD EXHST
WE1X1194 WE1X1194 STRIKE DOOR
WE01X1194 WE01X1194 STRIKE, DOOR
WE04X0868 WE04X0868 SWITCH START
WE4X868 WE4X868 SWITCH START
WE01X10061 WE01X10061 TERMINAL
WE4X824 WE4X824 THERMOSTAT **NLA*
WE04X0859 WE04X0859 THERMOSTAT 145F
WE04X10055 WE04X10055 THERMOSTAT 180F
WE04X0867 WE04X0867 TIMER
WE4X867 WE4X867 TIMER
WE20X0808 WE20X0808 TOP WH
WE20X808 WE20X808 TOP WH
WE02X0392 WE02X0392 TRI-RING
WE2X392 WE2X392 TRI-RING
49-9903 49-9903 USE & CARE DSKP233 ET
WE02X0393 WE02X0393 WASHER
WE02X0390 WE02X0390 WASHER
WE2X393 WE2X393 WASHER
WE2X390 WE2X390 WASHER
WE2X400 WE2X400 WASHER INSUL
WE02X0400 WE02X0400 WASHER INSULATED
WE02X0397 WE02X0397 WASHER SUPPORT
WE2X397 WE2X397 WASHER SUPT
WE16X29 WE16X29 WHEEL BLOWER
WE16X0029 WE16X0029 WHEEL, BLOWER
