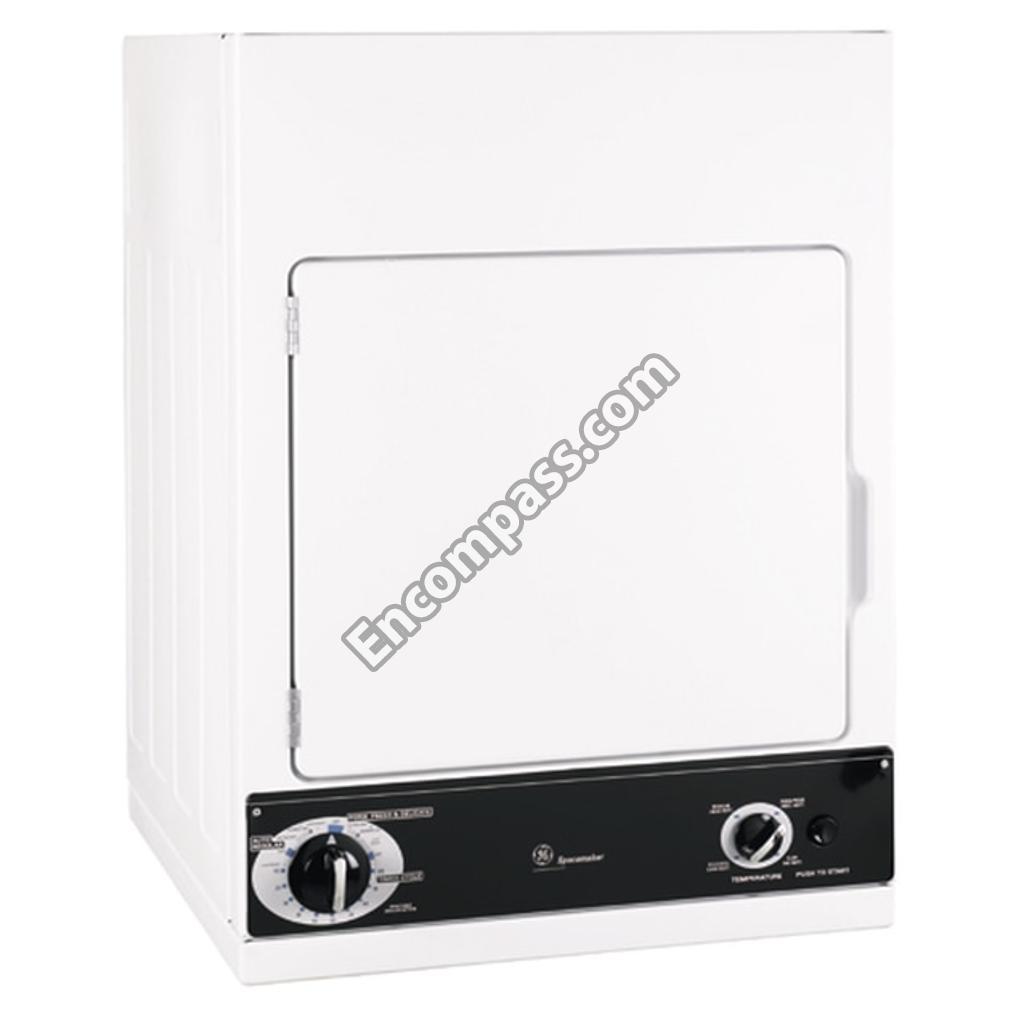

Model Image
Manufacturer

GE

Model Number

DSKS433EB1WH

Description

Dryer Electric

Interactive Exploded View

Parts List

Part Number Description
WE14M60 WE14M60 GE AIR DUCT
WE1M194 WE1M194 GE BACKPLATE ACCESS
WE14M98 WE14M98 GE BAFFLE
WE3X63 WE3X63 GE BEARING DRUM
WE25M40 WE25M40 GE BEARING KIT
WE1M300 WE1M300 GE BEARING RETAINER
WE1M462 WE1M462 GE BEARING, DRUM SHAFT
WE12M24 WE12M24 GE BELT DRIVE
WE03X32037 WE03X32037 GE BELT DRIVE
WE4M286 WE4M286 GE BIASED THERMOSTAT
WE14M53 WE14M53 GE BLOWER HOUSING ASSEMBLY
WE16X16 WE16X16 GE BLOWER WHEEL
WE1M493 WE1M493 GE BRACKET BELT SWITCH
WE1M193 WE1M193 GE BRACKET CABINET FRONT
WE1M226 WE1M226 GE BUMPER
WE20M303 WE20M303 GE CABINET BASE & REAR
WE20M312 WE20M312 GE CABINET BASE & REAR
WE1M452 WE1M452 GE CERAMIC INSULATOR
WE01X0688 WE01X0688 GE CLAMP
WE1X688 WE1X688 GE CLAMP AND SCREW
WE1X762 WE1X762 GE CLIP
WR2M1052 WR2M1052 GE CLIP
WE1M140 WE1M140 GE CLIP
WE1M195 WE1M195 GE CLIP COVER
WE01X0762 WE01X0762 GE CLIP GROUNDING
WE1X408D WE1X408D GE CLIP-PKG 12
WE1M225 WE1M225 GE COVER KNOCKOUT ROUND
WE1M341 WE1M341 GE COVER PLATE
WE20M208 WE20M208 GE COVER W/HOLES (WHITE)
WE14M19 WE14M19 GE DEFLECTOR
WE1X689 WE1X689 GE DEFLECTOR
WE9M16 WE9M16 GE DOOR GASKET
WE10M86 WE10M86 GE DOOR OUTER WHITE
WE10M98 WE10M98 GE DOOR PANEL
WE21X28955 WE21X28955 GE DRUM ASM
WE21X20095 WE21X20095 GE DRUM ASM. 3.5
WE03X37319 WE03X37319 GE DRYER BEARING SLIDE
WE1M1011 WE1M1011 GE DRYER DOOR LATCH
WE18X20437 WE18X20437 GE DRYER LINT FILTER
WE1X921 WE1X921 GE DRYER MOTOR STRAP
WE9X38 WE9X38 GE FELT SEAL AS
WE20M360 WE20M360 GE FRONT PANEL WH
WE9M17 WE9M17 GE GASKET
WE1X1172 WE1X1172 GE GR STRAP ASM
WE01X25914 WE01X25914 GE GRID
WE22X35337 WE22X35337 GE GRID
WE01X1172 WE01X1172 GE GROUND STRAP ASM
WE11M25 WE11M25 GE HEATER ASM.
WE1M1033 WE1M1033 GE HINGE
WE3M18 WE3M18 GE IDLER ARM
WE10M94 WE10M94 GE INNER DOOR (WHITE)
31-16057 31-16057 GE INSTALLATION INSTRUCTION
WE1M465 WE1M465 GE INSULATION CABINET
WE17X23618 WE17X23618 GE KIT MOTOR AND PULLEY WIT
WE01X1265 WE01X1265 GE KNOB ASM DRYER
WE01X1206 WE01X1206 GE KNOB CLIP ASM BK
WE1X1265 WE1X1265 GE KNOB TIMER
WE1X1206 WE1X1206 GE KNOB&CLIP AS
WE18M15 WE18M15 GE METAL SCREEN
31-16069 31-16069 GE MINI-MANUAL WIRING
WE01X0921 WE01X0921 GE MOTOR BRACKET
WE13M39 WE13M39 GE MOTOR SUPPORT
WZ07X0031 WZ07X0031 GE NUT
WZ7X31D WZ7X31D GE NUT-PKG 12
WE1M461 WE1M461 GE O-RING
WE02X0154 WE02X0154 GE PALNUT
WE14M41 WE14M41 GE PLATE & ELBOW EXAUST
WE1M455 WE1M455 GE PLATE RECEPTACLE
WE12X83 WE12X83 GE PULLEY IDLER
WE4M118 WE4M118 GE RECEPTACLE (120V)
WE4M297 WE4M297 GE RECEPTACLE (120V)
WE4M255 WE4M255 GE RESISTOR
WE4M136 WE4M136 GE SAFETY THERMOSTAT
WE02X25454 WE02X25454 GE SCR 10-16 A TRQ2 1-1/4 S
WE02M0148 WE02M0148 GE SCREW
WE02X0194 WE02X0194 GE SCREW
WE2M169 WE2M169 GE SCREW
WR2X9260 WR2X9260 GE SCREW
WE2M98 WE2M98 GE SCREW
WE1M280 WE1M280 GE SCREW
WE2M97 WE2M97 GE SCREW
WE2M174 WE2M174 GE SCREW # 10
WE2M163 WE2M163 GE SCREW #10
WE2M196 WE2M196 GE SCREW #8
WE2M170 WE2M170 GE SCREW #8
WD02X10057 WD02X10057 GE SCREW 10-16X1/2 AB HXW S
WE2M200 WE2M200 GE SCREW GROUND
WE02M0149 WE02M0149 GE SCREW WH
WE2X194D WE2X194D GE SCREW-PKG 12
WZ4X241D WZ4X241D GE SCREW-PKG 12
WZ5X158D WZ5X158D GE SCREW-PKG 12
WE1M398 WE1M398 GE SHIELD CONTROL
WE1M456 WE1M456 GE SHIELD START SWITCH
WE20M202 WE20M202 GE SIDE PANEL (WHITE)
WE3M51 WE3M51 GE SLIDE
WE01X25915 WE01X25915 GE SLIDE GRID
WE1M317 WE1M317 GE SPEED CLIP
WE2M95 WE2M95 GE SPEEDCLIP
WE2X196 WE2X196 GE SPEEDNUT
WE13X200 WE13X200 GE STRAP MOTOR
WE13X0182 WE13X0182 GE STRAP, MOTOR
WE1X1192 WE1X1192 GE STRIKE DOOR
WE4M41 WE4M41 GE SWITCH DOOR
WD21X0557 WD21X0557 GE SWITCH INTERLOCK
WD21X10261 WD21X10261 GE SWITCH INTERLOCK
WE1M356 WE1M356 GE SWITCH KNOB START BLACK
WE4M145 WE4M145 GE SWITCH START
WE19M1309 WE19M1309 GE SWITCH TRIM ( BLACK )
WE19M1249 WE19M1249 GE SWITCH TRIM WHITE
WE4M137 WE4M137 GE T'STAT HI-LIMIT
WE4M403 WE4M403 GE TEMPERATURE SWITCH
WE4M325 WE4M325 GE TERM BLK AND GRND STRAP
WE49X23896 WE49X23896 GE TIMER ASM
49-90096 49-90096 GE USE & CARE
WE1X1091 WE1X1091 GE WE1X1091
WE1X408 WE1X408 GE WE1X408D
WE2X263D WE2X263D GE WE2X263D
WE2M96 WE2M96 GE WE2X329
WE16X0016 WE16X0016 GE WHEEL BLOWER
