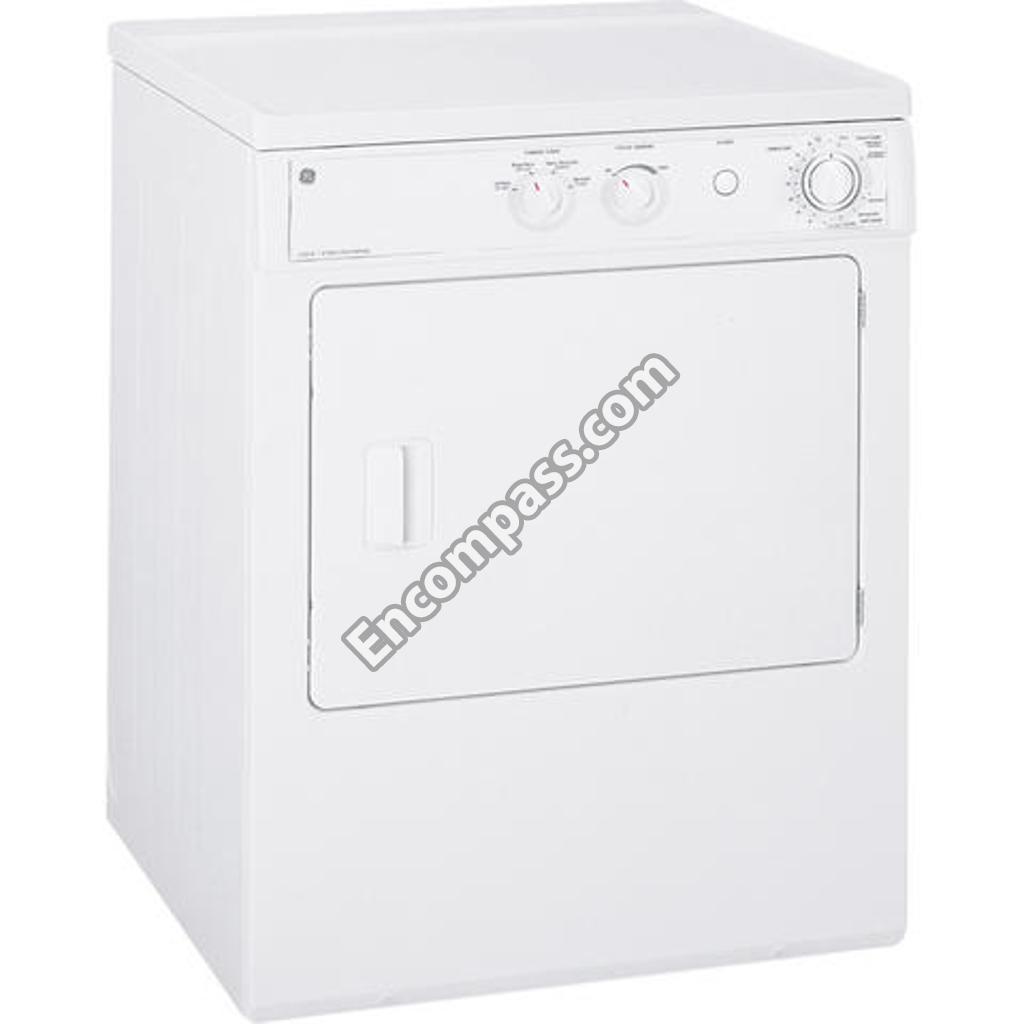

Model Image
Manufacturer

GE

Model Number

DSXH43EA0WW

Description

Dryer Electric

Interactive Exploded View

Parts List

Part Number Description
WE01X10082 WE01X10082 ASMY-KNOB/IND
WE14X202 WE14X202 BAFFLE HEAT
WE14X0202 WE14X0202 BAFFLE-HEATER
WE01X1152 WE01X1152 BALL
WE1X1152 WE1X1152 BALL
WE3X70 WE3X70 BEARING
WE04X10027 WE04X10027 BLOCK TERM HEATER HSNG
WE04X0716 WE04X0716 BLOCK-TERMINAL
WE14X10025 WE14X10025 BLOWER HOUSING ASSEMBLY
WE13X28680 WE13X28680 BRACKET BEARING
WE13X10013 WE13X10013 BRACKET CONTROL
WE13X10010 WE13X10010 BRACKET CORD
WE13X10006 WE13X10006 BRACKET MOTOR
WE13X10008 WE13X10008 BRACKET-BELT SWITCH
WE13X10005 WE13X10005 BRACKET-HINGE
WE04X10010 WE04X10010 BUZZER
WE2X358 WE2X358 CLIP
WE02X0358 WE02X0358 CLIP BALL
WE02X10015 WE02X10015 CLIP BLOWER HOUSING
WE02X10013 WE02X10013 CLIP CABINET BTM
WE2X361 WE2X361 CLIP GUIDE
WE02X0361 WE02X0361 CLIP-GUIDE
WE02X10009 WE02X10009 CLIP-TOP FRONT/PANEL
WE02X10010 WE02X10010 CLIP-WIRING
WE20X10029 WE20X10029 CONTROL PANEL ASSEMBLY
WE20X10005 WE20X10005 COVER TERM BLOCK
WE18X10001 WE18X10001 COVER-LINT TRAP
WE01X10023 WE01X10023 DOOR CATCH
WE10X10002 WE10X10002 DOOR OUTER WHITE
WE10X10008 WE10X10008 DOOR-INNER WHITE
WE10X10009 WE10X10009 DOOR-OUTER WH
WE21X10003 WE21X10003 DRUM-DRYER GALVANIZED BA
WE12X10009 WE12X10009 DRYER DRUM DRIVE BELT
WE4X757 WE4X757 DRYER THERMOSTAT
WE14X10102 WE14X10102 DUCT-AIR
WE09X0107 WE09X0107 GASKET DOOR
WE9X107 WE9X107 GASKET DOOR
WE03X10001 WE03X10001 GLIDE DRUM
WE03X0073 WE03X0073 GLIDE-DRUM
WE01X10013 WE01X10013 HANDLE-DOOR WH
WE08X10014 WE08X10014 HARNESS P ELEC MAIN W/BE
WE14X10015 WE14X10015 HEATER-HOUSING ASS'Y
WE01X10012 WE01X10012 HINGE-DOOR
WE01X10027 WE01X10027 IDLER SPRING
49-9963-2 49-9963-2 INSTALL/OWNERS GUIDE
WE04X10026 WE04X10026 INSULATOR HTR HSNG
WE25X10011 WE25X10011 KIT - AIR FLOW/THERMOSTAT
WE25X10001 WE25X10001 KIT REAR BEARING
WE01X10083 WE01X10083 KNOB-ROTARY
7C7 7C7 LAMP 7C7
WE02X10012 WE02X10012 LEVELING FOOT
WE18X10002 WE18X10002 LINT TRAP
WE01X10016 WE01X10016 LOCKFAN HOUSING
WE9X105 WE9X105 LOWER FELT
31-15415 31-15415 MINI MANUAL
WE17X10001 WE17X10001 MOTOR & PULLEY
WE01X10003 WE01X10003 MOTOR CLAMP
WE20X10009 WE20X10009 PANEL ACCESS
WE04X10011 WE04X10011 PANEL TOP WHITE
WE20X10016 WE20X10016 PANEL-FRONT STACK W/LIGHT
WE01X10011 WE01X10011 PLUG WHITE
WE01X10010 WE01X10010 PLUG-DOME WHITE
WE01X10015 WE01X10015 RACK-DRYING
WE04X10058 WE04X10058 RECEPTACLE LAMP
WE4X752 WE4X752 RESISTER POWER
WE04X0752 WE04X0752 RESISTOR-POWER, 4.4K
WH2X1150 WH2X1150 SCREW
WE02X10024 WE02X10024 SCREW
WE02X10007 WE02X10007 SCREW 10-14 X 1 00
WR2X9494 WR2X9494 SCREW 10-16 X 375
WE02X10008 WE02X10008 SCREW 6-20 X 19
WE02X10011 WE02X10011 SCREW 8-18 X 375
WH01X10004 WH01X10004 SCREW 8-18AB X 375
WR02X9494 WR02X9494 SCREW 8-18B X 0.31
WH02X1150 WH02X1150 SCREW 8-32 X .250
WE02X10020 WE02X10020 SCREW GND 10-32T X 37
WE02X10014 WE02X10014 SCREW-
WE02X10005 WE02X10005 SCREW-BRACKET
WE02X10017 WE02X10017 SCREW-DOOR 10-16X 75
WH02X10009 WH02X10009 SCREW-LOCK 10-16X 50
WE02X10022 WE02X10022 SCREW-STOP
WE09X0105 WE09X0105 SEAL BASKET LOWER
WE09X10003 WE09X10003 SEAL EXHAUST TUBE
WE09X10004 WE09X10004 SEAL-HEATER HOUSING
WE11X10002 WE11X10002 SHIELD-HEAT
WE01X10029 WE01X10029 SPACER-IDLER
WE25X10004 WE25X10004 STACKING KIT
WE01X1158 WE01X1158 STRIKE DOOR
WE1X1158 WE1X1158 STRIKE DOOR
WE13X10011 WE13X10011 SUPPORT SHAFT
WE04X10096 WE04X10096 SWITCH-BELT
WE04X10148 WE04X10148 SWITCH-DOOR W/DRUM LIGHT
WE04X10008 WE04X10008 SWITCH-START
WE04X10023 WE04X10023 SWITCH-TEMP
WE4X716 WE4X716 TERM BLOCK
WE04X0774 WE04X0774 THERMAL LIMITER
WE04X10028 WE04X10028 THERMOSTAT-CONTROL
WE04X10024 WE04X10024 TIMER
WE14X10007 WE14X10007 TUBE EXHAUST ASM
WE21X0069 WE21X0069 VANE
WE21X69 WE21X69 VANE DRUM
WE01X10218 WE01X10218 W/PULLEY IDLER ARM ASSEMBLY
