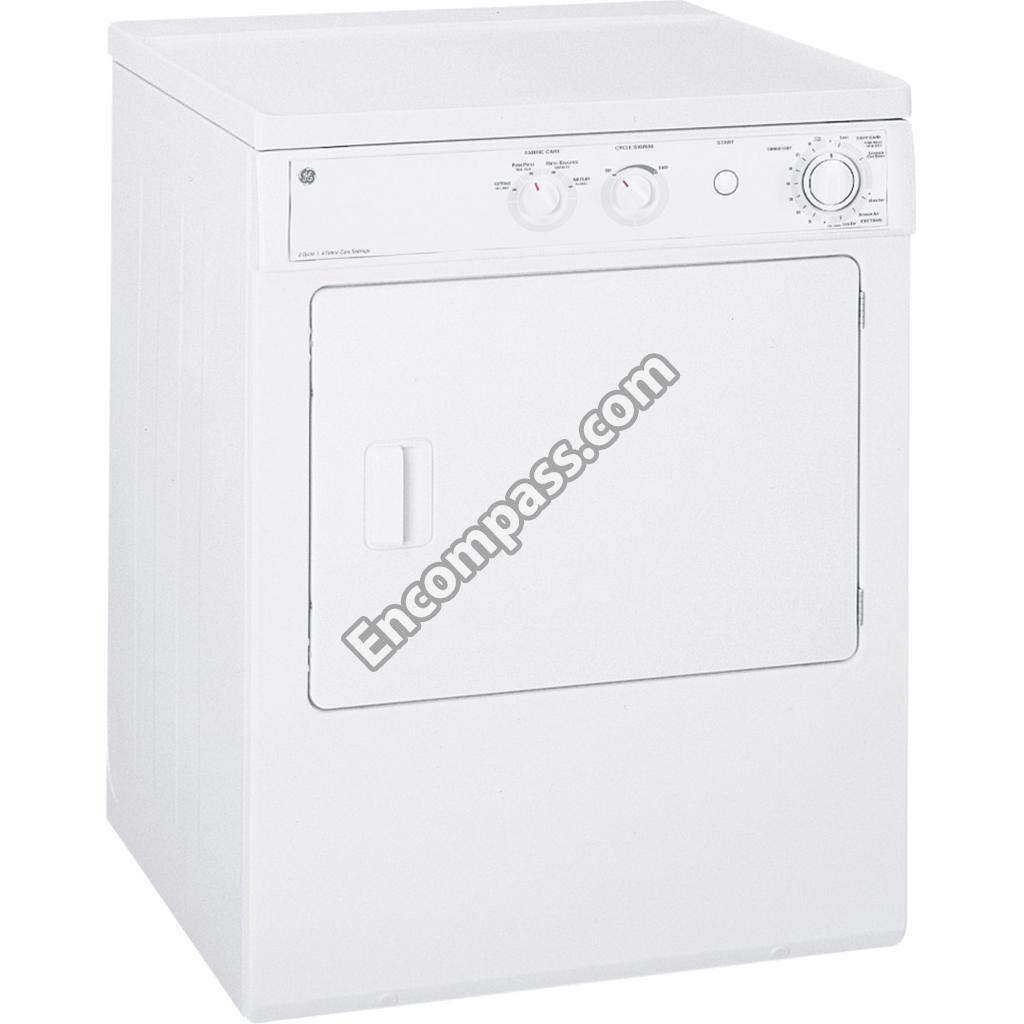

Model Image
Manufacturer

GE

Model Number

DSXH43GA0WW

Description

Dryer Gas

Interactive Exploded View

Parts List

Part Number Description
WE02X10071 WE02X10071 8-18AB X0.44 SCREW QUAD
WE01X10082 WE01X10082 ASMY-KNOB/IND
WE14X10018 WE14X10018 ASSEMBLY-BURNER
WE14X10013 WE14X10013 ASSEMBLY-BURNER TUBE
WE01X1152 WE01X1152 BALL
WE1X1152 WE1X1152 BALL
WE3X70 WE3X70 BEARING
WE14X10025 WE14X10025 BLOWER HOUSING ASSEMBLY
WE13X28680 WE13X28680 BRACKET BEARING
WE13X10013 WE13X10013 BRACKET CONTROL
WE13X10006 WE13X10006 BRACKET MOTOR
WE13X10008 WE13X10008 BRACKET-BELT SWITCH
WE14X10010 WE14X10010 BRACKET-BURNER
WE13X10005 WE13X10005 BRACKET-HINGE
WE04X10010 WE04X10010 BUZZER
WE01X10020 WE01X10020 CAP-PIPE
WE2X358 WE2X358 CLIP
WE02X0358 WE02X0358 CLIP BALL
WE02X10015 WE02X10015 CLIP BLOWER HOUSING
WE02X10013 WE02X10013 CLIP CABINET BTM
WE2X361 WE2X361 CLIP GUIDE
WE02X10023 WE02X10023 CLIP IGNITER
WE02X0361 WE02X0361 CLIP-GUIDE
WE02X10009 WE02X10009 CLIP-TOP FRONT/PANEL
WE02X10010 WE02X10010 CLIP-WIRING
WE04X10020 WE04X10020 COIL SECONDARY
WE20X10029 WE20X10029 CONTROL PANEL ASSEMBLY
WE18X10001 WE18X10001 COVER-LINT TRAP
WE20X10004 WE20X10004 COVER-TERM BLOCK
WE01X10023 WE01X10023 DOOR CATCH
WE10X10002 WE10X10002 DOOR OUTER WHITE
WE10X10008 WE10X10008 DOOR-INNER WHITE
WE10X10009 WE10X10009 DOOR-OUTER WH
WE21X10003 WE21X10003 DRUM-DRYER GALVANIZED BA
WE12X10009 WE12X10009 DRYER DRUM DRIVE BELT
WE14X10102 WE14X10102 DUCT-AIR
WE14X10021 WE14X10021 DUCT-HEAT
WE01X10247 WE01X10247 ELBOW COUPLER
WE14X207 WE14X207 GAS VALVE AS
WE14X0207 WE14X0207 GAS VALVE ASM
WE09X0107 WE09X0107 GASKET DOOR
WE9X107 WE9X107 GASKET DOOR
WE03X10001 WE03X10001 GLIDE DRUM
WE03X0073 WE03X0073 GLIDE-DRUM
WE01X10013 WE01X10013 HANDLE-DOOR WH
WE08X10012 WE08X10012 HARNESS-GAS VALVE
WE08X10013 WE08X10013 HARNESS-GAS W/BELT SW
WE14X10017 WE14X10017 HEATER HOUSING
WE01X10012 WE01X10012 HINGE-DOOR
WE04X10058 WE04X10058 HOLDER-LAMP
WE01X10027 WE01X10027 IDLER SPRING
WE4X750 WE4X750 IGNITER
WE04X0750 WE04X0750 IGNITOR ASM
49-9963-2 49-9963-2 INSTALL/OWNERS GUIDE
WE25X10001 WE25X10001 KIT REAR BEARING
WE01X10083 WE01X10083 KNOB-ROTARY
7C7 7C7 LAMP 7C7
WE02X10012 WE02X10012 LEVELING FOOT
WE18X10002 WE18X10002 LINT TRAP
WE01X10016 WE01X10016 LOCKFAN HOUSING
WE9X105 WE9X105 LOWER FELT
WE25X10016 WE25X10016 LP GAS CONVERSION KIT
31-15415 31-15415 MINI MANUAL
WE17X10001 WE17X10001 MOTOR & PULLEY
WE01X10003 WE01X10003 MOTOR CLAMP
WE02X0371 WE02X0371 NUT UNION GAS VALVE
WE01X10022 WE01X10022 ORIFICE NATURAL GAS
WE20X10009 WE20X10009 PANEL ACCESS
WE04X10011 WE04X10011 PANEL TOP WHITE
WE20X10016 WE20X10016 PANEL-FRONT STACK W/LIGHT
WE01X10157 WE01X10157 PIPE
WE01X10248 WE01X10248 PIPE GAS
WE01X10011 WE01X10011 PLUG WHITE
WE01X10010 WE01X10010 PLUG-DOME WHITE
WE08X10002 WE08X10002 POWER CORD
WE01X10015 WE01X10015 RACK-DRYING
WH2X1150 WH2X1150 SCREW
WE02X10007 WE02X10007 SCREW 10-14 X 1 00
WR2X9494 WR2X9494 SCREW 10-16 X 375
WE02X10011 WE02X10011 SCREW 8-18 X 375
WH01X10004 WH01X10004 SCREW 8-18AB X 375
WR02X9494 WR02X9494 SCREW 8-18B X 0.31
WH02X1150 WH02X1150 SCREW 8-32 X .250
WE02X10020 WE02X10020 SCREW GND 10-32T X 37
WE02X10014 WE02X10014 SCREW-
WE02X10005 WE02X10005 SCREW-BRACKET
WE02X10017 WE02X10017 SCREW-DOOR 10-16X 75
WH02X10009 WH02X10009 SCREW-LOCK 10-16X 50
WE09X0105 WE09X0105 SEAL BASKET LOWER
WE09X10003 WE09X10003 SEAL EXHAUST TUBE
WE09X10004 WE09X10004 SEAL-HEATER HOUSING
WE04X0751 WE04X0751 SENSOR
WE4X751 WE4X751 SENSOR
WE01X10158 WE01X10158 SHIELD HEATER PAN
WE01X10029 WE01X10029 SPACER-IDLER
WE25X10004 WE25X10004 STACKING KIT
WE01X1158 WE01X1158 STRIKE DOOR
WE1X1158 WE1X1158 STRIKE DOOR
WE13X10011 WE13X10011 SUPPORT SHAFT
WE04X10096 WE04X10096 SWITCH-BELT
WE04X10148 WE04X10148 SWITCH-DOOR W/DRUM LIGHT
WE04X10008 WE04X10008 SWITCH-START
WE04X10023 WE04X10023 SWITCH-TEMP
WE1X1166 WE1X1166 TAIL PIECE
WE01X1166 WE01X1166 TAIL PIECE GAS VALVE
WE04X10017 WE04X10017 THERMOSTAT - SAFETY
WE04X10018 WE04X10018 THERMOSTAT CONTROL
WE04X10059 WE04X10059 TIMER
WE14X10007 WE14X10007 TUBE EXHAUST ASM
WE21X0069 WE21X0069 VANE
WE21X69 WE21X69 VANE DRUM
WE01X10218 WE01X10218 W/PULLEY IDLER ARM ASSEMBLY
