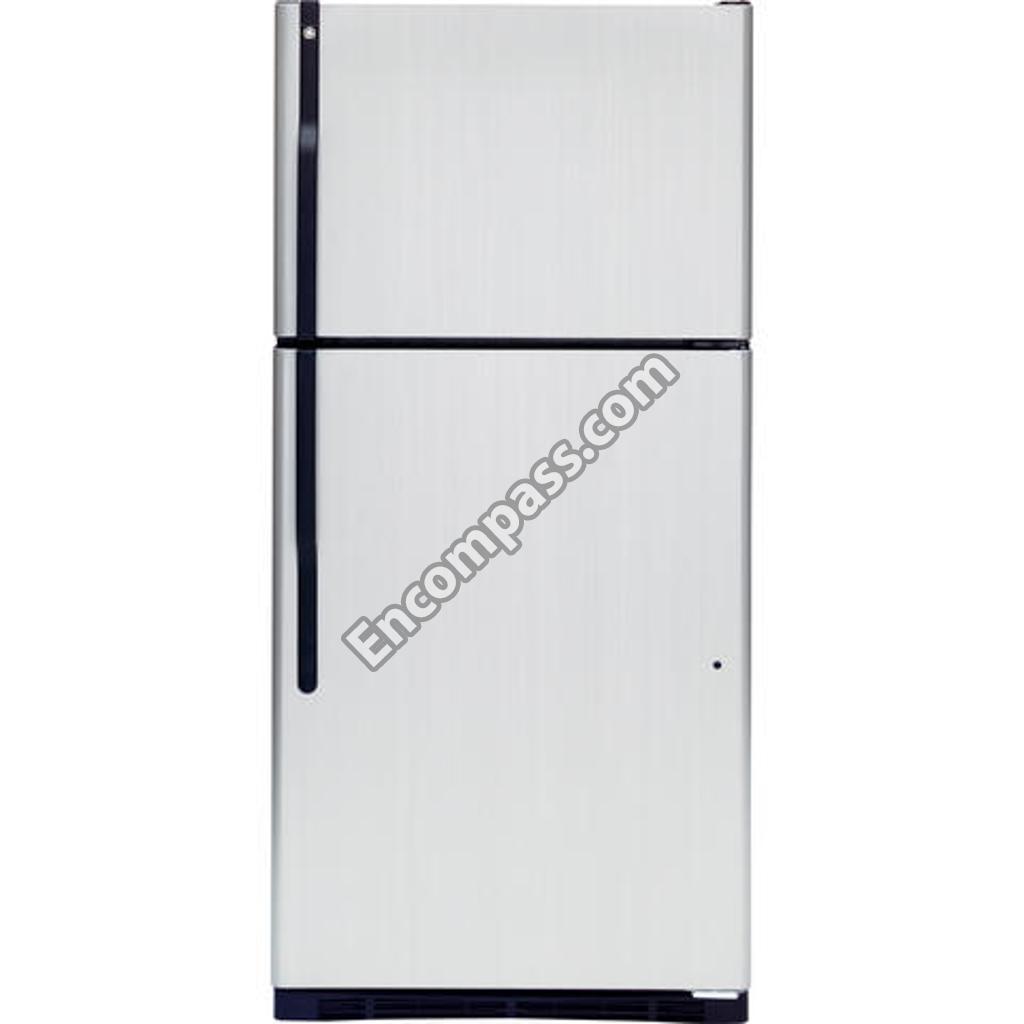

Model Image
Manufacturer

GE

Model Number

DTL18ICSRRBS

Description

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
40A15 40A15 GE 40WATT 15AMP INC AND ESCENT BULB
WR02X4039 WR02X4039 GE ADHESIVE CLIP
WR29X5129 WR29X5129 GE ARM SHUT OFF
WR01X10604 WR01X10604 GE AXLE WHEEL
WR17X10847 WR17X10847 GE BAFFLE COND LH
WR17X10848 WR17X10848 GE BAFFLE COND RH
WR29X5111 WR29X5111 GE BC00173-1
WR71X10525 WR71X10525 GE BIN FIXED RAINGUTTER GAL
WR60X10207 WR60X10207 GE BLADE COND FAN ASM
WR60X10205 WR60X10205 GE BLADE EVAP FAN ASM
WR02X10709 WR02X10709 GE BLOCK FOAM CONTROL
WR17X11527 WR17X11527 GE BPLATE STUD & WHEEL ASSEMBLY
WR02X11582 WR02X11582 GE BRACKET EVAP FAN
WR02X10762 WR02X10762 GE BRACKET EVAP FAN MTG SMA
WR02X10100 WR02X10100 GE BRACKET EVAPORATOR FAN SM
WR30X10154 WR30X10154 GE BUCKET ICE
WR2X7051 WR2X7051 GE BUTTON PLUG
WR1X5278 WR1X5278 GE CABLE CLAMP
WR02X10749 WR02X10749 GE CAP CORNER OC BLACK
WR02X11761 WR02X11761 GE CAP DOOR CORNER BK
WR02X11762 WR02X11762 GE CAP DOOR CORNER BK
WR02X11763 WR02X11763 GE CAP DOOR CORNER BK
WR02X11764 WR02X11764 GE CAP DOOR CORNER BK
WR55X24064 WR55X24064 GE CAPACITOR 12UF
WR02X11437 WR02X11437 GE CLAMP
WR2X4039 WR2X4039 GE CLAMP
WR01X5278 WR01X5278 GE CLAMP CABLE
WR29X0158 WR29X0158 GE CLAMP THERMOSTAT
WR2X8583 WR2X8583 GE CLIP
WR02X8583 WR02X8583 GE CLIP COMP MTNG
WR02X10712 WR02X10712 GE CLIP COND (DL)
WR01X10182 WR01X10182 GE CLIP U
WR87X20798 WR87X20798 GE COMP. REPL. KIT
WR84X10052 WR84X10052 GE CONDENSER ASSEMBLY S/L 3/16
WR84X10053 WR84X10053 GE CONDENSER REPL ASSEMBLY
WR51X10052 WR51X10052 GE CONDUCTOR HEAT
WR09X0503 WR09X0503 GE CONTROL DEFROST
WR09X26874 WR09X26874 GE CONTROL TEMP
WR23X10300 WR23X10300 GE CORD POWER ASM
WR82X10113 WR82X10113 GE COVER ACCESS
WR17X11641 WR17X11641 GE COVER EVAP ASM
WR02X10845 WR02X10845 GE COVER SCREW BLACK
WR32X10537 WR32X10537 GE COVER VEG PAN
WR29X0182 WR29X0182 GE COVER WH
WR29X182 WR29X182 GE CVR ICEMAKR
WR9X502 WR9X502 GE DEF CONTROL
WR22X28065 WR22X28065 GE DOOR DAIRY CLEAR
WR87X28948 WR87X28948 GE EVAP AND TUBE ASM
WR02X10768 WR02X10768 GE EXTENSION IM FILL TUBE
WR01X2035 WR01X2035 GE FASTENER PUSH
WR1X2035 WR1X2035 GE FASTENR PUSH
WR29X10063 WR29X10063 GE FILL CUP
WR14X10081 WR14X10081 GE FOAM STRIP SE ADH
WR24X10184 WR24X10184 GE GASKET DOOR FF
WR24X10185 WR24X10185 GE GASKET DOOR FZ
WR14X10077 WR14X10077 GE GASKET HOOD
WR02X7238 WR02X7238 GE GROMMET COMP MTG
WR02X11942 WR02X11942 GE GROMMET EVAP FAN GREEN
WR02X10098 WR02X10098 GE GROMMET MOTOR
WR2X7238 WR2X7238 GE GROMMET MTG.
WR02X10804 WR02X10804 GE GROMMET WATER FILL ASSEMBLY
WR12X10778 WR12X10778 GE HANDLE ASM FZ BK
WR12X10761 WR12X10761 GE HANDLE DOOR FF BK
WR23X10388 WR23X10388 GE HARNESS CNTRL MODULE
WR51X10038 WR51X10038 GE HEATER DEF ASM
WR13X10145 WR13X10145 GE HINGE BTM & PIN ASSEMBLY BLACK
WR13X10317 WR13X10317 GE HINGE CENTER 18 BK
WR13X10232 WR13X10232 GE HINGE TOP & PIN ASSEMBLY
WR02X10518 WR02X10518 GE HOLDER ELEMENT
WR02X10718 WR02X10718 GE HOOD DUCT FF ASSEMBLY L/SIDE
WR02X10719 WR02X10719 GE HOOD DUCT FF ASSEMBLY R/SIDE
WR29X0183 WR29X0183 GE HOUSING
WR29X183 WR29X183 GE HOUSING
WR17X10854 WR17X10854 GE HOUSING COND FAN
WR17X11537 WR17X11537 GE HOUSING CTL INSERT ASSEMBLY
WR30X0291 WR30X0291 GE ICE BUCKET
WR30X30972 WR30X30972 GE ICEMAKER REPLACEMENT KIT
WR01X1803 WR01X1803 GE KEY PIVOT
WR1X1733 WR1X1733 GE KEY PIVOT
WR02X11860 WR02X11860 GE KNOB THUMB CONTROL FF
WR02X11861 WR02X11861 GE KNOB THUMB CONTROL FZ
WR04X10141 WR04X10141 GE LENS NAMEPLATE
WR01X1815 WR01X1815 GE LEVELING NUT
WR1X1815 WR1X1815 GE LEVELING NUT
WR02X10722 WR02X10722 GE MOBILITY ASM
WR29X204 WR29X204 GE MOLD BODY AS
WR29X0204 WR29X0204 GE MOLD/HEATER ASM
WR29X10001 WR29X10001 GE MOTOR
WR60X10170 WR60X10170 GE MOTOR COND FAN
WR60X10172 WR60X10172 GE MOTOR EVAP FAN
WR30X10093 WR30X10093 GE MULTIPLE SUPERCEDURES
WR04X10143 WR04X10143 GE NAMEPLATE GE
WR29X0160 WR29X0160 GE NO ITEM DESCRIPTION
WR02X10723 WR02X10723 GE NOZZLE CONTROL FOAM
WR08X10102 WR08X10102 GE OVERLOAD PTCR COMBO
WR86X96 WR86X96 GE P/S DRYER KIT R134A
WR86X25269 WR86X25269 GE P/S DRYER KIT R134A
WR32X30015 WR32X30015 GE PAN 1/2
WR32X28064 WR32X28064 GE PAN 1/2
WR32X30002 WR32X30002 GE PAN SNACK
WR32X28066 WR32X28066 GE PAN SNACK
WR13X587 WR13X587 GE PIN HINGE
WR13X0587 WR13X0587 GE PIN HINGE CTR
WR12X10767 WR12X10767 GE PK HANDLE SMALL ASM BK
WR02X7051 WR02X7051 GE PLUG BUTTON
WR12X10136 WR12X10136 GE PLUG BUTTON HANDLE BLACK
WR02X8542 WR02X8542 GE PLUG BUTTON INSERT BK
WR02X21195 WR02X21195 GE PLUG DOOR REVERSABLE
WR02X8701 WR02X8701 GE PLUG DOOR RVSBL BK
WR02X10751 WR02X10751 GE PLUG DOOR THIMBLE BLACK
WR2X8542 WR2X8542 GE PLUG INSERT
49-60247 49-60247 GE PM GUIDE OWNERS
31-51655 31-51655 GE PM MINI MANUAL WIRING
WR17X11540 WR17X11540 GE RAIL FRONT ASM BB
WR02X11940 WR02X11940 GE RAIL FRONT PLUG KIT BK
WR78X24571 WR78X24571 GE REFER FREEZER DOOR ASSEMBLY-SS BS 18/30
WR78X24572 WR78X24572 GE REFER FRESH FOOD DOOR-SS BS 18/30
WR02X12149 WR02X12149 GE RING COMPRESSION
WR01X1591 WR01X1591 GE SCR 1/4-14 X 3/4
WR01X1728 WR01X1728 GE SCR 10-16 1/2 PH
WR01X1726 WR01X1726 GE SCR 10-16 AB 3/4 SS
WZ04X0263 WZ04X0263 GE SCR 10-16 AB HXW 1/2
WR01X10590 WR01X10590 GE SCR 10-16 AB PNT20 1/2 S
WR01X10634 WR01X10634 GE SCR 8-18 AB 13/4 S HXW
WR01X1804 WR01X1804 GE SCR 8-18 AB HXW 3/4 WH
WR01X10425 WR01X10425 GE SCR 8-18 HI/LO HXW 7/8S
WR01X1757 WR01X1757 GE SCR 8-18 HXW 1 1/4S
WR01X1763 WR01X1763 GE SCR 8-18 T WAFER 5/8
WR1X1466 WR1X1466 GE SCR 8-32 T HXW 3/8 S
WZ5X158D WZ5X158D GE SCR 8-32 T HXW 3/8 S
WR01X10626 WR01X10626 GE SCR HXW 11/4
WR1X1752 WR1X1752 GE SCREW
WR1X1591 WR1X1591 GE SCREW
WD2X5166 WD2X5166 GE SCREW
WZ5X246 WZ5X246 GE SCREW
WR1X1786 WR1X1786 GE SCREW
WR01X10606 WR01X10606 GE SCREW
WR01X1821 WR01X1821 GE SCREW 12-24 .7 BK
WR01X1822 WR01X1822 GE SCREW 12-24 .9 BK
WR01X26527 WR01X26527 GE SCREW 12-24 TT BHT 20 73S
WD02X0323 WD02X0323 GE SCREW 8-32 X 3/8 SPH
WB01T10047 WB01T10047 GE SCREW 8-32 X 625 M HXW S
WR1X1821 WR1X1821 GE SCREW BLACK
WR01X10219 WR01X10219 GE SCREW MOBILITY
WD2X323D WD2X323D GE SCREW-PKG 12
WR1X1726D WR1X1726D GE SCREW-PKG 12
WR1X1763D WR1X1763D GE SCREW-PKG 12
WR02X10727 WR02X10727 GE SHAFT DAMPER
WR71X10522 WR71X10522 GE SHELF ASM FZ
WR32X10554 WR32X10554 GE SHELF CANT FRAME ASM
WR32X10202 WR32X10202 GE SHELF CANT FRAME ASSEMBLY
WR32X10540 WR32X10540 GE SHELF CANT GLASS
WR32X10163 WR32X10163 GE SHELF CANT GLASS
WR32X10201 WR32X10201 GE SHELF ENCAP SNAP ON FULL
WR71X10681 WR71X10681 GE SHELF FRONT FZ
WR71X10682 WR71X10682 GE SHELF FRONT FZ(HALF)
WR02X11858 WR02X11858 GE SHIELD REFLECTOR FF
WR02X11006 WR02X11006 GE SLEEVE VINYL
WR72X10055 WR72X10055 GE SLIDE SNACK PAN LH
WR72X10086 WR72X10086 GE SLIDE SNACK PAN RH
WR02X30348 WR02X30348 GE SOCKET LAMP
WR02X11632 WR02X11632 GE SPACER SHAFT TEMP CTRL
WR29X10002 WR29X10002 GE SPRING BEAM
WR01X20124 WR01X20124 GE SPRING KNOB
WR01X10220 WR01X10220 GE SPRING KNOB
WR02X10740 WR02X10740 GE STOP DOOR FF
WR02X10752 WR02X10752 GE STOP DOOR FZ BLACK
WR02X3736 WR02X3736 GE STR RELIEF
WR1X1779 WR1X1779 GE STUD MTGCOMP
WR17X10317 WR17X10317 GE SUPPORT HIGH SIDE
WR02X11775 WR02X11775 GE SUPPORT VEG PAN
WR2X7973 WR2X7973 GE SUPT SHELF
WR29X5171 WR29X5171 GE SWITCH IM
WR23X10725 WR23X10725 GE SWITCH LIGHT FF
WR29X0185 WR29X0185 GE THERMAL CUT-OFF
WR29X0157 WR29X0157 GE THERMOSTAT
WR50X10025 WR50X10025 GE THERMOSTAT DEF
WR17X11521 WR17X11521 GE TOWER BOTTOM FZ
WR72X10057 WR72X10057 GE TRACK CANT SIDE
WR17X26031 WR17X26031 GE TROUGH DRAIN
WR17X11492 WR17X11492 GE TUBE PLASTIC
WR01X27364 WR01X27364 GE WASHER HINGE BROWN
WR57X10033 WR57X10033 GE WATER VALVE WITH GUARD
WR02X11583 WR02X11583 GE WHEEL DAMPER
WR02X10480 WR02X10480 GE WHEEL MOBILITY
WR02X11607 WR02X11607 GE WIRE TIE
WR29X5128 WR29X5128 GE WR29X0191
WR29X160 WR29X160 GE WR29X160
WZ4X416 WZ4X416 GE WZ04X0408
