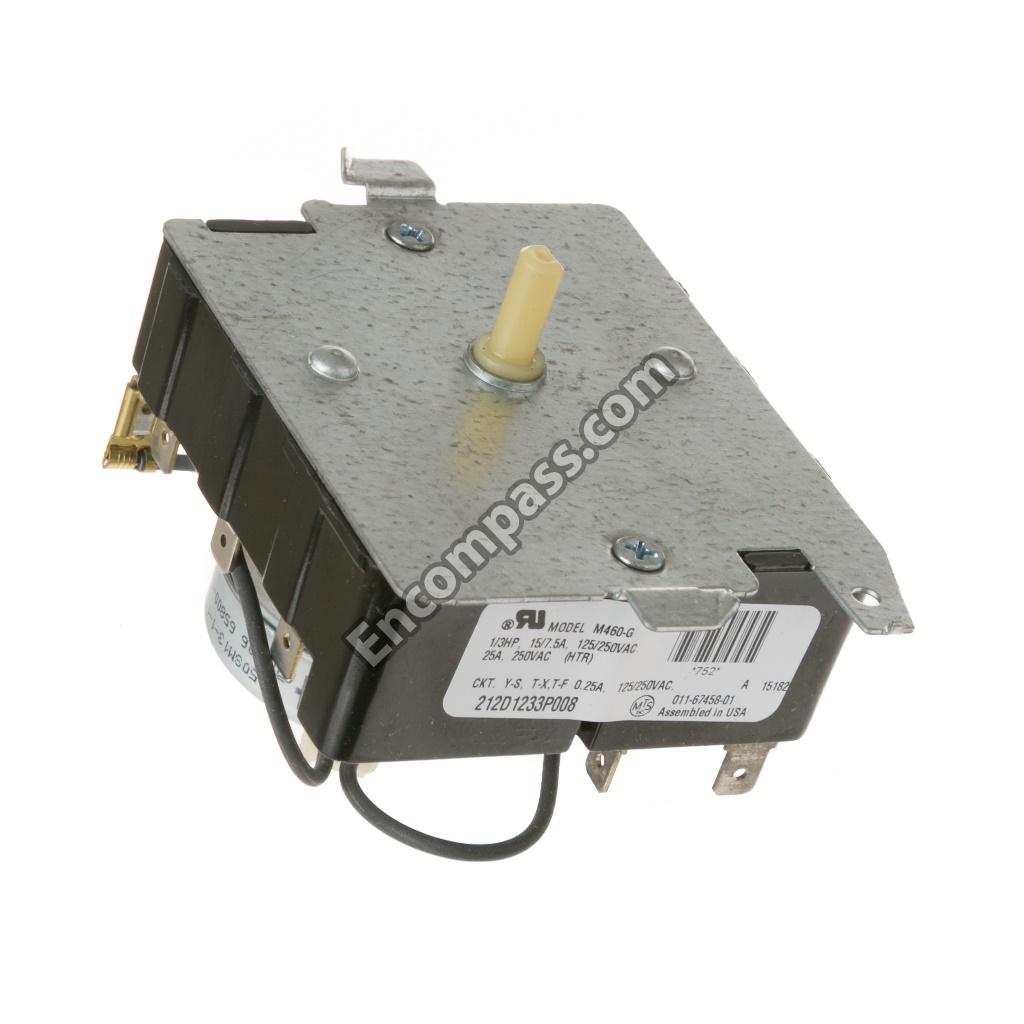

Model Image
Manufacturer

GE

Model Number

DVLR223PG4WW

Description

Dryer Gas

Interactive Exploded View

Parts List

Part Number Description
WE14X21334 WE14X21334 AIR DUCT ASSEMBLY
WE14X25080 WE14X25080 AIR DUCT ASSEMBLY
WE19M1499 WE19M1499 BACK. ASM
WE14M75 WE14M75 BAFFLE
WE25M40 WE25M40 BEARING KIT
WE1M300 WE1M300 BEARING RETAINER
WE03X37317 WE03X37317 BEARING SLIDE
WE1M504 WE1M504 BEARING-SLIDE WHITE
WR02X8693 WR02X8693 BEAUTY BUTTON-WHT
WE03X29897 WE03X29897 BELT DRIVE
WE09X27636 WE09X27636 BLOWER GASKET (EXHAUST)
WE14M93 WE14M93 BLOWER HOUSING
WE16X20393 WE16X20393 BLOWER WHEEL
WE20M253 WE20M253 BOTTOM COVER (E-COAT)
WE13X169 WE13X169 BRACKET COIL
WE13X0195 WE13X0195 BRACKET GAS VALVE
WE13X0118 WE13X0118 BRACKET SPACER
WE1M467 WE1M467 BRKT LVL SCREW FRONT
WE1M468 WE1M468 BRKT LVL SCREW REAR
WE13X0169 WE13X0169 BRKT. COIL
WE14M104 WE14M104 BURNER ASM.
WE20M398 WE20M398 CABINET BASE
WE14M91 WE14M91 CHAMBER COMBUSTION 6
WH01X10106 WH01X10106 CLIP KNOB
WE04X0692 WE04X0692 COIL DUAL
WE04X0693 WE04X0693 COIL MAIN
WE1M650 WE1M650 CONNECTOR MOTOR
WE26M341 WE26M341 CORD SET - GAS
WE20X20417 WE20X20417 COVER WHITE
WE14X20408 WE14X20408 DEFLECTOR HEAT
WE11X29438 WE11X29438 DEFLECTOR HEAT
WE11X29443 WE11X29443 DIFFUSER GAS
WE4M415 WE4M415 DOOR SWITCH
WE21X20562 WE21X20562 DRUM
WE18X25100 WE18X25100 DRYER LINT FILTER
WE4X692 WE4X692 DUAL COIL
WE14M197 WE14M197 DUCT TRANSITION
WE11X29441 WE11X29441 DUCT TRANSITION
WE14X20421 WE14X20421 ELBOW EXHAUST
WE49X22294 WE49X22294 END CAP RH WH
WE19X20467 WE19X20467 END CAP RH WH
WE09X20441 WE09X20441 FELT
WE09X27634 WE09X27634 FELT
WE4X448 WE4X448 FLAME DETECTOR
WE1M527 WE1M527 FRONT BRACKET LEVEL LEG
WE2M188 WE2M188 FRONT STABILIZING LEGS
WE14X20401 WE14X20401 GAS DIFFUSER & PLATE ASM
WE14M114 WE14M114 GAS VALVE & PIPE ASM. NG
WE1M825 WE1M825 GASKET (SEAL) 39 INCH
WE1M966 WE1M966 GASKET SEAL
WE1M1015 WE1M1015 GROUND STRAP
WE01X20419 WE01X20419 HANDLE WHITE
WE1M1033 WE1M1033 HINGE
WE03X20434 WE03X20434 IDLER ARM
WE04X25996 WE04X25996 IGNITER
WE04X0739 WE04X0739 IGNITER ASM
WE49X22295 WE49X22295 INNER DOOR&GSKT WHITE
31-16159 31-16159 INSTALL INSTR ( GAS )
WE17X22217 WE17X22217 KIT MOTOR & PULLY
WE25X0218 WE25X0218 KIT NAT GAS ORIFICE CONV
WE25X217 WE25X217 KIT-LP GAS
WE25X218 WE25X218 KIT-NATL GAS
WE1M1011 WE1M1011 LATCH DOOR
WE1M642 WE1M642 LEVELLING SCREW GRAY
WE4X693 WE4X693 MAIN COIL
31-16200 31-16200 MINI-MANUAL WIRING
WE01X0921 WE01X0921 MOTOR BRACKET
WE13X20394 WE13X20394 MOTOR PLATE
WE1X921 WE1X921 MOTOR STRAP
WE13M39 WE13M39 MOTOR SUPPORT
WE1M461 WE1M461 O RING
WE10X20468 WE10X20468 OUTER DOOR
WE20M301 WE20M301 PANEL REAR (6CU)
WE20M393 WE20M393 PANEL SIDE WH
WE01X0617 WE01X0617 PIPE CLAMP
WE1X617 WE1X617 PIPE CLAMP
WR01X21159 WR01X21159 PLUG DOOR
WE12X83 WE12X83 PULLEY IDLER
WE4M416 WE4M416 PUSH TO START SWITCH
WE1M659 WE1M659 PUSH/ START BUTTON GREY
WE1M528 WE1M528 REAR BRACKET LEVEL LEG
WE19M1481 WE19M1481 REAR PANEL
WR01X10317 WR01X10317 SCR 8-32 CA HXW 1/2
WE1M280 WE1M280 SCREW
WE2M173 WE2M173 SCREW
WE2M202 WE2M202 SCREW
WR2X9260 WR2X9260 SCREW
WE2M189 WE2M189 SCREW
WD2M101 WD2M101 SCREW
WE2M174 WE2M174 SCREW # 10
WE2M163 WE2M163 SCREW #10
WE2M196 WE2M196 SCREW #8
WE2M160 WE2M160 SCREW #8
WE02X0333 WE02X0333 SCREW (COIL MTG BRKT)
WD02X10057 WD02X10057 SCREW 10-16X1/2 AB HXW S
WE2M200 WE2M200 SCREW GROUND
WE1M486 WE1M486 SHUTTER
WE1M462 WE1M462 SLEEVE DRUM
WE1M1067 WE1M1067 SLIDE DRUM - GREEN
WE13X118 WE13X118 SPACER BRKT
WE13X0200 WE13X0200 STRAP MOTOR
WE13X200 WE13X200 STRAP MOTOR
WE1X1192 WE1X1192 STRIKE DOOR
WD21X0557 WD21X0557 SWITCH INTERLOCK
WD21X10261 WD21X10261 SWITCH INTERLOCK
WE4M181 WE4M181 THERMOSTAT BIAS CTR INLT
WE4M127 WE4M127 THERMOSTAT DRUM OUT
WE4M137 WE4M137 THERMOSTAT HI-LIMIT
WE4M80 WE4M80 THERMOSTAT SAFETY
WE1M654 WE1M654 TIMER KNOB ASM WH
WE4M360 WE4M360 TIMER PLAS. SHAFT
WE3M26 WE3M26 TOP BEARING
WE01X0980 WE01X0980 U CLIP
49-9918 49-9918 UC DIST333 EXPORT SP/CHI
WE13X195 WE13X195 VALVE BRKT
WE1X1091 WE1X1091 WE1X1091
WE2X263D WE2X263D WE2X263D
WE2M96 WE2M96 WE2X329
