Model Image
Manufacturer

GE

Model Number

DWSR483EG4CC

Description

Dryer Electric

Interactive Exploded View

Parts List

Part Number Description
WE14X21334 WE14X21334 AIR DUCT ASSEMBLY
WE14X25080 WE14X25080 AIR DUCT ASSEMBLY

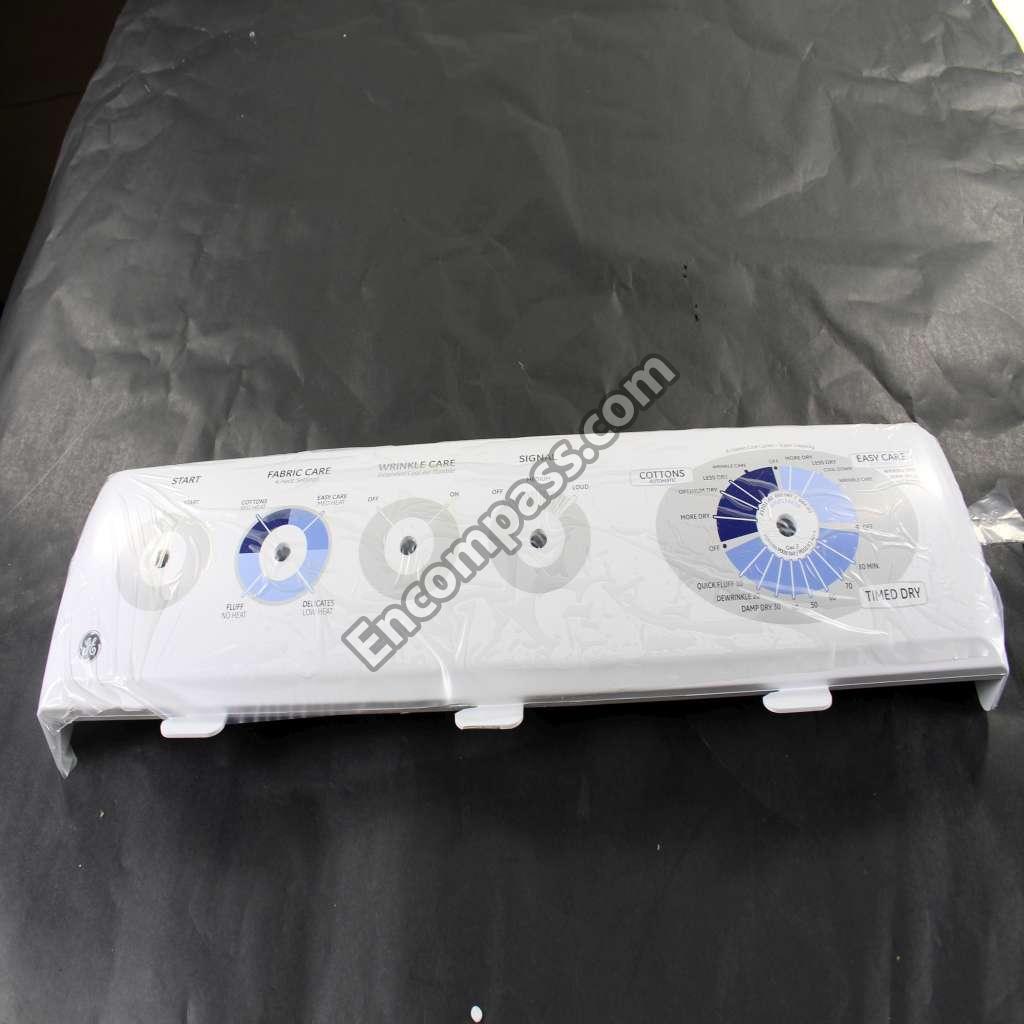

WE19M1486 WE19M1486 BACK. ASM
WE19M1487 WE19M1487 BACK. ASM
WE14M75 WE14M75 BAFFLE
WE25M40 WE25M40 BEARING KIT
WE1M300 WE1M300 BEARING RETAINER
WE1M504 WE1M504 BEARING-SLIDE WHITE
WE09X27636 WE09X27636 BLOWER GASKET (EXHAUST)
WE14M93 WE14M93 BLOWER HOUSING
WE16X20393 WE16X20393 BLOWER WHEEL
WE20M253 WE20M253 BOTTOM COVER (E-COAT)
WE1M467 WE1M467 BRKT LVL SCREW FRONT
WE1M468 WE1M468 BRKT LVL SCREW REAR
WE20M398 WE20M398 CABINET BASE
WE49X22354 WE49X22354 CABINET FRONT CC
WE1M452 WE1M452 CERAMIC INSULATOR
WH01X10106 WH01X10106 CLIP KNOB
WE1M650 WE1M650 CONNECTOR MOTOR
WE20X20576 WE20X20576 COVER TOP
WE14X20408 WE14X20408 DEFLECTOR HEAT
WE11X29438 WE11X29438 DEFLECTOR HEAT
WE21X20566 WE21X20566 DRUM ASSEMBLY
WE1M1011 WE1M1011 DRYER DOOR LATCH
WE4M415 WE4M415 DRYER DOOR SWITCH
WE17X22217 WE17X22217 DRYER DRIVE MOTOR
WE03X29897 WE03X29897 DRYER DRUM DRIVE BELT
WE09X27634 WE09X27634 DRYER DUCT TRAP FELT
WE1X921 WE1X921 DRYER MOTOR STRAP
WE20X20559 WE20X20559 DRYER REAR PANEL
WE4M519 WE4M519 DRYER ROTARY START SWITCH

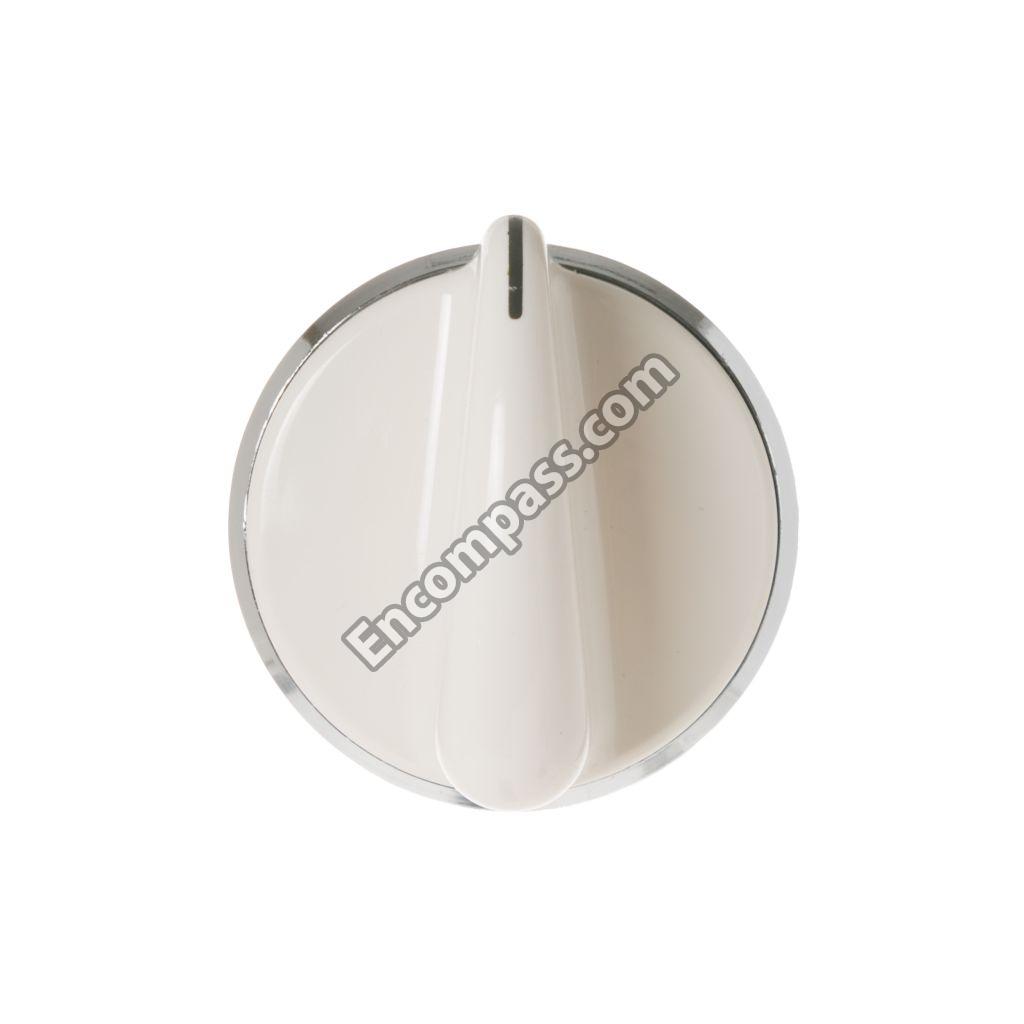

WE01X20375 WE01X20375 DRYER TIMER KNOB - BISQUE
WE14X20421 WE14X20421 ELBOW EXHAUST
WE19X20571 WE19X20571 END CAP
WE19X20572 WE19X20572 END CAP RH CC
WE19X20467 WE19X20467 END CAP RH WH
WE09X20441 WE09X20441 FELT
WE18X25100 WE18X25100 FILTER & MESH ASM.
WE1M527 WE1M527 FRONT BRACKET LEVEL LEG
WE1M825 WE1M825 GASKET (SEAL) 39 INCH
WE1M966 WE1M966 GASKET SEAL
WE1M1015 WE1M1015 GROUND STRAP
WE01X20580 WE01X20580 HANDLE DOOR CC
WE1M1033 WE1M1033 HINGE
WE11M23 WE11M23 HOUSING HEATER ASSEMBLY
WE03X20434 WE03X20434 IDLER ARM
WE10X20578 WE10X20578 INNER DOOR & GSKT ASM.
31-16135 31-16135 INSTALL INSTRUCTION

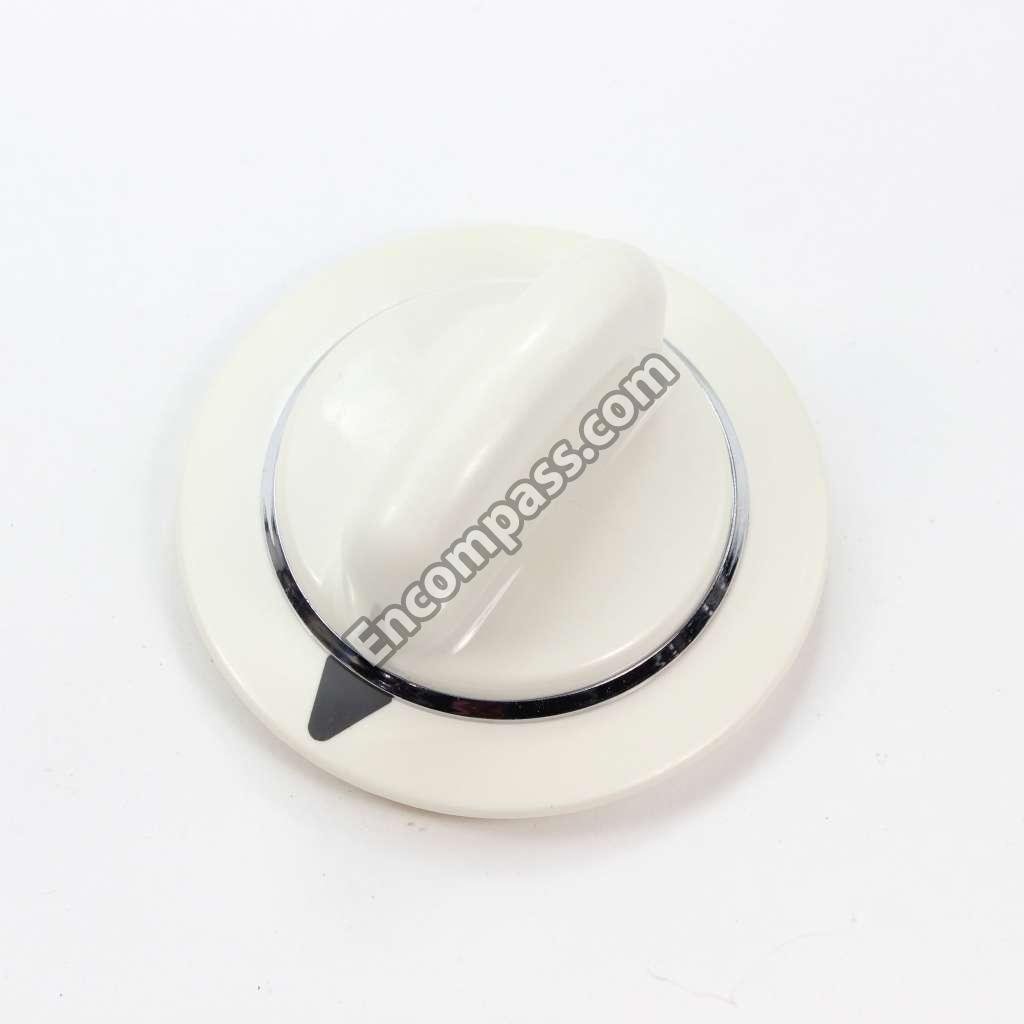

WE01X20379 WE01X20379 KNOB AND CLIP ASSEMBLY BQ
WE05X20431 WE05X20431 LAMP
WE1M642 WE1M642 LEVELLING SCREW GRAY
31-16093 31-16093 MINI MANUAL
WE01X0921 WE01X0921 MOTOR BRACKET
WE13X20394 WE13X20394 MOTOR PLATE
WE13M39 WE13M39 MOTOR SUPPORT
WE1M461 WE1M461 O RING
WE10X20577 WE10X20577 PANEL DOOR OUTER BISQUE
WE20M393 WE20M393 PANEL SIDE AB
WE20M307 WE20M307 PANEL SIDE CC
WE12X83 WE12X83 PULLEY IDLER
WE4M399 WE4M399 R.SWITCH (XCARE) ON/OFF
WE1M528 WE1M528 REAR BRACKET LEVEL LEG
WE19M1481 WE19M1481 REAR PANEL
WE4M255 WE4M255 RESISTOR
WE4M411 WE4M411 ROTARY SWITCH ZODIAC 4TEMP
WR01X21263 WR01X21263 RVSBL DOOR CAPS BISQUE
WE1M280 WE1M280 SCREW
WR2X9260 WR2X9260 SCREW
WE2M173 WE2M173 SCREW
WE2M202 WE2M202 SCREW
WE2M189 WE2M189 SCREW
WE2M174 WE2M174 SCREW # 10
WE2M163 WE2M163 SCREW #10
WE2M196 WE2M196 SCREW #8
WE2M160 WE2M160 SCREW #8
WD02X10057 WD02X10057 SCREW 10-16X1/2 AB HXW S
WZ4X241D WZ4X241D SCREW-PKG 12
WZ5X158D WZ5X158D SCREW-PKG 12
WE13M26 WE13M26 SHIELD
WE1M462 WE1M462 SLEEVE DRUM
WE1M1067 WE1M1067 SLIDE DRUM - GREEN
WE03X37317 WE03X37317 SLIDE DRUM - GREEN
WE5M48 WE5M48 SOCKET ASM
WE01X20423 WE01X20423 STRAIN RELIEF BRACKET
WE13X0200 WE13X0200 STRAP MOTOR
WE13X200 WE13X200 STRAP MOTOR
WE1X1192 WE1X1192 STRIKE DOOR
WD21X0557 WD21X0557 SWITCH INTERLOCK
WD21X10261 WD21X10261 SWITCH INTERLOCK
WE4M325 WE4M325 TERM BLK & GRND STRAP
WE1M1102 WE1M1102 TERM. BLOCK COVER
WE4M181 WE4M181 THERMOSTAT BIAS CTR INLT
WE4M216 WE4M216 THERMOSTAT BIAS DRUM OUT
WE4M137 WE4M137 THERMOSTAT HI-LIMIT
WE4M160 WE4M160 THERMOSTAT SAFETY LEFT
WE1M654 WE1M654 TIMER KNOB ASM WH
WE04X20089 WE04X20089 TIMER PLAS. SHAFT
WE3M26 WE3M26 TOP BEARING
WE01X0980 WE01X0980 U CLIP
49-90318 49-90318 USE & CARE
WE4M368 WE4M368 VARIABLE BUZZER
WE2X263D WE2X263D WE2X263D
WE2M96 WE2M96 WE2X329
