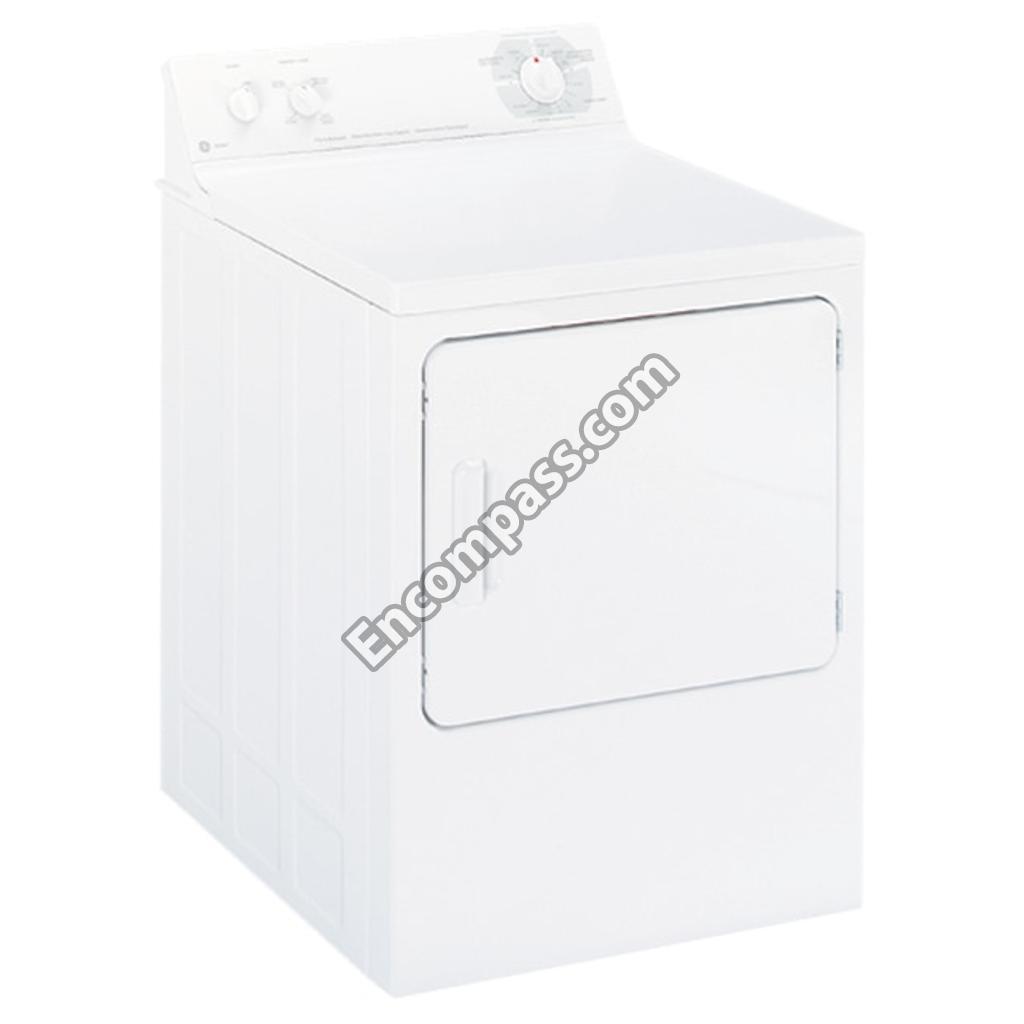

Model Image
Manufacturer

GE

Model Number

DX4500EA1WW

Description

Dryer Electric

Interactive Exploded View

Parts List

Part Number Description
WE14M75 WE14M75 BAFFLE
WE14M0075 WE14M0075 BAFFLE DRUM
WE03M0020 WE03M0020 BEARING DRUM
WE25M40 WE25M40 BEARING KIT
WE1M300 WE1M300 BEARING RETAINER
WE03X37317 WE03X37317 BEARING SLIDE
WE1M504 WE1M504 BEARING-SLIDE WHITE
WR02X8693 WR02X8693 BEAUTY BUTTON-WHT
WH12X1074 WH12X1074 BEEPER END OF CYCLE
WE12M0022 WE12M0022 BELT DRIVE
WE03X29897 WE03X29897 BELT DRIVE
WE16X0030 WE16X0030 BLOWER WHEEL
WE16M15 WE16M15 BLOWER WHEEL
WE20M253 WE20M253 BOTTOM COVER (E-COAT)
WE1M467 WE1M467 BRKT LVL SCREW FRONT
WE1M468 WE1M468 BRKT LVL SCREW REAR
WE20M398 WE20M398 CABINET BASE
WE20M0254 WE20M0254 CABINET FRONT WH
WE02M0096 WE02M0096 CAP NUT.
WE1M452 WE1M452 CERAMIC INSULATOR
WE01X0688 WE01X0688 CLAMP
WE1X688 WE1X688 CLAMP AND SCREW
WH01X10106 WH01X10106 CLIP KNOB
WE20M0253 WE20M0253 COVER BOTTOM
WE20X20417 WE20X20417 COVER WHITE
WE14M0077 WE14M0077 DEFLECTOR HEAT
WE11X29438 WE11X29438 DIFFUSER
WE01X0903 WE01X0903 DOOR LATCH
WE1X1192 WE1X1192 DOOR STRIKE
WE21X20562 WE21X20562 DRUM
WE21M0014 WE21M0014 DRUM 6 CU FT
WE03X0039 WE03X0039 DRUM SHAFT & BRACKET
WE4M415 WE4M415 DRYER DOOR SWITCH
WE18X25100 WE18X25100 DRYER LINT FILTER
WE1X921 WE1X921 DRYER MOTOR STRAP
WE14M0076 WE14M0076 DUCT AIR
WE14X20421 WE14X20421 ELBOW EXHAUST
WE19M1418 WE19M1418 END CAP LH WHITE
WE19M1419 WE19M1419 END CAP RH WH
WE1X1263 WE1X1263 EXPANDED PART
WE09M0015 WE09M0015 FELT
WE09X27634 WE09X27634 FELT TRAP DUCT
WE01M0376 WE01M0376 GASKET
WE9M13 WE9M13 GASKET
WE1M825 WE1M825 GASKET (SEAL) 39 INCH
WE09M0013 WE09M0013 GASKET DOOR
WE1X1172 WE1X1172 GR STRAP ASM
WE01X1172 WE01X1172 GROUND STRAP ASM
WE01X20419 WE01X20419 HANDLE WHITE
WE01X1188 WE01X1188 HANDLE, DOOR WH
WE11M23 WE11M23 HEATER ASM.
WE1M1033 WE1M1033 HINGE
WE01M0394 WE01M0394 HINGE DOOR
WE03X25374 WE03X25374 HOUS BLOWER
WE14M0078 WE14M0078 HOUSING BLOWER
WE03X20434 WE03X20434 IDLER ARM
31-16023 31-16023 INSTALL INSTRUCTIONS
WE49X22295 WE49X22295 KIT FRONT PANEL AND INNE
WE1M1011 WE1M1011 LATCH DOOR
WH1X2721 WH1X2721 LAUNDRY KNOB - WHITE
WE01M0368 WE01M0368 LEVELLING SCREW
WE1M642 WE1M642 LEVELLING SCREW GRAY
49-90052 49-90052 MANUAL USE & CARE
31-16038 31-16038 MINI MANUAL
WE17M0022 WE17M0022 MOTOR ASM
WE01X0921 WE01X0921 MOTOR BRACKET
WE17X10010 WE17X10010 MOTOR KIT
WE13X20394 WE13X20394 MOTOR PLATE
WE13M39 WE13M39 MOTOR SUPPORT
WH02M0270 WH02M0270 NO ITEM DESCRIPTION
WE01M0316 WE01M0316 NO ITEM DESCRIPTION
WE02X0280 WE02X0280 NO ITEM DESCRIPTION
WE10X20468 WE10X20468 OUTER DOOR
WE20X814 WE20X814 PANEL BACK
WE20X0811 WE20X0811 PANEL BACK
WE10M0092 WE10M0092 PANEL DOOR INNER WH
WE10M0102 WE10M0102 PANEL OUTER WH
WE20M301 WE20M301 PANEL REAR (6CU)
WE20M0260 WE20M0260 PANEL SIDE WH
WE20M393 WE20M393 PANEL SIDE WH
WR01X21159 WR01X21159 PLUG DOOR
WE12X0041 WE12X0041 PULLEY DRIVE
WE12M0008 WE12M0008 PULLEY IDLER
WE12X83 WE12X83 PULLEY IDLER
WE12X41 WE12X41 PULLEY&SCREW
WE4M255 WE4M255 RESISTOR
WE01M0300 WE01M0300 RETAINER BEARING
WE4M407 WE4M407 ROTARY SWITCH 4TEMP REG
WH2X1206 WH2X1206 SCR 8-18 AB
WH02X1206 WH02X1206 SCR 8-18 ABFLT 5/8 SN WH
WE02M0163 WE02M0163 SCREW
WE02M0174 WE02M0174 SCREW
WH02M0388 WH02M0388 SCREW
WE2M0160 WE2M0160 SCREW
WE02M0153 WE02M0153 SCREW
WE02M0154 WE02M0154 SCREW
WE02M0167 WE02M0167 SCREW
WE02M0148 WE02M0148 SCREW
WE02M0156 WE02M0156 SCREW
WE02M0173 WE02M0173 SCREW
WR2X9260 WR2X9260 SCREW
WE2M202 WE2M202 SCREW
WE1M280 WE1M280 SCREW
WE2M173 WE2M173 SCREW
WH02M0342 WH02M0342 SCREW
WE2M174 WE2M174 SCREW # 10
WE2M163 WE2M163 SCREW #10
WE2M196 WE2M196 SCREW #8
WE2M160 WE2M160 SCREW #8
WD02X10057 WD02X10057 SCREW 10-16X1/2 AB HXW S
WE2X280D WE2X280D SCREW 14-10 A HX 1 S
WE2M200 WE2M200 SCREW GROUND
WZ4X241D WZ4X241D SCREW-PKG 12
WE13M0026 WE13M0026 SHIELD
WE13M26 WE13M26 SHIELD
WE1M449 WE1M449 SHIELD DOOR SWITCH
WE03M0015 WE03M0015 SLEEVE BEARING
WE01M0333 WE01M0333 SLIDE DRUM (WH)
WE2M165 WE2M165 SPEED NUT
WE02M0165 WE02M0165 SPEEDNUT
WE03M0017 WE03M0017 SPRING IDLER
WE01X20423 WE01X20423 STRAIN RELIEF BRACKET
WE13X200 WE13X200 STRAP MOTOR
WE13X0182 WE13X0182 STRAP, MOTOR
WE01M0314 WE01M0314 STRIKE
WH46X10019 WH46X10019 SUPPORT SWITCH
WE4X881 WE4X881 SW ROTARY ST
WD21X0557 WD21X0557 SWITCH INTERLOCK
WD21X10261 WD21X10261 SWITCH INTERLOCK
WE04X0881 WE04X0881 SWITCH ROTARY START
WE19M1183 WE19M1183 SWITCH TRIM ASSEMBLY
WE4M160 WE4M160 T'STAT , SAFETY LEFT
WE4M216 WE4M216 T'STAT BIAS DRUM OUT
WE4M137 WE4M137 T'STAT HI-LIMIT
WE4M325 WE4M325 TERM BLK AND GRND STRAP
WE1M1102 WE1M1102 TERM. BLOCK COVER
WE4M181 WE4M181 THERMOSTAT BIAS CTR INLT
WE4M0181 WE4M0181 THERMOSTAT CTR INLET
WE4M271 WE4M271 TIMER DRYER
WE3M26 WE3M26 TOP BEARING
WE20M0286 WE20M0286 TOP COVER WH
WE14X25080 WE14X25080 TRAP DUCT ASM
WE18M0019 WE18M0019 TRAP LINT
WE01X0980 WE01X0980 U CLIP
WE02X0195 WE02X0195 WASHER
WE2M96 WE2M96 WE2X329
