Model Image
Manufacturer

GE

Model Number

EVM1750DM2BB

Description

Microwave Or Advantium

Interactive Exploded View

Parts List

Part Number Description
WB06X10826 WB06X10826 ASM HOOD DAMPER
WB27X10939 WB27X10939 ASM-MAGNETRON
WB56X10718 WB56X10718 BASE BOTTOM
WB56X10212 WB56X10212 BASE-PLATE
WB56X10726 WB56X10726 BASE-PLATE
WB01X10180 WB01X10180 BOLT-FLAT CAB MOUNTING
WB02X11265 WB02X11265 BRACKET LAMP
WB06X10147 WB06X10147 BRACKET-AIR GUIDE A
WB06X10434 WB06X10434 BRACKET-BARRIER
WB06X10148 WB06X10148 BRACKET-DUCT UPPER ASSEMBLY
WB06X10118 WB06X10118 BRACKET-H V C
WB06X10713 WB06X10713 BRACKET-HVC
WB06X10122 WB06X10122 BRACKET-POWER CORD
WB06X10165 WB06X10165 BRACKET-V/T MOTOR
WB06X10714 WB06X10714 BRACKET-V/T MOTOR
WB06X10126 WB06X10126 BUTTON-LOCK
WB27X10011 WB27X10011 CAPACITOR 2100V/0.91 MICROF
WB27X10170 WB27X10170 CAPACITOR- MOTOR
WB56X10719 WB56X10719 CASE OUTER BK
WB56X10727 WB56X10727 CASE-OUTER BK
WB2X9883 WB2X9883 CHARCOAL FILTER
WB07X11045 WB07X11045 CONTOL PANEL ASM BK
WB07X11047 WB07X11047 CONTOL PANEL ASM BQ
WB07X11046 WB07X11046 CONTOL PANEL ASM WH
49-40202 49-40202 COOKING GUIDE-LABEL
WB06X10420 WB06X10420 COUPLER TT
WB06X10129 WB06X10129 COVER-DAMPER
WB06X10715 WB06X10715 COVER-DAMPER
WB06X10132 WB06X10132 COVER-FRONT
WB06X10716 WB06X10716 COVER-FRONT
WB36X10216 WB36X10216 COVER-GLASS
WB36X10217 WB36X10217 COVER-GLASS
WB06X10130 WB06X10130 COVER-STIRRER
WB55X10858 WB55X10858 DOOR A
WB56X10720 WB56X10720 DOOR ASM BK
WB56X10725 WB56X10725 DOOR ASM BQ
WB56X10723 WB56X10723 DOOR ASM WH
WB55X10860 WB55X10860 DOOR C
WB55X10859 WB55X10859 DOOR E
WB24X799 WB24X799 EXPANDED PART
WB36X10068 WB36X10068 FILM DOOR
WB06X10596 WB06X10596 FILTER-AIR
WB36X10071 WB36X10071 GLASS COOKTOP LAMP
WB07X11037 WB07X11037 GRILLE
WB07X11039 WB07X11039 GRILLE
WB07X11034 WB07X11034 GRILLE (BLACK)
WB27X10868 WB27X10868 H.V. TRANSFORMER.
WB15X10223 WB15X10223 HANDLE ASM BK
WB55X10864 WB55X10864 HANDLE ASM BQ
WB15X10224 WB15X10224 HANDLE ASM WH
WB27X11103 WB27X11103 HARNESS HUMIDITY SENSOR
WB06X10467 WB06X10467 HOLDER-RACK-A
WB06X10468 WB06X10468 HOLDER-RACK-B
WB06X0549 WB06X0549 HOLDER-SENSOR
WB06X10286 WB06X10286 HOLDER-STIRRER
WB27X10869 WB27X10869 HUMIDITY SENSOR
49-40538 49-40538 INSTRUCTIONS INSTALL
WB36X10003 WB36X10003 LAMP-INCANDESCENT
WB05X10007 WB05X10007 LATCH PAWL
WB06X10676 WB06X10676 LATCH-BODY
WB06X10128 WB06X10128 LEVER-S/W
WB27X10597 WB27X10597 MICROWAVE DIODE
WB39X10003 WB39X10003 MICROWAVE GLASS TRAY
WB06X10436 WB06X10436 MICROWAVE HOOD DAMPER ASSEMBLY
WB27X10880 WB27X10880 MICROWAVE MAGNETRON OM75P(10)

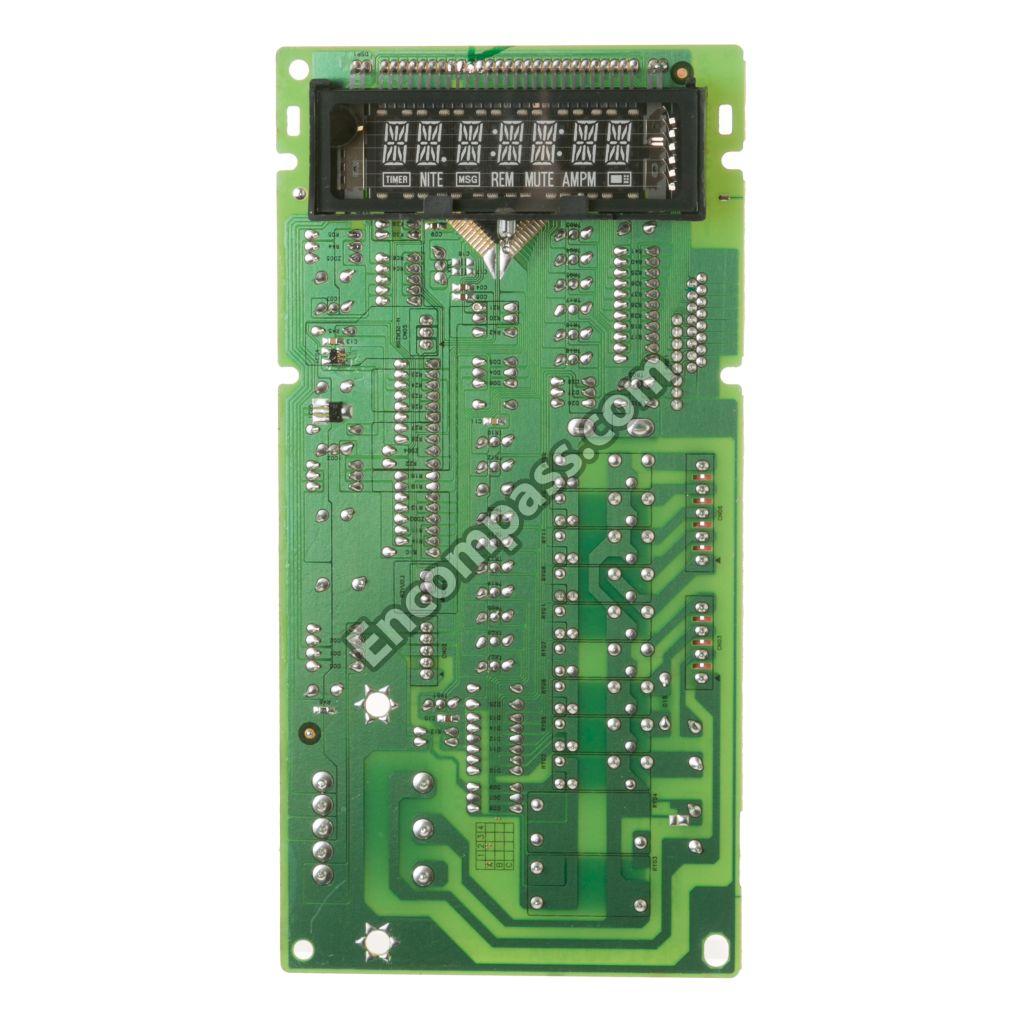

WB27X11102 WB27X11102 MICROWAVE SMART BOARD
WB27X10935 WB27X10935 MICROWAVE SMART BOARD
49-40539 49-40539 MICROWAVE/HOOD COOKTOP NAMEPLA
WB26X10105 WB26X10105 MOTOR MAG FAN ASSEMBLY
WB26X10242 WB26X10242 MOTOR MAG FAN ASSEMBLY
WB26X10210 WB26X10210 MOTOR VENTILATION
WB26X10037 WB26X10037 MOTOR-DRIVE
WB26X10038 WB26X10038 MOTOR-SYNCHRONOUS
WB01X10181 WB01X10181 MOUNTING HARDWARE ASM
WB56X10862 WB56X10862 MOUNTING PLATE W\MANUAL
WB02X11200 WB02X11200 NOISE FILTER ASM
WB01X10065 WB01X10065 NUT MAGNETRON
WB01X10071 WB01X10071 NUT TOP MOUNTING
WB4X175 WB4X175 PCB SUPPORT
WB06X10060 WB06X10060 PIN-HINGE
WB56X10446 WB56X10446 PLATE MOUNTING ASM
31-41036 31-41036 PM MINI MANUAL
WB18X10200 WB18X10200 POWER CORD ASSEMBLY
WB48X10053 WB48X10053 RACK WIRE
WB06X10139 WB06X10139 ROLLER GUIDE RING
WB27X10195 WB27X10195 S/W THERMO
WB36X10334 WB36X10334 SCREEN DOOR B
WB01X10084 WB01X10084 SCREW WASHER
WB08X10016 WB08X10016 SOCKET LAMP
WB05X10006 WB05X10006 SPRING-KEY
WB06X10416 WB06X10416 STIRRER ASSEMBLY
WB24X830 WB24X830 SW-MONITOR
WB24X829 WB24X829 SW-SECONDARY
WB21X0535 WB21X0535 TCO -BOTTOM
WB27X10194 WB27X10194 TCO HOOD
WB27X1127 WB27X1127 THERMO SW-TCO SENSE TEMP
WB27X10166 WB27X10166 THERMOSTAT
WB26X10233 WB26X10233 TURNTABLE MOTOR
WB27X10422 WB27X10422 UPPER DUCT ASSEMBLY
49-40534 49-40534 USE & CARE
WB18X10337 WB18X10337 WIRE HARNESS-A
