Model Image
Manufacturer

GE

Model Number

FCM11PHCWW

Description

Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WR97X10137 WR97X10137 4MM X 4MM LOKRING
WR97X10085 WR97X10085 6MM X 1.8MM LOKRING
WR97X10033 WR97X10033 6MM X 4MM LOKRING
WR97X10031 WR97X10031 6MM X 6MM LOKRING
WR02X21268 WR02X21268 ADJUSTABLE FOOT
WR23X21269 WR23X21269 AMERICAN POWER CABLE
WR02X21270 WR02X21270 BOTTOM HINGE COVER
WR01X21271 WR01X21271 BULB
WR01X21272 WR01X21272 BUSHING
WR87X32386 WR87X32386 COMPRESSOR
WR17X21274 WR17X21274 COMPRESSOR MOUNTING PANE
WR17X21275 WR17X21275 CONTROL PANEL
WR01X21276 WR01X21276 DIRECTIONAL WHEEL ANGLE
WR24X21277 WR24X21277 DOOR SEAL
WR02X21278 WR02X21278 DRAIN TUBE COVER
WR78X21279 WR78X21279 FREEZER DOOR ASSEMBLY
WR01X21280 WR01X21280 HAMMER SWITCH
WR21X21281 WR21X21281 HANGING BASKET
WR13X21282 WR13X21282 HINGE
WR01X21283 WR01X21283 INNER TUBE COVER
WR05X24324 WR05X24324 KEY
WR01X21284 WR01X21284 LAMP COVER
WR01X21285 WR01X21285 LED LAMP
WR05X21286 WR05X21286 LOCK
WR05X21287 WR05X21287 LOCK CASING
WR05X21288 WR05X21288 LOCK COVER
WR05X21289 WR05X21289 LOCK HOOK
WR18X32387 WR18X32387 OLP
31-1000411 31-1000411 PM MINI MANUAL AND WIRING
WR55X32224 WR55X32224 PTC
WR18X21292 WR18X21292 PTC COVER
WR87X30875 WR87X30875 R600 DRIER W/ RED CAP
WR87X30876 WR87X30876 R600 PROCESS VALVE W/ RED CAP
WR98X20 WR98X20 R600A CHARGE CAN 20 GRAMS
WR98X45 WR98X45 R600A CHARGE CAN 45 GRAMS

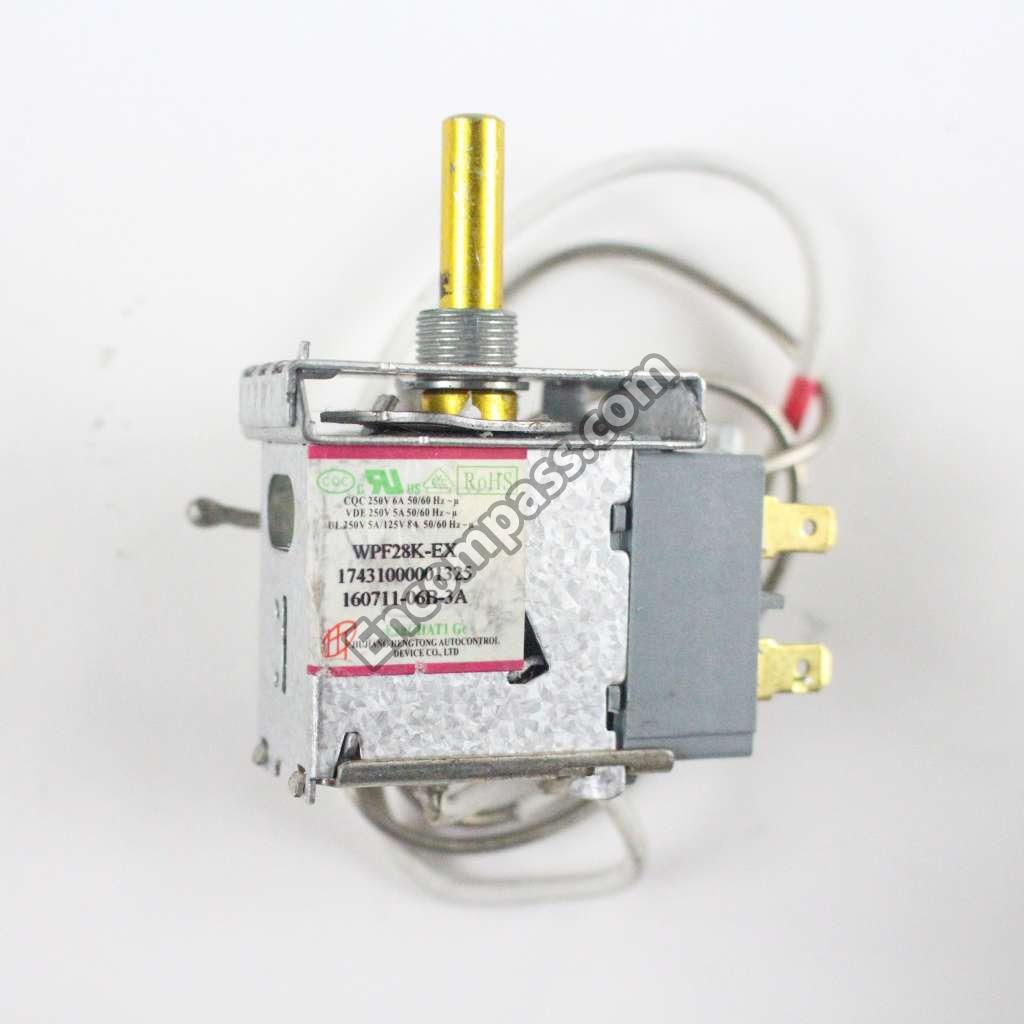

WR50X21296 WR50X21296 REFRIGERATOR THERMOSTAT
WR01X21293 WR01X21293 RUBBER GROMMET
WR17X21294 WR17X21294 SHUTTER
WR09X21295 WR09X21295 TEMPERATURE CONTROL BOX
WR50X20302 WR50X20302 THERMOSTAT KNOB
WR02X21297 WR02X21297 UPPER HINGE COVER
