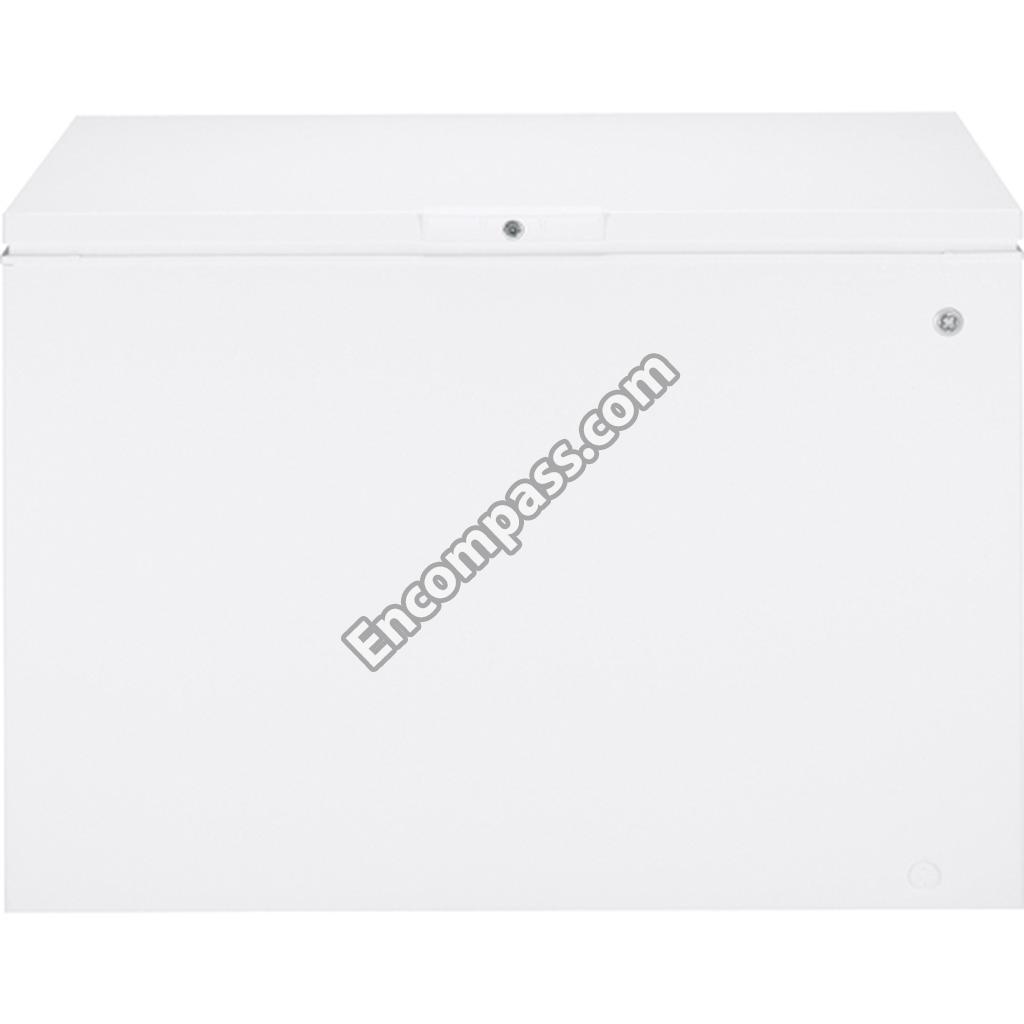

Model Image
Manufacturer

GE

Model Number

FCM15DTBWH

Description

Freezer

Interactive Exploded View

Parts List

Part Number Description
WR17X3069 WR17X3069 ACCESS PANEL
WR84X10004 WR84X10004 AUXILIARY CONDENSER
WR21X10132 WR21X10132 BASKET BLUE
WR40X10049 WR40X10049 BREAKER LOCK SIDE
WR40X10004 WR40X10004 BREAKER STRIP CORNERS
WR40X10055 WR40X10055 BREAKER STRIP ENDS
WR40X10003 WR40X10003 BREAKER STRIP HINGE SIDE
WR62X0097 WR62X0097 CAPACITOR
WR62X10058 WR62X10058 CAPACITOR RUN 220 VAC
WR02X12337 WR02X12337 CATCH-LOCK WH
WR01X5218 WR01X5218 CLAMP
WR01X1608 WR01X1608 CLIP
WR02X12032 WR02X12032 CLIP CONTROLLER
WR01X10679 WR01X10679 CLIP SPRING
WR02X10860 WR02X10860 COLD CONTROL KNOB
WR87X10204 WR87X10204 COMPRESSOR
WR09X10059 WR09X10059 CONTROL TEMP
WR08X10073 WR08X10073 CONTROLLER
WR86X10005 WR86X10005 DRYER & FILTER
WR1X5134 WR1X5134 F59555
WR01X10492 WR01X10492 FASTENER .330 DIA STUD
WR24X10005 WR24X10005 GASKET
WR01X5134 WR01X5134 GROMMET
WR12X10073 WR12X10073 HANDLE WHITE
WR23X10461 WR23X10461 HARNESS-LID
WR13X5140 WR13X5140 HINGE
WR13X10017 WR13X10017 HINGE
WR01X1965 WR01X1965 HOSE ADAPTER
WR1X1965 WR1X1965 HOSE ADAPTER
WR01X26468 WR01X26468 KEY
WR2X5676 WR2X5676 LEVELNG JACK
WR23X10690 WR23X10690 LIGHT SOCKET
WR05X10028 WR05X10028 LOCK ASM
31-51657 31-51657 MINI MANUAL
WR04X10159 WR04X10159 NAMEPLATE
49-60442 49-60442 OWNER'S MANUAL
WR78X10554 WR78X10554 PANEL OUTER DOOR WHIT
WR77X10062 WR77X10062 PANEL-LID
WR02X12563 WR02X12563 PLUG BUTTON WH
WR02X10073 WR02X10073 PLUG DRAIN
WR02X12063 WR02X12063 PLUG DRAIN EXTERIOR
WR02X11935 WR02X11935 PLUGBUTTON1/4WHITE
WR23X10500 WR23X10500 POWER CORD
WR01X10823 WR01X10823 SCREW -SUPPORT
WR01X1520D WR01X1520D SCREW INNER PANEL
WR02X5105 WR02X5105 SCREW PANEL TO EVAP
WR1X2209 WR1X2209 SCREW TOE GR
WR01X2209 WR01X2209 SCREW, BACK LID
WR02X12203 WR02X12203 SHIELD LIGHT
WR17X3339 WR17X3339 SUPPORT COMPRESSOR
WR2X4715 WR2X4715 SUPPORT R
WR23X10303 WR23X10303 SWITCH LIGHT
WR01X10164 WR01X10164 WASHER FLAT
