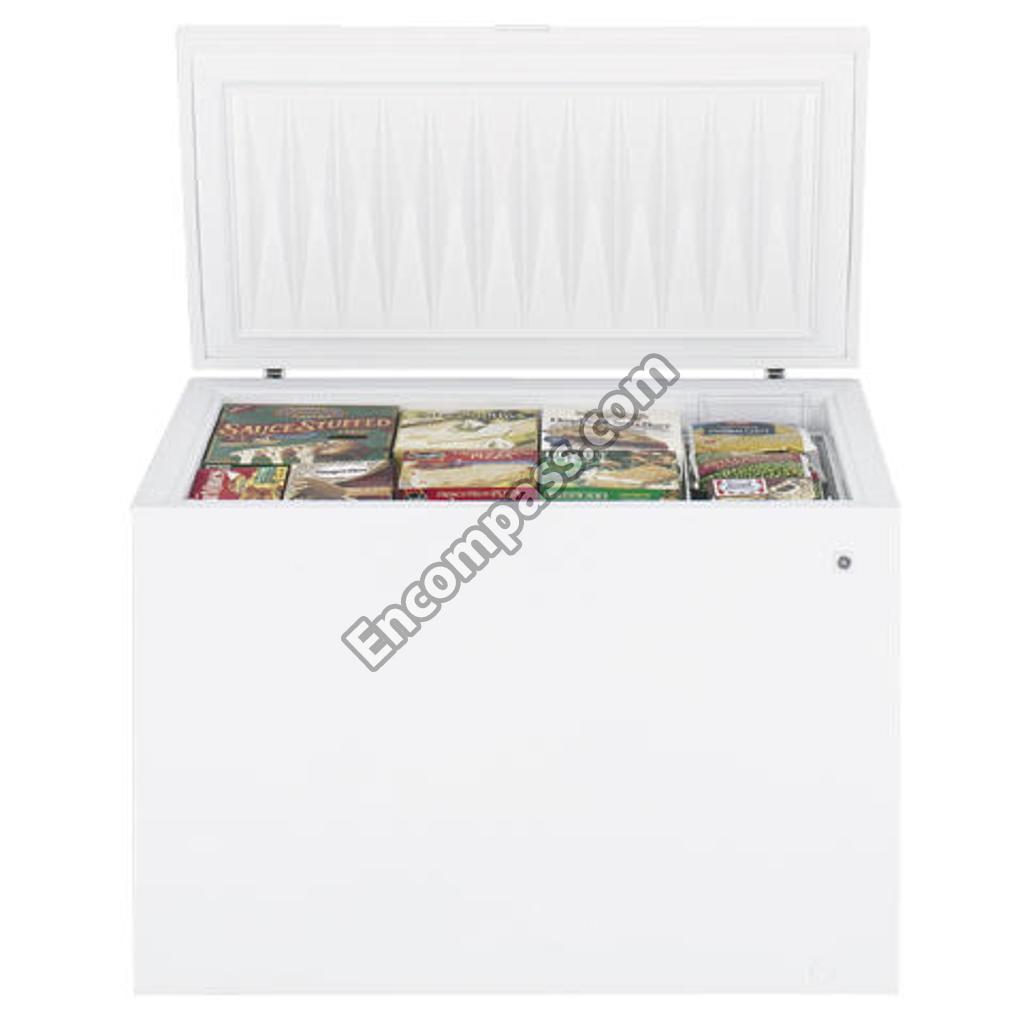

Model Image
Manufacturer

GE

Model Number

FCM15SMAWH

Description

Freezer

Interactive Exploded View

Parts List

Part Number Description
WR17X3069 WR17X3069 ACCESS PANEL
WR84X10004 WR84X10004 AUXILIARY CONDENSER
WR21X0195 WR21X0195 BASKET
WR21X195 WR21X195 BASKET
WR40X10004 WR40X10004 BREAKER STRIP CORNERS
WR40X10055 WR40X10055 BREAKER STRIP ENDS
WR40X10008 WR40X10008 BREAKER STRIP HINGE SIDE
WR40X10007 WR40X10007 BREAKER STRIP LOCK SIDE
WR23X5175 WR23X5175 BUZZER ALARM
WR62X10025 WR62X10025 CAPACITOR
WR02X10403 WR02X10403 CLAMP
WR01X1608 WR01X1608 CLIP
WR1X2183 WR1X2183 CLIP LINER
WR01X1909 WR01X1909 CLIP PANEL
WR01X2183 WR01X2183 CLIP PANEL
WR1X1909 WR1X1909 CLIP PANEL
WR02X10860 WR02X10860 COLD CONTROL KNOB
WR87X10054 WR87X10054 COMPRESSOR
WR09X10059 WR09X10059 CONTROL TEMP
WR09X10058 WR09X10058 CONTROL TEMP
WR08X10034 WR08X10034 CONTROLLER
WR1X5134 WR1X5134 F59555
WR01X2011 WR01X2011 FASTENER
WR1X2011 WR1X2011 FASTENER
WR86X25269 WR86X25269 FILTER AND DRYER ASSEMBLY
WR24X10005 WR24X10005 GASKET
WR24X10075 WR24X10075 GASKET
WR01X5134 WR01X5134 GROMMET
WR12X10072 WR12X10072 HANDLE CHROME
WR13X5140 WR13X5140 HINGE
WR13X10017 WR13X10017 HINGE
WR13X10175 WR13X10175 HINGE
WR01X1965 WR01X1965 HOSE ADAPTER
WR1X1965 WR1X1965 HOSE ADAPTER
WR02X11758 WR02X11758 LATCH DOOR
31-51370 31-51370 MINI MANUAL
WR04X10093 WR04X10093 NAME PLATE
WR04X10016 WR04X10016 NAMEPLATE
WR86X96 WR86X96 P/S DRYER KIT R134A
WR77X10017 WR77X10017 PANEL INNER WHITE
WR77X10022 WR77X10022 PANEL INNER WHITE
WR77X10041 WR77X10041 PANEL INNER WHITE
WR78X10176 WR78X10176 PANEL OUTER DOOR WHIT
WR78X10554 WR78X10554 PANEL OUTER DOOR WHIT
WR78X10479 WR78X10479 PANEL OUTER DOOR WHIT
WR78X10555 WR78X10555 PANEL OUTER DOOR WHITE
WR02X12563 WR02X12563 PLUG BUTTON O D PANEL
WR02X10073 WR02X10073 PLUG DRAIN
WR02X12063 WR02X12063 PLUG DRAIN EXTERIOR
WR02X9508 WR02X9508 PLUG DRAIN INNER
WR23X0108 WR23X0108 POWER CORD
WR23X10300 WR23X10300 POWER CORD
WR02X10075 WR02X10075 POWER ON LIGHT
WR1X1910 WR1X1910 RETAINER COR
WR01X1910 WR01X1910 RETAINER CORD
WR1X5659 WR1X5659 SCREW
WR01X10162 WR01X10162 SCREW HEX WASHER HEAD
WR02X5105 WR02X5105 SCREW PANEL TO EVAP
WR01X5659 WR01X5659 SCREW SUPPORT
WR1X2209 WR1X2209 SCREW TOE GR
WR01X2209 WR01X2209 SCREW, BACK LID
WR02X10423 WR02X10423 SOCKET-LIGHT/LAMP
WR17X3339 WR17X3339 SUPPORT COMPRESSOR
WR2X4715 WR2X4715 SUPPORT R
WR23X5171 WR23X5171 SWITCH ROCKER
49-60040 49-60040 USE AND CARE MANUAL
WR23X10048 WR23X10048 WIRE HARNESS LID
WR23X10127 WR23X10127 WIRE HARNESS LID
WR40X10003 WR40X10003 WR40X10003
WR40X10047 WR40X10047 WR40X10011
WR86X10005 WR86X10005 WR86X10005
