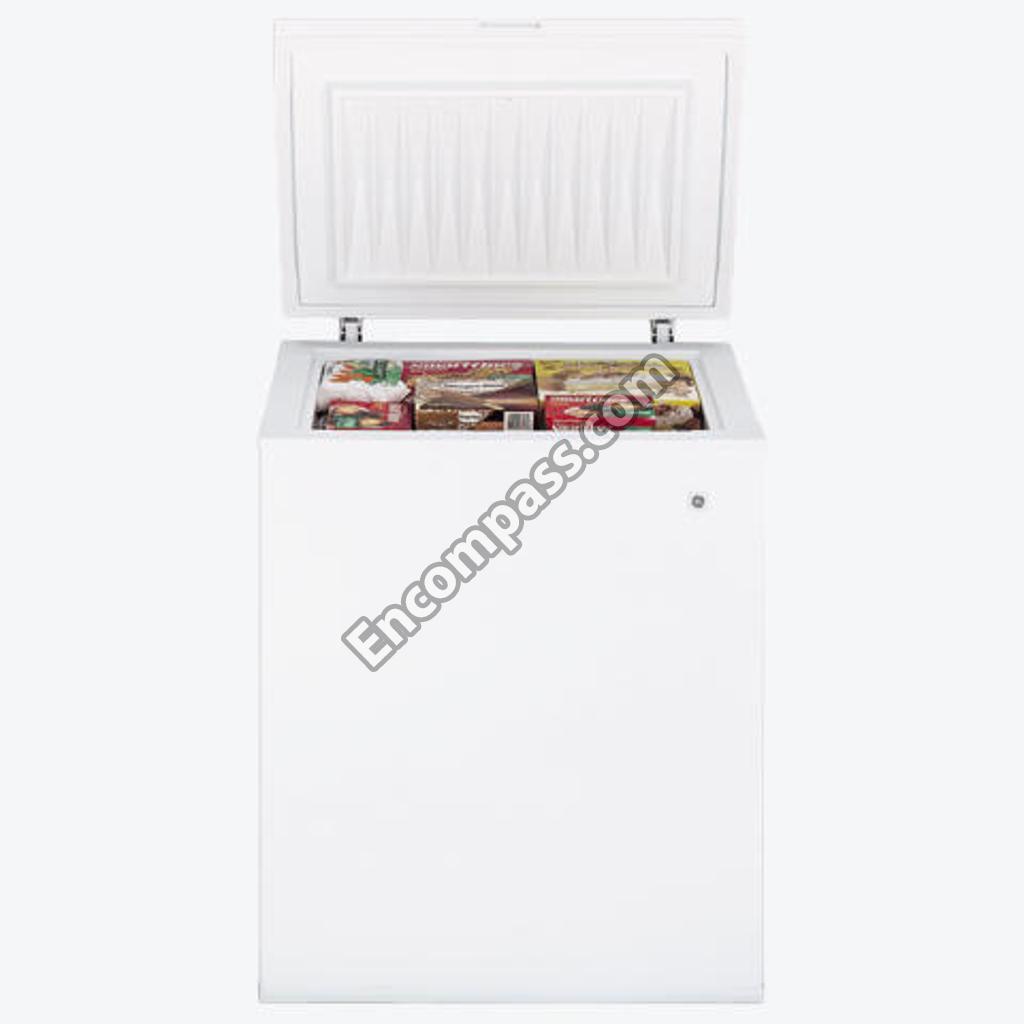

Model Image
Manufacturer

GE

Model Number

FCM5SMBWH

Description

Freezer

Interactive Exploded View

Parts List

Part Number Description
WR21X10022 WR21X10022 BASKET
WR02X11972 WR02X11972 CLAMP
WR09X10053 WR09X10053 COLD CONTROL
WR87X10202 WR87X10202 COMPRESSOR
WR55X10460 WR55X10460 CONTROL PANEL
WR13X10133 WR13X10133 COVER HINGE UPPER
WR13X10132 WR13X10132 COVER-HINGE LOW
WR02X10679 WR02X10679 DIAL-C0LD CONTROL
WR21X10023 WR21X10023 DIVIDER
WR02X11340 WR02X11340 DRAIN LINKER
WR02X10794 WR02X10794 DRAIN PLUG INNER
WR02X10677 WR02X10677 DRAIN PLUG OUTER
WR02X11973 WR02X11973 GROMMENT - COMP
WR13X10265 WR13X10265 HINGE
WR55X24065 WR55X24065 KIT CAPACITOR 15 UF
WR17X11825 WR17X11825 LID FOAM ASM
31-51578 31-51578 MINI MANUAL
WR09X20943 WR09X20943 OVERLOAD PROTECTOR
49-60107 49-60107 OWNERS MANUAL
WR07X10089 WR07X10089 PTC-RELAY
WR17X10821 WR17X10821 SIDE GRILLE
